近年来曼谷市的豪华住宅项目现在正在向城市外围扩展。项目Grand pinklao是泰国上流社会房地产项目之一，位于Borommaratchonnani路，这是泰国西部的主要道路。该项目需要在总体规划的门前建立一个醒目的俱乐部，从主干道上很容易看到。

Luxury housing project in Bangkok city is now expands to outer of the city. The Grand pinklao project which is one of the upper class leading real estate in Thailand is located in Borommaratchonnani Rd. which is the main road to the west of Thailand. The project needs the prominent clubhouse in front of the master plan for gateway and easily seen from the main road.

项目

建筑项目包括一楼的多方案和办公室，二楼的销售办公室、健身游泳池和设施。

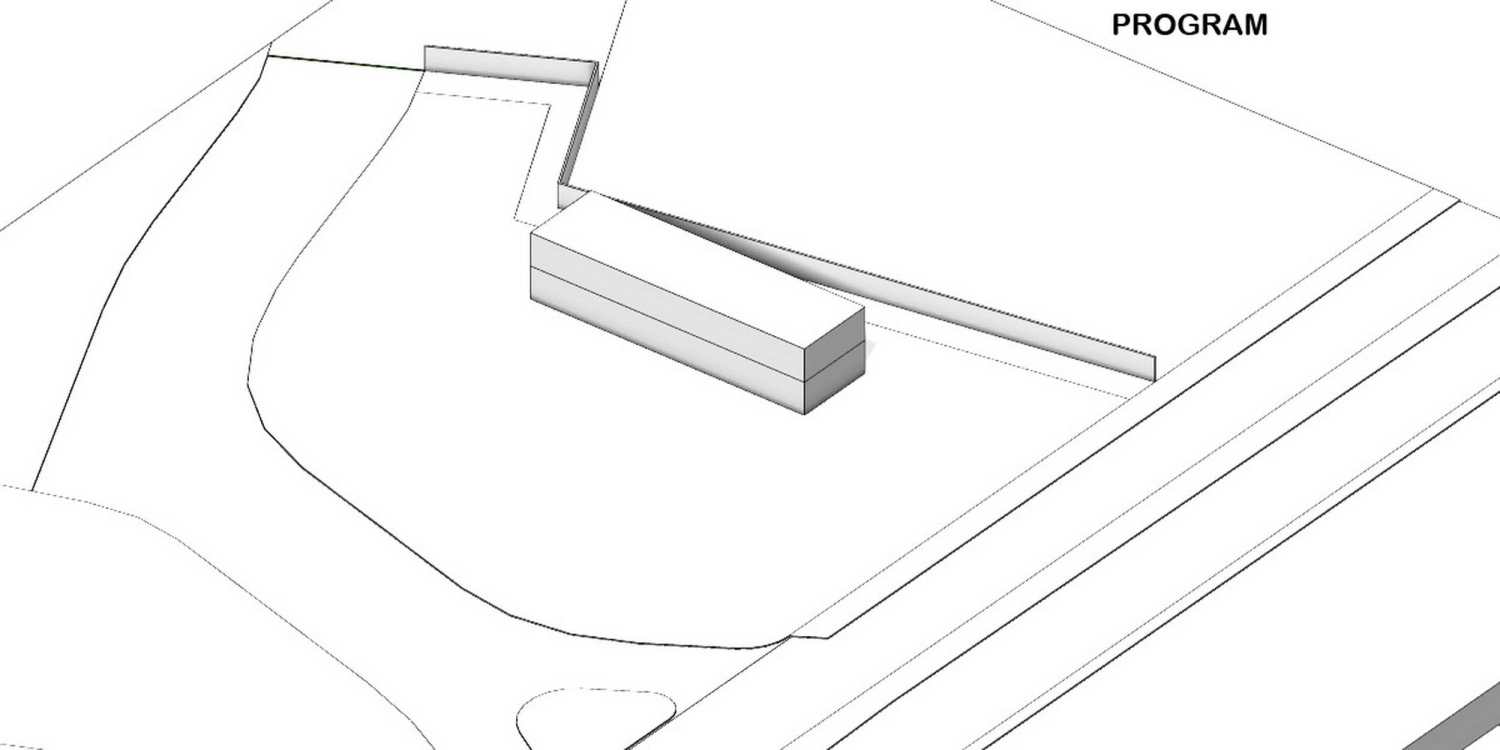

Program

The building program includes multi propose and office on the first floor Sale office, fitness swimming pool and facility on the 2nd floor.

坡度和高度

从业主对新建筑的要求来看，它应该是独特的，从主干道上很容易看到的，因此，该建筑位于2米高的景观之上，建筑高度延伸到12米，这是规定的高度限制。

Slope & Height

From requirement of the owner for the new building, it should be unique and easily seen from main road so the building is sit on the top of 2 metre height landscape and the building height is extend to the 12 meter level which is the height limit by regulation.

曲折体量

售楼处、健身中心等建筑主体沿主干道曲折布置，从主干道上可以清晰看到。建筑物的其他部分如游泳池、机械厂等沿南北方向布置，两部分形成L型平面。

Twist

The main program of the building such as sale office, fitness etc is twist along the main road to clearly seen from main road. The other part of the building such as swimming pool and mechanic is place along north and south direction so both parts form an L shape plan.

日向

建筑轴线也符合东南亚地区的适宜朝向。建筑的东西两面均为狭长面，特别是西面，有4.5米以上的长遮阳，以保护建筑免受太阳光的照射，增加节能性能。

Sun orientation

The building axis also matches with the suitable orientation in Southeast Asia. The narrow face of the building face the sun on east and west side, especially on the west, there is a long shading over 4.5 meter to protect the building from sun light and increase energy saving performance.

停车及行人通道

从建筑布局上看，建筑既面对主干道，又面对总体规划内的住宅项目。从停车场进入建筑的入口，以及由景观引出的人行道均来自项目内部。

Parking & Pedestrian

From the building layout, the building is faced on both main road and the housing project inside of the master plan. The entrance to the building from parking and pedestrian leading by landscape are come from inside of the project.

建筑结构

为了使建筑成为住宅项目的门户。建筑物采用柱式张拉结构，前后悬臂7.5米，形成平衡结构。

Structure

In order to make building as gateway to the housing project. The building use post tension structure to make a balance structure by cantilever both front and back of the building for 7.5 meter.

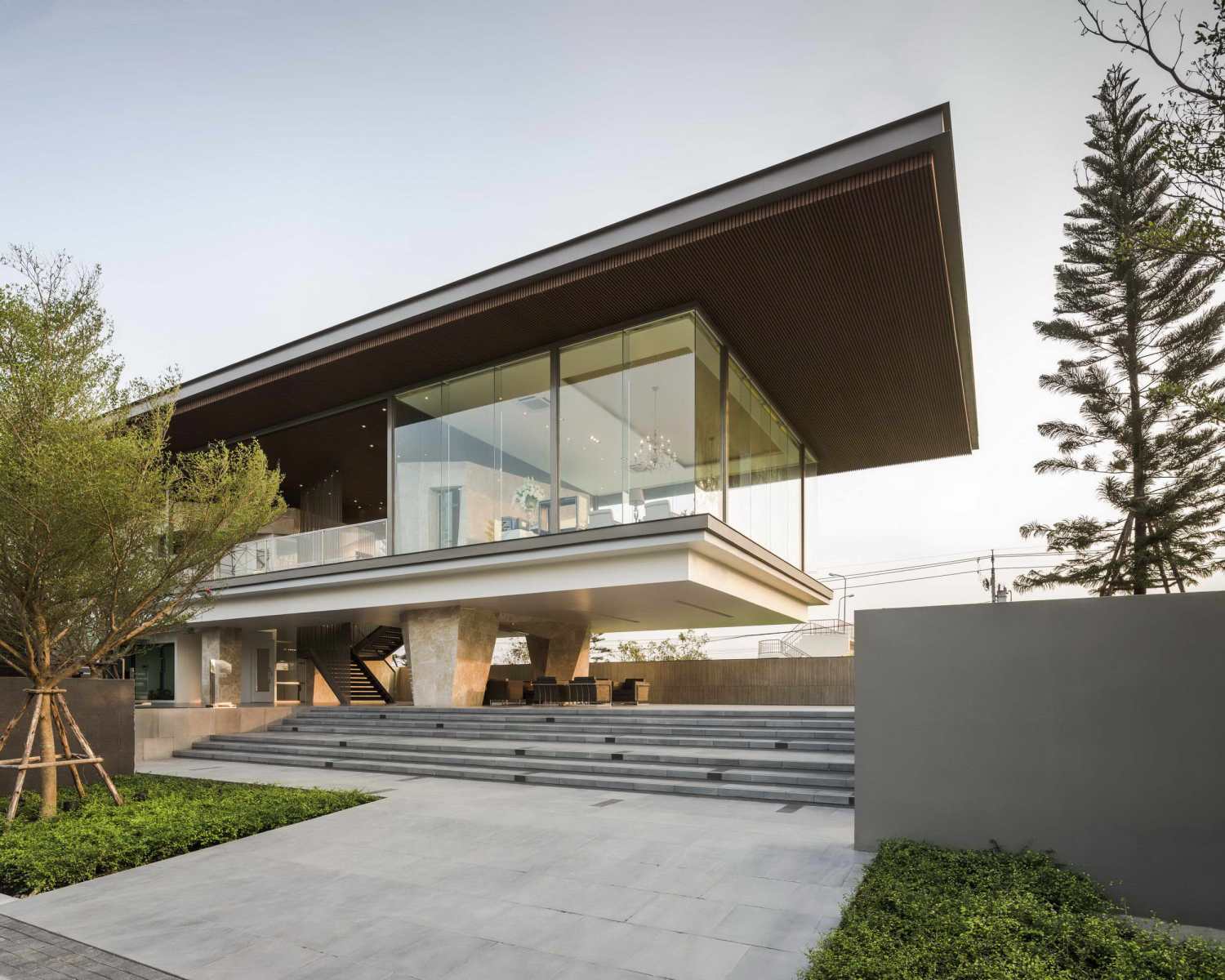

石头上的玻璃盒

建筑的二层外皮采用透明玻璃，以便清晰地看到内部的空间和活动。厕所、会议室等需要私密性的功能在建筑内用不规则的砖墙覆盖，并用石材包覆，使其看起来像天然的石材形状，所以最终形成的建筑形状是石头上面的玻璃盒子。

Glass box on the stone

The 2nd floor exterior skins of the building are clear glass in order to clearly see space and activities inside. The functions that need privacy in the building such as toilet, meeting room are covered with irregular brick wall and clad with stone to make them look like natural stone shapes so the resulting shape of the building is a glass box on top of stones.

轴侧分解

该建筑由3种结构组成。一楼采用柱梁式结构，用于支撑底层楼板和游泳池，二楼采用柱式张拉结构，因为长悬臂需要特殊结构，主柱止于二楼楼板。二层由于需要长悬臂的特殊结构，采用柱式张拉结构，主柱止于二层楼板。

Explode diagram

The building are composed of 3 types of structure. Post & Beam structure is used for support ground floor plate and swimming pool. The 2nd floor use post tension structure since it need unusual structure for long cantilever and the main column are stop at the 2nd floor plate. From 2nd floor to the roof of the building, steel structure is used to make the 2nd floor glass box float.
