佛山·龙江外国语学校附属小学改造（旺岗小学）

一、总体概况 Overview

龙江外国语学校附属小学（旺岗学校）位于顺德区龙江镇，学校周边是珠三角典型的密集型村落，毗邻龙江镇最大的家具产业园区三联工业园，用地紧缺，周边无可拓展用地，优质学位与校园空间之间的矛盾十分突出。为满足学位和办学质量的要求，设计中充分拓展现有校园用地利用空间，提高空间利用率，进而解决学校活动场地不足问题，将办学规模将由扩建前 22 个班增至 42 个班。

The Primary School Affiliated to Longjiang Foreign Language School (Wanggang School) is located in Longjiang, Shunde. The school is surrounded by a range of dense villages that are typical and symbolic in the Pearl River Delta. It is adjacent to Sanlian Industrial Park, which is the largest furniture industrial area in Longjiang. There is a strict limitation of land for school expansion and the contradiction between supply and demand on the campus space is very prominent. In order to meet the growing demands of high-quality education, the renovation manages to fully expand the existing land for campus and improves the space utilization rate as much as possible, so as to ensure sufficient spaces for outdoor activities and to increase the number of the classroom from 22 classes to 42 classes.

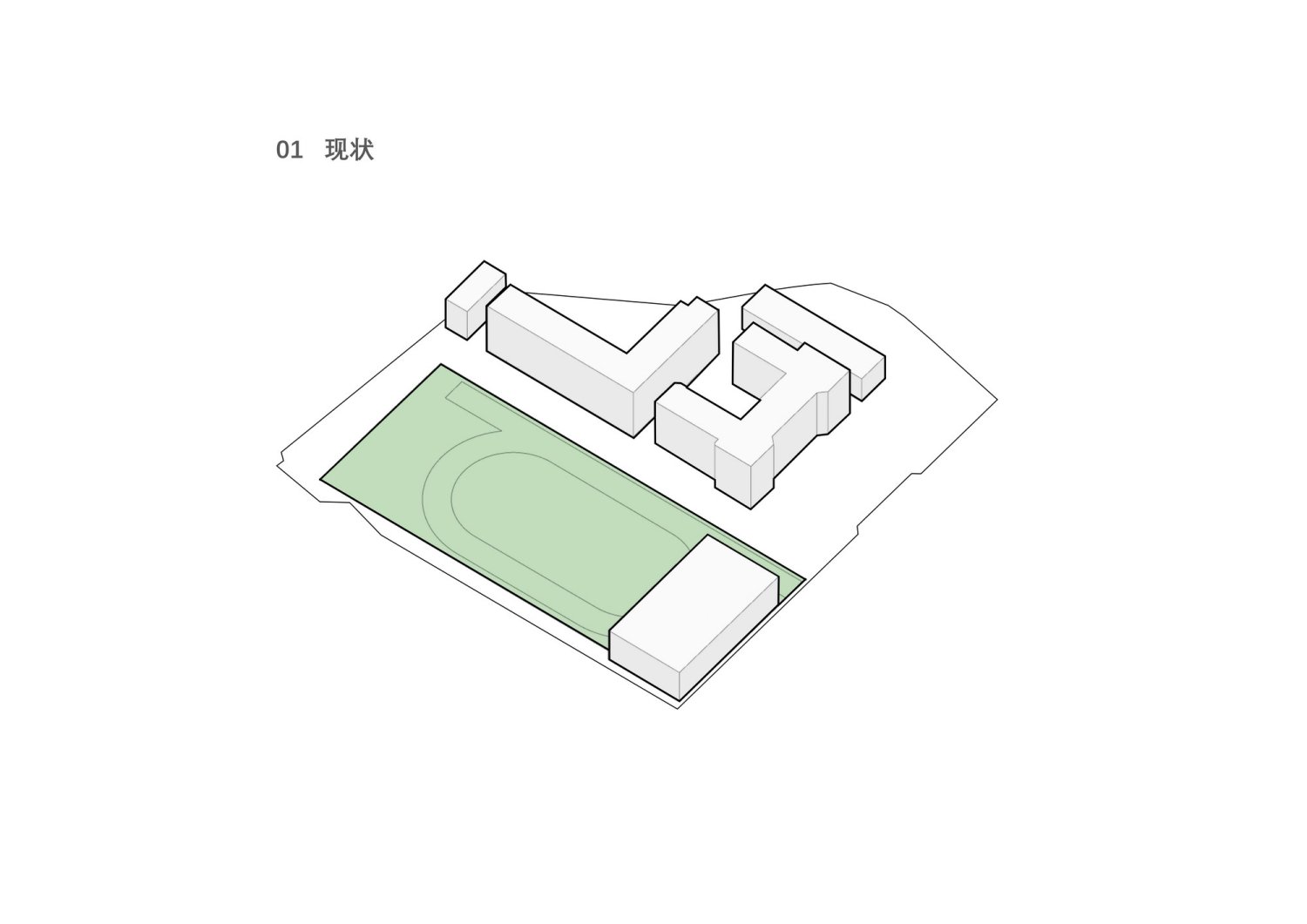

△原校园鸟瞰

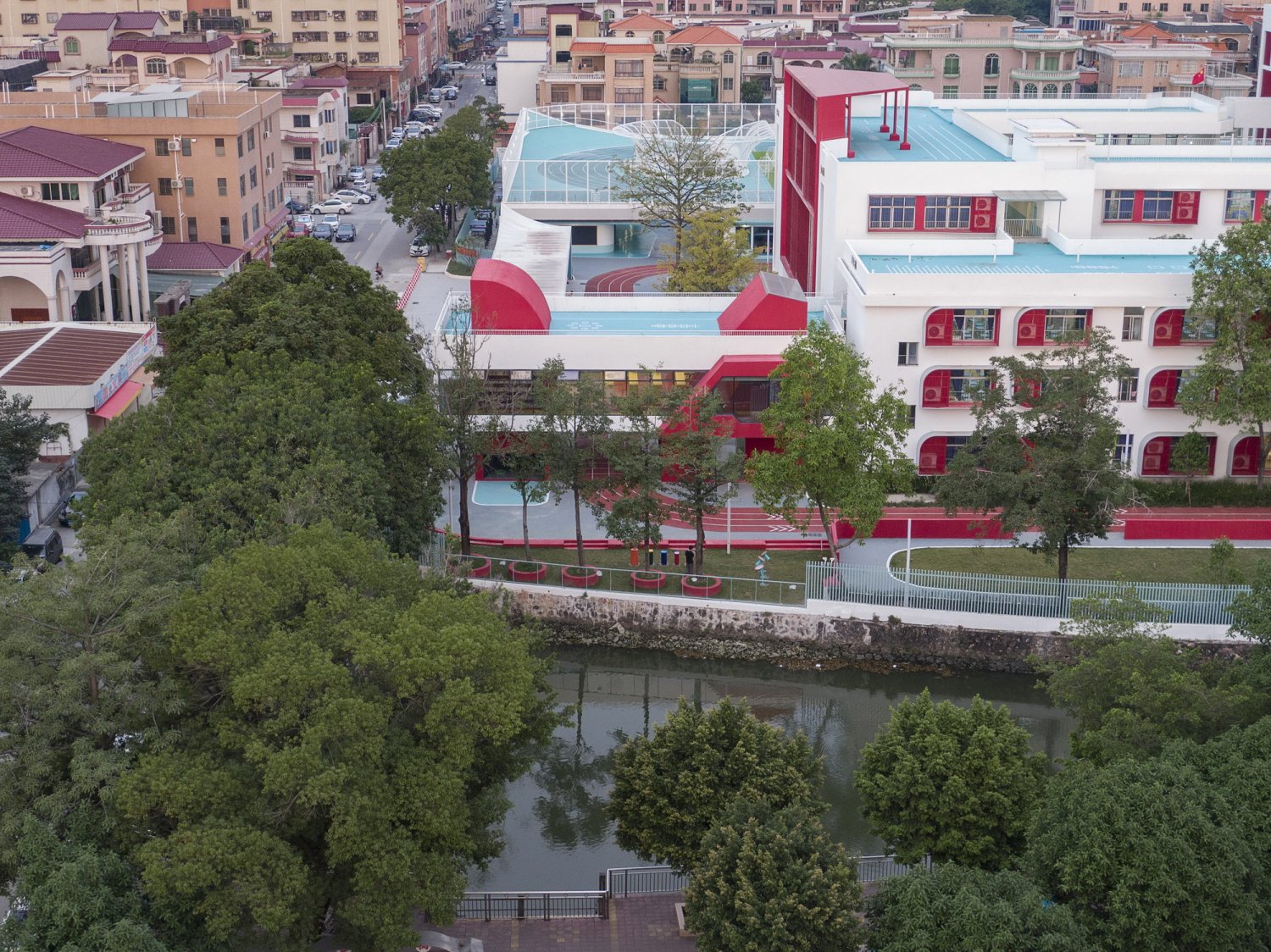

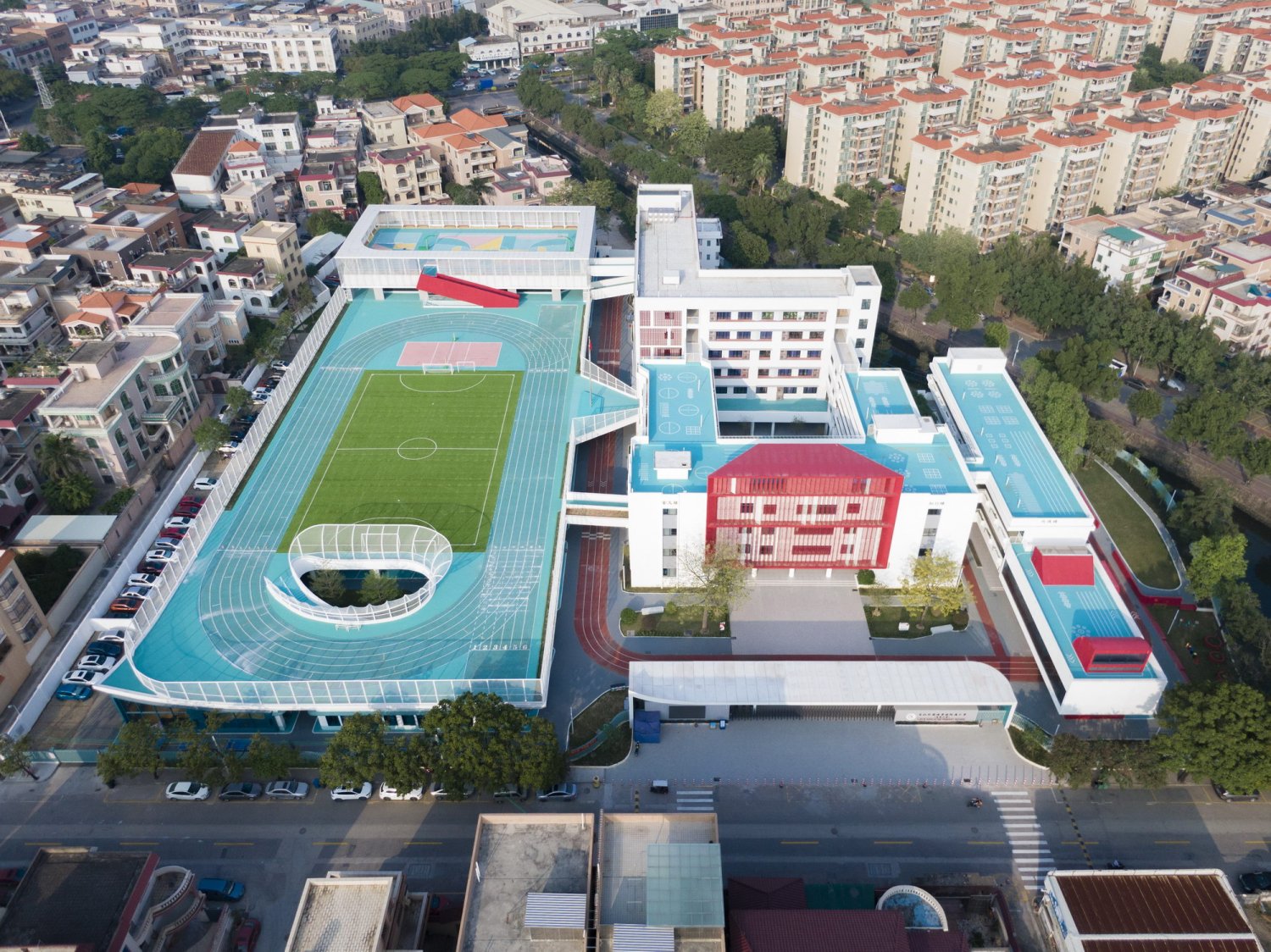

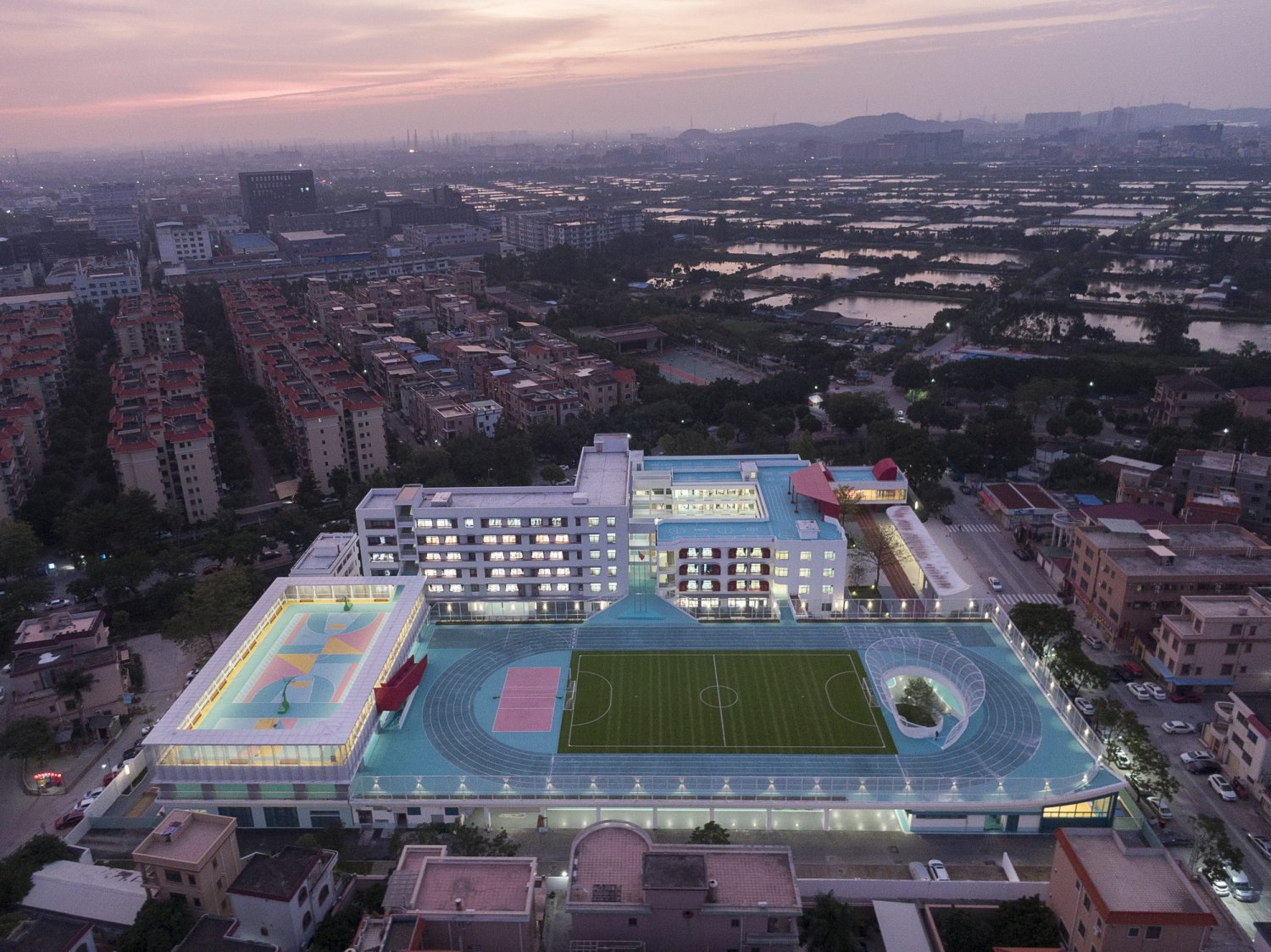

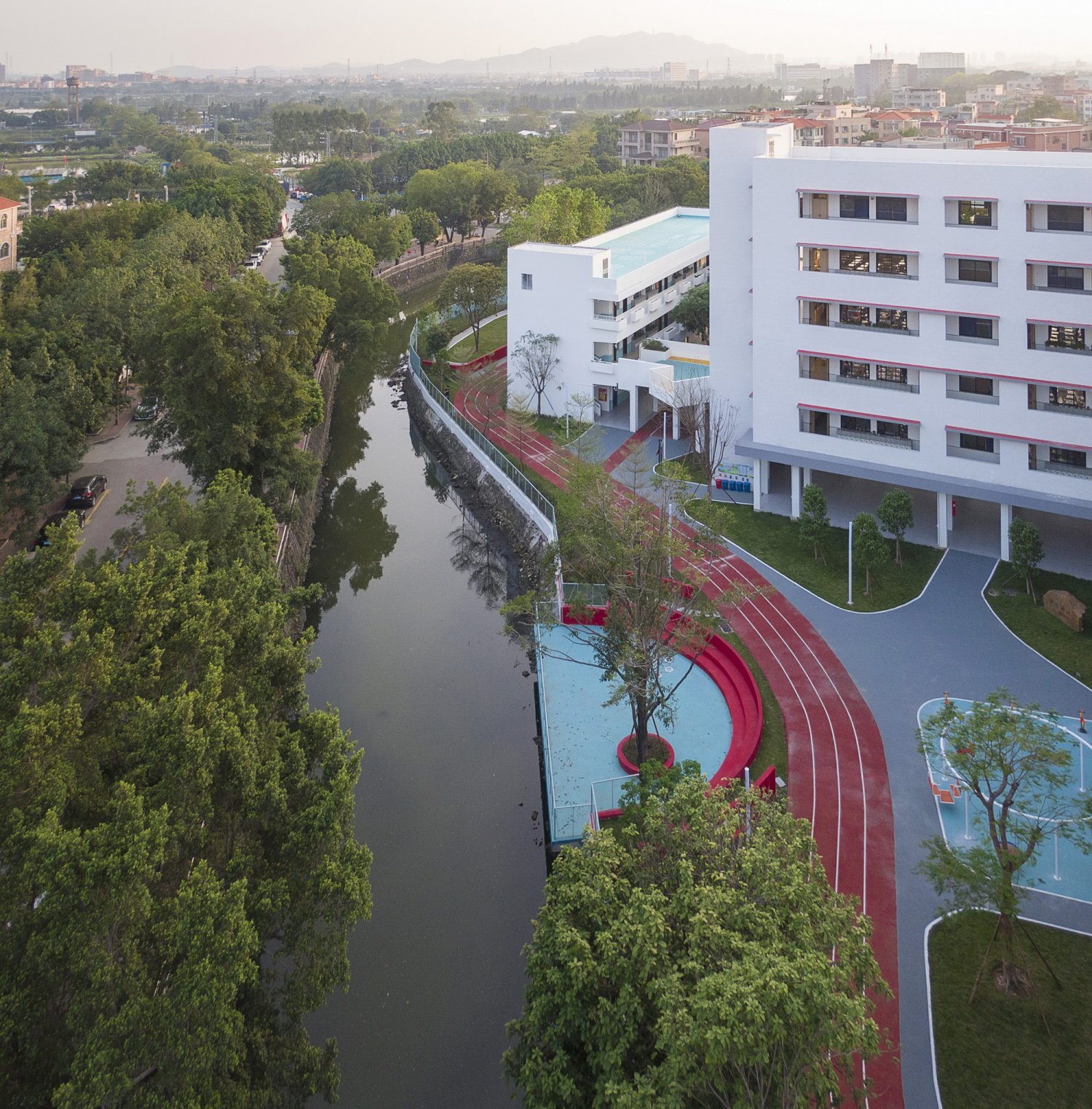

△改造后鸟瞰日景

△改造后鸟瞰夜景

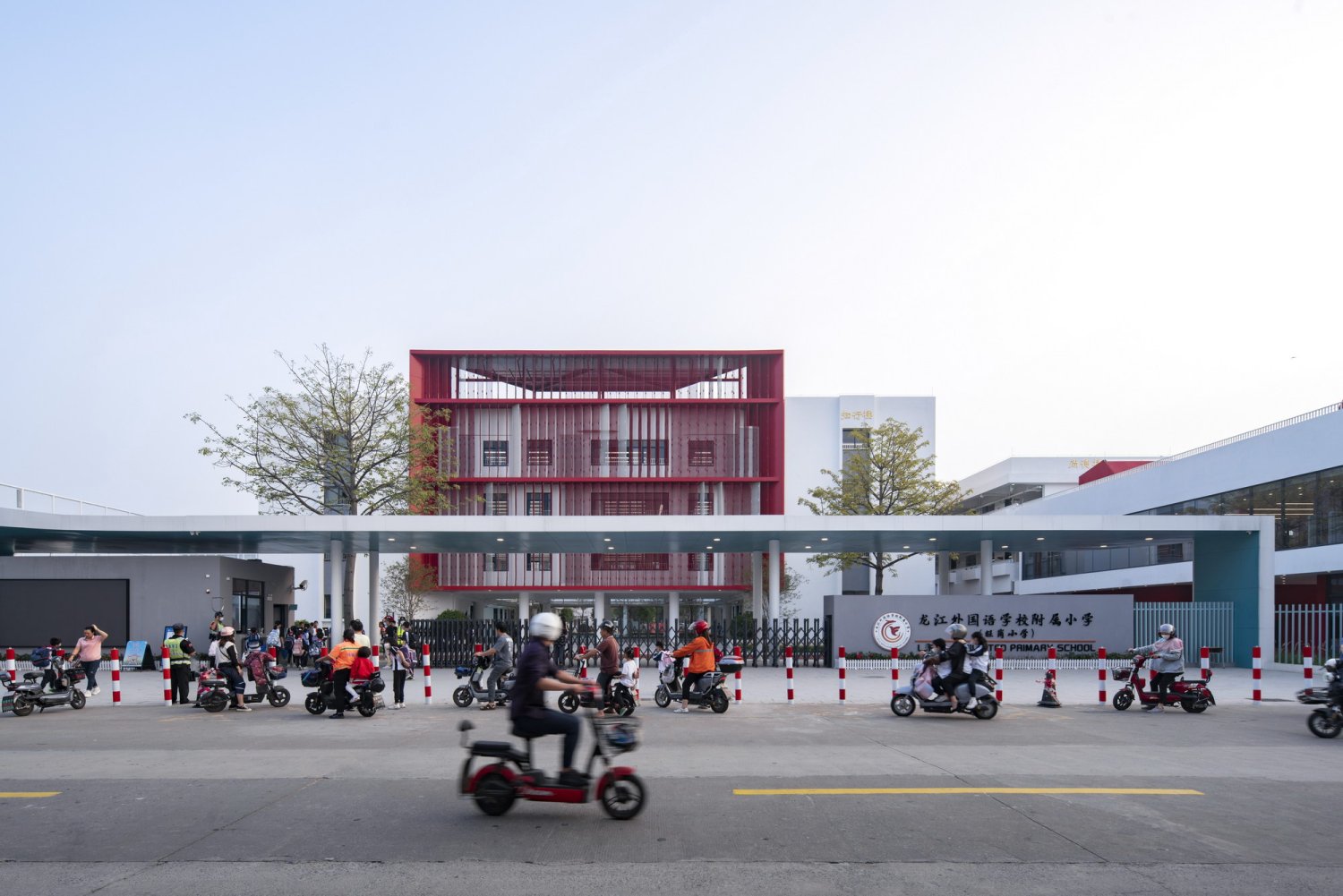

△学校正门

二、突破指标，立体校园  A Multi-dimensional Campus

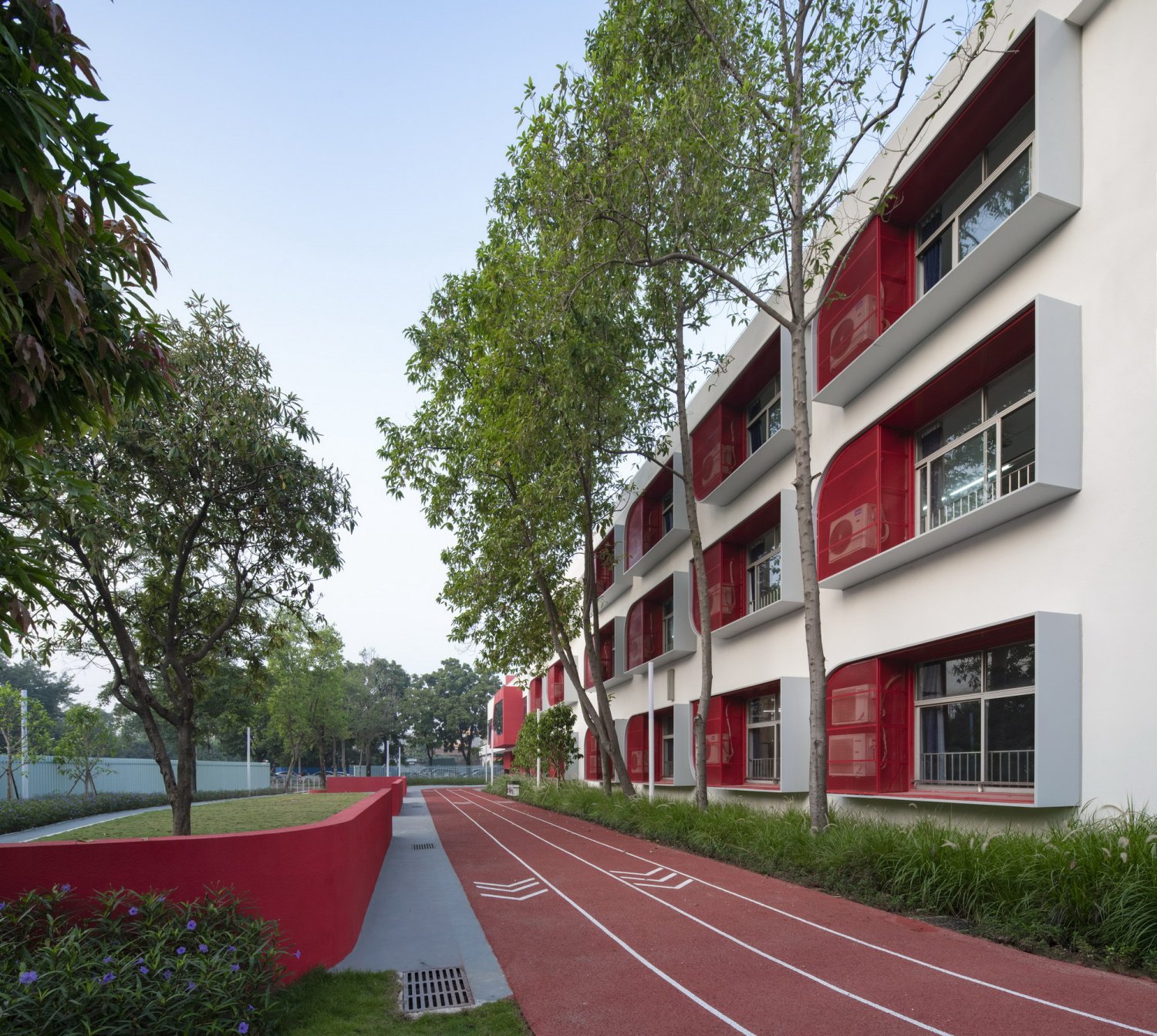

在周边无可拓展用地的条件下，设计方案选择向垂直方向要空间，项目突破了龙江控规中非强制性密度指标，将运动场抬升4.65m，充分利用运动场下空间，为校园提供了大量的功能场室和活动场地。同时通过连廊连接，提升二层运动场的可达性，并在首层增设了300m环校跑道，形成双首层的运动场地，不仅有效解决了空中运动场所带来的运动场地可达性问题，立体化的校园带来的校园空间丰富性和便捷性，极大程度上提升了校园环境品质。

Due to the limited land resources for horizontal expansion, designers decided to expand campus in vertical direction, which can perfectly satisfy the density index in the Longjiang Control Regulations. By raising the sports field to 4.65m, more flexible spaces are created underneath to provide different functional rooms and spaces for big events. The 300-meter running track on the first floor and the sports field on the second floor, then become spaces that are different but supplement with each other. Moreover, the accessibility to the sports field on the second floor is connected by continuous corridors to improve the circulation. It not only solves the problem of accessibility in between the sports fields, but also offers diversity and convenience on limited spaces.

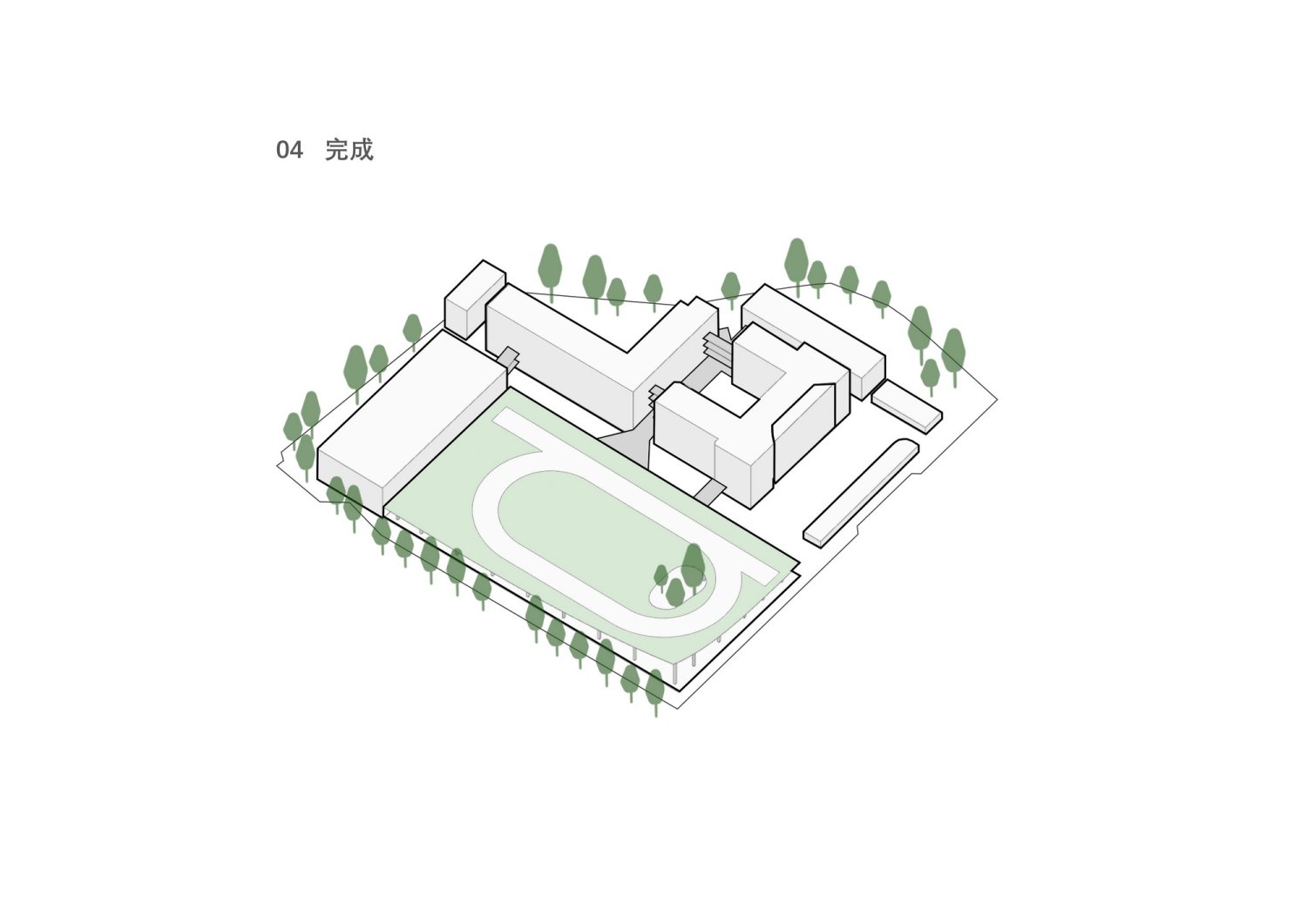

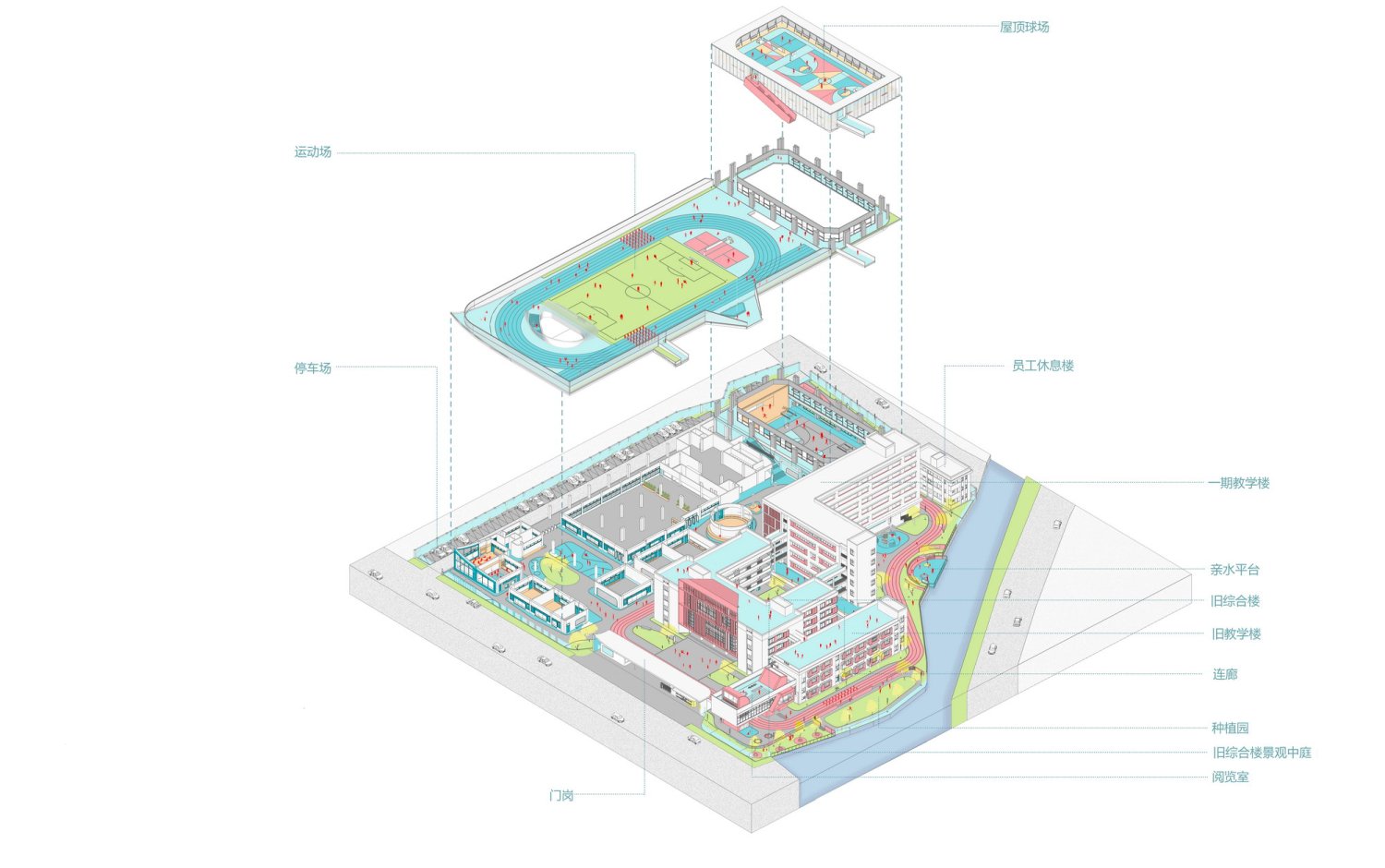

△轴测图

△板下分析图

△半室外活动空间

△文体楼中庭俯瞰

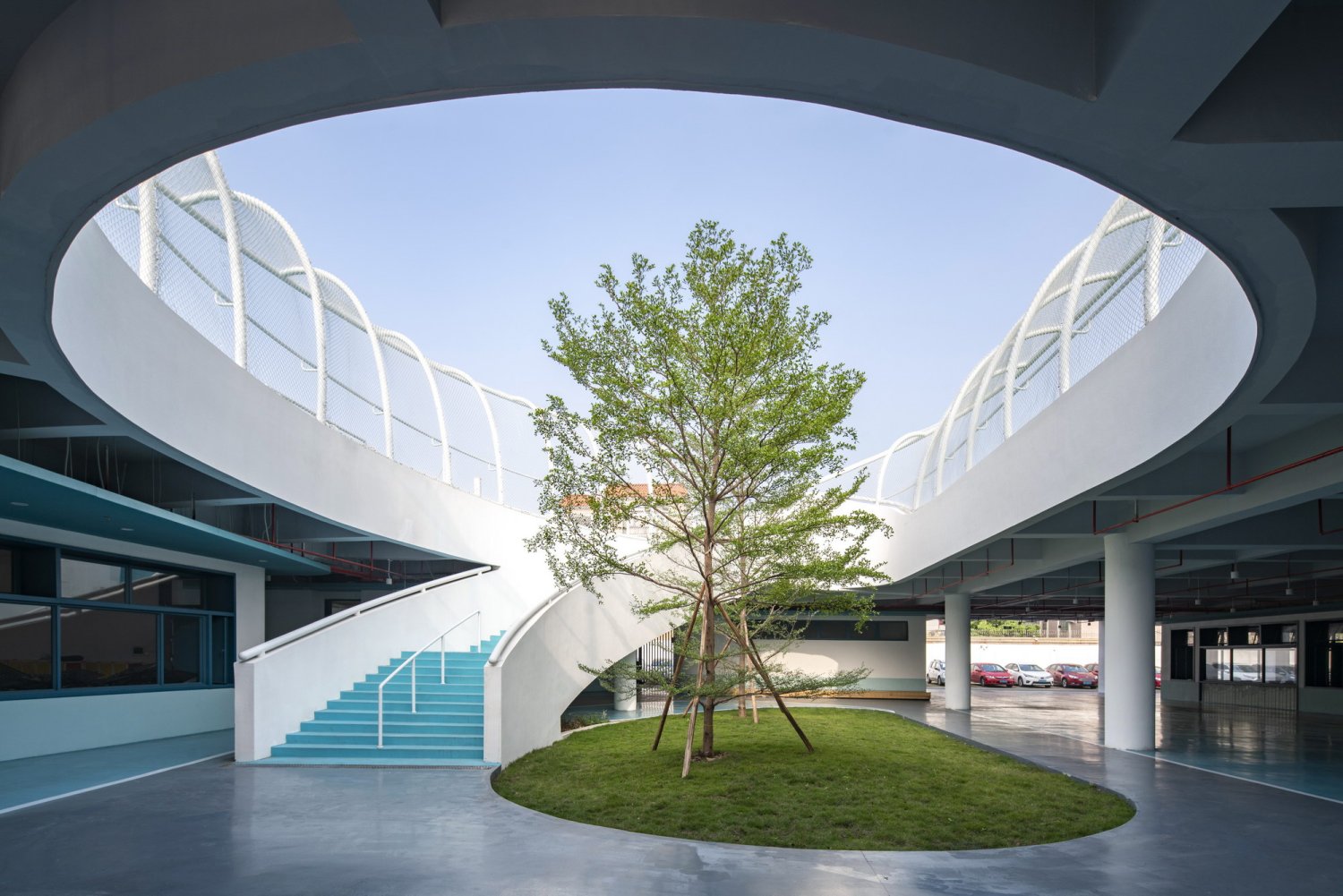

△文体楼中庭

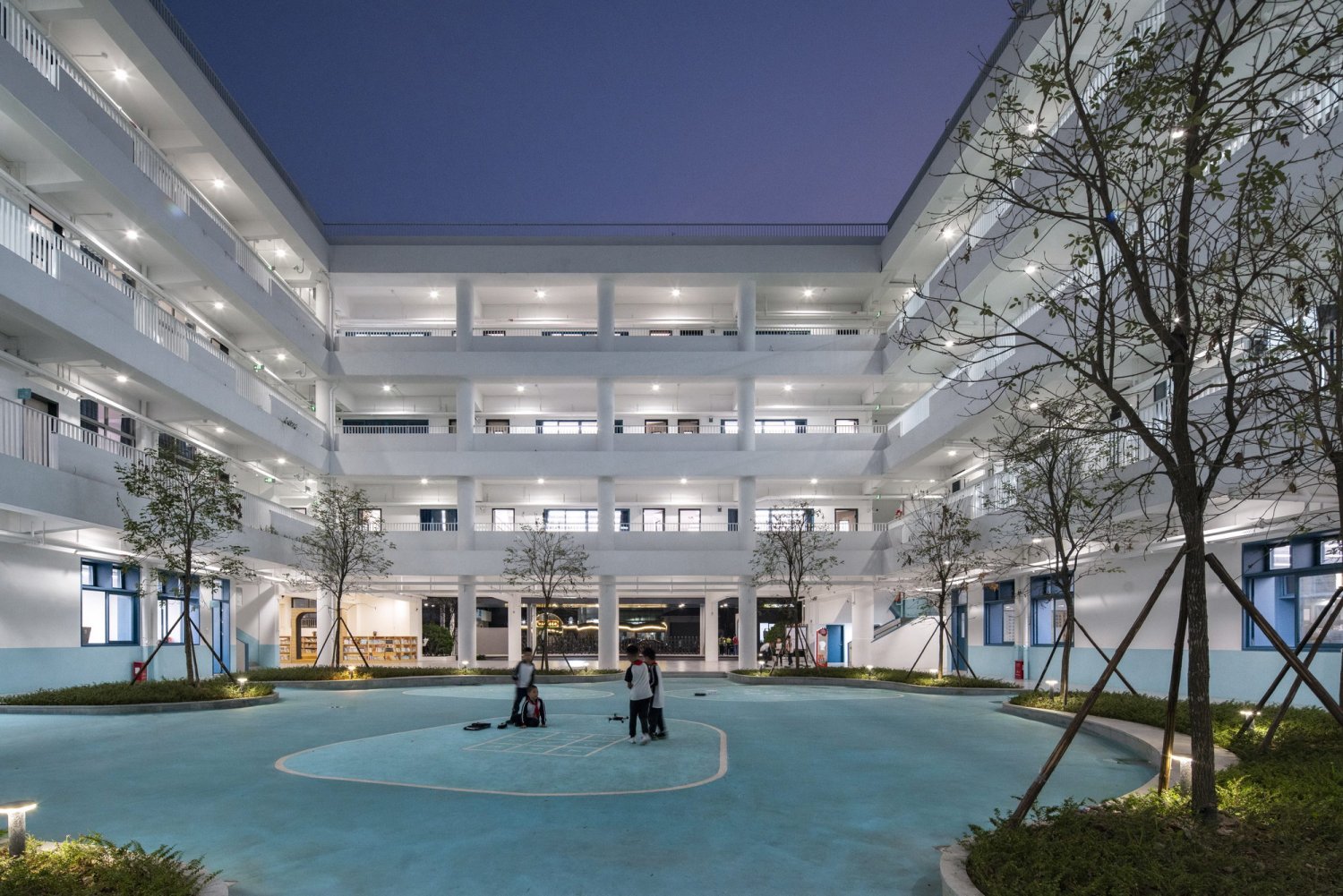

△教学楼中庭

三、流动空间与浮岛校园 ‘Flow Space’ and ‘Floating Island’

项目位于河网密布的顺德水乡，为解决架空运动场下部空间的通风采光和空间品质问题，我们向水乡四通八达的河网结构学习，将室内空间打散成组布置，形成一个个知识岛屿和活动岛屿，内部架空通廊创造出连续流动的架空活动空间。将学生的户外活动从运动场下的架空空间一直连通至滨水河岸。设计充分利用室内空间散置排布所带来的更大的外墙表面积，为学生营造出展示墙，绘画墙，小讲台，图书角等多种多样的微型空间。流动空间与浮岛校园的设计，为学生的课外活动创造大量的多义空间和展示界面，也为运动场下的活动课室带来采光和通风，很好的规避了运动场架空带来的不利因素。

The project is located in Shunde, ‘Town of Water’, where the river network is densely surrounded. Inspired by the river network, designers applied the extending and continuous structure to the spaces underneath the sports field, so as to solve the ventilation and lighting problems. The interior spaces are organized and grouped as a series of floating islands, along a corridor that leads all the way to the waterfront. As the main stream, the corridor connects both the ‘Study Island’ and the ‘Activity Island’, and creates a continuous outdoor space like the flowing water.Moreover, interior spaces are arranged in a specific angle to maximize the exhibition area facing outward, and to create a variety of micro-spaces for students to entertain, such as display walls, painting walls, small podiums, and book corners. The idea of the flow space and the floating island enrich the diversity of spaces underneath the sports field and significantly improve the lighting and ventilation conditions.

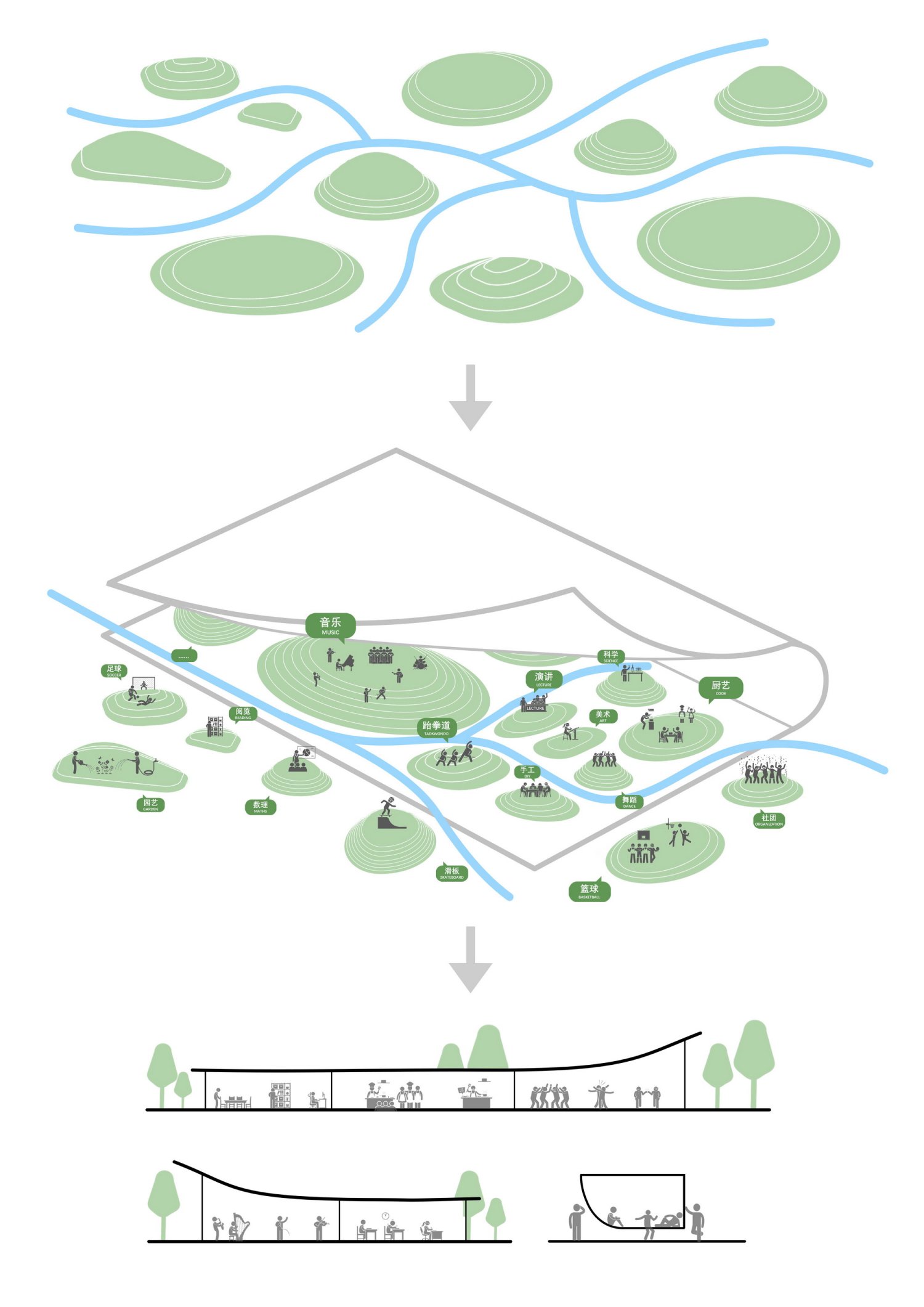

△概念分析

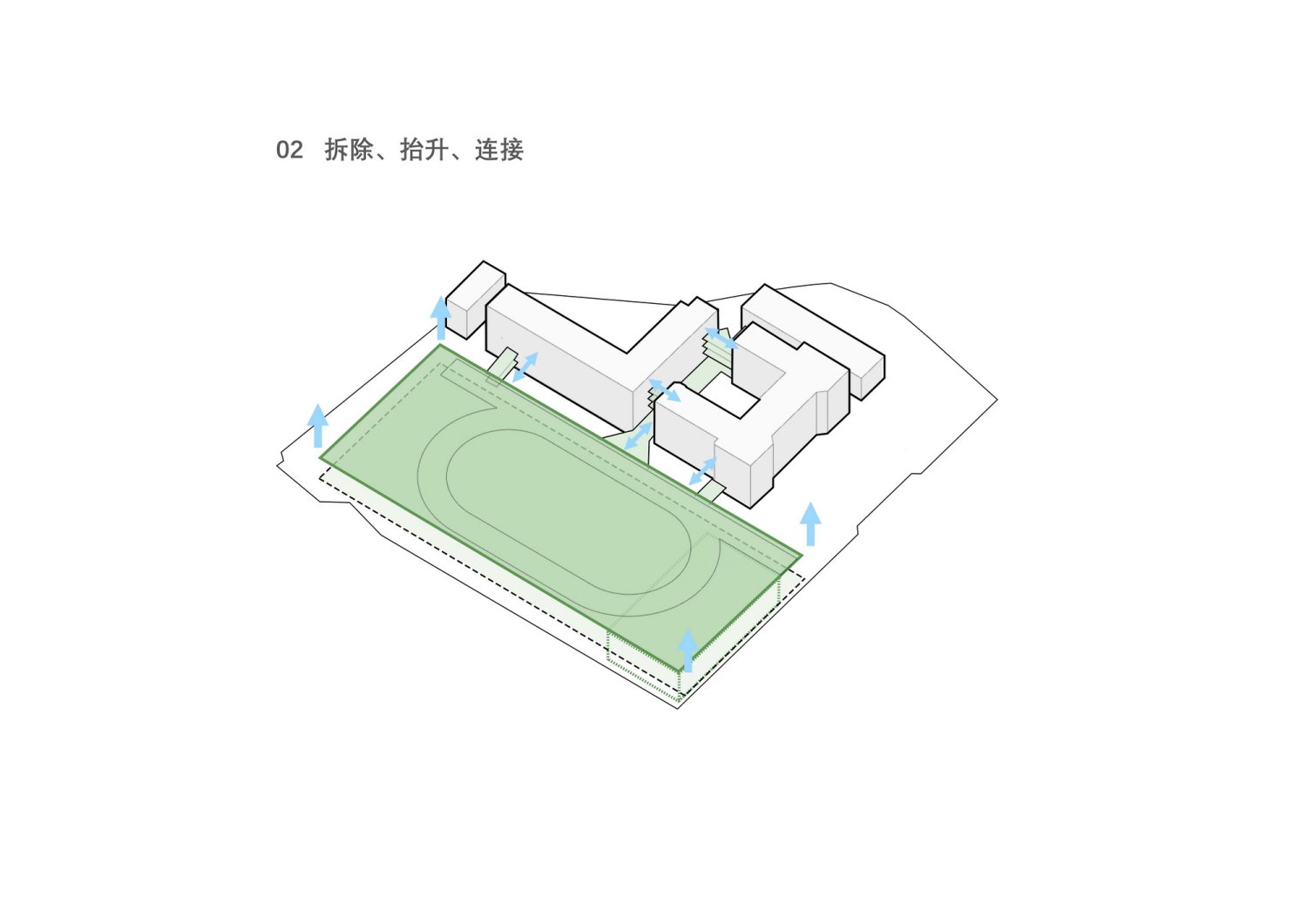

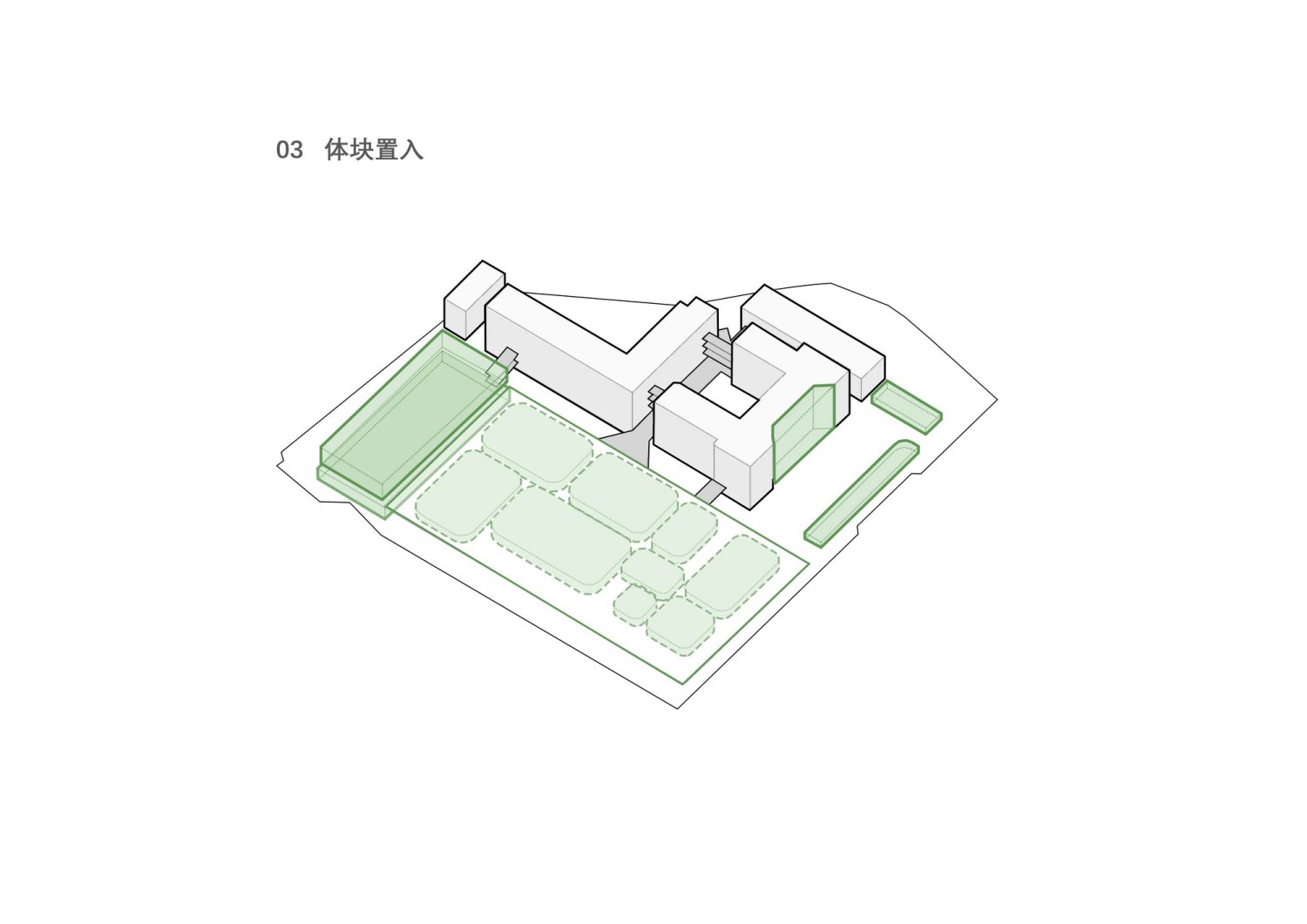

△生成分析

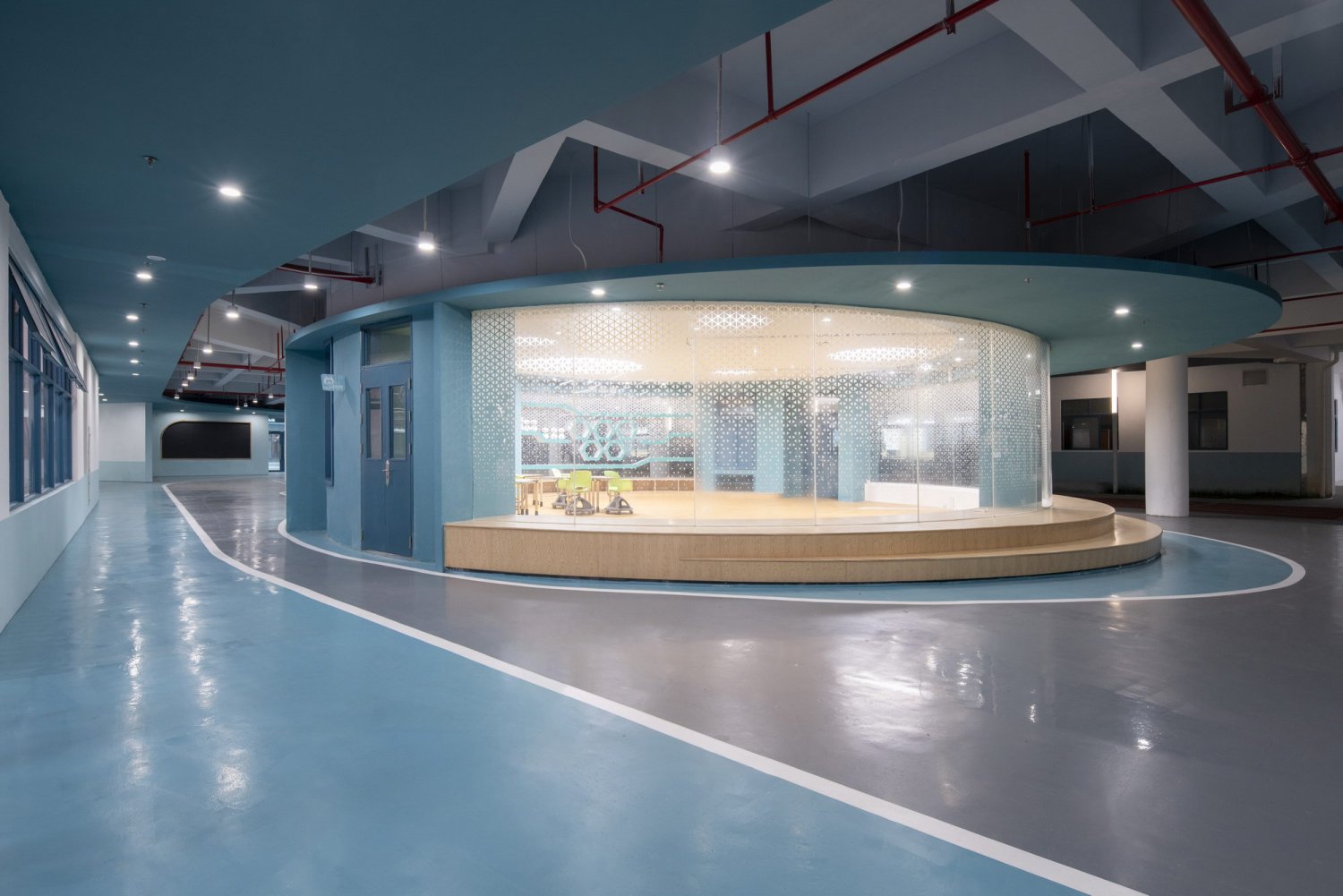

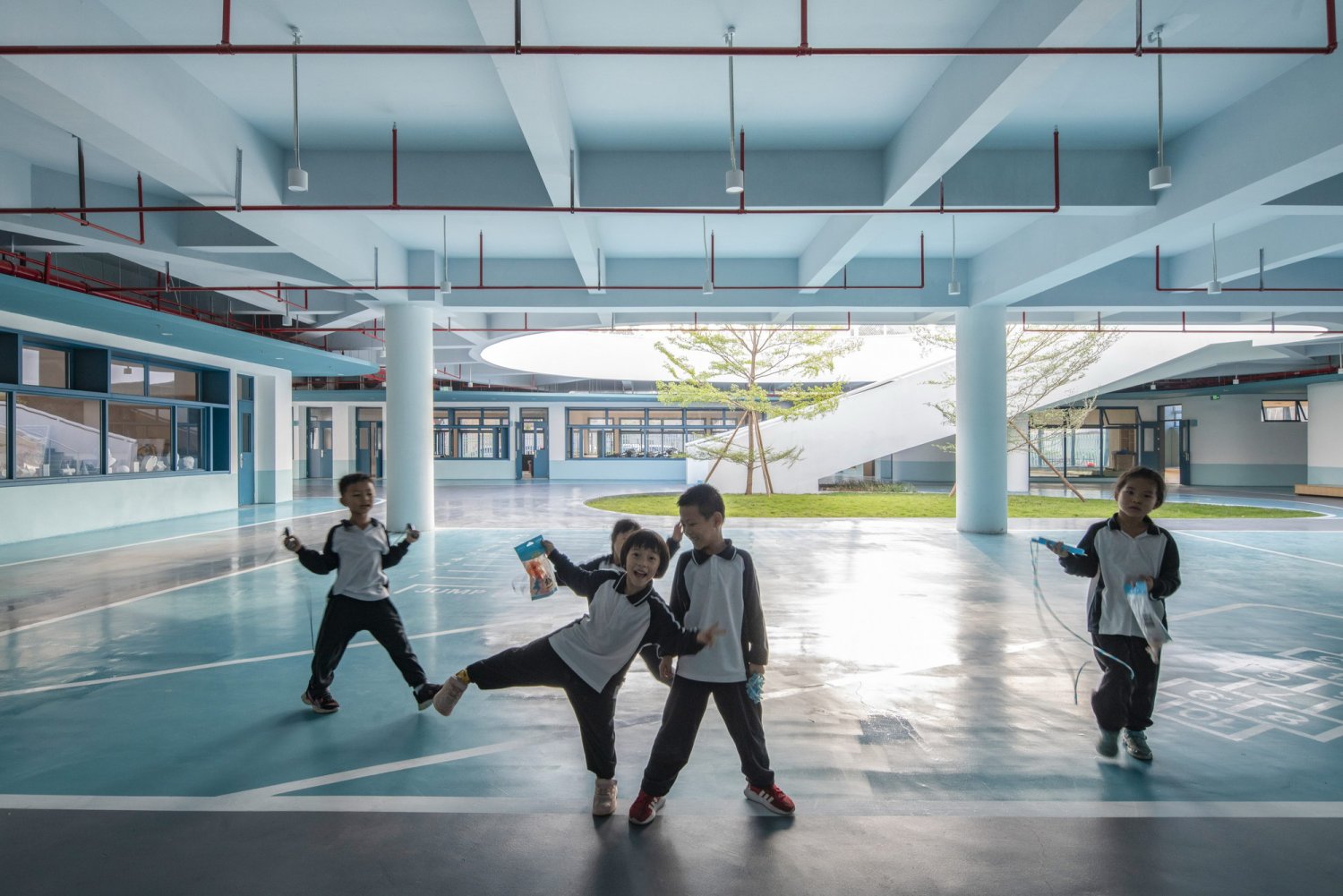

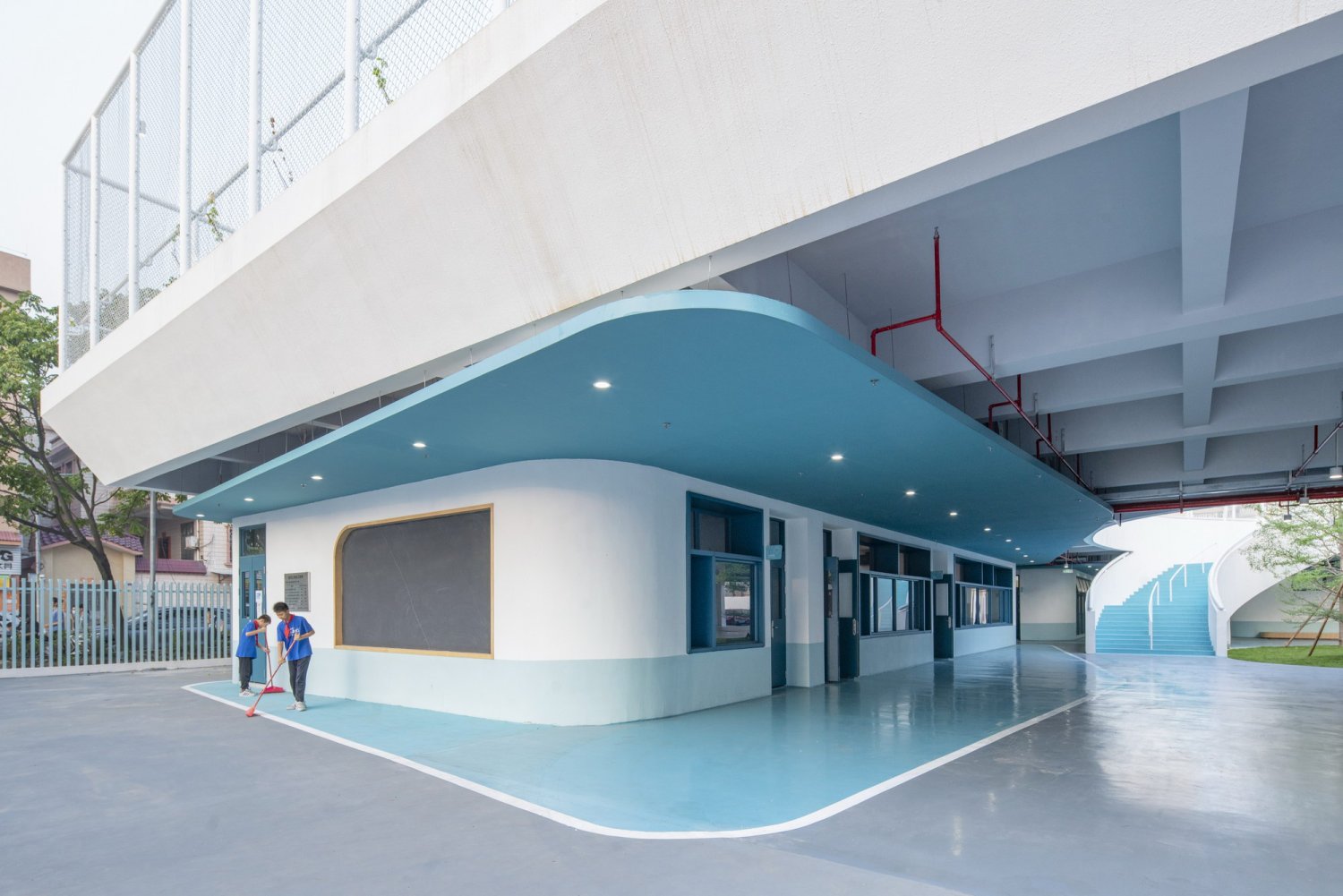

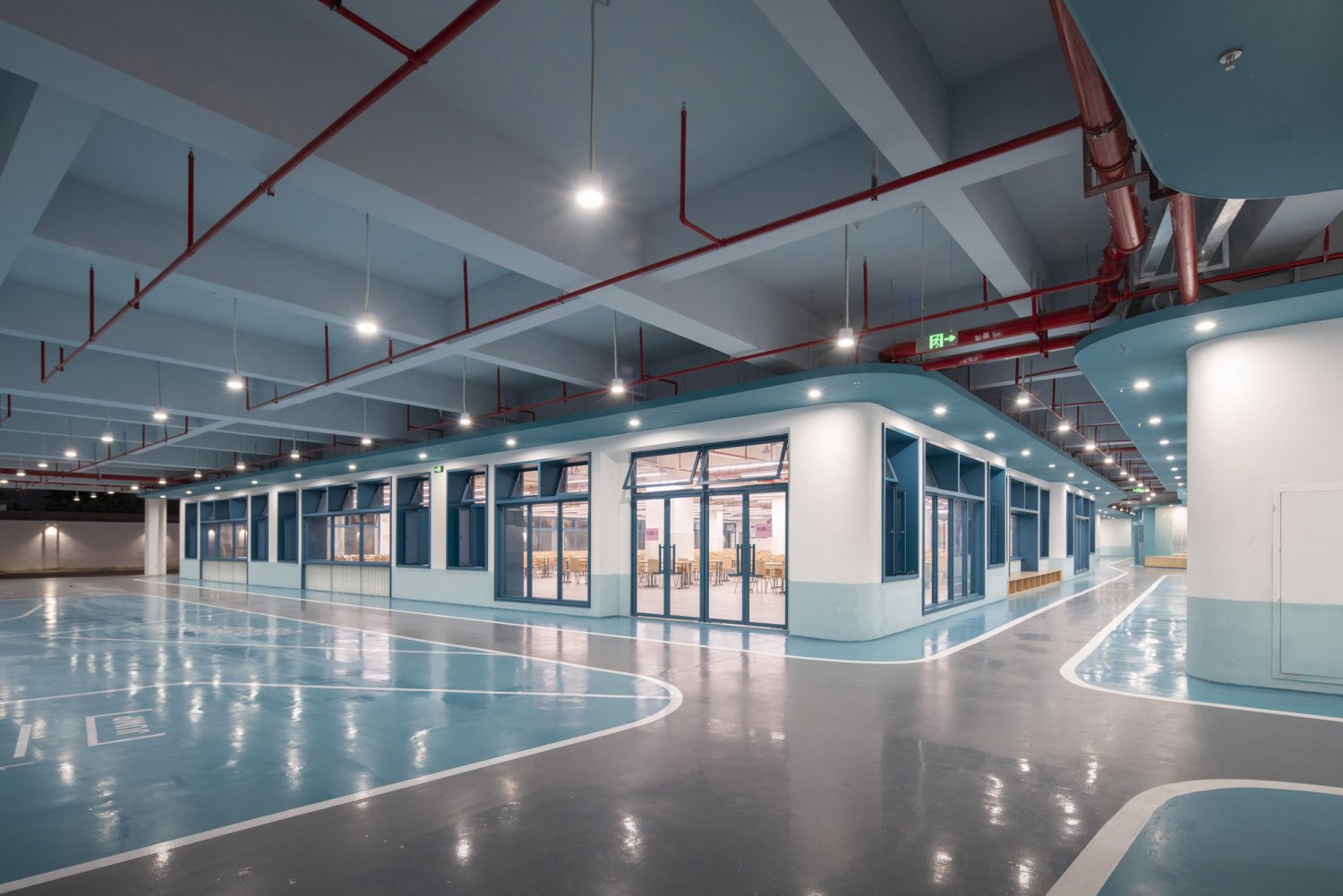

△板下活动室

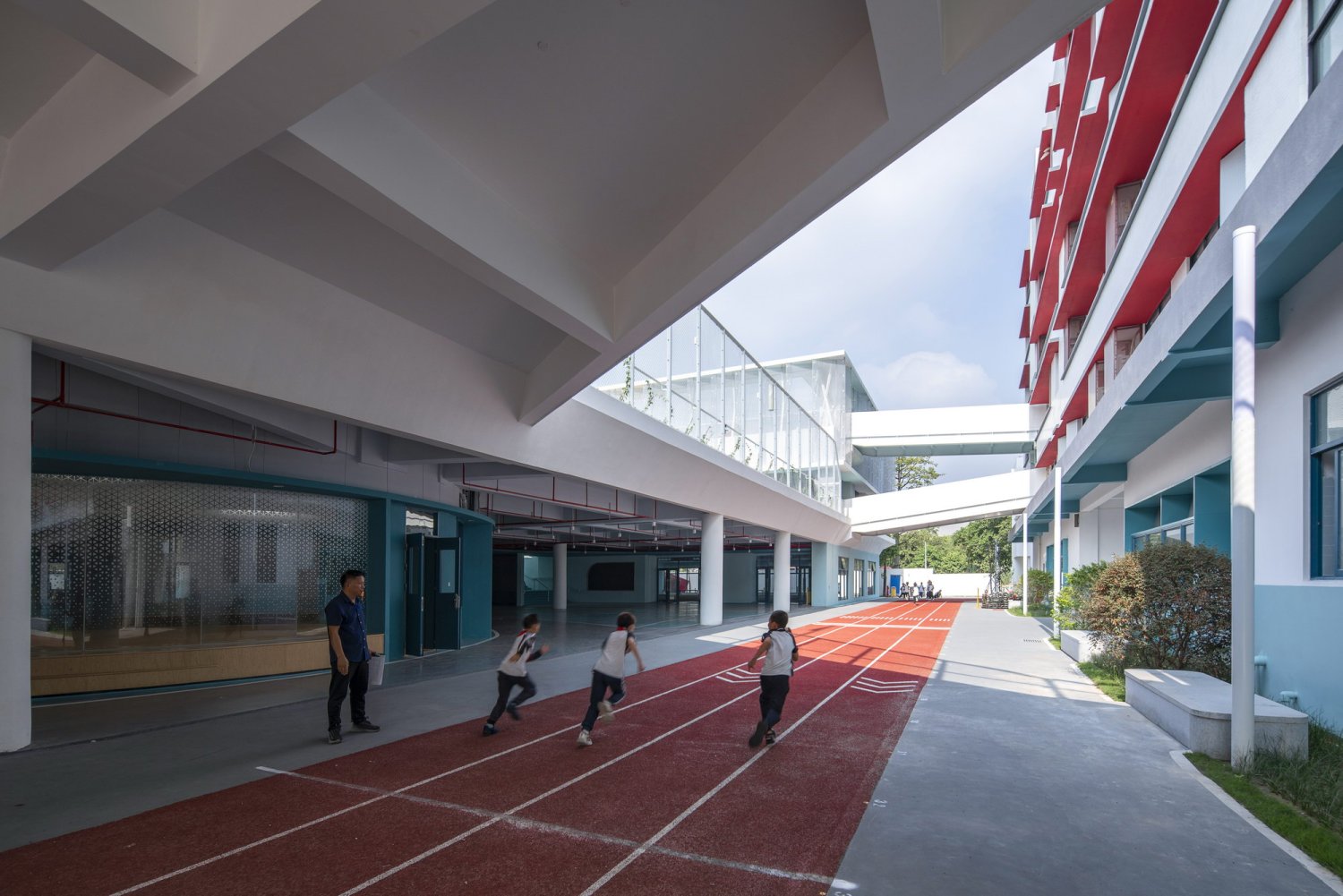

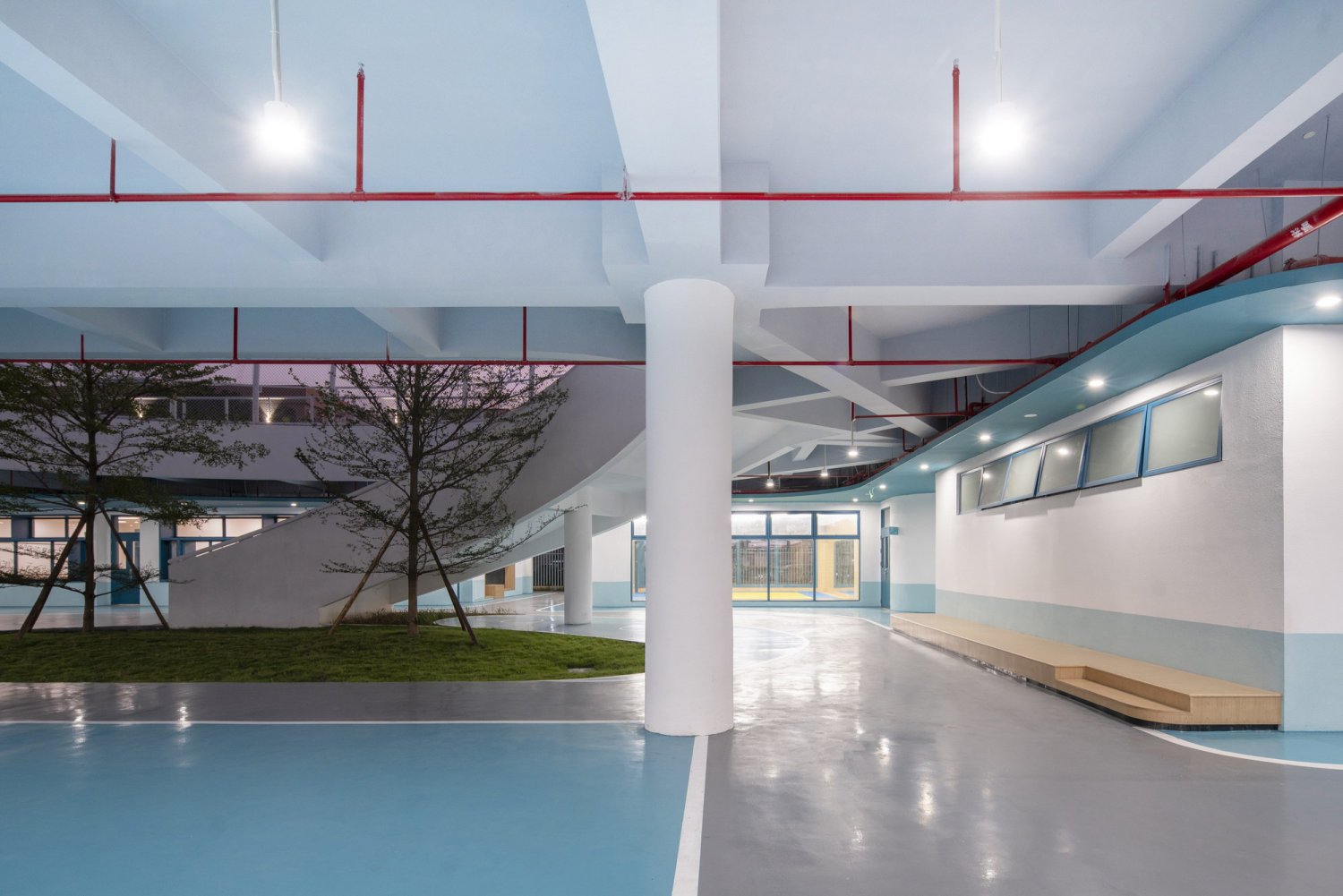

△内部架空通廊创造出多义的活动空间

△运动场下通透的采光为小朋友带来愉悦的活动空间

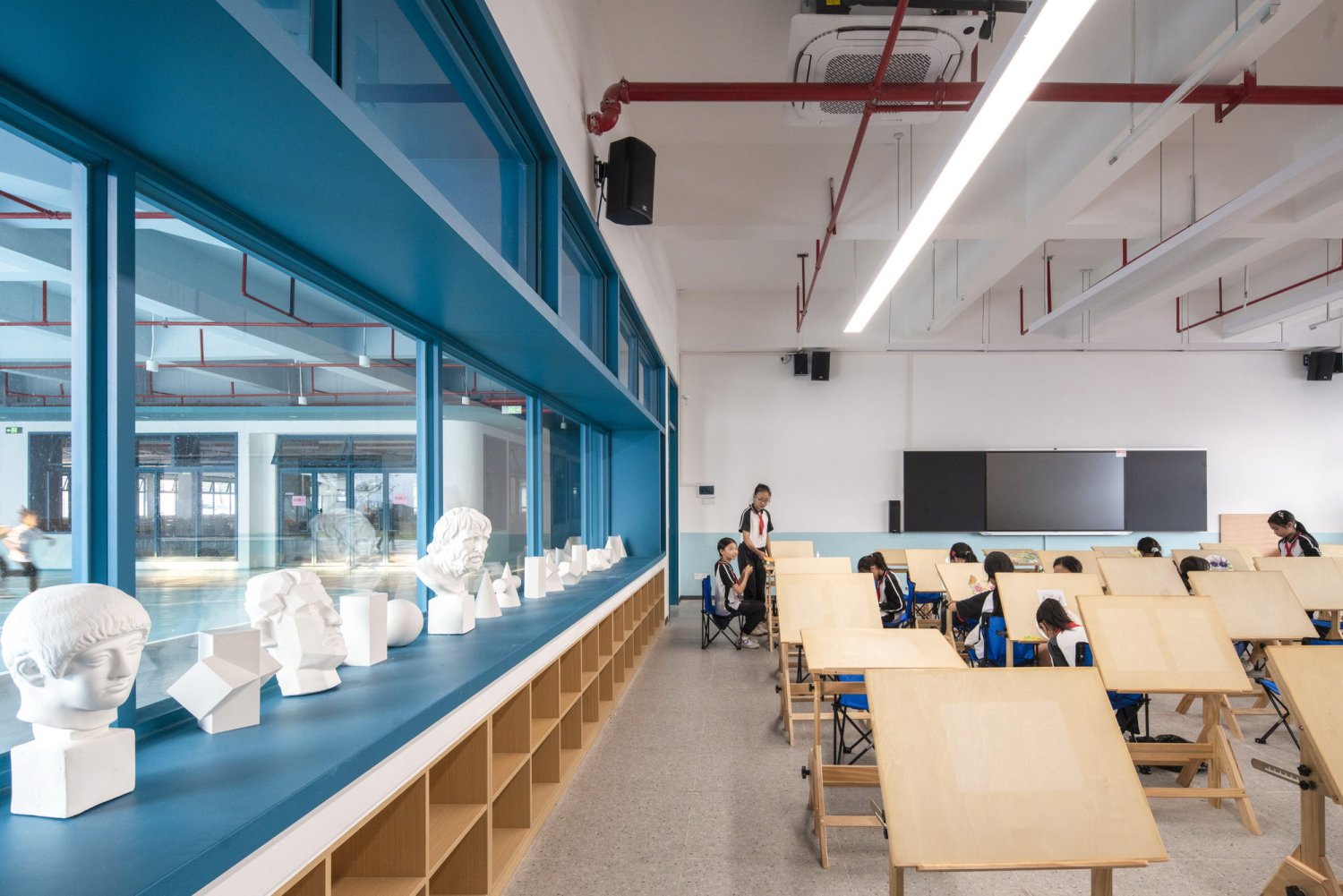

△绘画教室

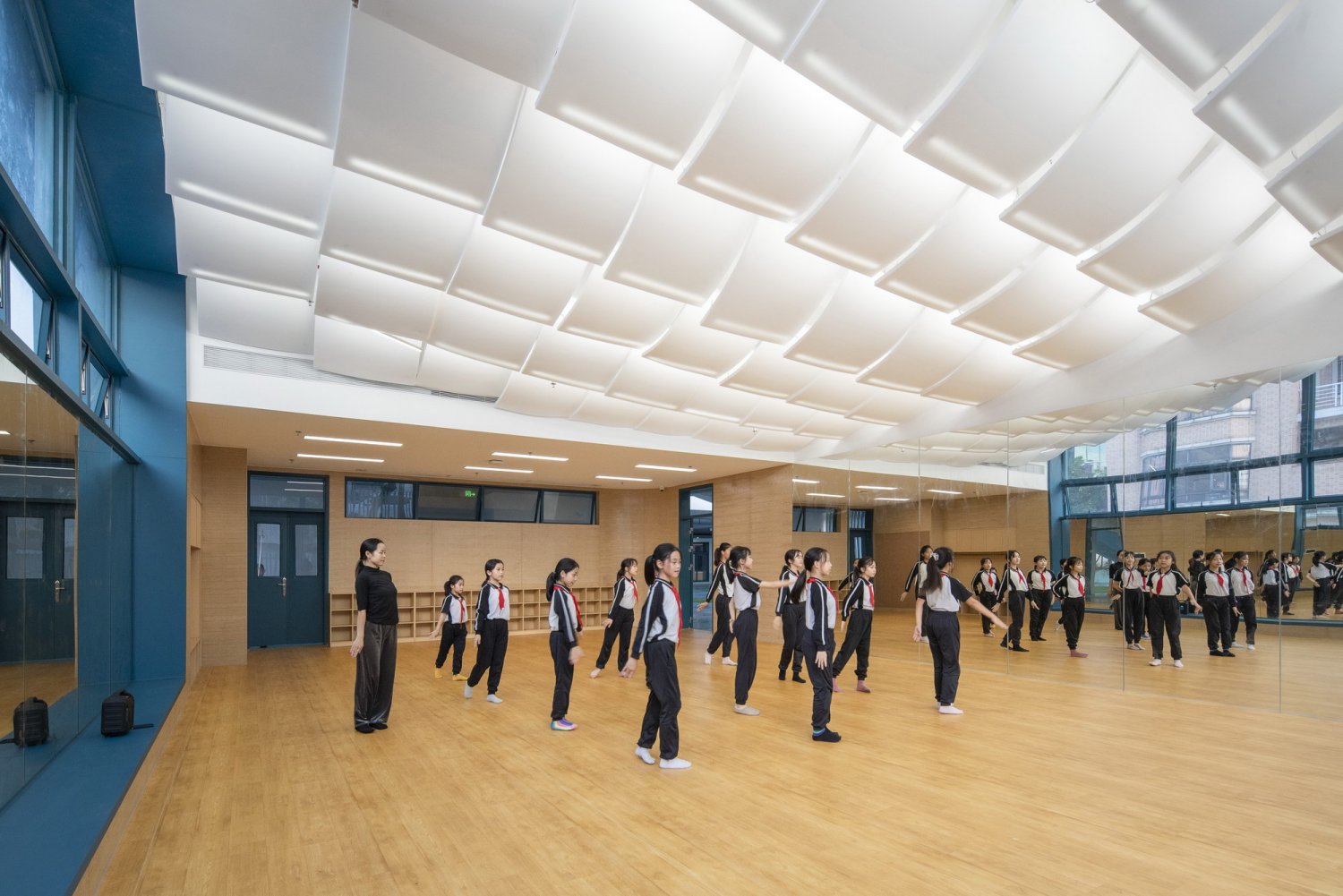

△舞蹈教室

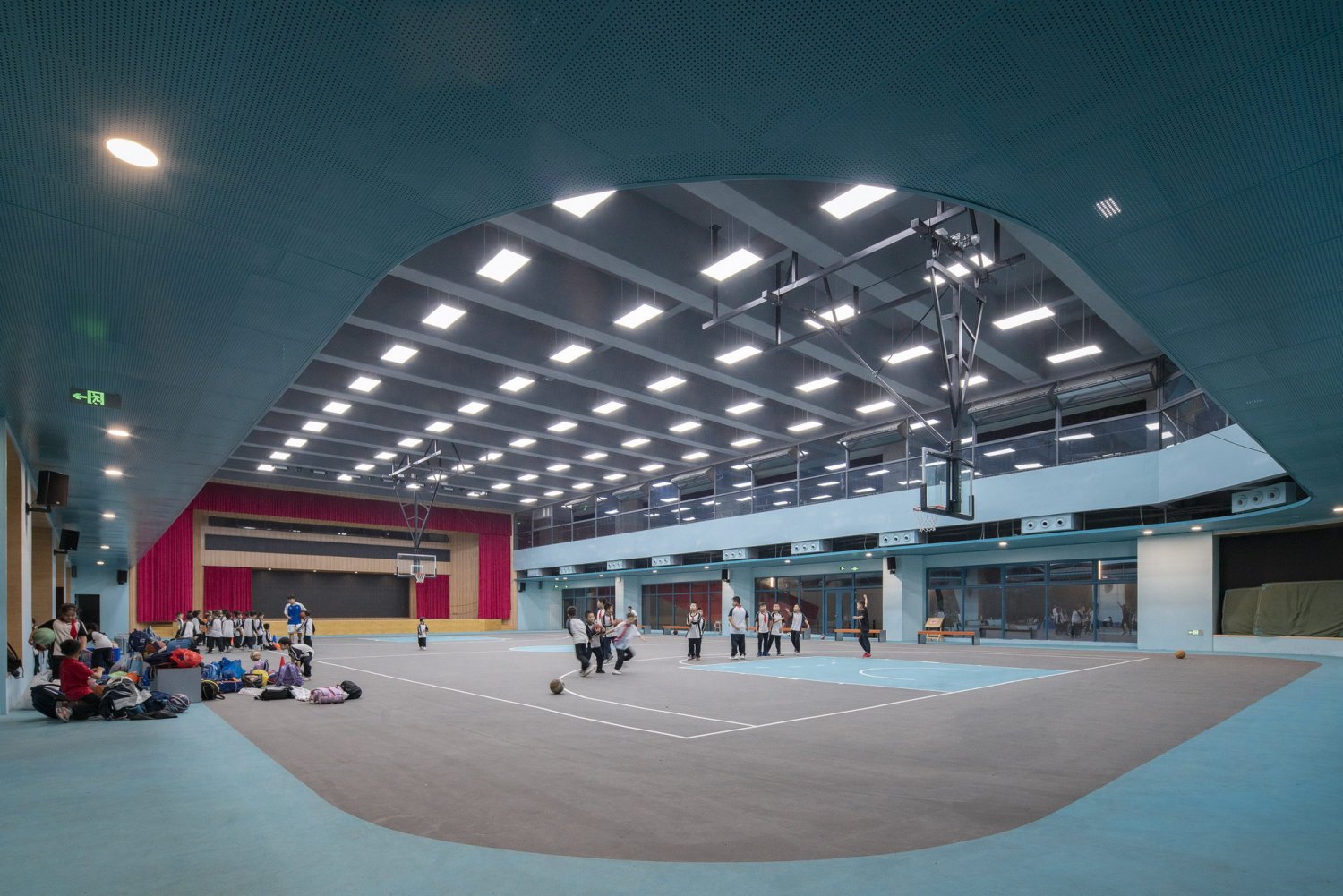

△体育馆 & 礼堂

四、知识浮岛，图书馆设计 Library: ‘A Floating Island of Knowledge’

利用校园内零散用地扩建的校园图书馆，整体建筑由两个红色的核心筒支撑，首层架空以便300m环校跑道通过，红色的核心架既承担了建筑的结构功能和交通功能，同时贯穿建筑屋面形成采光天窗，为建筑带来采光和通风。

核心筒集中解决了建筑的物理性能需求之后，建筑被解放成为一个纯粹的阅读器皿，通过内部的自由布局，同时将两侧的风景纳入其中，为学生们提供了多种多样的室内和半室内的阅读场景。成为一座知识的浮岛。

The library is built on the underused land in the campus and is supported by tube structures. The first floor is elevated to avoid the disturbance to the 300-meter running track. The tube structures in red not only plays a role of structural elements, but also acts as a circulation space through the whole building. Furthermore, the top-end of the tube naturally forms a skylight, bringing daylight and ventilation to the interior. With the help of tube structures, the library could be free from the physical performance with being a pure container for reading. By arranging the interior spaces along the framed views, a variety of indoor and semi-indoor spaces are created in a free form, so called ‘A Floating Island of Knowledge’.

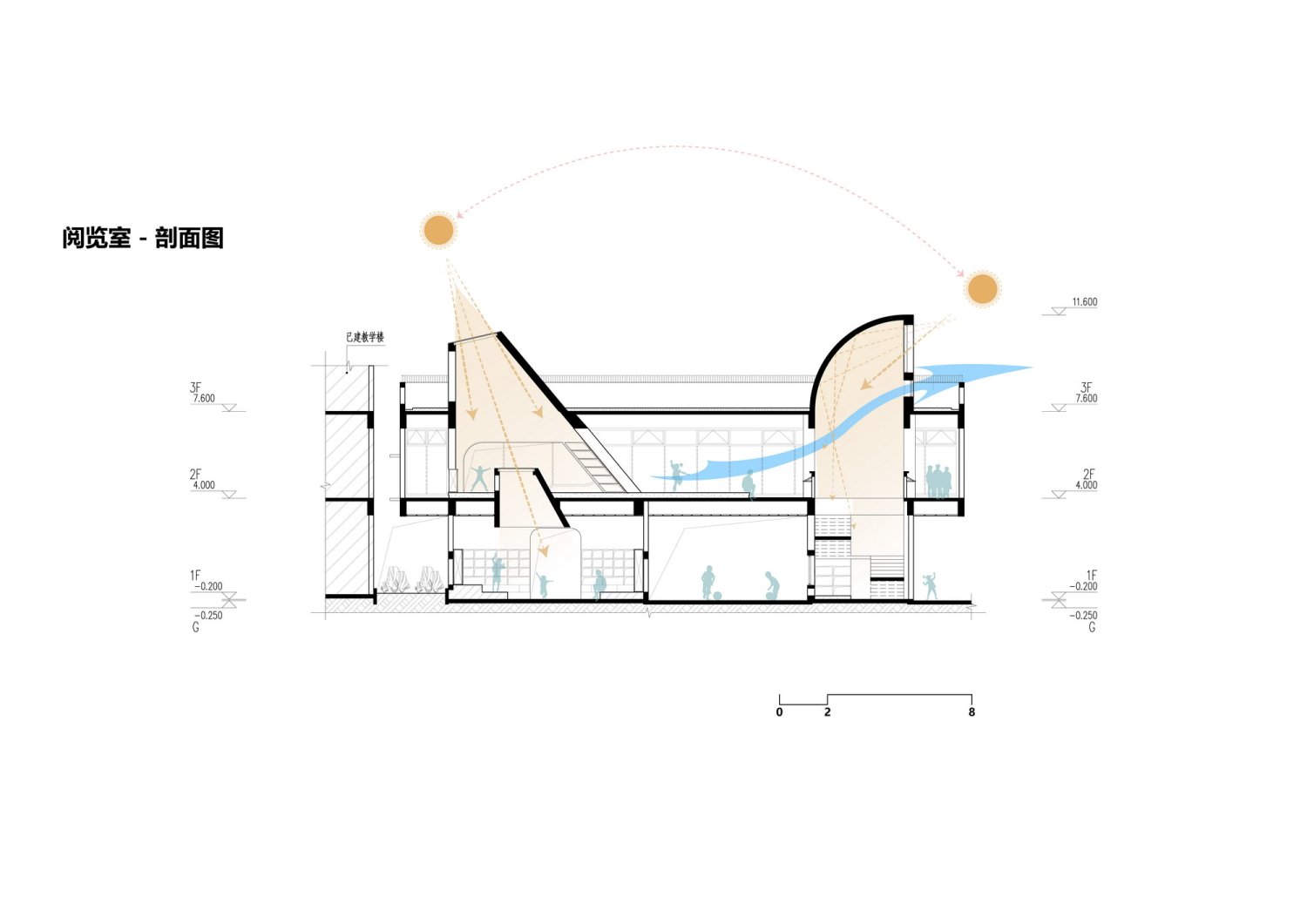

△阅览室剖面

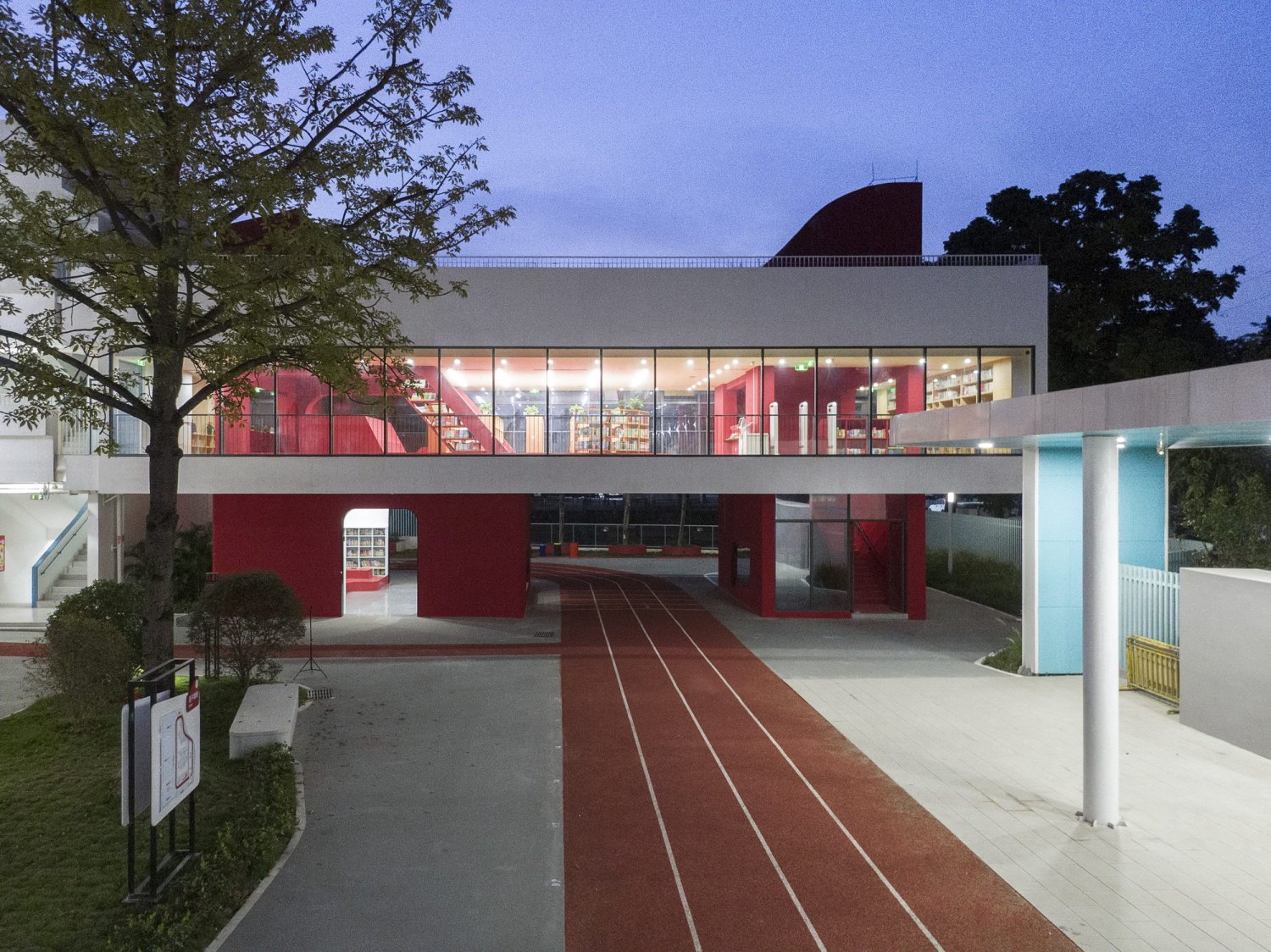

△夜幕下的阅览室

△起连接作用的核心筒内部

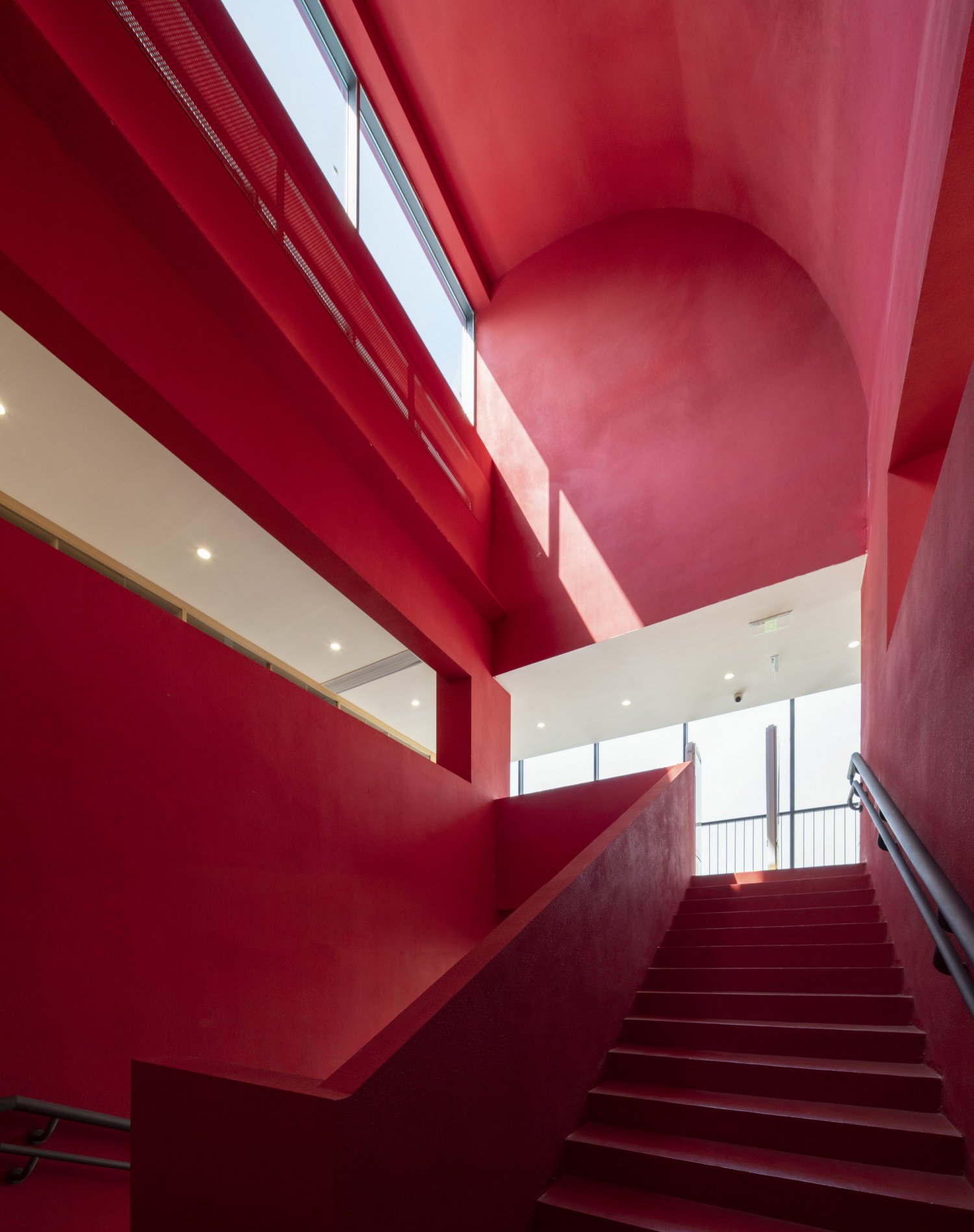

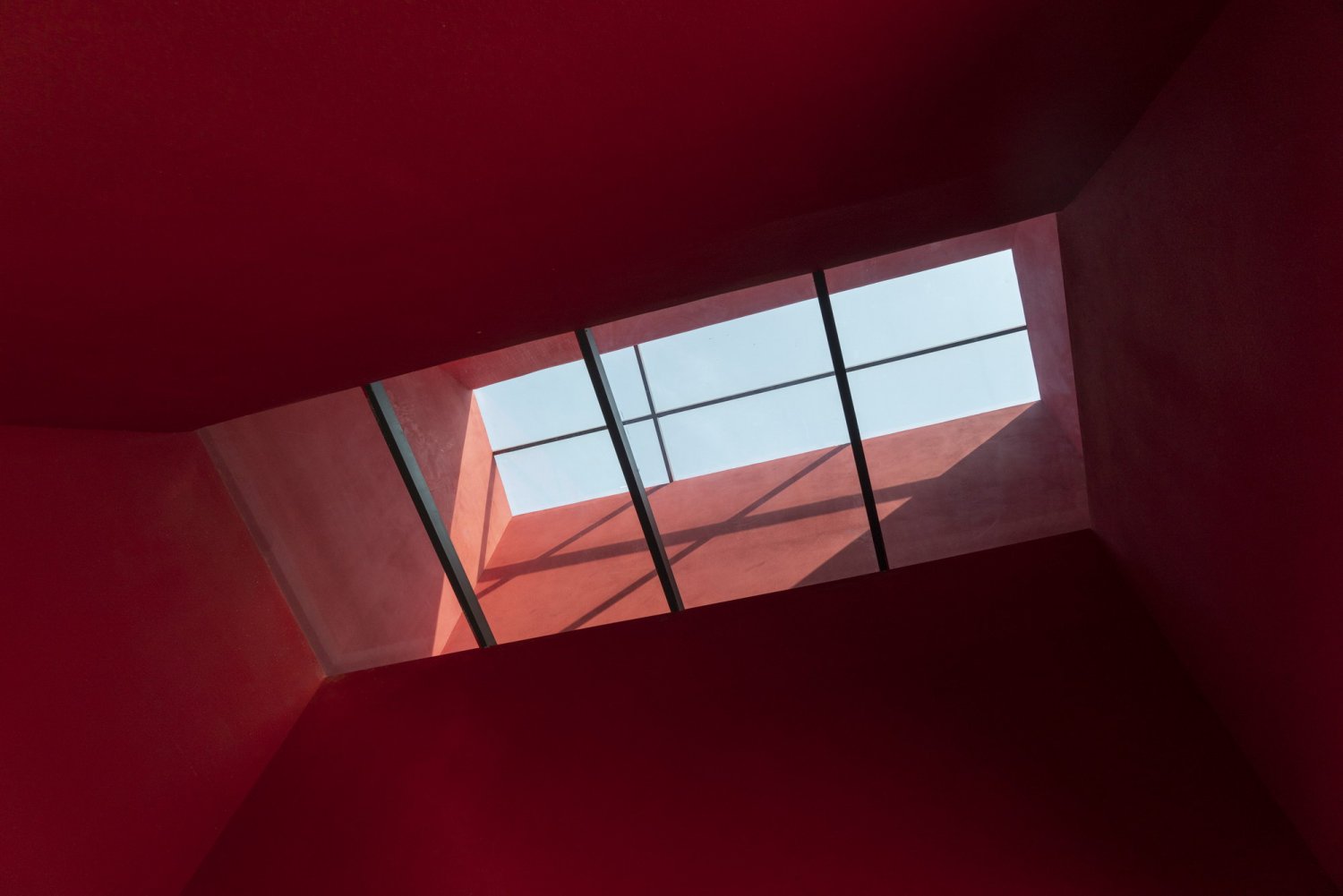

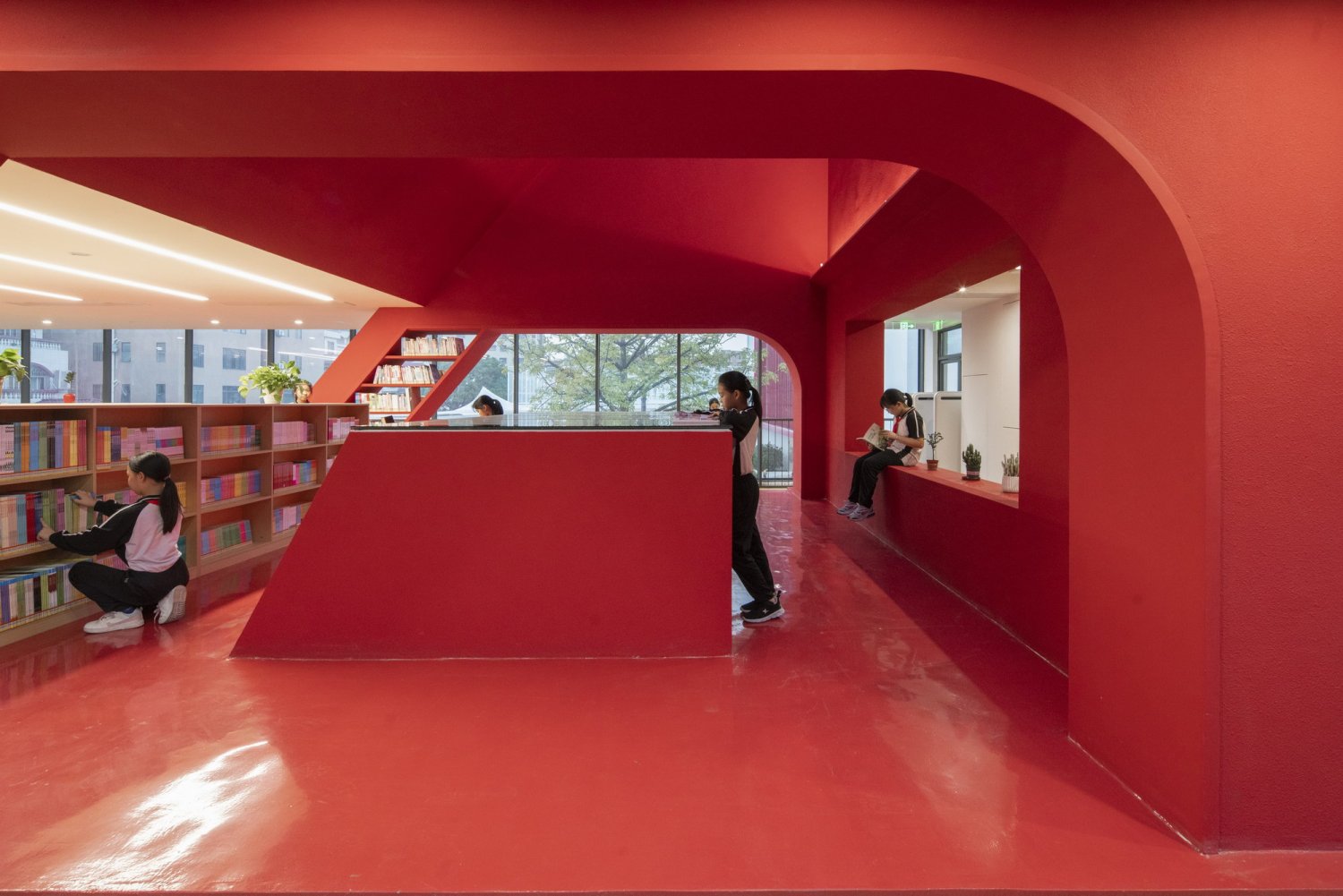

△核心筒内部

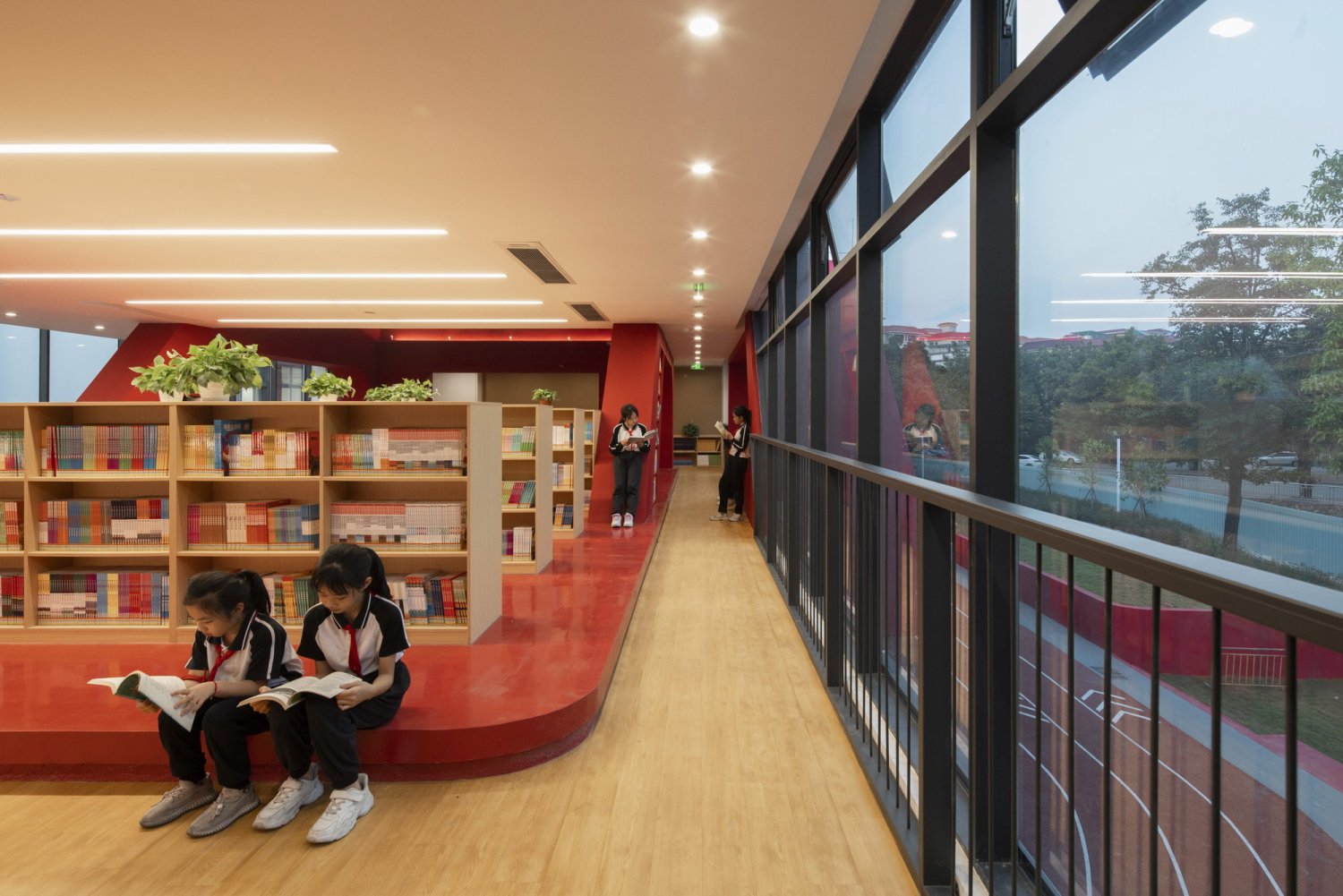

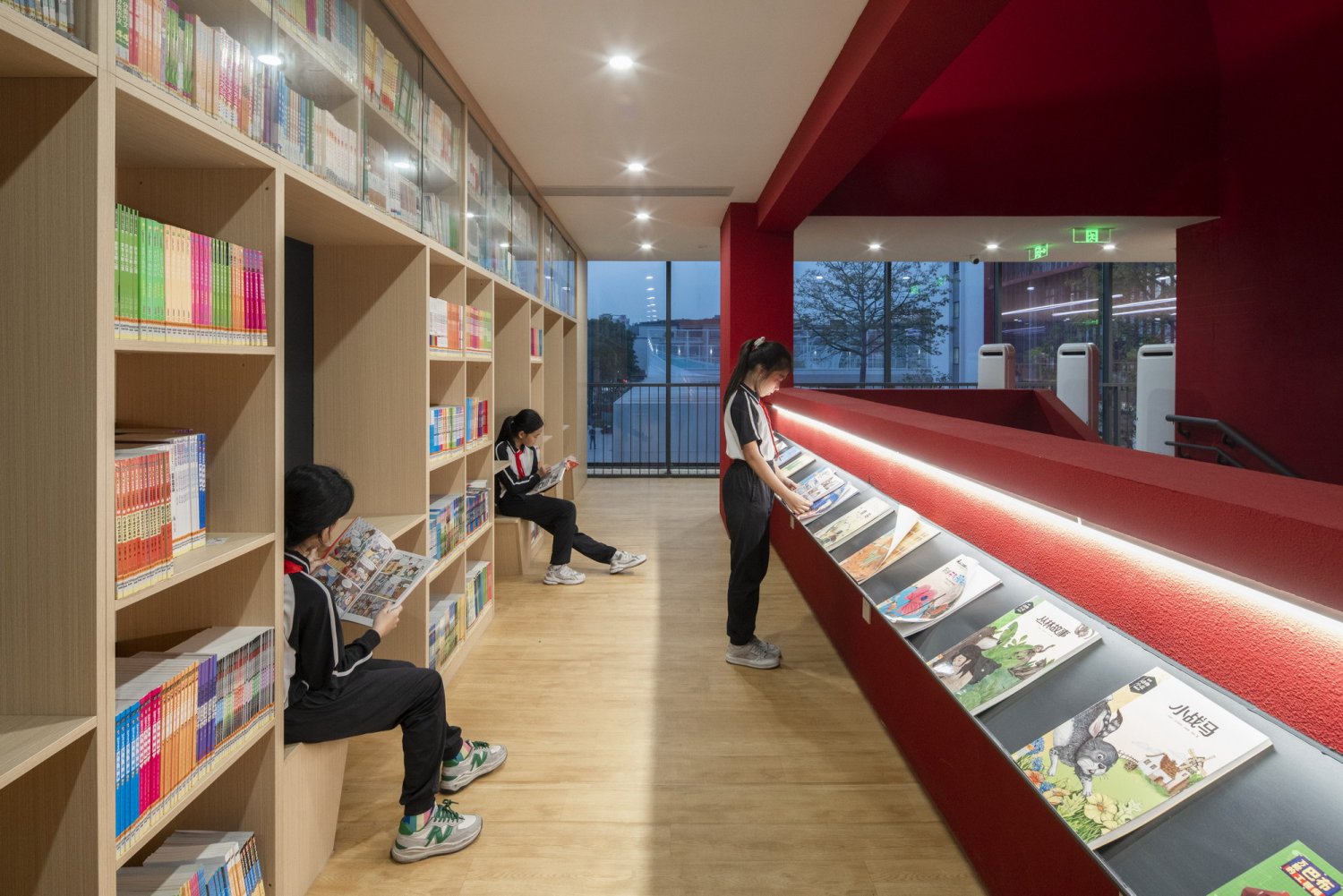

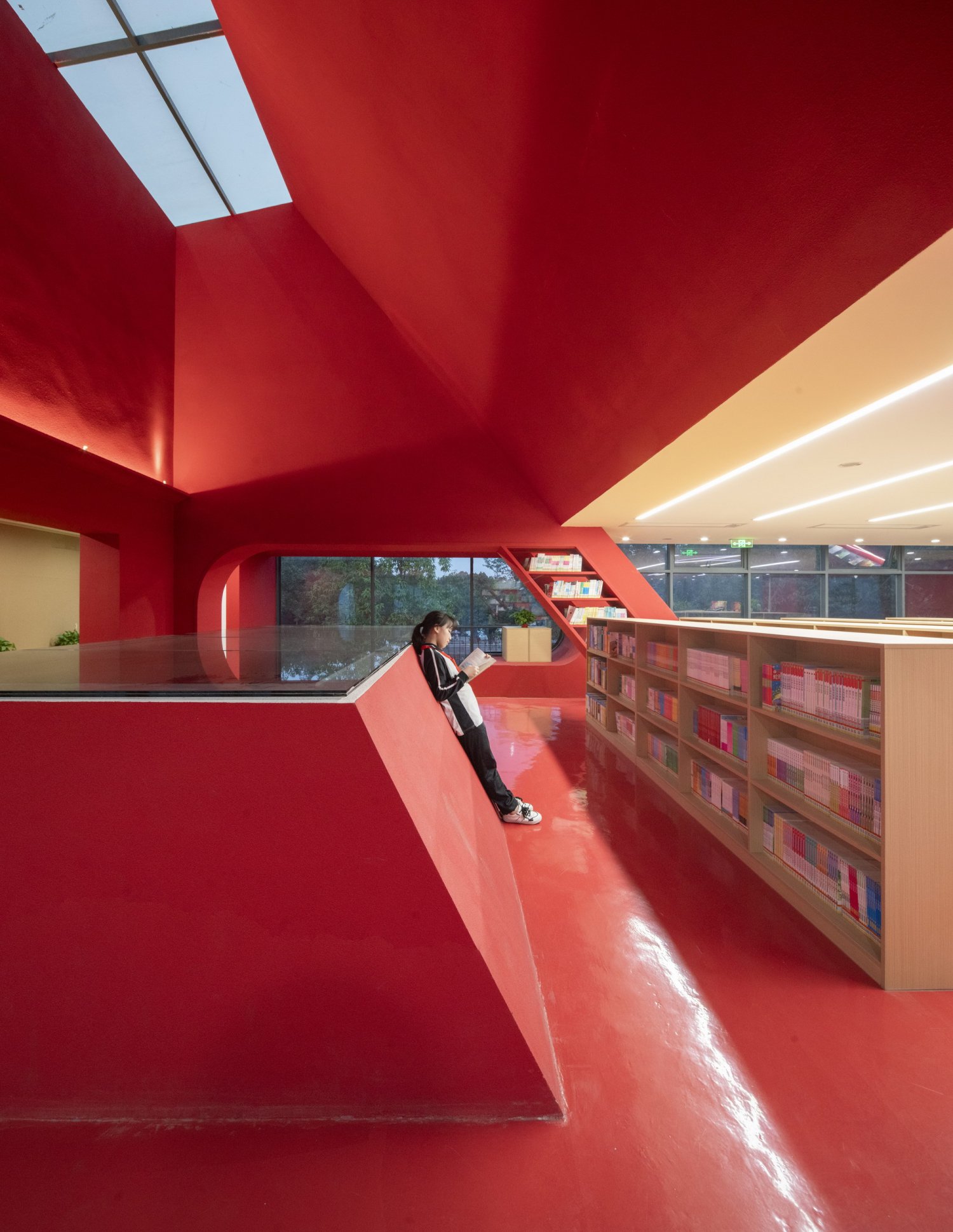

△阅览室室内

五、薄纱与花朵：幕墙设计 Curtain Wall: ‘Voile and Flowers’

在建筑的外立面设计中，我们摒弃了笨重繁复的龙骨，试图营造一个薄纱一般轻透的半透明表皮，在进行了多种材料多种方案的比选之后，我们最终决定采用紧绷的钢索替代竖向龙骨，借鉴抓式玻璃幕墙的节点做法，避免了横向龙骨的出现，幕墙材料采用柔性与刚性兼具的张拉铝网，在保证表皮的牢固性与抗风性能的同时，实现了表皮的轻薄。而在运动场采光中庭构筑物的设计中则采用柔性的勾花网，保证了对构筑物形态的拟合，在运动场上形成花朵绽放一般的效果。

In the facade design, designers tried to create a translucent skin as light as voile, so as to give people a sense of lightness. Through a series of material comparison and selection, steel cable and aluminum mesh are selected as its good performance on tensile strength and ductility. It not only shows a sense of lightness through appearance, but also ensures the structural stability against the wind. As for the material selection for the atrium in the sports field, the diamond weave pattern of the chain link fence is used to provide powerful and flexible features, so as to fit the shape of structure, showing as a blooming flower on the sports field.

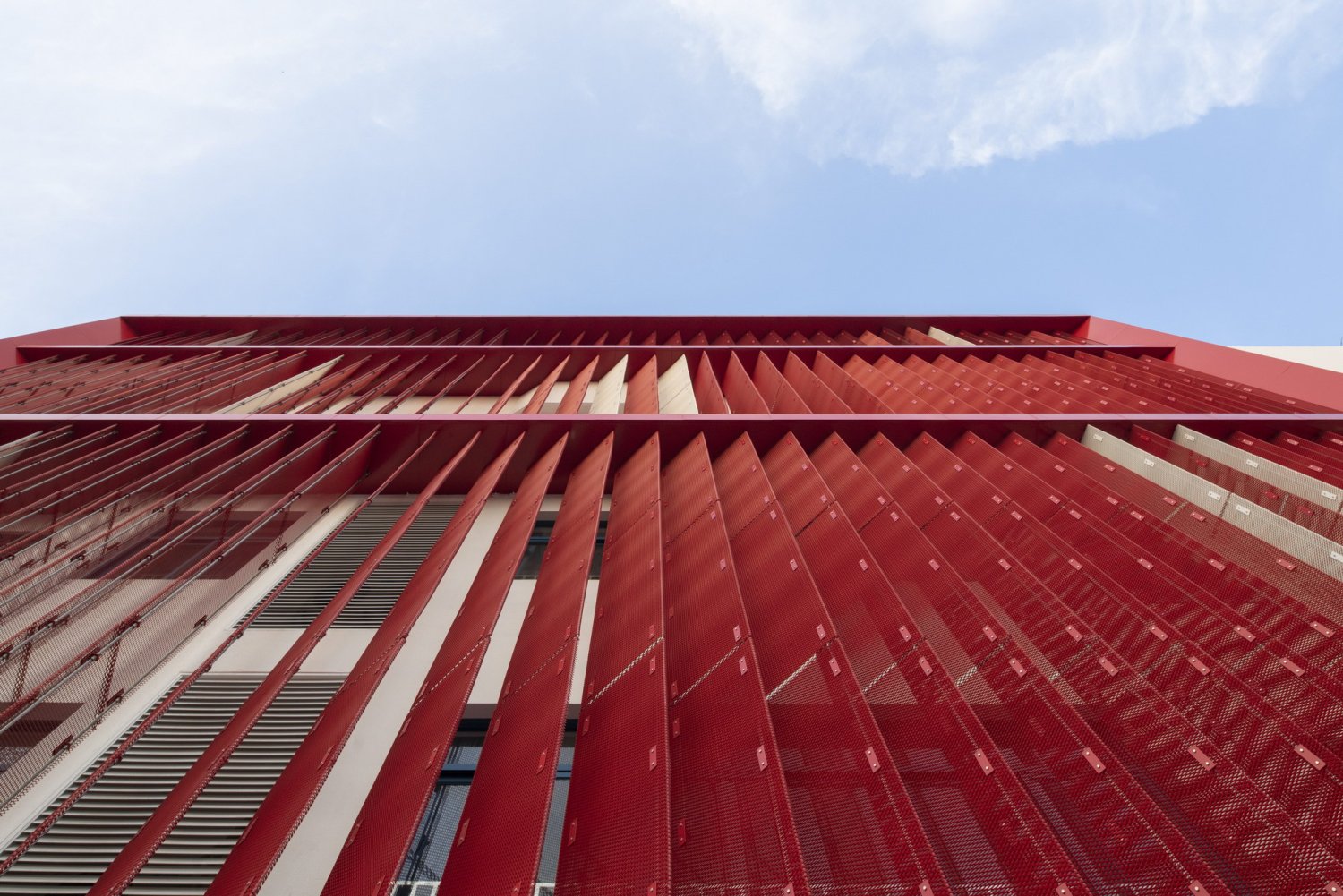

△学校正门立面细部

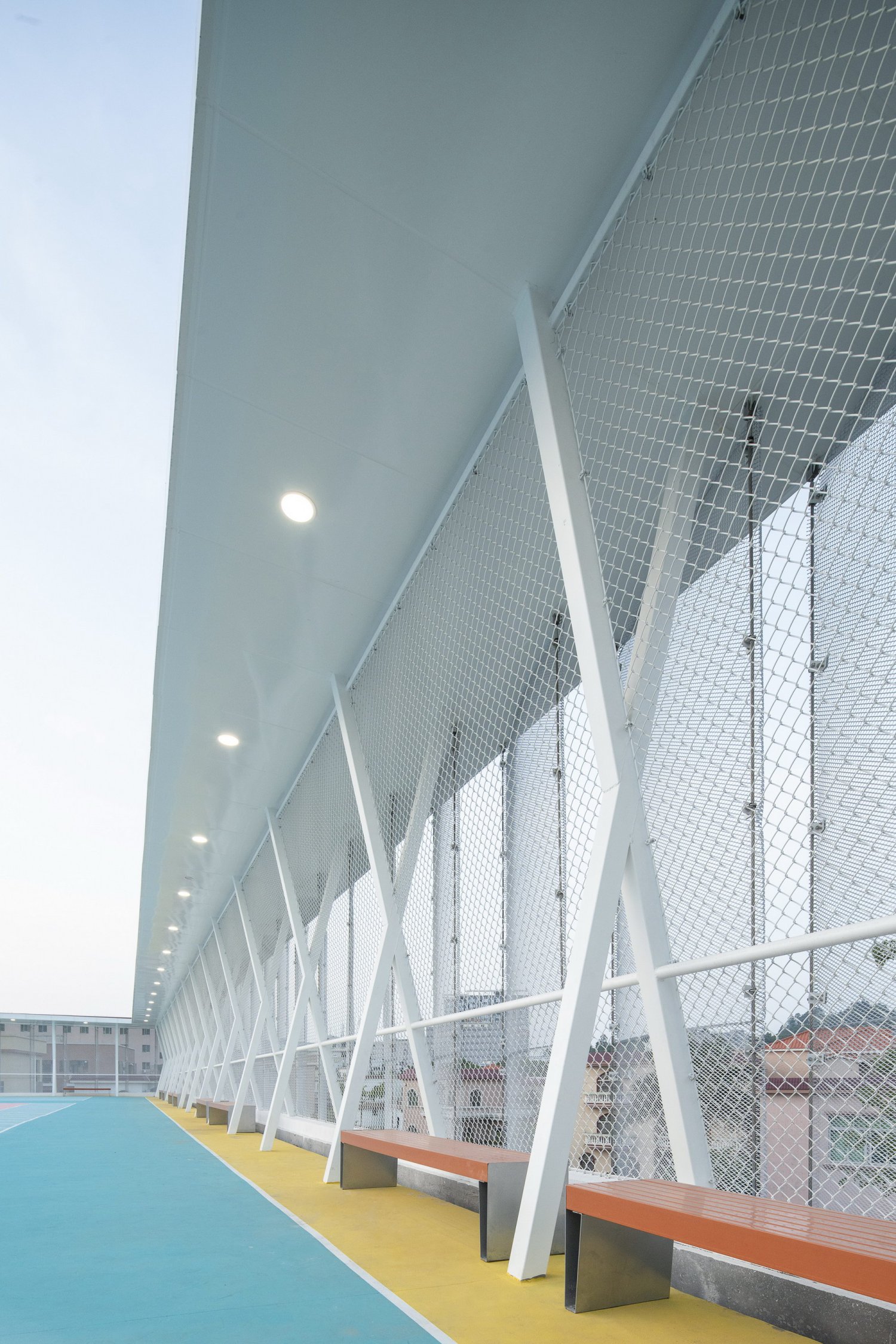

△文体楼幕墙设计

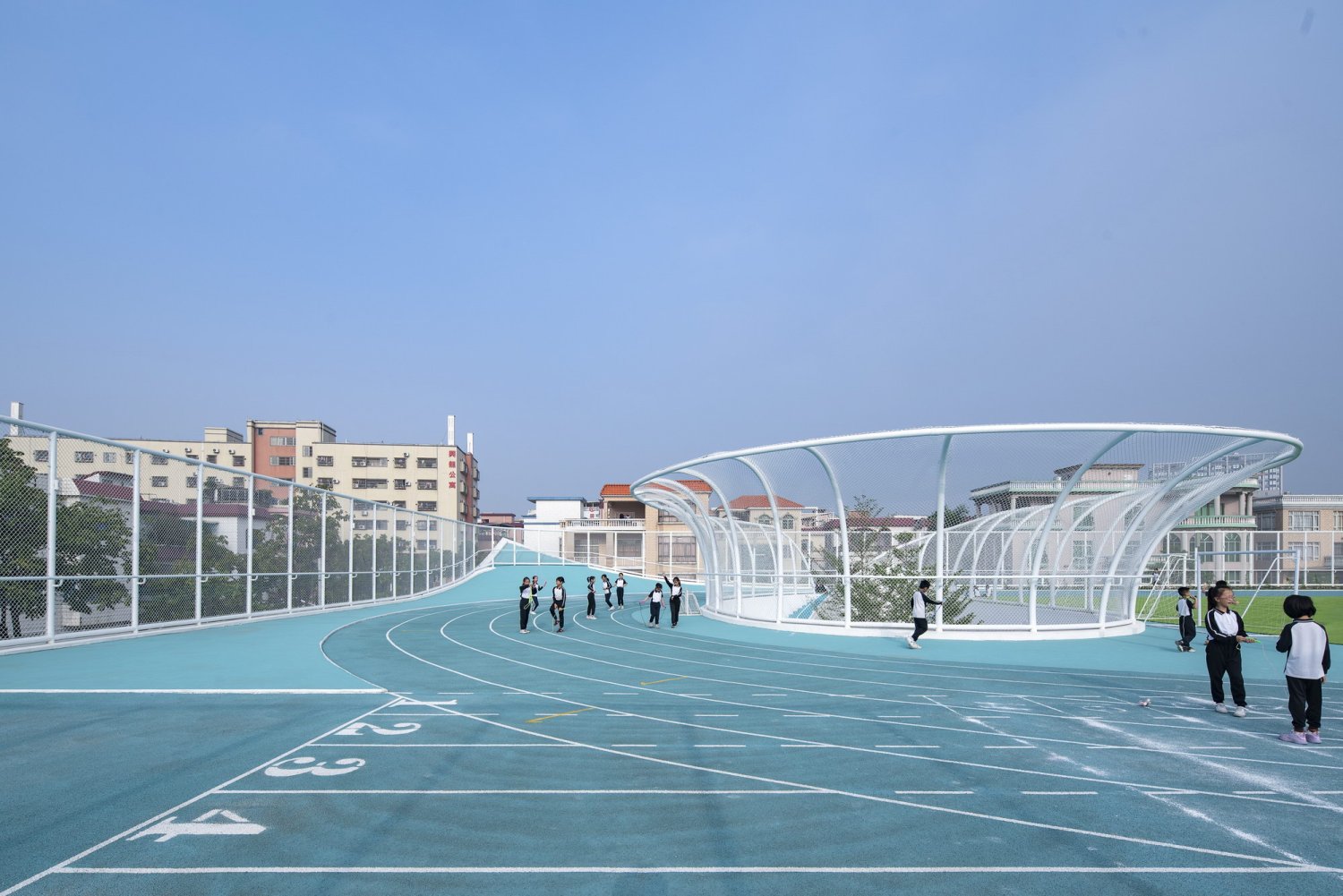

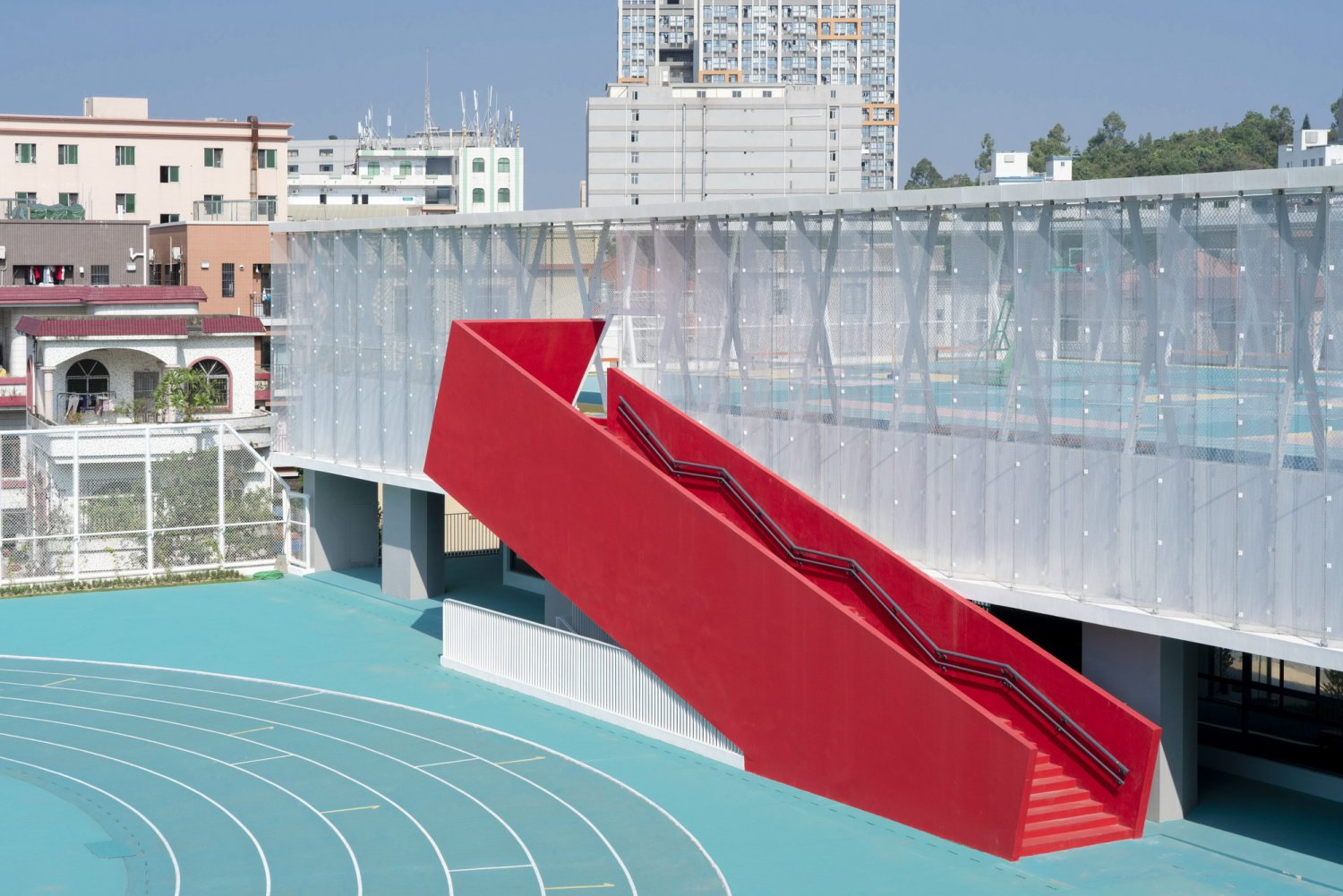

△屋顶球场与运动场的连接

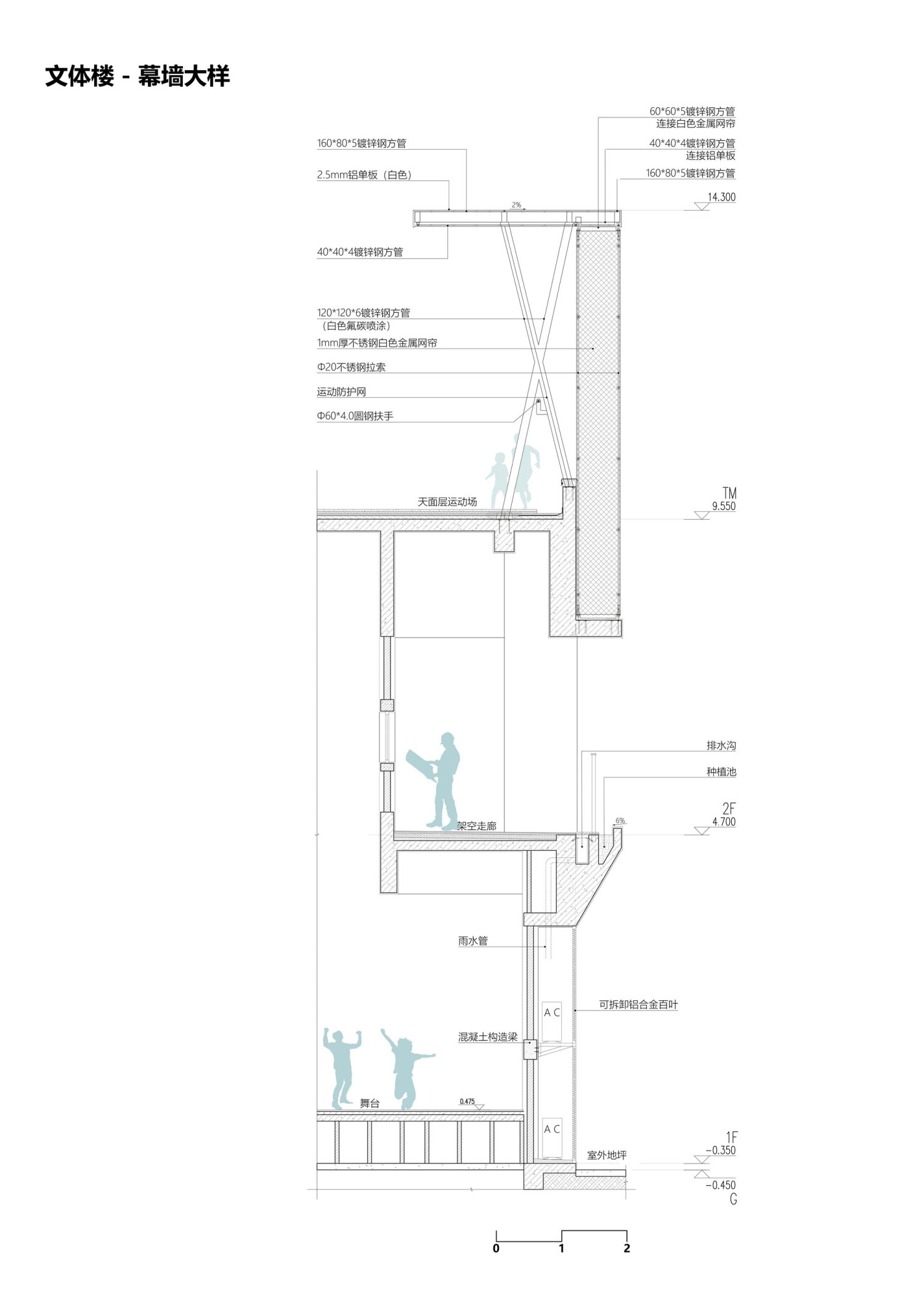

△文体楼幕墙大样

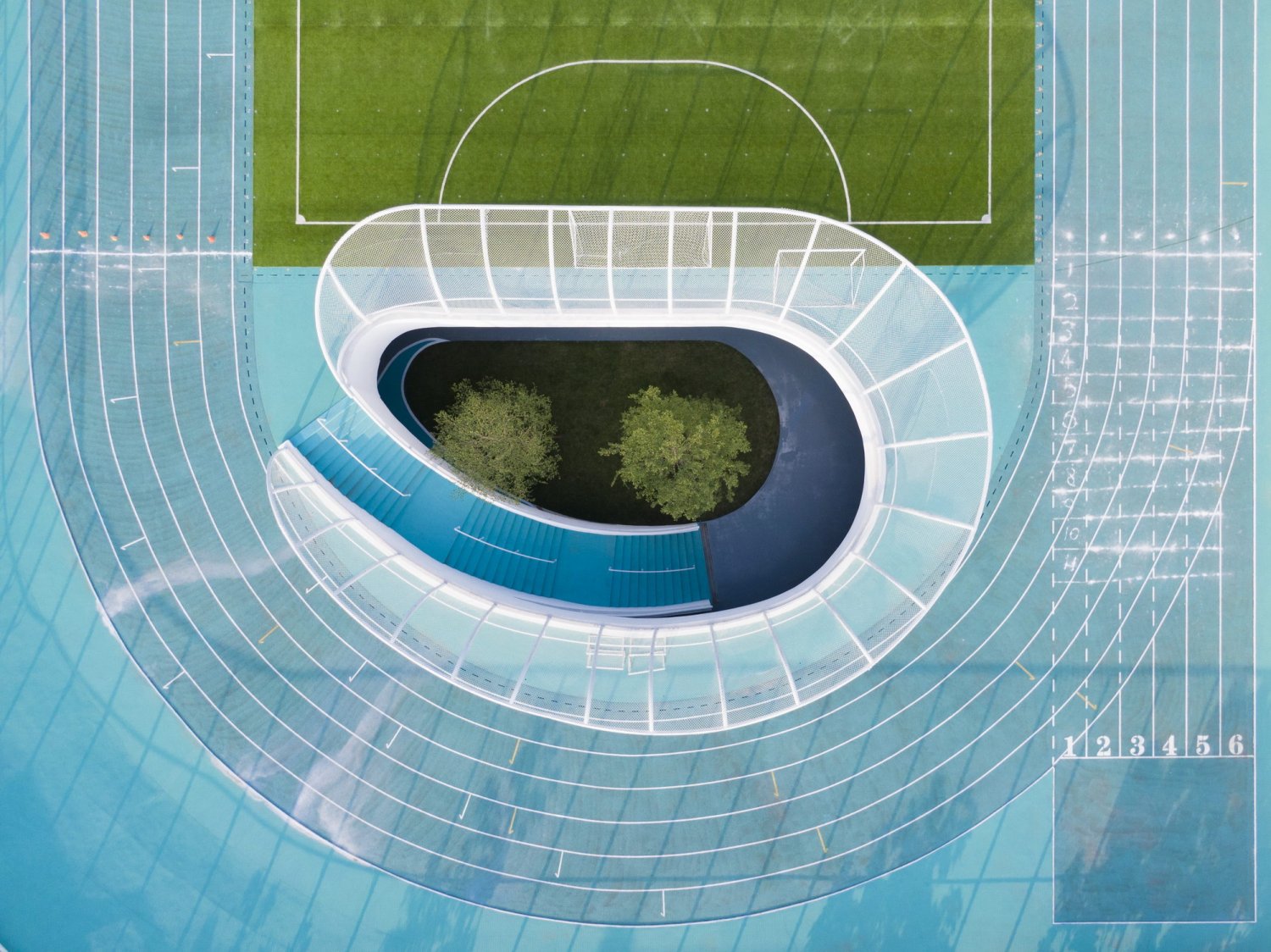

△文体楼采光中庭构筑物

六、滨河界面，消失的围墙 Disappearing Wall: Interface by the Riverside

校园一侧紧贴河涌是旺岗校园作为水乡校园的另一大特点，近年来顺德大力整治河流水质，但在校园改造之前校园实体围墙的阻隔却将优美的河道风光拒之门外，改造设计中重点提升了校园的滨河界面。由于有河流的阻挡，滨水界面没有设置防护围墙的必要，因此沿河界面完全打开并设置亲水平台，不仅将河道风光引入校园，同时滨水界面也成为整个校园最为开放通透的展示面和最具地域性的特点，成为旺岗校园的青春活力的重要展示窗口。

Another major feature of Wanggang campus is that one side of the campus is adjacent to the riverside. In recent years, Shunde has made great efforts to improve the water quality of the river and the views to the river are pleasing. Nonetheless, before the renovation, the physical fence around the campus kept the beautiful views away from students. Accordingly, in order to improve the interface by the riverside and to prevent unpredictable changes of tidal streams from the campus, designers create a completely open platform that is close to the water. It not only introduces the sights to river into the campus, but also acts as an invisible and protective wall on the waterfront. This ‘disappearing wall’ then becomes one of the most symbolic characteristics in the campus, and also seems to be a platform and medium for showing verve and vitality.

△河对岸望向校园

△滨水景观

△校园界面

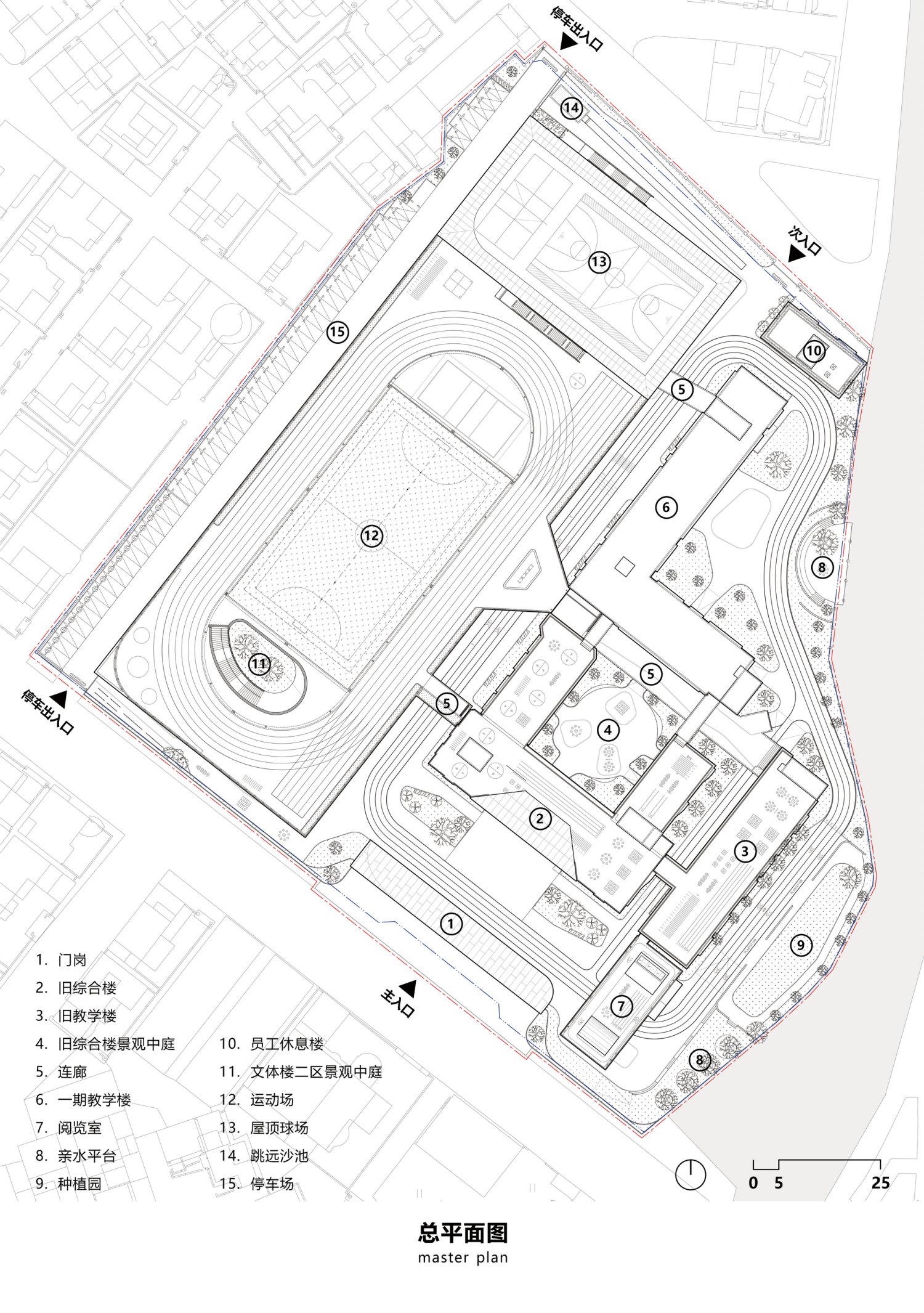

△总平面图
