墨西哥·Pinares之屋

Grupo Arquitectura 在一片完全被树木覆盖且地势下降的土地上，建造了 4 栋独立的两层住宅，并配备了公共设施。建筑师们在现场考察时看到了巨大的树木，但他们决定不去碰它们。相反，他们以近乎外科手术的方式种植房屋，以适应土地的不均匀性和自然条件。最终的结果是，这些房屋看起来已经建造了好几年，而且植被也是在建造的同时种植的。

On a completely wooded and descending topography, Grupo Arquitectura carried out a project of 4 independent two-level houses with their common amenities. From the architects went to visit the site and saw huge trees, they decided not to touch them. Instead, they planted the houses in an almost surgical way, adapting to the unevenness and natural conditions of the land. The final result is houses that appear to have been built for years, as well as vegetation that was planted at the same time as the construction.

房屋结构为金属结构，地板由梁和木板组成，这些梁和木板保留了下来。房屋的墙壁由银色石灰华和木板制成。建筑群的挡土墙和一般围栏由当地石材制成，没有接缝。室内地板和露台由来自印度的灰色石材制成，称为Caledonia。

The structure of the houses is metallic, with the floors of beams and wooden panels that were left apparent. The walls of the houses are made of Silver Travertine and wooden panels. The retaining walls and general fences of the complex are made of regional stone, placed without a joint. The interior floors and terraces are made of a gray stone from India called Caledonia.

房屋采用交错式设计，起居区视野逐渐下降，交通和服务区则位于后立面，以保护隐私。所有安装系统都经过深思熟虑，尊重环境。废水经过回收和处理，照明采用自动化，以提高效率。此外，窗户采用最先进的玻璃，旨在节约温度和隔离噪音。

The design of the houses is staggered, with the living areas having descending views, leaving the circulations and services towards the rear facade to achieve privacy. All installation systems were thoughtfully conceived in respect of the environment. Wastewater is recycled and treated, while lighting is automated for greater efficiency. Additionally, the windows feature state-of-the-art glass designed to conserve temperature and isolate noise.

▽平面图，plan

▽立面图，Elevation

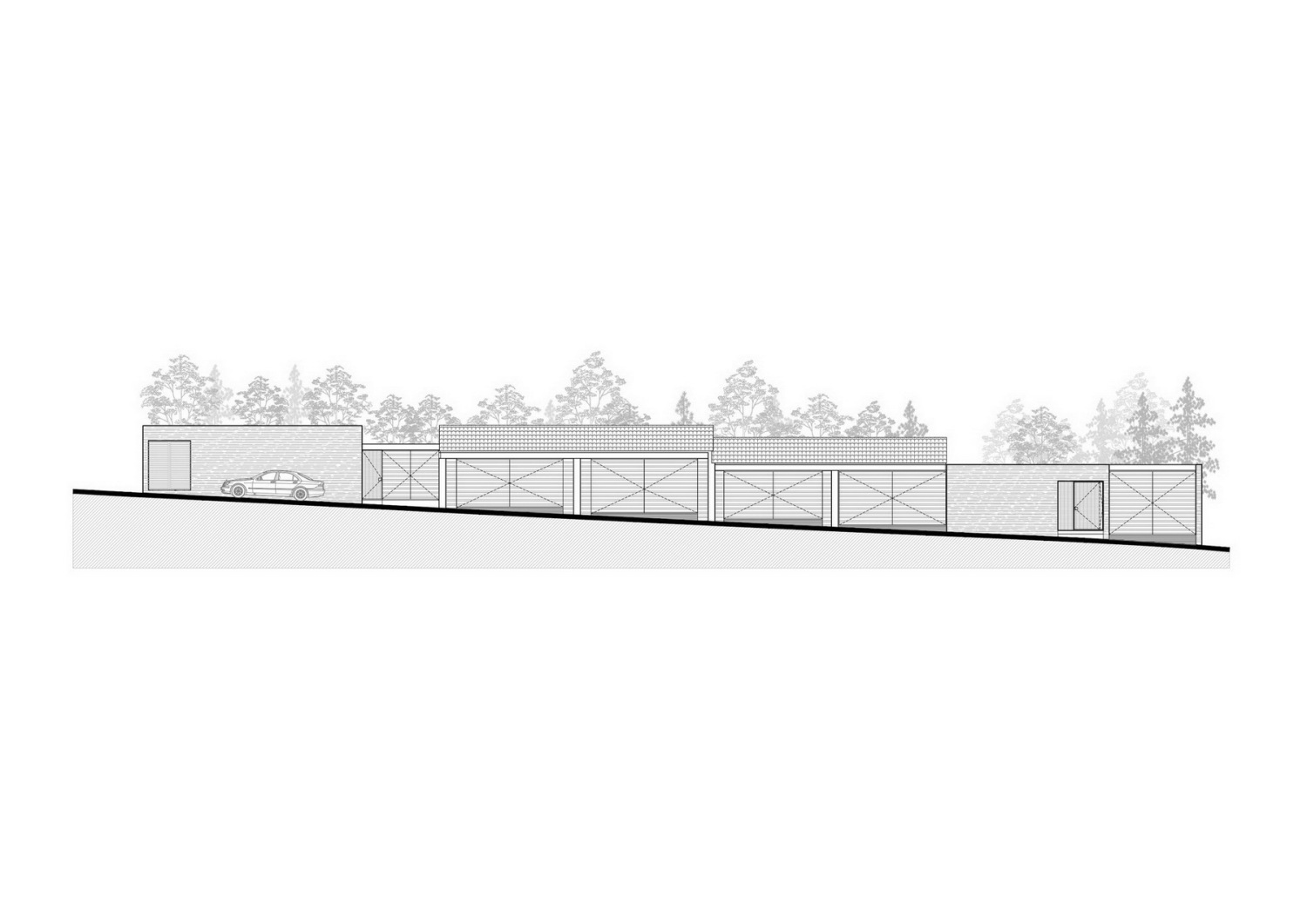

▽车库立面图，Garage Elevation

Technical sheet

Four Houses: P i n a r e s

Location: Valle de Bravo, State of Mexico

Built Area: 10,000 sqft

Program: Four country houses, each with three bedrooms with dressing room and bathroom, study, living room, dining room, kitchen, laundry, full service room, lobby, guest bathroom, and cellar.

tennis court, multipurpose court, common terrace area with pool, kitchen, and services. Access with surveillance, and parking lots of the complex. Landscape walkers.

Architects: Grupo Arquitectura

Team:

Daniel Alvarez

Tomás Álvarez

Gabriel Villalobos

Erick Ríos

Erika Sorensen

Alfredo Cortéz

Anaís Guzmán

Lighting: Luis Lozoya

Landscape: KVR / Kees Van Rooij

Construction: Grupo MF

Kitchen & Walk-In: Cocinas Olimpic           Furniture: HAJJDESIGNLESS

Photography: Agustín Garza
