PK 住宅附属空间

位于圣保罗市一个非常特殊的地区，这个家庭决定征用邻近的土地来扩大他们的花园，建造休闲空间，共同生活，并收藏部分艺术品。为了满足他的计划，建筑项目应该包括一个主展馆，以容纳一个多功能厅，有空间看电影，聚集朋友，艺术品和一个大阳台。在研究的发展中，该方案在不断发展，因此RMAA还设计了第个体量，一个有顶棚的烧烤区。

Located in a very special region of the city of São Paulo, the family decided to adquire the neighboring land to expand their garden, build leisure spaces, live together and house part of their collections of works of art. To meet his program, the architectural project should include a main pavilion to house a multipurpose room, with space to watch movies, gather friends, artwork and a large balcony. In the Development of the studies, the program was evolving so that the RMAA also designed a second volume, a covered area for barbecue and a 25m steak.

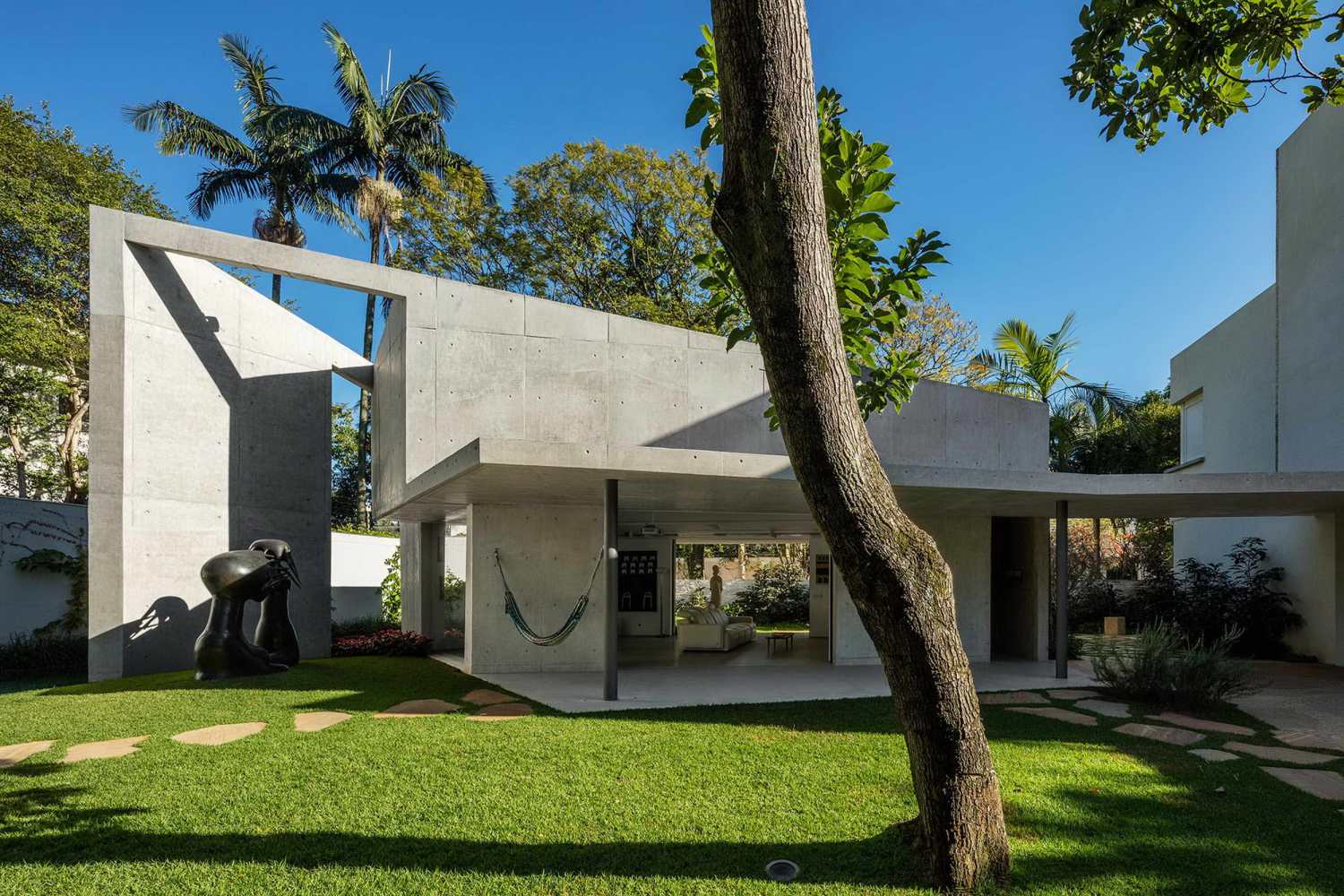

▽项目外观 Exterior

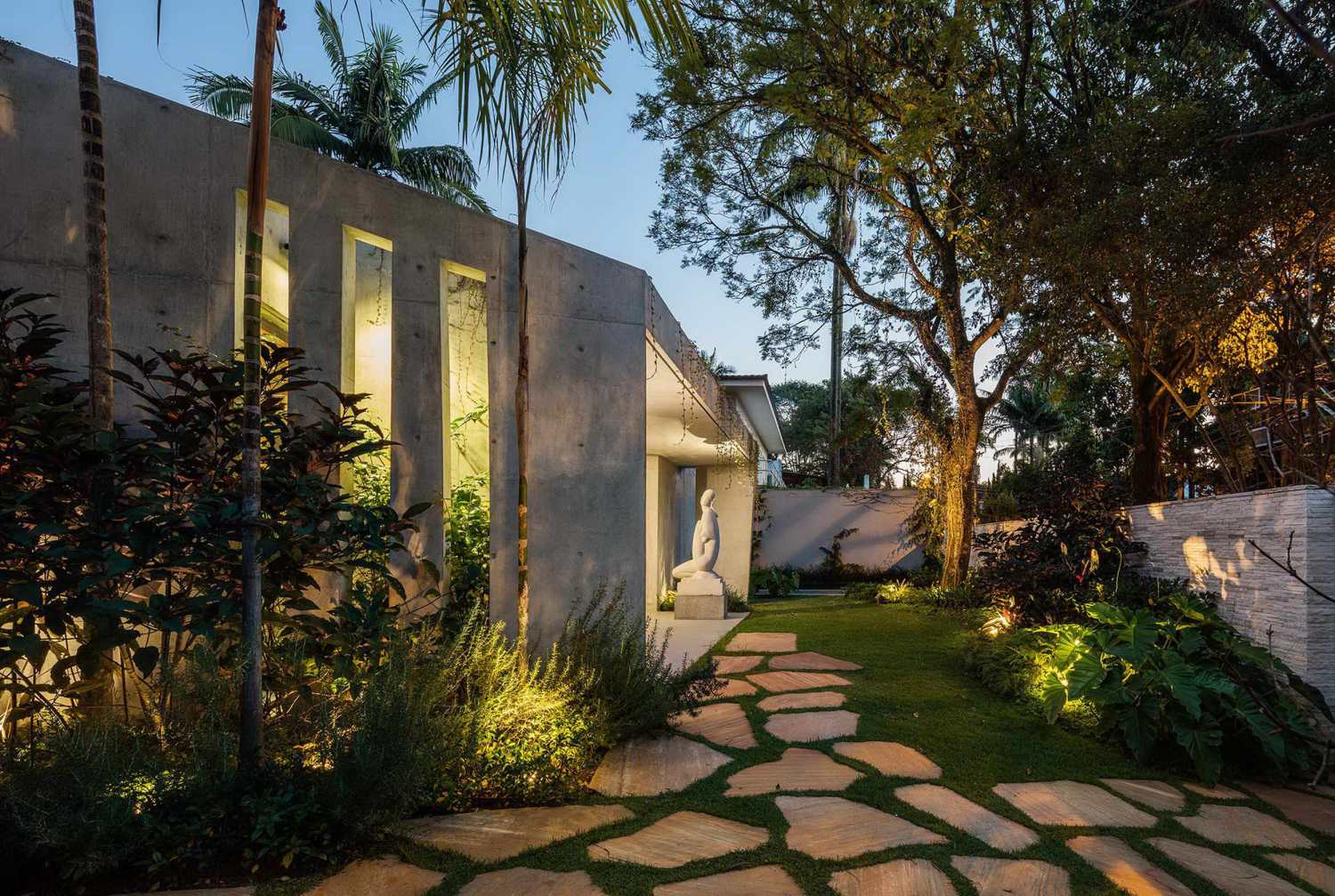

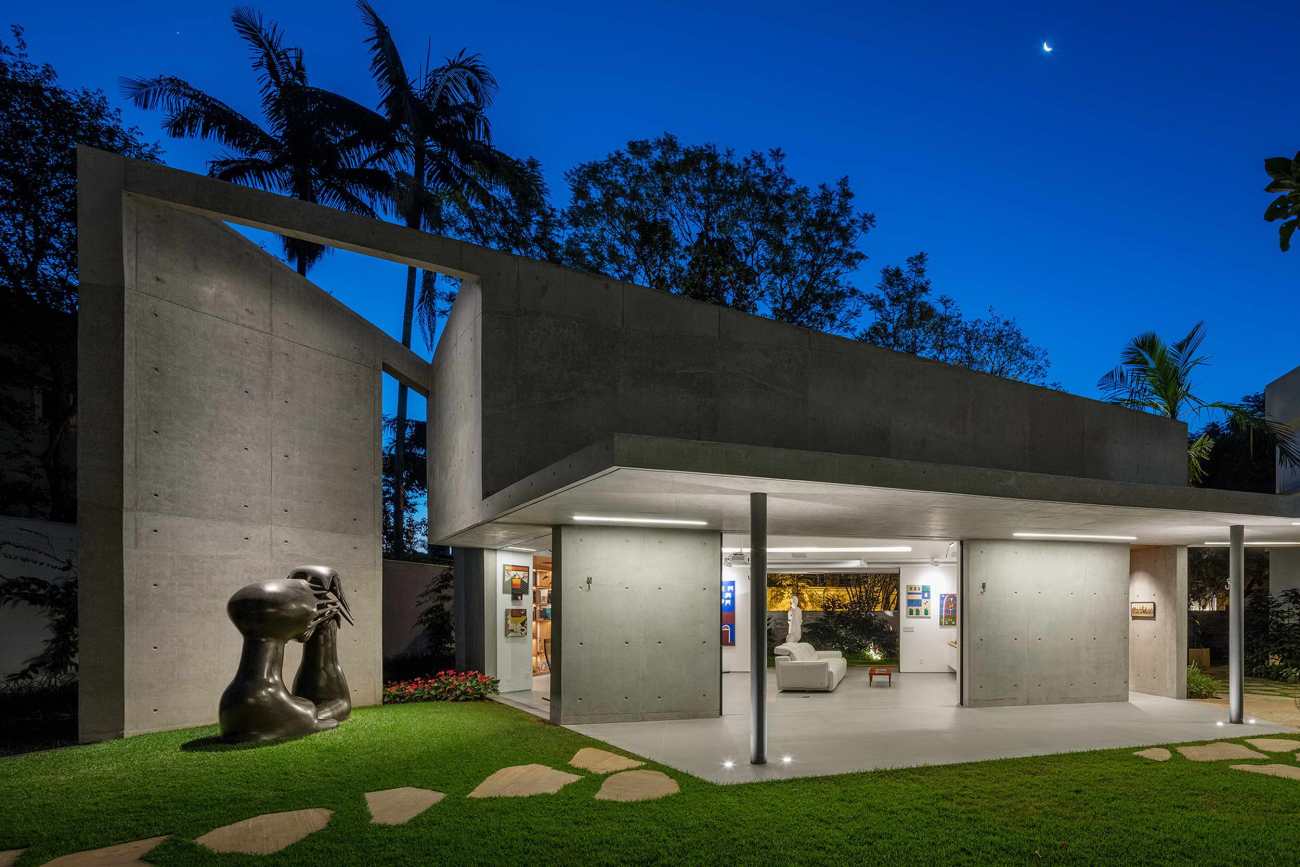

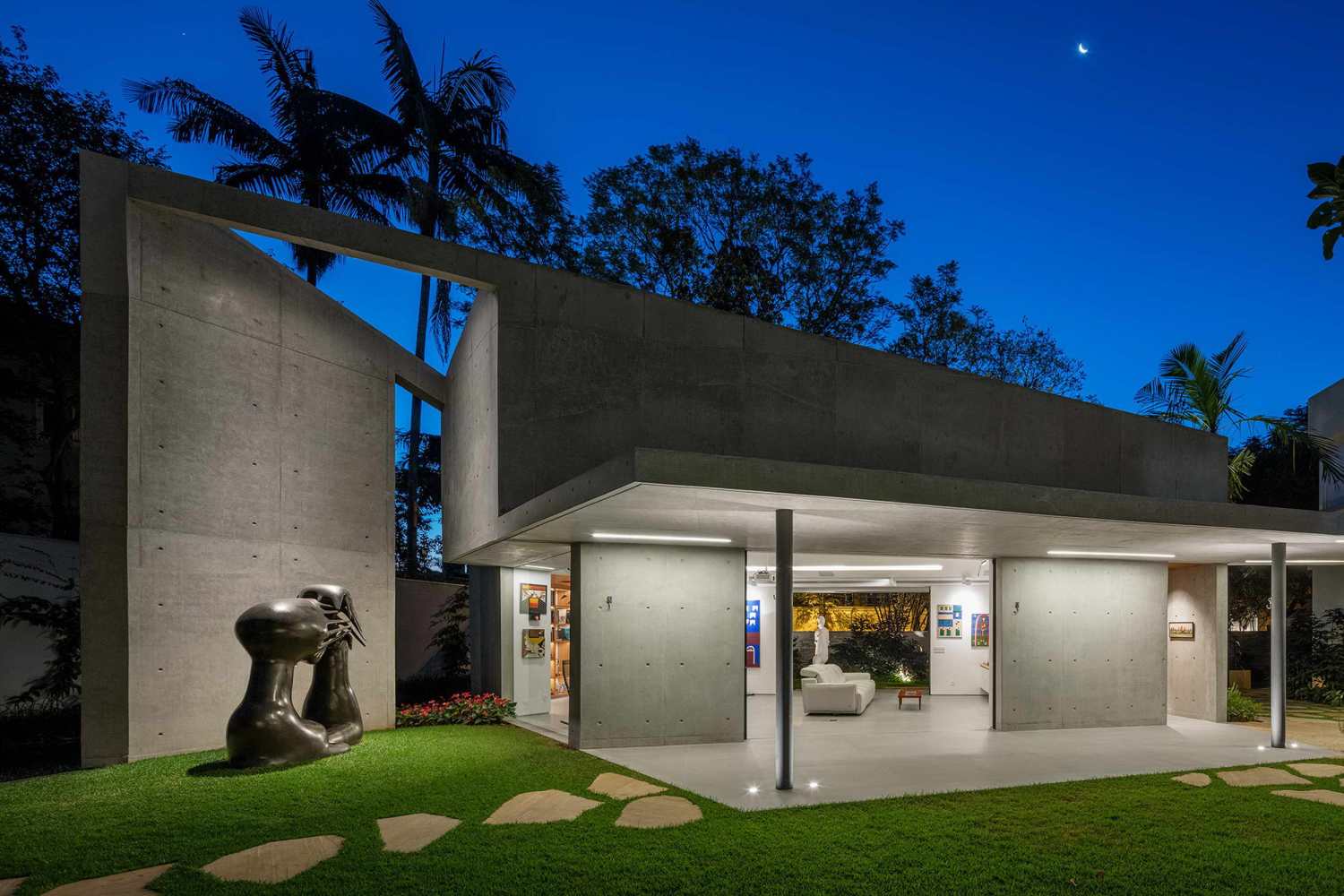

▽项目夜景 Night view

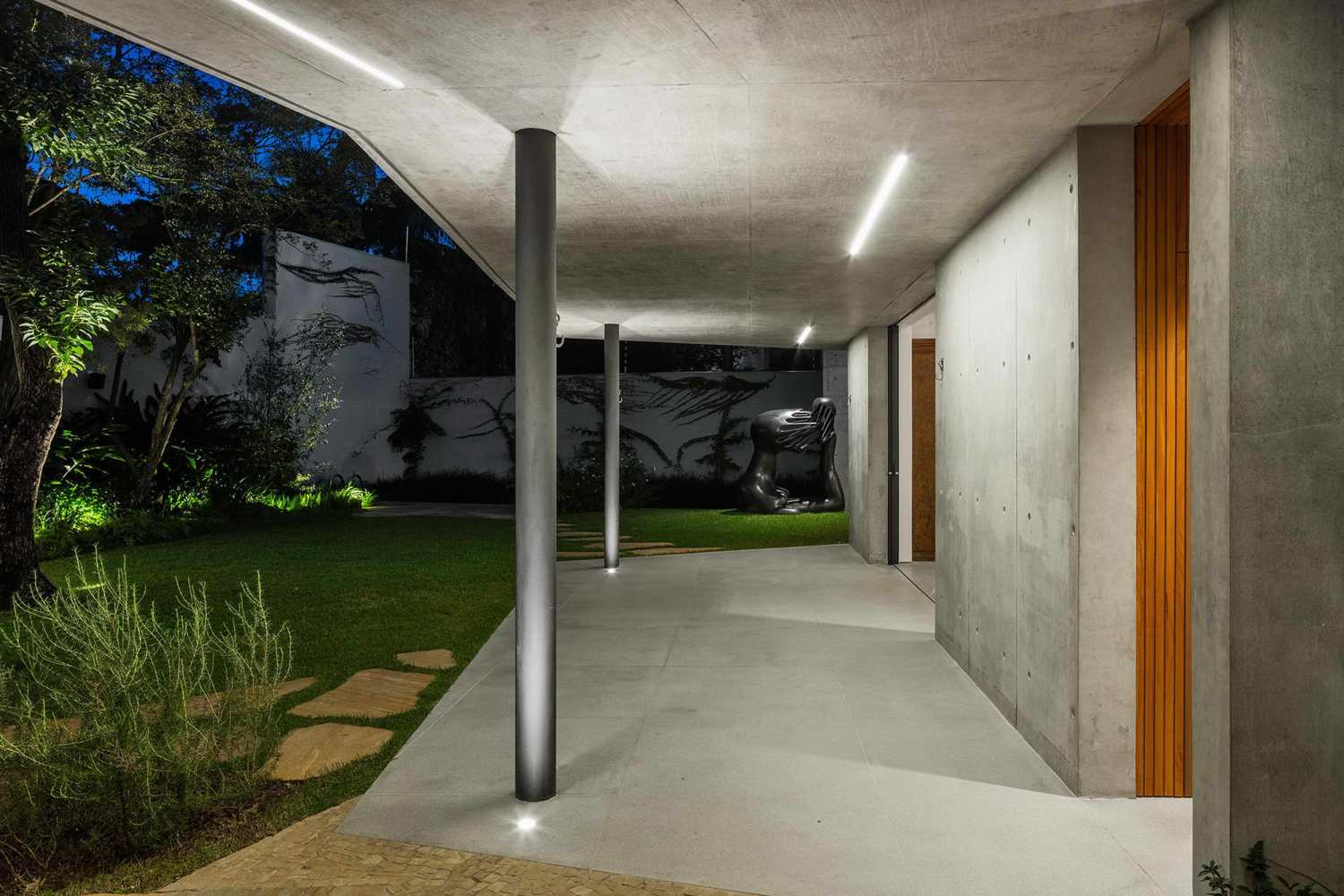

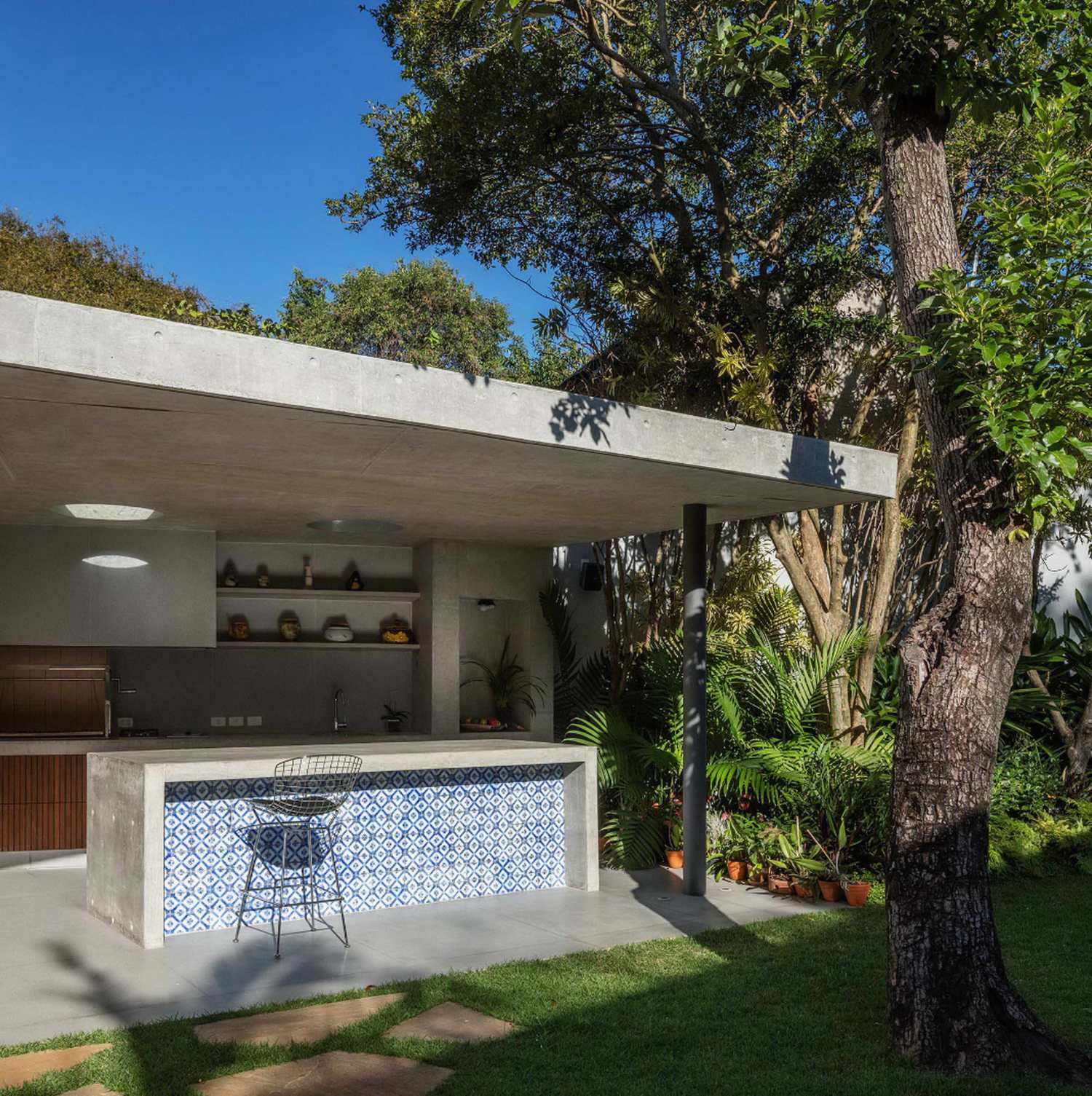

▽室外烧烤操作间 Outdoor grill room

设计灵感来源于艺术品。建筑师设计了一个独特的空间，它没有直角，有倾斜的屋顶，有惊人的开口和穿过天花板的光线。所以设计了一个主体量来容纳主要活动和阳台。斜面屋顶体量以其最高立面转向地块后面，以其低面转向前面，使绿色屋顶暴露在街道上。另一处空旷的空间植入底部，就像一个理念，设想一个具有美食特征的区域。从设计上看，两个体块之间通过草地和中央庭院相互连接，形成了新的体量。

The Inspiration was the works of art. Sculptures, paintings and furniture led architects to design spaces of a distinct volume, without right angles, sloping roof, with surprising openings and light streaming in through the ceiling. As a result, a main volume was designed to house the main activities and a balcony. This sloping roof volume turns to the back of the lot with its highest façade and forward with its lower face, exposing its green roof to the street. A second open volume, implanted at the bottom, like an edicule, contemplates an area with gastronomic character. These two volumes are interconnected by a grass and the central courtyard, which arise from the design between the new volumes and the residence.

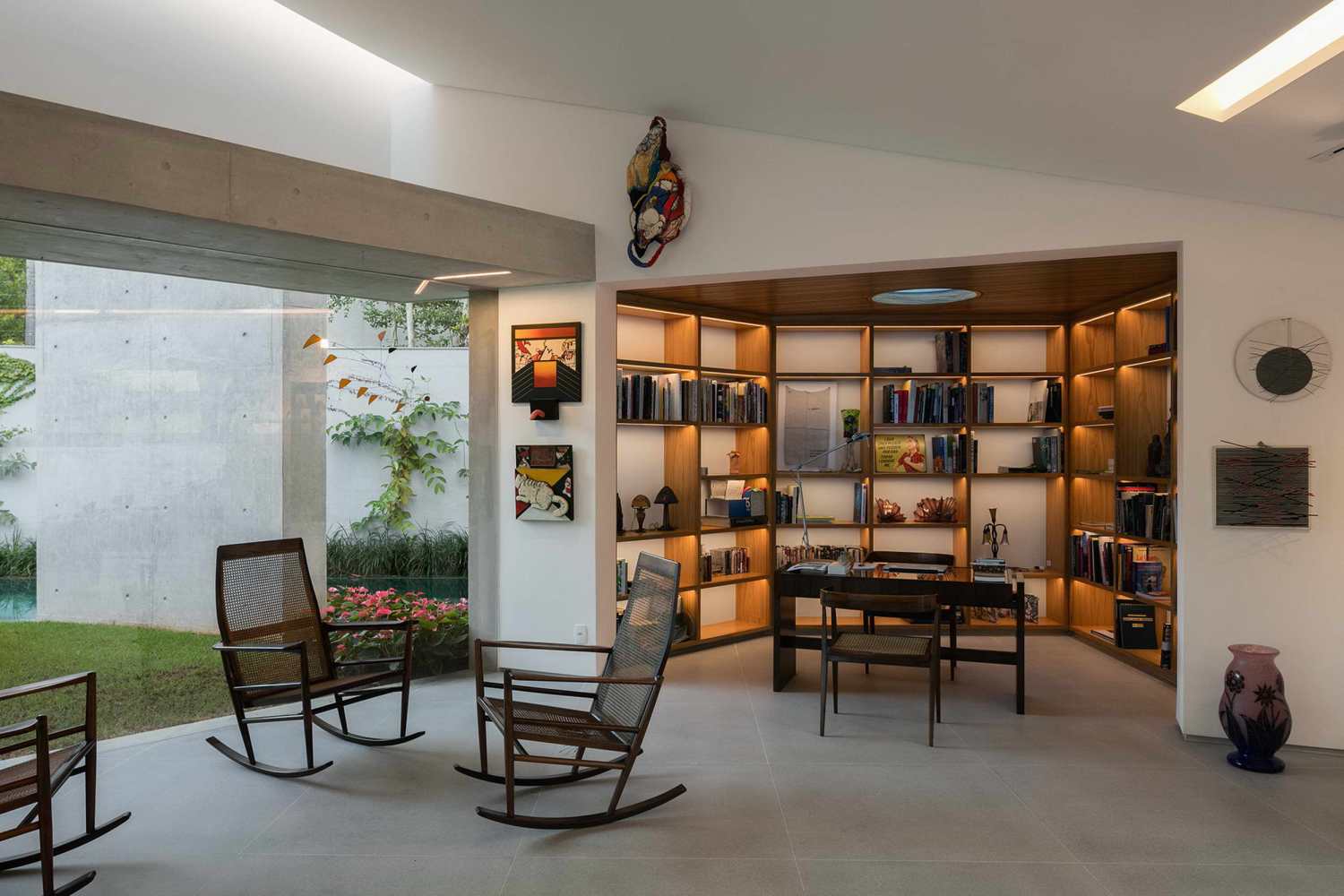

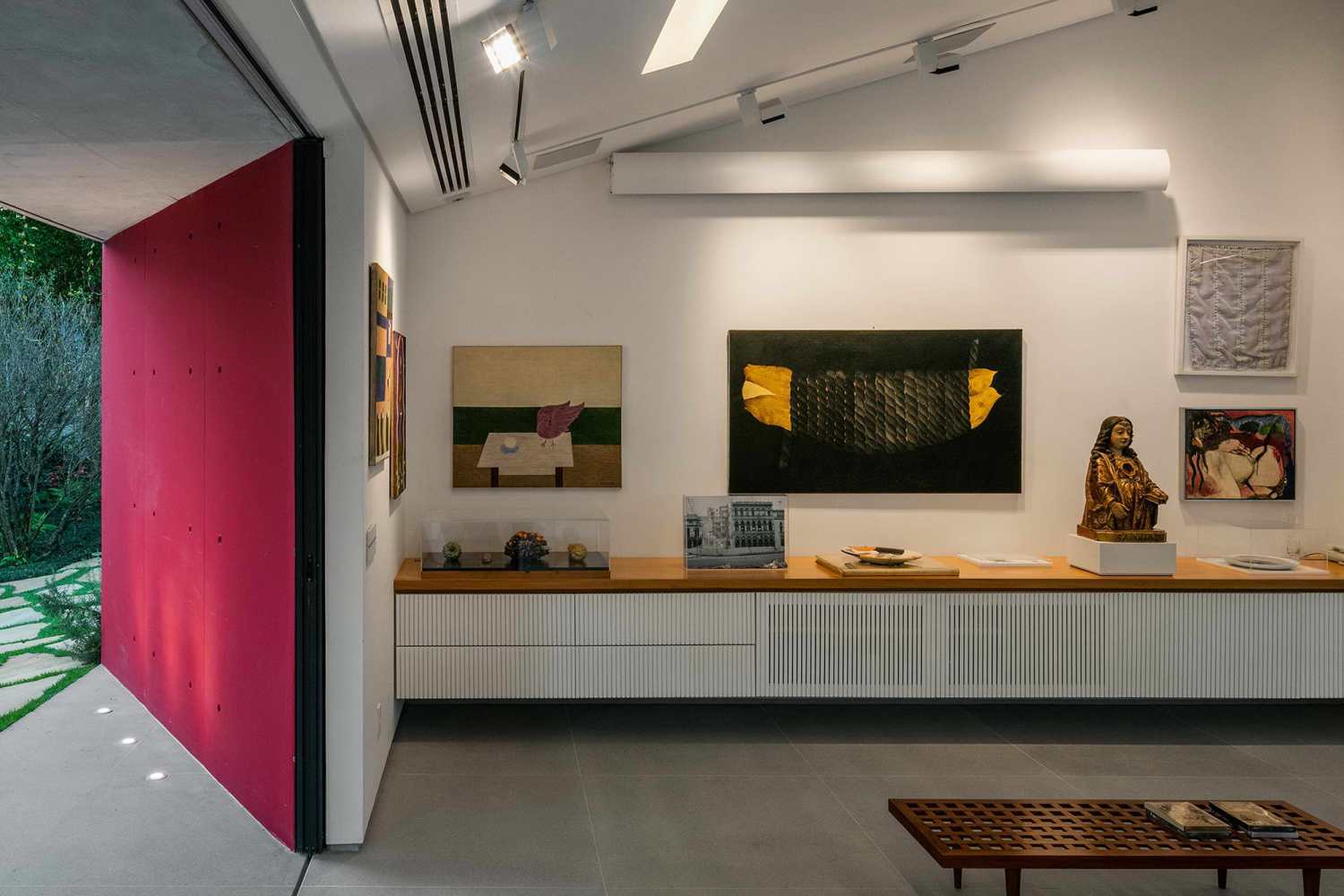

▽无直角的室内空间 Interior spaces without right angles

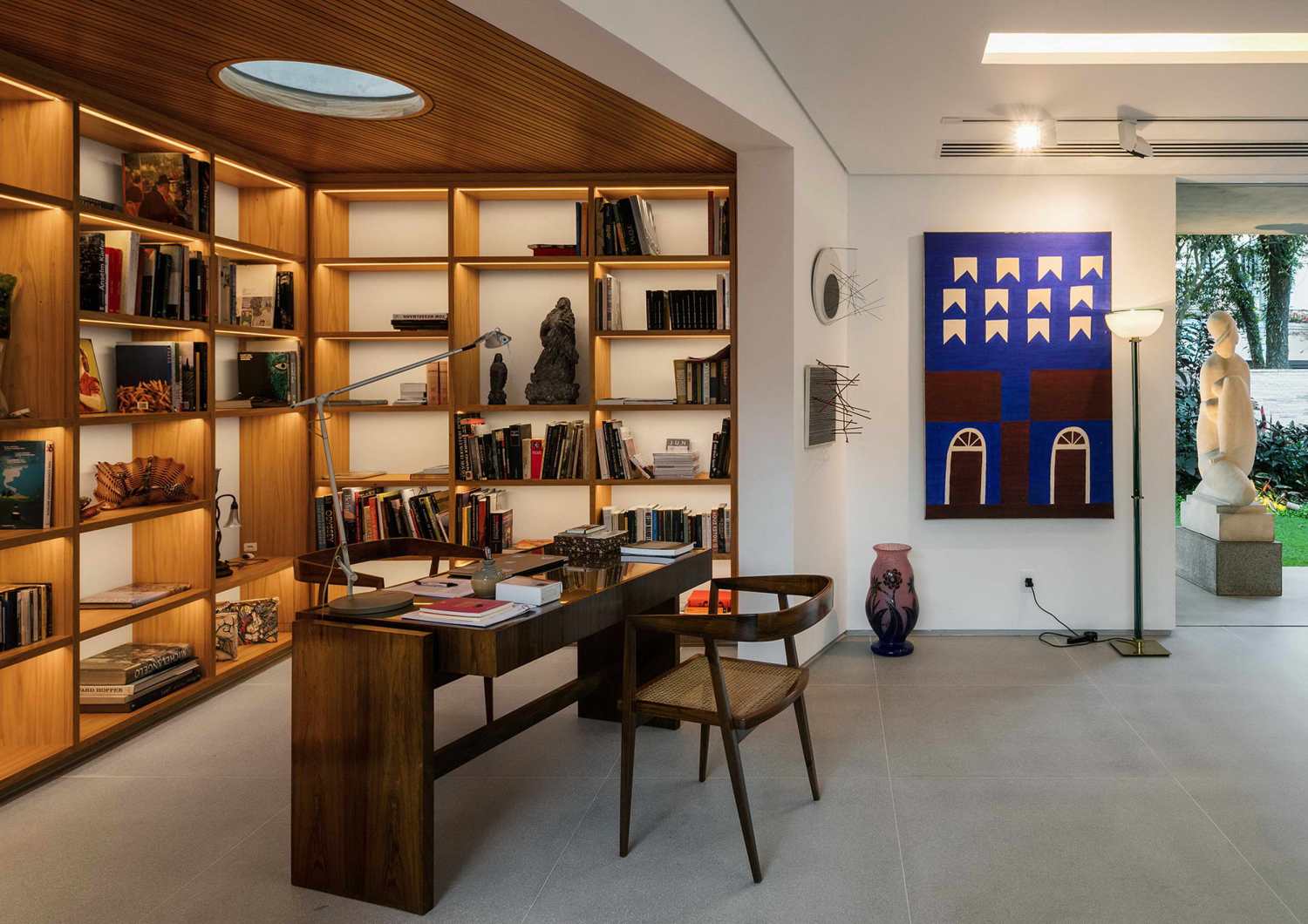

▽室内空间 Interior spaces

▽室内空间 Interior spaces

最后，我们设计了游泳池/泳道，它占据了场地的右侧，从前到后，靠近边界墙。这个元素也作为一个水镜，作为一个背景反射周围的体量。由于项目定义了一个非常丰富和繁忙的体量，因此我们选择使用最少的材料，很明显，混凝土是最好的选择，以满足与外部和现有住宅空间关系的平稳过渡。

Finally, we designed the pool / lane that occupies the right side of the lot, running from front to back, close to the boundary wall. This element also acts as a water mirror, serving as a backdrop reflecting the volumes around it. As the result of the project defined a very rich and busy volume, the option was to use minimal materials. Apparent concrete was the choice to meet the expectations of a smooth relationship with the outside and the existing residence.

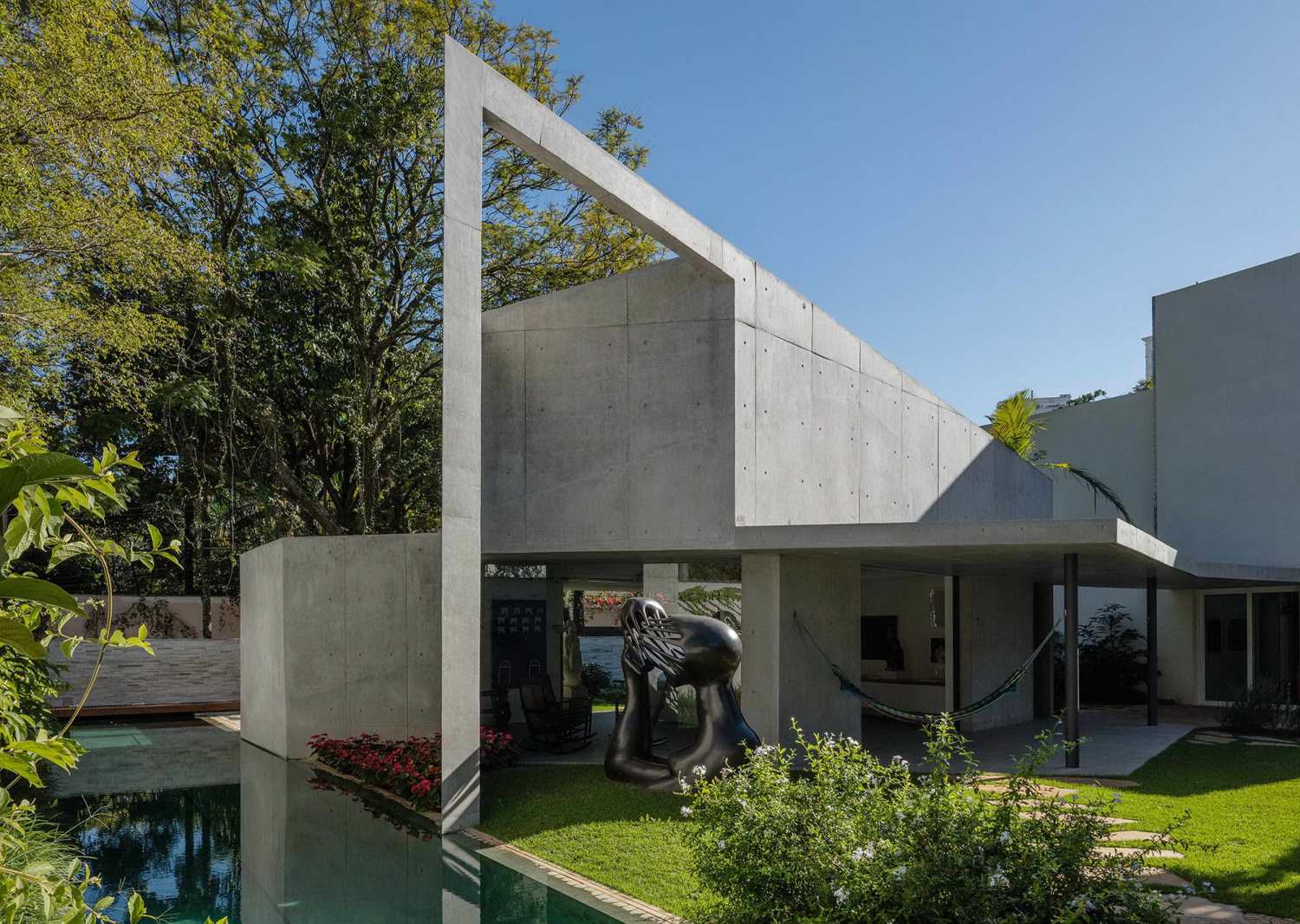

▽泳池作为水镜与周边环境融合 Pool serving as a backdrop reflecting the volumes around it

考虑到街道的狭窄宽度和周围的绿色环境，我们也相应做了一些改变。绿色的屋顶，下侧对着街道，给人一种绿色的立面感觉，并柔化了建筑体量的高度，使其最高部分回归到几乎不可见的后部外部。另一个亮点是为容纳玛丽亚-马丁斯的雕塑而设计的空间。在一个焦点处，对雕塑的植入进行了研究，这样可以从不同的角度看到它，而照明则进一步增强了场景的氛围。

A discrete work was done considering the narrow width of the street and the green surroundings. The green roof with the lower side to the street gave a green facade feel and softened the height of the built volume that returns its highest part to the barely visible rear exterior. Another highlight is the space designed to accommodate Maria Martins sculpture. At a focal point, the sculpture had its implantation studied so that it could be seen from different angles and a lighting that further enhances the scene created there.

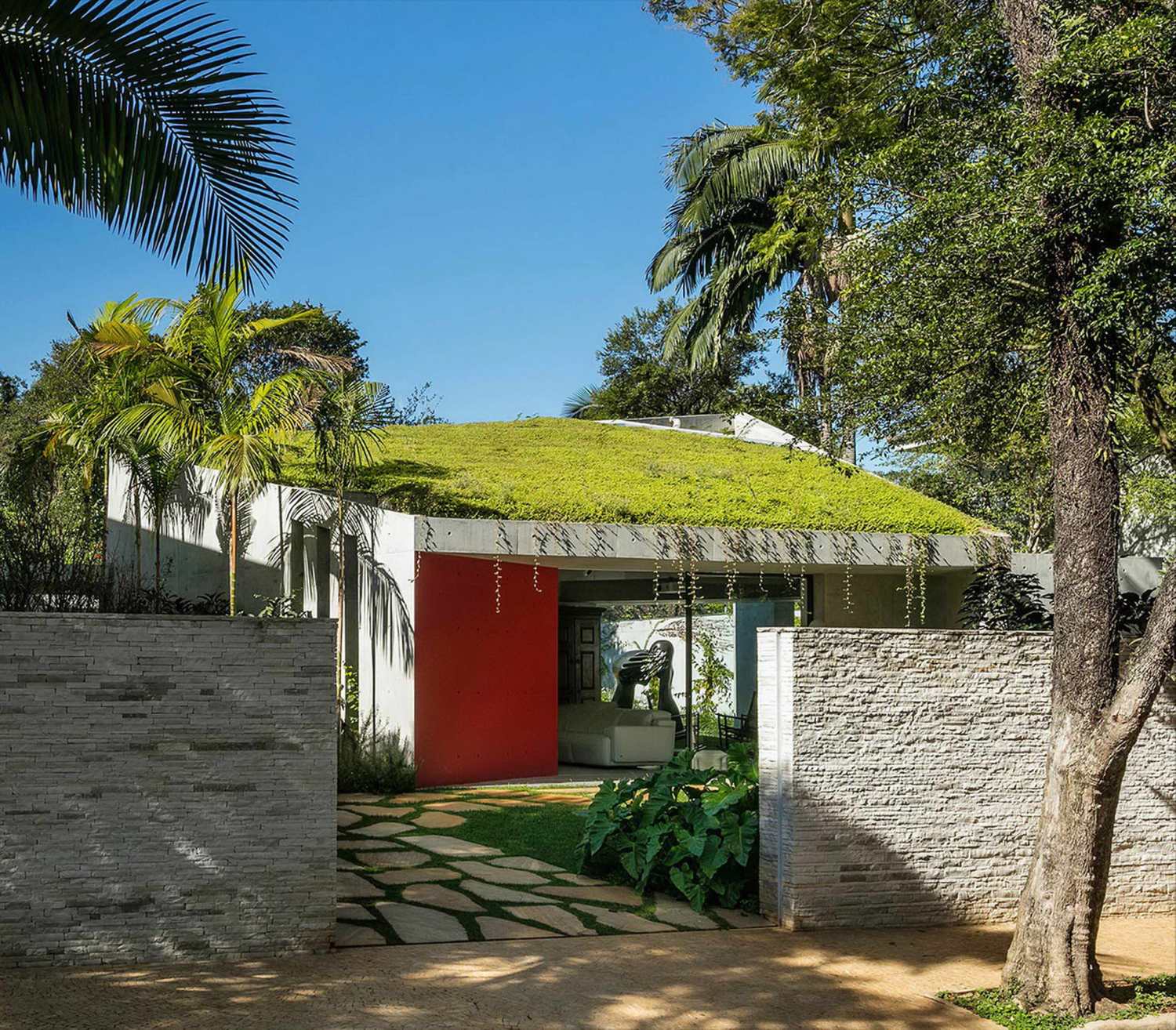

▽布满绿植的屋顶 The green roof

这个项目提供了一些自动解决方案，包括编写灯光场景和多媒体辅助。葡萄牙马赛克地板由塑胶艺术家塞吉奥·芬格曼设计。就此类干预而言，这项建议是为了满足对资金中存在的车辆出入(甚至是零星使用)的需要。作为花园和户外草场的一部分，该游园需要一个特别的地面设计，与来自米纳斯吉拉斯州的巨型石块组合起来。葡萄牙马赛克由 Sé rgio Fingermann制作，在艺术家和建筑师的密切监督下保证了最高的设计精确性。

The project has some automation solutions for the programming of lighting scenes and also the aid of multimedia. The Portuguese mosaic floor was designed by plastic artist Sérgio Fingermann. In the context of this intervention, the proposal arose from the need to resolve vehicle access (even sporadic use) existing in the funds. This tour, which is part of the composition of the garden and the outdoor grassy courtyard, required a special floor design that formed a set with the large shards of stone from Minas Gerais. The Portuguese mosaic, prepared by Sérgio Fingermann, was closely monitored by the artist and the architects, to ensure the highest accuracy of the design.

Name: PK Residence Annex

Location: São Paulo - SP

Project date: 10/2017

Building date: 12/2018

Site area: 480,96m²

Buildingarea:145m²
Architecture: Reinach Mendonça Arquitetos Associados

Authors: Henrique Reinach e Maurício Mendonça

Collaborator Architect:Tadeu Ferreira

Contributers:Tadeu Ferreira, Tony Chen, Victor Gonçalves, Camila Osele, Taís Vieira, Paula Leal, Alessandra Altschul, Rodrigo Nakajima, Douglas Morilhão, Mayara Ready, Gabriel Penna, Giovanna Federico, Carolina Rasga, Felipe Barba, Rodrigo Oliveira, Nathalia Grippa, Daniela Sopas e Claudia Bigoto.

Photos: Nelson Kon

Architecture design: Reinach Mendonça Arquitetos

Interior design: Reinach Mendonça Arquitetos

Landscape: Flávia Tiraboschi Arquiteta Paisagista

Lightining:  Espaço Luz

Structure: Benedictis Engenharia

Eletrical/Hydralical:Zamaro

Automation: OguriÁudio e Vídeo
