| 公司： | PANORAMA ARQUITECTOS | dRN Arquitectos | 类型： | 建筑 |
|---|---|---|---|
| 地区： | 智利 | 标签： | 别墅私宅 |
该项目包括在海岸上两个建筑体量，该房屋的视觉和听觉高度暴露于高速公路的边界。另一方面，它提供了海洋的全景。
The project consists of a second house in the coast, at a very exposed terrain, visually and acoustically, since it borders a highway. At the other hand it offers a panoramic view of the ocean.
为了解决暴露问题和最小的亲密感，而不是将房屋与周围环境隔离，我们决定设计一堵墙，将房屋的三个外墙围起来。这堵墙代替了地块的划分，在房屋之间创建了一个露台，在露台周围形成了一个缓冲区，并遮挡了高速公路的视野。

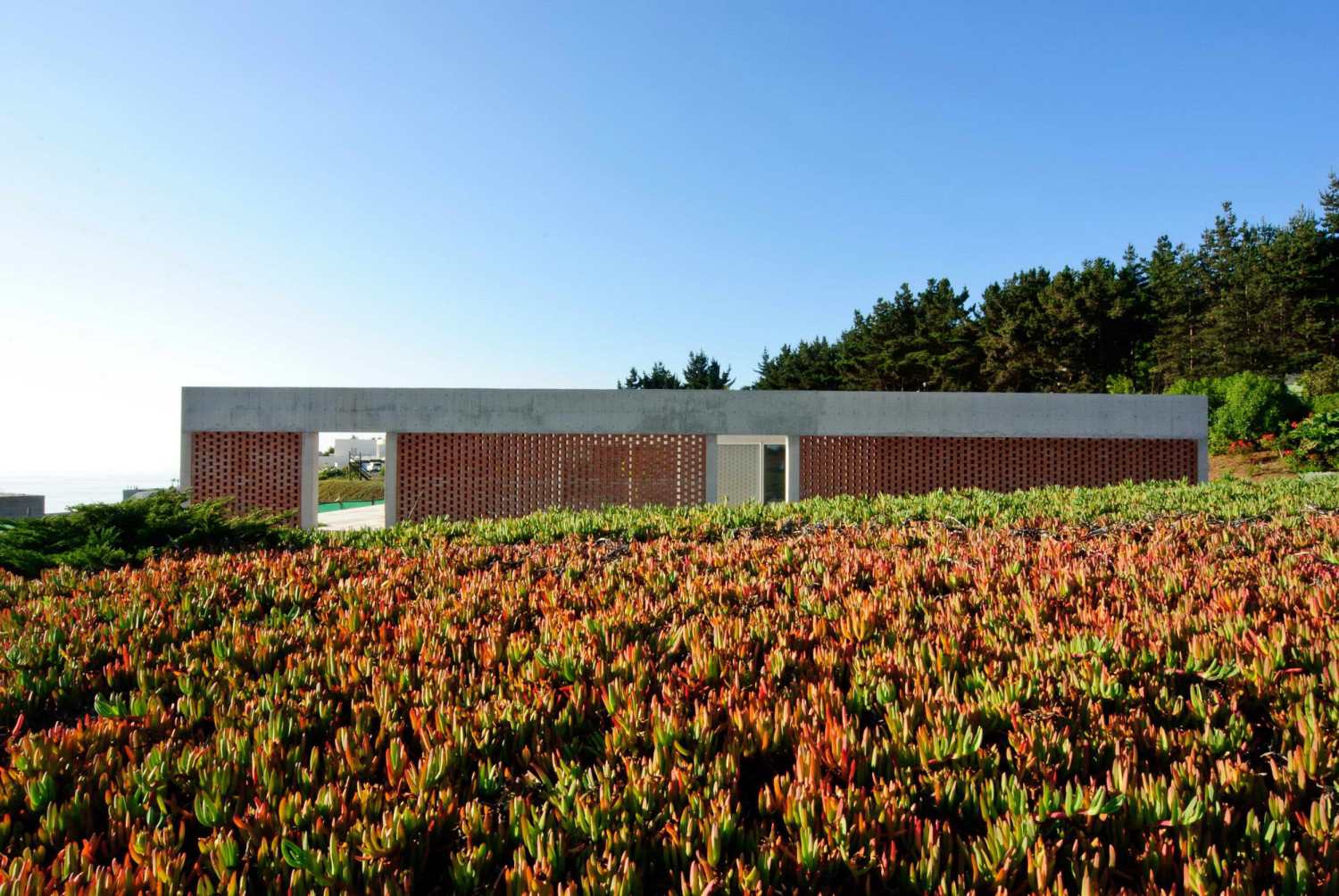

To give a solution to the problematic of display and minimum intimacy, but without isolating the house to its context, we decided to develop a perimeter wall that surrounds the house around three of its facades. This wall replaces the plot division, and in between the house, patios are formed as a buffer to the surrounding replacing the views to the highway.

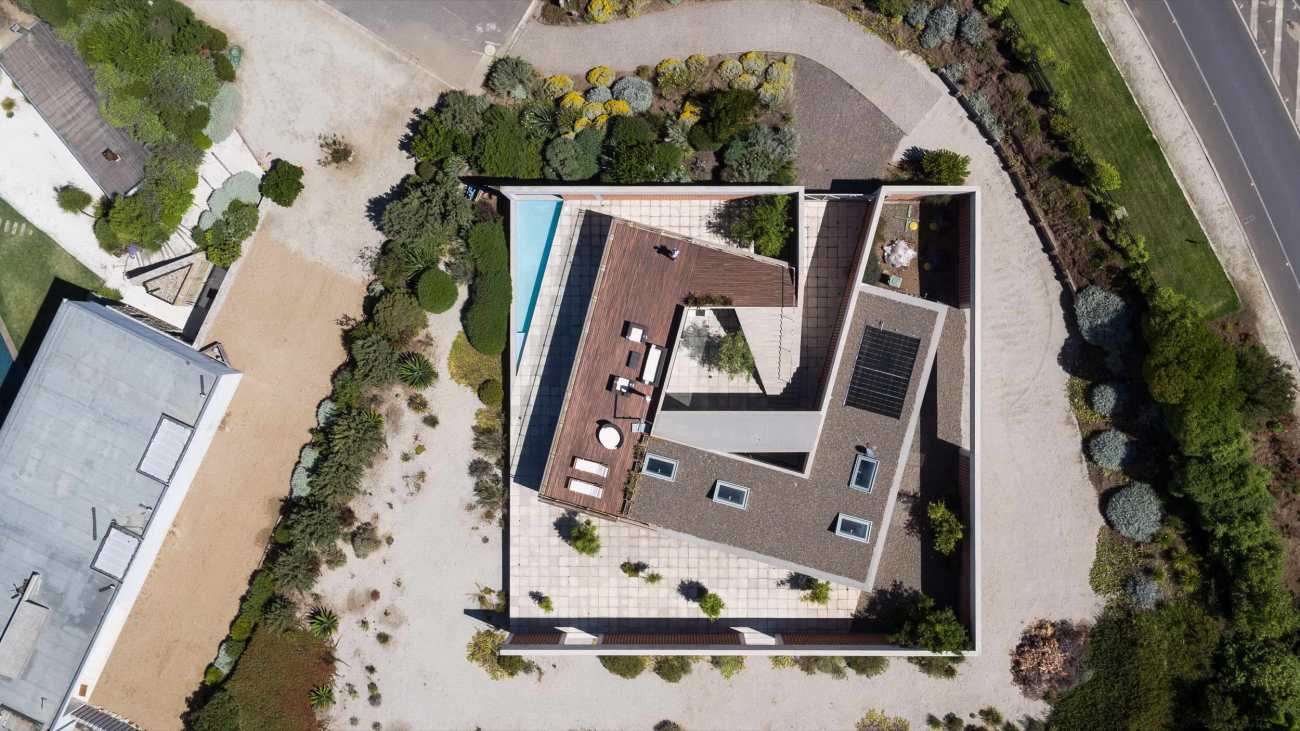

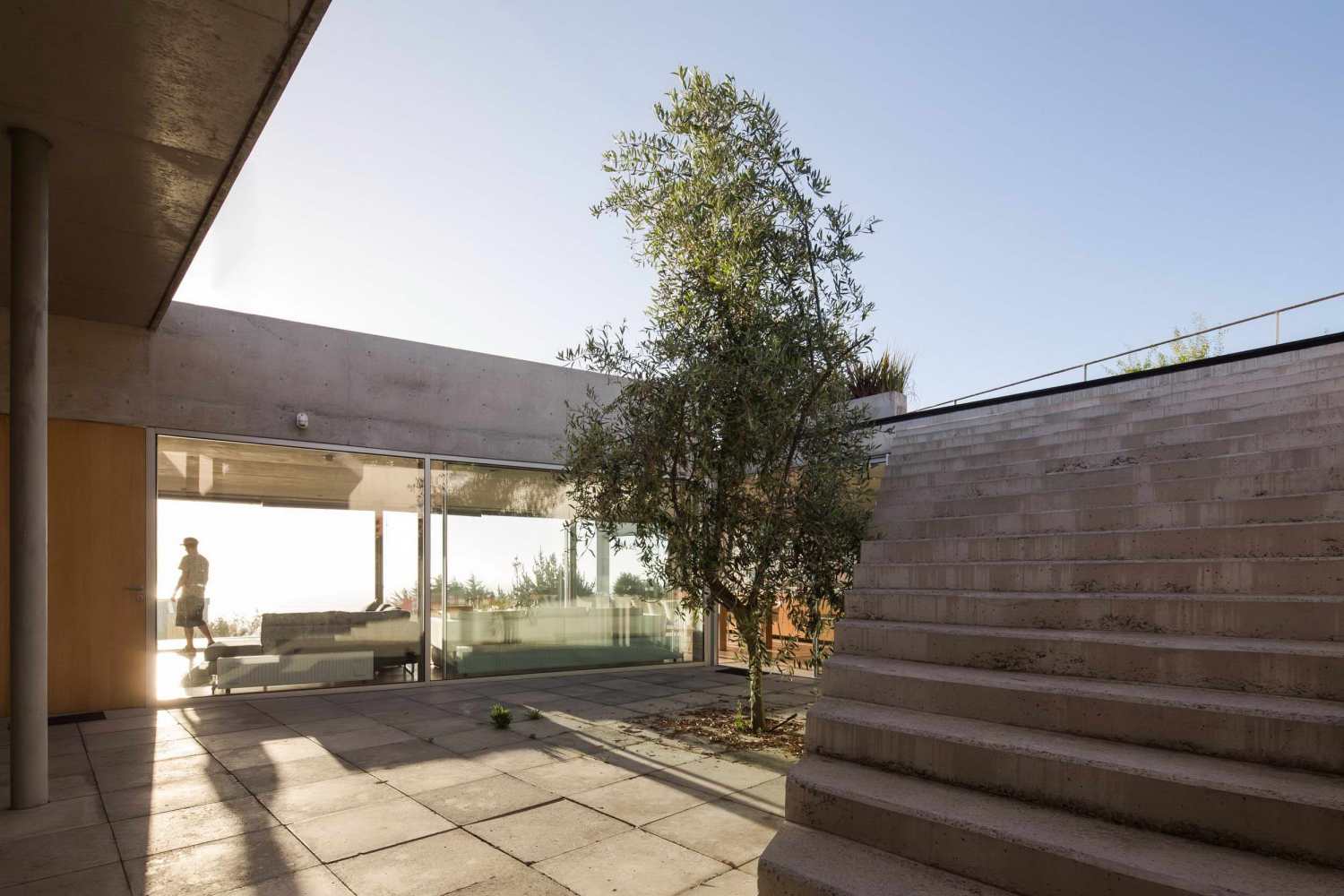

在中心，我们建立了一个中央露台，您可以从中央露台进入房屋。从这个露台上，您可以看到大海，就像从房屋内部一样。由于具有防风功能，因此它是可供选择的露台，客人还可以通过混凝土台阶进入屋顶露台。

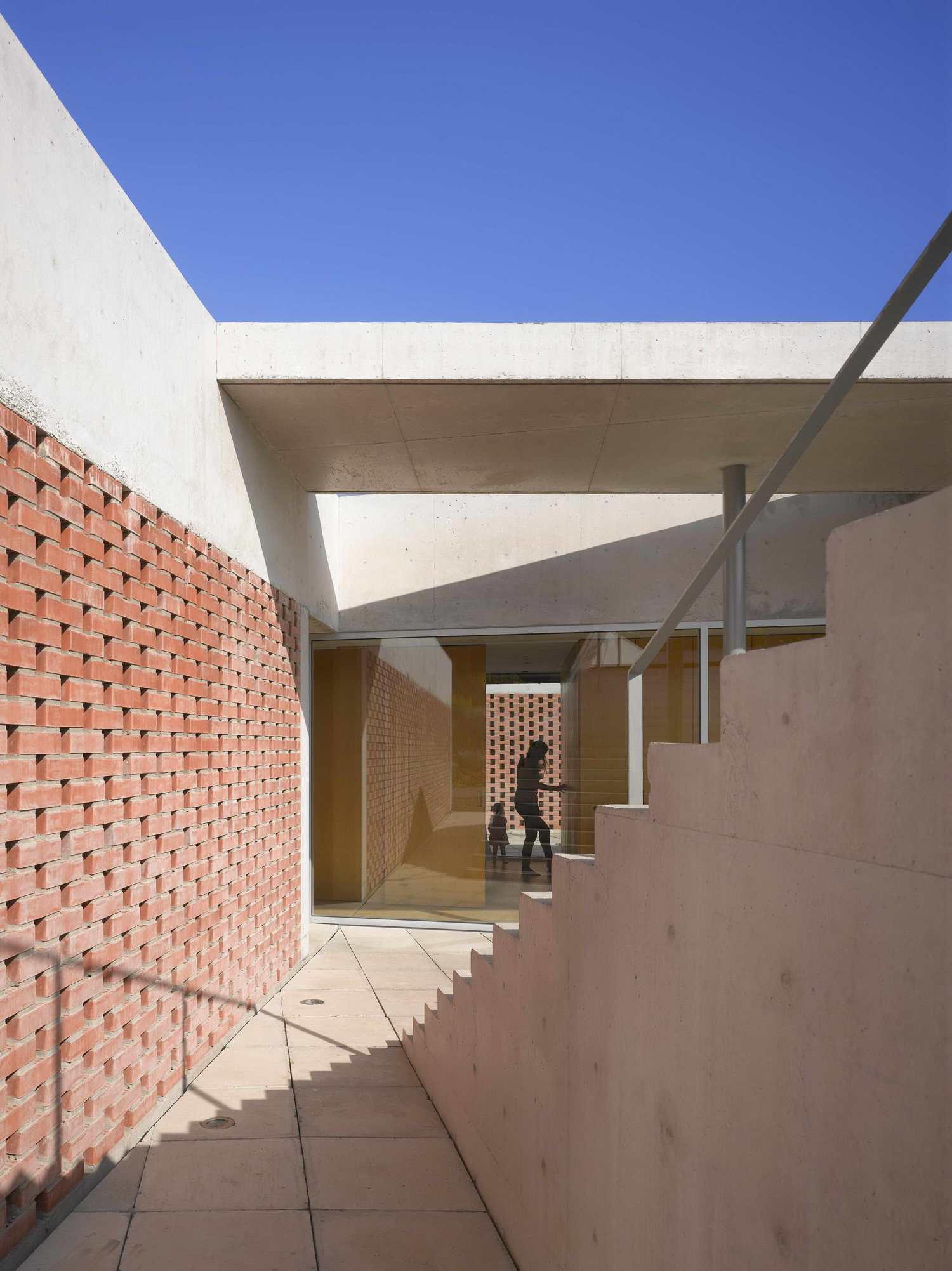

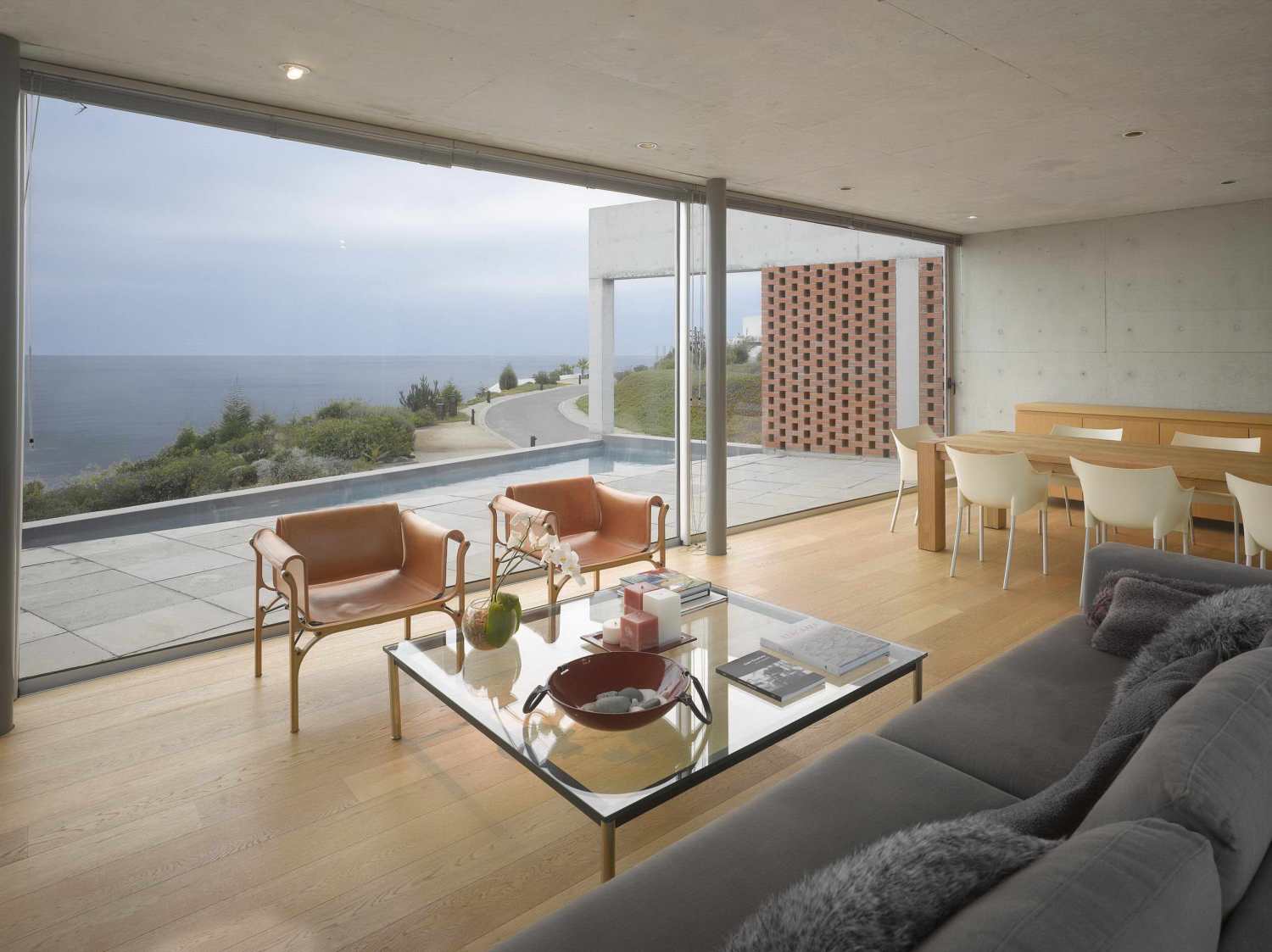

At the center we propose a central patio from which you access the house. From this patio you can see the ocean, as from inside of the house. Since it’s protected from the wind it offers an alternative terrace from where you can also access the roof terrace through the concrete stair.
项目被安排在两个特定的区域，响应中心庭院。
The program is ordered in two defined areas that respond to the center patio.
 |  |
3. 80米高的围栏的选定材料是砖，因为它需要最少的维护，由于沿海气候，它提供了施工的可能性，并且作为一块图，它允许自然光进入并经过过滤曝光。结果是亲密和暴露之间的过渡，外部和内部之间没有分隔。

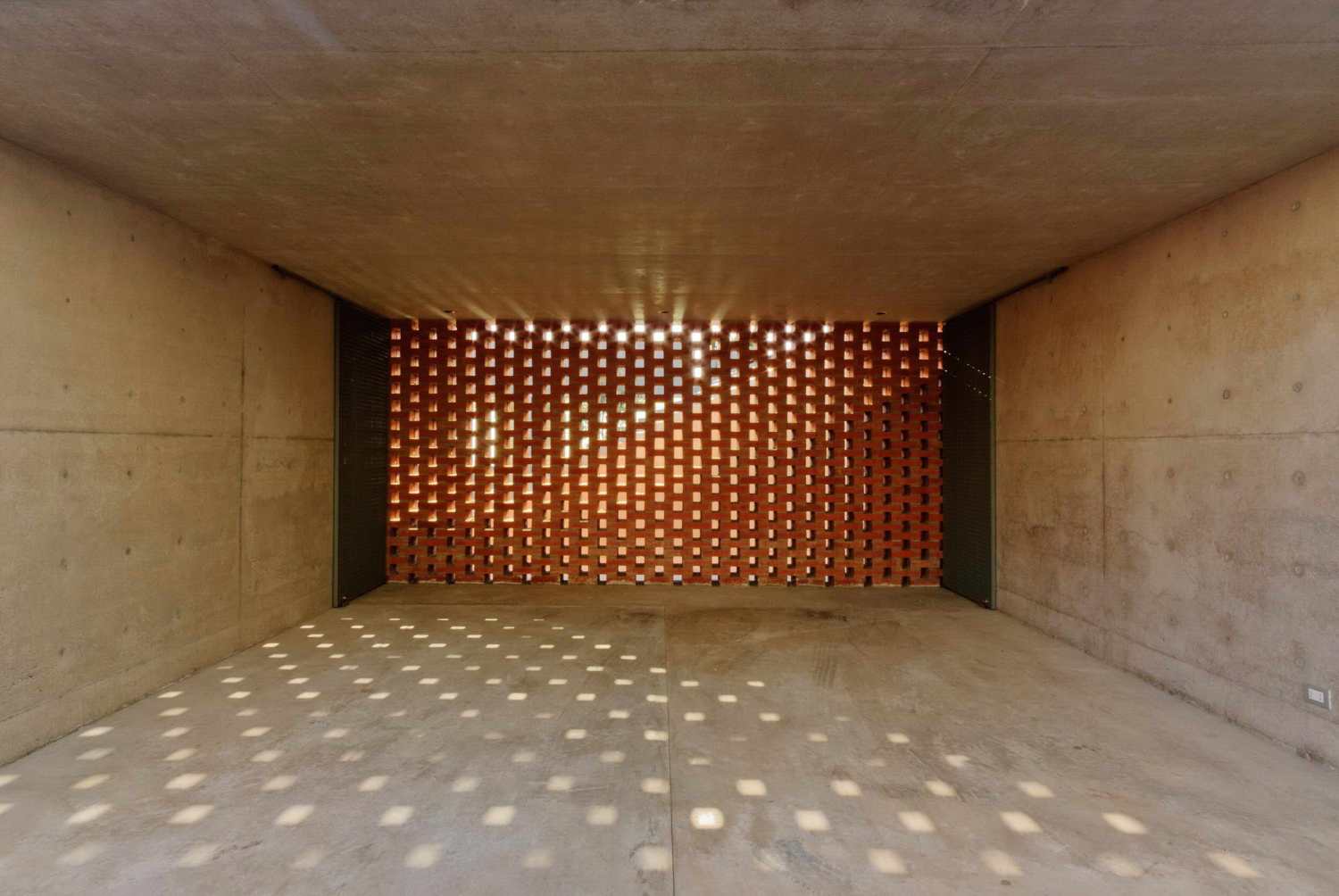

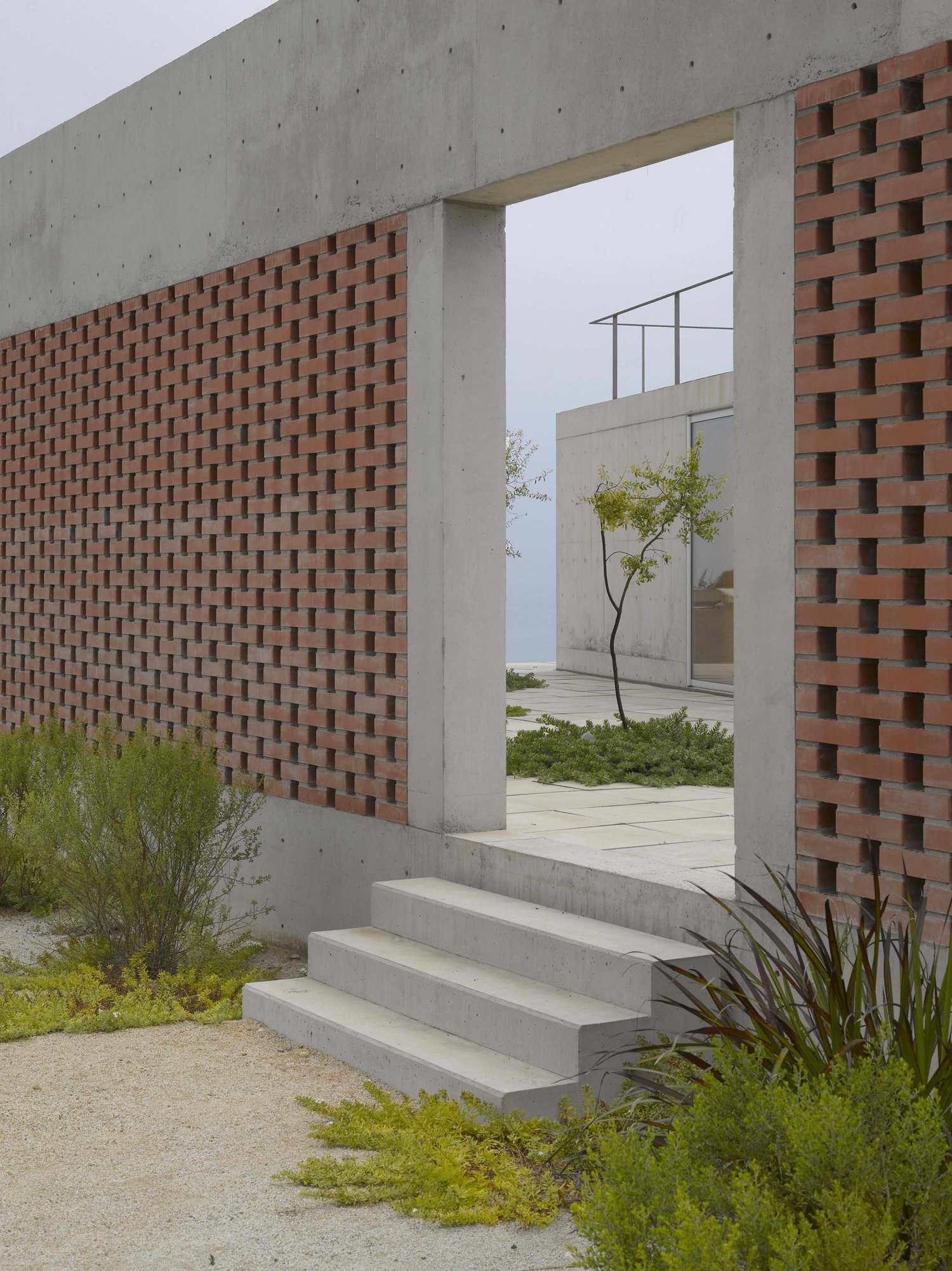

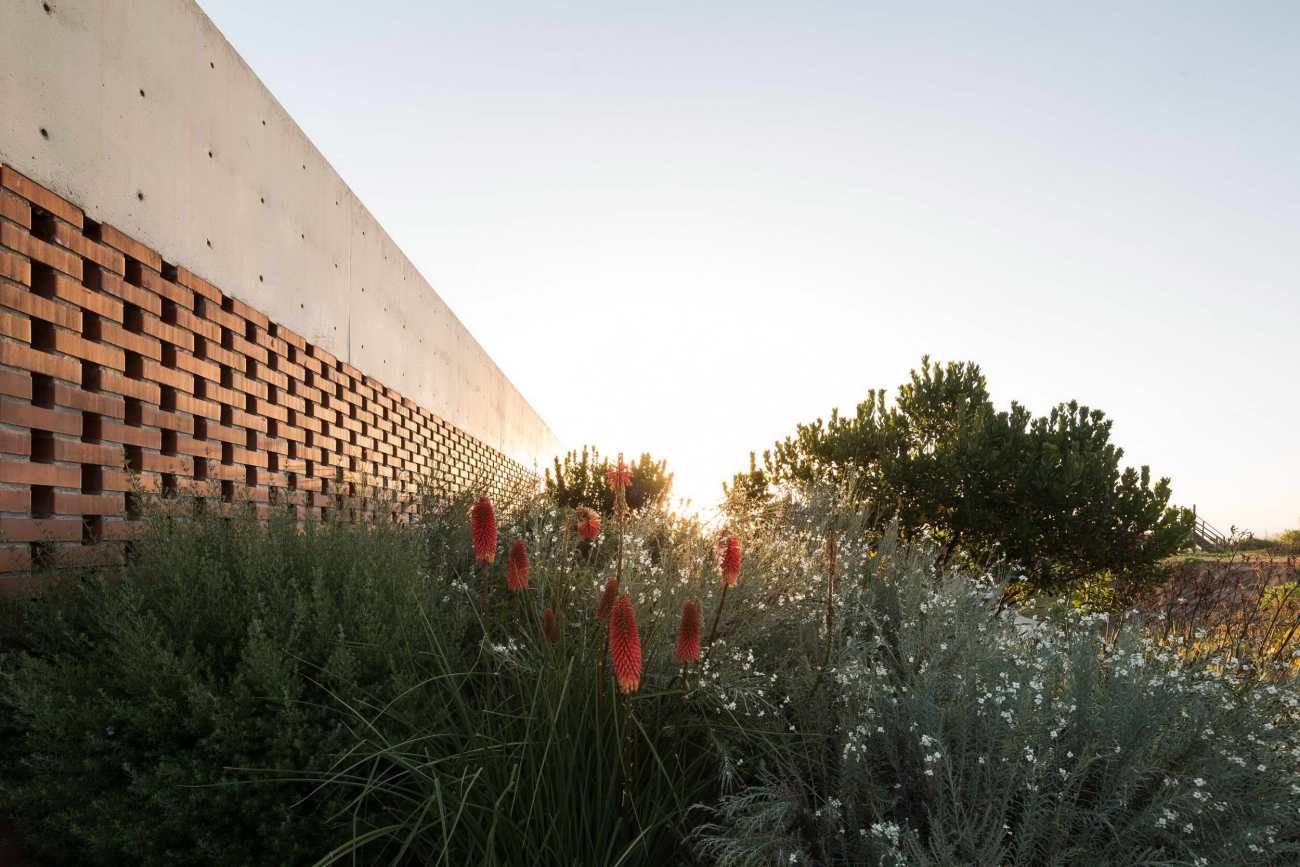

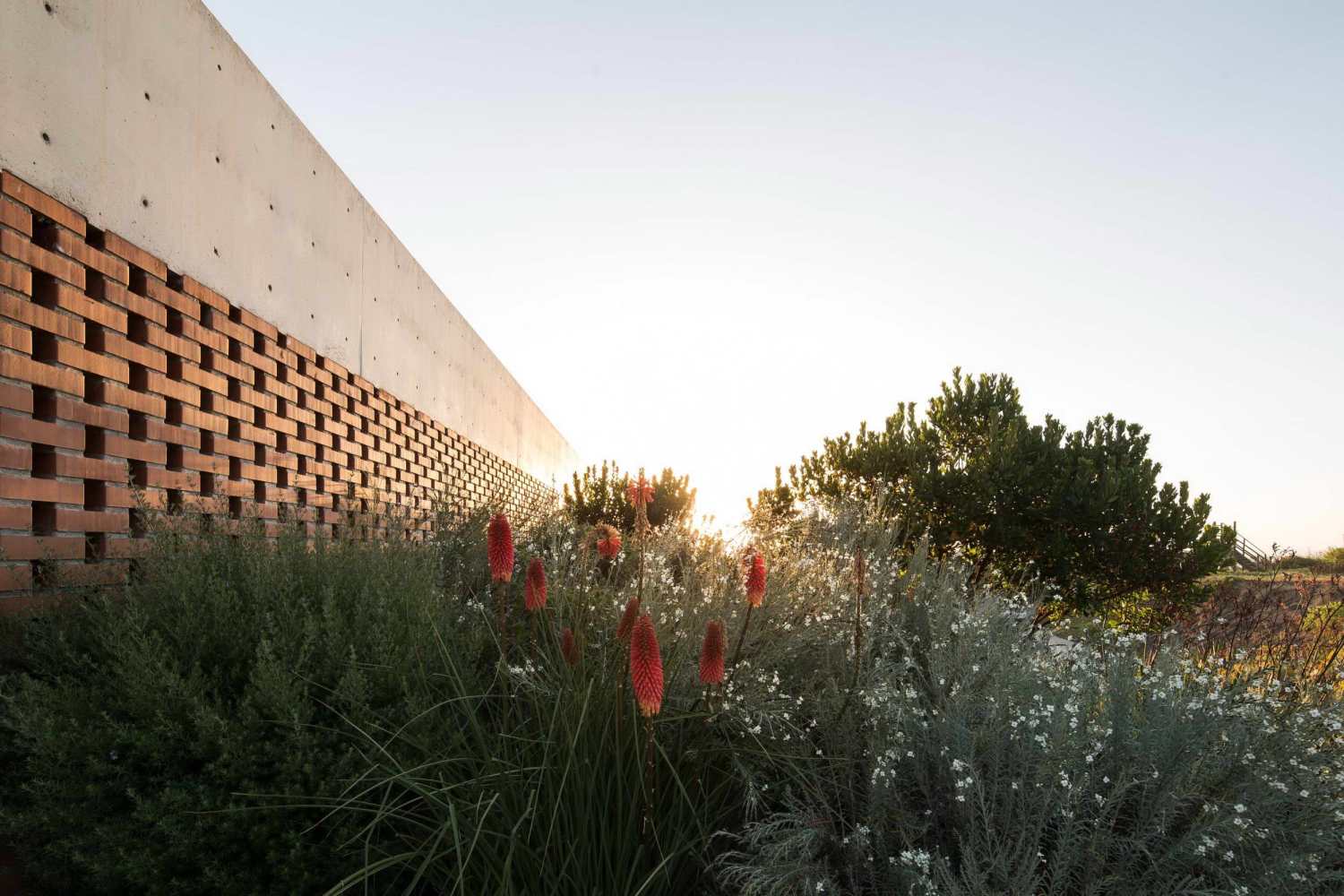

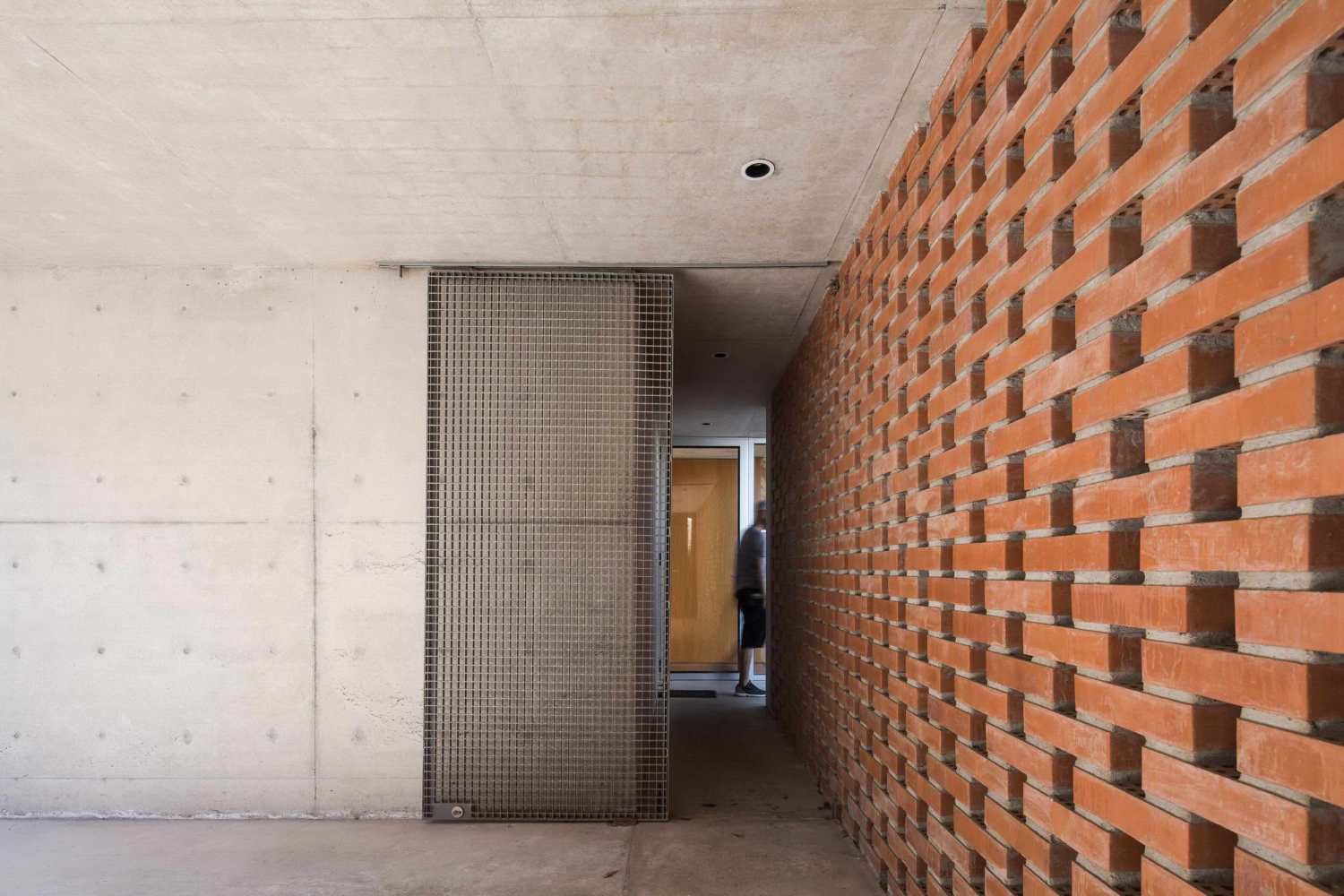

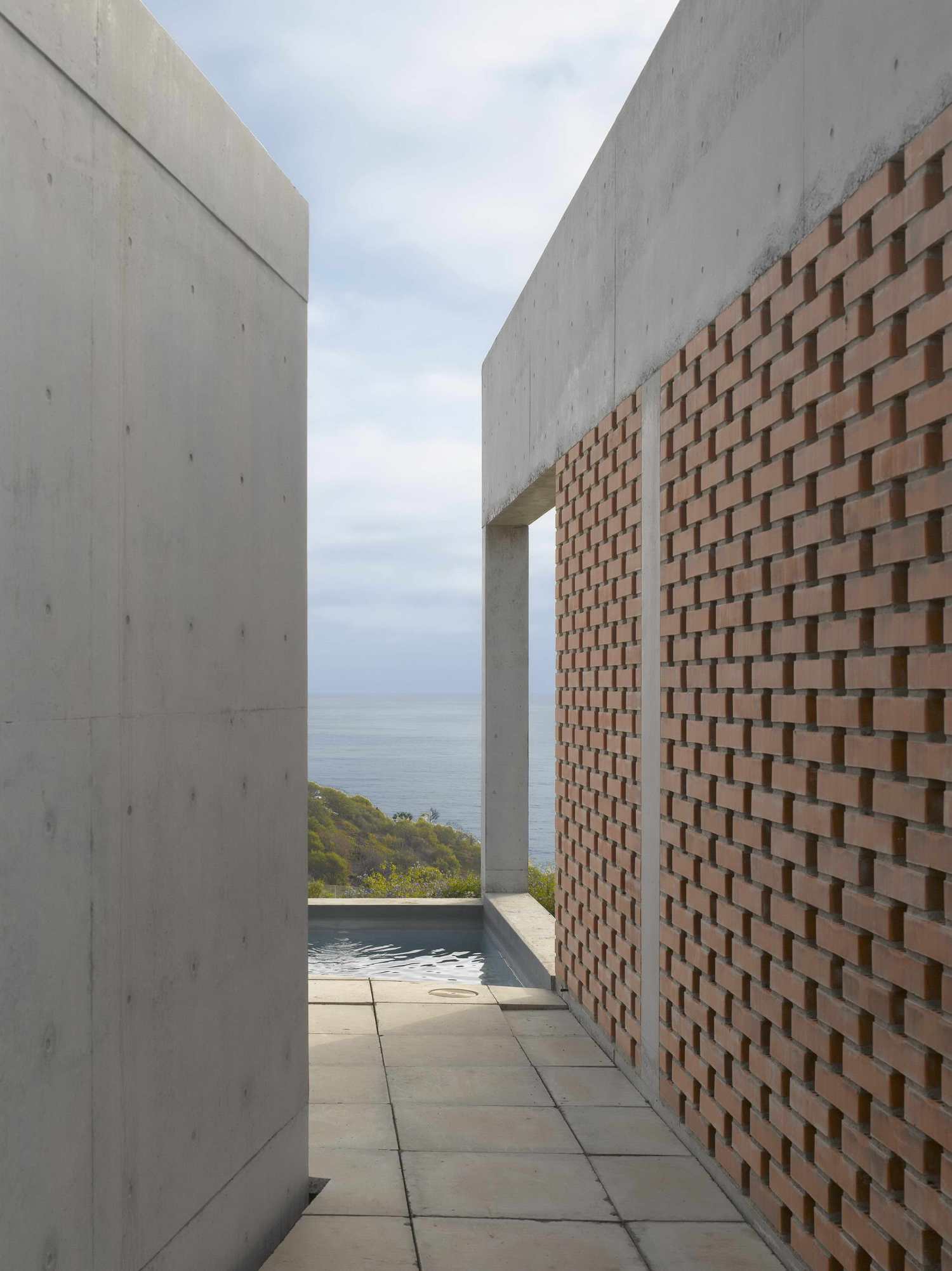

The chosen material for the 3.80 meters height perimeter walls is the brick since it requires minimal maintenance regarding the coast climate, offers structural possibilities and works as a division that permits the entrance of natural light and filter exposure. The result generates a transition between the intimate and the exposed, the exterior and the interior with out generating a division.

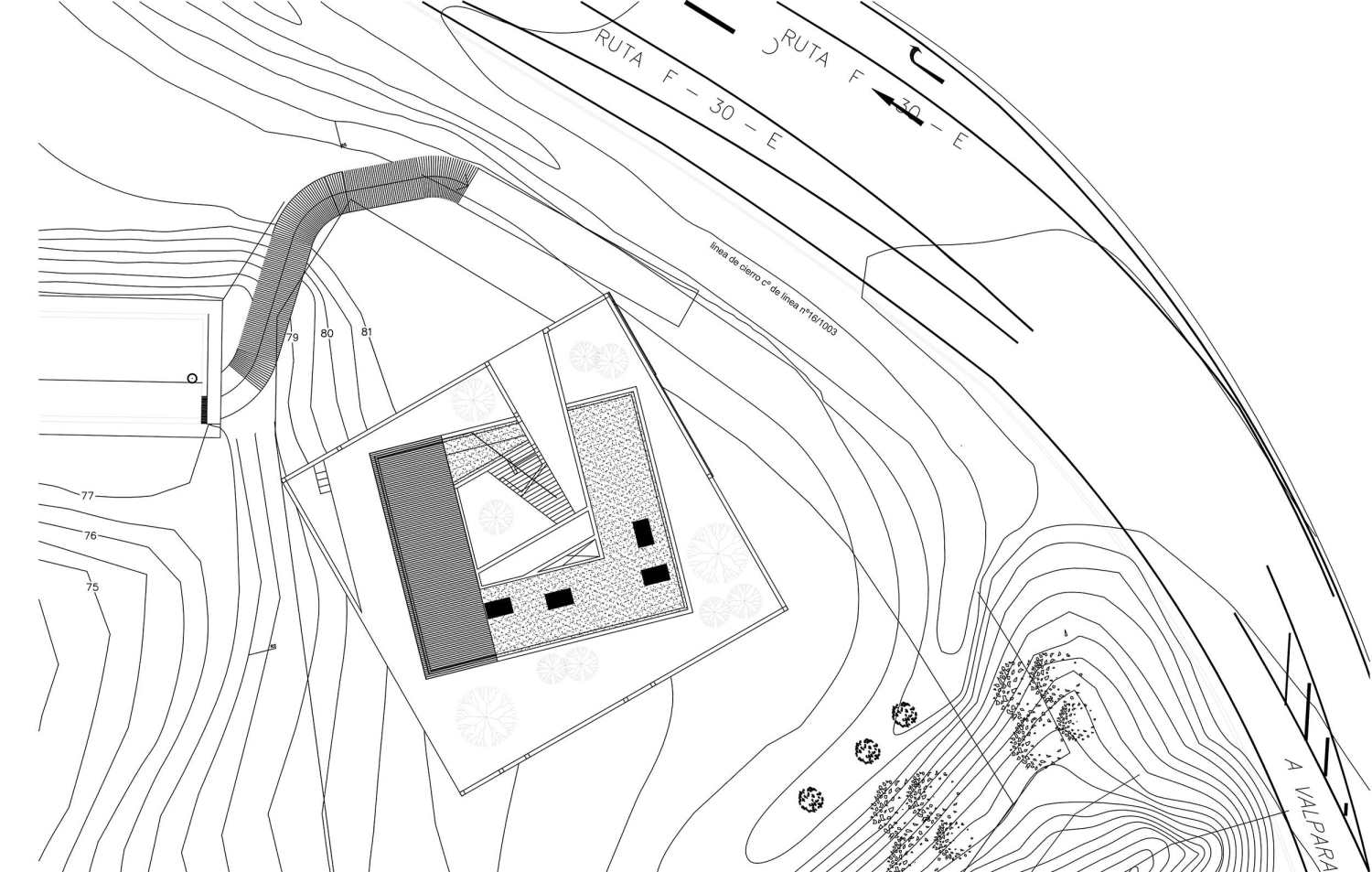

▽场地平面图 Site plan

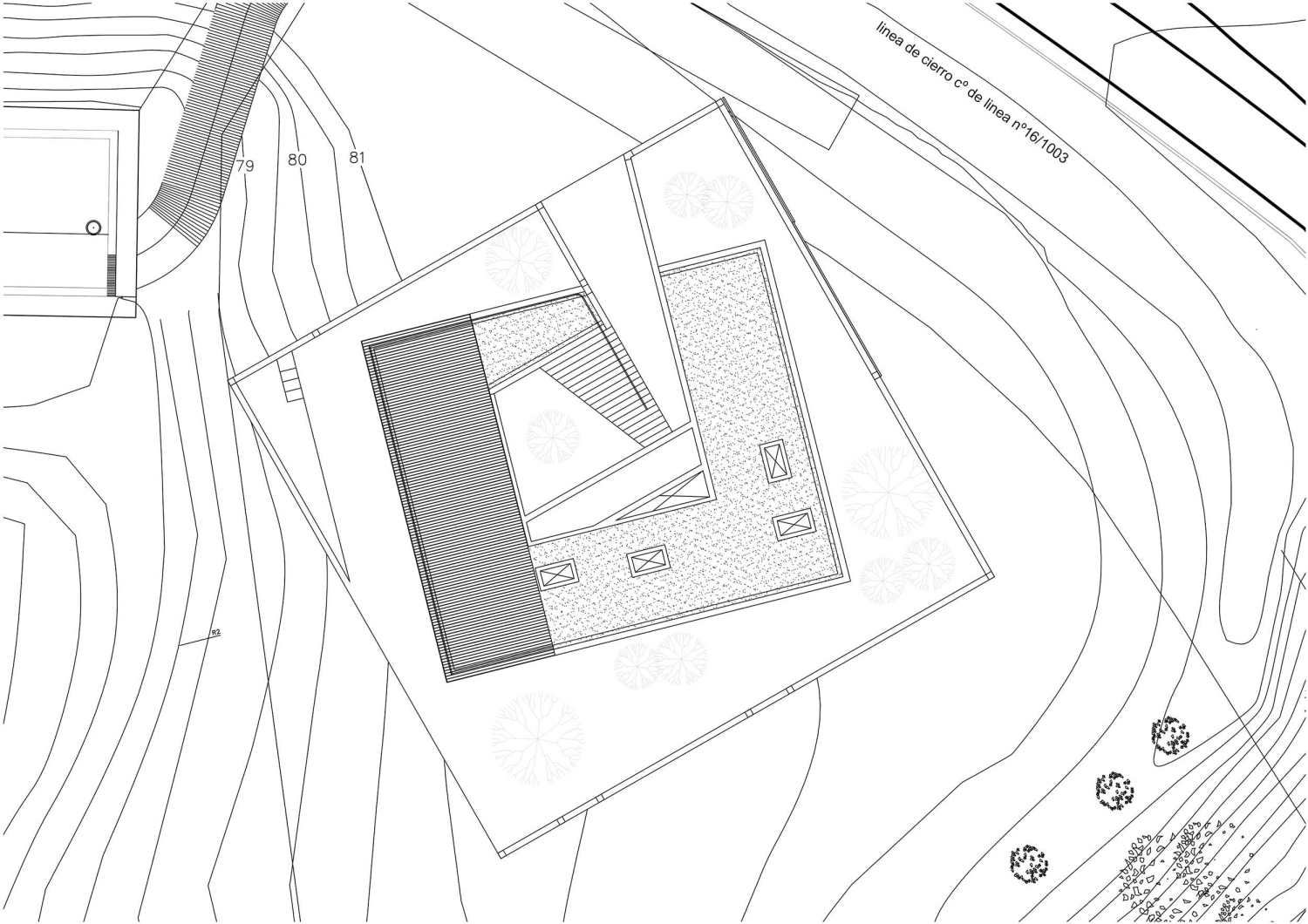

▽屋顶平面图 Roof plan

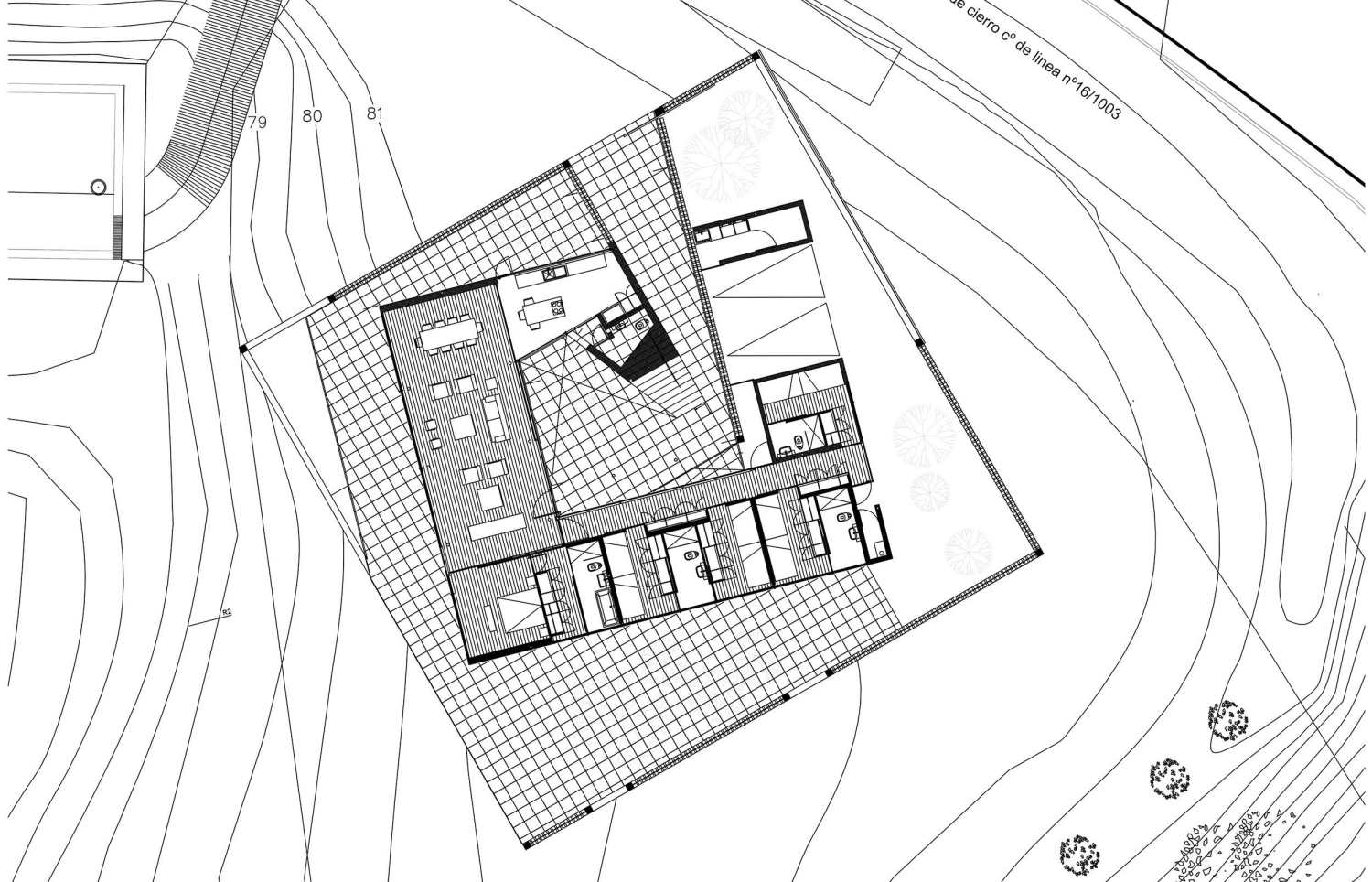

▽平面图 Plan

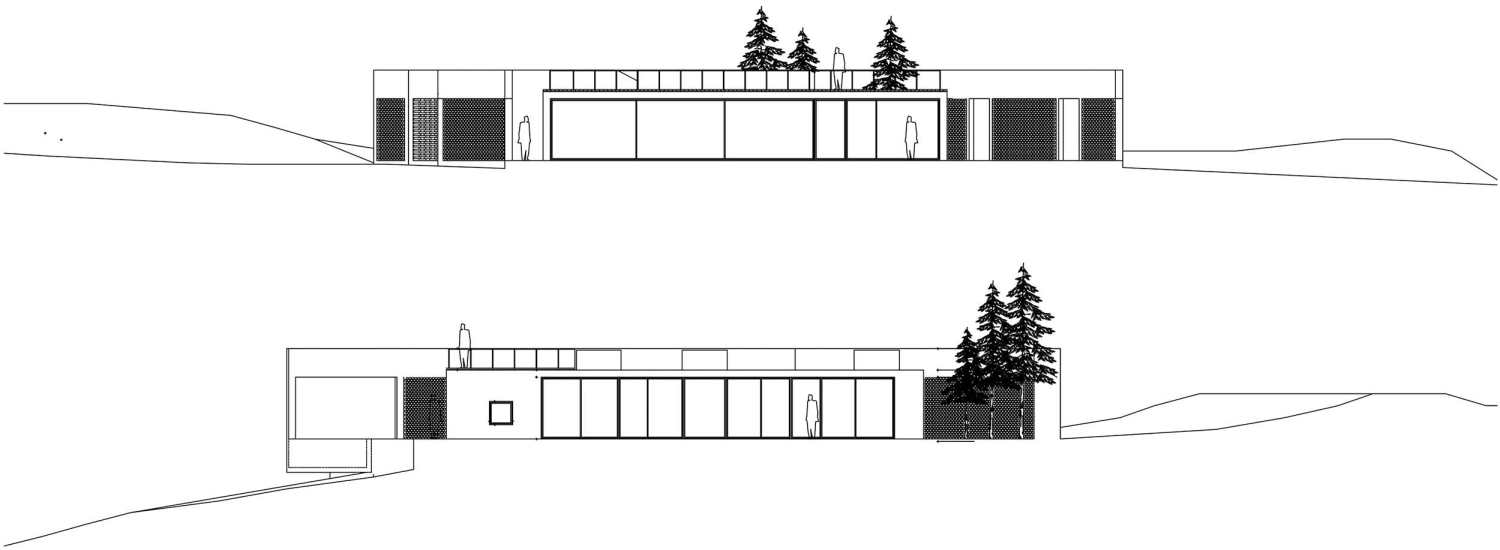

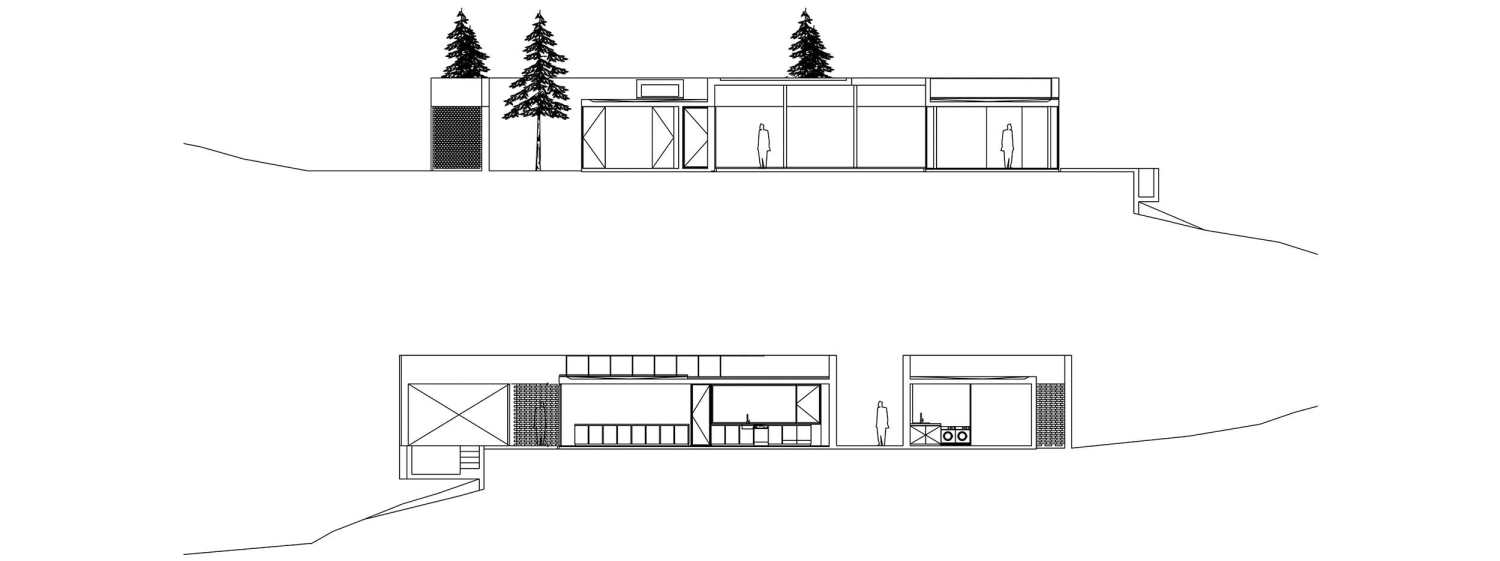

▽立面图 Elevation

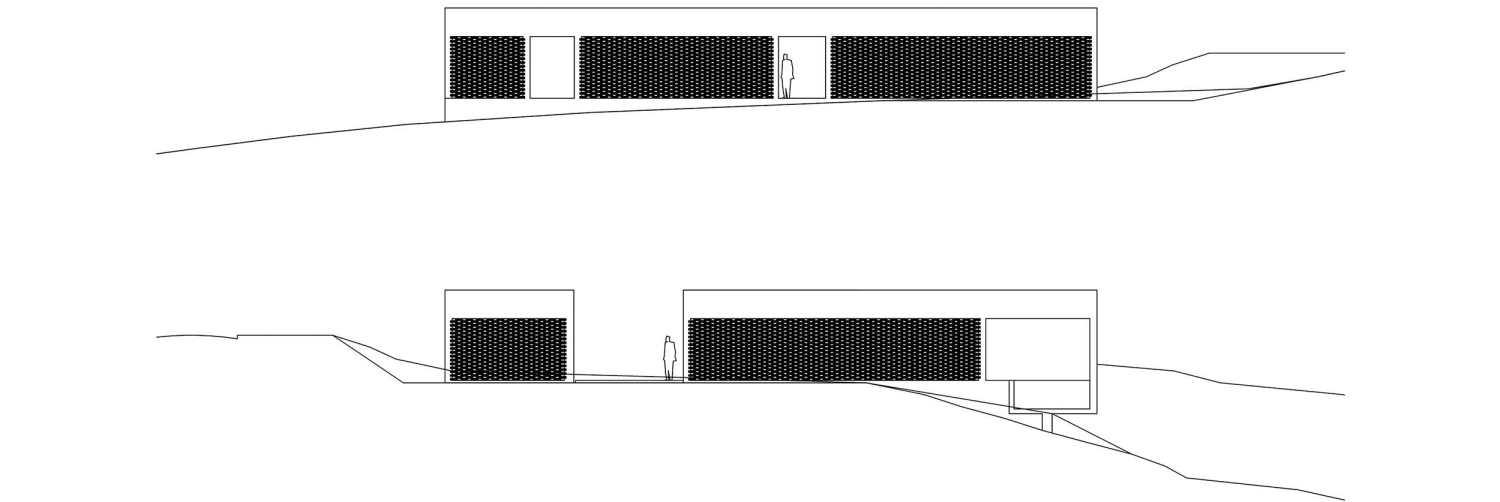

▽立面图 Elevation
▽剖面图 Section

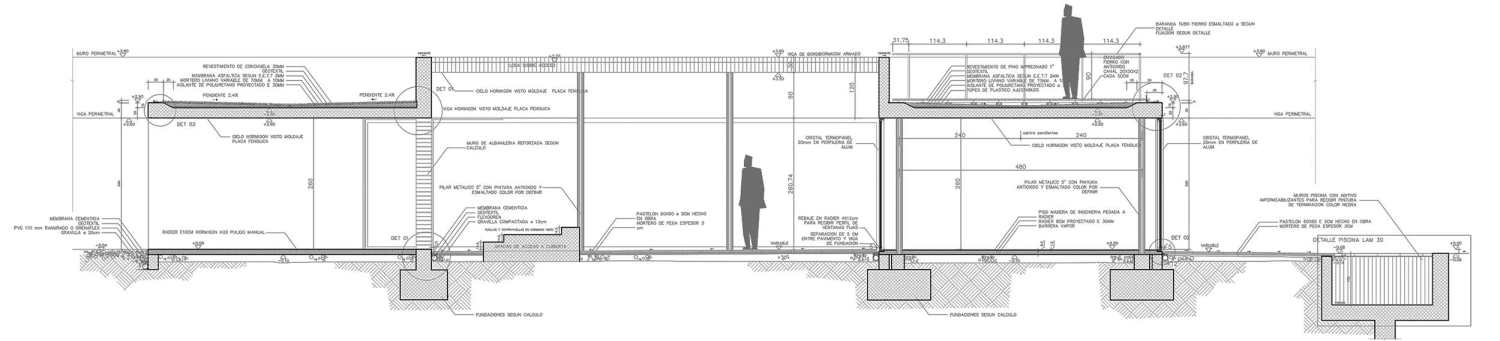

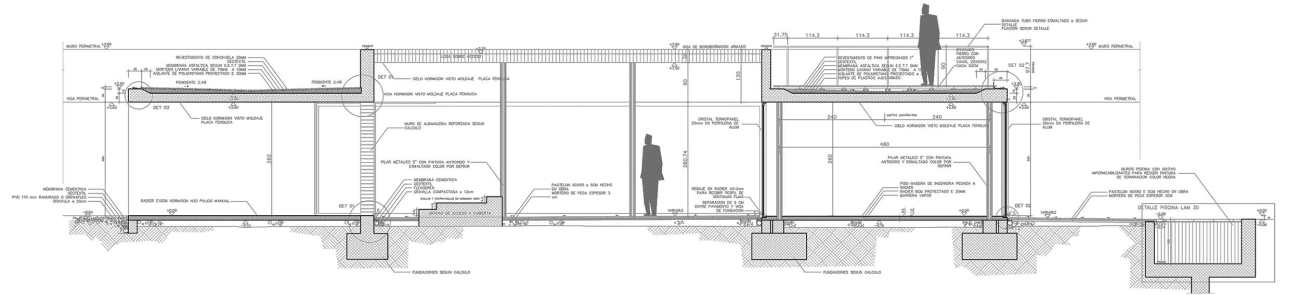

▽构造剖面图 Construction section
Project name: CASA ROJA
Company name: VALDESHAGEMANN (ex PANORAMA ARQUITECTOS) + DRN ARQUITECTOS
Website: WWW.PANORAMAARQUITECTOS.COM
Contact e-mail: nv@panoramaarquitectos.com
Project location: Cachagua, CHILE
Completion Year: 2011
Building area (m²): 245M2
Other participants:
Photo credits: ROLAND HALBE / NICOLÁS SAIEH
