项目总是带着各种际遇
思考解决前行的困难
[ 山 ] 是一种自然的场所
[ 水 ] 是生活的转换
有山有水 才是一种完整的生活方式
Projects always bring various opportunities
Thinking about solving the difficulties of moving forward
[Mountain] is a natural place
Water is a transformation of life
Having mountains and water is a complete way of life
城市空间与自然生态的对抗如何找到两者的平衡?
# 寻找都市生态与发展的平衡
生态都市主义 - 功能与美的结合
詹姆斯·科纳对城市与景观不应该分离讨论
不应过度重视景观生态性而忽略城市生活
当代的景观设计应该具有更强的包容力
景观绝不仅是关于自然的
人和社会在其中有着同样的位置
我们不仅仅是建造或者重建自然环境
同时也为人类建造文化环境
因此
我们寻求生态性和城市发展冲突的平衡
人、 自然与生态和谐共生
Ecological Urbanism - The Integration of Function and Beauty
James Corner argues against the separation of city and landscape
emphasizing the importance of urban life in addition to ecological considerations
Contemporary landscape design should have greater inclusivity
recognizing that landscapes are not solely about nature
but that people and society also have a place within them
We are not just building or rebuilding natural environments
but also creating cultural environments for humanity
Therefore
we seek a balance between ecological concerns and urban development
promoting a harmonious coexistence between people and nature.
James Corner
詹姆斯·科纳
景观都市理论 国际知名风景园林师 美国注册风景园林师
韧性景观探索之路
01 ECOLOGY
冰雪底色
高寒高纬 经度 : 126.649 纬度 : 45.7919
气候赠与
最美的设计是自然的装扮
设计是历久弥新
每个季节的美丽
不同时间精彩的瞬间
设计化繁从简
让自然来赋予更多的可能性
是当下或未来最为可贵的特质
........
Climate gift
The most beautiful design is natural attire
Design is timeless and timeless
The beauty of every season
Exciting moments at different times
Simplify and simplify design
Let nature endow more possibilities
Is the most valuable trait of the present or future
在冰城之畔
这种自然的庇护感
给人安慰、包容和温暖
因湖水、皓月、游鱼而生的空间不断流动、演变
缔造出自由而温暖的艺术之境
On the banks of Ice City
This natural sense of protection
Providing comfort, tolerance, and warmth
The space created by lake water, bright moon, and swimming fish constantly flows and evolves
Creating a free and warm artistic environment

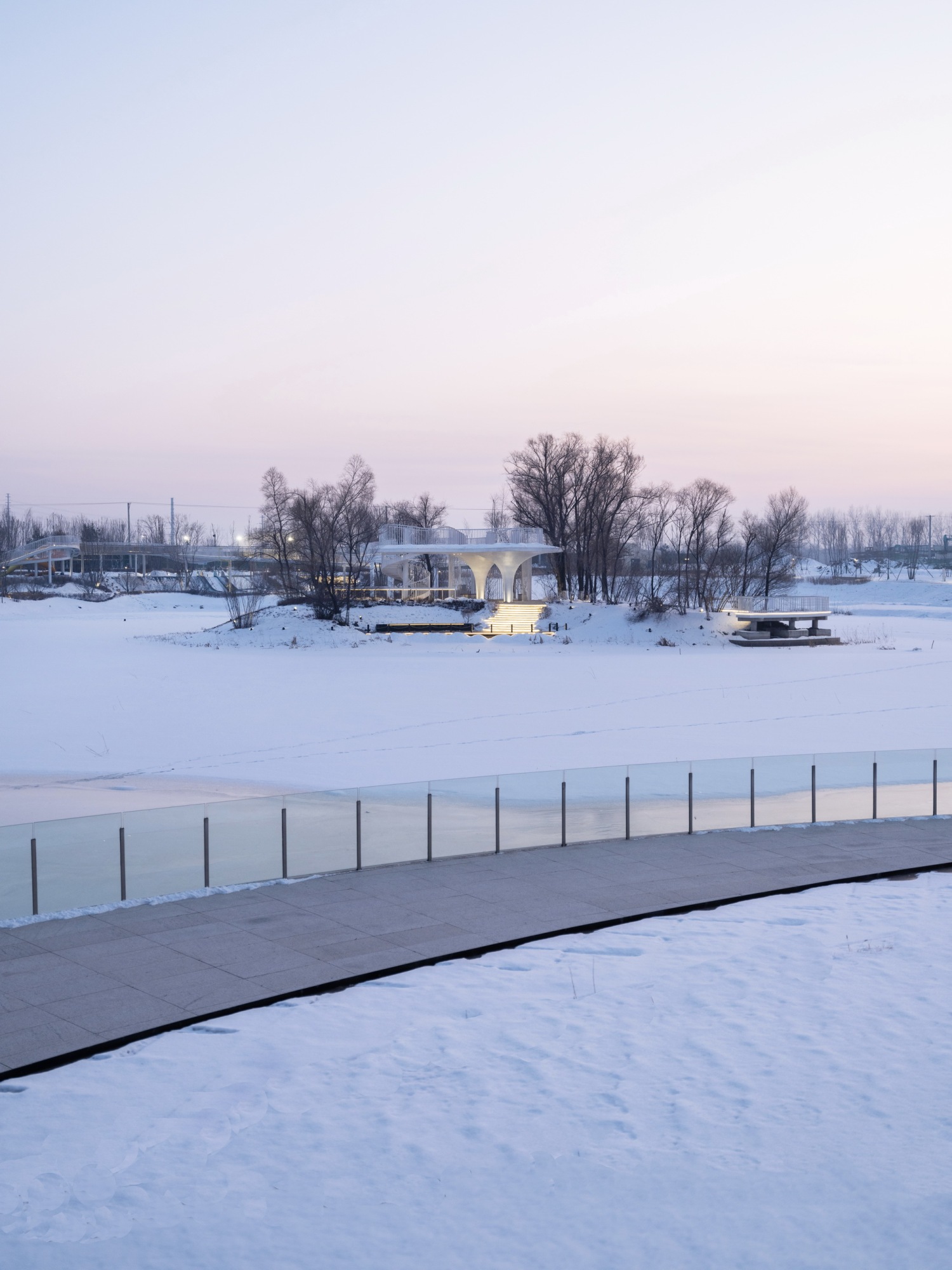

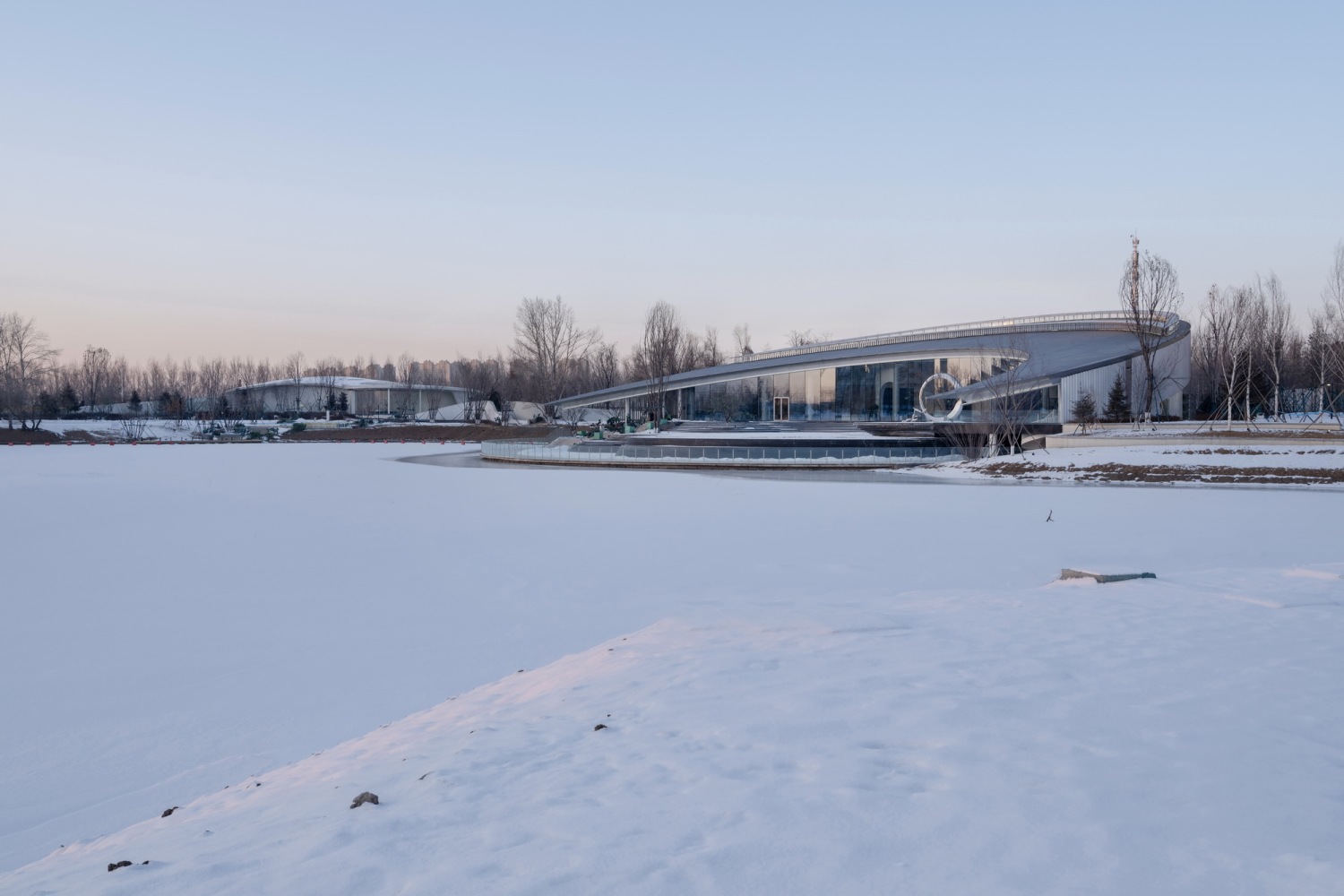

针对高寒高纬地区的冬季
打造出独特的冬季景观
展现不同于季节的美景
为人们提供温馨舒适的休息场所
呈现出不同寻常的美景
Winter in high-altitude and high-latitude regions
Create a unique winter landscape
Showcasing beautiful scenery different from the seasons
Provide a warm and comfortable resting place for people
Presenting an extraordinary beauty
02 ECOLOGY
场景叙事
自成天然之趣,不烦人事之工
我们希望以原生态林为基底
让景观在林中自由生长
让人在林中自由活动
消除建筑、景观、艺术和环保主义之间的界限
打造沉浸式景观
Becoming a natural pleasure without bothering the work of personnel
We hope to use the original ecological forest as the foundation
Let the landscape grow freely in the forest
Allow people to move freely in the forest
Eliminating the boundary between architecture, landscape, art, and environmentalism
Creating an immersive landscape

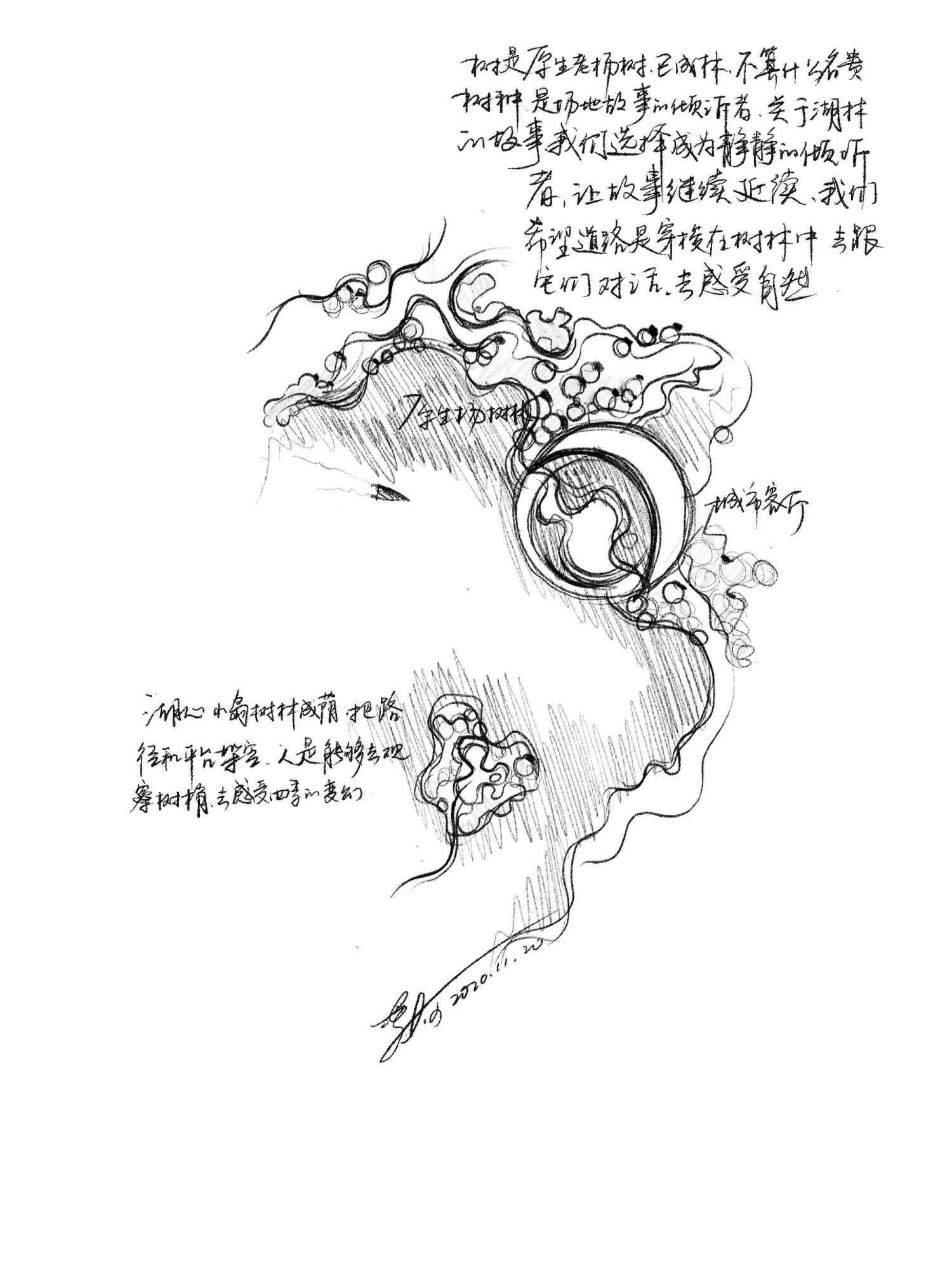

大树记忆
初识场地时
映入眼帘的是这片密林
103棵原生大树
临水而生
此树也成了场地思考最开始的地方
When I first met the venue
What catches our eyes is this dense forest
103 native trees
Born by the water
This tree has also become the starting point for site thinking

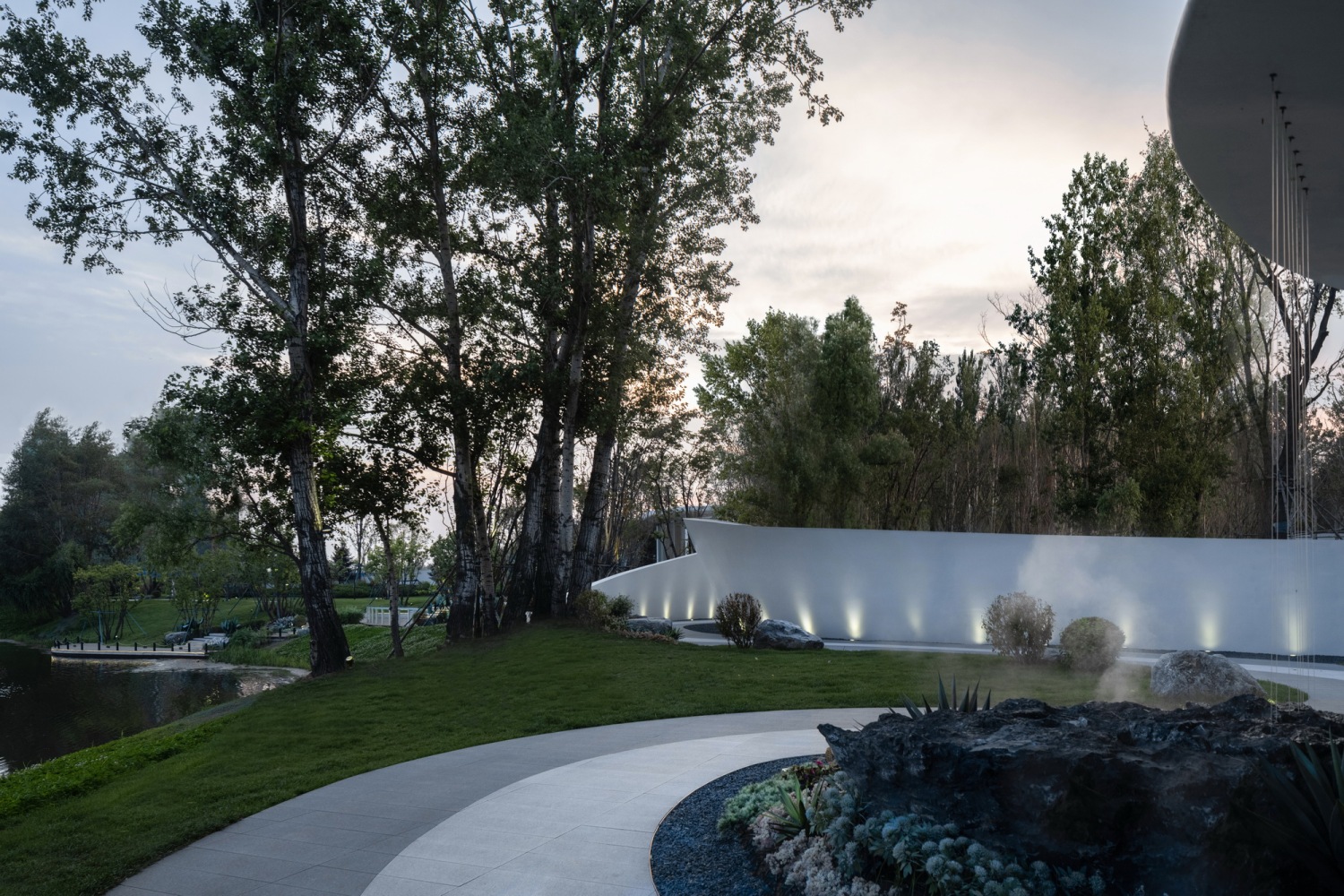

顺应自然
保留原有的 103 棵大树
让景观顺应
清幽雅致
Native large trees
Adapt to nature
Preserve the original 103 large trees
Adapt the landscape
Quiet and elegant
隐于都市山谷间 Hidden in urban valleys
我们以低干预介入
注重场所精神的探索及在地文化的保留
用克制的设计手法
将场地最生动的记忆保留并加以转化
We intervene with low intervention
Emphasize the exploration of place spirit and the preservation of local culture
Using restrained design techniques
Preserve and transform the most vivid memories of the venue
湖泊守望
挖沙挖出来的 " 湖 "
充分尊重并保留土地的生态基底
保留两岸原生植物群落
修复并连接城市的生态廊道
A "lake" dug out by digging sand
Fully respect and preserve the ecological foundation of the land
Preserve the original plant community on both banks
Restore and connect the ecological corridor of the city
初识丨湖与林的陪伴
城市的开发丨湖体缩减,植被破坏,驳岸生态破坏
共生丨构建了“自然-人”和谐共生

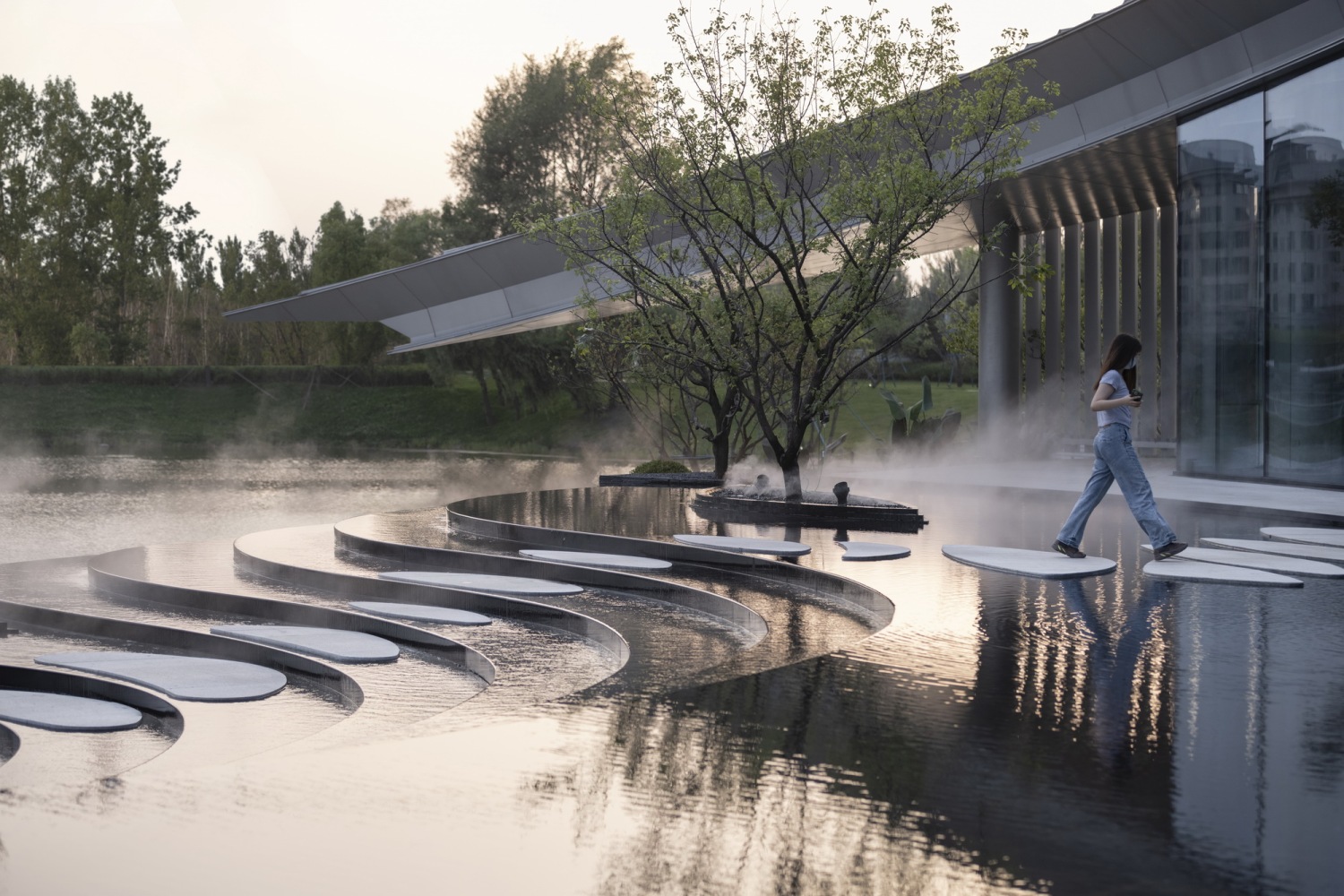

由波心发散优美弧线
描摹与水岸浑然一体的艺术品
让自然成为主体
重塑人与自然的和谐关系
A beautiful arc emanating from the wave center
Artifacts that blend seamlessly with the waterfront
Make nature the subject
Reshaping the Harmonious Relationship between Man and Nature
聆听水语
拉近与湖的距离
增进与湖的自然交互
曾经的湖岸不亲水
设计修复驳岸
亲水平台,栈道,种植水生植物
让人近距离感知水的灵动
构建自然科普水上通廊
认知生物的多样性和记录着他们在湖里的生活
Listening to Water Language
Narrowing the distance from the lake
Enhance natural interaction with the lake
The former lakeside was not close to water
Design and repair of revetment
Hydrophilic platform, plank road, planting aquatic plant
Allowing people to perceive the agility of water up close
Building a natural science popularization water corridor
Recognizing the diversity of organisms and documenting their lives in the lake
#滨水空间赋予的惊喜
与自然同行
廊桥宛如一条飘带
通向幽处的曲径向前探寻
漫步在栈桥之上
薄雾缭绕白纱般柔柔地漂浮在空中
形成多重关系
将城市生活与生态系统有机融合起来
Walking with nature
The covered bridge is like a ribbon
Exploring the winding path leading to the secluded place
Strolling on the trestle
Mist shrouded in white gauze, floating softly in the air
Forming multiple relationships
Integrate urban life and ecosystem organically
▽实景图
设置音乐厅
让艺术爱好者在 360°的湖景围绕中举办社区音乐会
完成人与自然交融的律动
为市民提供独特的自然场地
Set up a music hall
Enable art enthusiasts to hold community concerts surrounded by a 360 ° lake view
Complete the rhythm of the integration of humans and nature
Provide unique natural sites for citizens
#滨水空间塑造多元化体验
艺术展厅 Art Exhibition Hall
艺术展厅
自然与艺术共舞
通过巧妙的竖向设计将湖景与水池融合在一起
倒映着公园的四季美景
记录着人们的故事
. . . .
Art Exhibition Hall
Dancing with Nature and Art
Integrate the lake view with the pool through clever vertical design
Reflecting the four season beauty of the park
Recording people's stories
......
自然治愈生活
设计传递自然温度
云湖不只是单纯的追求自然好看
更要求赋予更多的社会功能
构建多元的生活场景
Natural Healing Life
Design to transmit natural temperature
Yunhu is not just a simple pursuit of natural beauty
More demanding to endow more social functions
Building a diverse life scene
#艺术参数塑造弹性空间
03 ECOLOGY
参数化 为未来而设计
科技化的美感为原始生态带来戏剧性的张力
通过场景本身的功能挖掘和容载力的挖掘
使它在不同时段下生成不同的场景
融入功能、场景,打磨细节
引入了多项数字化相关技术
保质保量完成相关环节的设计任务
力求完美贯彻设计初衷
减少原创内容在落地过程中的逐级衰减
集中精力创造更深的价值
The beauty of technology brings dramatic tension to the primitive ecology
Mining through the functionality and capacity of the scene itself
Make it generate different scenarios at different time periods
Integrating functions and scenes, polishing details
Introduced multiple digital related technologies
Complete the design tasks of relevant links with quality and quantity assurance
Strive to perfectly implement the original design intention
Reduce the gradual attenuation of original content during the landing process
Concentrate on creating deeper value
#匠心工艺赋予作品不凡品质
04 ECOLOGY
精湛之技
精细之质
多专业设计合力
土建
1. 园路跑道采用新型自结纹防滑路面
材料:表面更耐磨、更美观、且不掉粒、
颜色鲜艳 , 耐老化,耐磨损,防滑等特
点,采用特殊的机械喷涂,施工方便
操作,缩短施工时间,降低工程成本。
1. The park road runway adopts a new type of self
textured anti slip pavement material: the surface
is more wear-resistant, aesthetically pleasing,
and does not shed particles, with bright colors,
aging resistance, wear resistance, anti slip, and
other characteristics. Special mechanical spraying
is used, making construction easy to operate,
shortening construction time, and reducing
engineering costs.

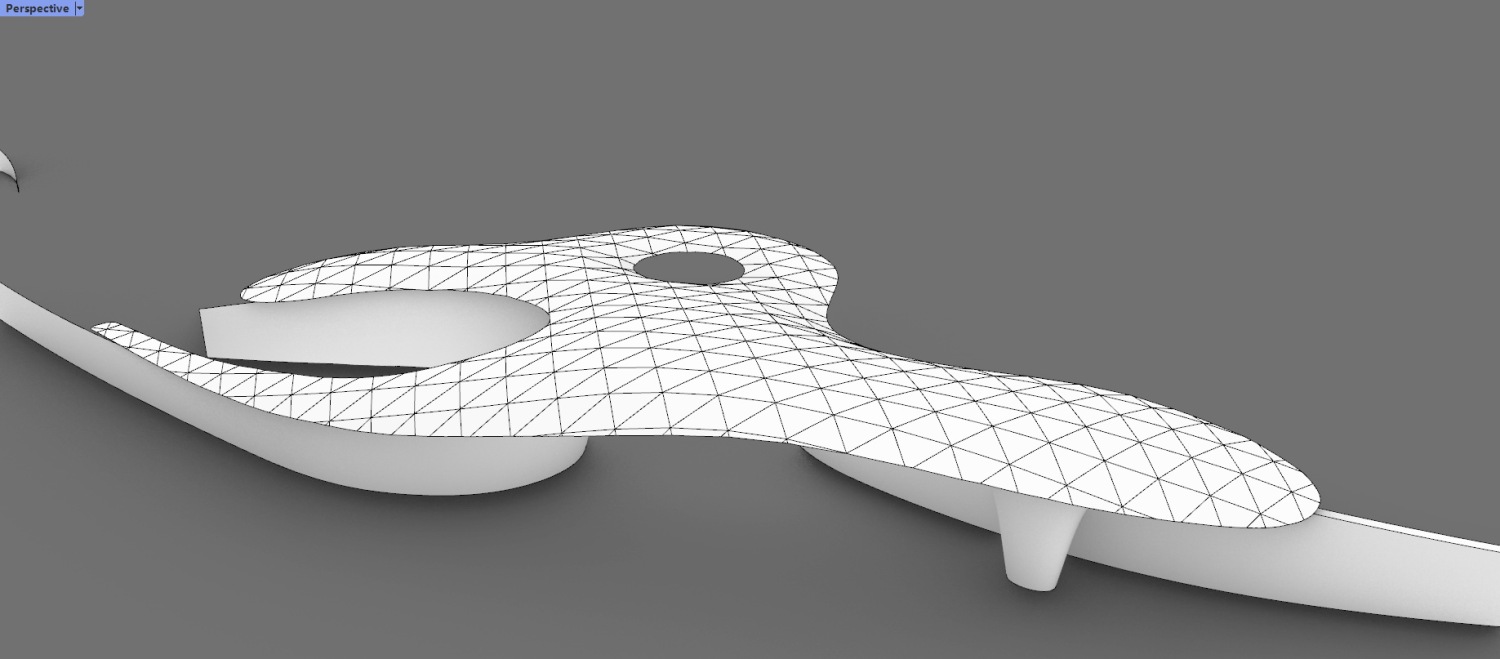

2. 大门顶双曲面铝板数控推演
2. Numerical control deduction of hyperboloid aluminum plate on the top of the gate
加工难度、成本控制、冻胀破坏
确定为三角形铝板
三角拟形,参数控形,让薄云飘落大地
结构
场地为季节性冻土
标准冻结深度为2.00m
项目中采用地基与基础的处理方法
换填法 - 利用非冻涨性材料《如中砂、粗砂、卵石等》置换
基础周边一定范围内的冻涨性土体
避免切向冻涨力作用于基础上
用基侧填砂来防止切向冻涨力
但它仅适用于地下水位之上
如果所填之砂达到饱和状态和含泥量过多
在冻结时土与基础周围坚固地冻结在一起有较高的冻结强度
就会失去效果
施工时必须保证换土宽度不小于基础底板的宽度
保证安全可靠
The site is seasonally frozen soil
The standard freezing depth is 2.00m
The treatment method of foundation and foundation used in the project
Replacement method - using non frozen expansive materials such as medium sand, coarse sand
pebbles, etc. to replace frozen expansive soil within a certain range around the foundation
Avoiding tangential freeze-thaw force acting on the foundation
Use sand filling on the base side to prevent tangential frost heave force
But it only applies above the groundwater level
If the filled sand reaches saturation and has too much mud content
During freezing, the soil solidly freezes together with the surrounding area of the foundation
resulting in a higher freezing strength and loss of effectiveness
During construction, it is necessary to ensure that the width of soil replacement is not less than the
width of the foundation slab
Ensure safety and reliability
植物
1. 考虑可持续性
在寒冷气候下
考虑植物的适应性、耐寒性
适合当地气候
和土壤条件的植物
保证景观的可持续性和美观度
2. 保留现场重要的原生乔木
对现存大树进行保护
减轻施工过程对大树的生长产生不利影响
1. Consider sustainability
In cold climates
Consider the adaptability and cold tolerance of plants
Suitable for local climate
Plants with soil conditions
Ensure the sustainability and aesthetics of the landscape
2. Preserve important native trees on site
Protect existing large trees
Reduce the adverse impact of the construction process on the growth of large trees
#构建湖居水岸生活蓝图
05 ECOLOGY
大 盘 思 维
以点带面
面向未来的城市区域
汇聚稀缺生态资源
多元人文价值和生活方式
韧性弹性空间
Future oriented urban areas
Gathering scarce ecological resources
Diversified humanistic values and lifestyles
Resilient elastic space
与所有生活探索者,共创一座理想之城
湖岛之间 ·城市未来
U R B A N C O M P L E T I O N R A T E
借自然林泽之势
将艺术、生活融入其中
因地制宜
将各个公共活动空间散步其中
以自然的曲线
柔和的形态
连接自然与城市
构建当代的、生态的、多元多维的生活场景
链接城市与生活、记忆与未来
与自然共舞
形成多重关系
将城市生活与生态系统有机融合起来
Taking advantage of the natural Lin Ze's momentum
Integrating artw and life into it
suit one's measures to local conditions
Take a walk in various public activity spaces
In a natural curve
Soft form
Connecting Nature and the City
Building a contemporary, ecological, diverse and multidimensional life scene
Linking City and Life, Memory and Future
Dancing with Nature
Forming multiple relationships
Integrate urban life and ecosystem organically
顺风不浪 逆风不怂
谨以献给
“大湖”一直以来我们都亲切地称呼这个项目
非常感谢大湖的甲方团队
长达五年的等待和思考
充分体现了他们的专业素养和执着追求
在这片苍茫恢弘的黑土地上
东北大哥们的直爽和坚持
也彰显了这片土地的性格
多达十几次全国各地的调研考察
几易其稿的设计颠覆
从建筑、景观到室内设计
都以最高标准对待
非常钦佩他们独具穿越周期的战略定力和自我价值思考
他们懂得“让子弹飞一会”
等待花开的过程中
大家都获得了成长
希望大湖项目开发能够成为城市和喜欢自然的哈尔滨人的一份礼物
在此
向冯总、侯总、贺总和其他参战指导领导
致以最高的敬意和感激之情
THE END
项目名称 哈尔滨云湖公园
项目地址 黑龙江省哈尔滨市道外区长江路南 40 米
设计单位 重庆蓝调城市景观规划设计有限公司
项目面积 83300 ㎡
设计时间 2020.05
诚挚感谢
业主单位 哈尔滨滨江房地产开发有限责任公司
建筑设计 上海大椽建筑设计事务所
室内硬装设计单位 大伟室内设计 (北京) 有限公司
室内软装设计 元禾大千
钢结构设计单位 重庆迪赛因建设工程设计有限公司
儿童设备深化单位 季高集团
施工单位 黑龙江金科建筑工程有限公司
钢结构施工单位 哈尔滨大通钢结构有限公司
摄影单位 DID STUDIO
