长沙·SMOORE长沙研究院办公楼改造

之行建筑以“科技与自然”为题设计了SMOORE长沙研究院的新办公室。

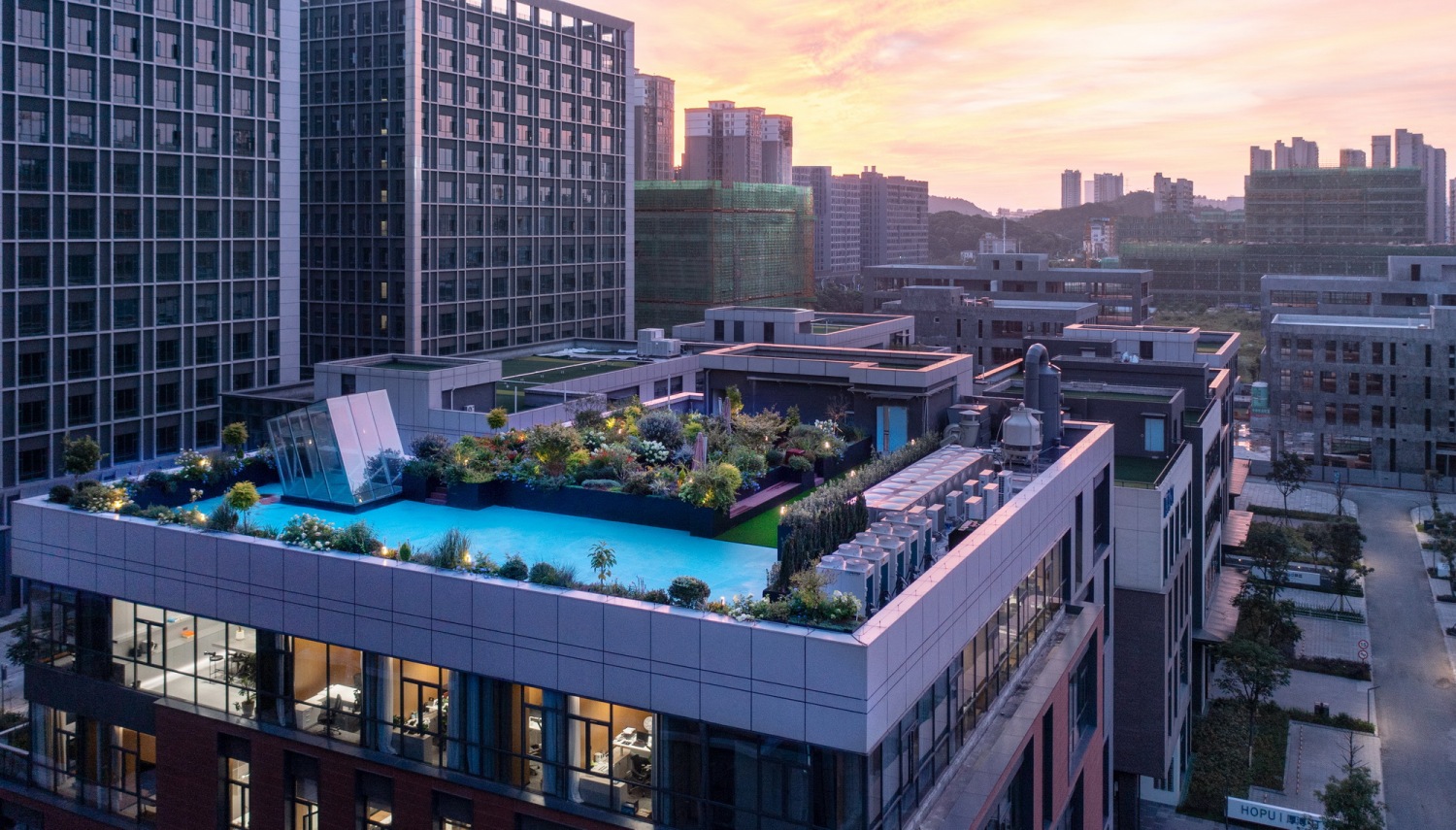

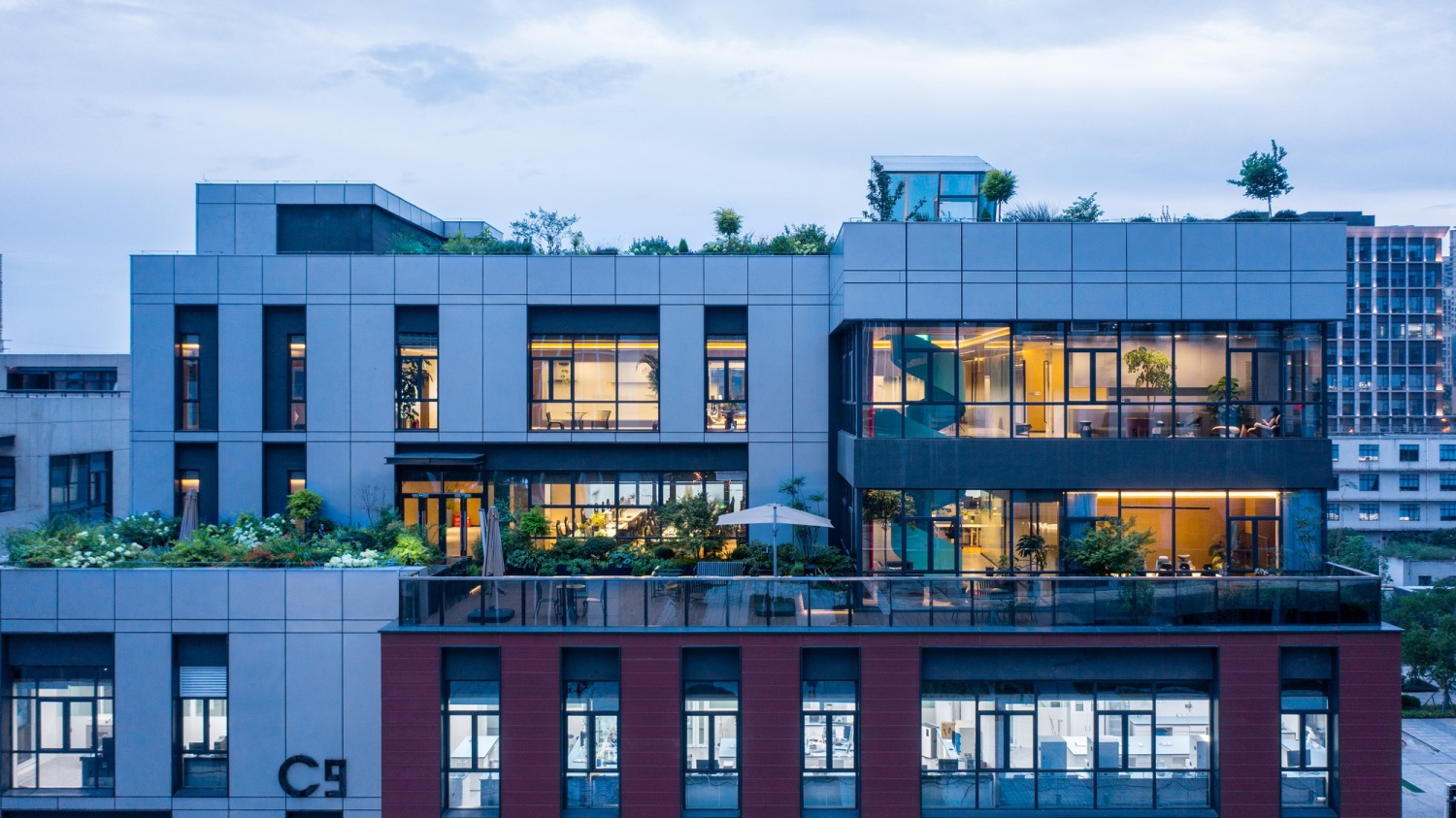

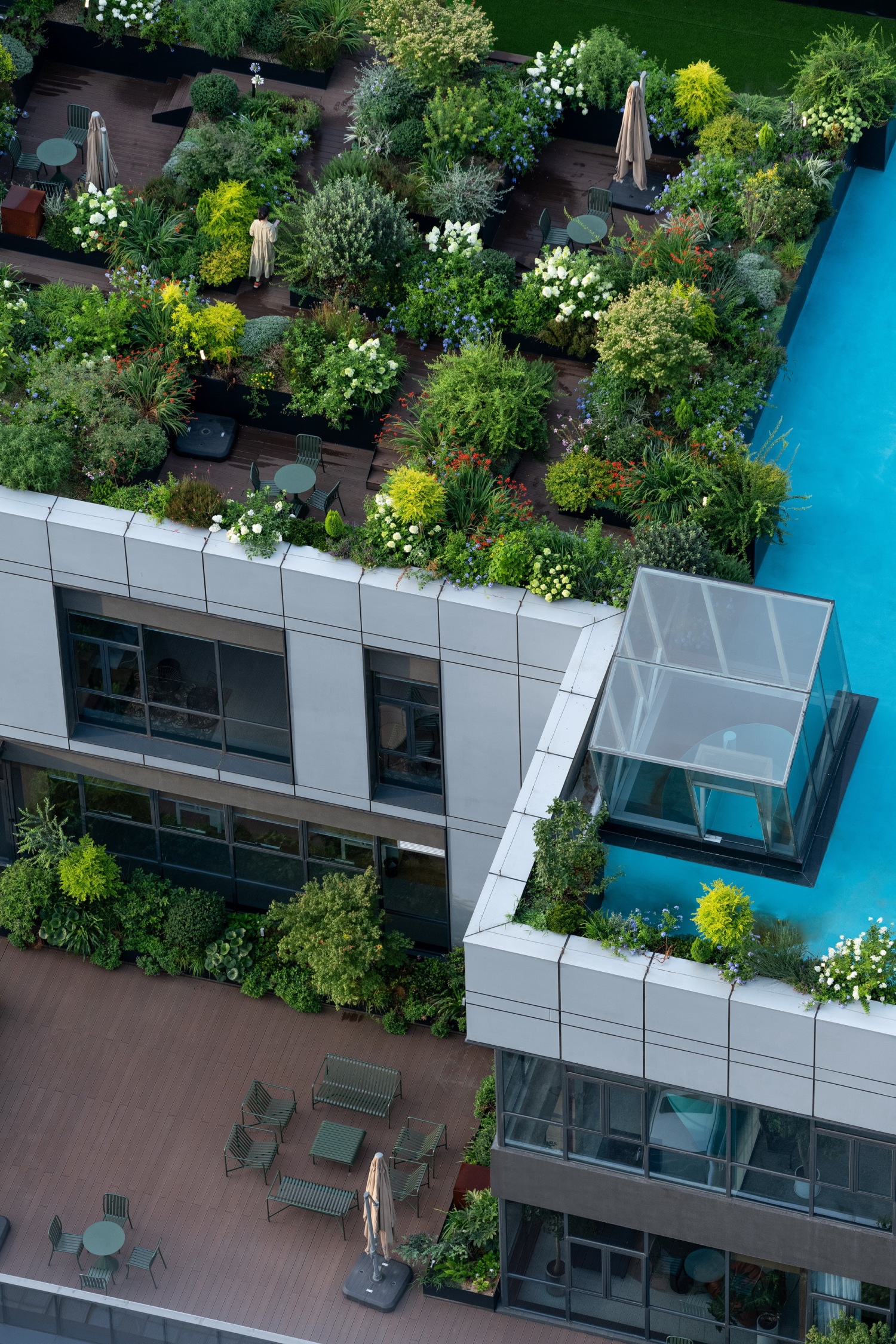

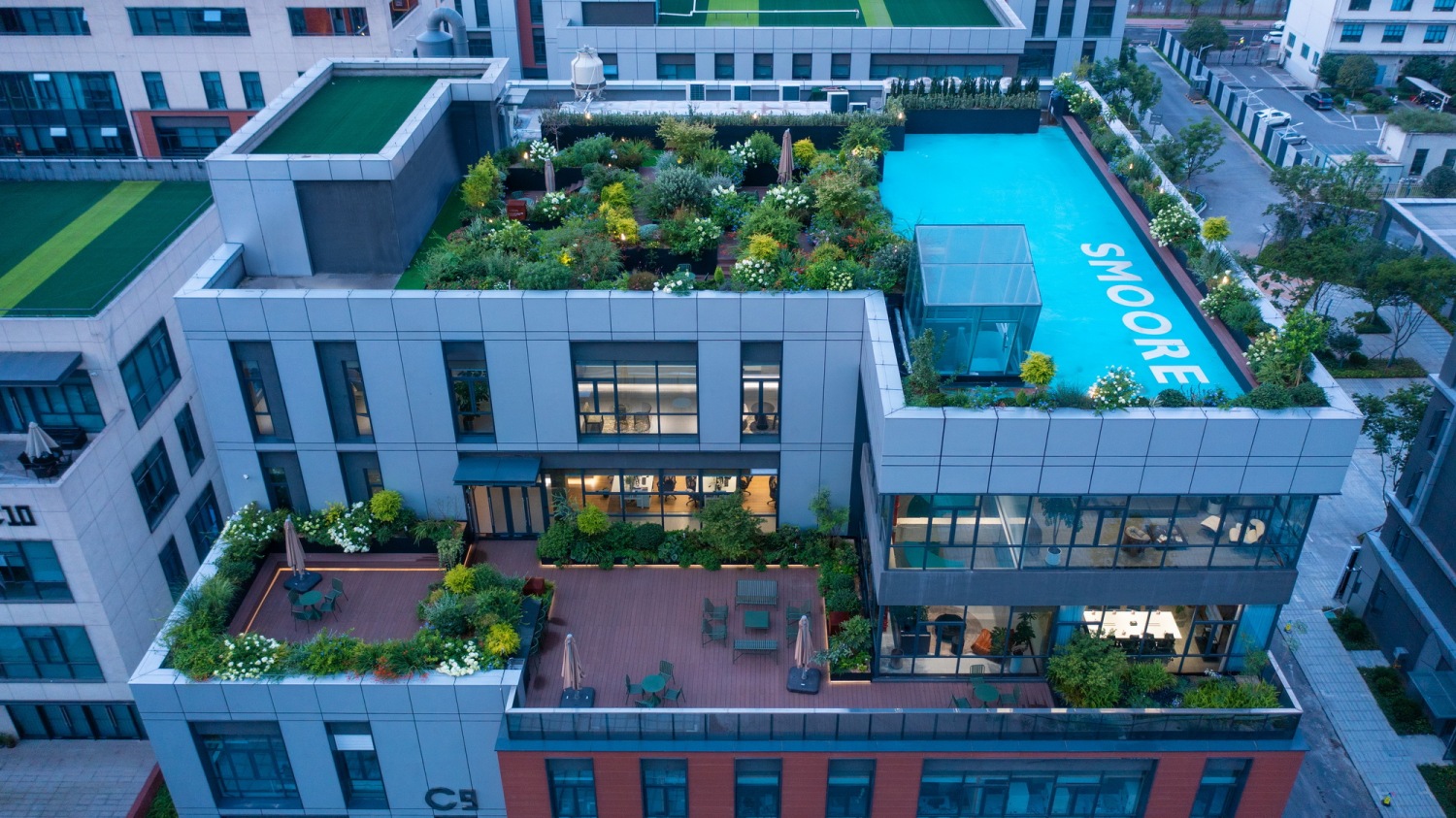

办公楼改造后鸟瞰 Aerial view of office building after renovation▲

办公研发区 Office, Research and Development area▲

露台花园区 Terrace garden area▲

思摩尔国际（SMOORE）是目前世界范围内雾化科技解决方案的领导者，目前在全球范围内拥有9所研究院，其中长沙研究院拥有数百名研发人员，是SMOORE重要的基础研究院之一。SMOORE公司创始人基于“雾化让生活更美好”的公司愿景，希望我们通过设计，将长沙研究院打造成一个舒适、高效、富有活力的研发办公场所，为每一个SMOORE研发人员提供良好的科研及办公环境。

01

“从内到外”：入口区的连续展示界面与空间延伸

From inside to outside, the space extends

项目位于长沙中电软件园区内的主干道转角处，园区内的各办公楼具有统一的外观规划，同时物业对于外立面改造有严格的限制。公司对外的形象展示设计范围局限在十米宽的门厅内，这对于近40米长的建筑外立面来说，显然不足以形成足够的视觉标示性。因此我们将现有门厅立面向内进行延伸，与大堂立面，电梯厅立面进行整合，形成了一个L型的连续展示界面。从入口门厅开始，公司中英文LOGO，雾化科技信息展示，公司业绩展示等内容依次展开，方便来访宾客更清晰直观的接收到公司的科技实力及企业文化。此外我们还将“橱窗”的概念引入外立面的改造中，希望用一个10米宽的外立面窗口，打破大堂内外的空间界限，形成一面面向街道的公司形象展示墙，以赋予研究院大楼外观上以醒目的视觉标识感。

The project is located at the corner of the main road in Changsha CEC Software Park. The office buildings in the park have a unified appearance plan, and the property has strict restrictions on the renovation of the facade. The company's external image display design scope is limited to the ten-meter-wide foyer, which is obviously not enough to form a sufficient visual identity for the nearly 40-meter-long building façade. Therefore, we extended the existing foyer façade inward and integrated it with the lobby façade and the elevator hall façade to form an L-shaped continuous display interface. Starting from the entrance hall, the company's Chinese and English LOGO, atomization technology information display, company performance display and other content are unfolded in turn, so that visitors can receive the company's scientific and technological strength and corporate culture more clearly and intuitively. In addition, we also introduced the concept of "show window" into the renovation of the façade, hoping to use a 10-meter-wide façade window to break the space boundary inside and outside the lobby, and form a company image display wall facing the street, to give the institute building a striking visual identity on the exterior.

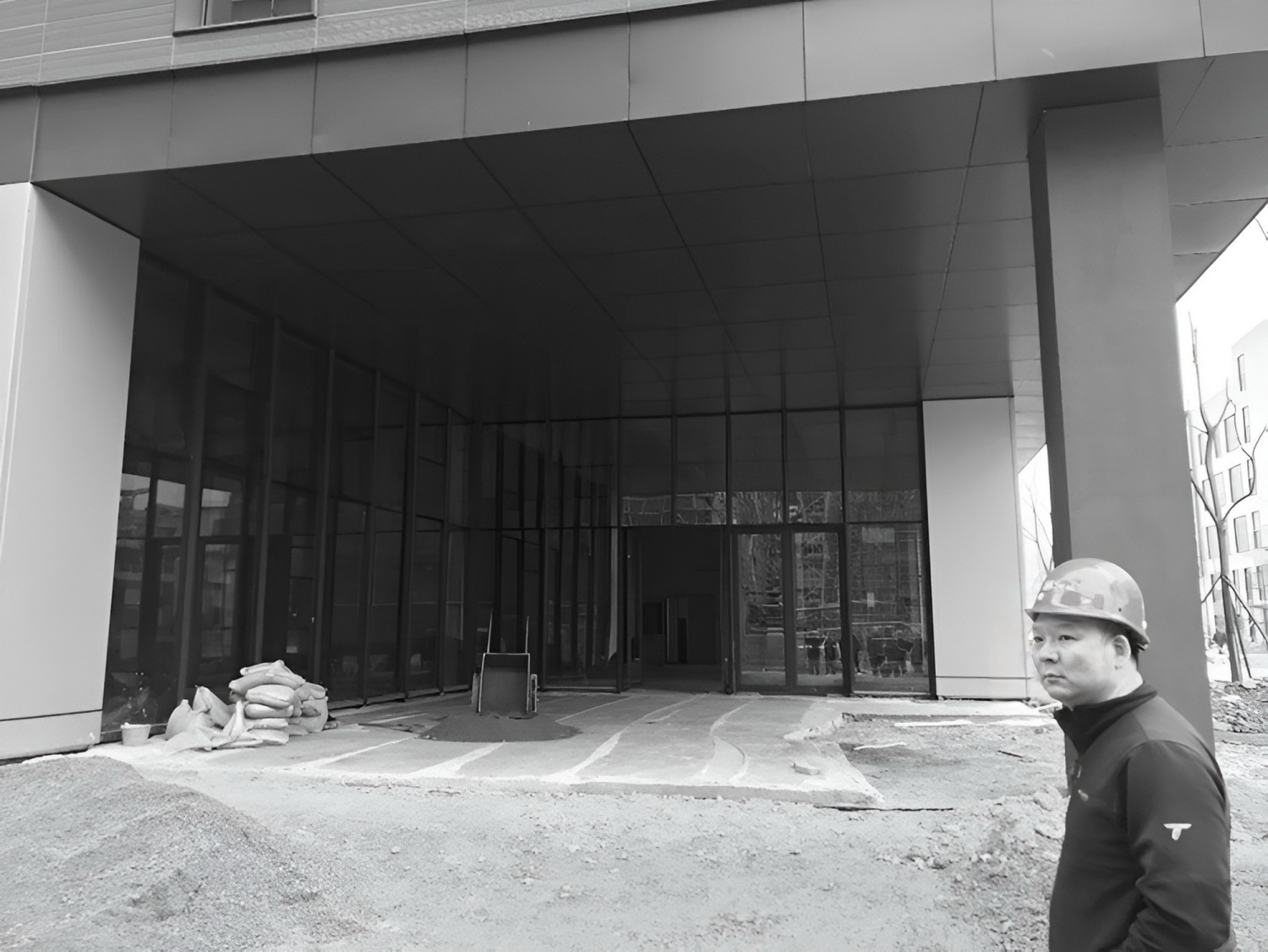

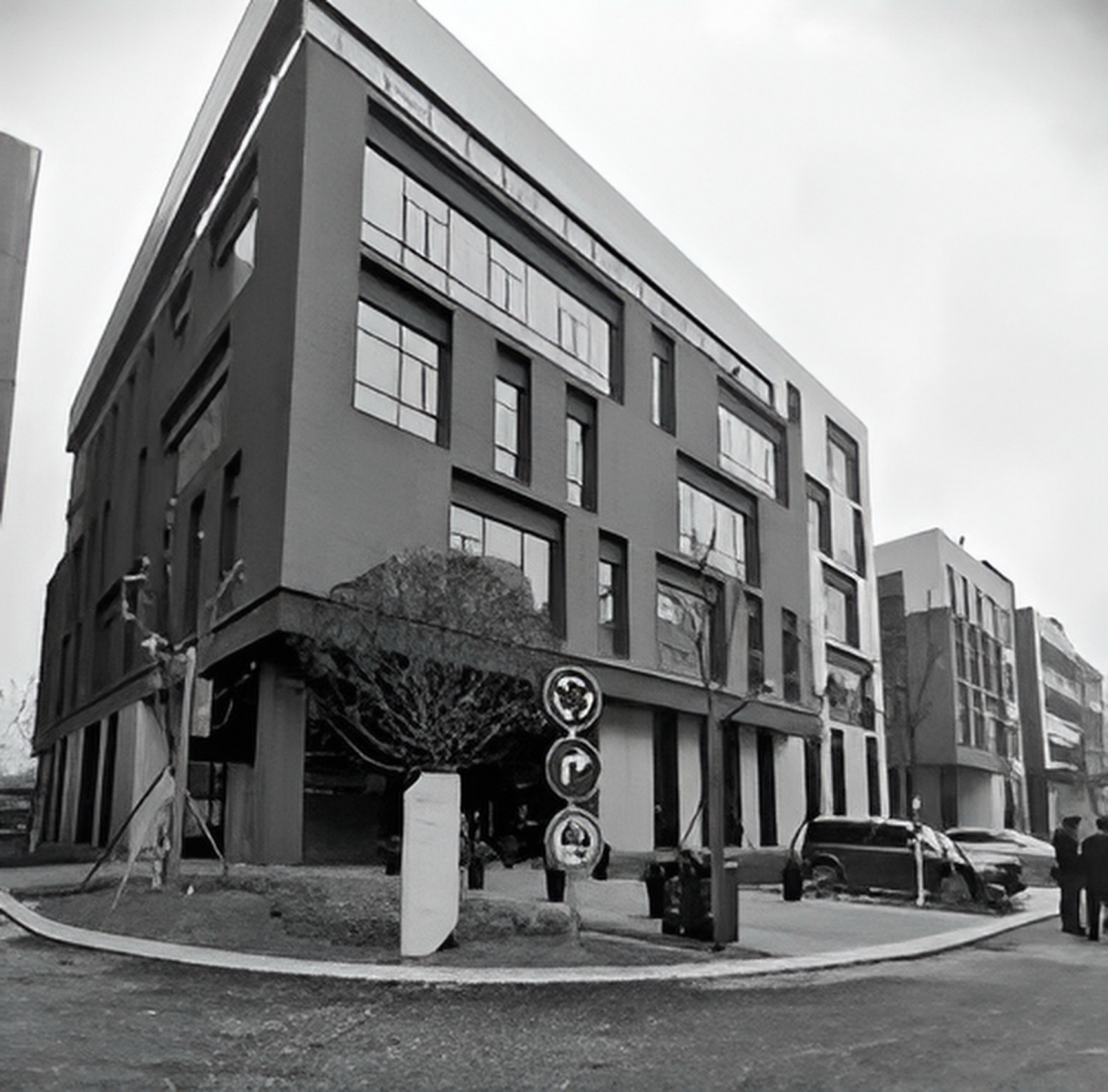

入口改造前 Entrance before renovation▲

L型的连续展示界面 L-shaped continuous display interface▲

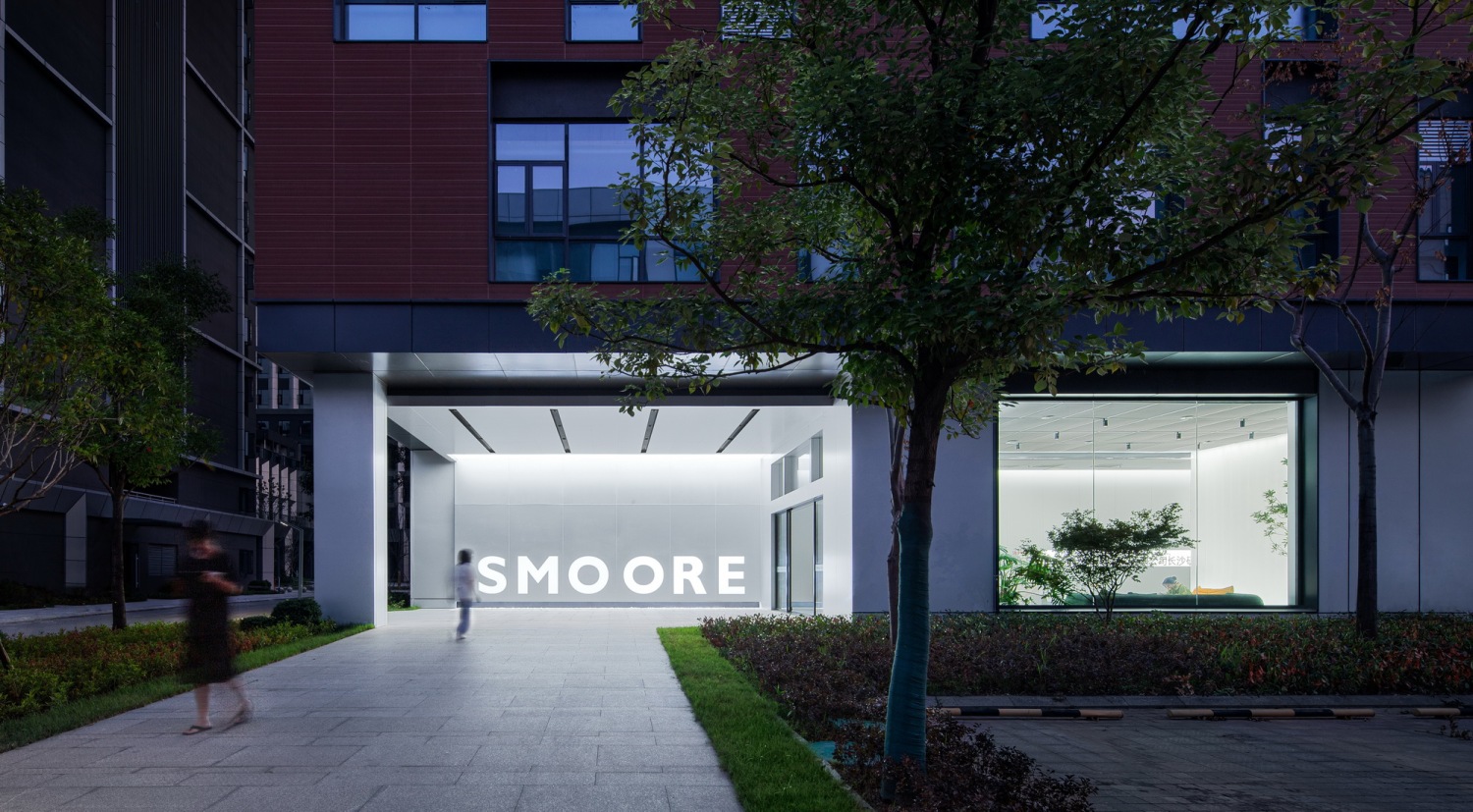

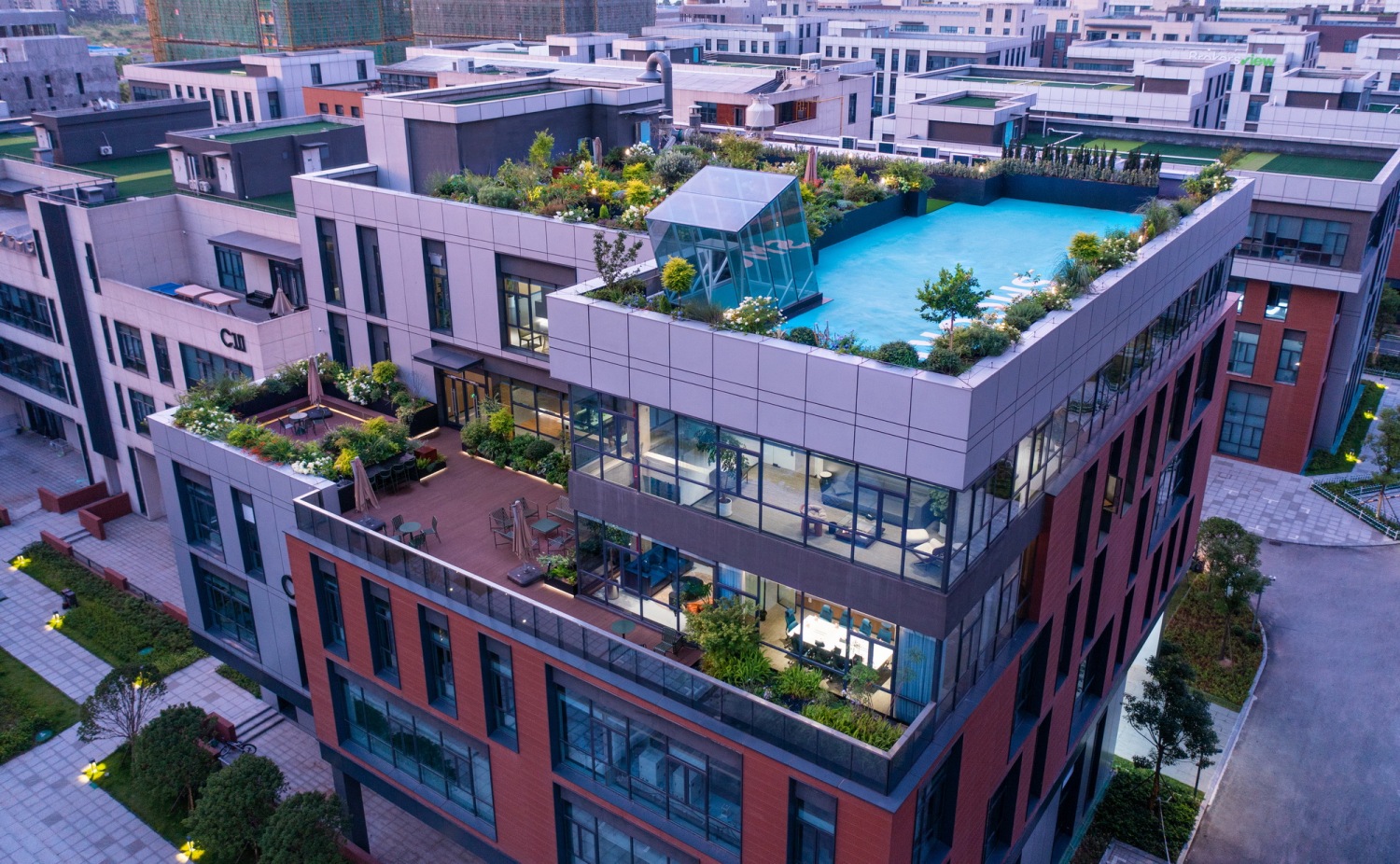

园区内醒目的视觉标示感 Eye-catching visual signage in the park▲

窗口的扩大延伸了展示界面的视觉长度 The expansion of the window extends the visual length of the display interface▲

入口：公司英文LOGO墙 Entrance: Company English LOGO Wall▲

大厅：雾化科技LED展示屏 Hall: Atomization Technology LED Display Screen▲

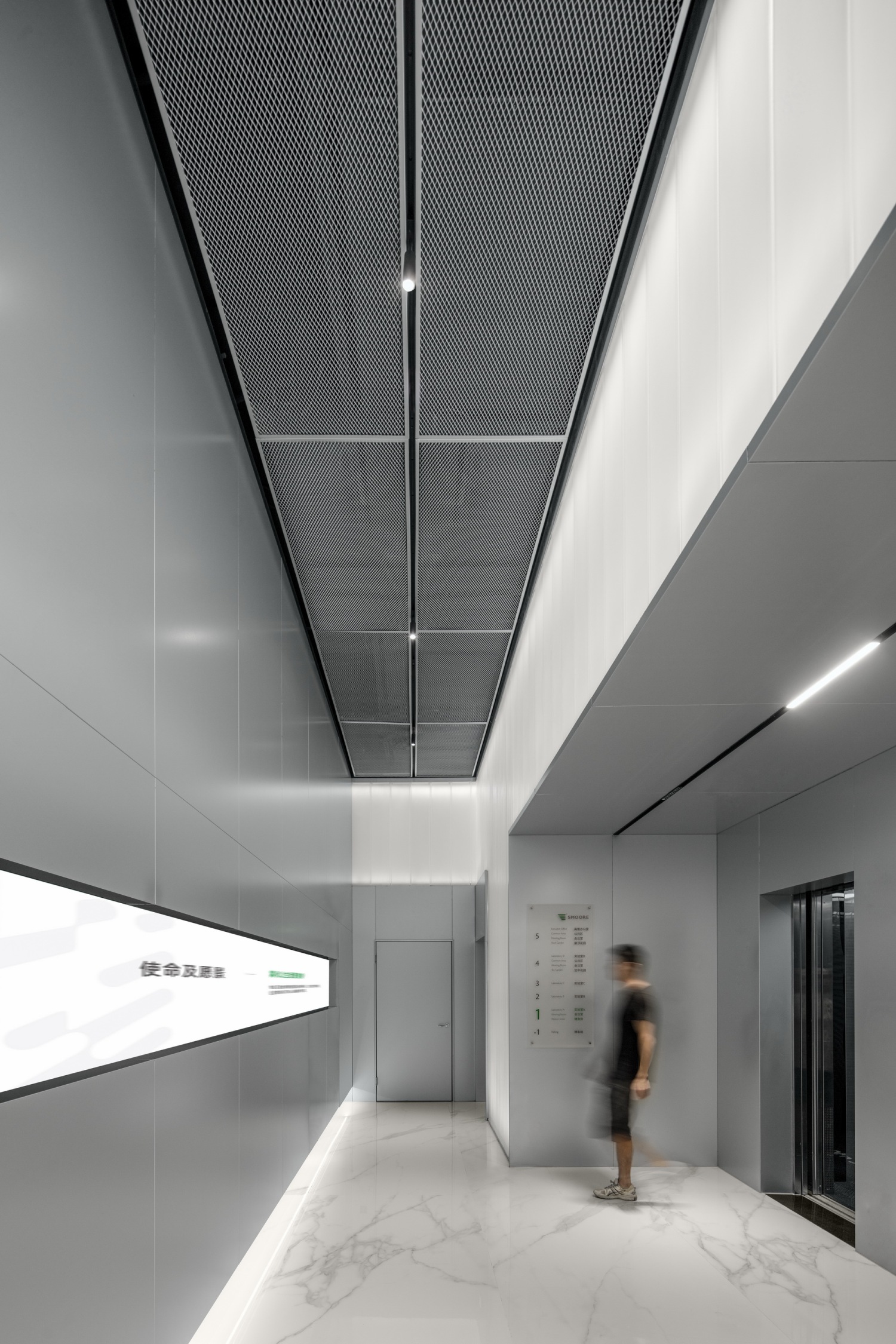

电梯厅：中文LOGO & 公司业绩动态展示 Elevator Hall: Chinese LOGO & Company Performance Dynamic Display▲

在高达5.5米的首层大堂区，我们选择了表面雾砂处理的U型玻璃作为主要立面的使用材料。此材料可以形成较为整体的视觉效果，也能很好的呼应“雾化”的空间主题。日常在半透明的U型玻璃内透光的反射下，大厅中呈现出了有如薄雾一般朦胧的科技美感。

In the lobby area on the first floor, which is as high as 5.5 meters, we chose U-shaped glass with fog sand treatment as the main façade material. This material can form a more overall visual effect, and can also well echo the spatial theme of atomization. In daily life,under the reflection of the translucent U-shaped glass, the hall presents a hazy scientific and technological beauty like mist.

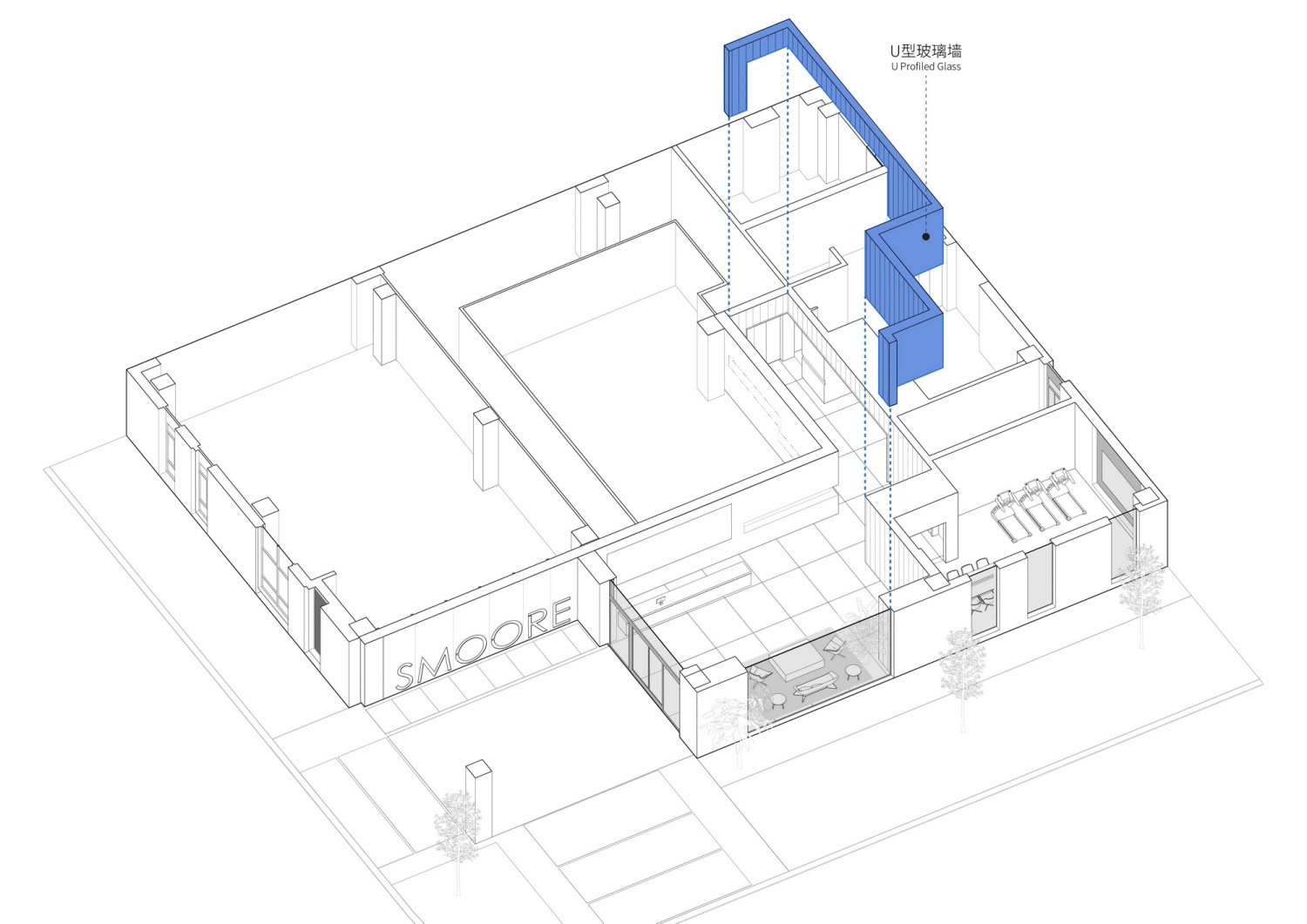

U型玻璃墙面设置 Setting U-shaped glass wall▲

大厅5.5米高U型玻璃墙面 5.5 meters high U-shaped glass wall in the hall▲

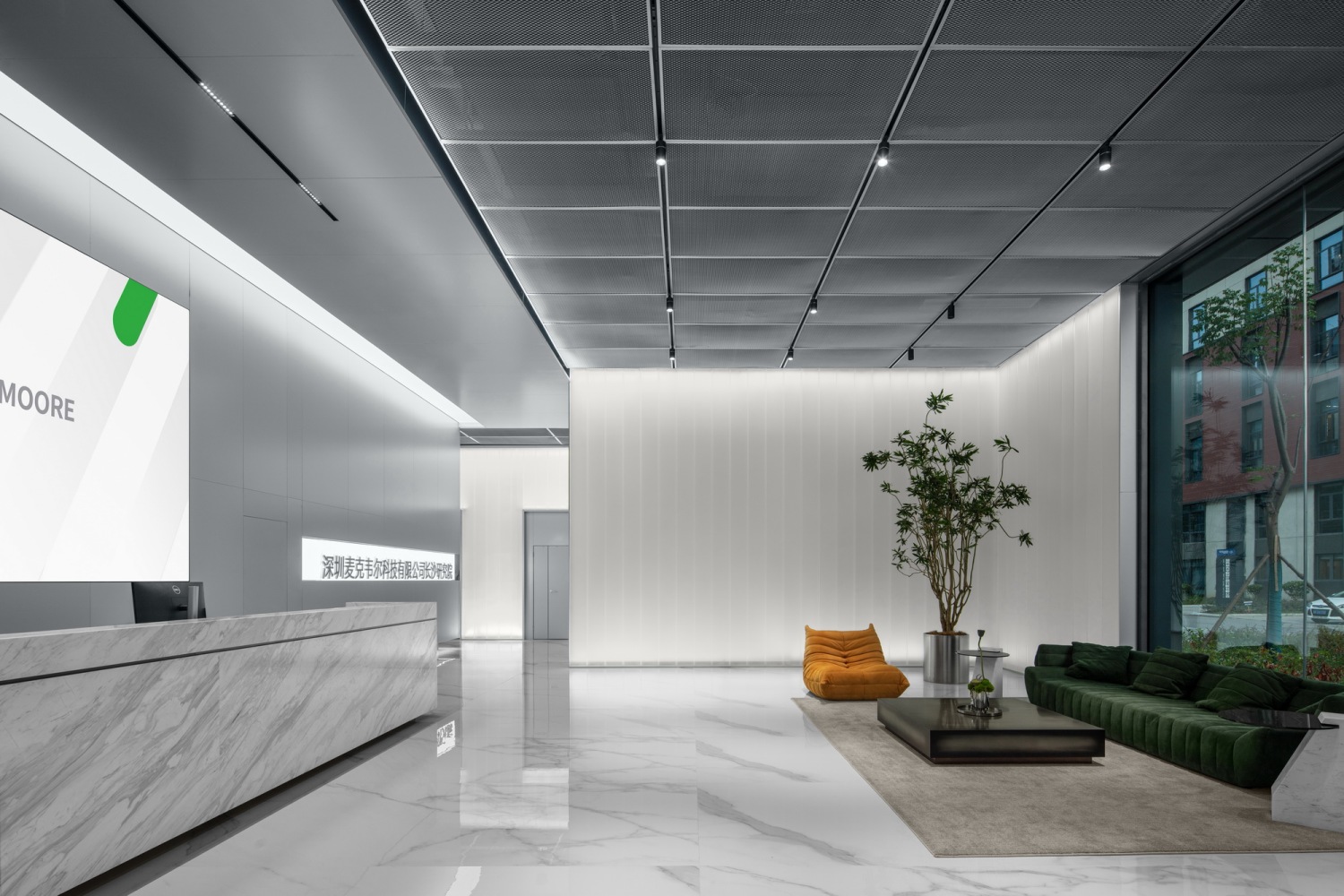

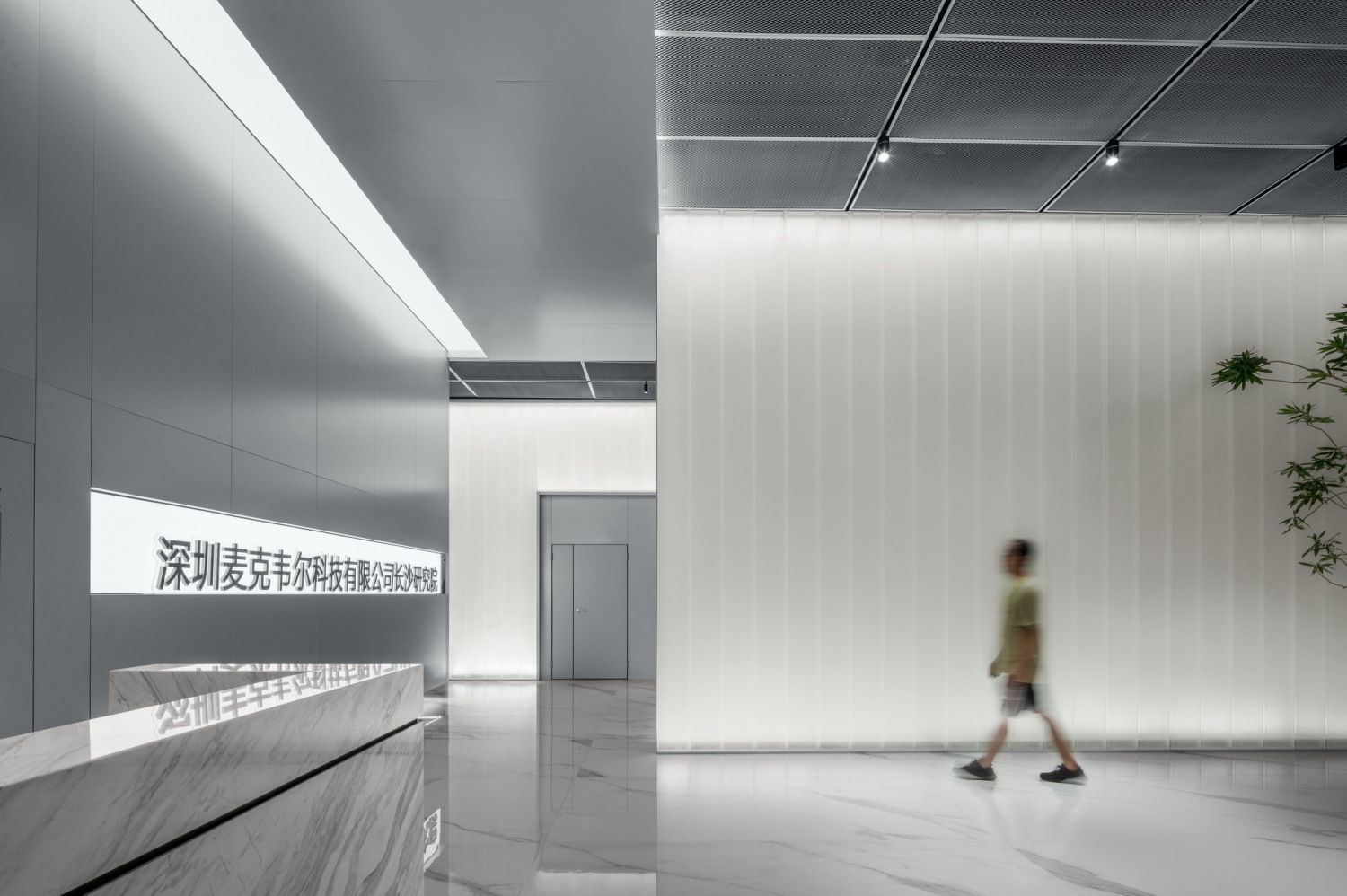

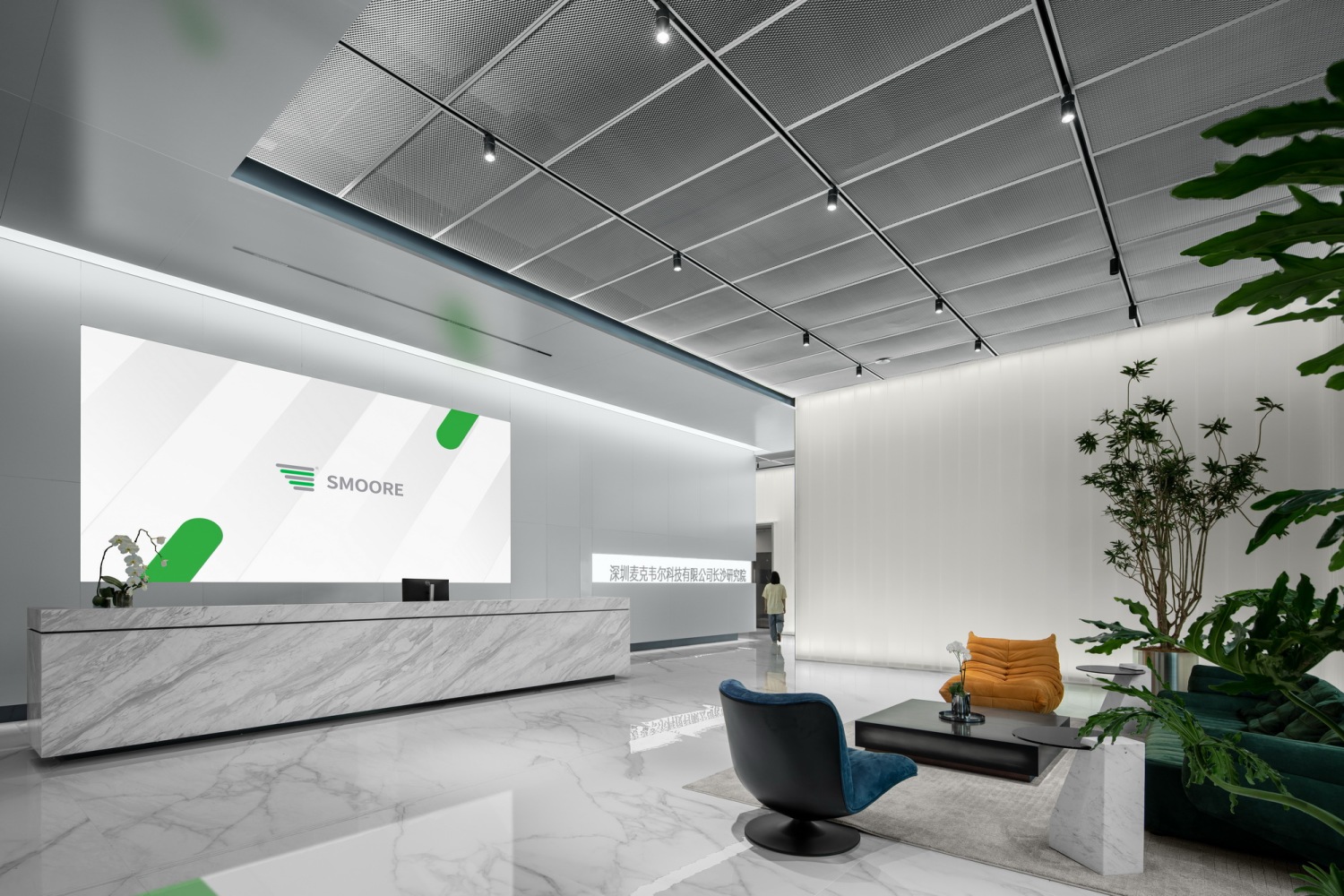

接待区与U型玻璃墙 Reception area with U-shaped glass wall▲

U型玻璃墙面与雾化主题 U-shaped glass wall with atomization theme▲

02

“从封闭到开放”：实验室与露台花园的空间串联

From closed to open, laboratory and terrace garden

我们相信自然舒适的办公环境能让员工有更放松的办公体验，也能更加促进办公效率的提升。所以由内部的办公空间渗透到外部的花园平台便是我们对于办公区重要的设计策略。

在开始设计之前，我们深入调研了研究院原有的工作状态。我们发现相比对于坐在办公桌的工作方式，研究院的研究人员更多的时间都集中在实验室中，封闭的实验室空间对应了研发工作的需要。但科学研发的过程是漫长而紧张的，许多研究员几乎终日都待在封闭的实验室空间中，仅在较少的时间才会回到办公桌前进行电脑上的操作。而在电脑桌前也是大家相对更加活跃放松的办公时间。

基于这样的一种工作状态，我们提出应该设立一个实验室-半开放办公区-全开放花园区的空间递进层次，实现由封闭到开放、由室内到自然、由严谨到放松的空间状态的转变。

We believe that a natural and comfortable office environment can make employees have a more relaxed office experience and can also promote the improvement of office efficiency. Therefore, the penetration of the inner office space into the outer garden platform is our important design strategy for the office area.

Before starting the design, we deeply investigated the original working state of the institute. We found that compared to the way of working at a desk, researchers in the institute spend more time in the laboratory, and the enclosed laboratory space corresponds to the needs of R&D work. But the process of scientific research and development is long and stressful. Many researchers stay in closed laboratory spaces almost all the time, and only return to their desks for less time to operate on the computer. In front of the computer desk is also a relatively more active and relaxed office time for everyone.

Based on such a working state, we propose that a laboratory-semi-open office area-full-open garden area should be set up to achieve a progressive level of space changing from closed to open, from indoor to natural, and from rigorous to relaxed.

“功能环”整合了各种常用的辅助功能区The Function Ring integrates various commonly used auxiliary functional areas▲

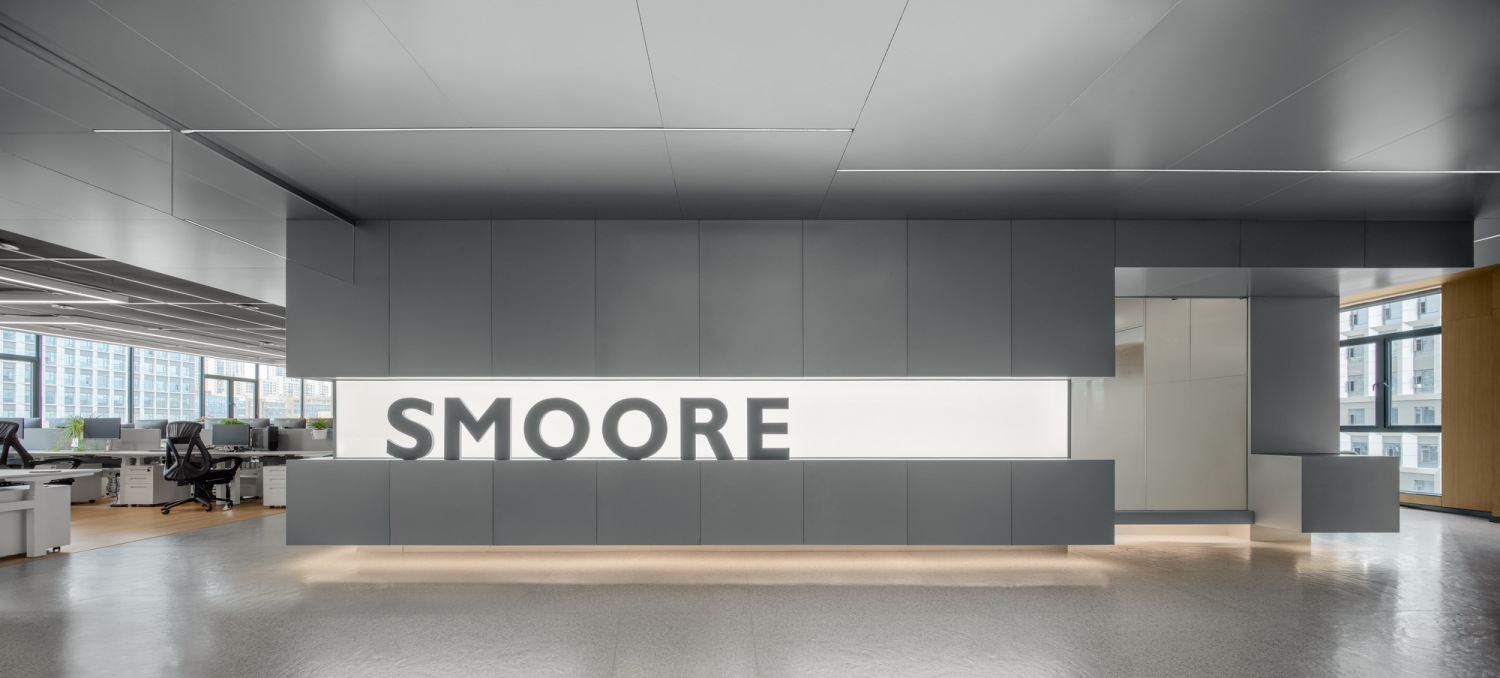

办公区入口Office area entrance▲

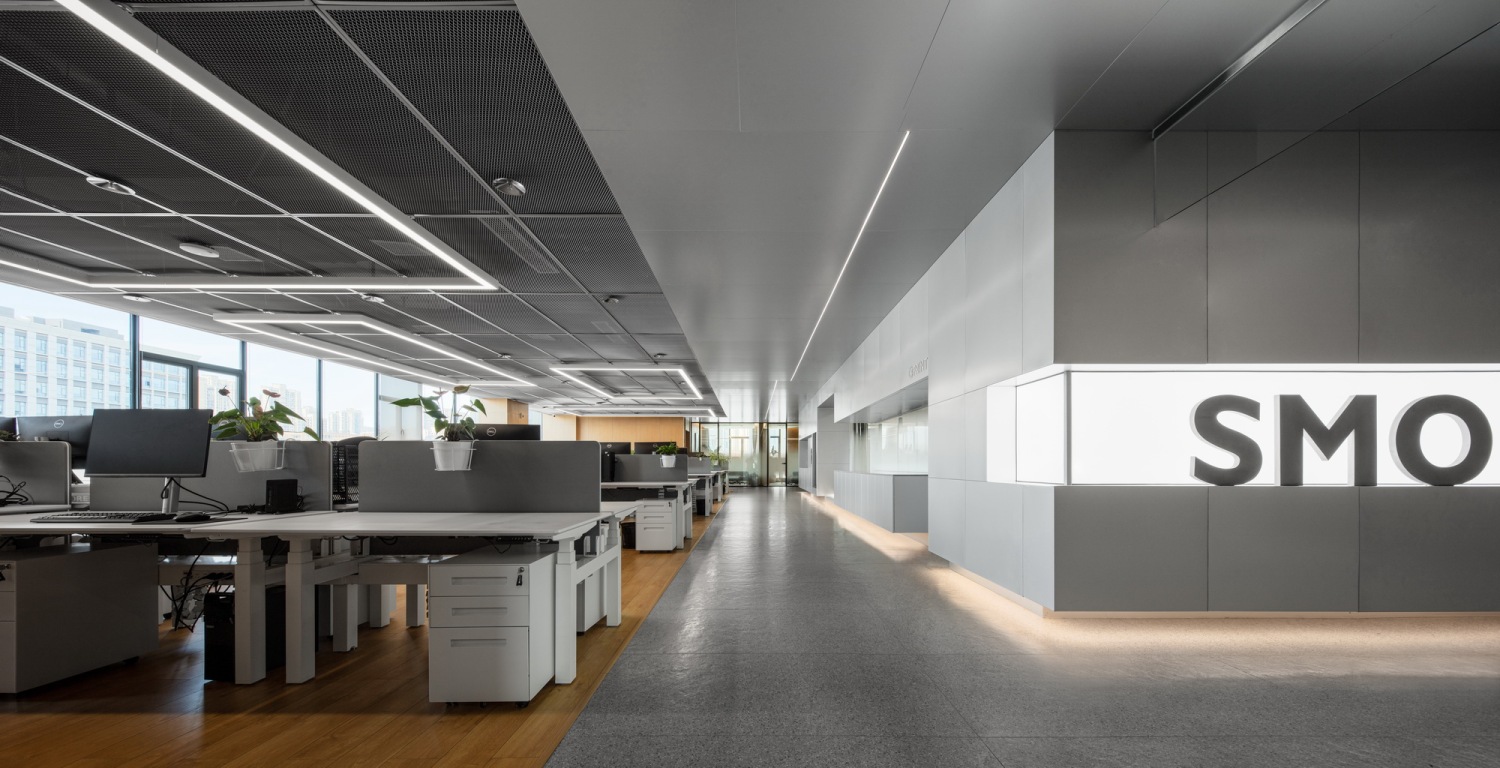

开放办公区Open office area▲

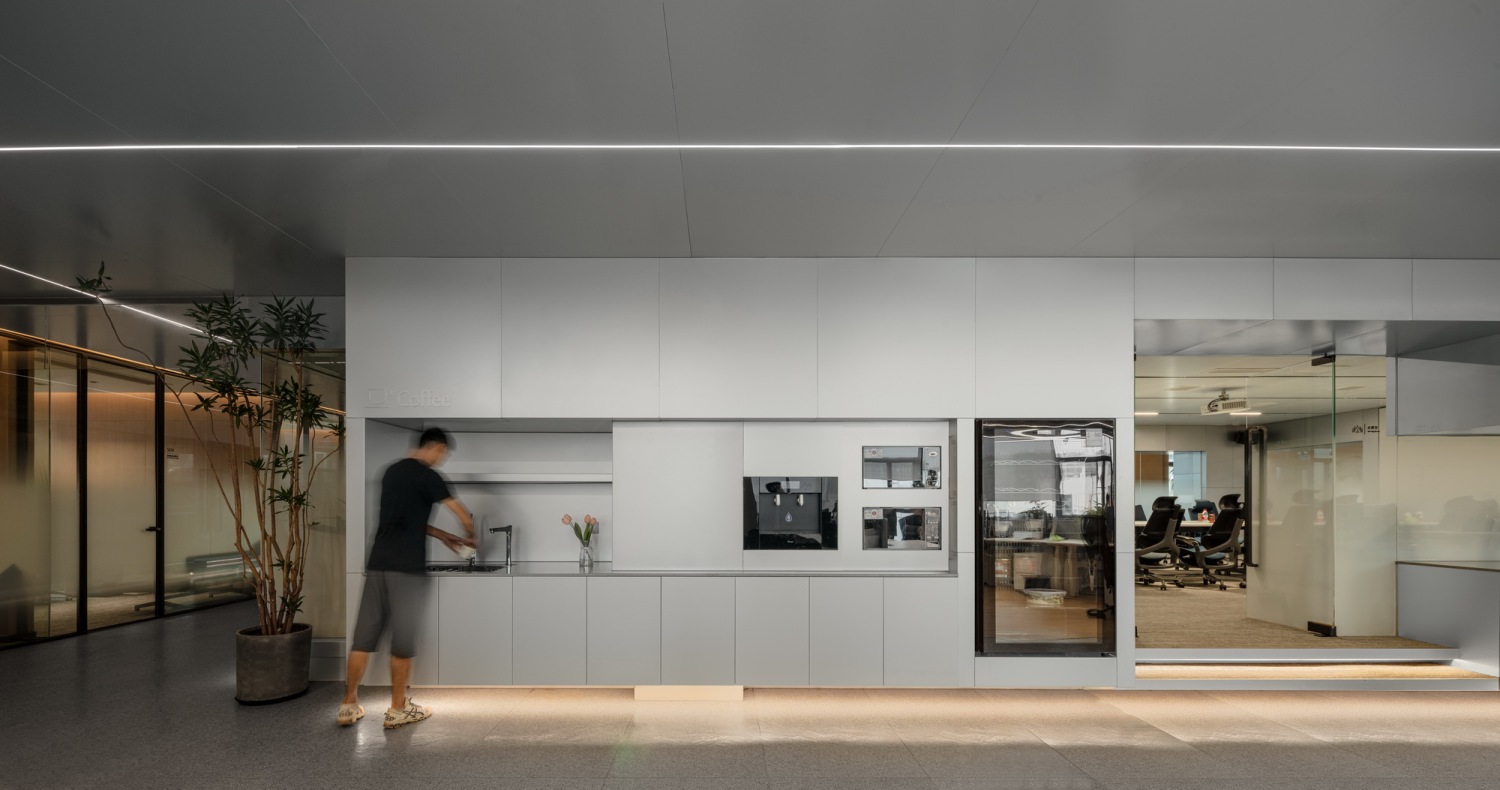

功能环与茶水区Function Ring and pantry area▲

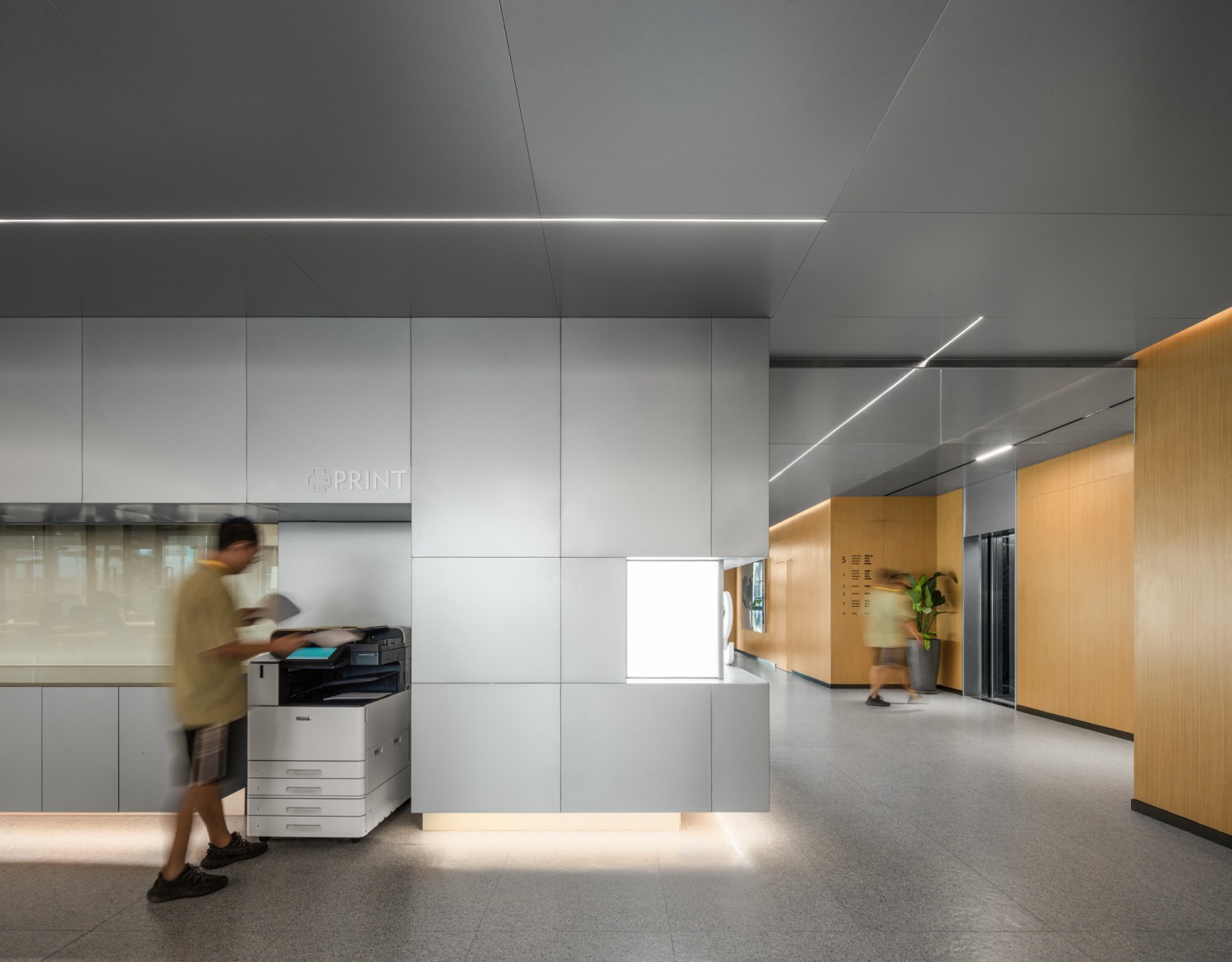

功能环与打印区Function Ring and print area▲

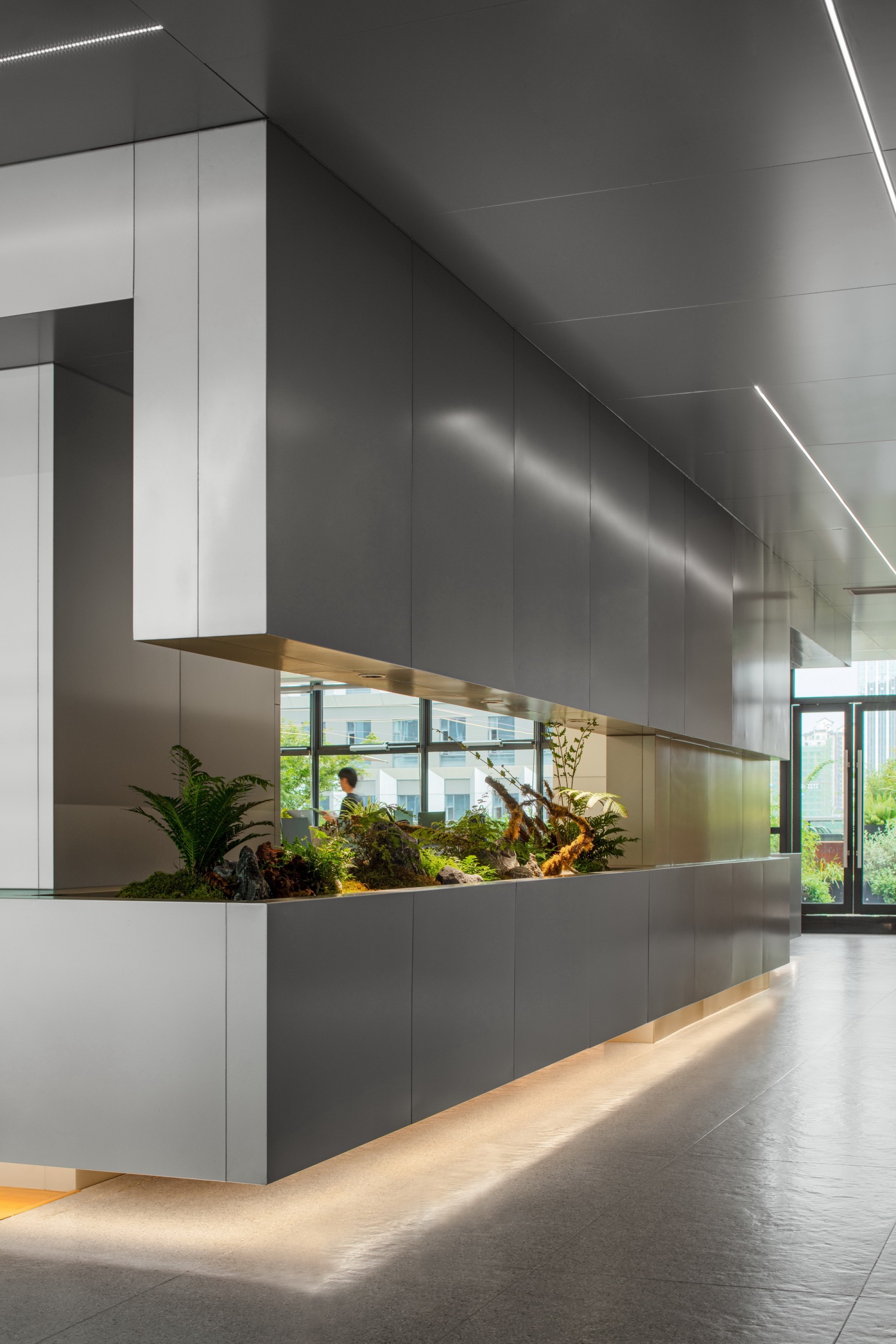

功能环与绿植区Function Ring and green plant area▲

功能环与会议室Function Ring and meeting room▲

会议室内部Inside the meeting room▲

依据从封闭到开放的逻辑组织功能Organize functions according to a logic from closed to open▲

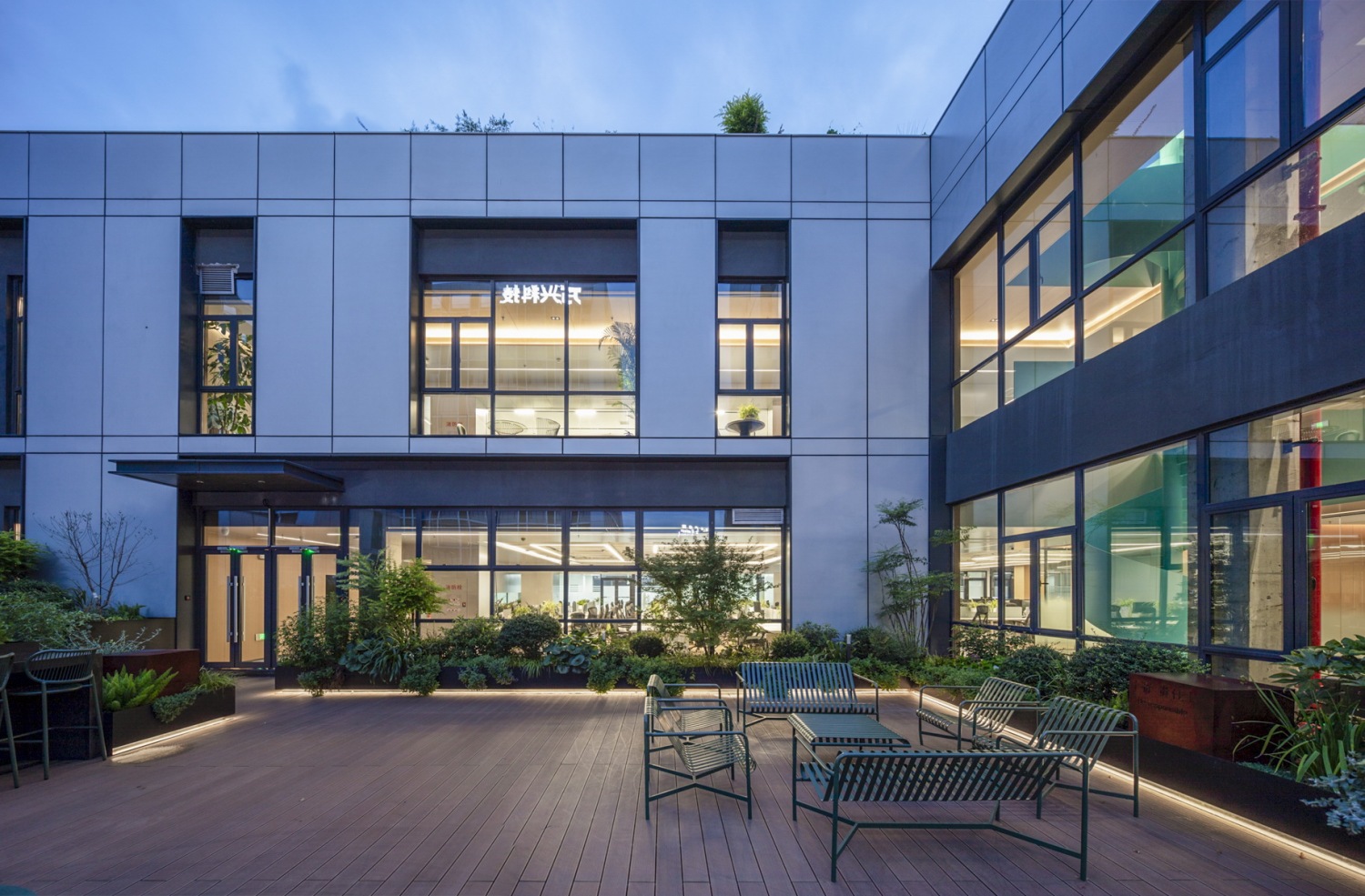

办公区与花园区Office area and garden area▲

休闲区与花园区Recreation area and garden area▲

休息区通高 Toplessness lounge area▲

从五层休息区到楼顶From the fifth floor lounge area to the roof▲

五层讨论区Fifth floor discussion area▲

五层讨论区造型吧台Modeling bar of the fifth floor discussion area▲

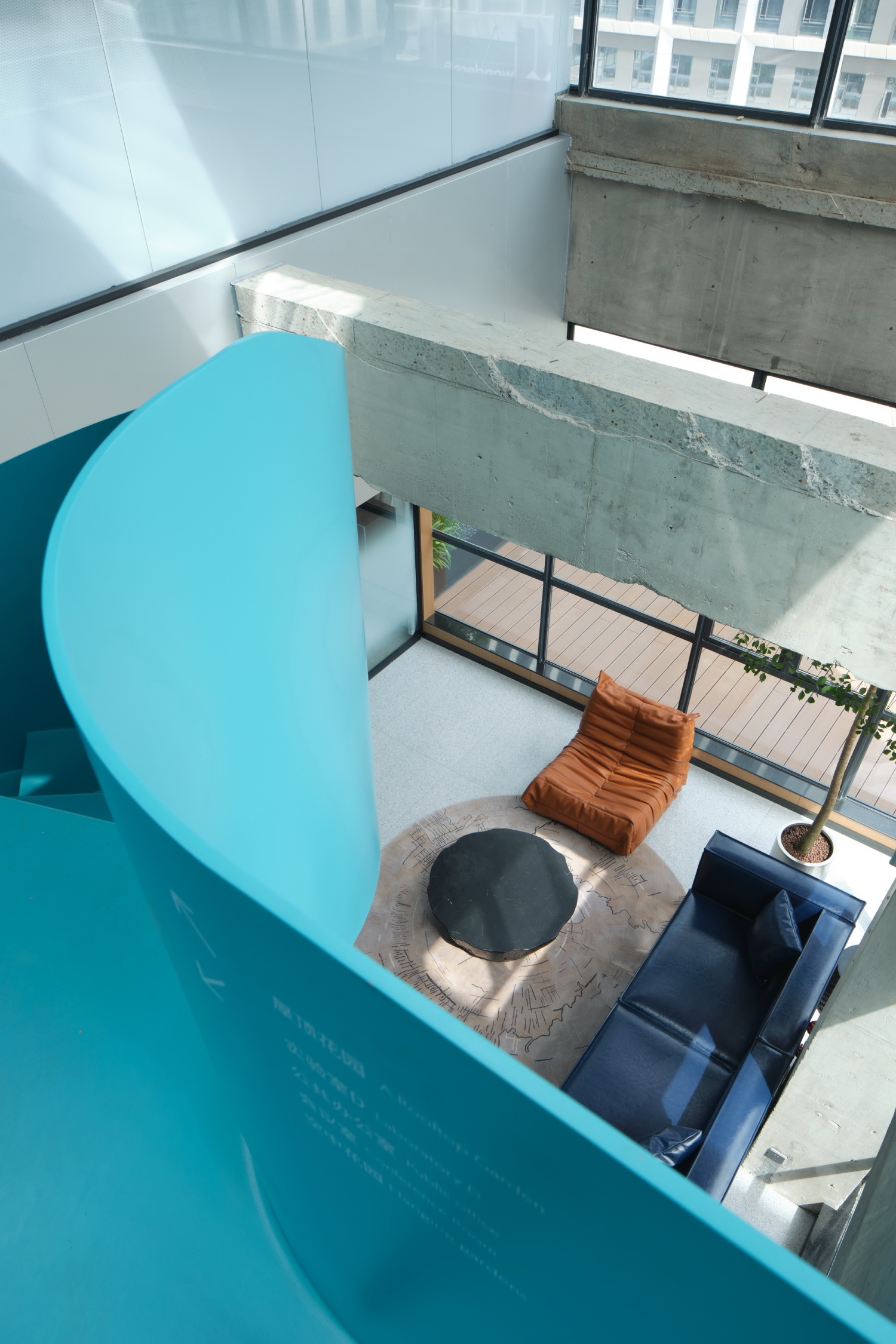

休息区通高望向四层休闲区From lounge area looking down to the fourth floor leisure area▲

对于此种空间场景的转换，我们希望能突破楼层的限制，使得位于各层不同区域的同事，都能在休息放松的时间能有积极的互动，而不是每日都只停留在自己办公位所在的楼层中。在每层的中心位置，我们设置了一个独特的功能交通环，它将各层的办公区、办公室、花园和休闲区串联了起来，容纳了“打印-茶水-储藏-会议-展示”的多种服务功能，形成了一个竖向立体的，贯穿内外的连续空间路径。

For the conversion of this kind of space scene, we hope to break through the restrictions of floors, so that colleagues in different areas on each floor can have active interactions during rest and relaxation time, instead of just staying at their own office and floor every day. At the center of each floor, we set up a unique functional traffic ring, which connects the office areas, offices, gardens and leisure areas on each floor, accommodating multiple “printing-pantry-storing-meeting-display” This kind of service function forms a vertical and continuous space path that runs through the inside and outside.

交通体竖向串联各层花园The traffic unit connects the gardens on each floor vertically▲

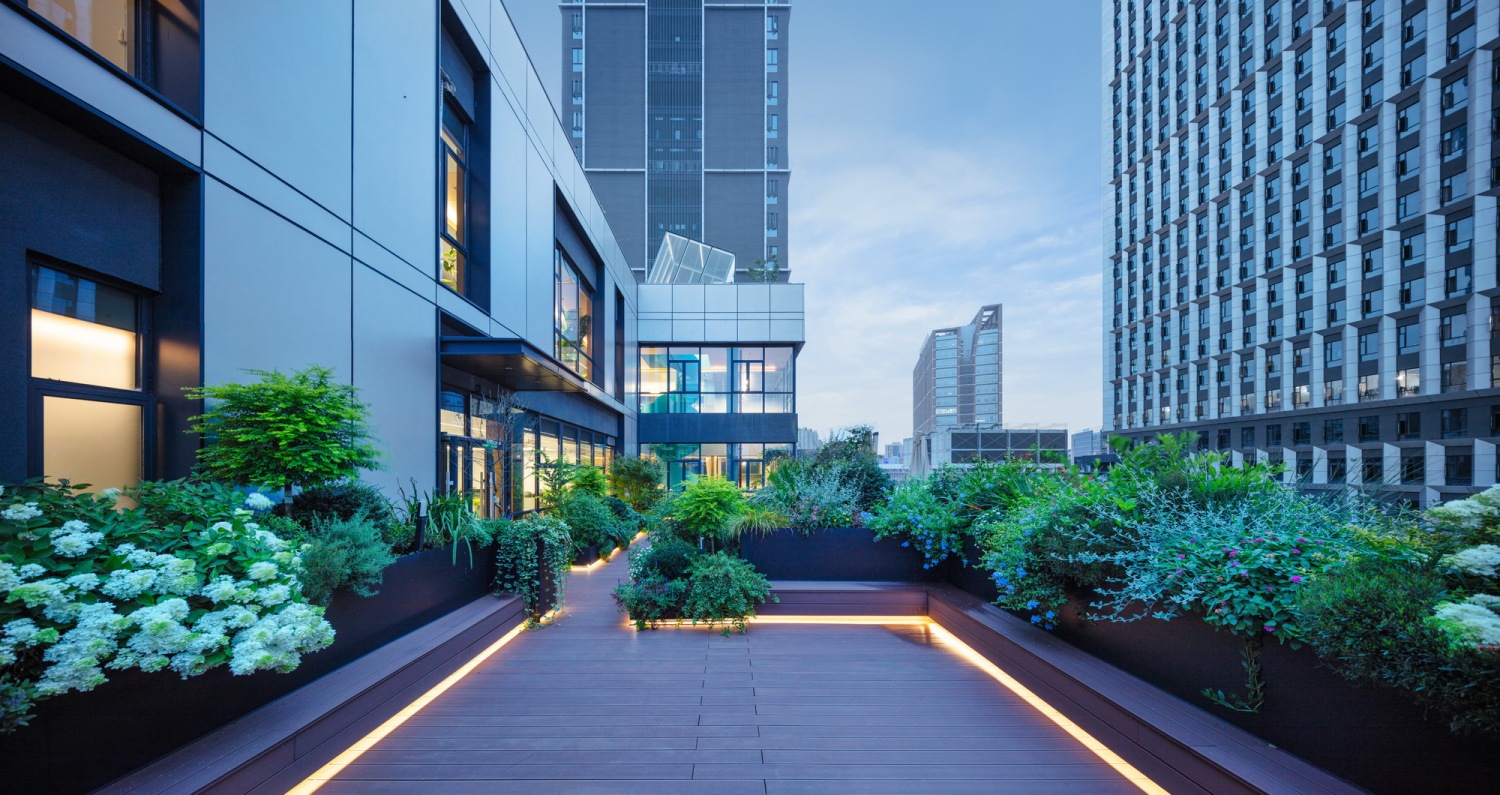

四层及屋顶花园Fourth floor and roof garden▲

四层花园及休闲区Fourth floor garden and recreation area▲

四层花园区望向办公区The garden area on the fourth floor looks towards the office area▲

四层花园区立面Fourth floor garden area facade▲

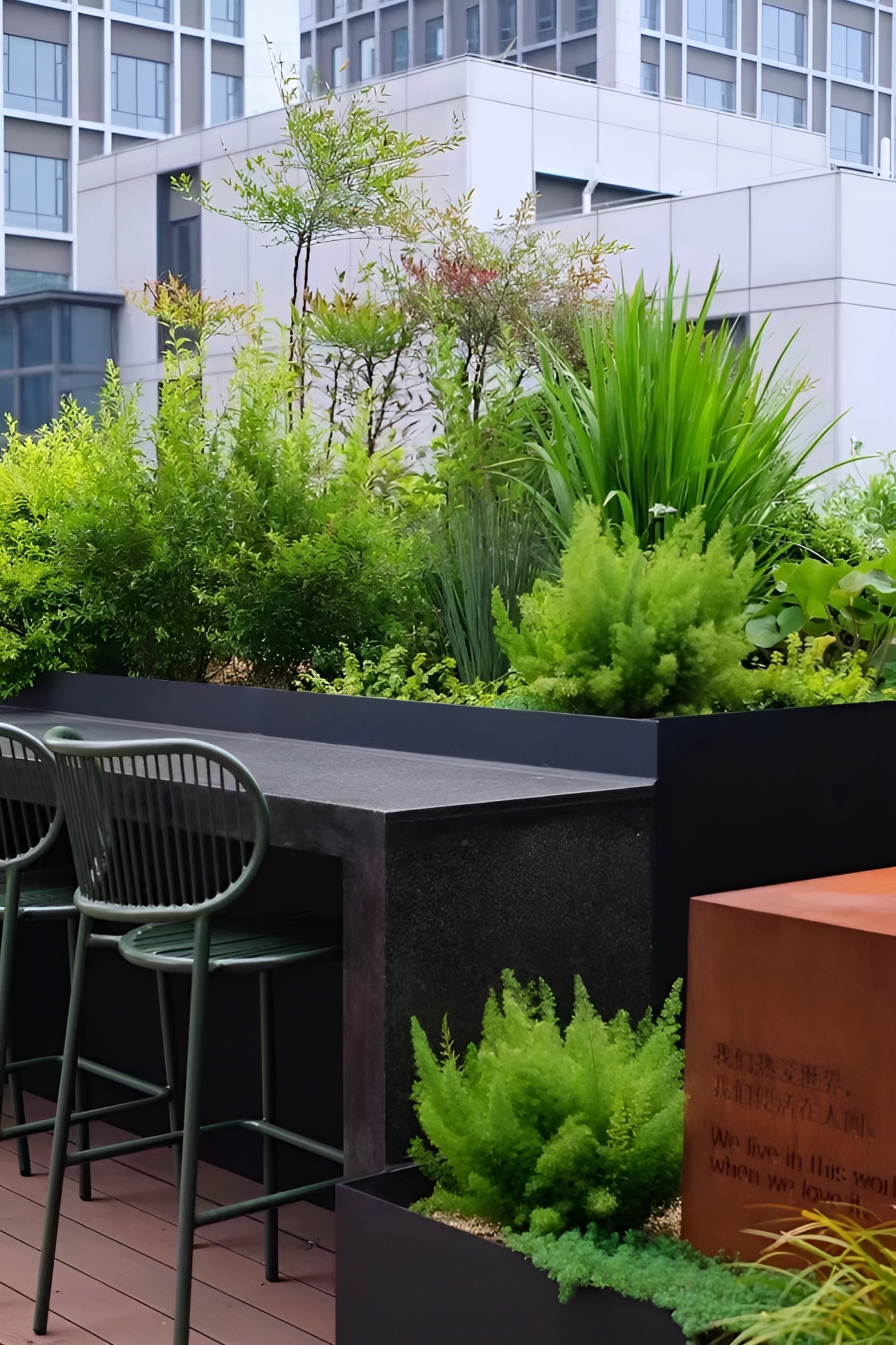

户外吧台及下沉区Outdoor bar and sunken area▲

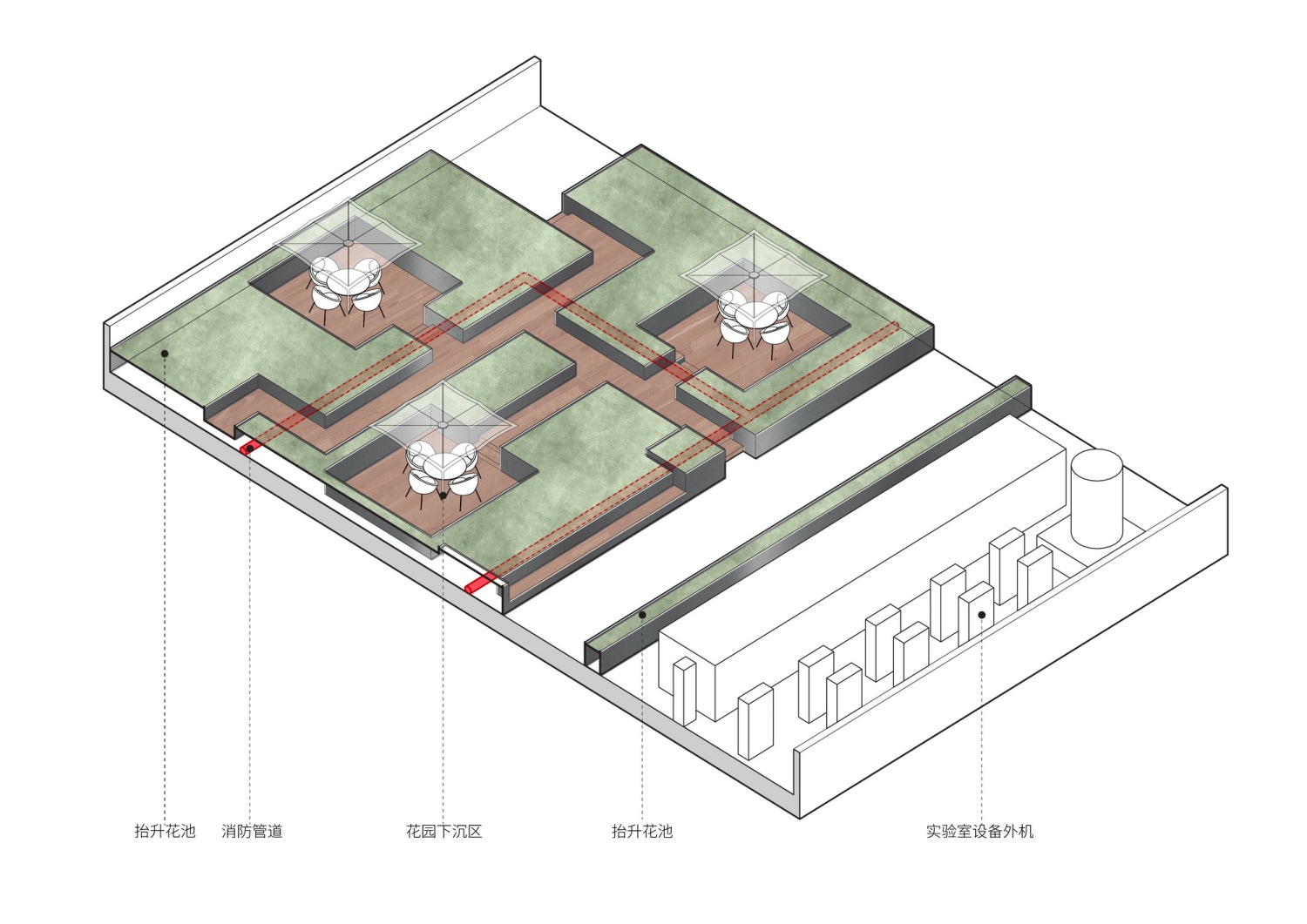

在屋顶层，我们将各类室外设备做了集中布置，把更多的面积腾出来用作屋顶多功能活动区。在屋顶密布消防管道的区域，我们将地面进行了整体抬升处理，通过精确定位和设计，将原有纵横密布的消防管隐藏在了抬升的花园及下沉休息区之间，创造了一个更为私密、高差丰富的独特花园休闲体验区。

We have arranged all kinds of outdoor equipment in a centralized manner on the roof layer, freeing up more area for the multi-functional activity area on the roof. In the area where the roof is densely covered with fire pipes, we raised the ground as a whole. Through precise positioning and design, the original vertical and horizontal fire pipes were hidden between the raised garden and the sunken rest area, creating a more private and unique gardening leisure experience area with various vertical drop.

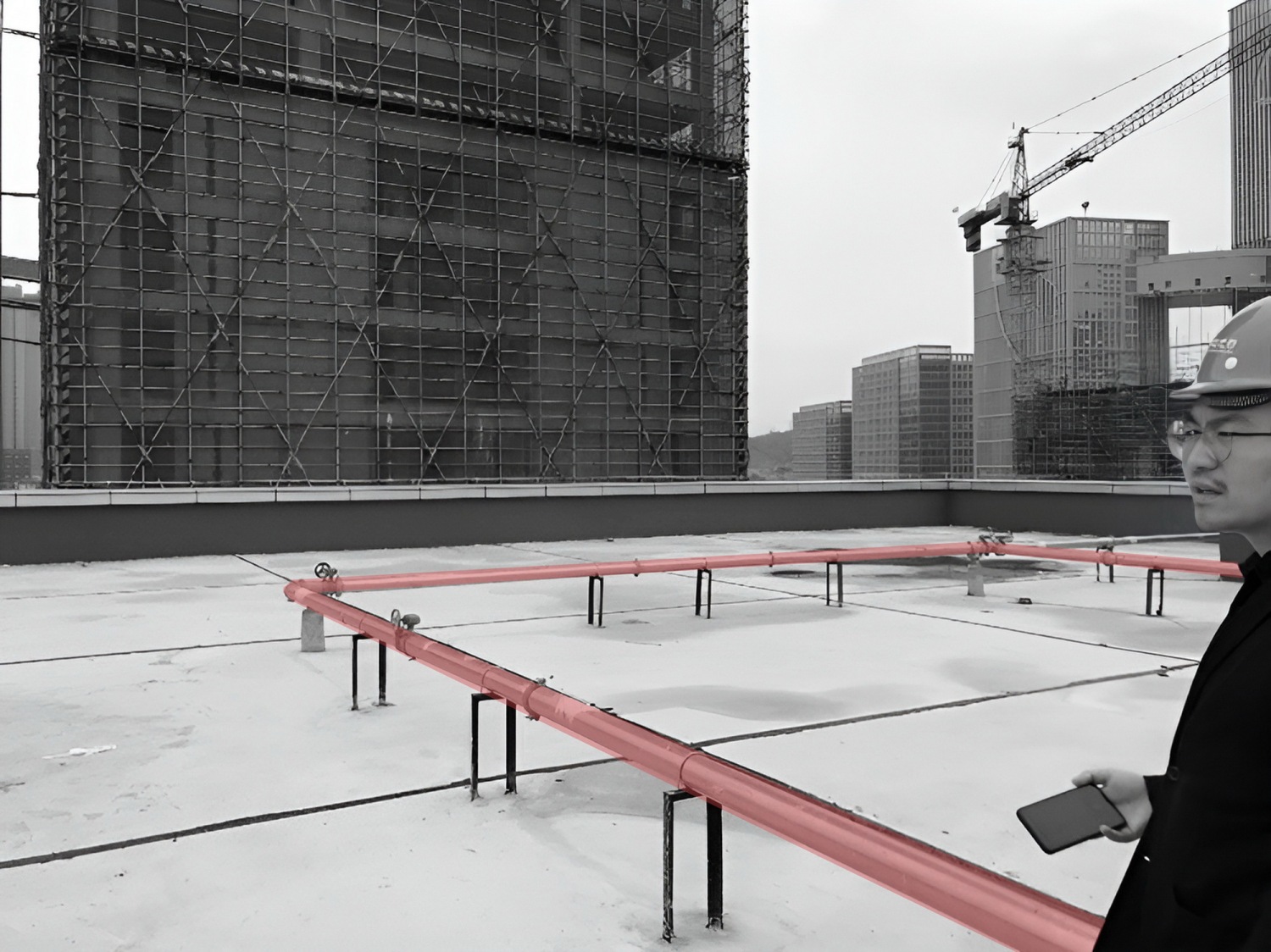

改造前：屋顶消防管道区域Before Renovation: Roof Fire Plumbing Area▲

改造后：抬高花园区覆盖原消防管After Renovation: Roof raised garden area to cover the original fire pipe▲

改造后：屋顶抬高花园区及多功能活动区After Renovation: Roof raised garden area and multi-functional activity area▲

屋顶多功能活动区Roof multifunctional activity area▲

屋顶抬高花园与四层露台花园Roof raised garden and fourth floor terrace garden▲

屋顶抬高花园Roof raised garden▲

03

“从科技到自然”—材料呈现的内在逻辑

From technology to nature, the inner logic of materials

“雾化让生活更美好”，将雾化技术融入生活，提升生活品质是SMOORE的企业愿景，蕴含了SMOORE将科技与人性关怀相结合的企业文化。因此，在本想项目的材料选择上，我们提炼出“科技与自然”并置的材料逻辑，以契合SMOORE的企业气质。具有科技感的铝板、体现雾化主题的U型玻璃搭配温暖的木质墙地面以及绒面暖色地毯，通过这两大类材料的并置呈现，呼应科技与人性关怀相结合的空间气质。在材料呈现上真正传达出科技、高效、自然、舒适的体验感受。

‘Atomization makes life better’, integrating atomization technology into life and improving the quality of life is SMOORE's corporate vision, which embodies SMOORE's corporate culture of combining technology with human care. Therefore, in the material selection of this project, we have extracted the material logic of "technology and nature" to fit SMOORE's corporate temperament. The aluminum plate with a sense of technology, the U-shaped glass reflecting the theme of atomization, the warm wooden walls and the floor and the suede warm carpet are presented through the juxtaposition of these two types of materials, echoing the space temperament of combining technology and human care. The material presentation truly conveys the experience of technology, efficiency, naturalness, and comfort.

U型玻璃与绿植U-shaped glass and green plants▲

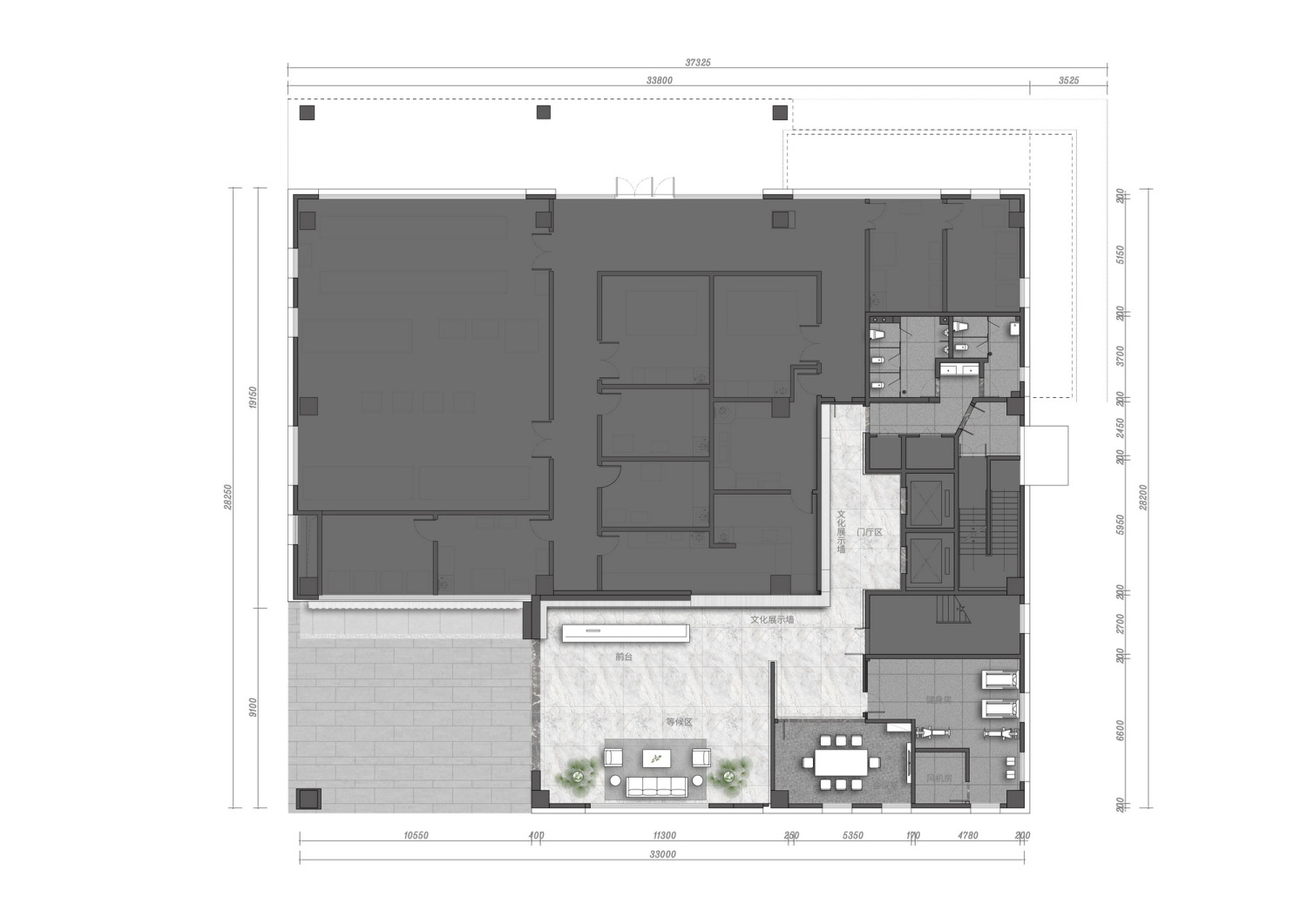

一层平面图 First Floor Plan▲

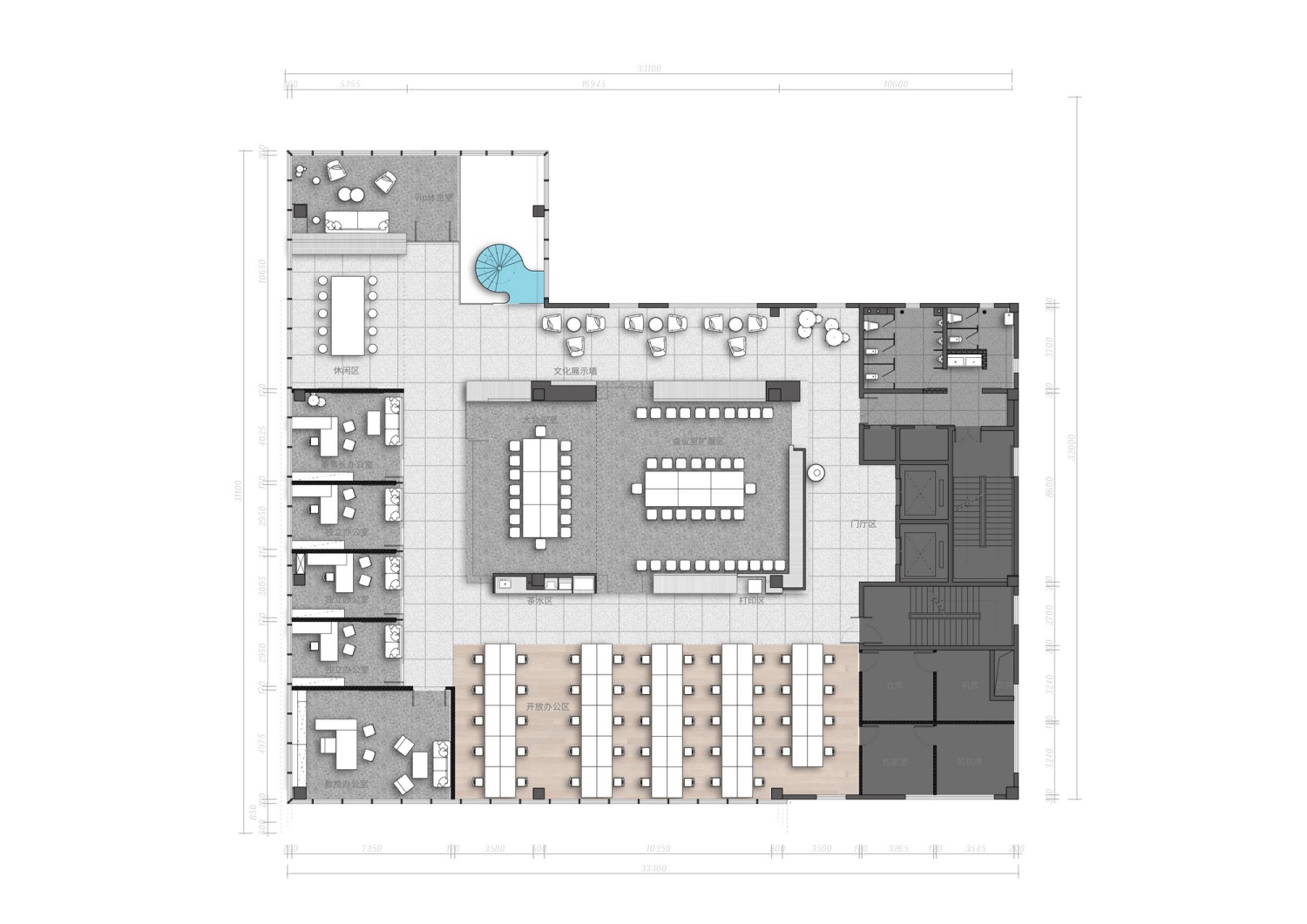

二层平面图 Second Floor Plan▲

三层平面图 Second Floor Plan▲

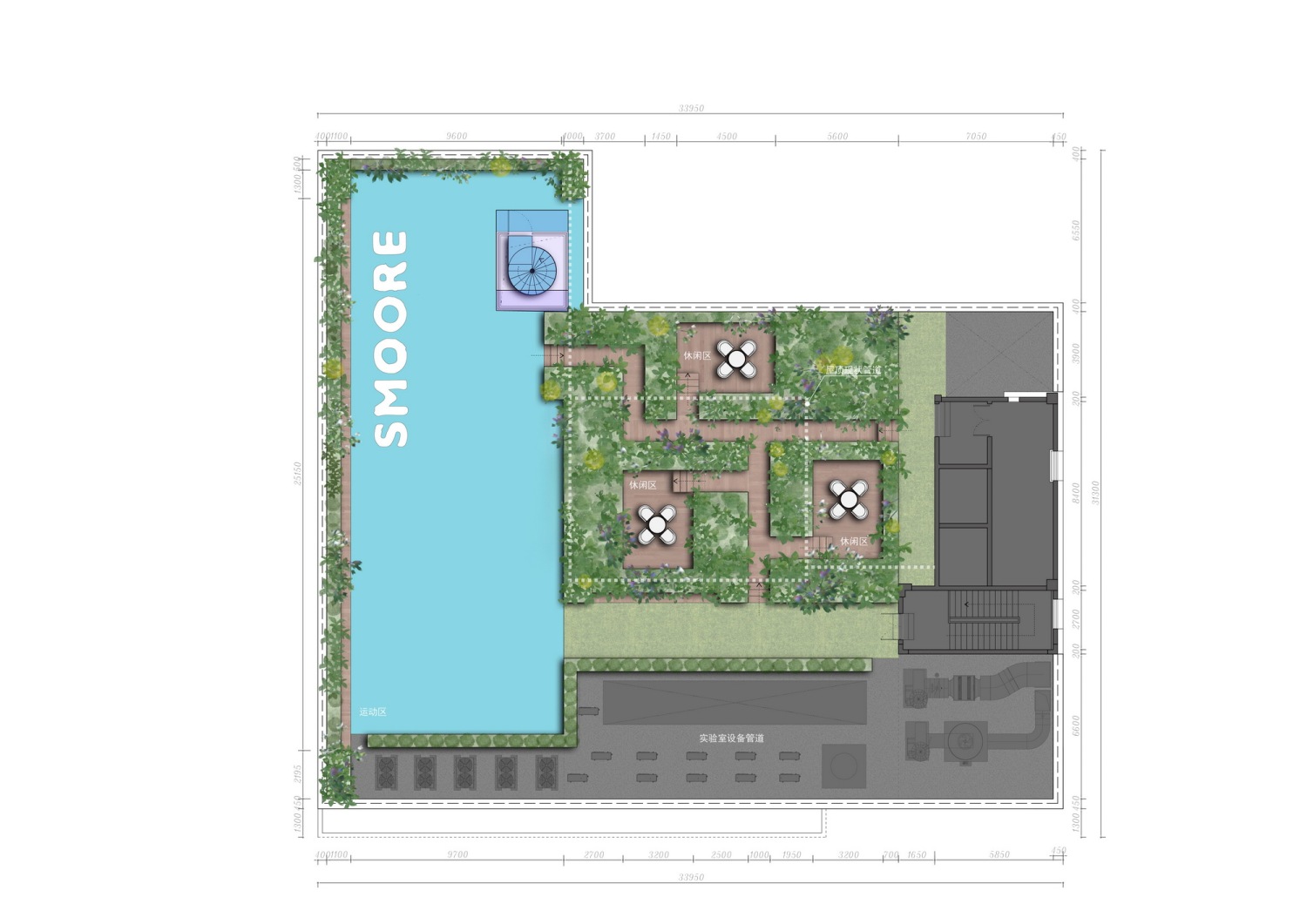

屋顶层平面图 Second Floor Plan▲

项目名称 SMOORE长沙研究院办公楼改造

设计方 之行建筑事务所

公司网站

联系邮箱 info@zhixing-architects.com

项目设计&完成年份 设计时间：2020年11月

完成年份：2022年1月

主创及设计团队 主创及设计团队：周子乔、阳斌、陈恺、陈漫昌、刘剑英

结构：赵晓雷

给排水：邓丽

施工团队：湖南之行装饰工程有限公司

项目地址 湖南省长沙市岳麓区中电软件园C9栋

建筑面积 2700平米

摄影版权 山兮建筑摄影、内外摄影

合作方

客户 深圳麦克韦尔科技有限公司

品牌 长沙美匠铝板、无锡艾格美U型玻璃，马可波罗岩板，中森美学门窗，伊丽莎白、欧神诺瓷砖，梵品木饰面，成都德纳里艺术楼梯

Project name SMOORE Changsha Research Institute Office Building Renovation

Design ZhiXing Architecture Office

Website

Contact e-mail info@zhixing-architects.com

Design year & Completion Year Design Year: Nov.2020

Completion Year: Jan.2022

Leader designer & Team

Lead Architects and Design Team:

Zhou Ziqiao, Yang Bin, Chen Kai, Chen Manchang, Liu Jianying

Engineering: Xiao Lei Zhao

Drainage: Deng Li

Construction:

ZhiXing Decoration Engineering Co., Ltd

Project location

Changsha CEC Software Park, Changsha City, Hunan Province，China

Gross Built Area (square meters) 2700㎡

Photo credits Shanxi Architecture Photography，Neiwai Photography

Partners

Clients Smoore Shenzhen Co., Ltd

Brands / Products used in the projrct Changsha Meijiang aluminum plate, Wuxi Aigemei U-shaped glass, Marco Polo ceramic slab, Zhongsen aesthetic doors and windows, Elizabeth and Oceano tiles, Fanpin wood veneer, Chengdu Denali Art Staircase
