公司: | ARO studio | 类型: | 建筑 |
---|---|---|---|
地区: | 越南 | 标签: | 商业空间 |
ARO为Voi - Lang Giang - BacGiang的新开发城镇规划区设计了一个销售中心,新中心将帮助购房者在这里买房时更好地了解新生活的外观、材料和功能。
ARO has designed a representative center for planning area a new development town in Voi - Lang Giang - BacGiang.The new center will help homebuyers better understand the appearance, materials, and functions of new life when buying a home here.

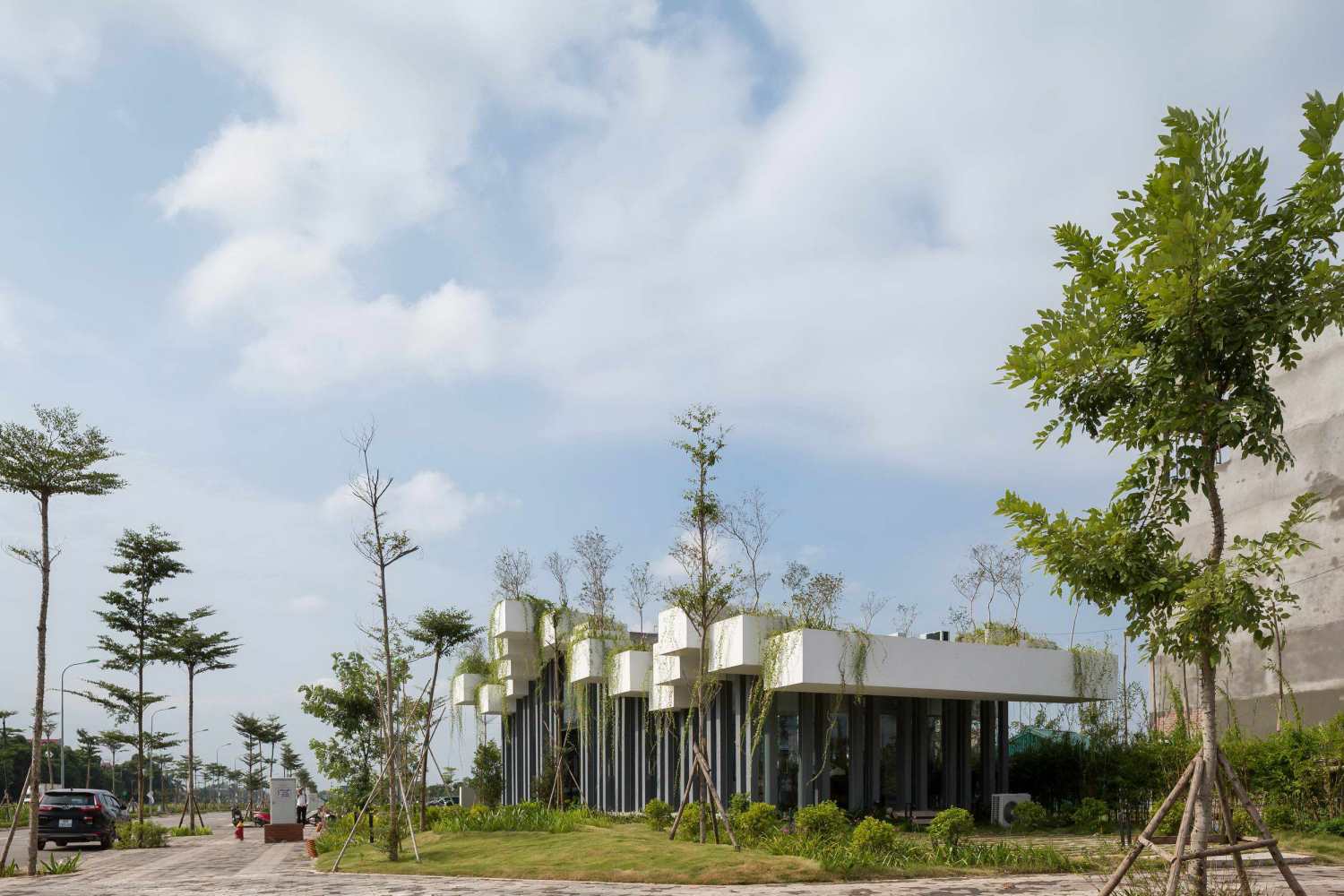

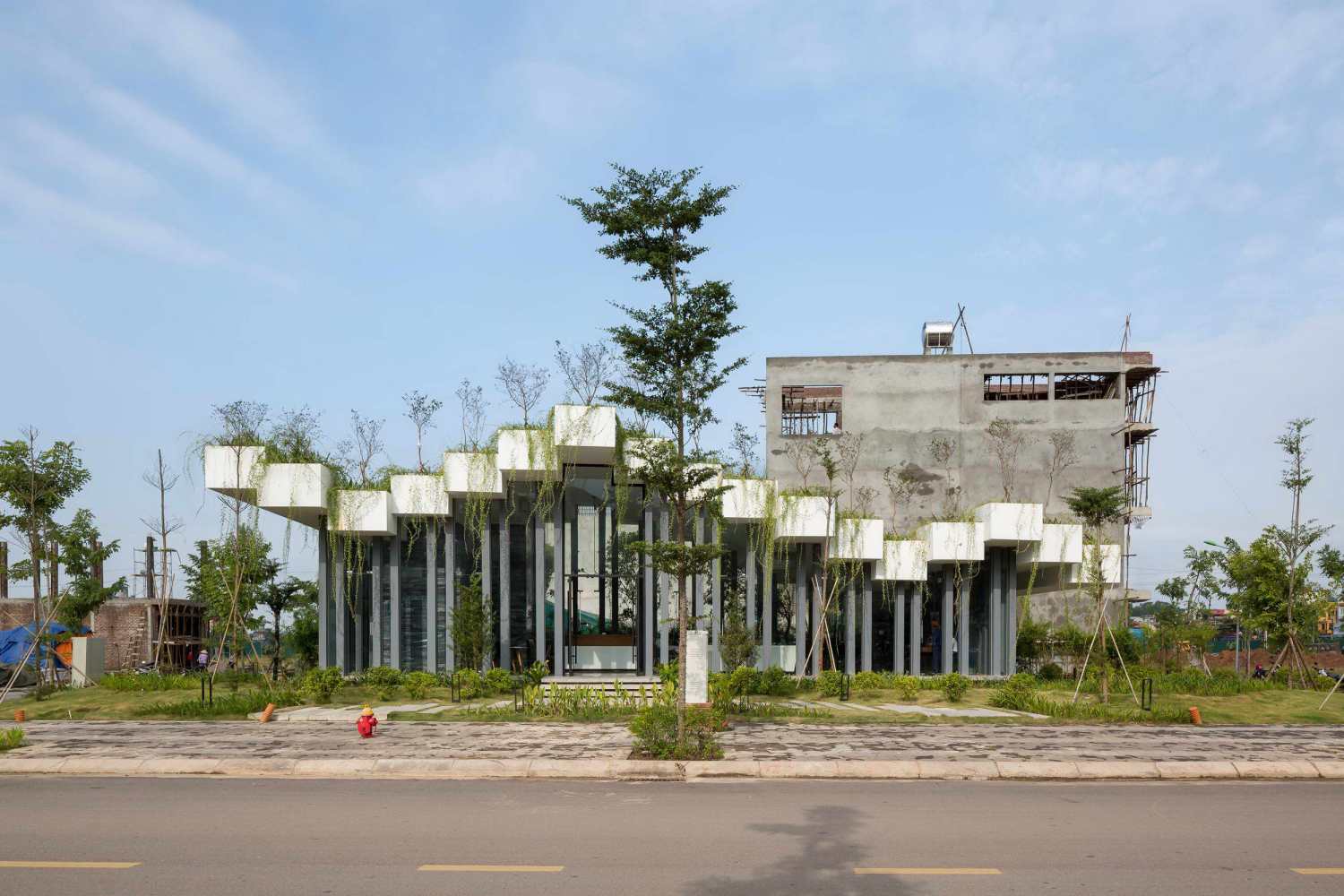

该建筑沿河内市主干道-朗松,南北铁路应交通拥挤。建筑师面临的问题是创造一个独特的视觉吸引力来吸引注意力。建筑希望新中心能够成为该规划地块及周边项目的绿色城市推广的典范。
The building along the main road of Hanoi - Lang Son, and the north-south railway should be crowded traffic. The problem posed for the architect is to create a unique visual attraction to draw attention. The architectures want the new center will be a model to promote green urban for subsequent projects at this planning site and neighboring projects.

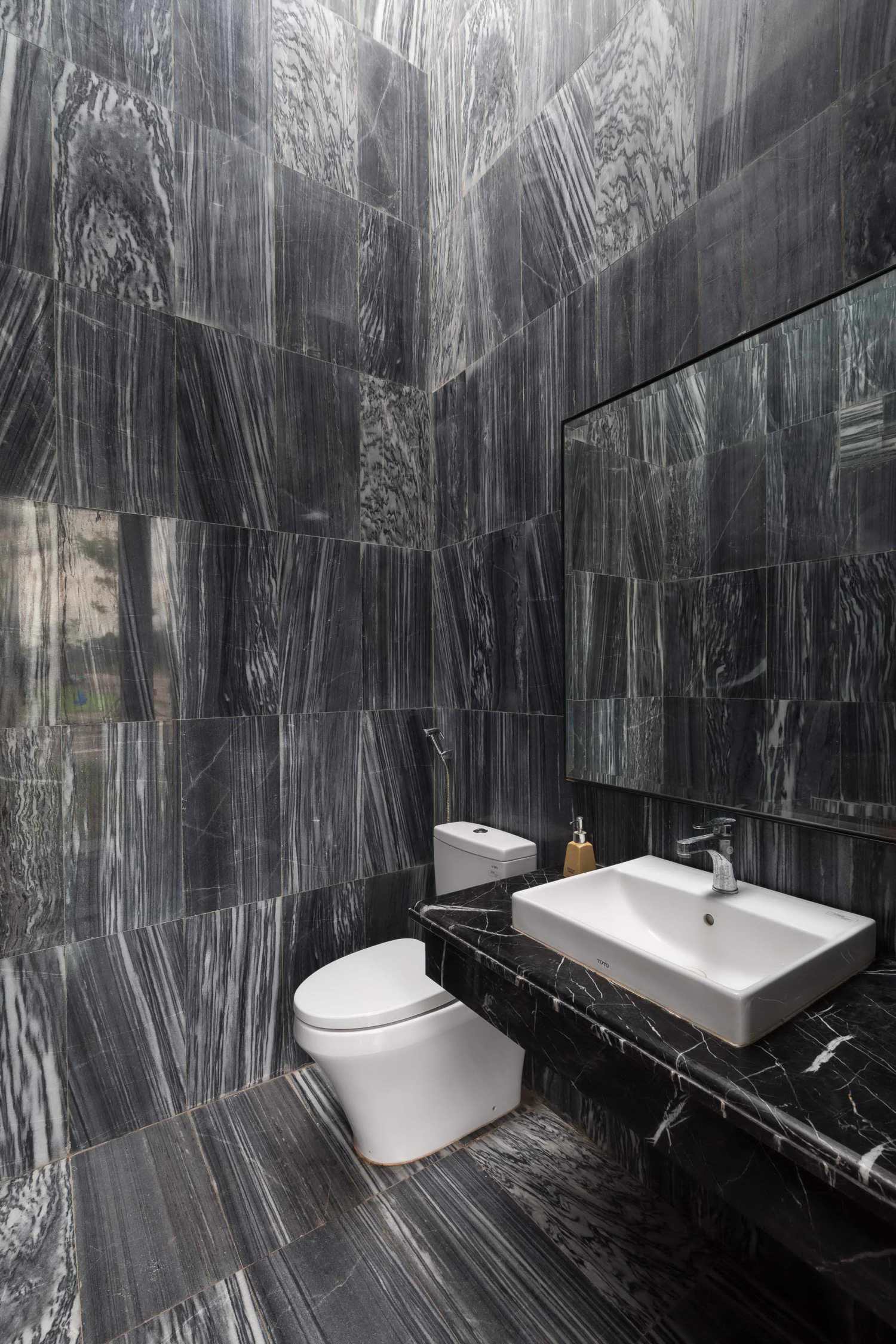

由于建筑的主立面是东面,所以建筑在上午和下午会受到阳光的影响。因此,ARO的建筑师采用的方法是将建筑的主立面向东南方向旋转,减少光照量,同时解决自然通风的问题,为项目减少空调的耗电量,减少光照,解决自然通风的问题,减少建筑空调的耗电量。设有卫生间,自然通风和自然光从屋顶射入。景观方面,建筑师利用简单的花园和防晒,绿色空间创造了一个柔和和自然的方式。
The main façade of the build is east, so the building was affected by the sunshine in the morning and afternoon. So, ARO's architects have used the method is rotate the main façade of build to the southeast .reduce the amount of light while solving the problem of natural ventilation for the project to reduce the amount of power consumption by air conditioning, to reduce the light, solve the problem of natural ventilation and reduce the power consumption by air conditioning of building . With toilets, natural ventilation and natural light coming from the roof. The landscape is used by architects to create simple gardens and sun protection. The green spaces create a soft and natural approach.

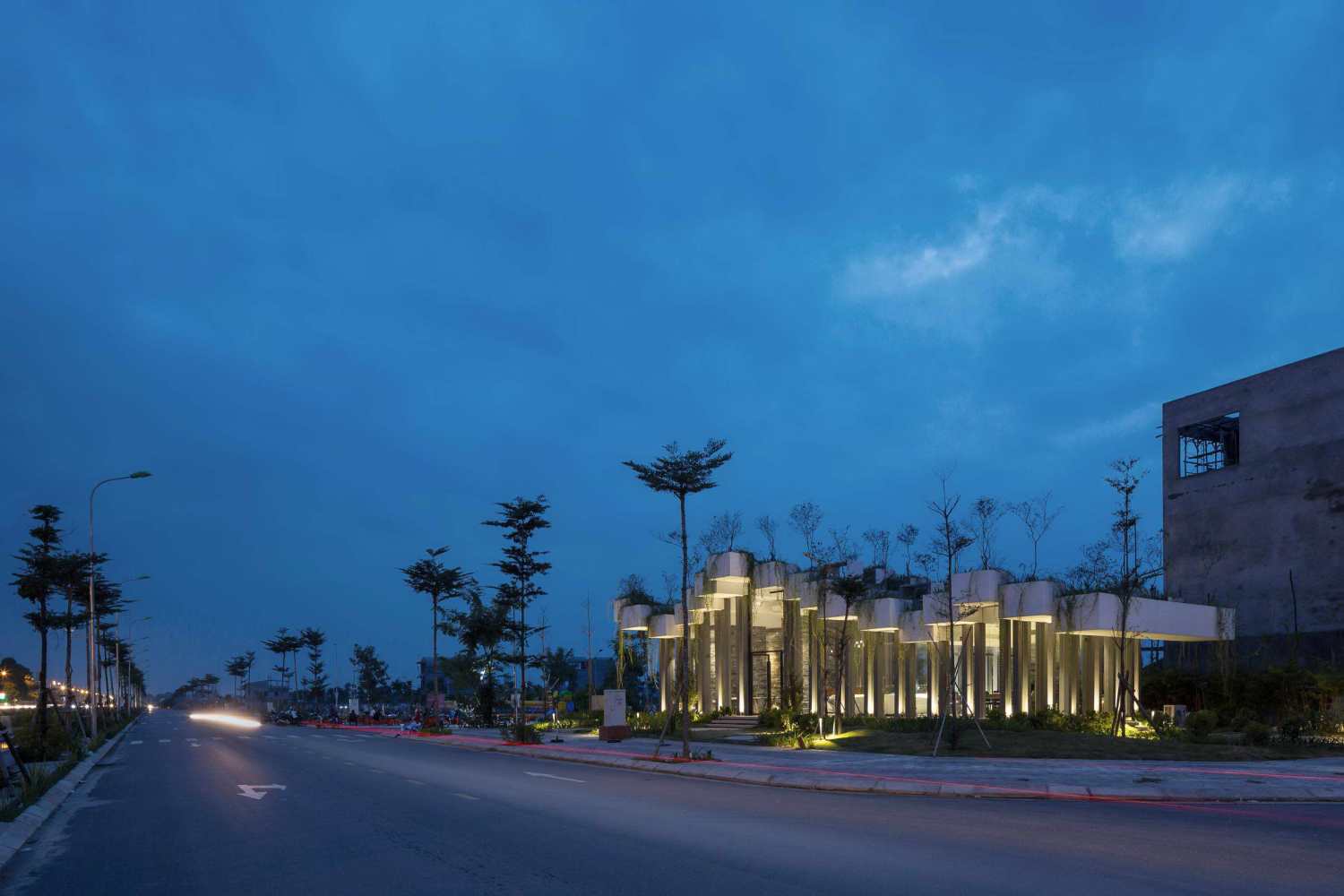

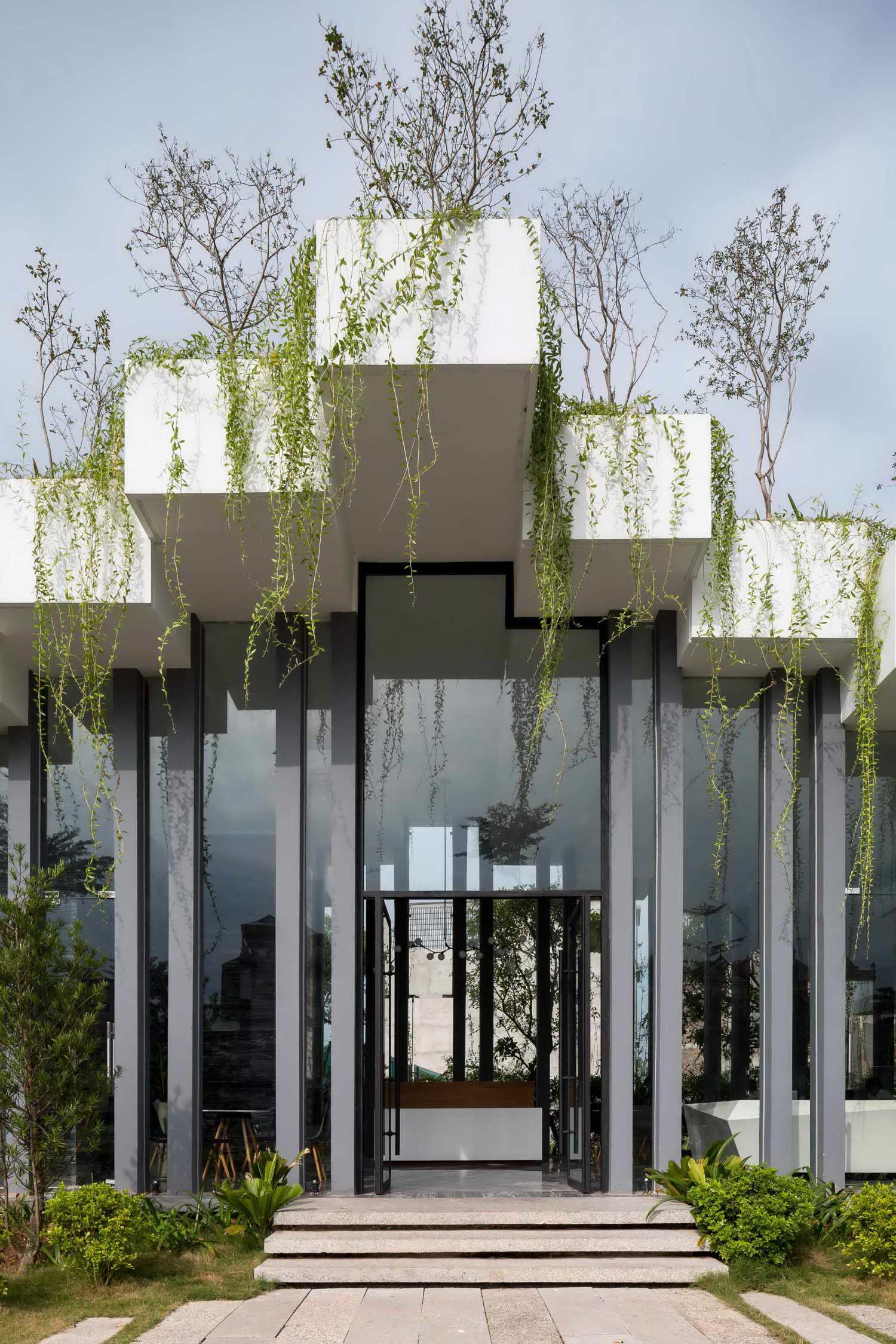

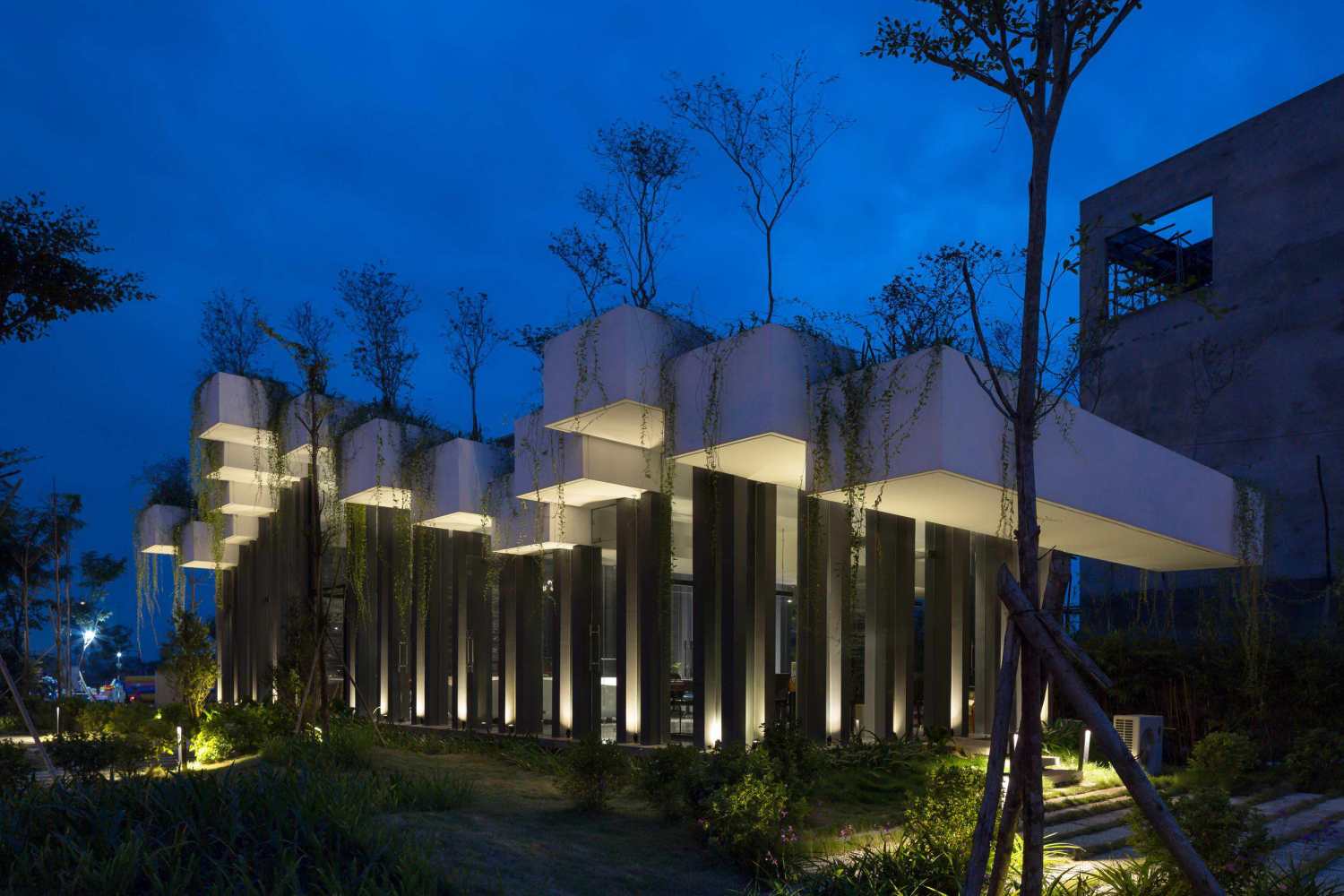

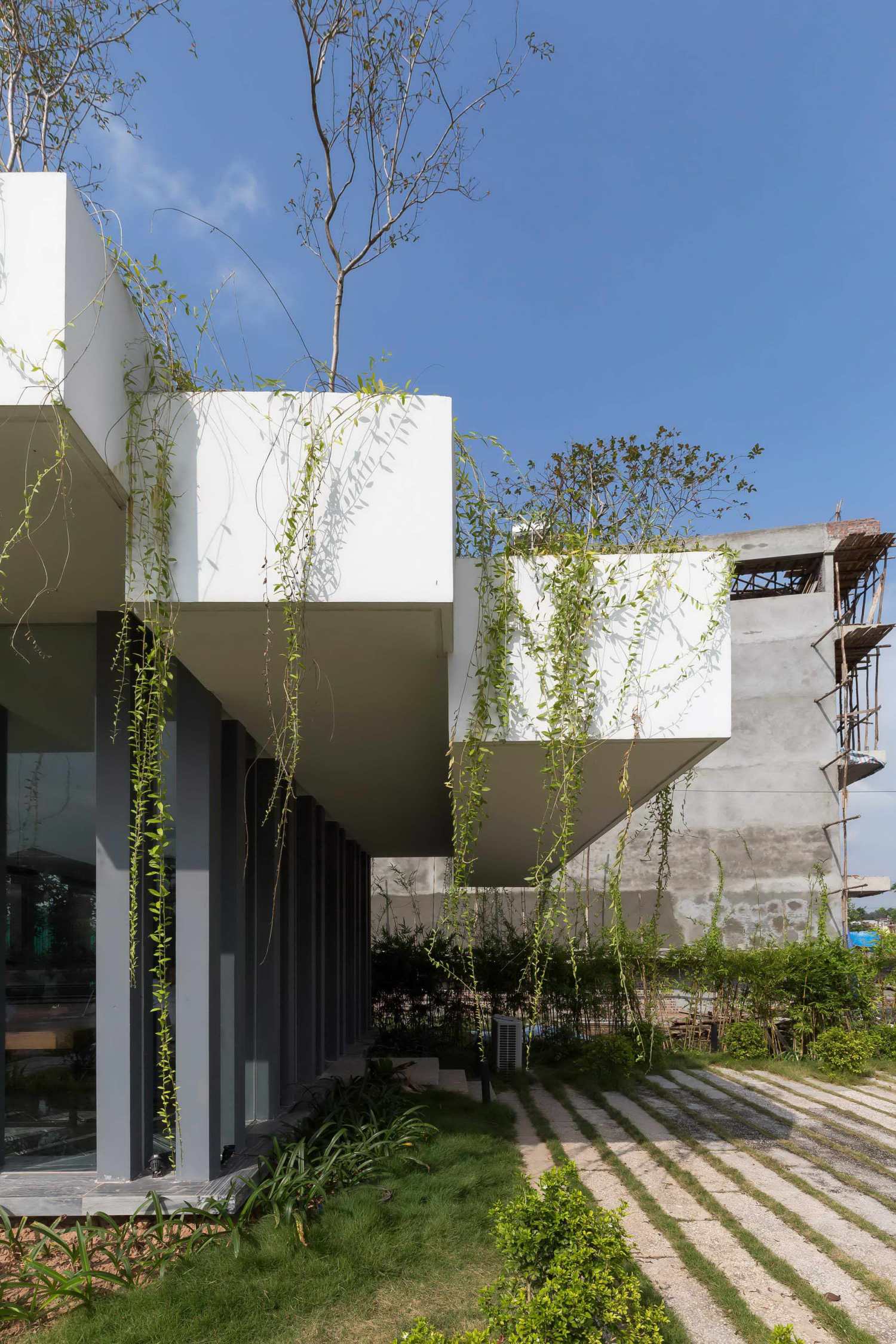

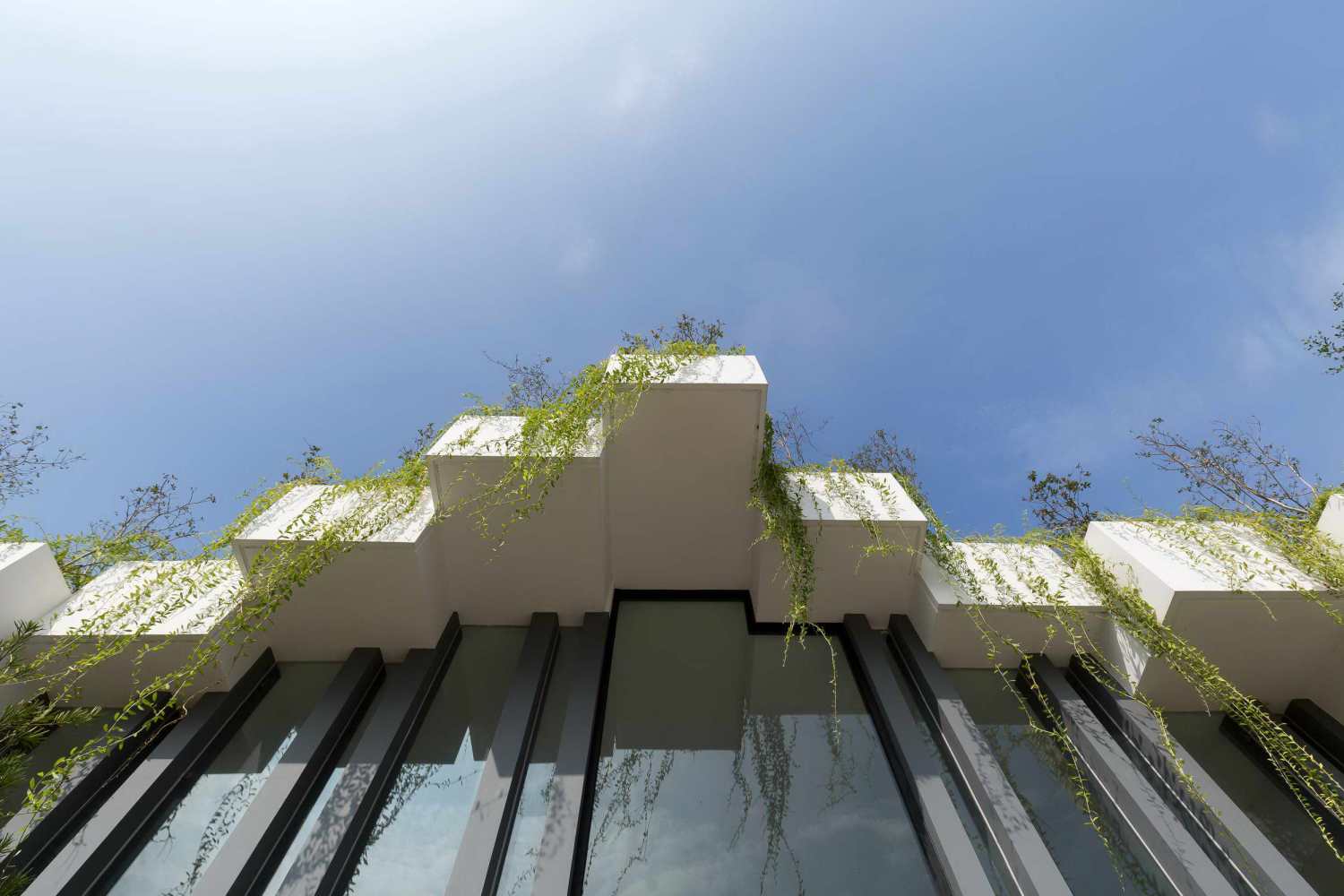

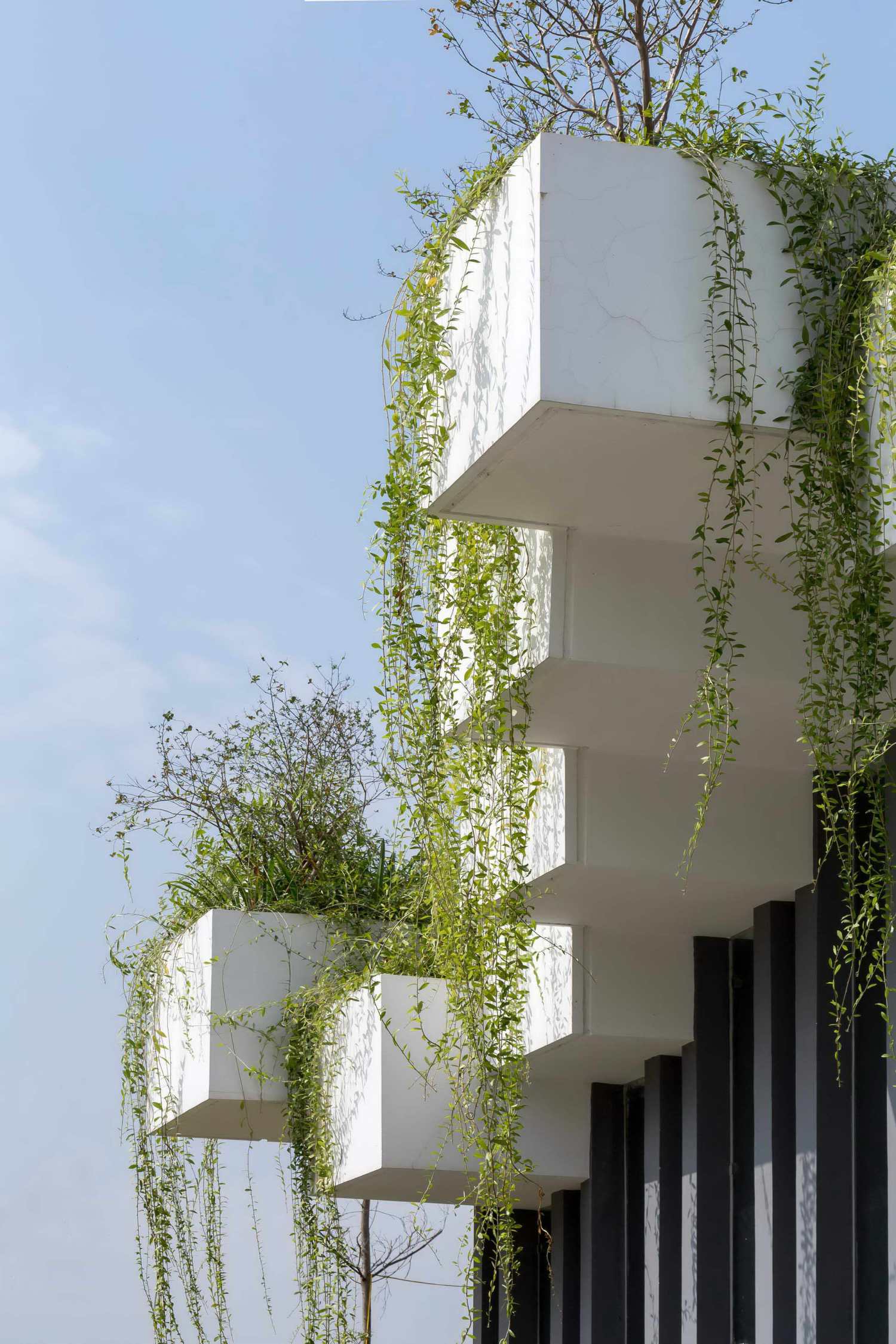

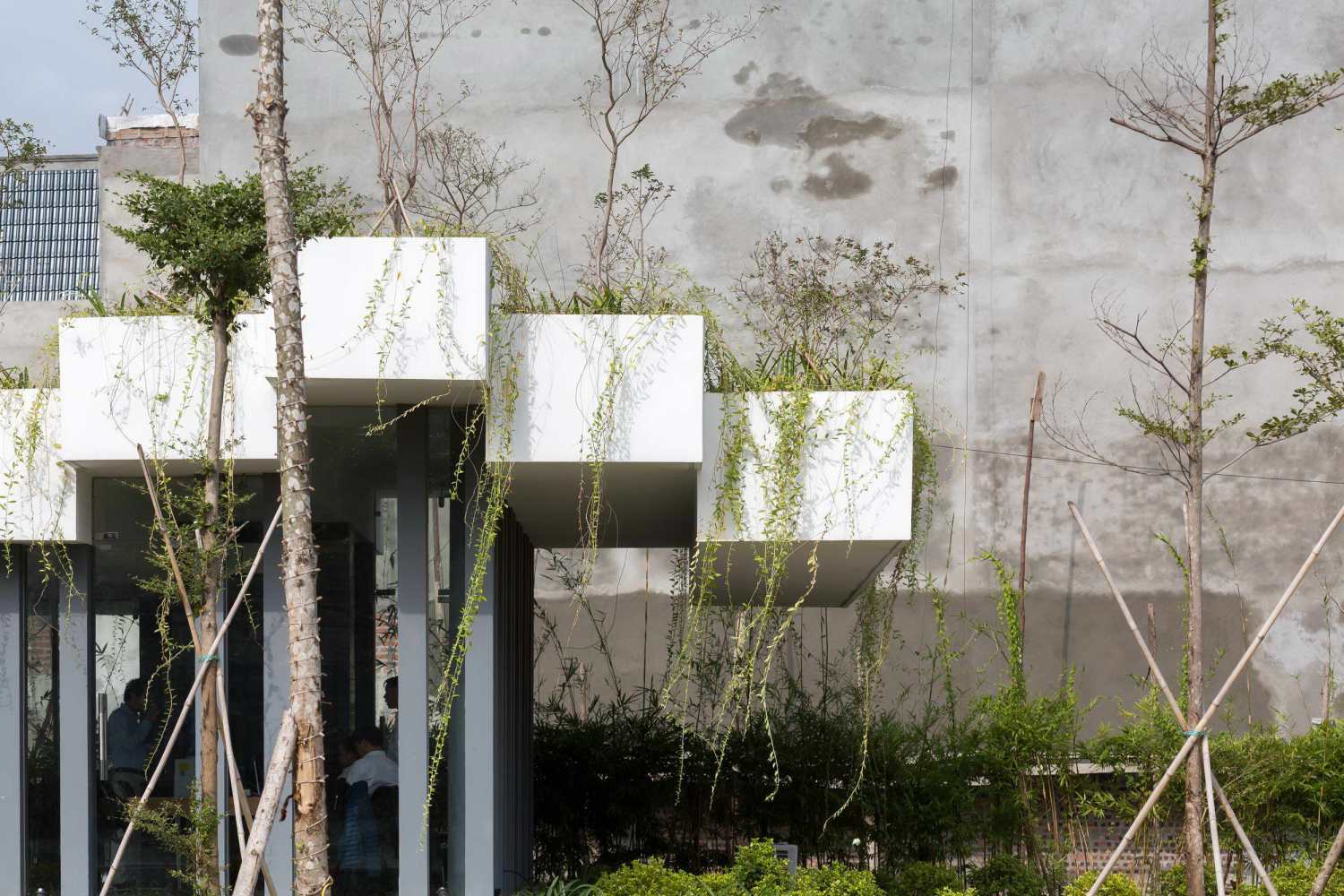

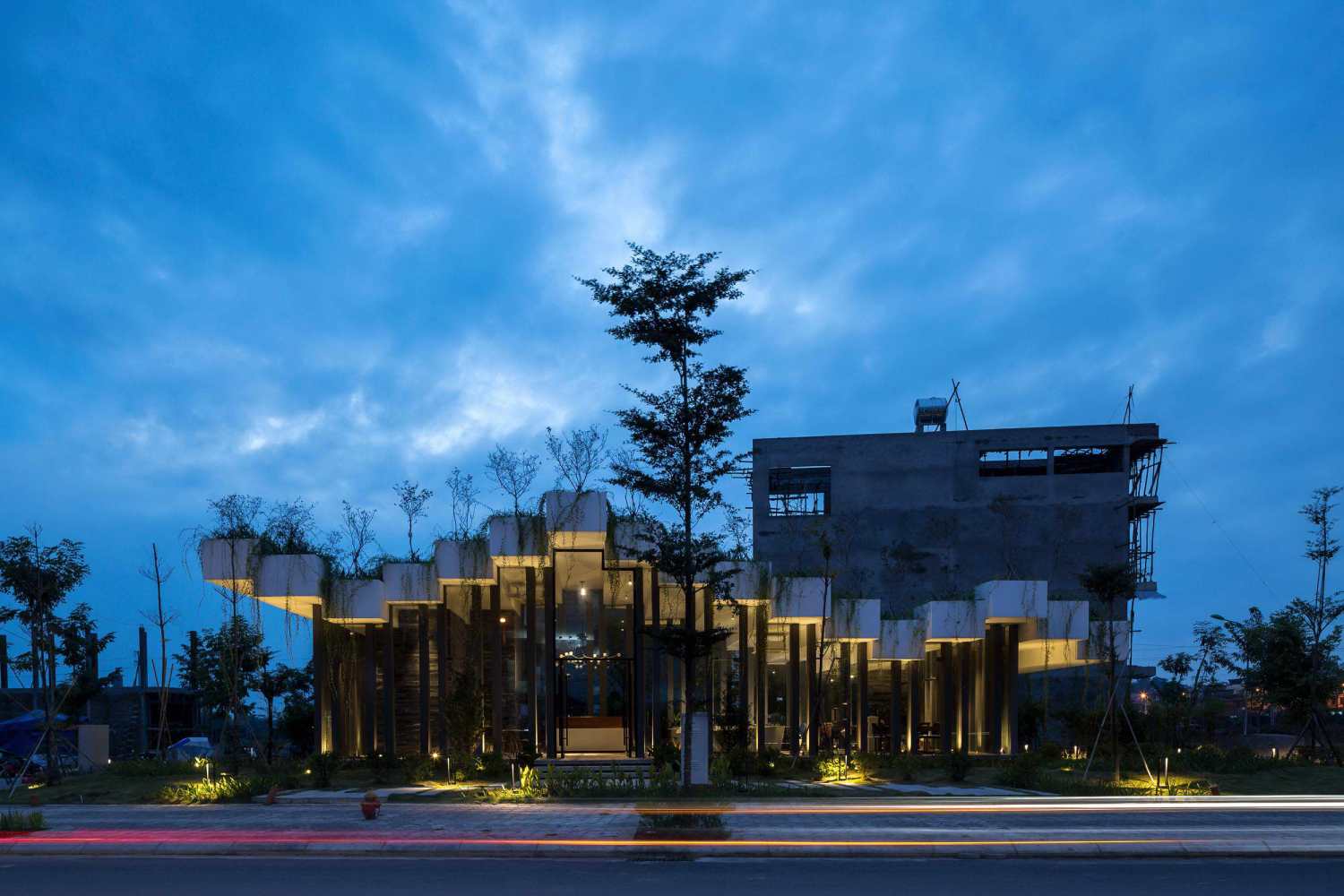

BacGiang是越南的山区和中部地区。当建筑师走近这里调研项目的地理环境时,他们意识到这里的山和云所创造的曲线带来的灵感。他们通过种植盒子来创造这种组合。白天的时候,盒子会创造出山的形状,但是到了晚上,当与光线结合时,盒子会创造出云的形象。
BacGiang is mountain and Midland area of Vietnam. The architects approached, surveyed the project geography and they realized the inspiration from the curves created by the mountains and clouds here. And they created this combination by planting boxes. During the day the boxes will create the shape of the hills, but in the evening when combined with light, the boxes will create an image of the clouds.

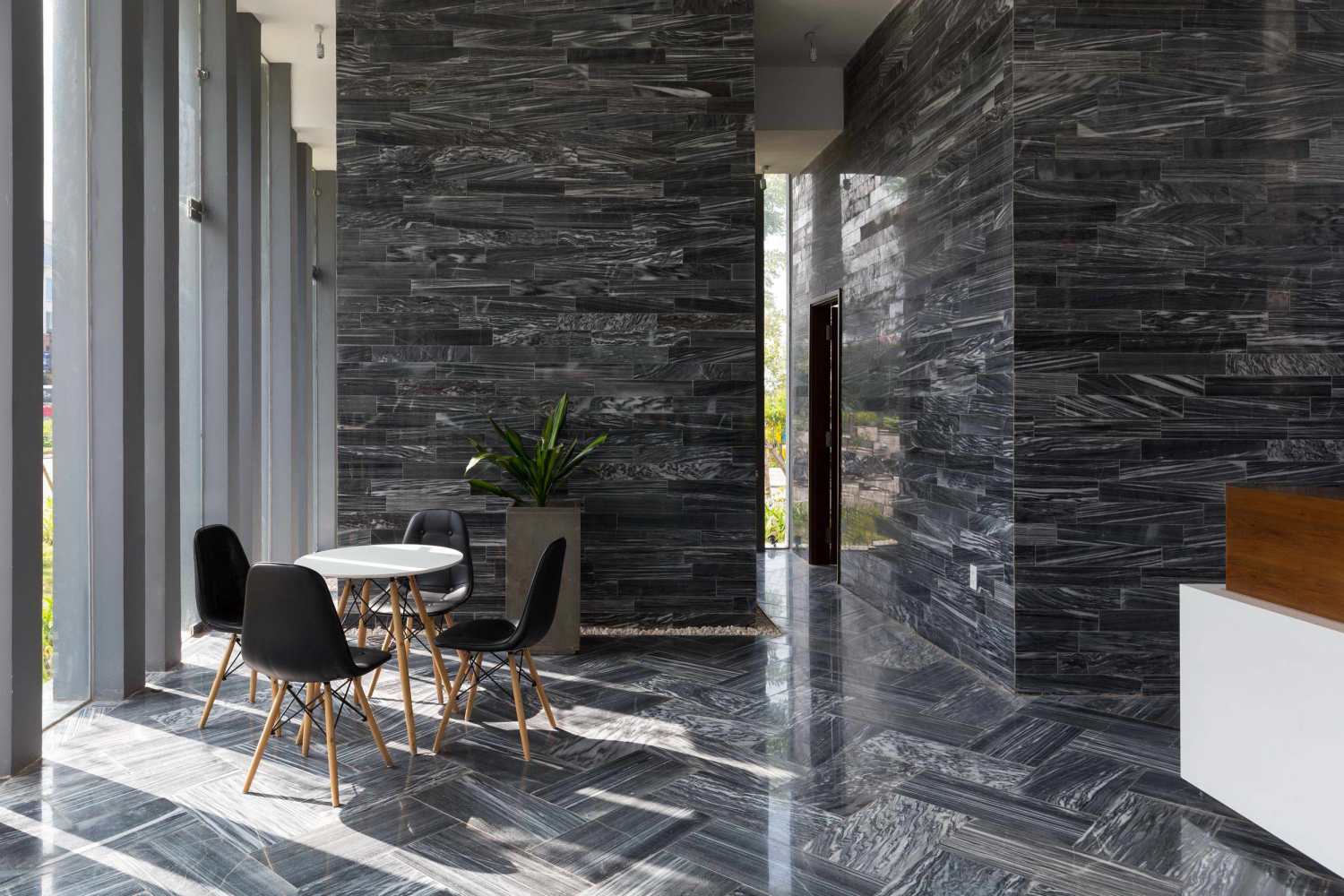

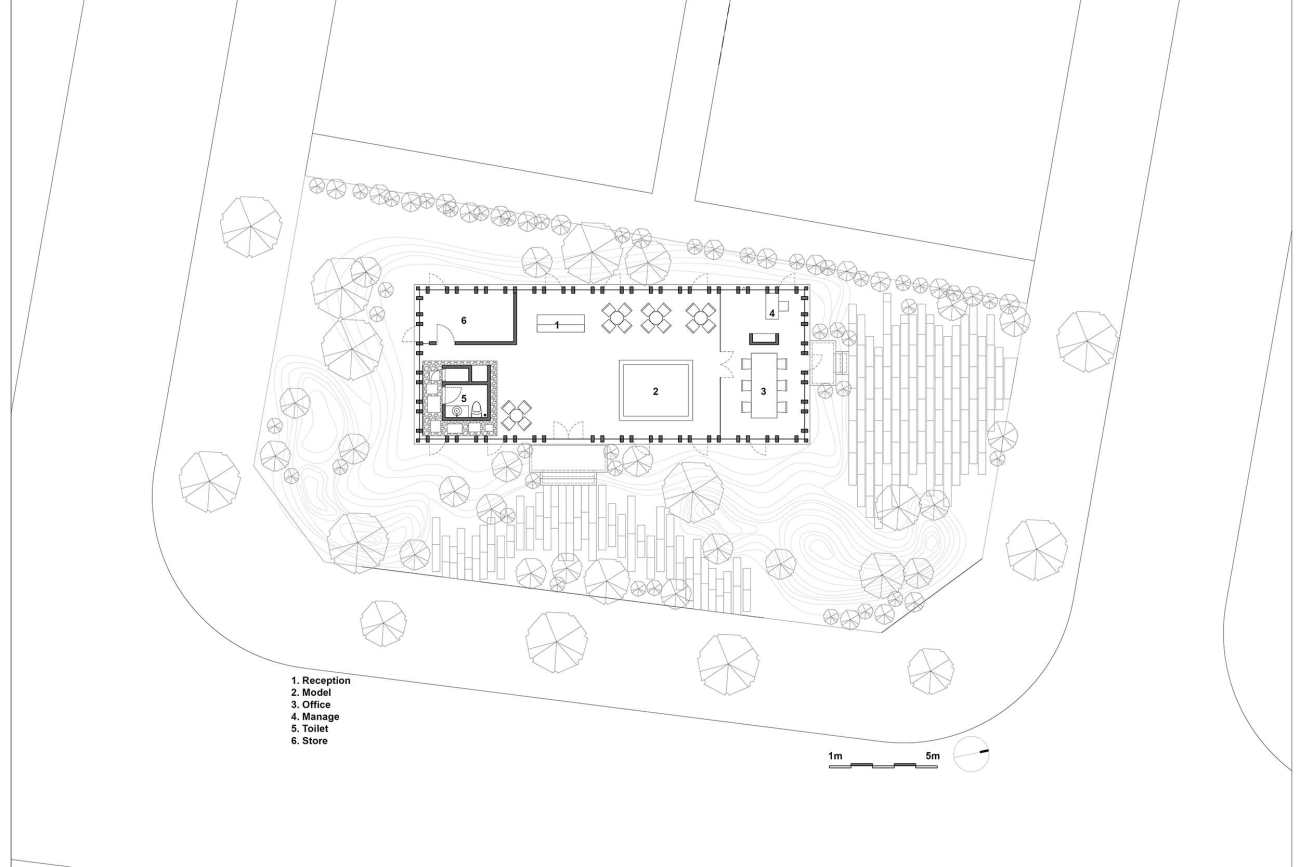

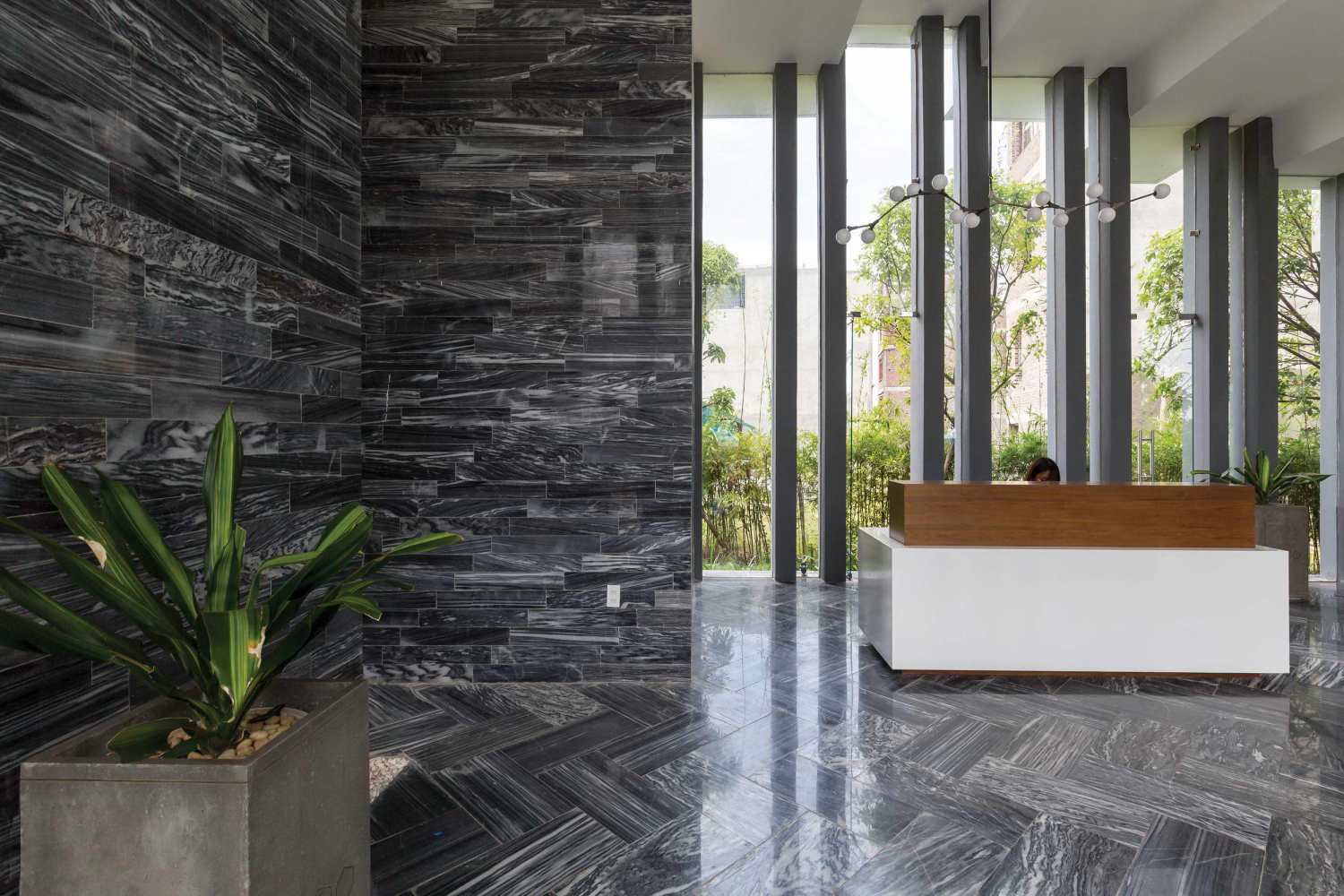

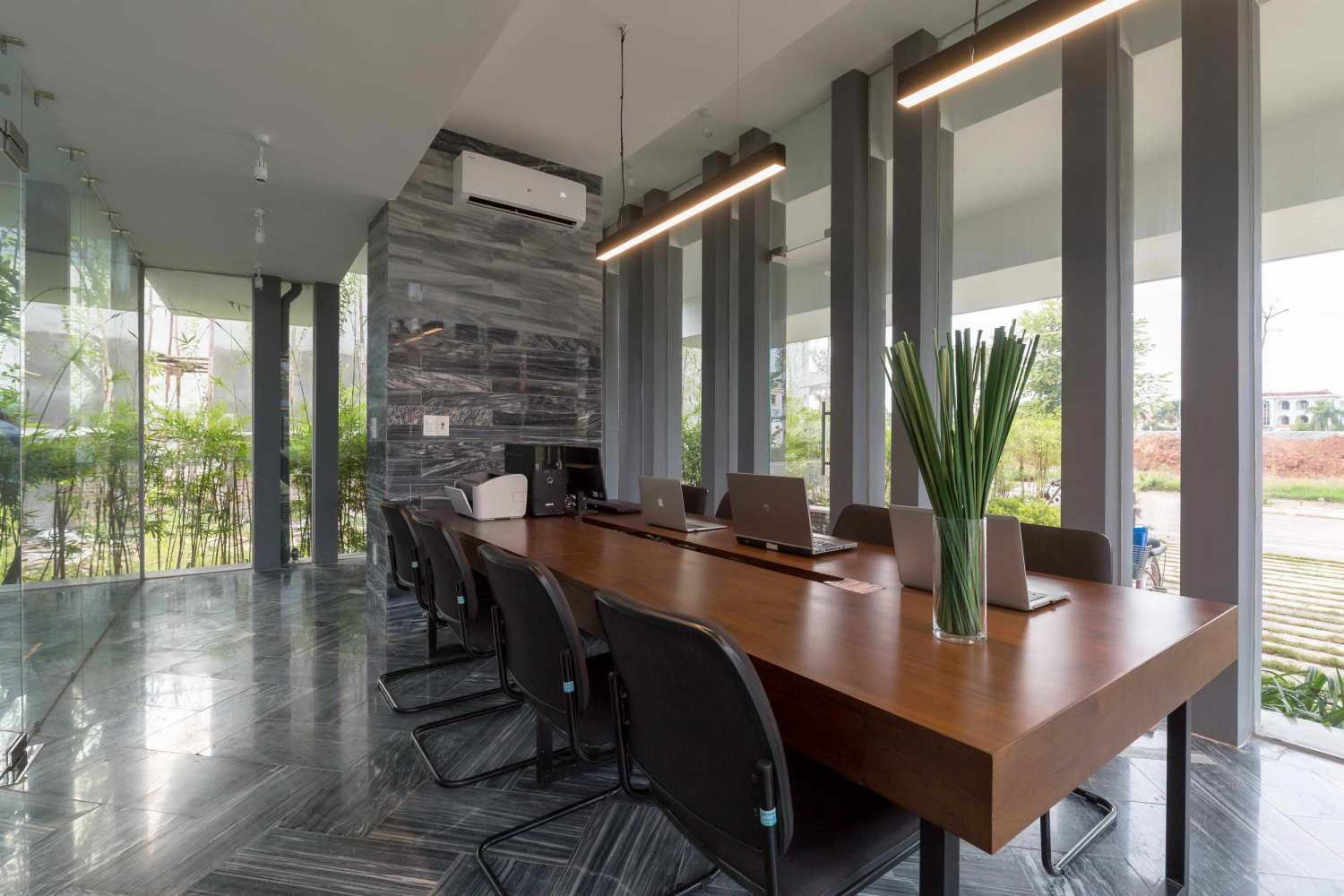

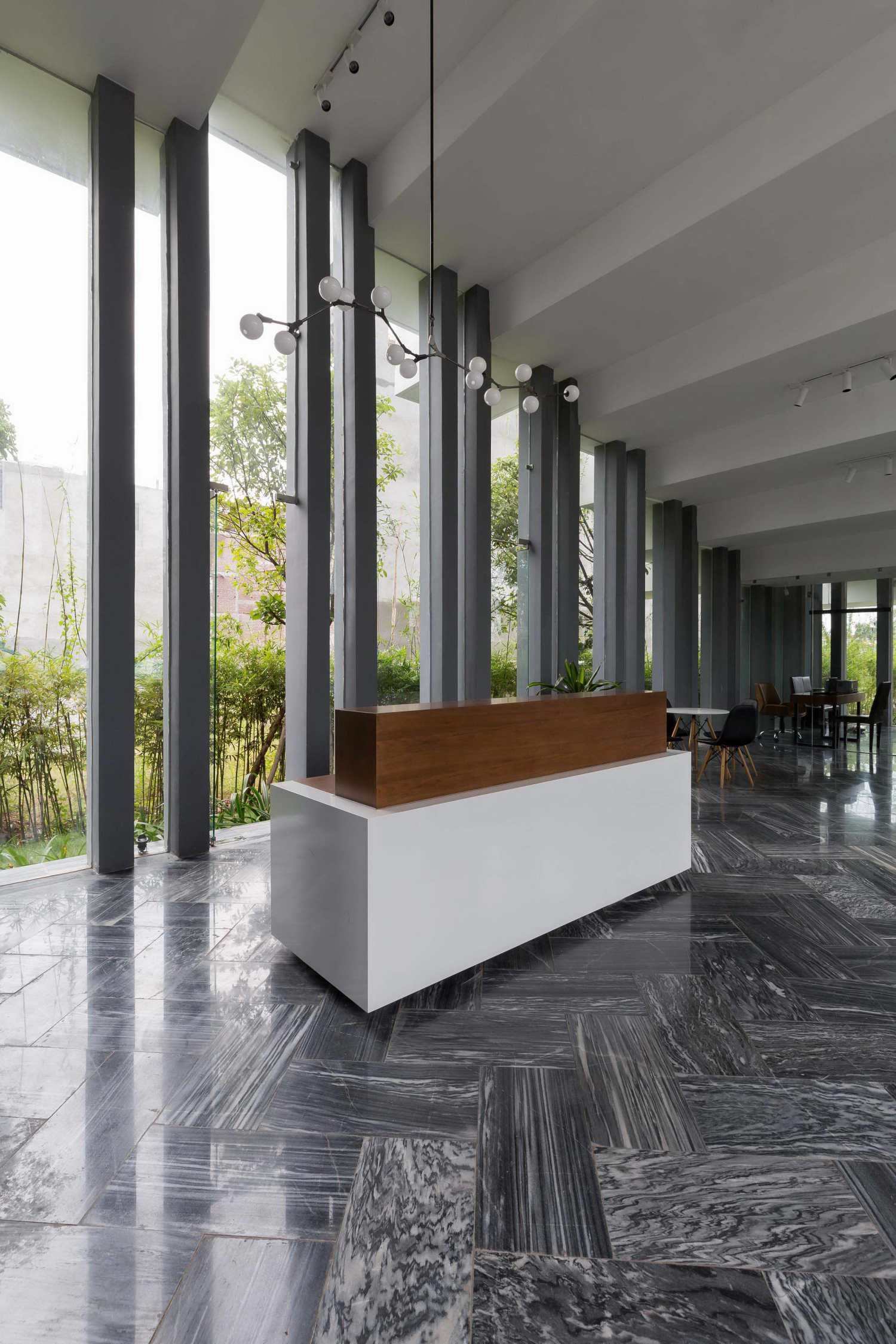

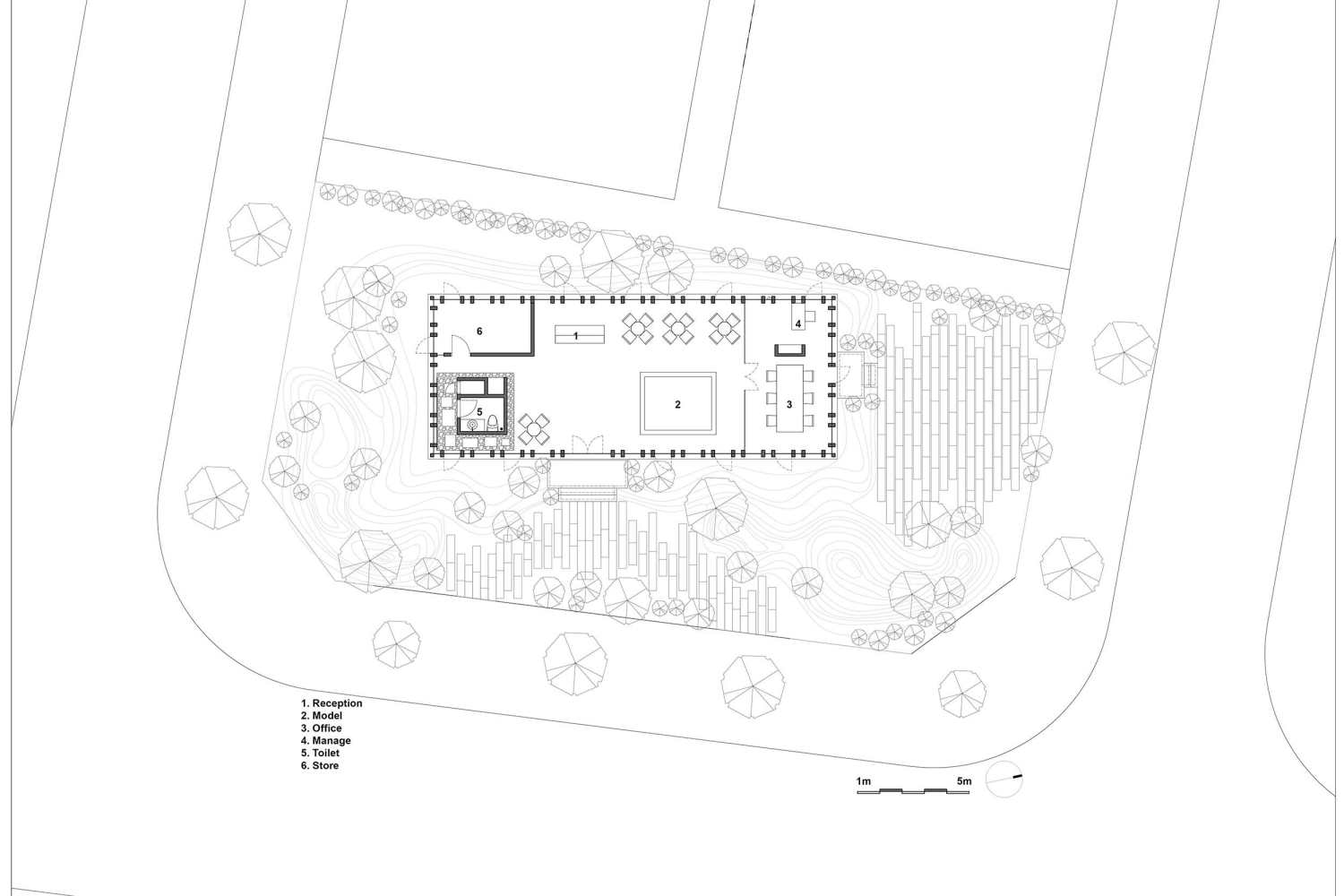

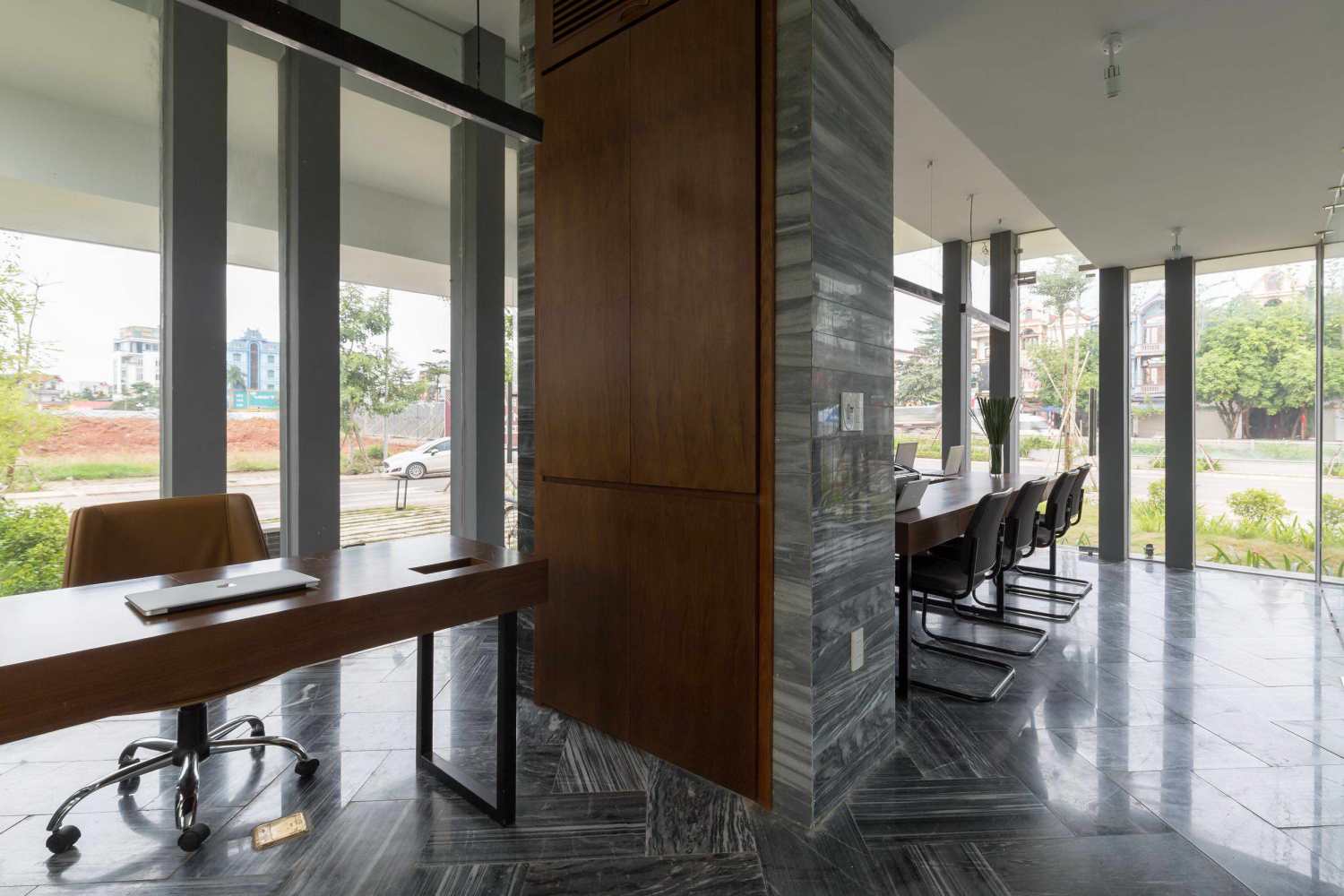

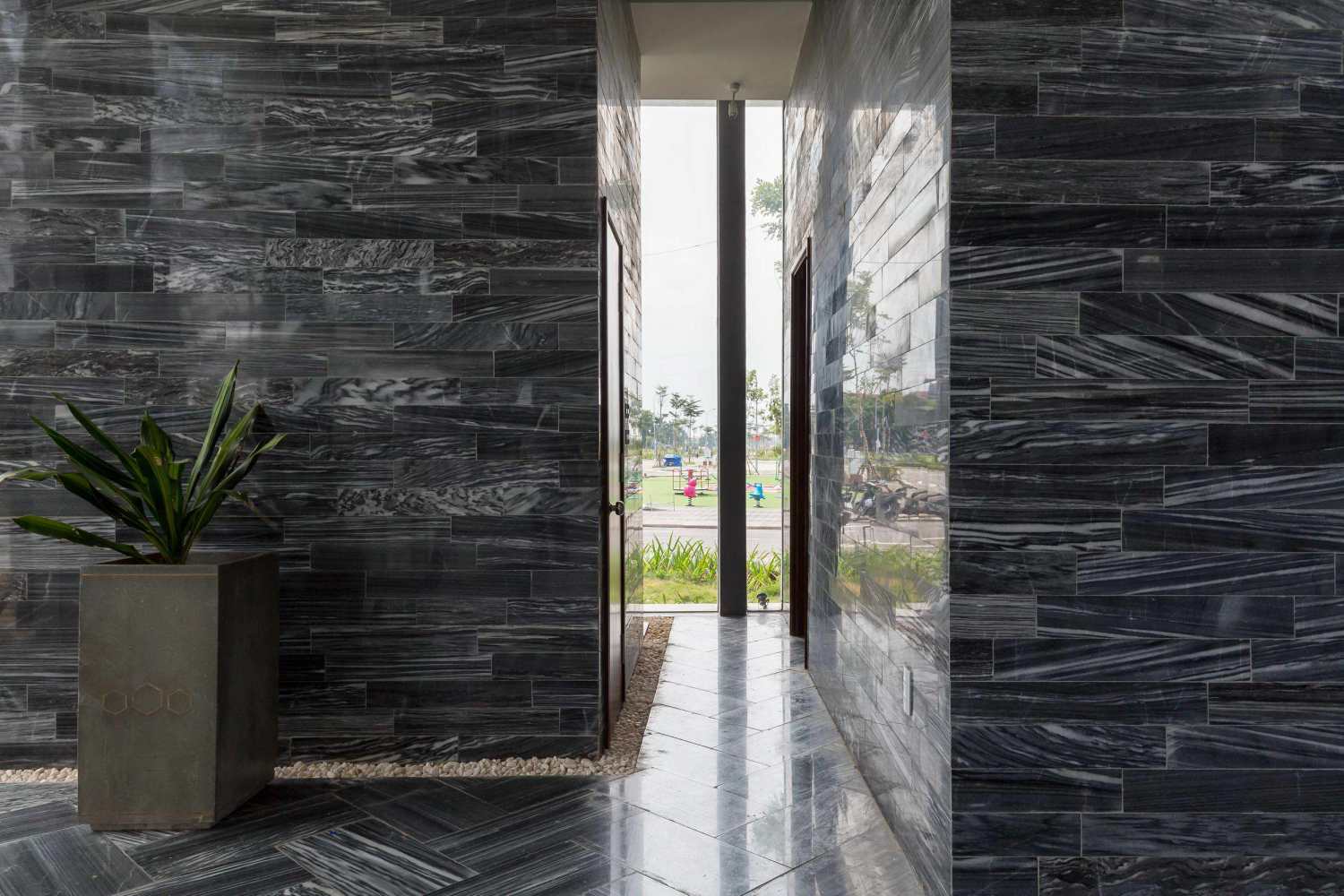

里面是接待处,该区域展示的是微型城市模型。展区的空间几乎全部由玻璃打开,形成人与自然的联系。玻璃门划分空间,保证自然通风。工作和操作空间也完全向自然和周围的绿地开放,为在这里工作的个体创造更多的能量。材料墙为天然石材,结合如中原地区梯田般高低起伏的变化,营造出独特的作品空间。
Inside is the reception and the area showcases the miniature urban model. The space of the exhibit is almost entirely opened by the glass to create the connection between man and nature. The glass doors divided space to ensure the natural ventilation. The working and operating space are also completely open to nature and the green spaces around to create more energy for the individuals working here. The wall of material is natural stone, combined with the change of height of celling as the terraced fields of the Midland area, creating a unique space for the works.

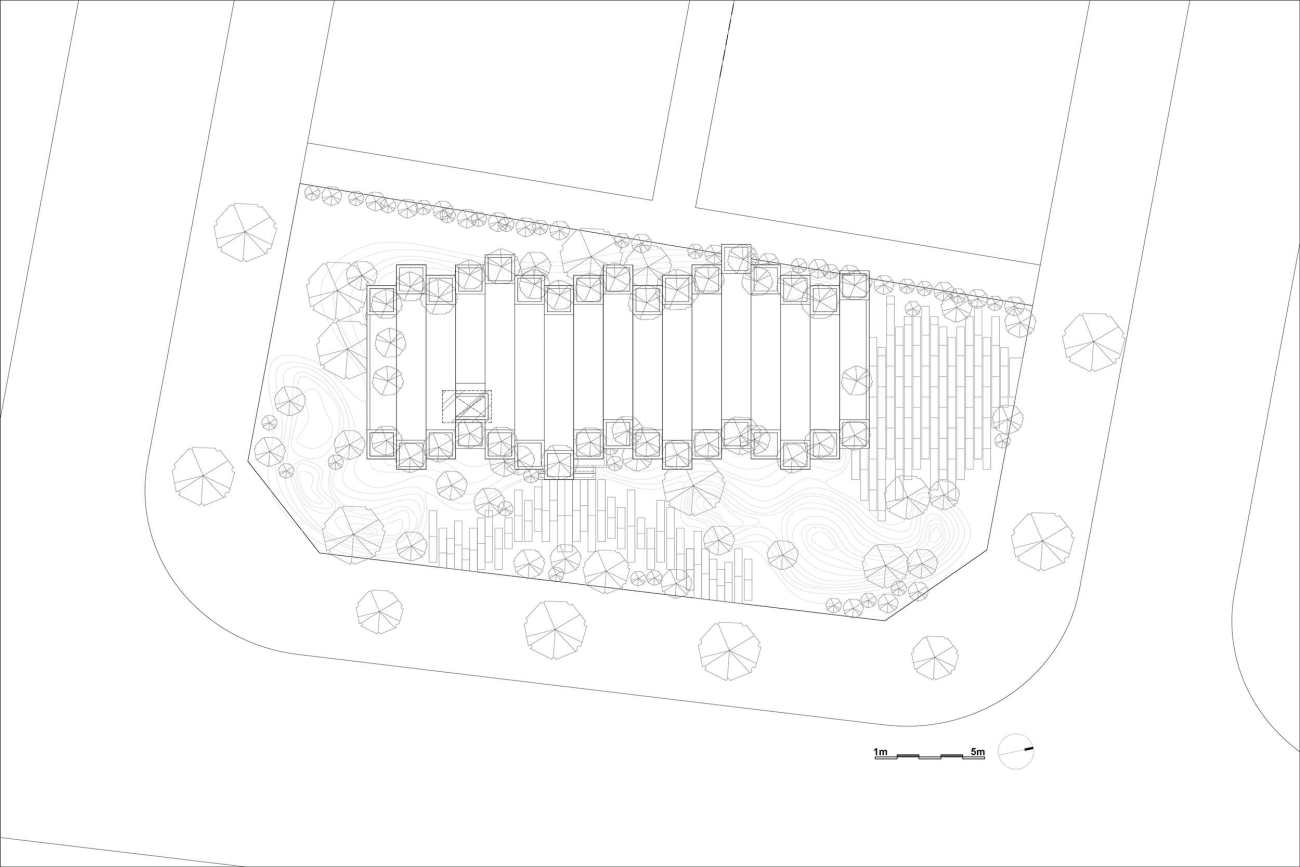

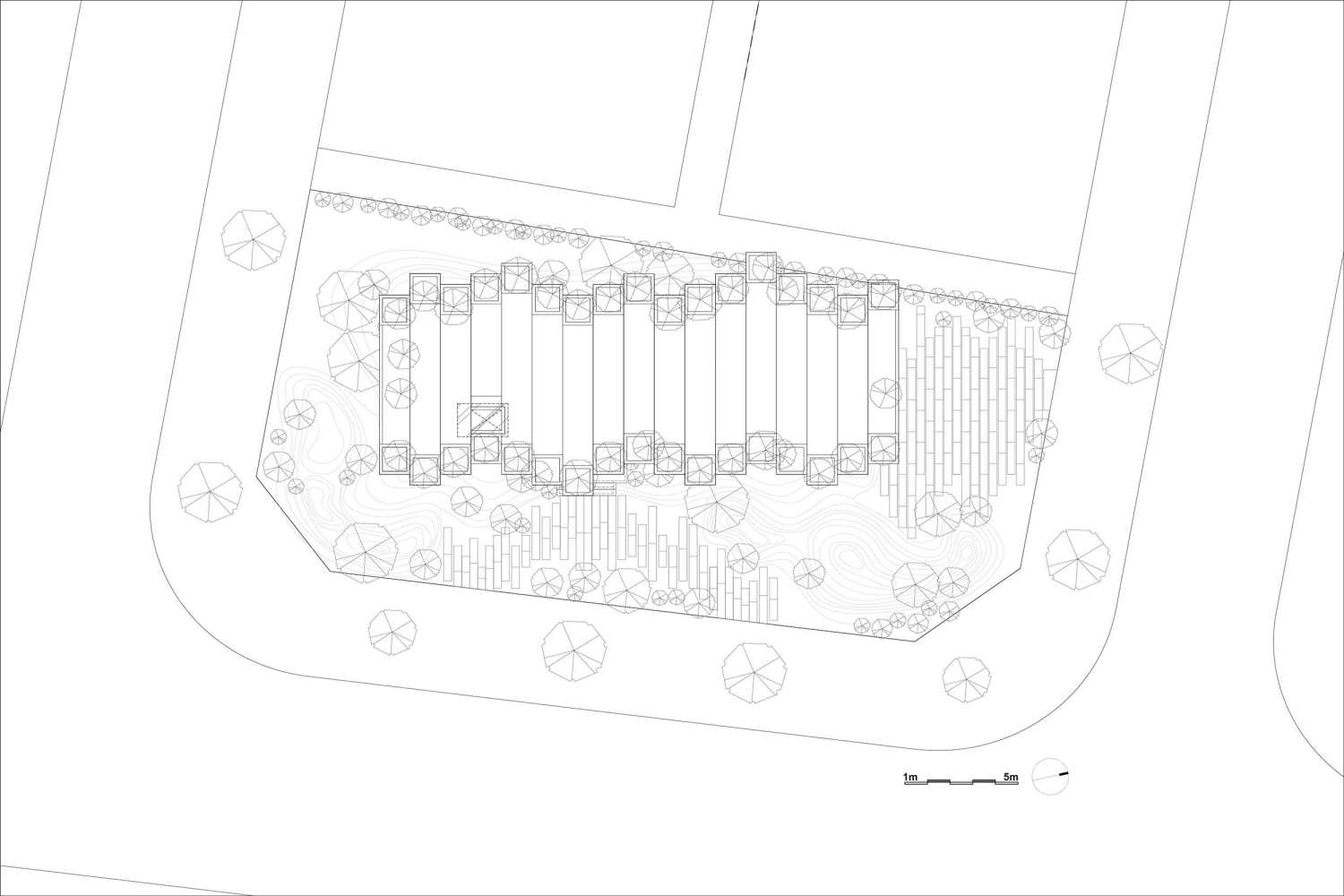

▽屋顶平面图 Roof floor plan

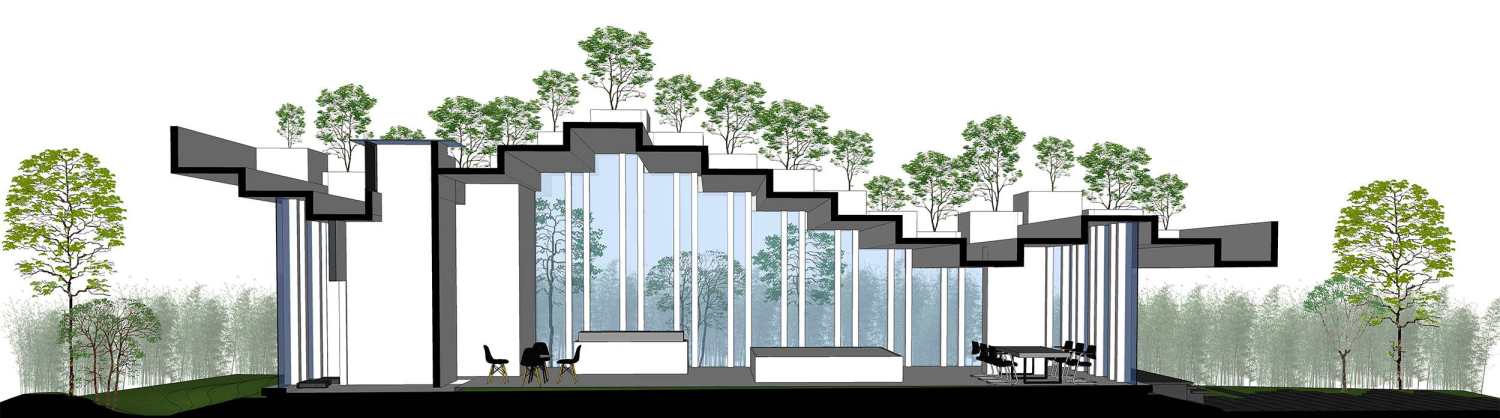

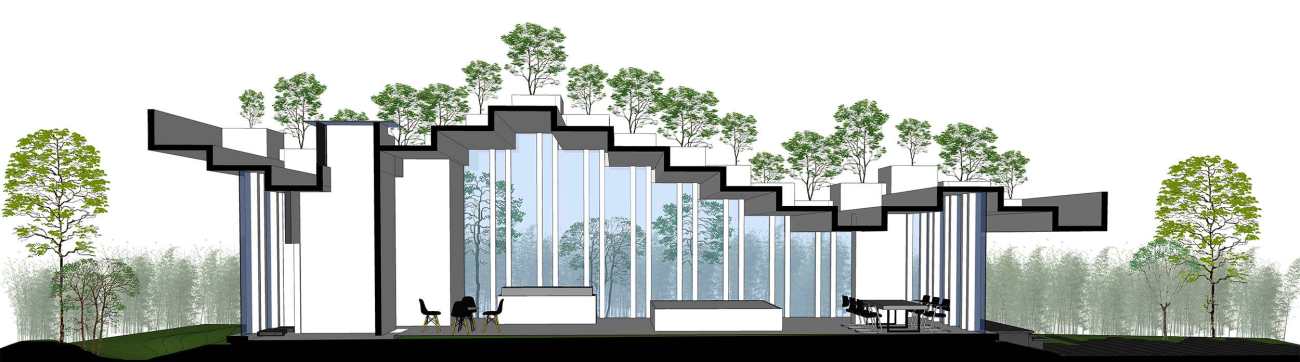

▽剖面图 Section

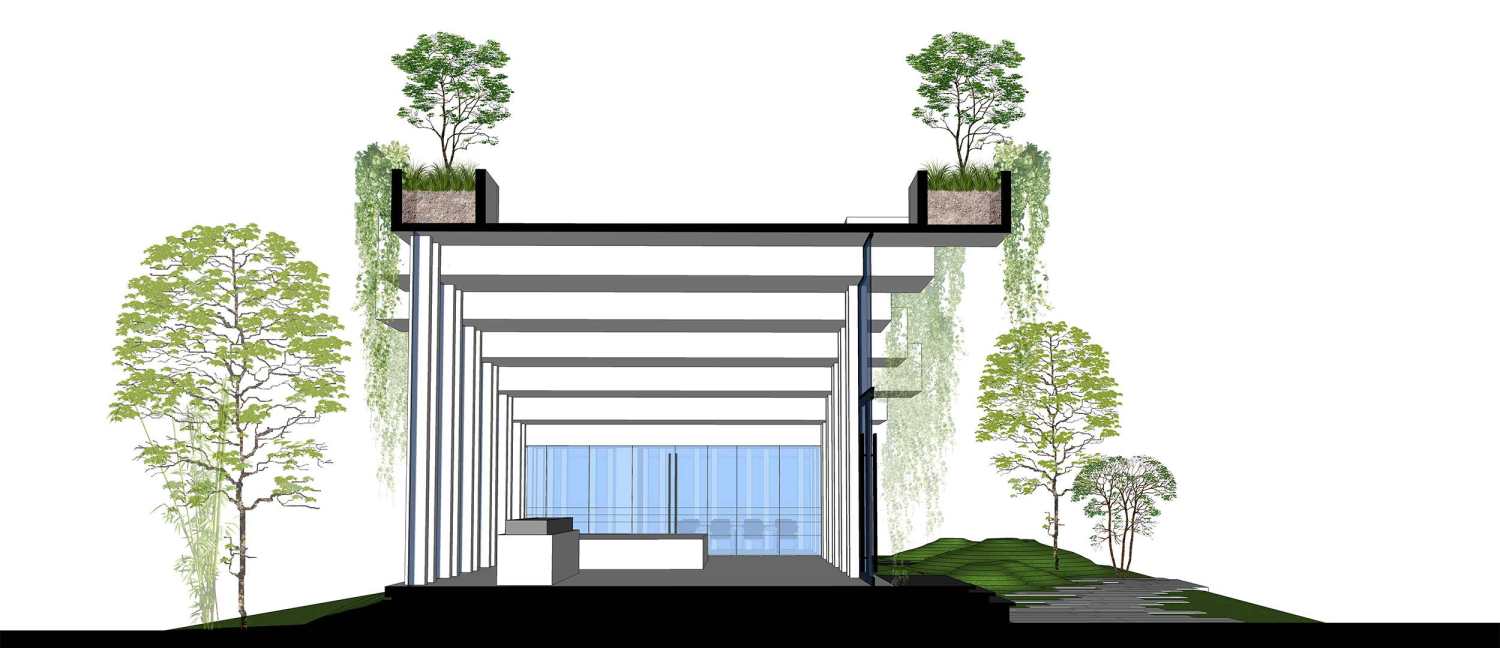

▽剖面图 Section
Project Name: Fly Box
Company:ARO studio
Year of Completion:2018
Website: Aro.com.vn
Contact Email:Aro.com.vn@gmail.com
Area:178m2
Location: Voi Town - Lang Giang - BacGiang - Vietnam
Photography:Hoang Le
Architecture chaired:Dang Minh Trong
Project Team:Tran QuocHoan, Ha Danh Cong Nam, Luong The Nam
