公司: | Mold architects - Iliana Kerestetzi, | 类型: | 建筑 |
---|---|---|---|
地区: | 希腊 | 标签: | 酒店 |

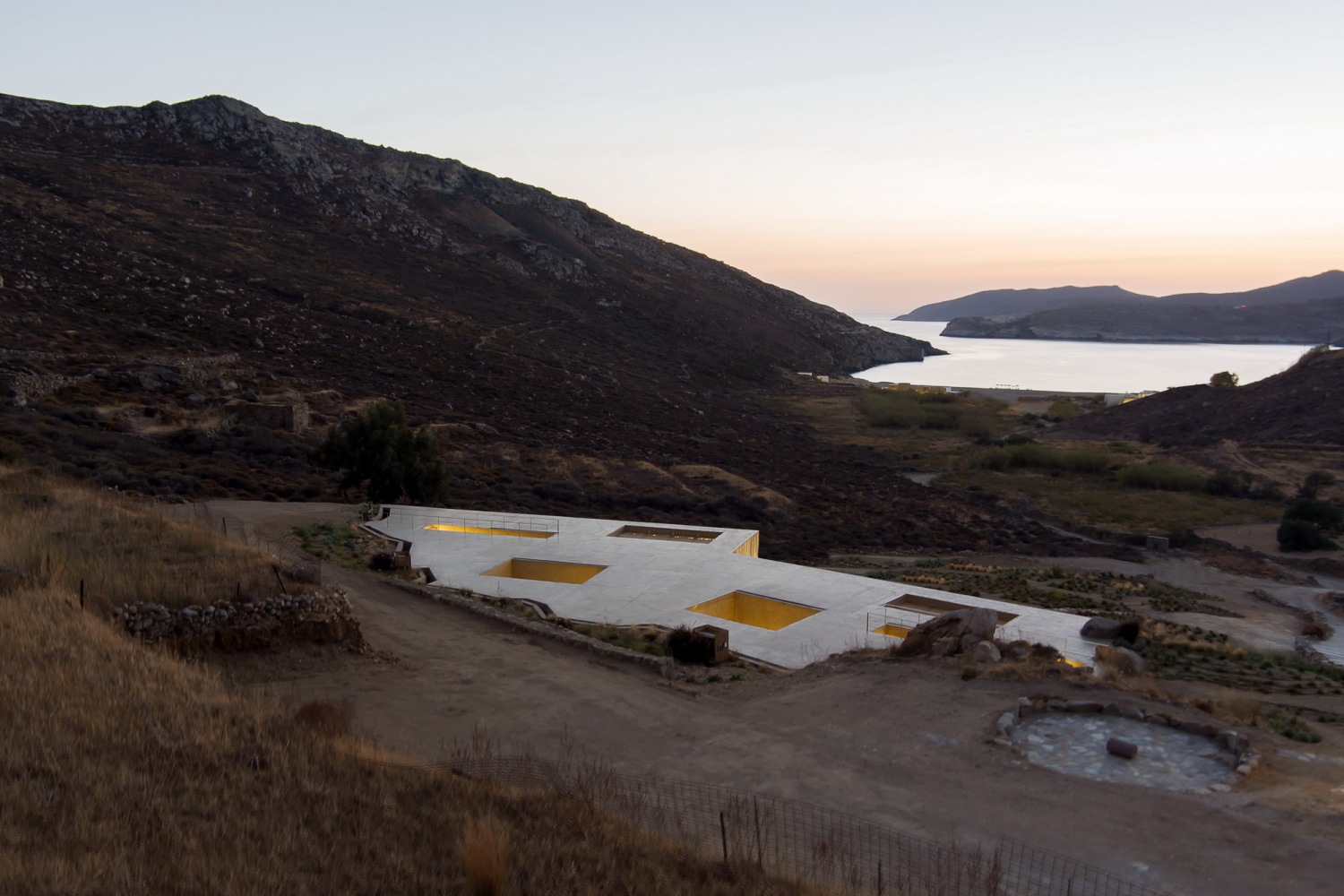

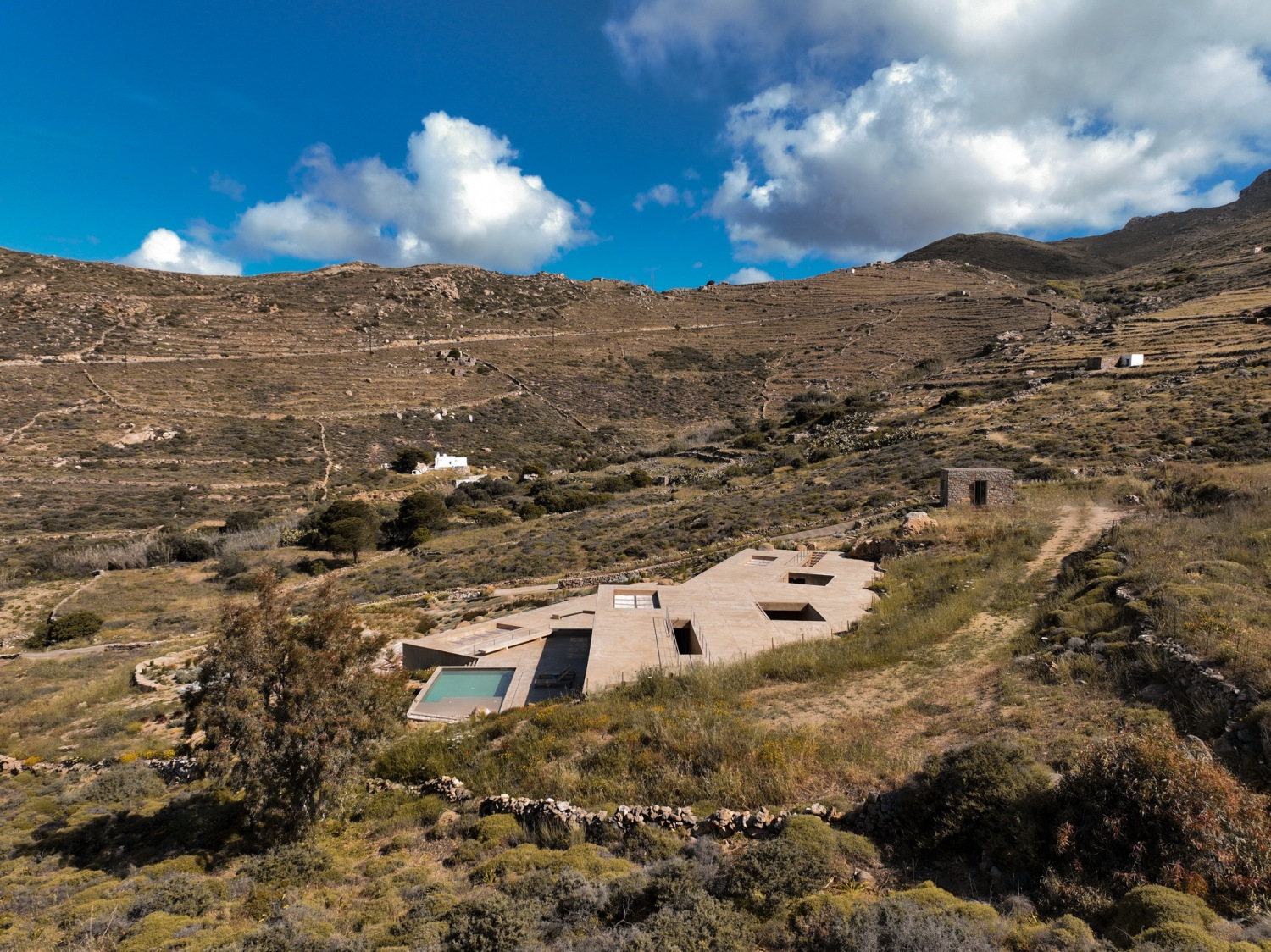

HOMA是一家180平方米的小型精品酒店。在Vagia Serifos。它由3个独立的住宿组成,每个都有2间卧室和一个小的起居区。每个单元的室外面积比室内面积大得多,包括厨房、起居、用餐区和私人游泳池。
HOMA is a small boutique hotel of 180 m2. in Vagia Serifos. It consists of 3 independent lodgings, with 2 bedrooms and a small living area each. The outdoor areas - proportionally much larger than the indoor ones - include kitchens, living / dining areas and private swimming pools for each unit.

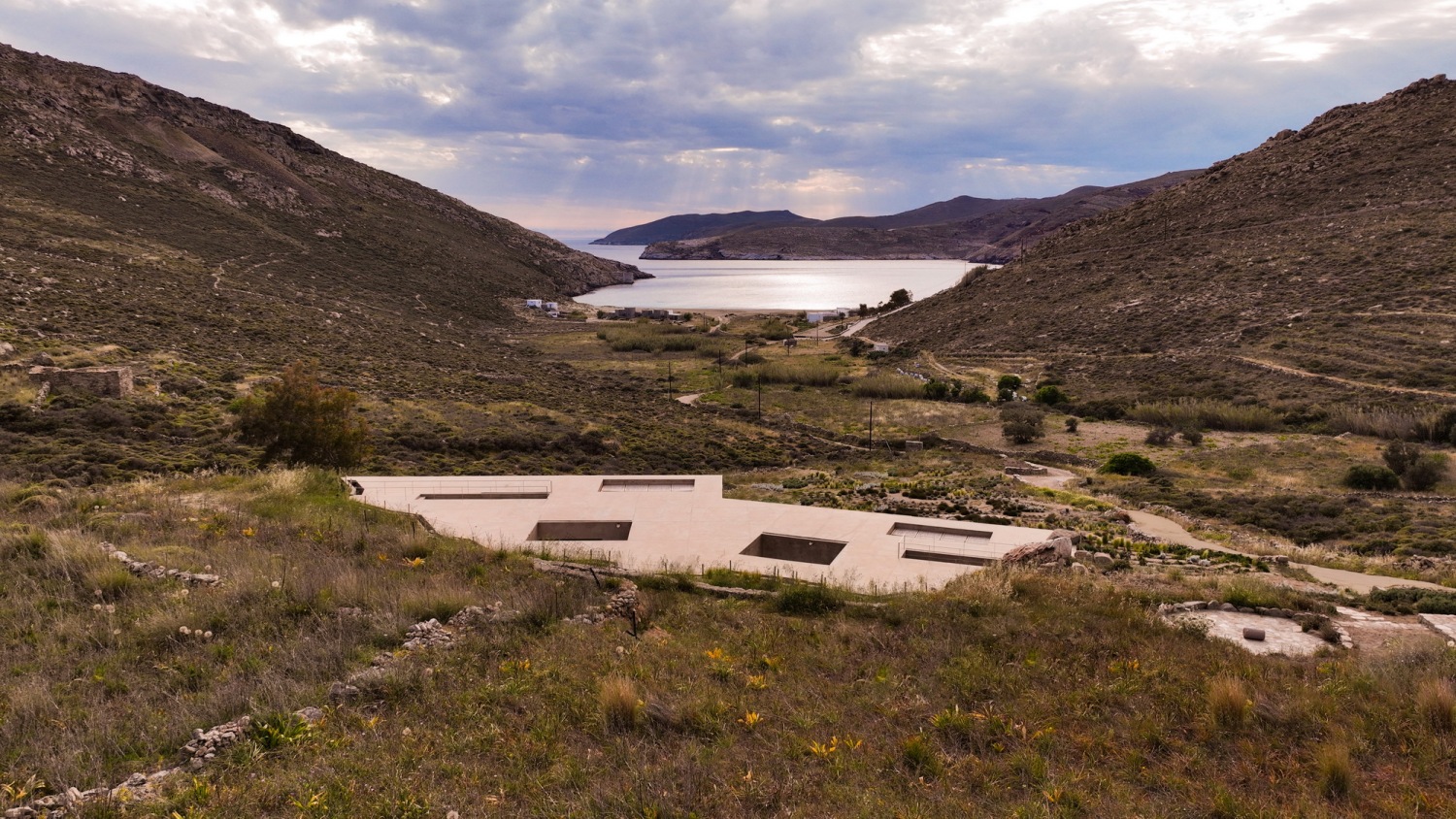

该项目坐落在塞里福斯南部-一个因激烈的采矿活动而伤痕累累的地区。采矿设施的痕迹散落在更广阔的区域,这意味着“第二层居住”的存在是非常重要的文化遗产。
The context in which the project was created is the South of Serifos - an area scarred from an intense mining activity. Traces of the mining facilities are scattered throughout the wider area and signify the existence of a “second level of habitation” - a rich subsoil and a very important cultural heritage.
由挖掘产生的房间大小的空洞表明了进入地面以下的第二个地下画廊网络的入口。
在表面上,鹅卵石小径以及货车的铁路线网络创造了尖锐的线性切割,象征性地融入了自然景观。这些线性配置产生了宽阔的平坦表面,作为斜坡地形的人工延伸。
The room-sized voids resulting from the excavations indicate the entrance into a second - underground - network of galleries below the ground level.On the surface, the cobbled paths as well as the network of railway lines of the wagons, create sharp linear cuts that emblematically integrate into the natural landscape. These linear configurations produce broad flat surfaces acting as artificial extensions of the sloping terrain.

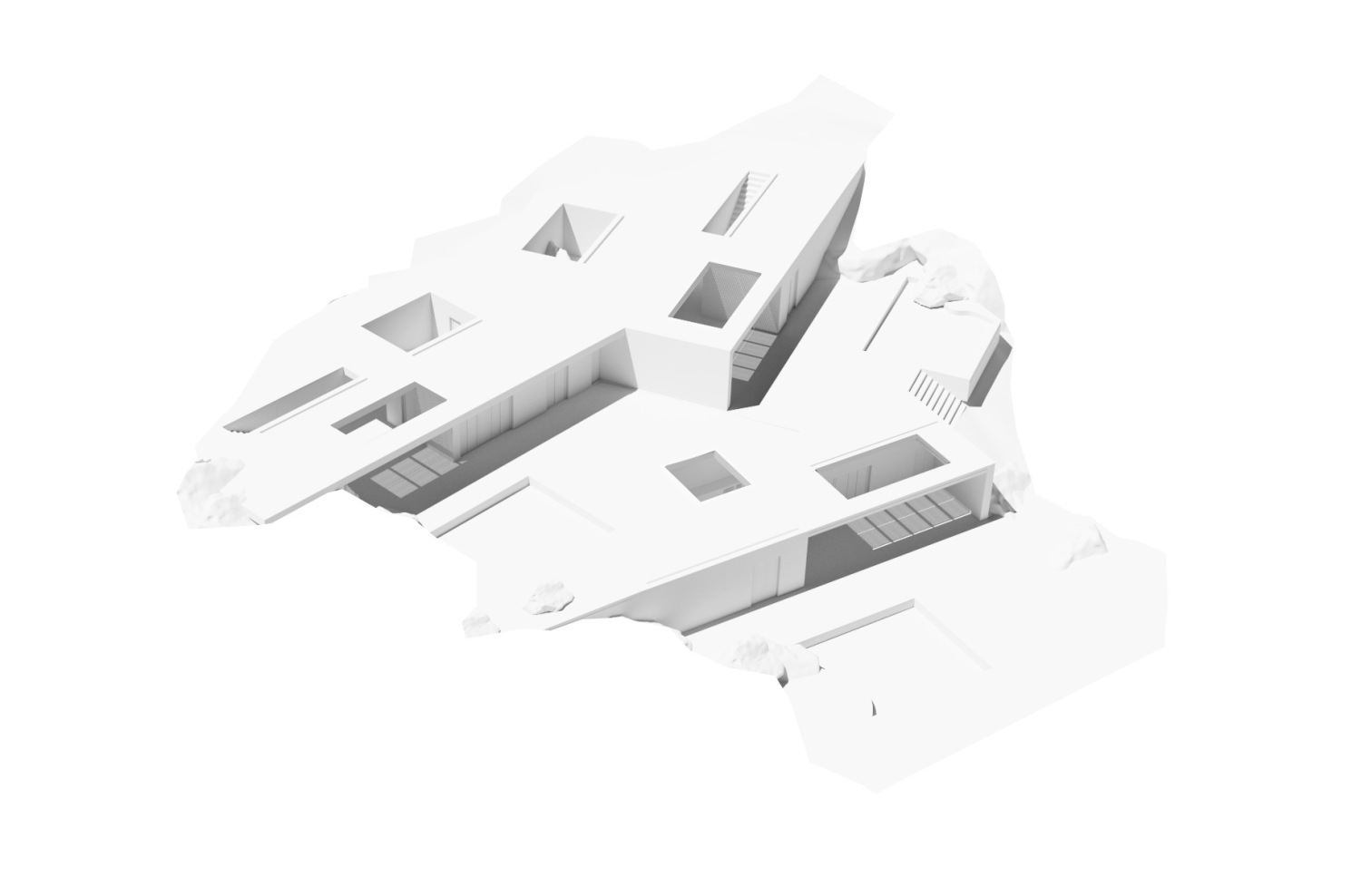

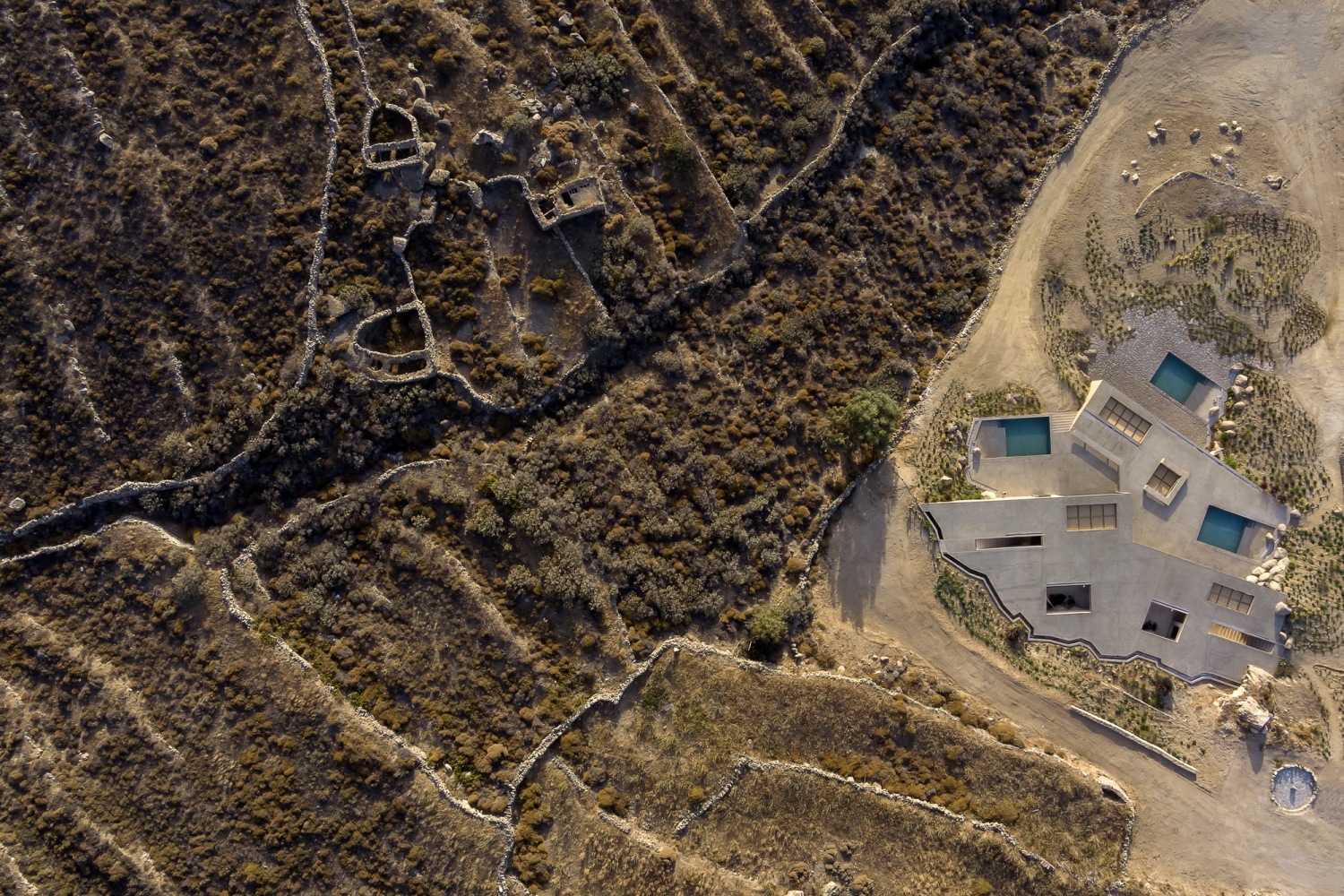

承认这些配置的残余,并打算在地表下恢复住房场景,形成了设计的核心思想。利用地块的自然弧度,我们设计了两条角度线< LINE >,与景观融为一体。这些线分别定义了两个平面平台< PLANE >,其中放置了住宿。(一个在第一个,两个在第二个)。每个住宿的位置都有轻微的旋转,以确保隐私和可变的海景。

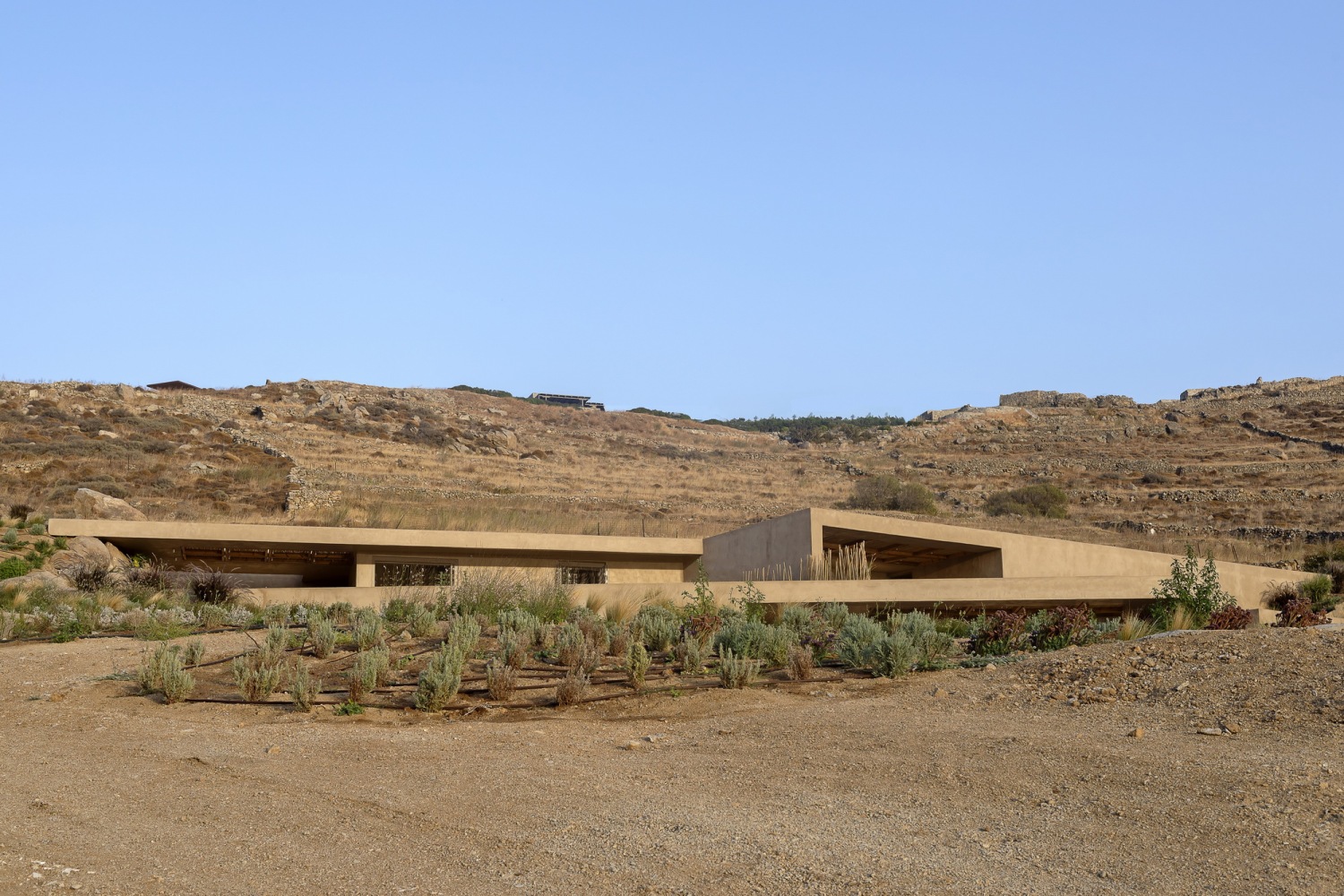

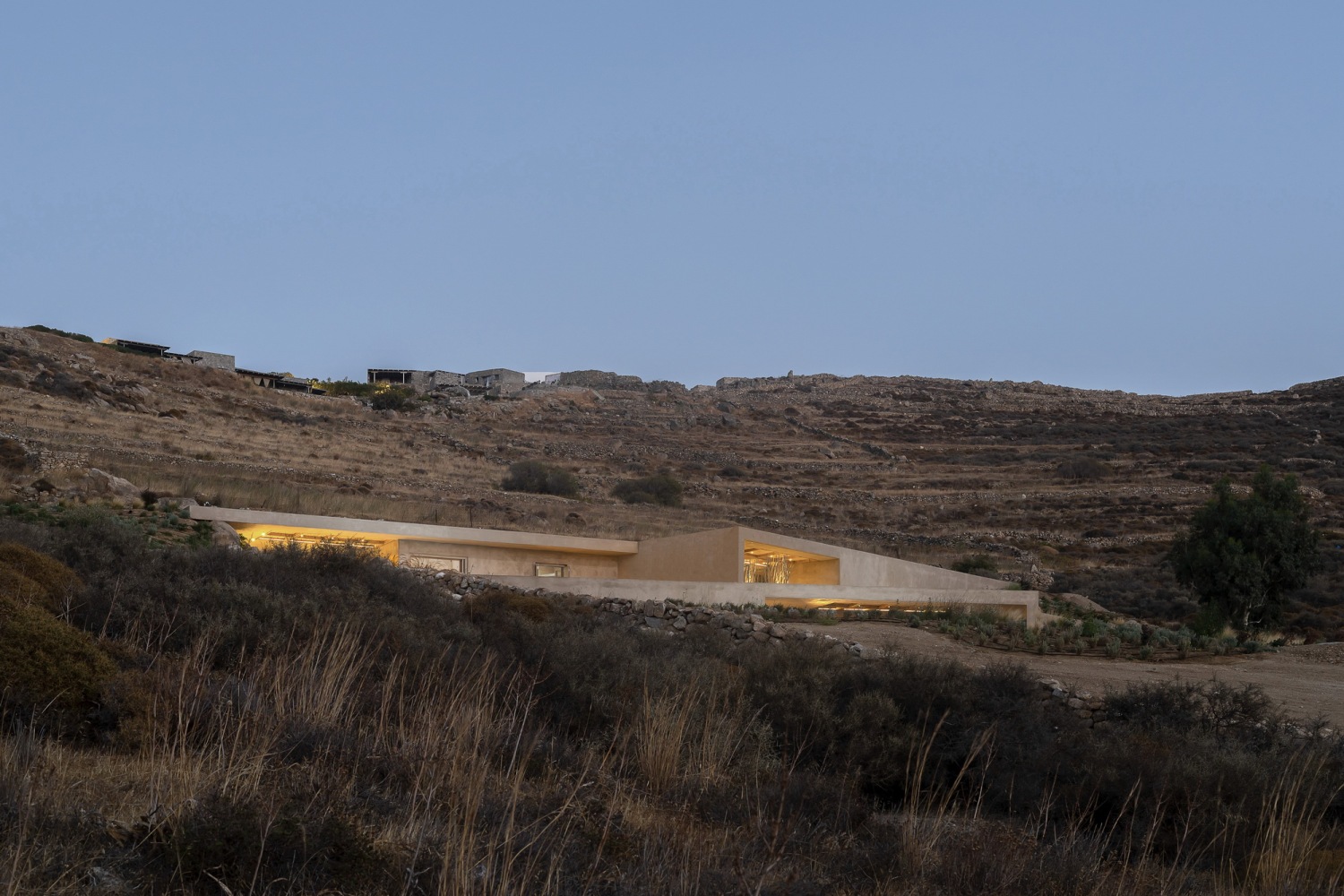

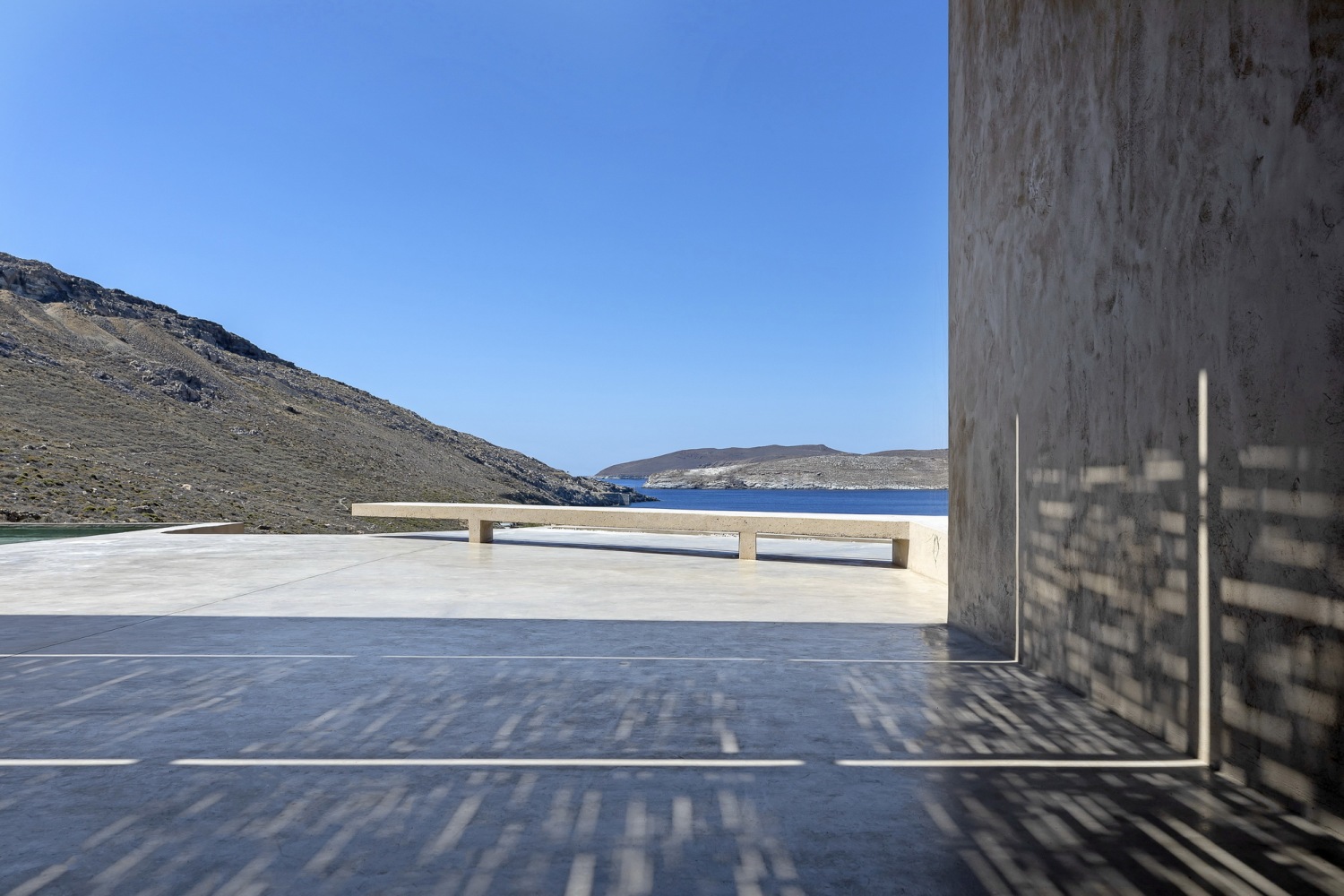

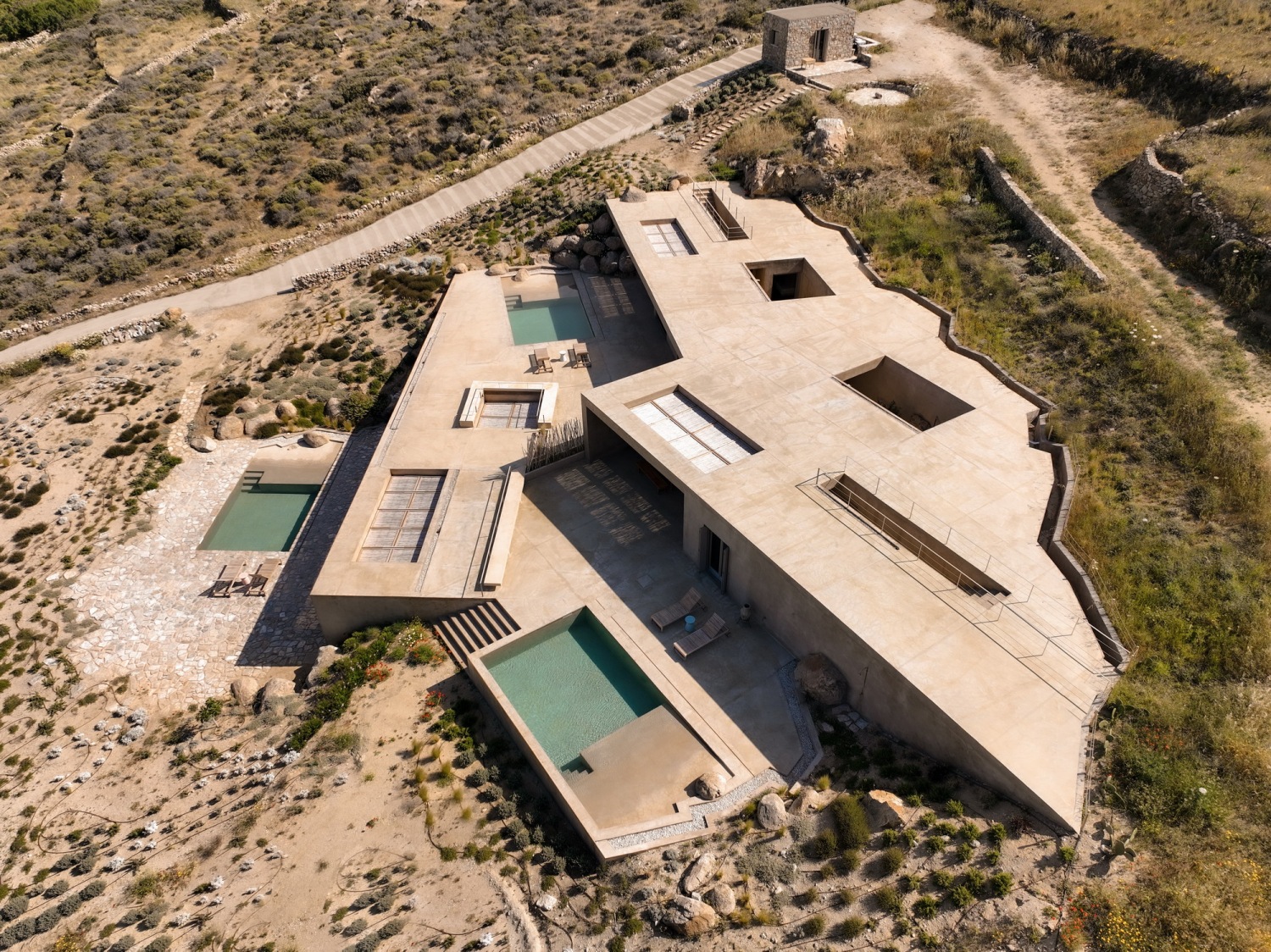

The acknowledgment of the remnants of those configurations and the intention to revive a housing scenario below the ground surface formed the core idea of the design.Taking advantage of the natural curvature of the plot, we designed two angled lines < LINE > that are assimilated into the landscape. These lines define two flat platforms respectively, < PLANE > on which the lodgings are placed. (One on the first and two on the second). Each lodging is positioned with a slight rotation, ensuring privacy and variable sea views.

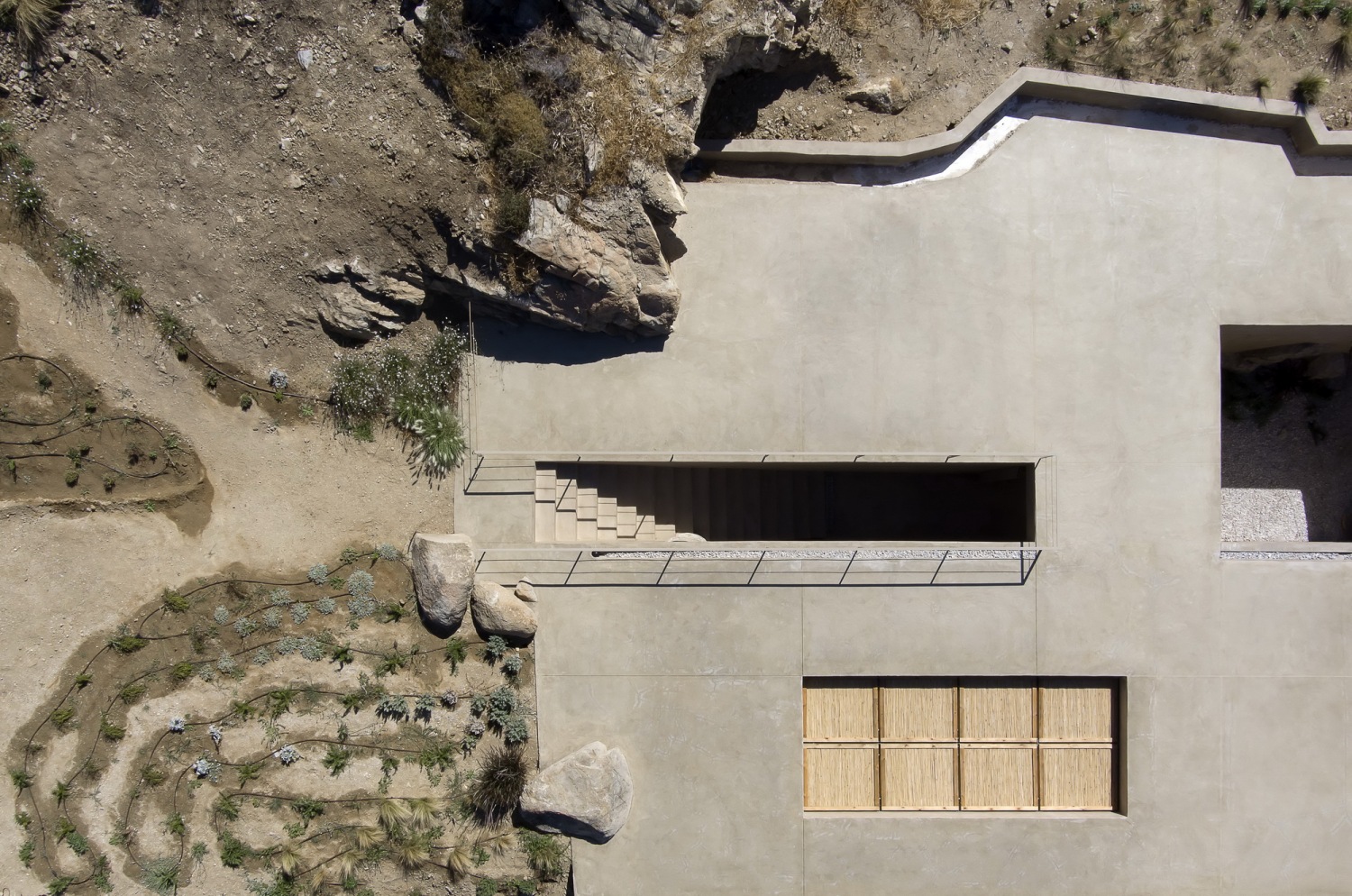

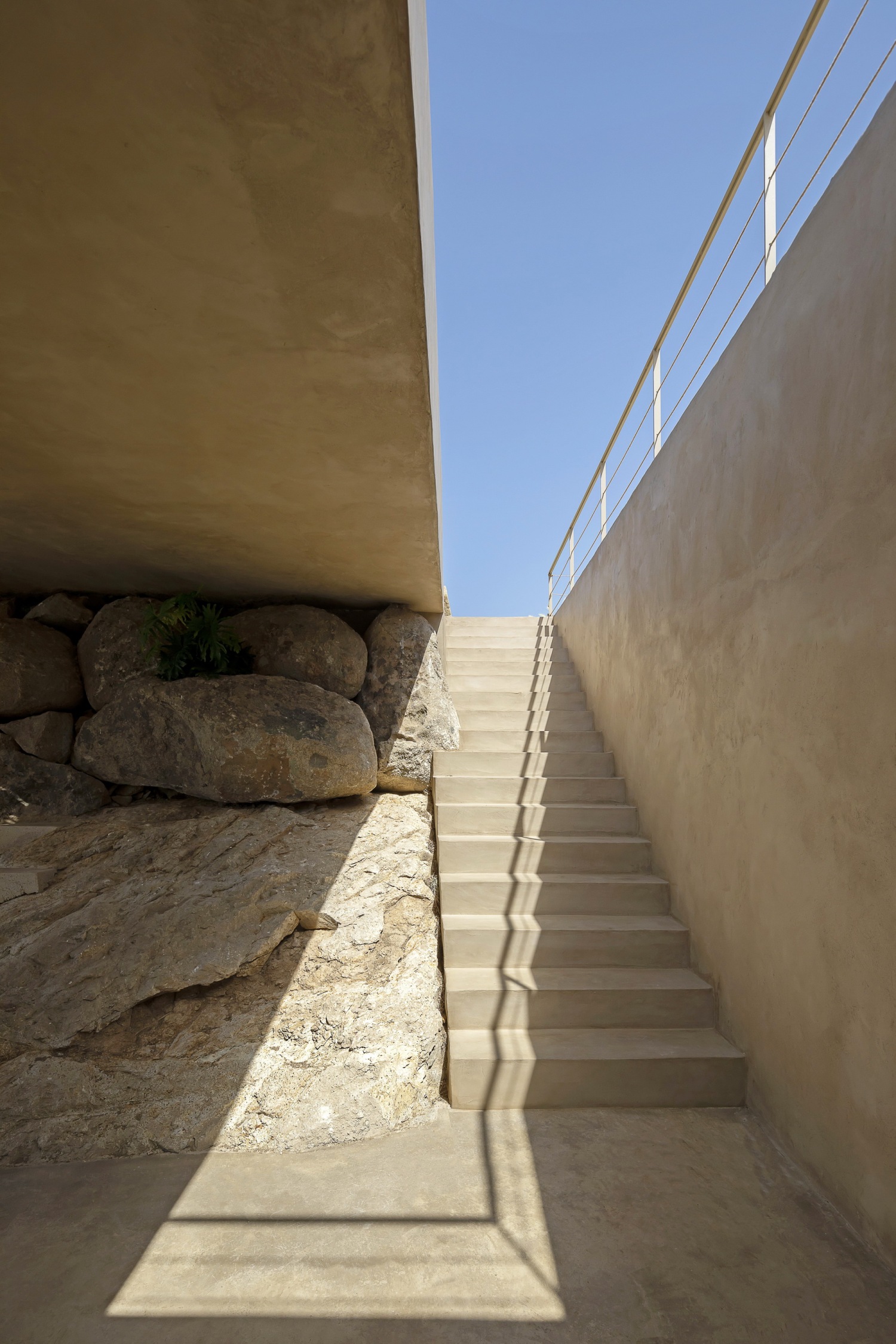

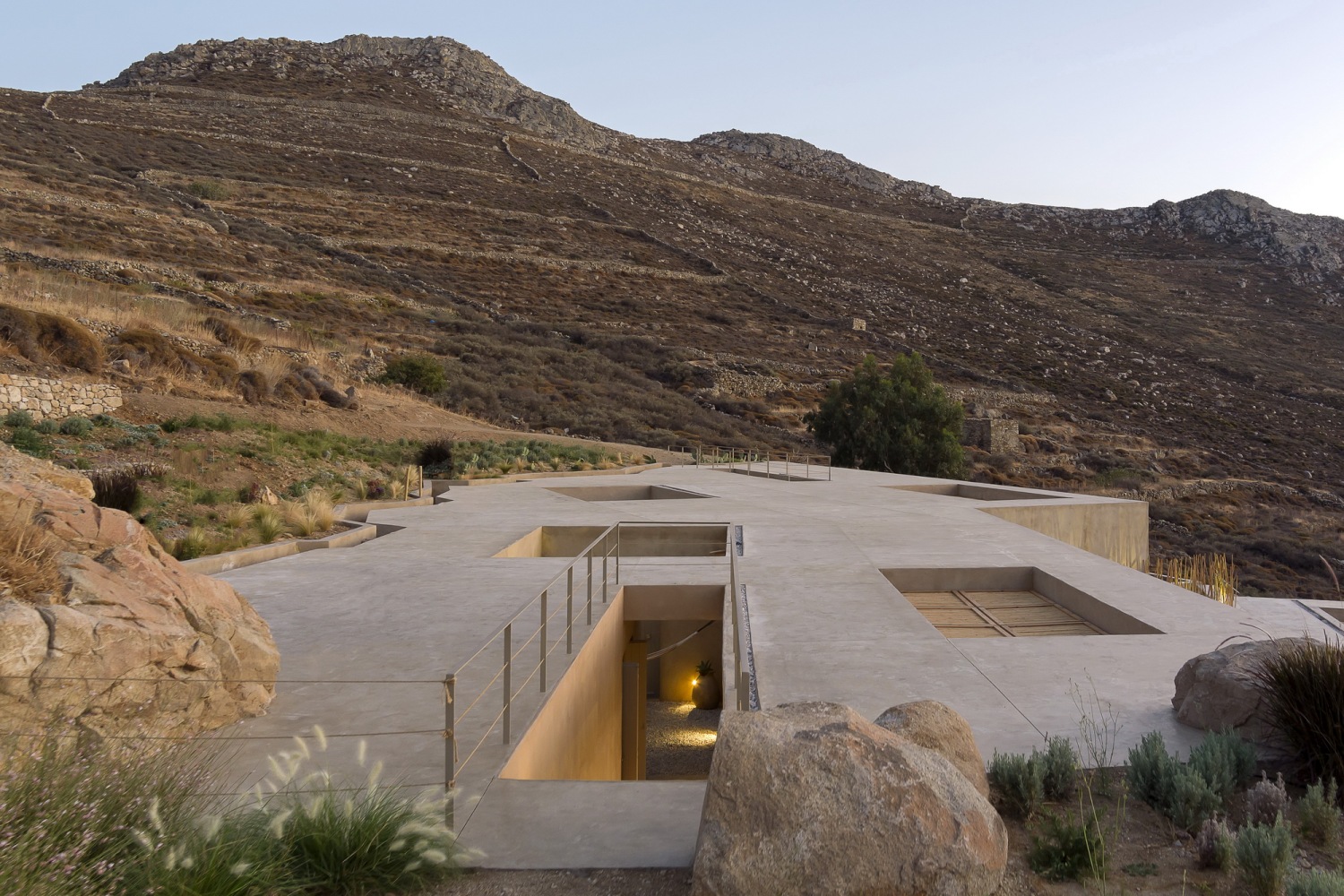

住宅通过线性楼梯从屋顶进入,这些楼梯定义了居住在地面以下“新地面”的入口。
类似于adits 入口-(这是矿山黑暗走廊中唯一的光源)的天井,楼梯和水池是由平面上的方形正交形成。这些空间和序列,创造了阳光房的功能和迎宾的生活空间。

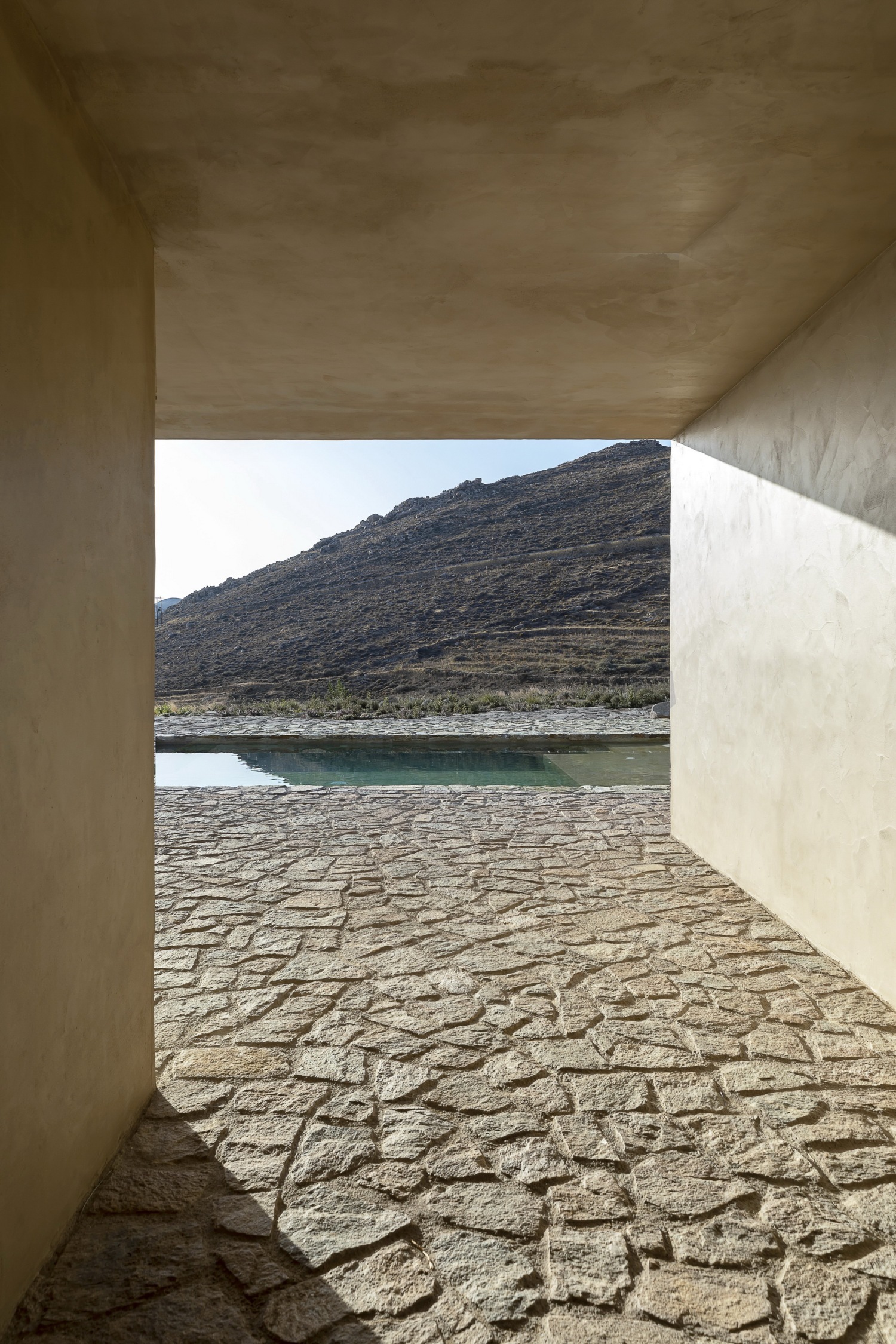

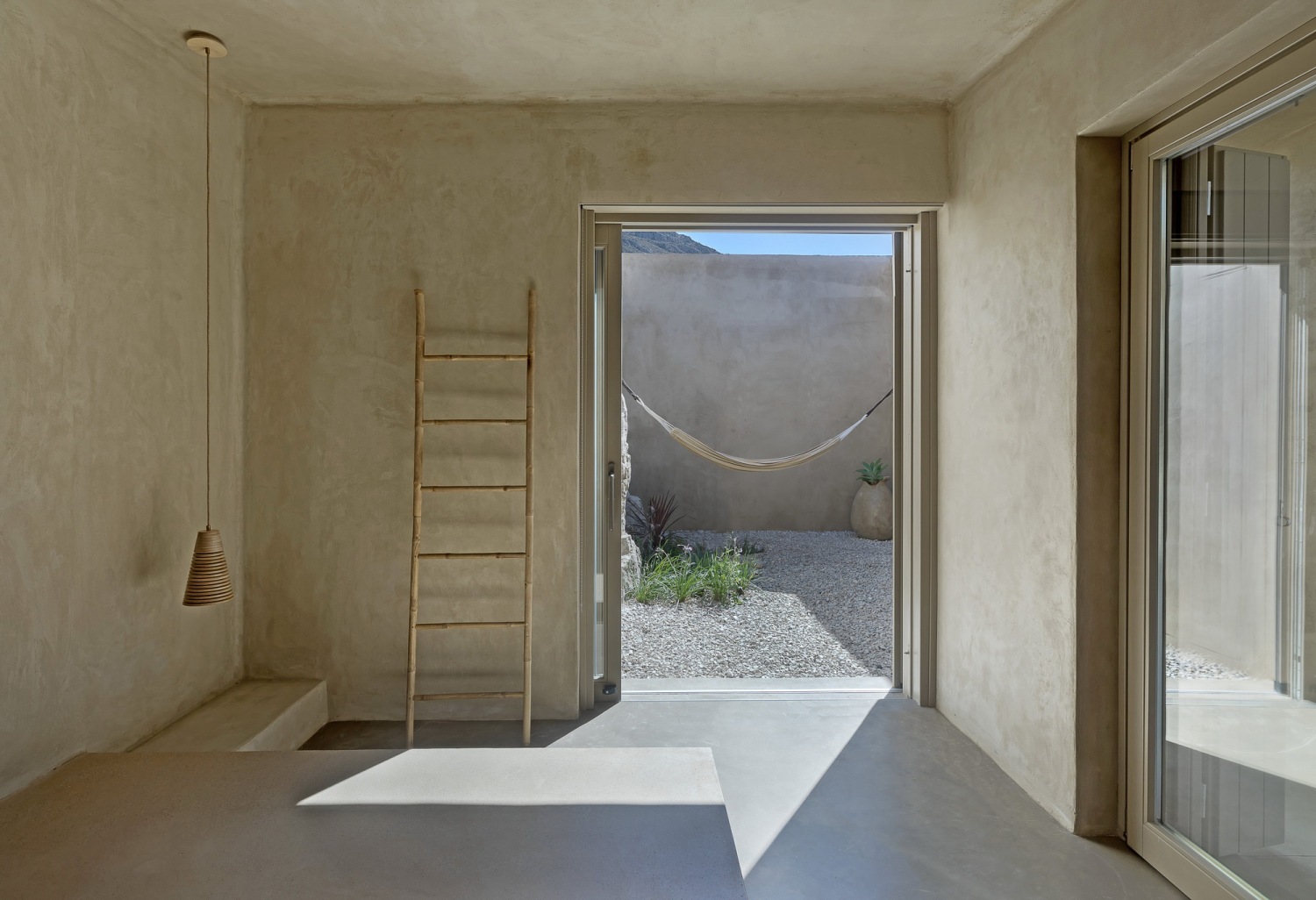

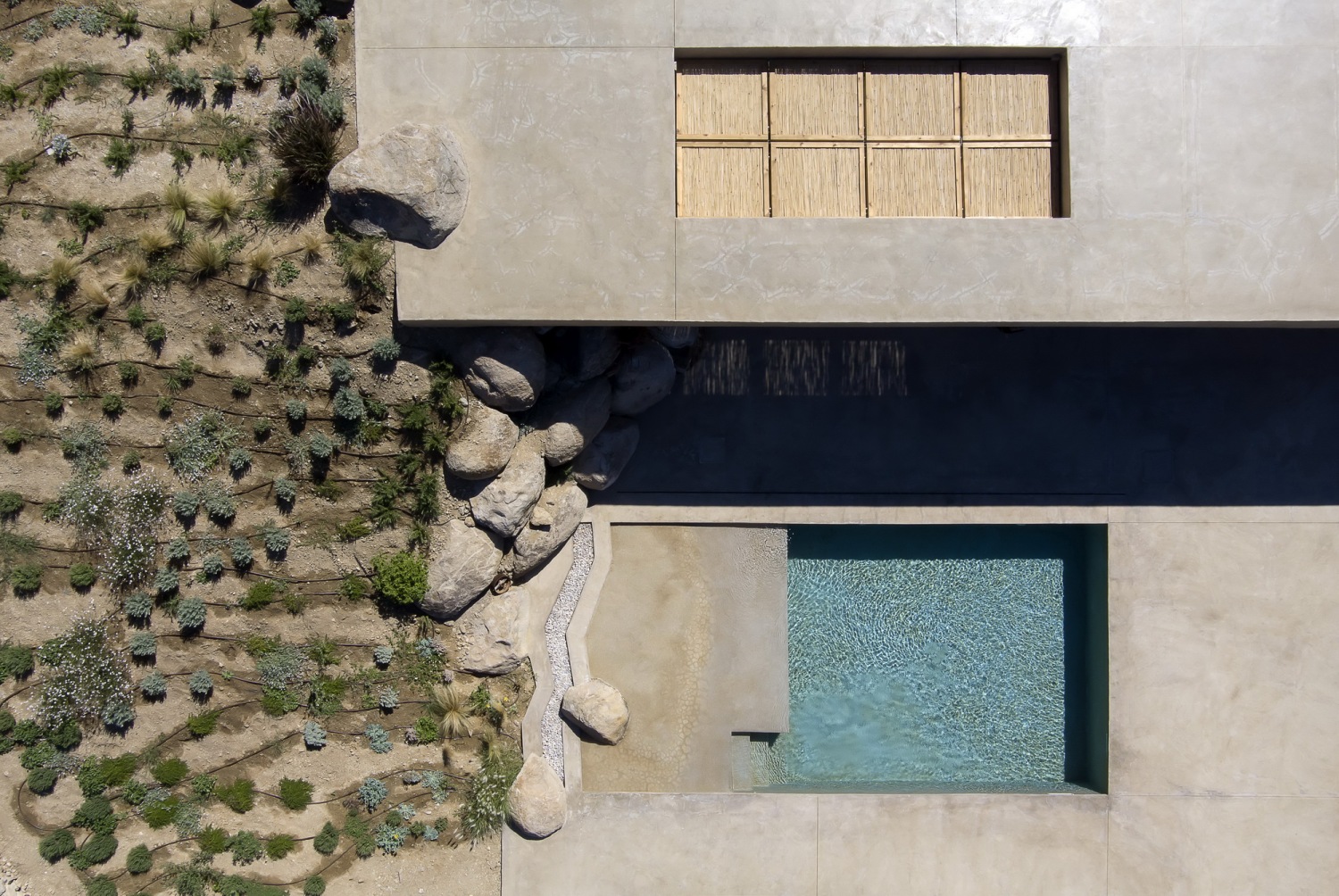

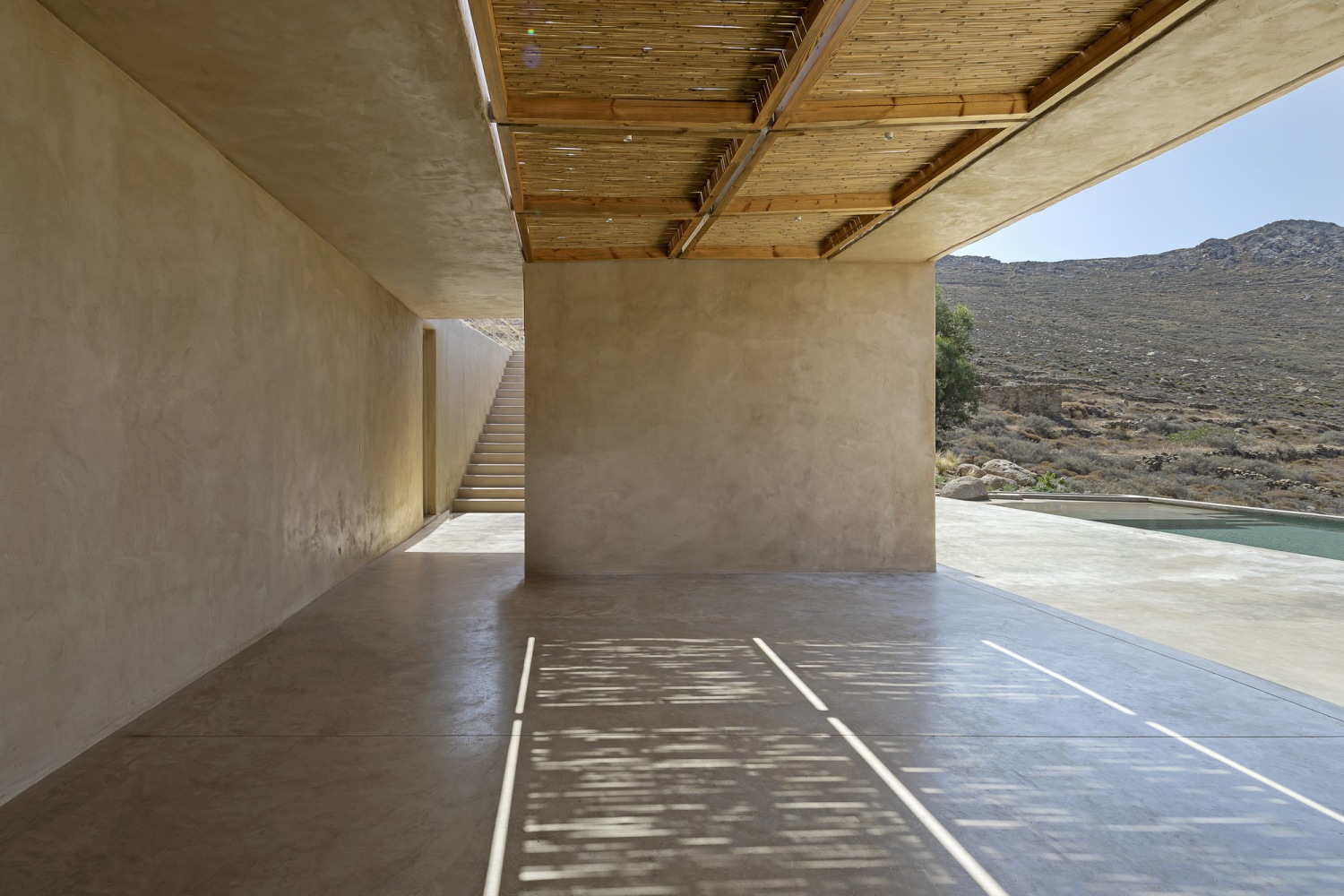

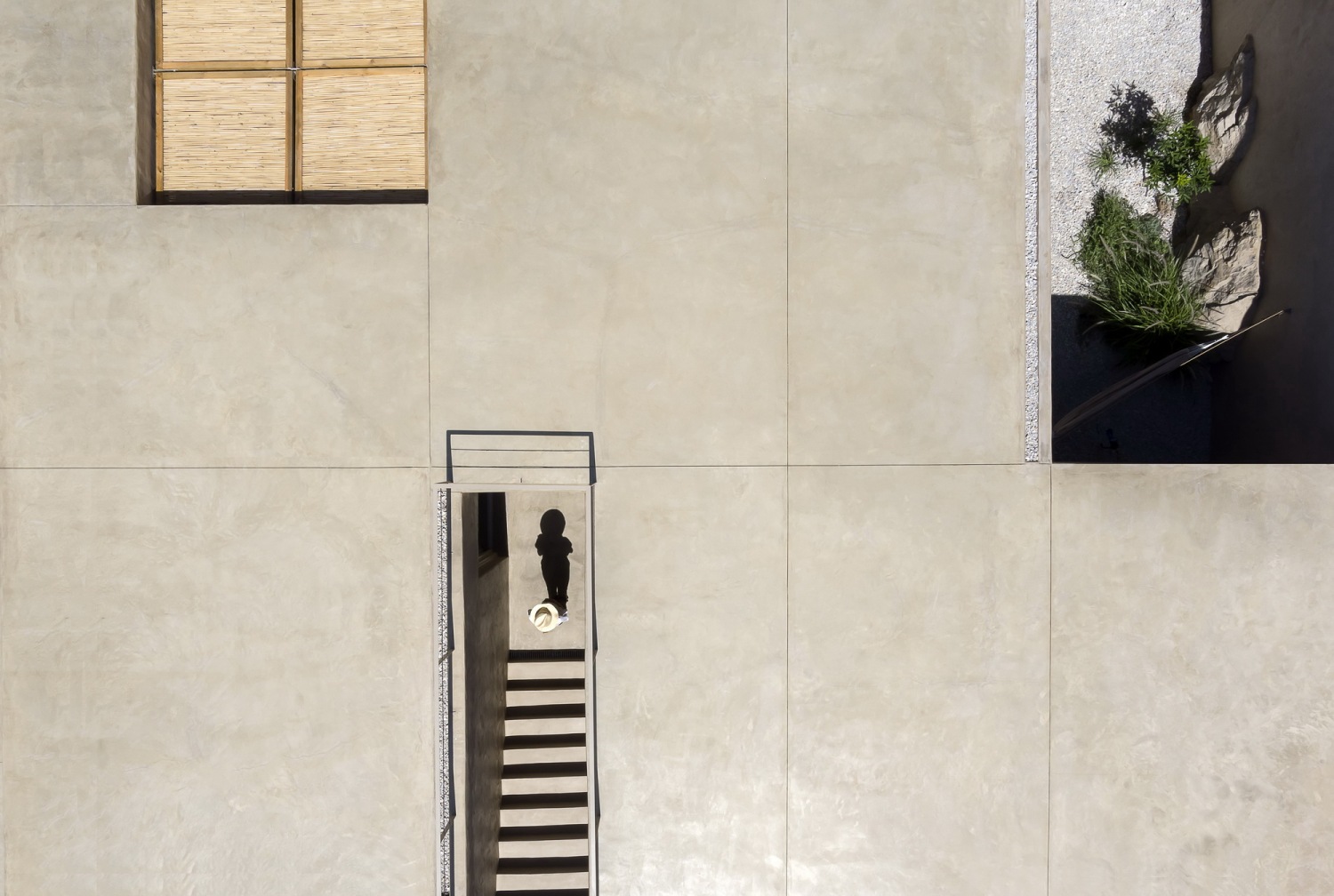

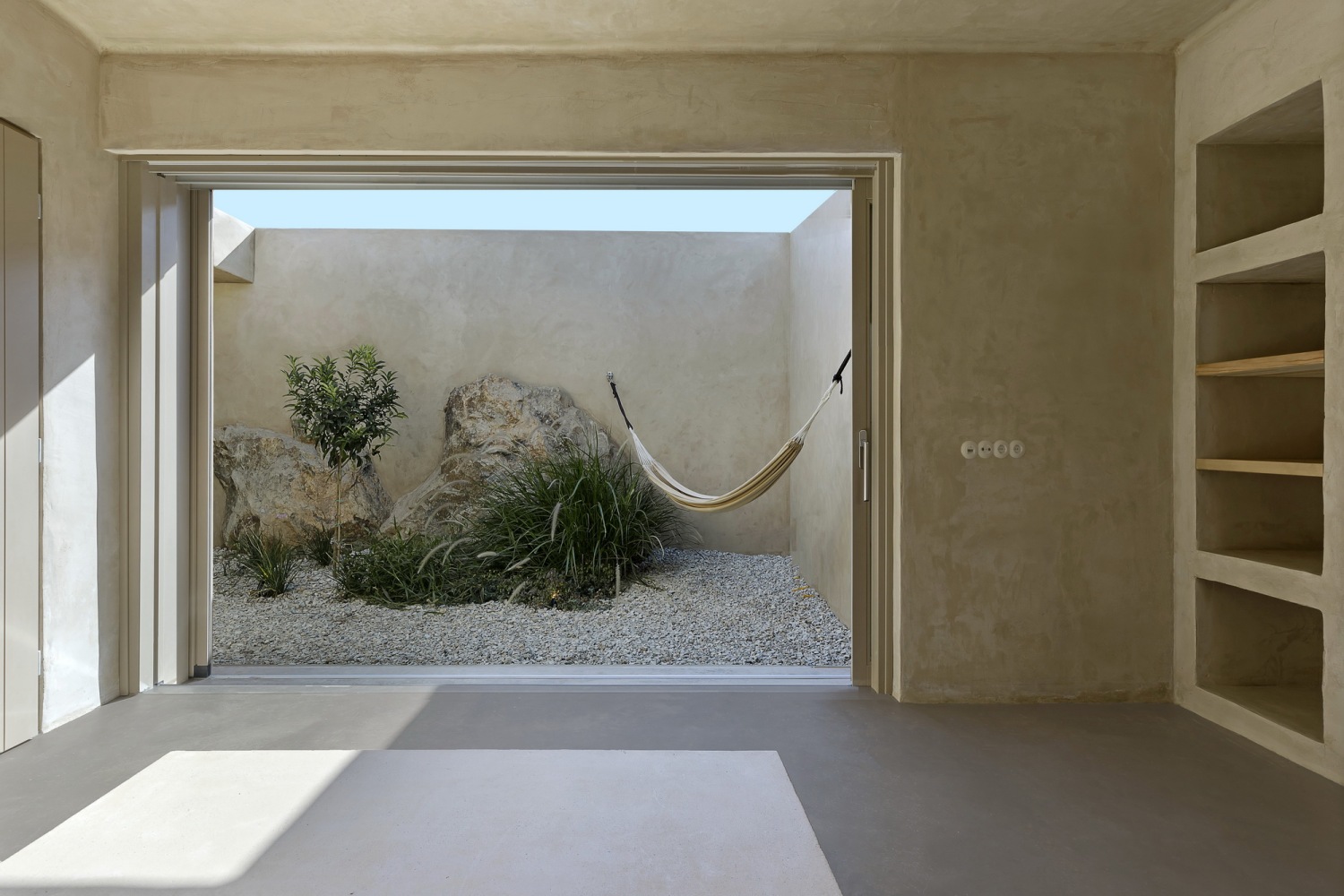

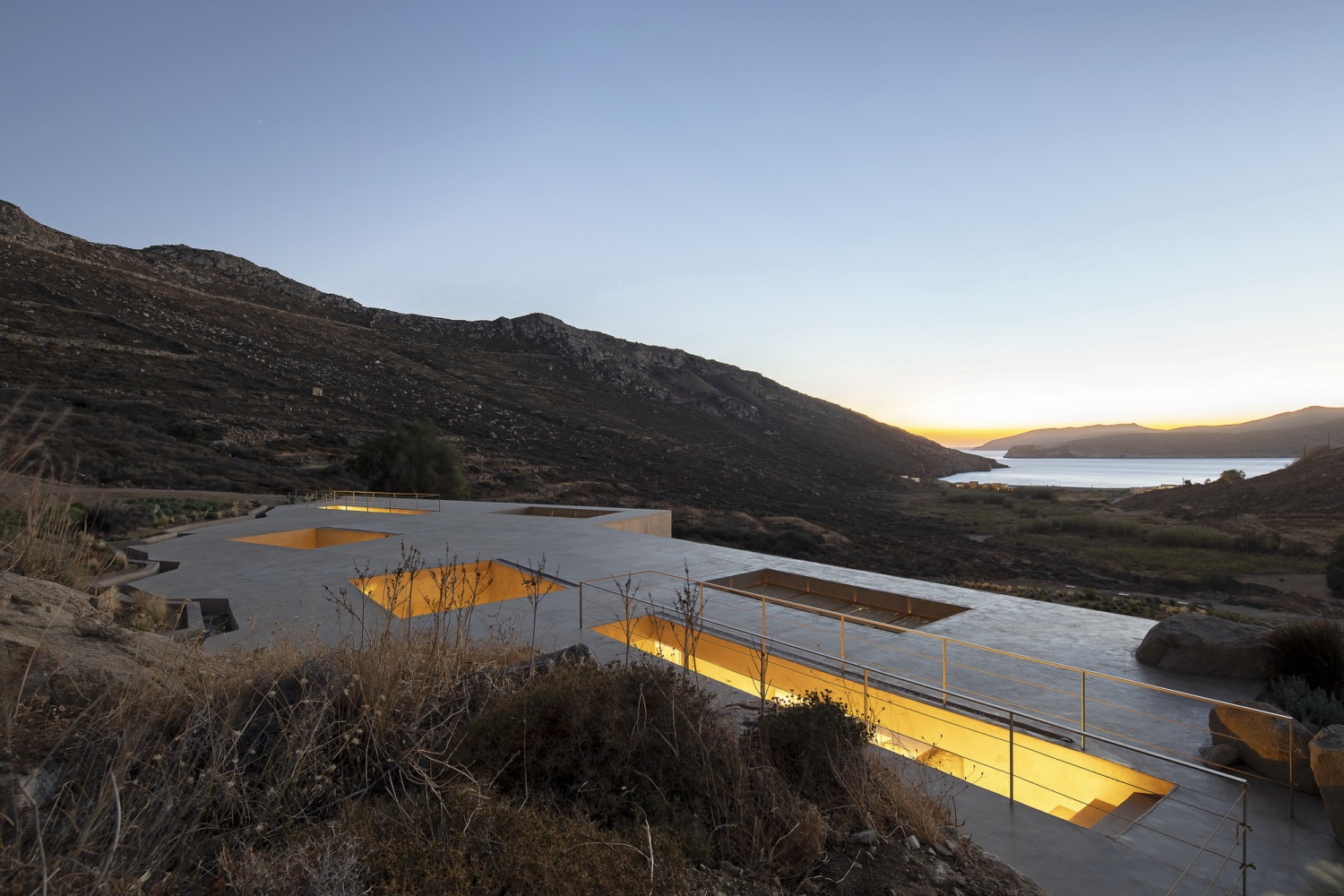

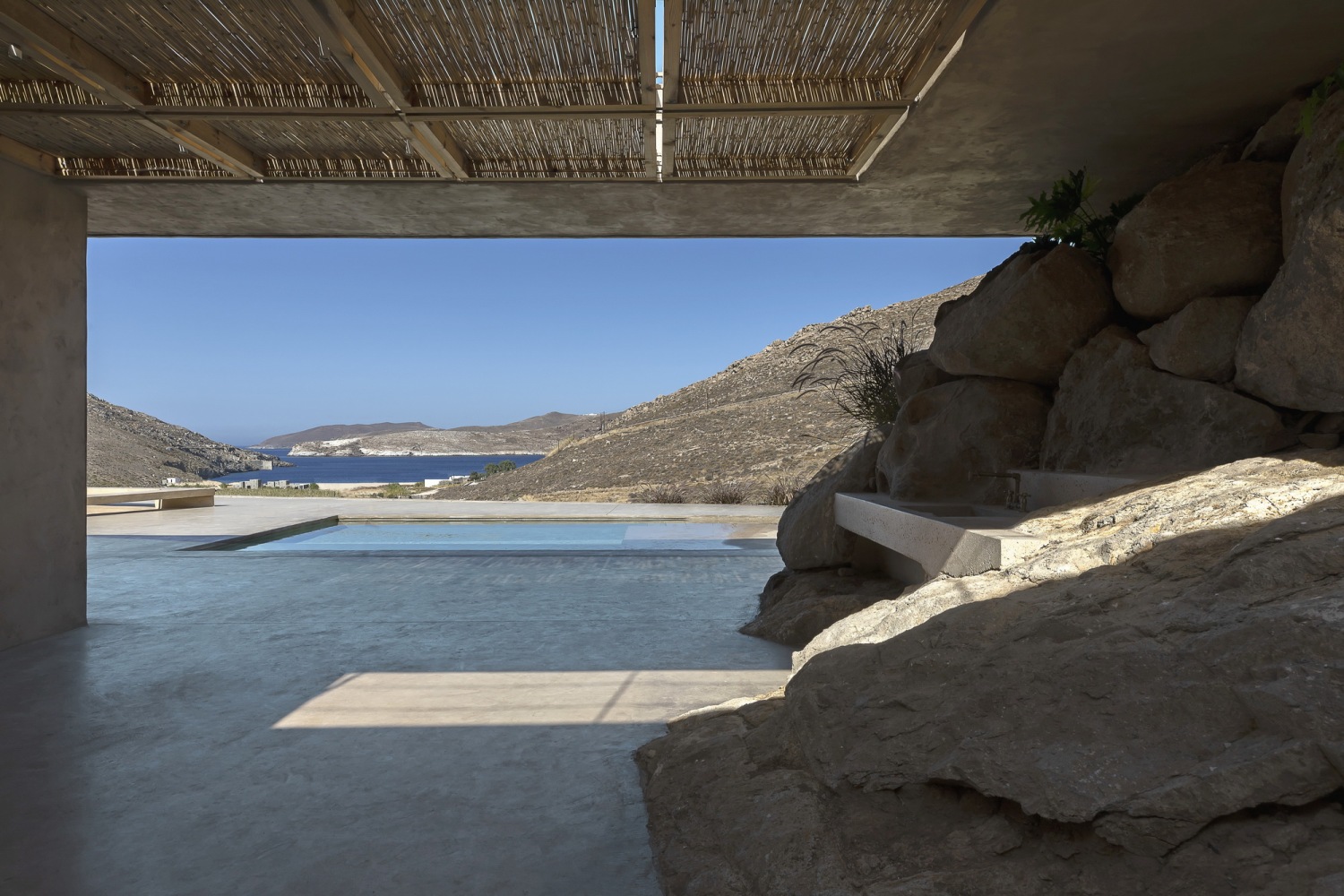

The lodgings are approached from the roof, through linear staircases which define the entrance to a “new ground” of habitation, below the surface.Analogous to the adits - from Latin aditus, entrance - (which were the only source of light in the dark galleries of the mines) the patios, stairs and pools, result from the substruction of square and orthogonal masses from the planes. These sequences of voids and fulls, create functional and welcoming living spaces bathed in natural light.

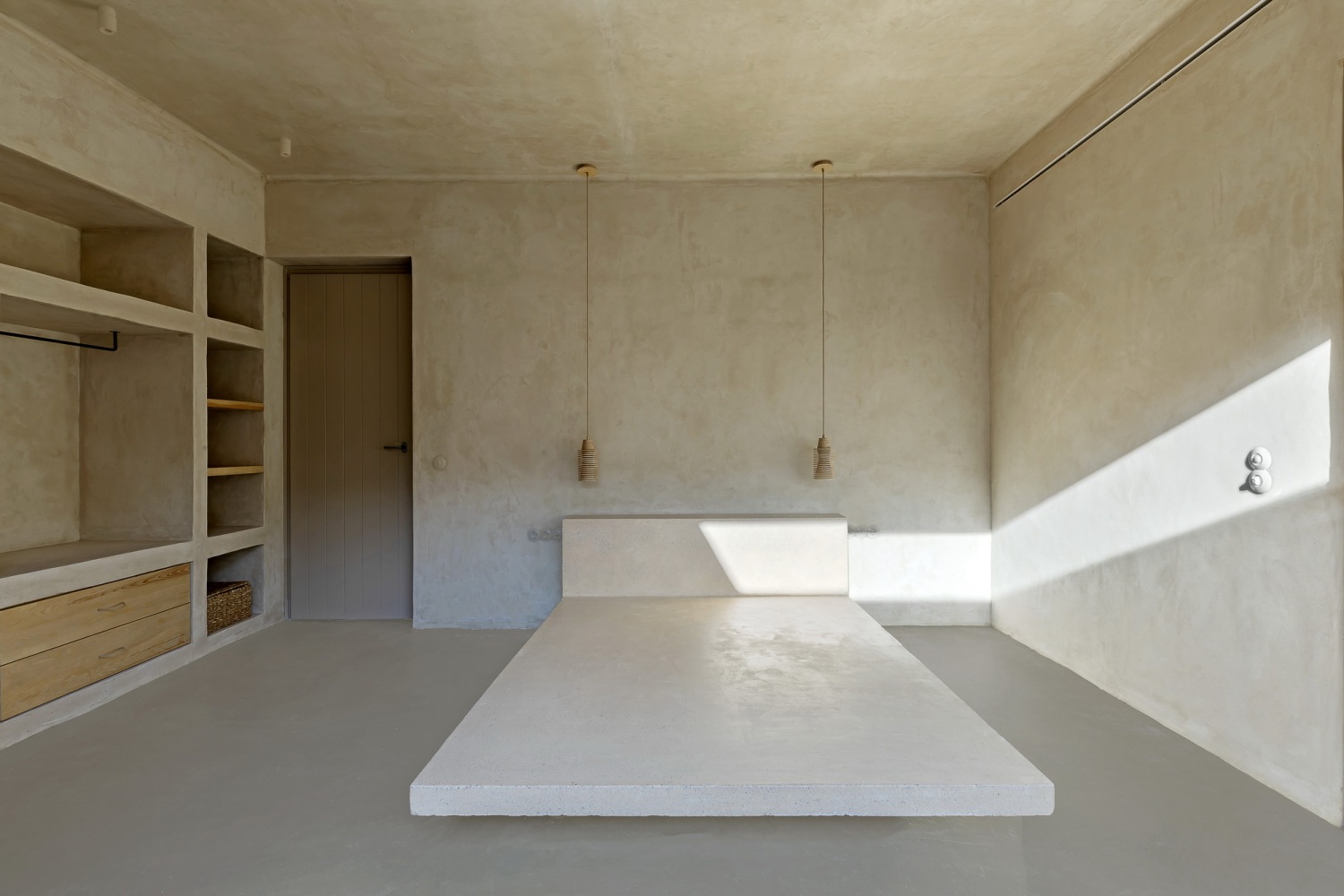

Homa源自希腊语χώµα-土壤:石膏中的土质矿物颜料,白色抛光混凝土制成的家具,木材和天然岩石构成了建筑的框架,强调了来自自然土壤雕塑加工的整体构成的设计理念。

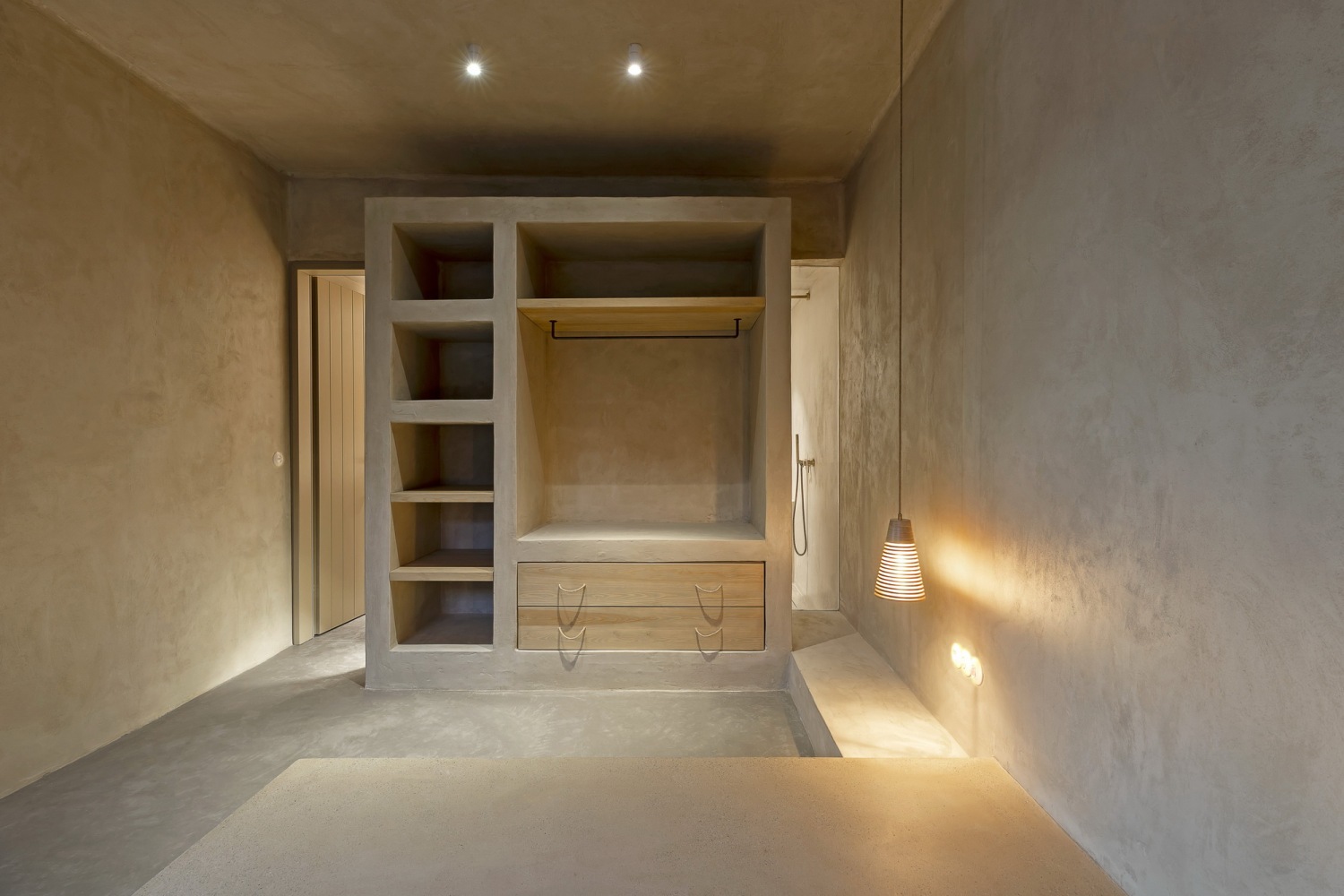

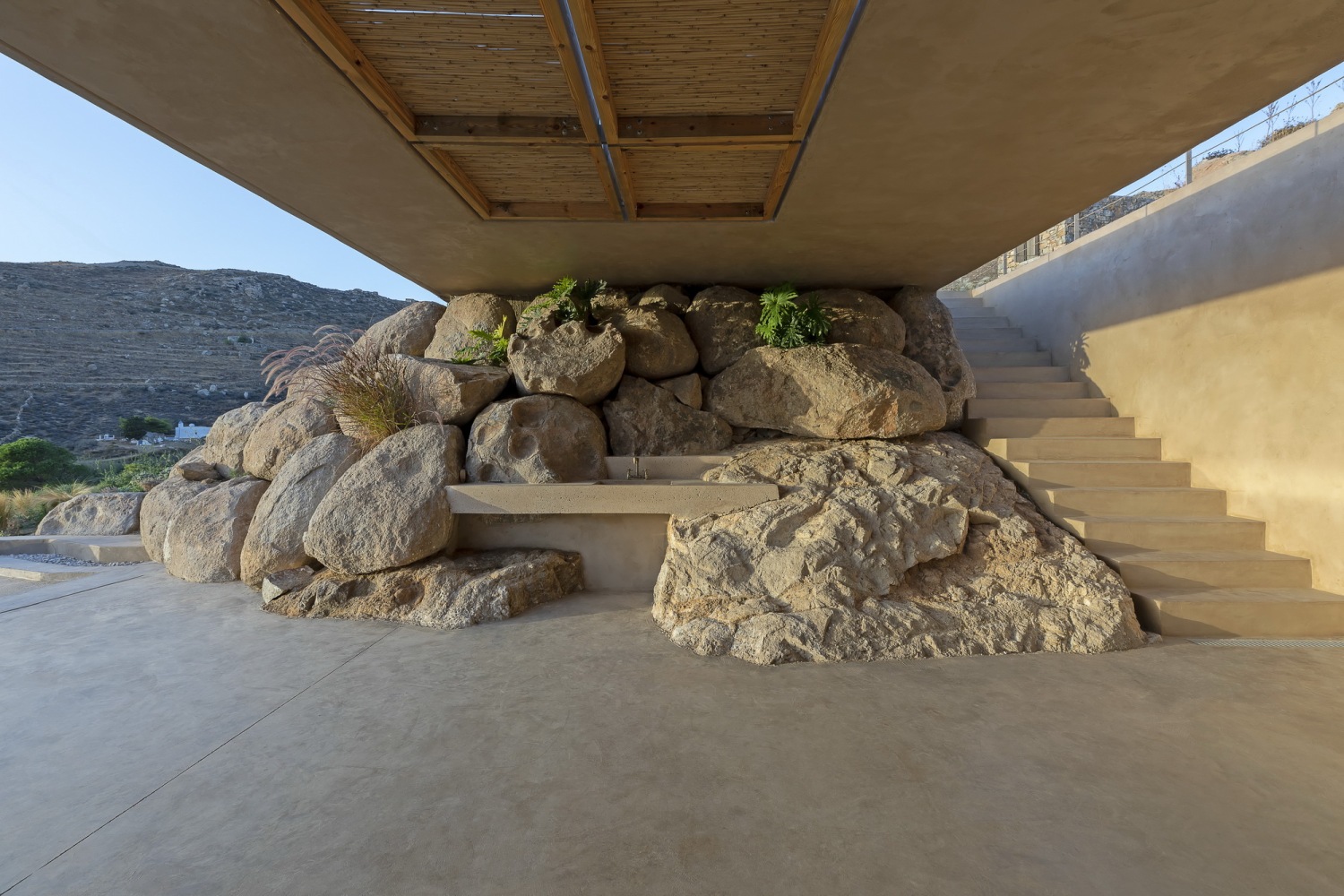

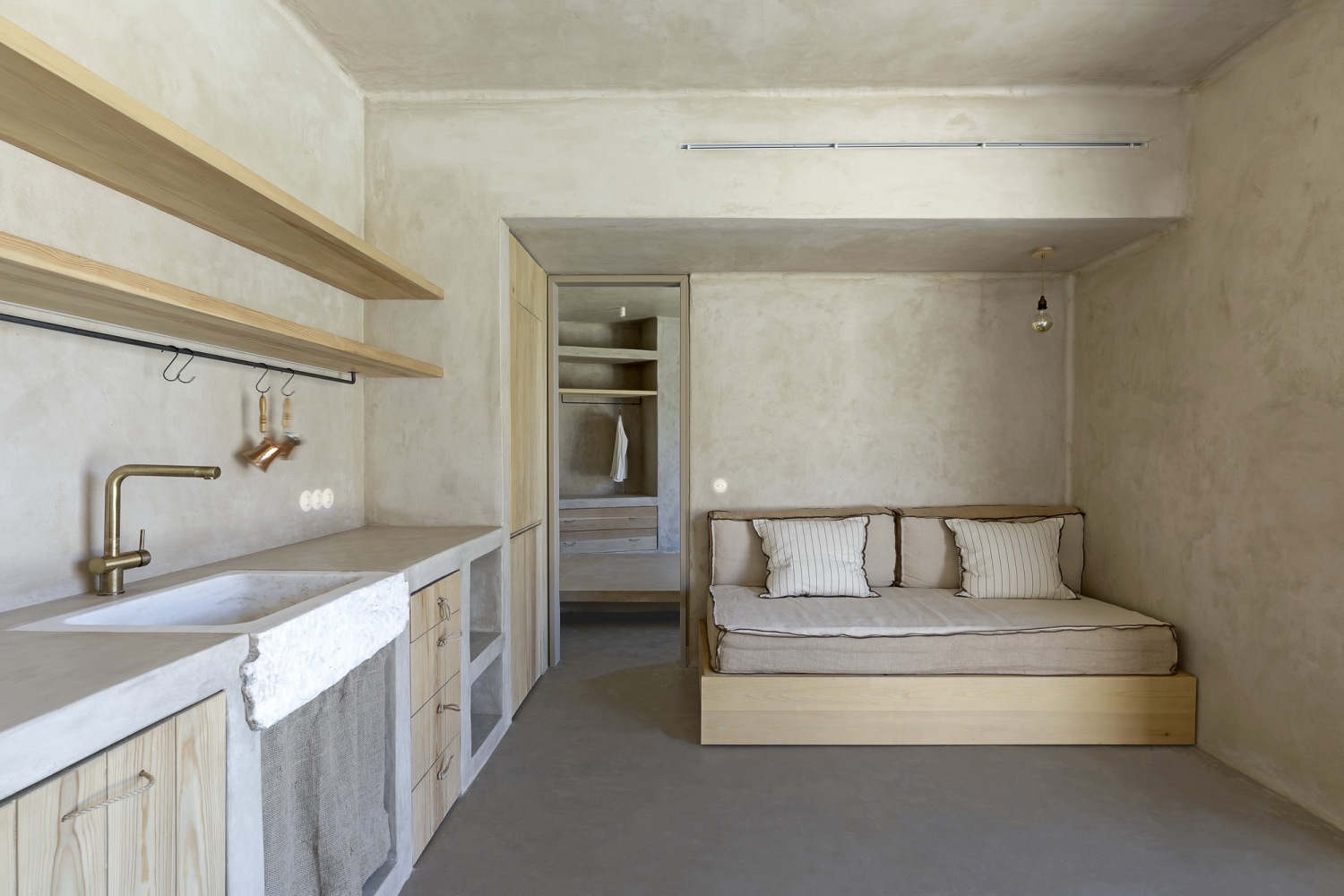

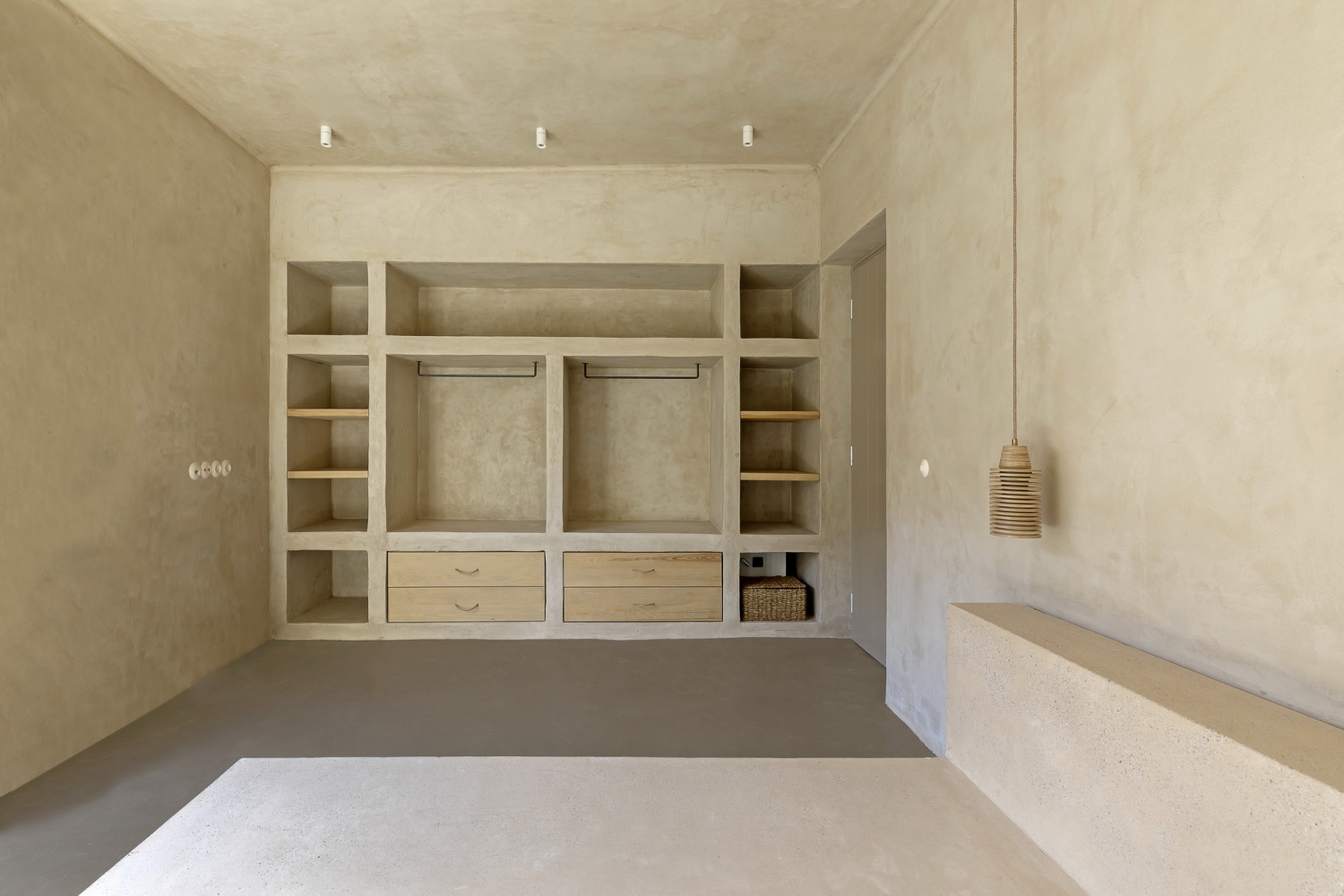

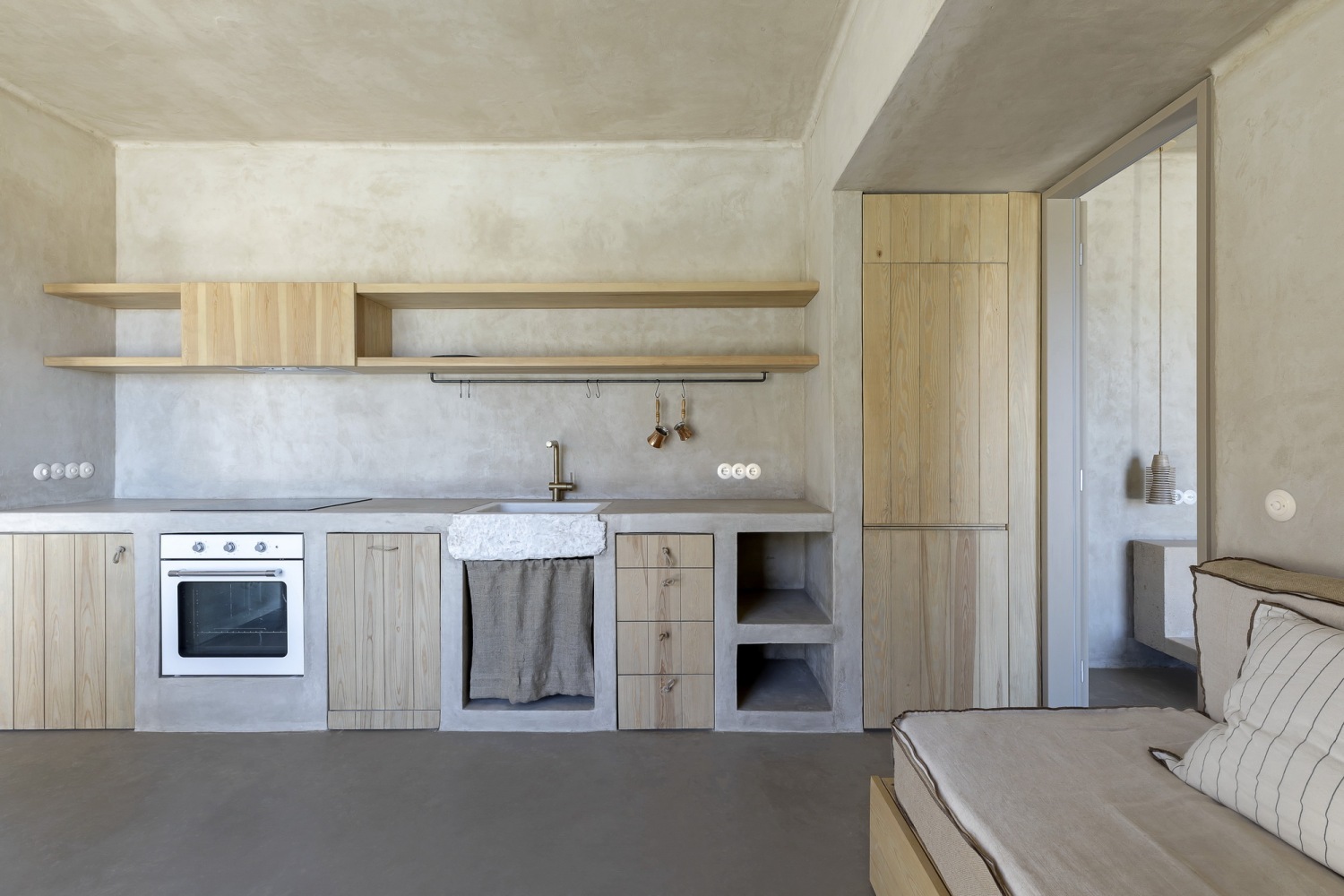

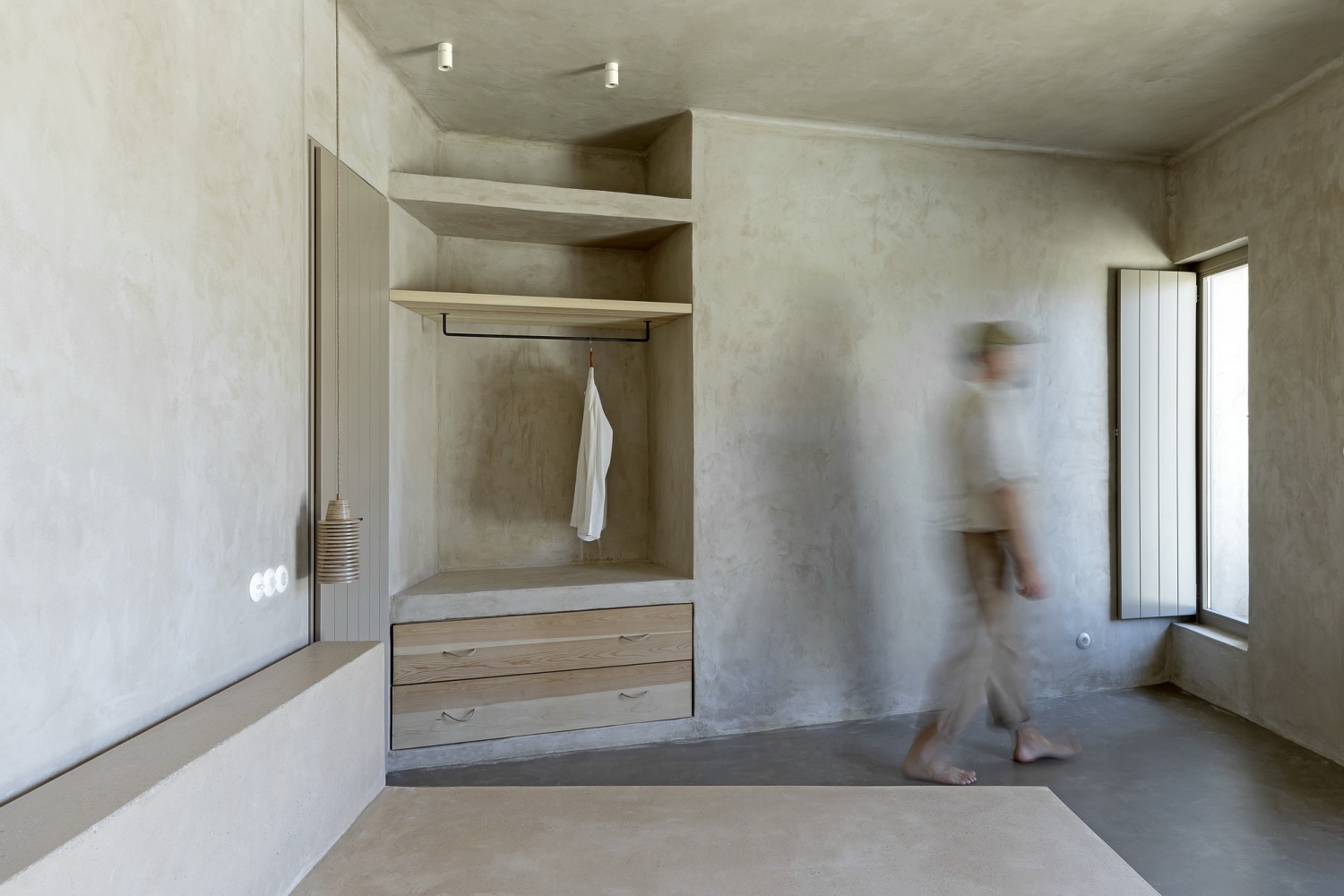

Homa – from Greek χώµα, soil: The earthen mineral pigment in the plaster, the built furniture from white polished concrete, the wood and the natural rocks which frame the construction, underline the monolithic nature of a composition which derives from the sculptural processing of the natural soil.

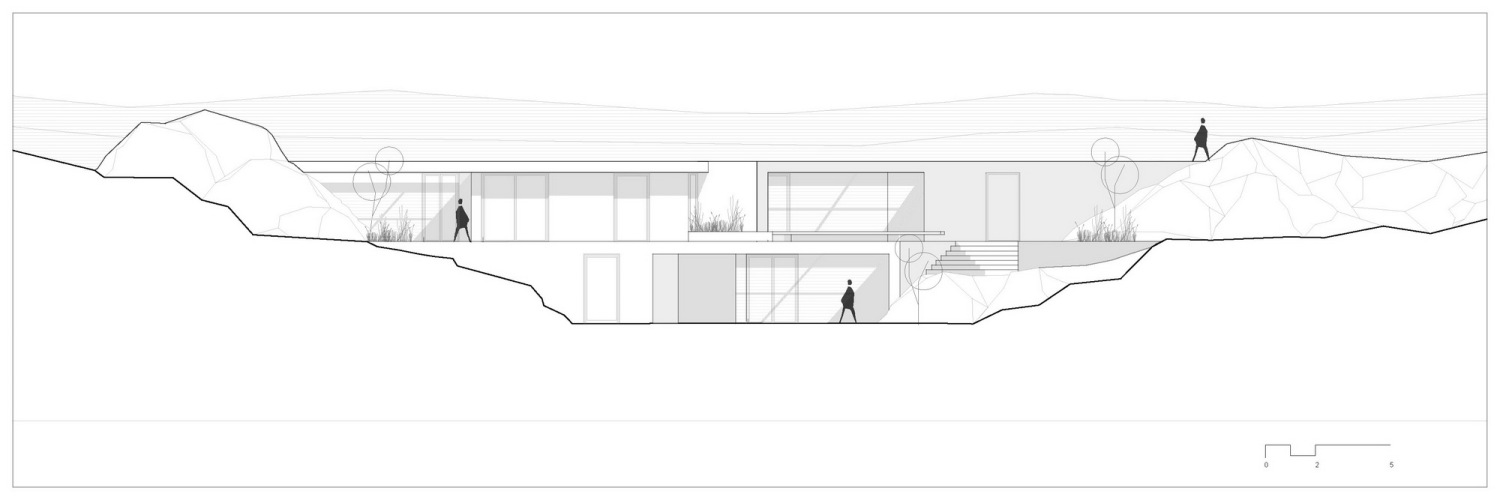

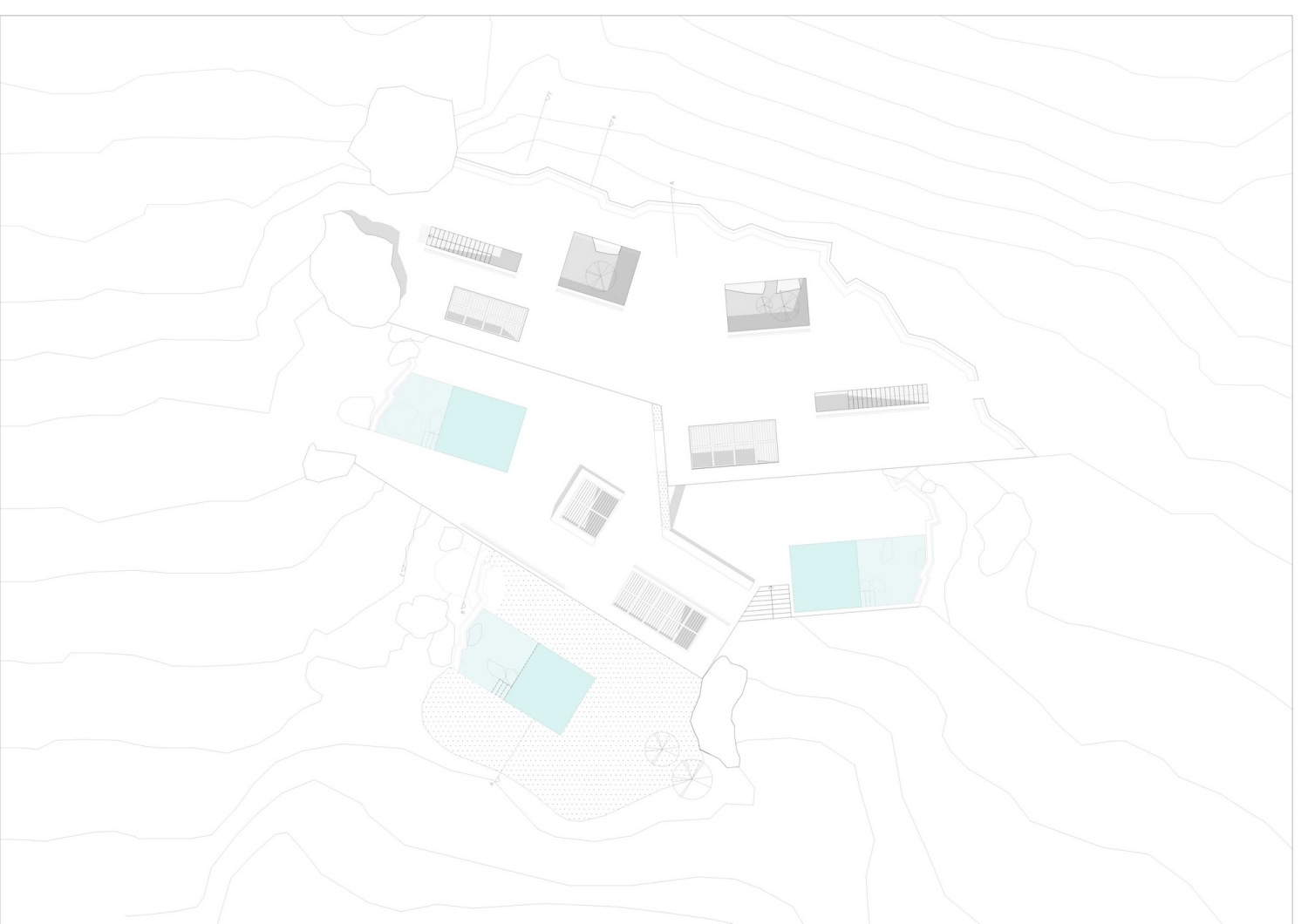

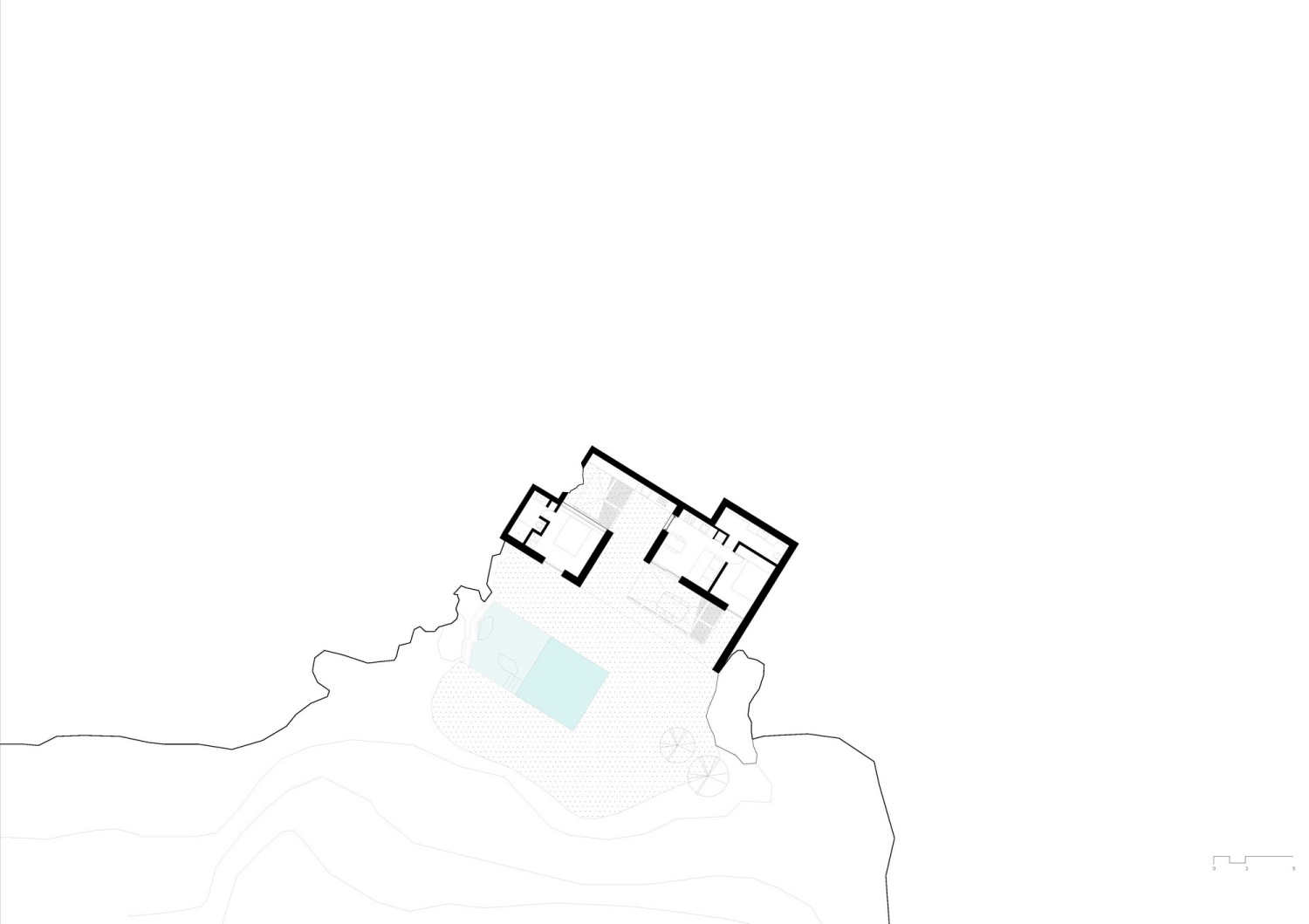

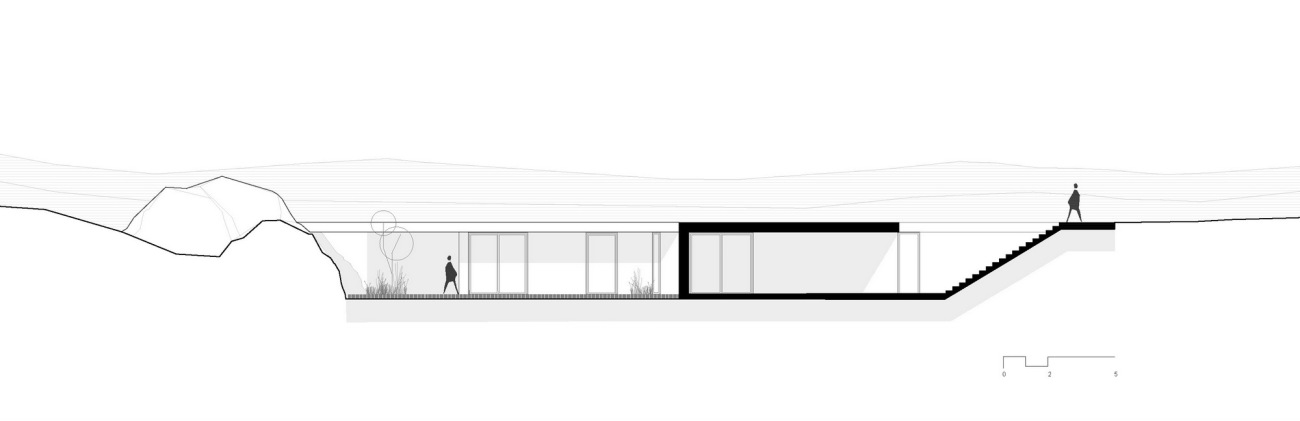

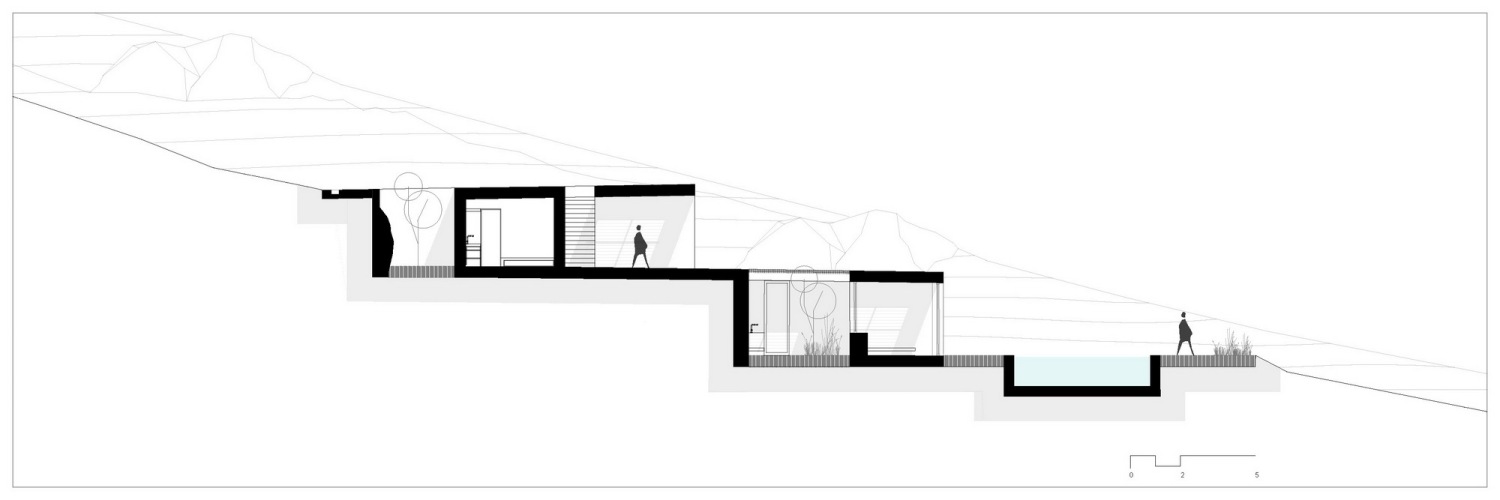

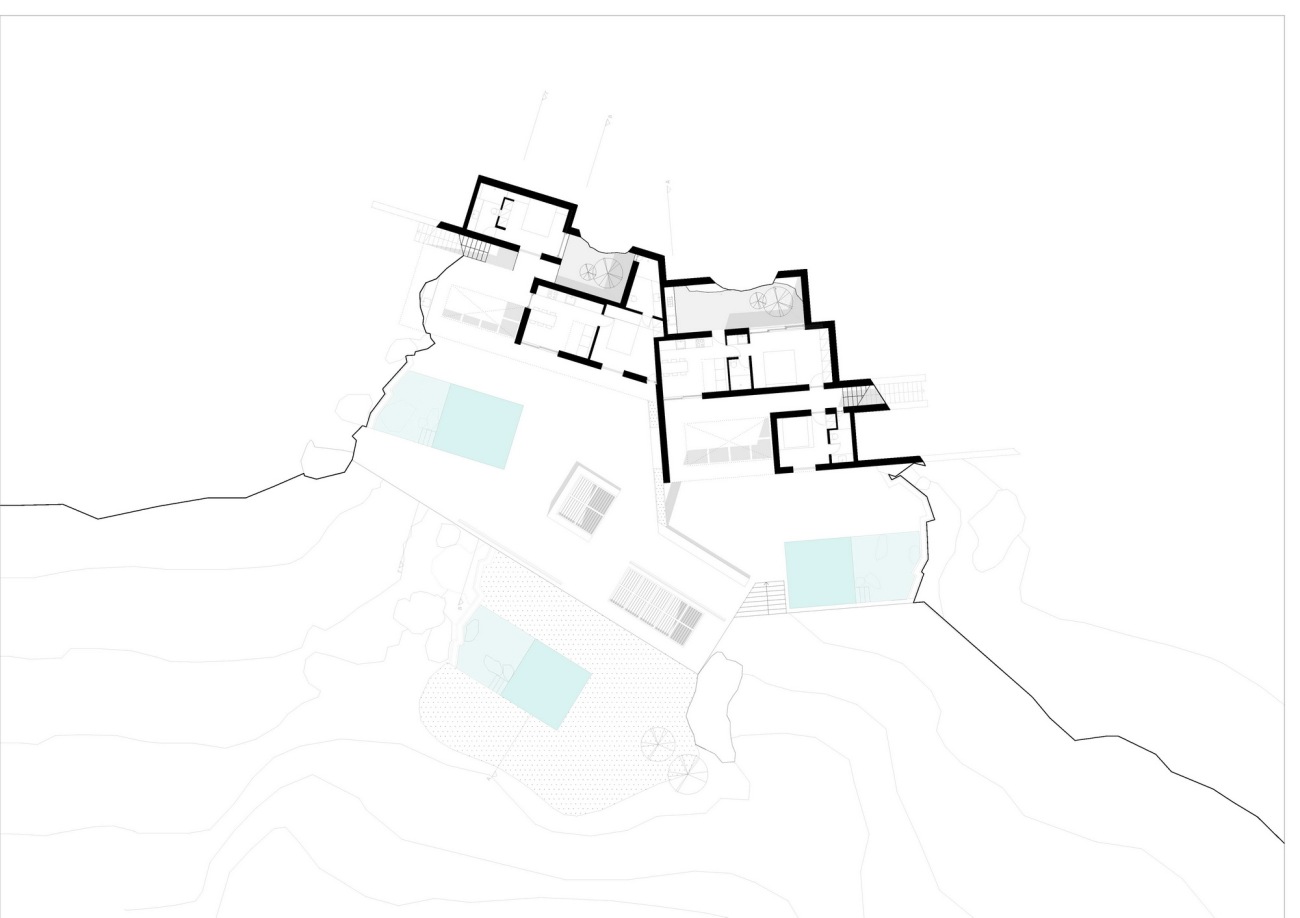

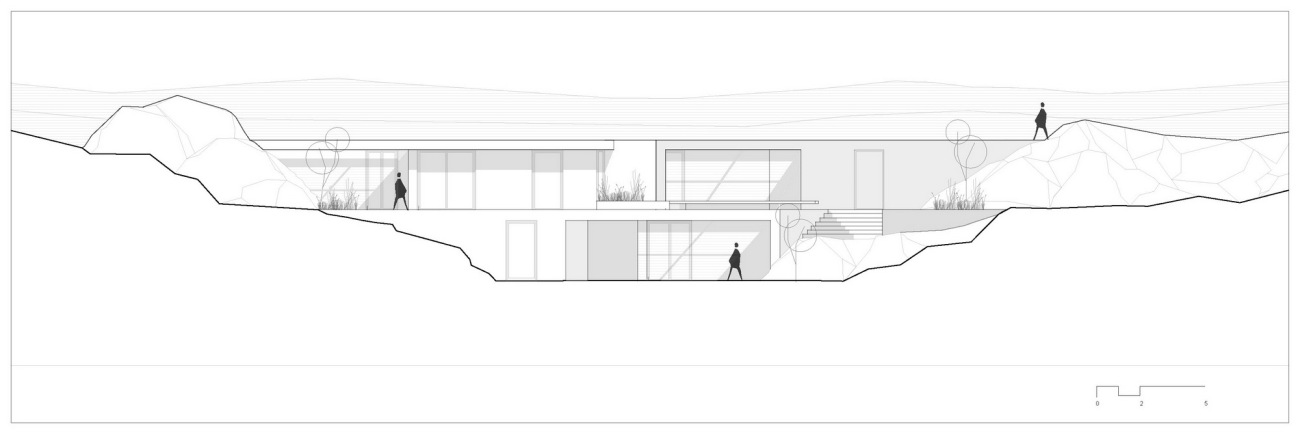

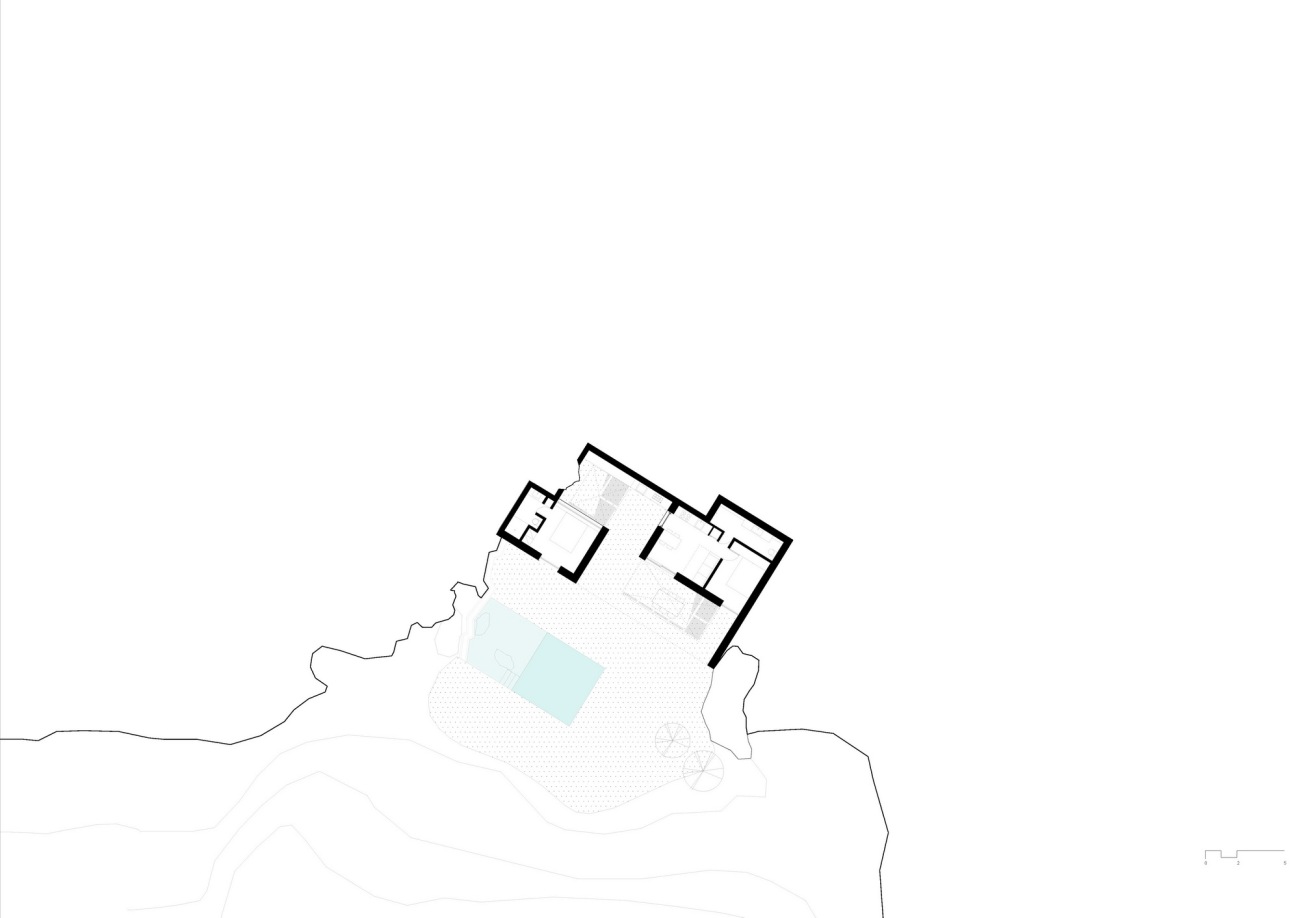

▽设计图
PROJECT INFO
Τitle: HOMA VAGIA
Types: Boutique hotel
Location: Vagia, Serifos Island , Cyclades
Plot: 5.500m²
Gross area: 180 m²
Design completion: 2020
Design phase : 5months
Construction completion: 2022
Construction time: 20months
Architectural design: Mold architects - Iliana Kerestetzi,
Design team: Iliana Kerestetzi, Konstantinos Vlachoulis, Maria Vretou
Stuctural design: Technodynamics
MEP design: Agapakisconsultants
Lighting design: IFI group
Photographer: Panagiotis Voumvakis
