西班牙Cartagena 罗马时期遗址上的保护层

项目本质上是一个保护结构，保护了位于西班牙卡塔赫纳Molinete公园考古遗址的罗马集会场所(温浴场、论坛和多姆斯)的遗迹。

The building is essentially a cover protecting the remains of a Roman assembly (thermal baths, forum and domus) in the archaeological site of Molinete Park in Cartagena, Spain.

这个覆盖物被整合成卡塔赫纳历史区域的另一块，它的主要建筑挑战是协调不同的建筑;从罗马时代，经过巴洛克风格到现在，几乎所有建筑风格都能在这附近看到，因此它必须成为多样化的城市条件之间的跨越元素，不论是在规模、材料和结构上，还是从密集的市中心到倾斜的公园都应该是一个良好的过渡。

This cover is integrated as another piece of the historic area of Cartagena whose main architectural challenge is to reconcile very different architectures; from the roman time, passing through baroque to nowadays, making all the interventions vibrate together in the neighborhood. It is a transitorial element between very diverse urban conditions: in size, material and structure; from the dense city centre to the sloping park.

▼场地原状 Before the construction

▼建造过程 Building Process

工作的主要目标是尊重现有的遗迹，采用长跨度结构，需要最少的支撑来固定装置。干预将所有的遗迹统一在一个空间里，使人们对整个遗址有一个连续的感知，同时结构产生了一个新的城市立面。

The primary goal of the work is to respect the existing remains, using a long-span structure, which requires the least amount of support to hold the cover. The intervention unifies all the remains in a single space, allowing a continuous perception of the whole site. The cover generates a new urban façade in the partition wall.

该项目还追求一种轻盈感，为了让光线进入室内，内层采用模块化的多壁半透明聚碳酸酯板波纹系统。外层由穿孔钢板构成，限定了光线的入射率，并提供了统一的外观。

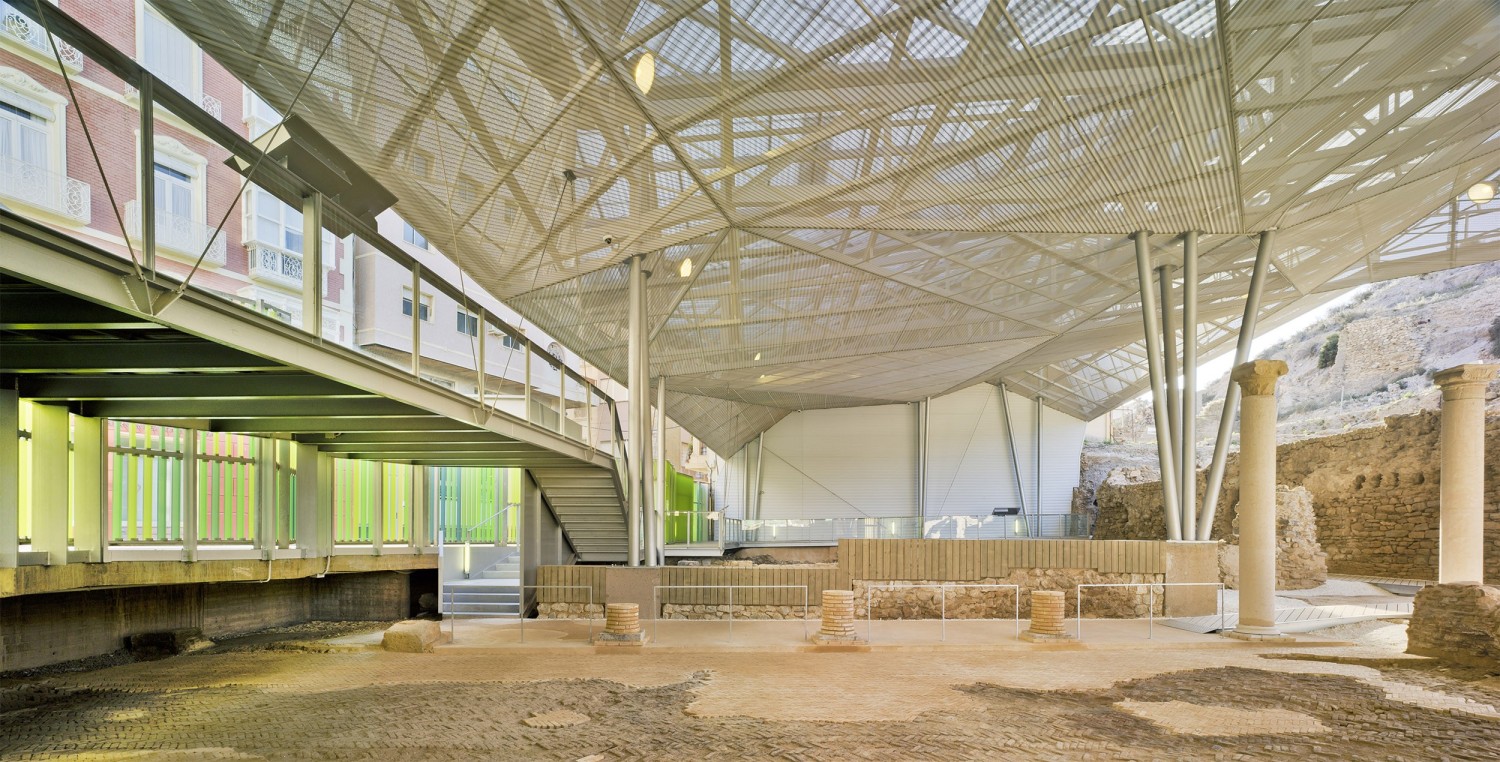

The project also pursues a sense of lightness and is conceived as an element that allows light inside. The inner layer is built with a modular system of corrugated multiwall translucent polycarbonate sheets. The outer layer, constructed with perforated steel plates, qualifies the incidence of light and gives a uniform exterior appearance.

除了钢结构外，该建筑还包括一条与街道平行的高架人行道，像所有已建成的游览线路一样，残疾人可以进入。这是一个悬挂在钢梁上的非常轻的结构。它被设计为一个玻璃盒子，具有多面、部分可见的几何形状，构成了街道立面，并允许从三米高的地方看到罗马遗址的整体视野。

Besides the steel structure, the building set includes an elevated walkway parallel to the street, that is accessible – like all the built tours - for disabled visitors. It is a very light structure hanging from steel beams. Conceived as a glass box, with a faceted, partially visible geometry, it makes up the street façade and allows a view of the ruins from three meters high setting out an overall vision of the roman remains.

▼项目图纸 Drawings

项目名称：Deck over a roman site in Cartagena, Spain

设计单位：Temperaturas Extremas Arquitectos SLP

项目位置：西班牙 PARQUE DEL MONLINETE Cartagena

合作设计师：Atxu Amann Alcocer, Andrés Cánovas Alcaraz, Nicolás Maruri González de Mendoza

设计周期：2008年10月至2009年7月

建造周期：2010年9月至2011年11月

占地面积：2036m2

建筑面积：1847m2

设计团队：Nacho Álvarez-Monteserín, Javier Gutiérrez, Ana López, Pablo Sigüenza, José López

结构顾问：TMR

项目客户：Cartegena Pierto de Culturas

项目预算：977.719€

摄影师：David Frutos

Project: Deck over a roman site in Cartagena, Spain.

Situation: PARQUE DEL MONLINETE CARTAGENA MURCIA

Project dates: October2008-July2009

Architects Partner: Atxu Amann Alcocer, Andrés Cánovas Alcaraz, Nicolás Maruri González de Mendoza

Site area: 2036m2

Built area: 1847m2

Construction: September2010-Novermber2011

Team: Nacho Álvarez-Monteserín, Javier Gutiérrez, Ana López, Pablo Sigüenza, José López

Construction: TMR

Client: Cartegena Pierto de Culturas

Budget: 977.719€

Photographer: David Frutos
