公司: | HG-Architecture | 类型: | 景观 |
---|---|---|---|
地区: | 韩国 | 标签: | 公共设施 | 交通空间 |
在城市空间日益紧缺的背景下,首尔市利用立交桥下部的空间,为当地社区创造了一个公共空间。这是一个试验项目,通过把天桥的阴暗荒凉的底层改造成充满活力的环境,改善了该地区的生活环境和城市景观。
The city of Seoul is in the process of creating a public space for local community to use in the area by utilizing the lower space of the overpass, which is relatively unusable in cities with insufficient space. This project is a pilot project, and it is a project to improve the living environment and urban landscape of the region by changing the underpass, which was shadowy and desolate, a lively and vibrant environment.

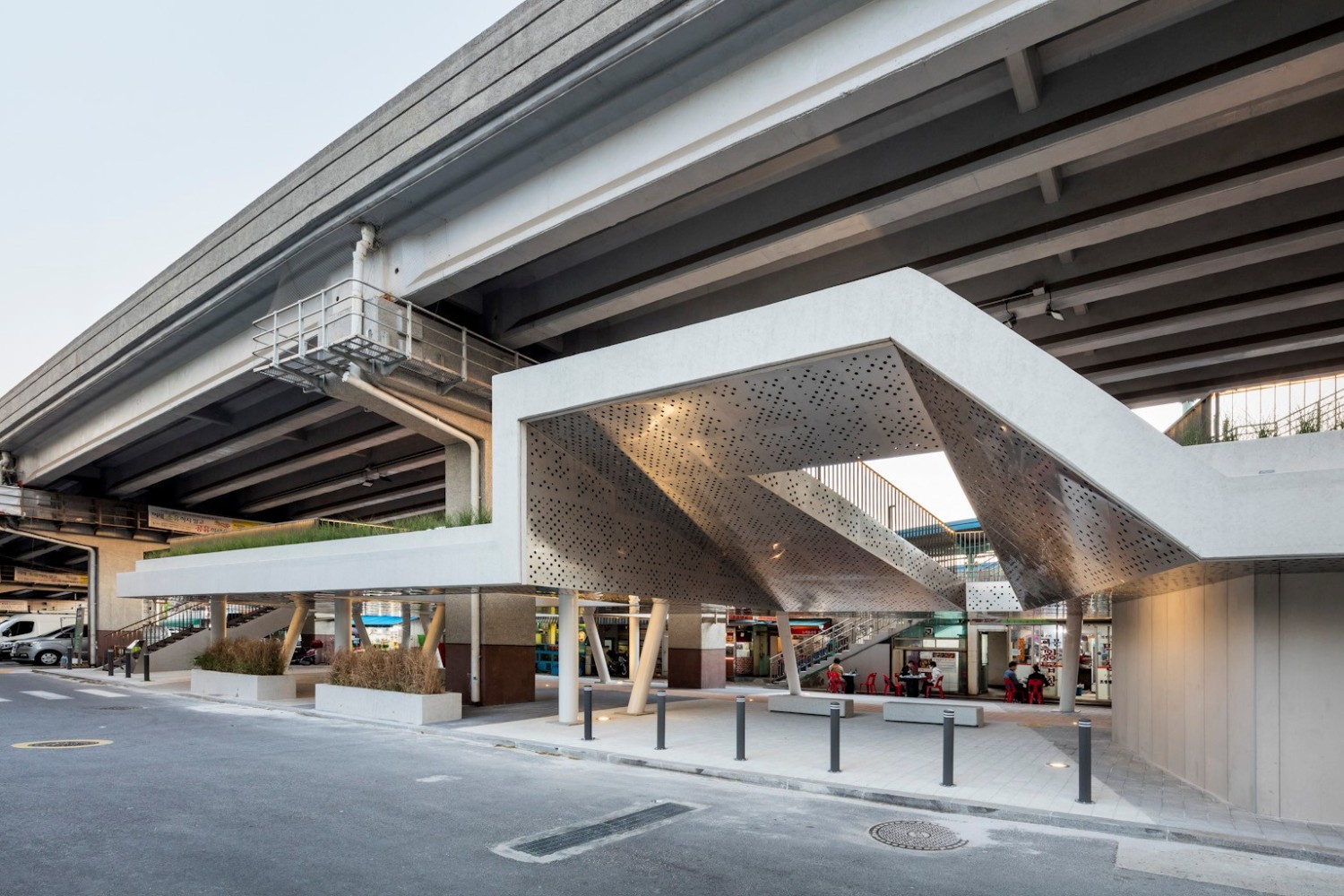

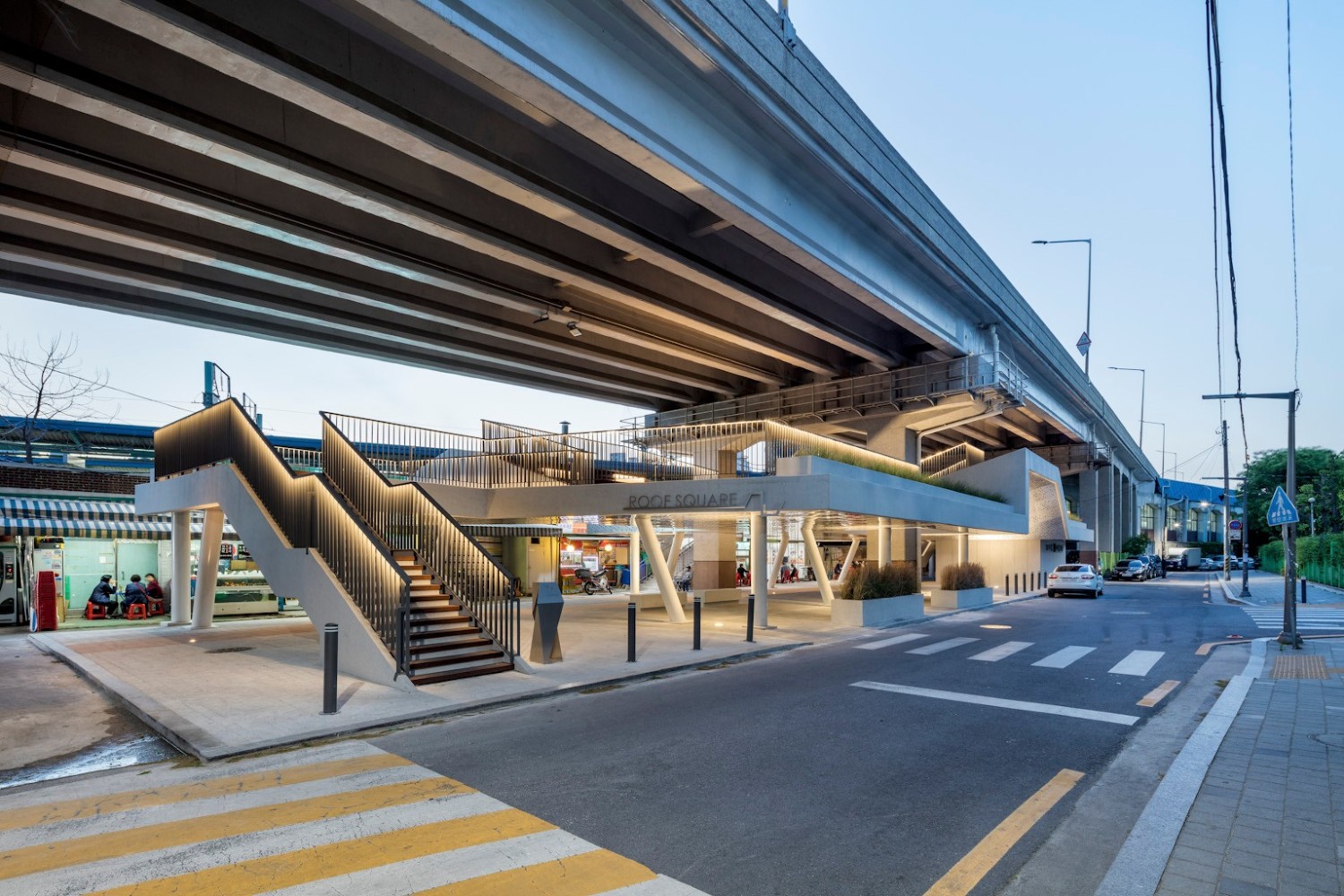

在场地上,Imun铁路立交桥和公路立交桥在一个大的基础设施上重叠形成了一个立交桥下空间。这座城市及其周围的街道被天桥分隔开来,两个天桥之间也被分隔开,空间在这静止,仿佛时间也在停止。该项目的目标是通过使用“屋顶”这一建筑元素,将断裂区周围连接起来,成为当地社区的中心,作为各种文体活动的社区空间。
The site, the lower space of Imun-overpass is a lower space of a large infrastructure where railway overpass and road overpass overlap. The city's scale and surrounding streets were cut off by the overpass, and the destination between them was isolated and left as a static space as if time had stopped. This project aimed to become a center of local community as a community space for various cultural and sports activities by connecting the disconnected periphery by using an architectural element, 'The Roof', on such an unused place in the city.

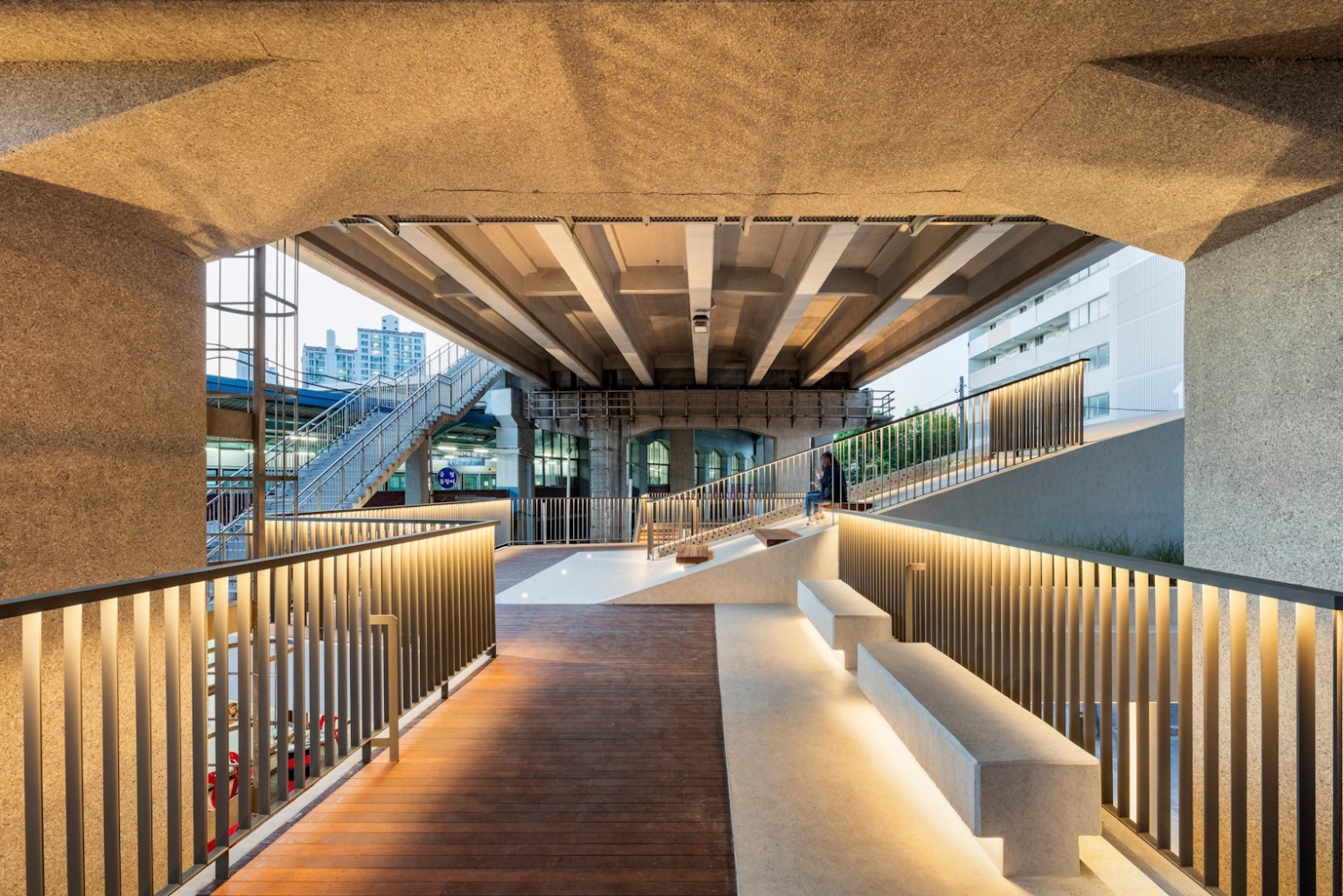

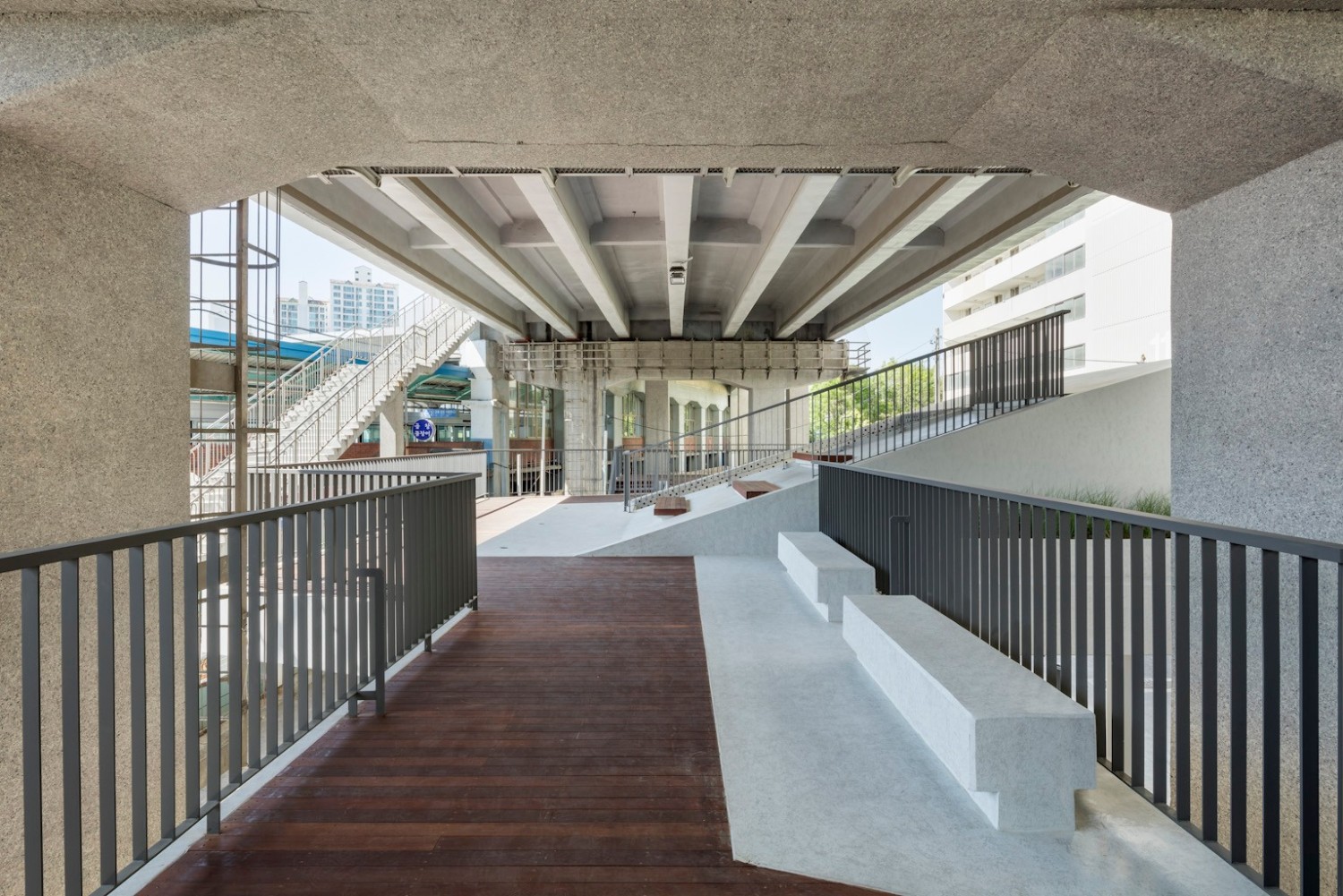

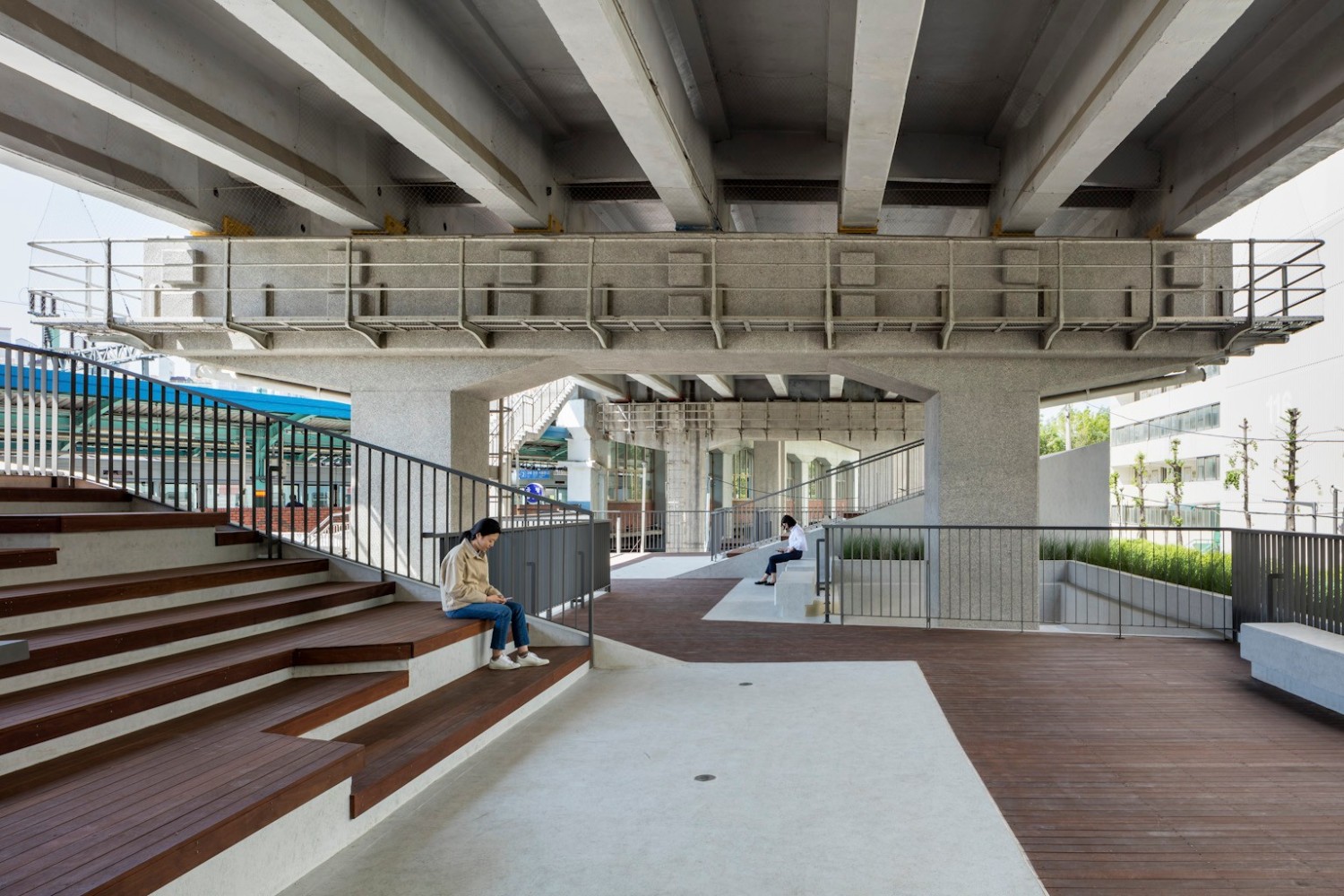

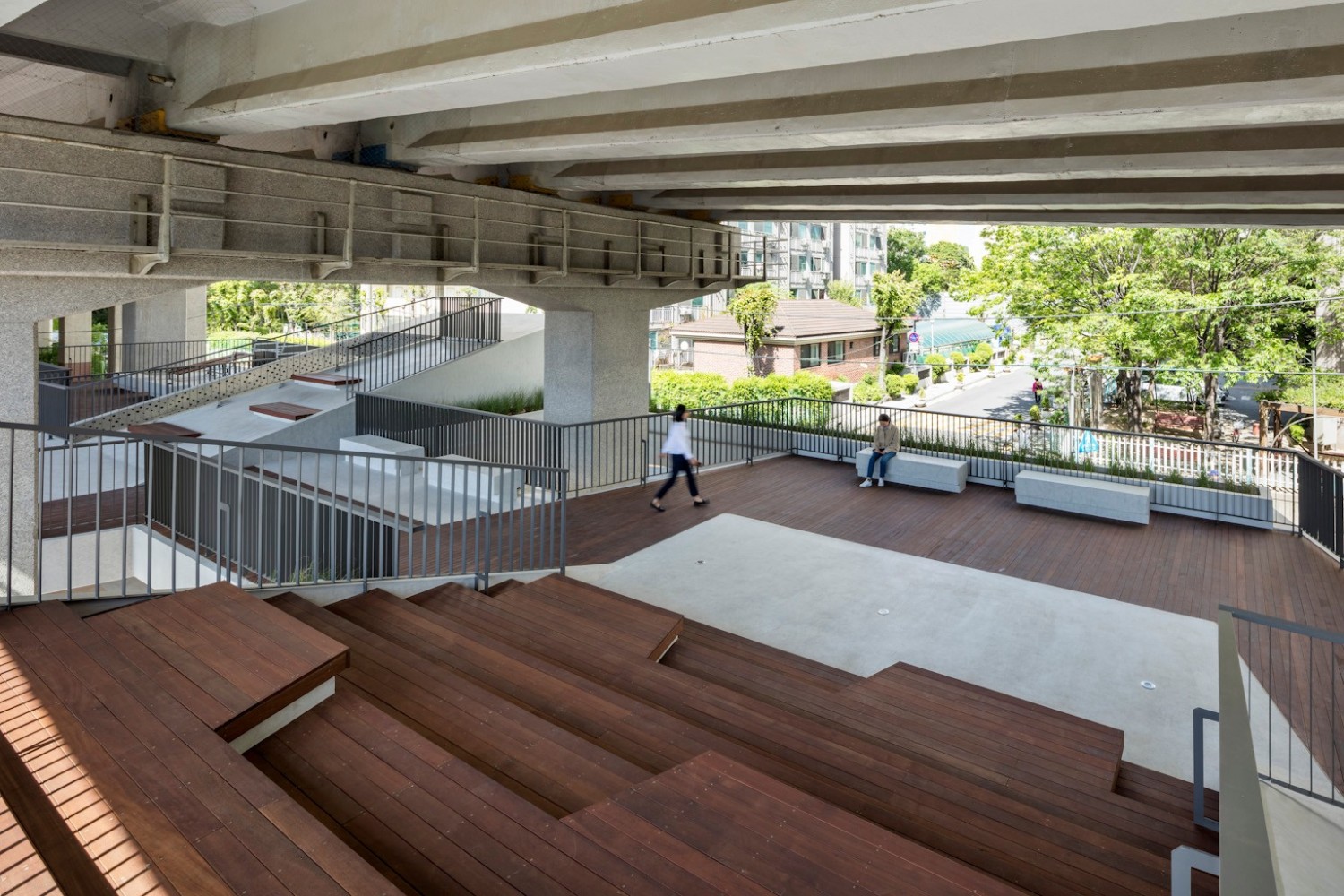

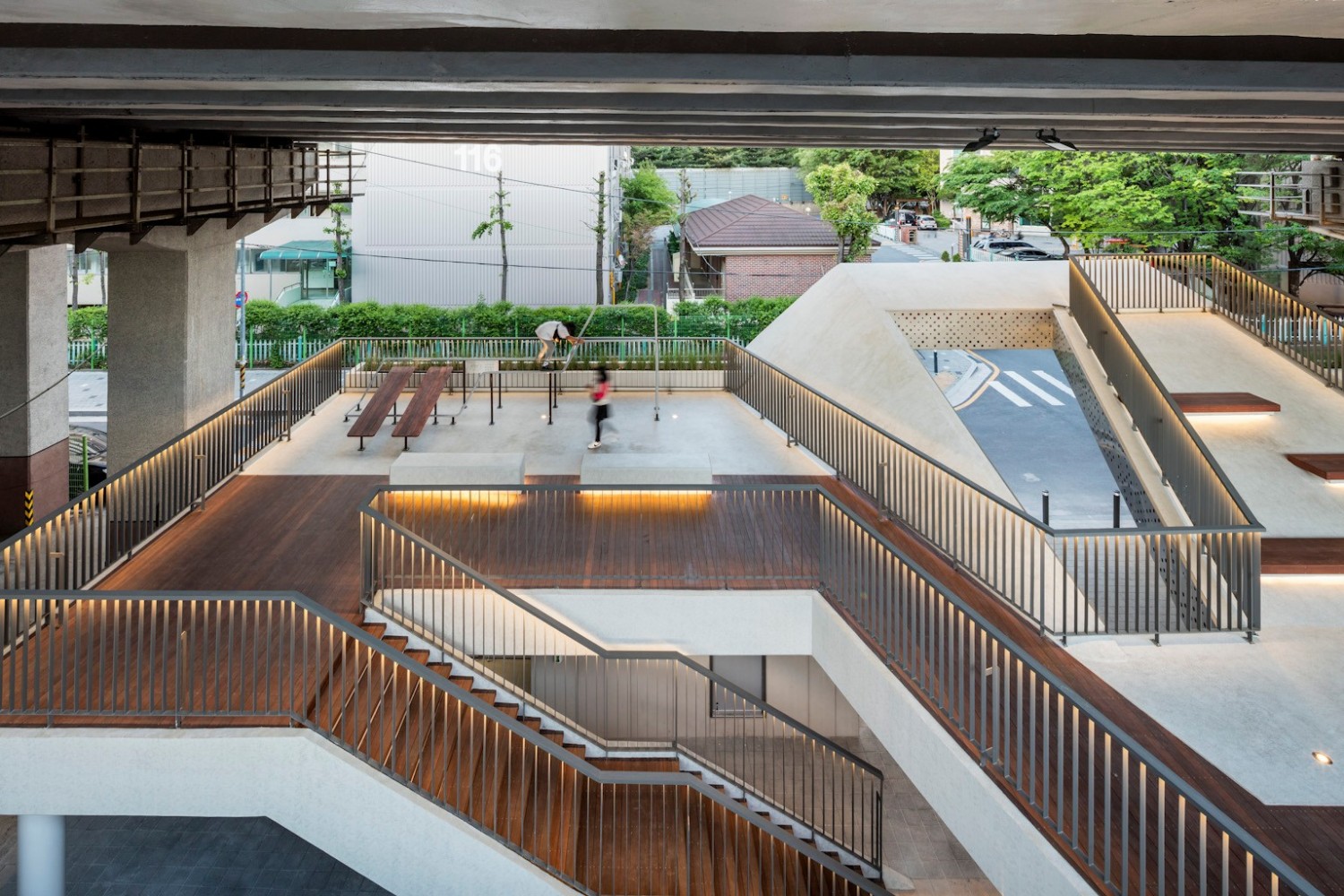

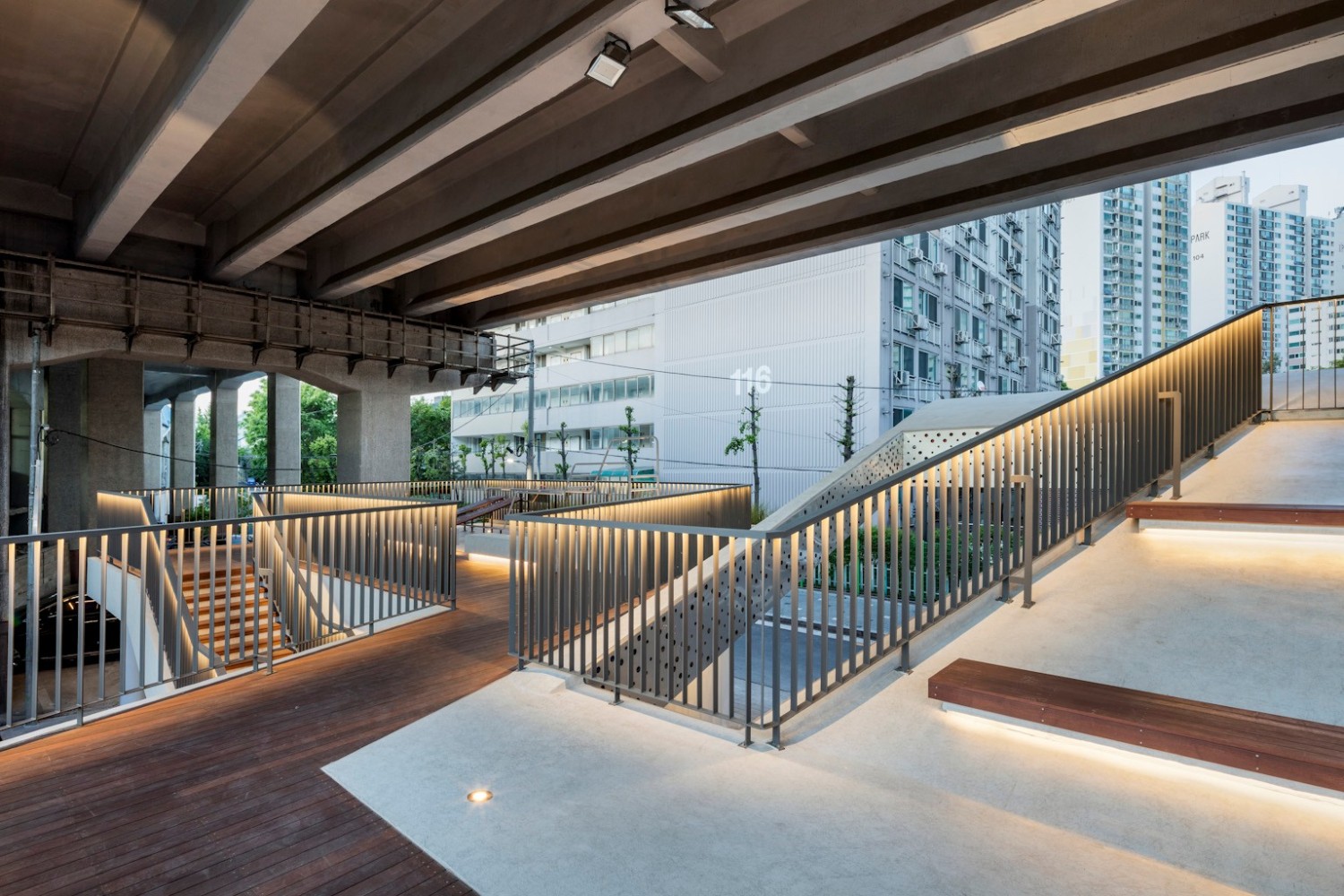

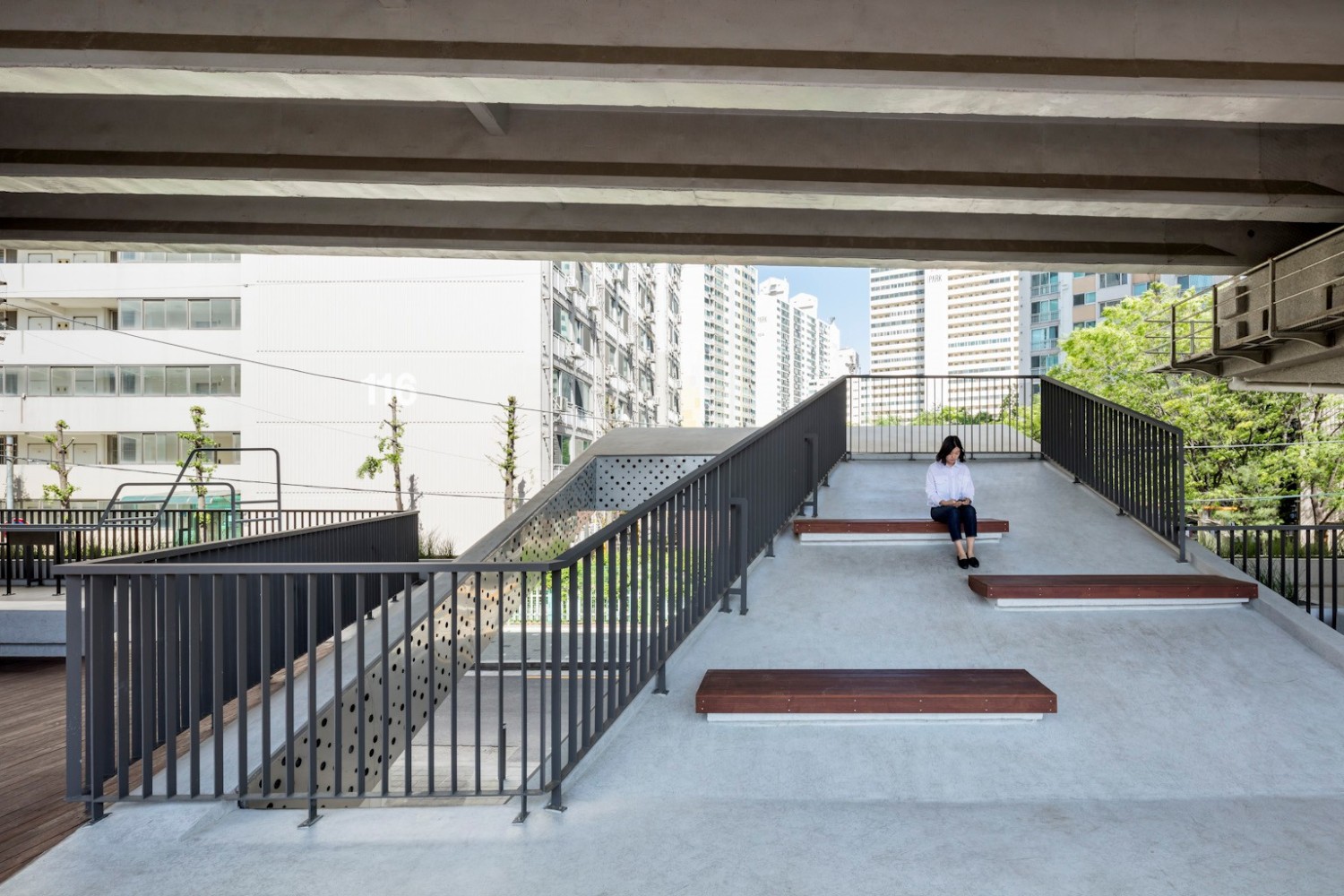

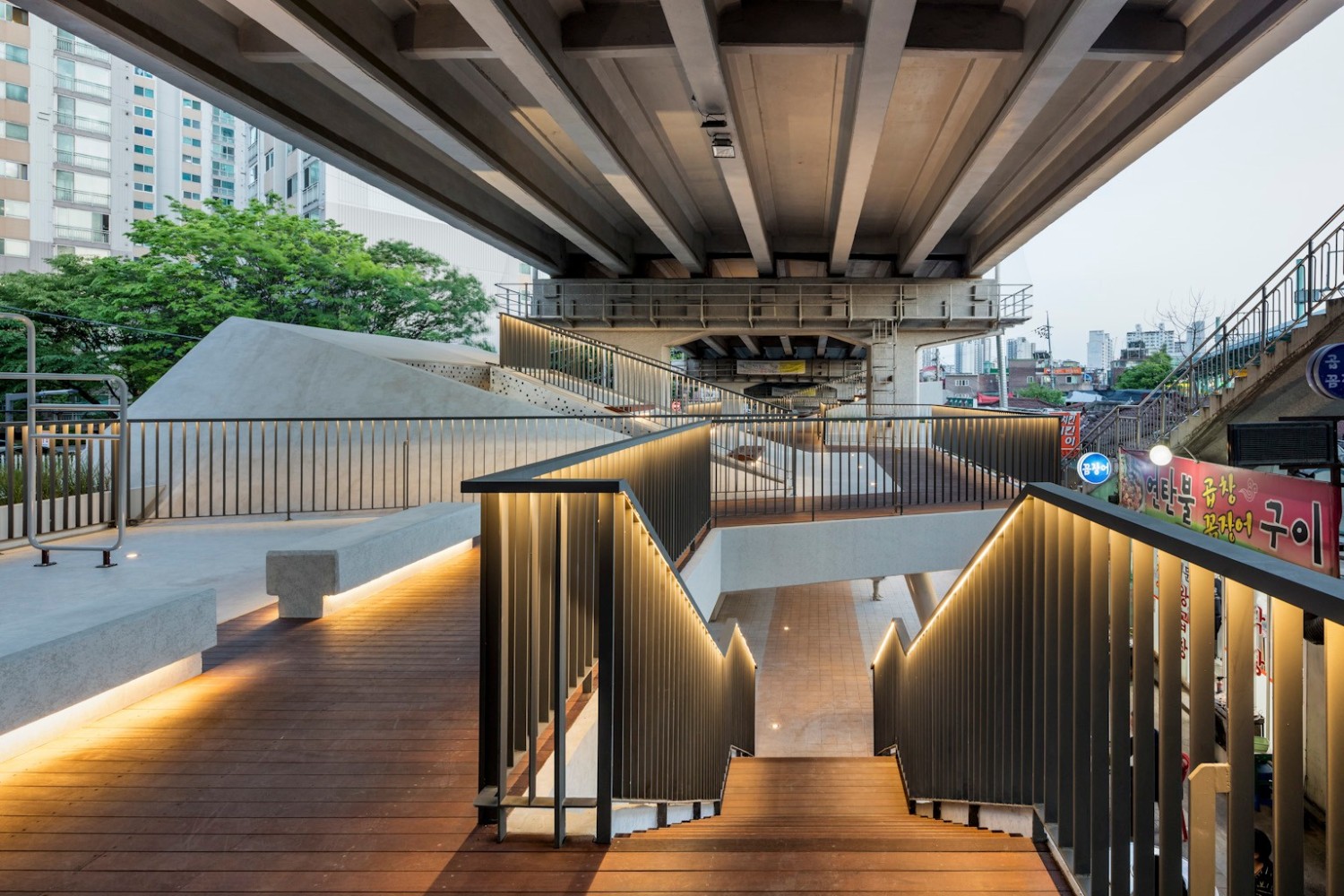

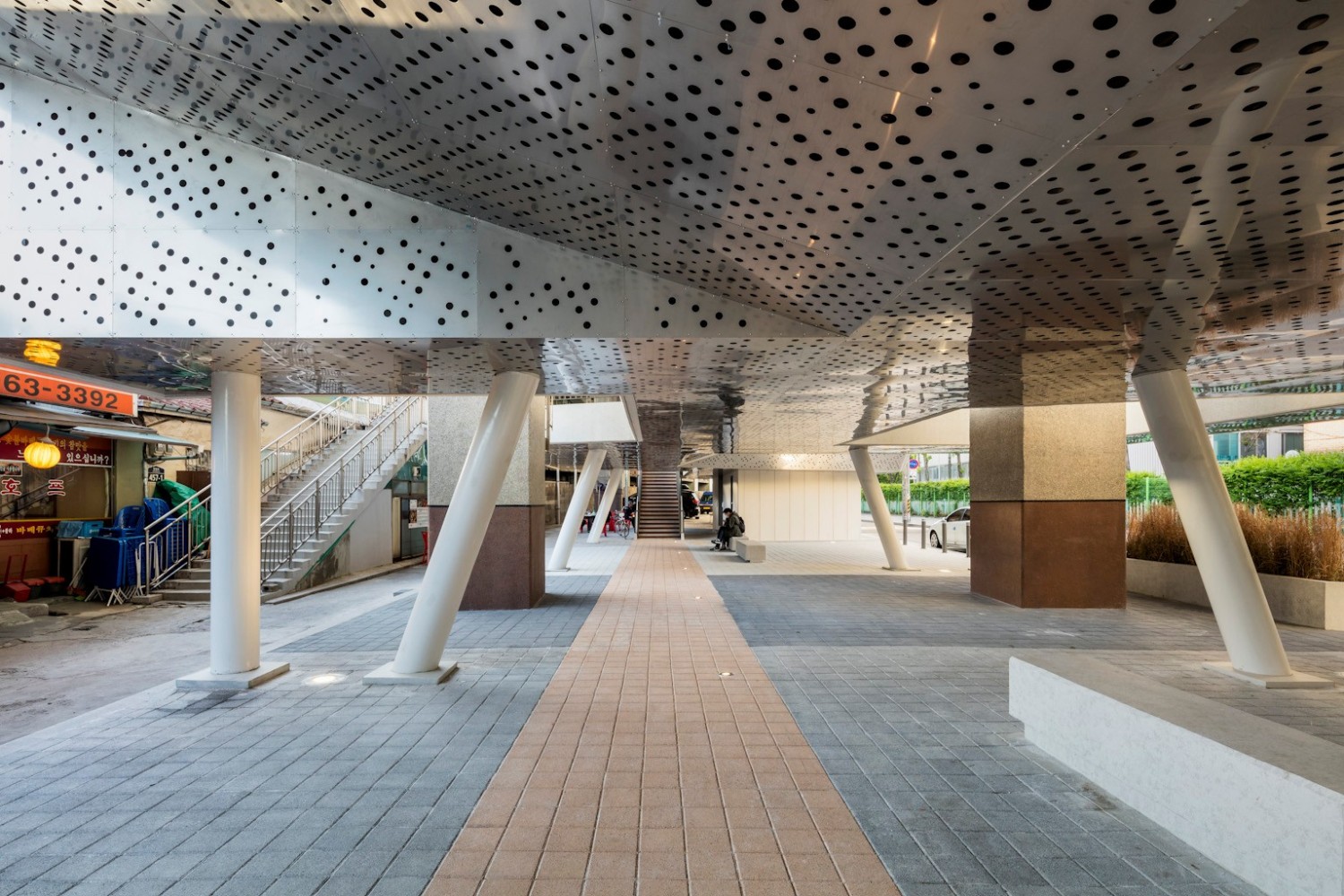

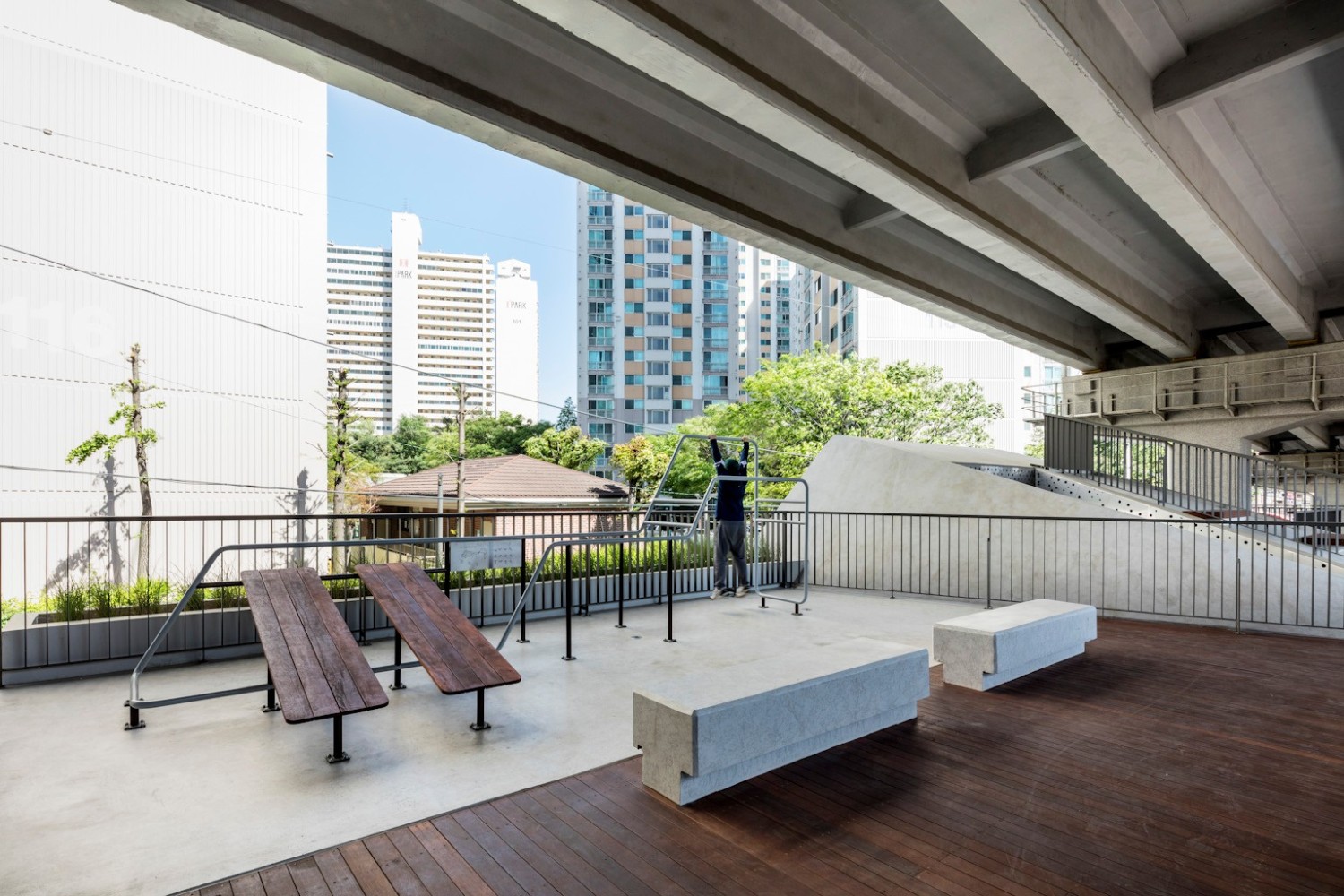

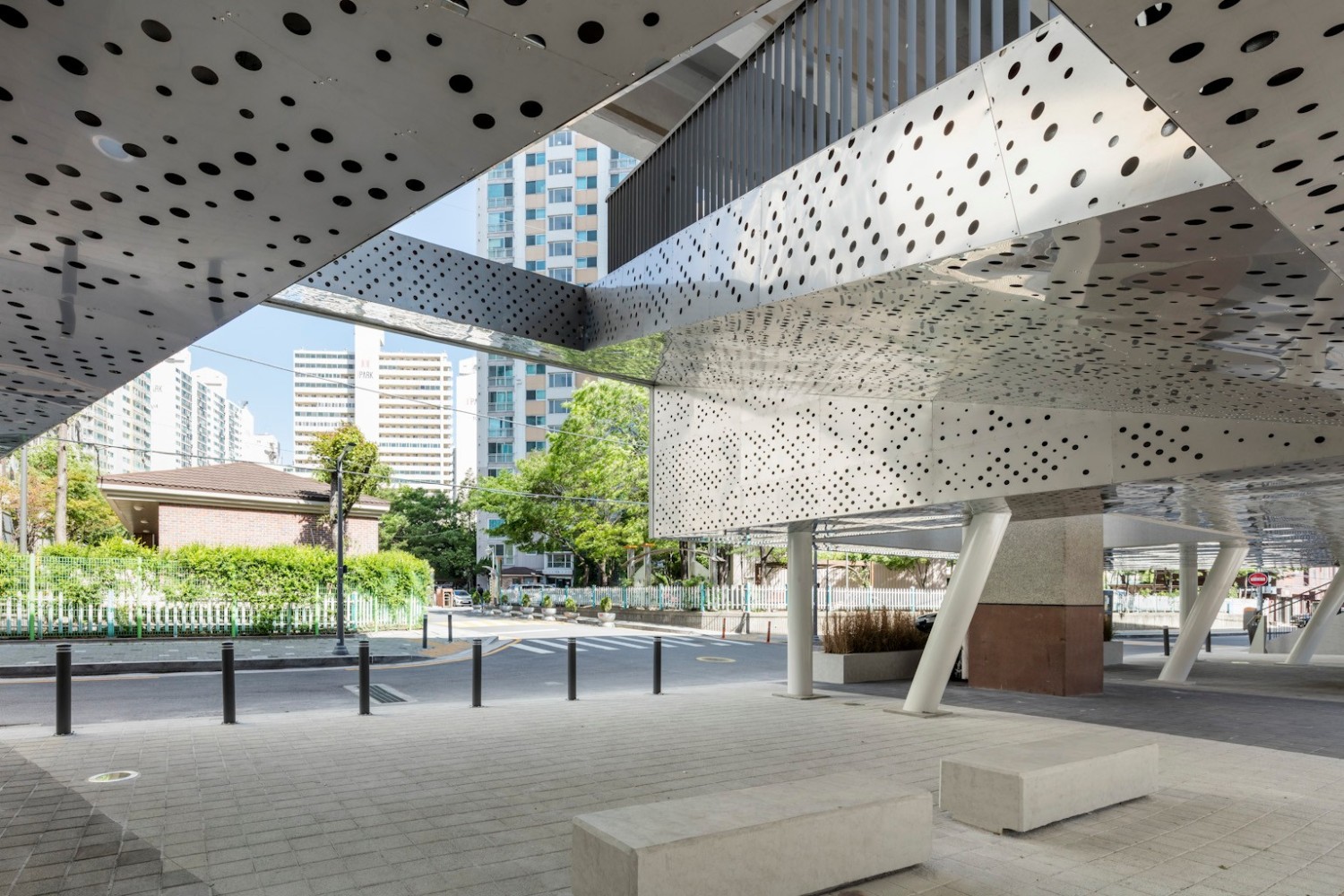

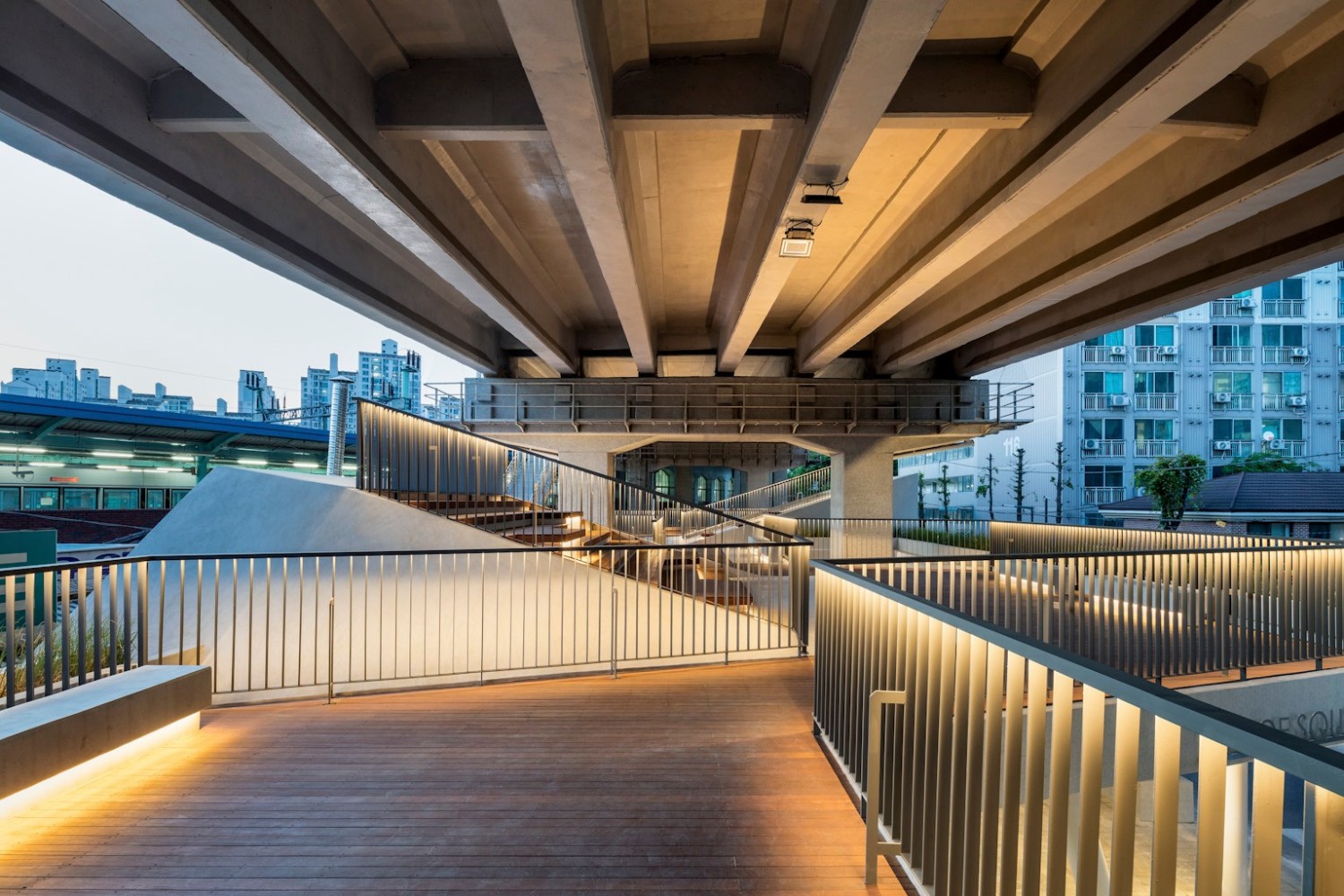

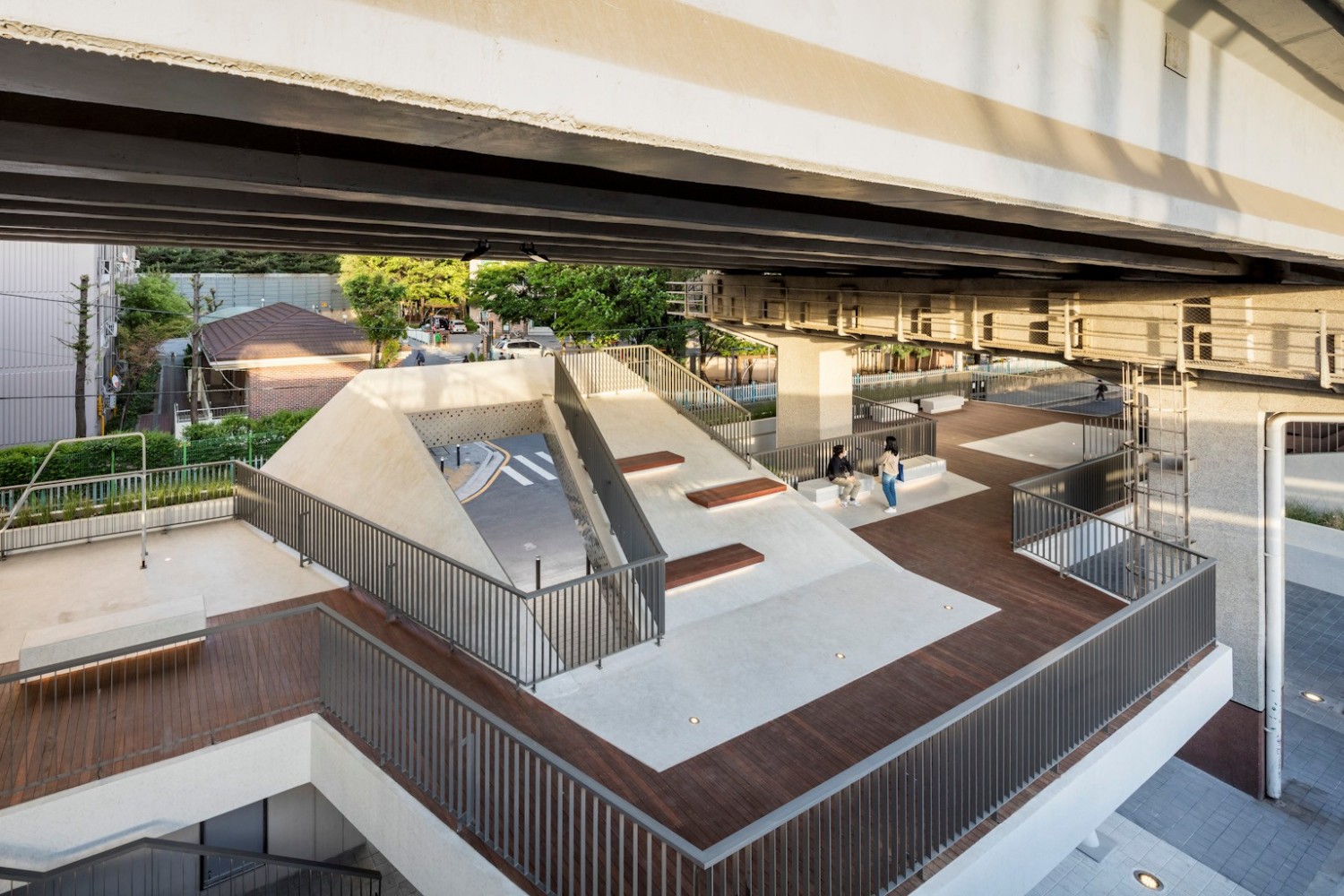

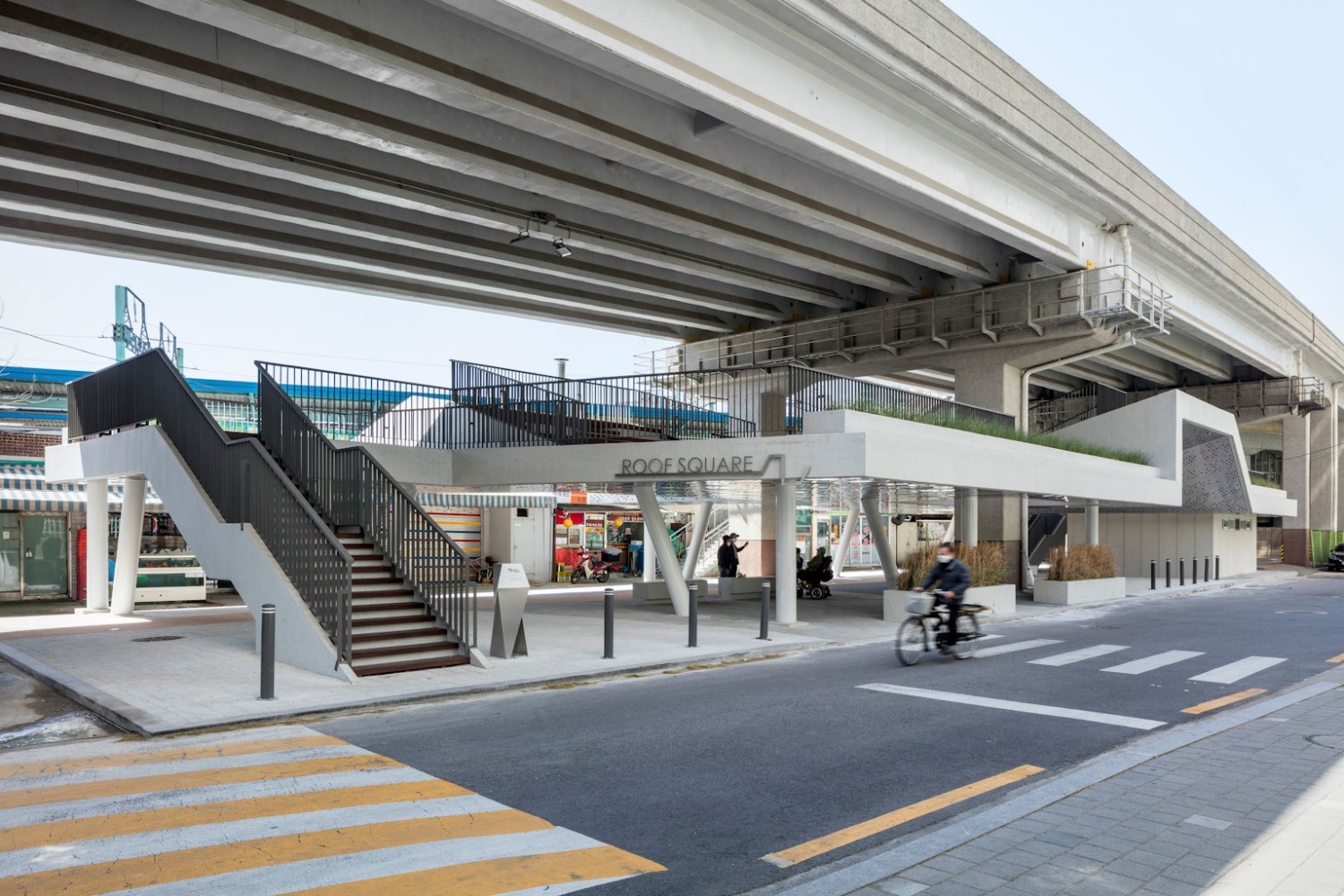

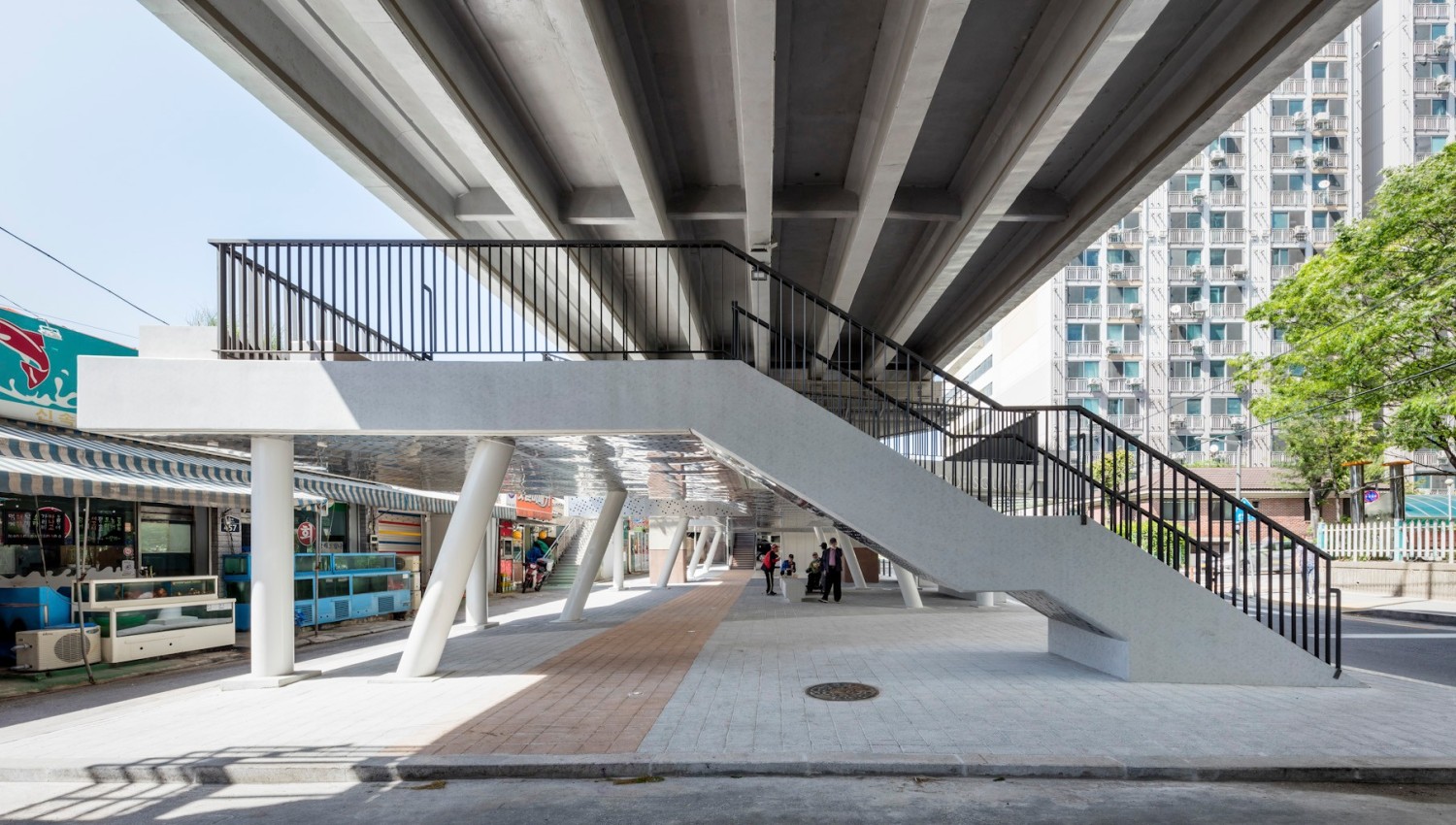

“屋顶广场”是一个中线空间,它由上下两部分组成,利用屋顶来创造一个新的公共空间。上层空间在东西方交错开放,被高架路隔开,而下层空间则把街区拉进场地,把场地延伸到街区。顶部为文化活动空间、休闲空间、简易运动空间。白天是当地居民的避难所,晚上则是附近餐馆和小贩的露天露台咖啡馆,这里成了当地居民日常生活的一个空间。

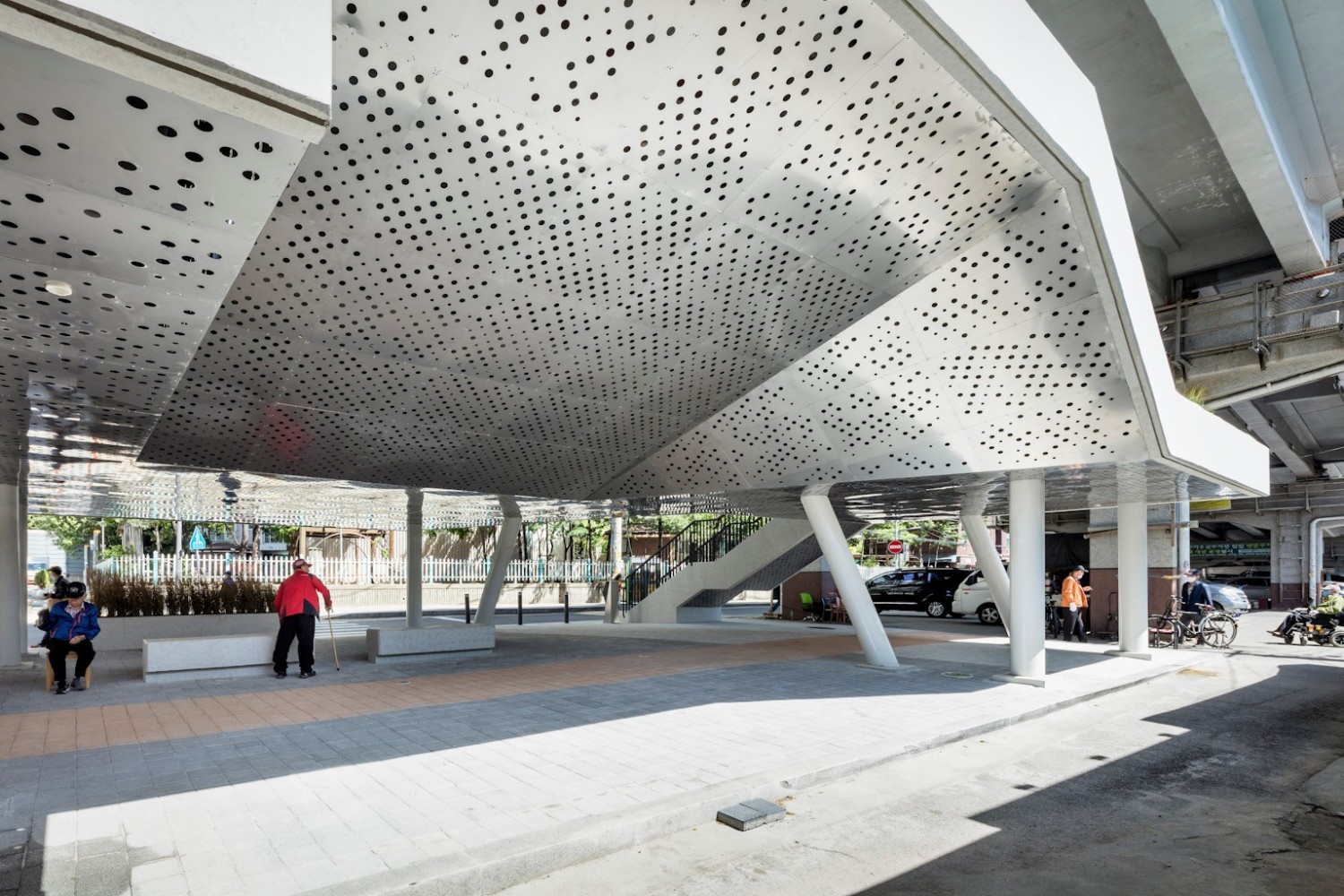

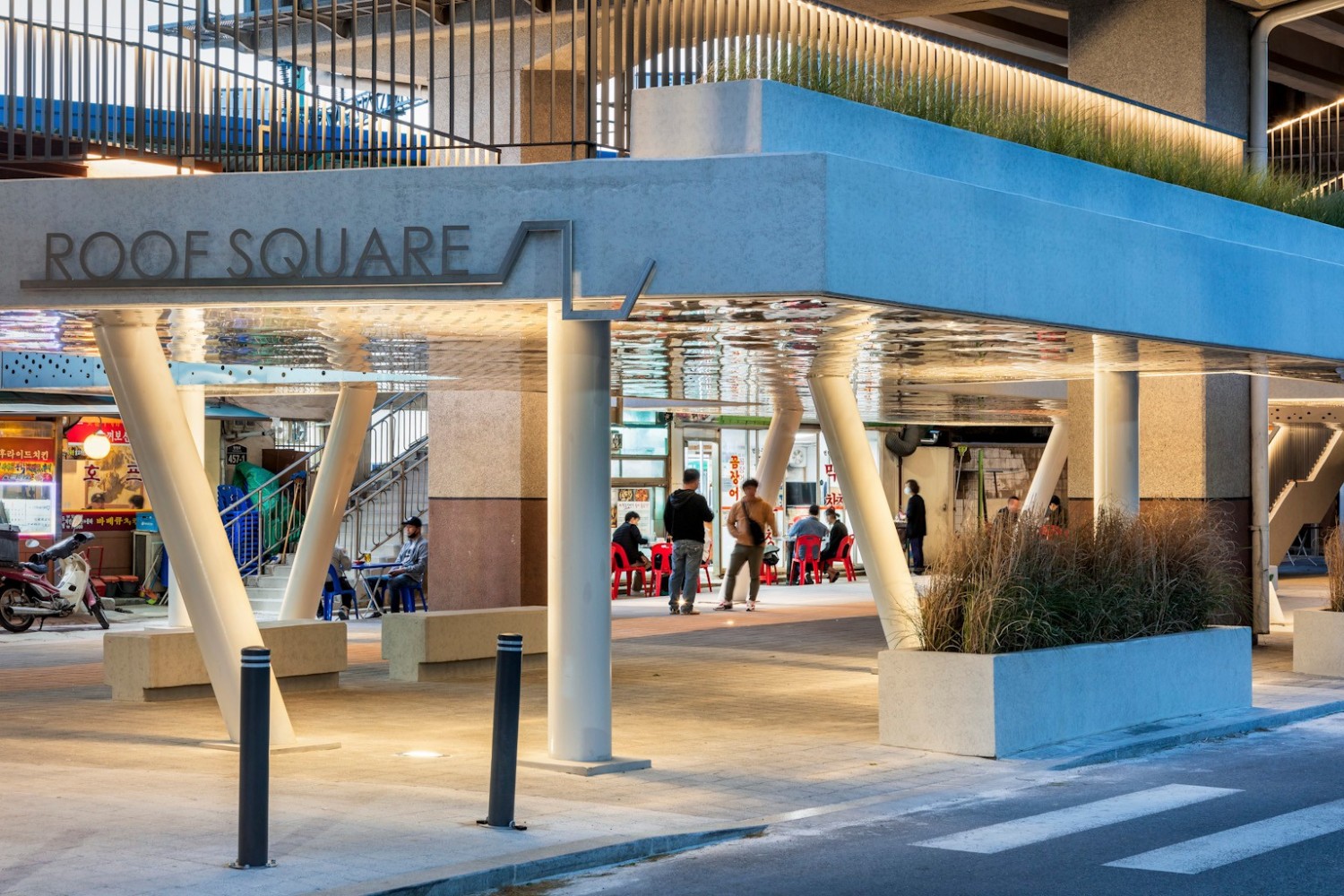

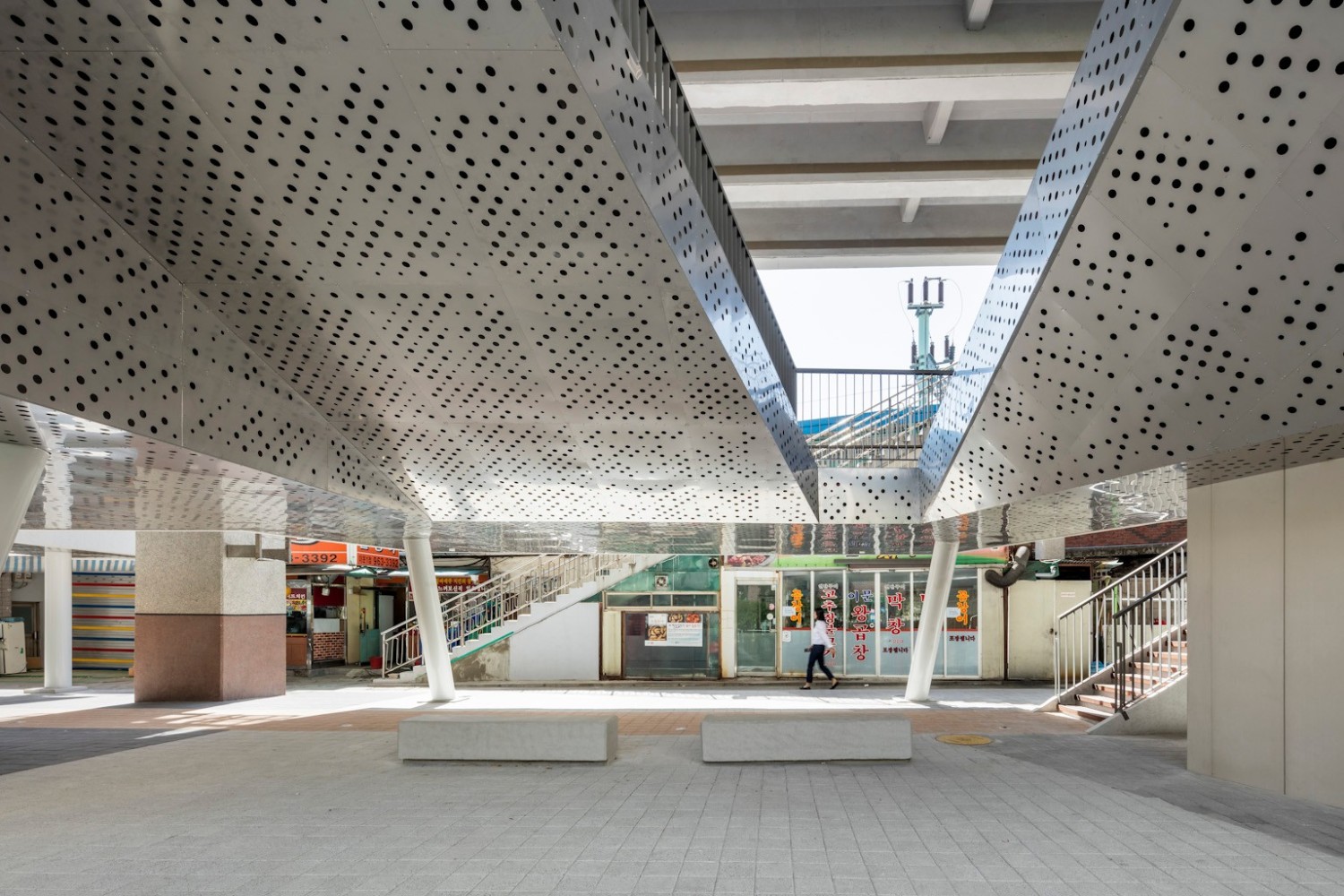

‘Roof Square’ is a Mid-Line space made in the upper and lower parts, creating a new public space by usinga roof. The upper space alternately opens in the east-west direction, which is cut off by an elevated road, and the lower space pulls the neighborhood into the site and expands the site into the neighborhood. On the top of the roof is a space for cultural events, relaxation, and a space for simple exercise. The lower part of the roof is a shelter for local people during the day and an outdoor terrace café for nearby restaurants and vendors at night, and it becomes a courtyard where locals' daily lives change over time.

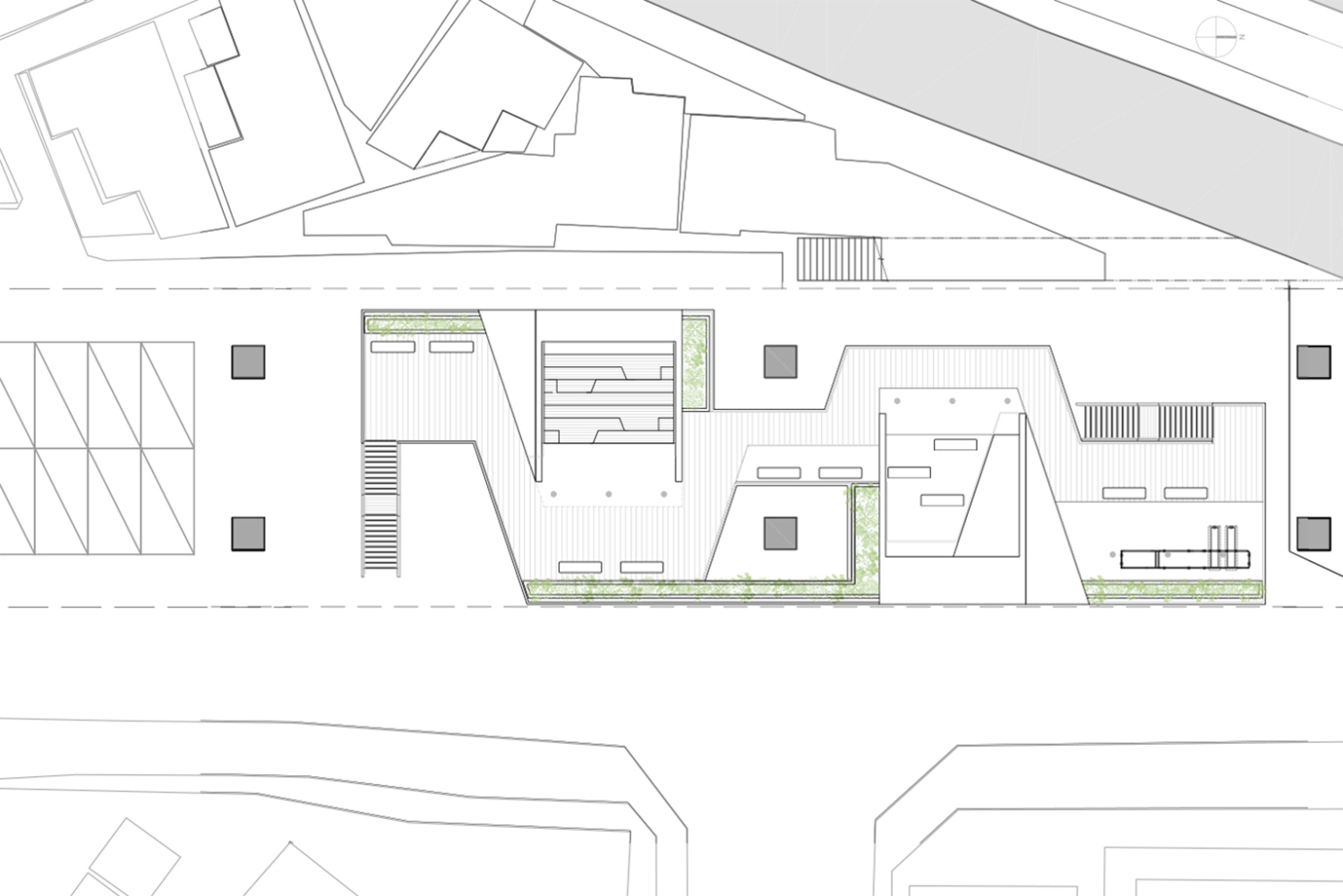

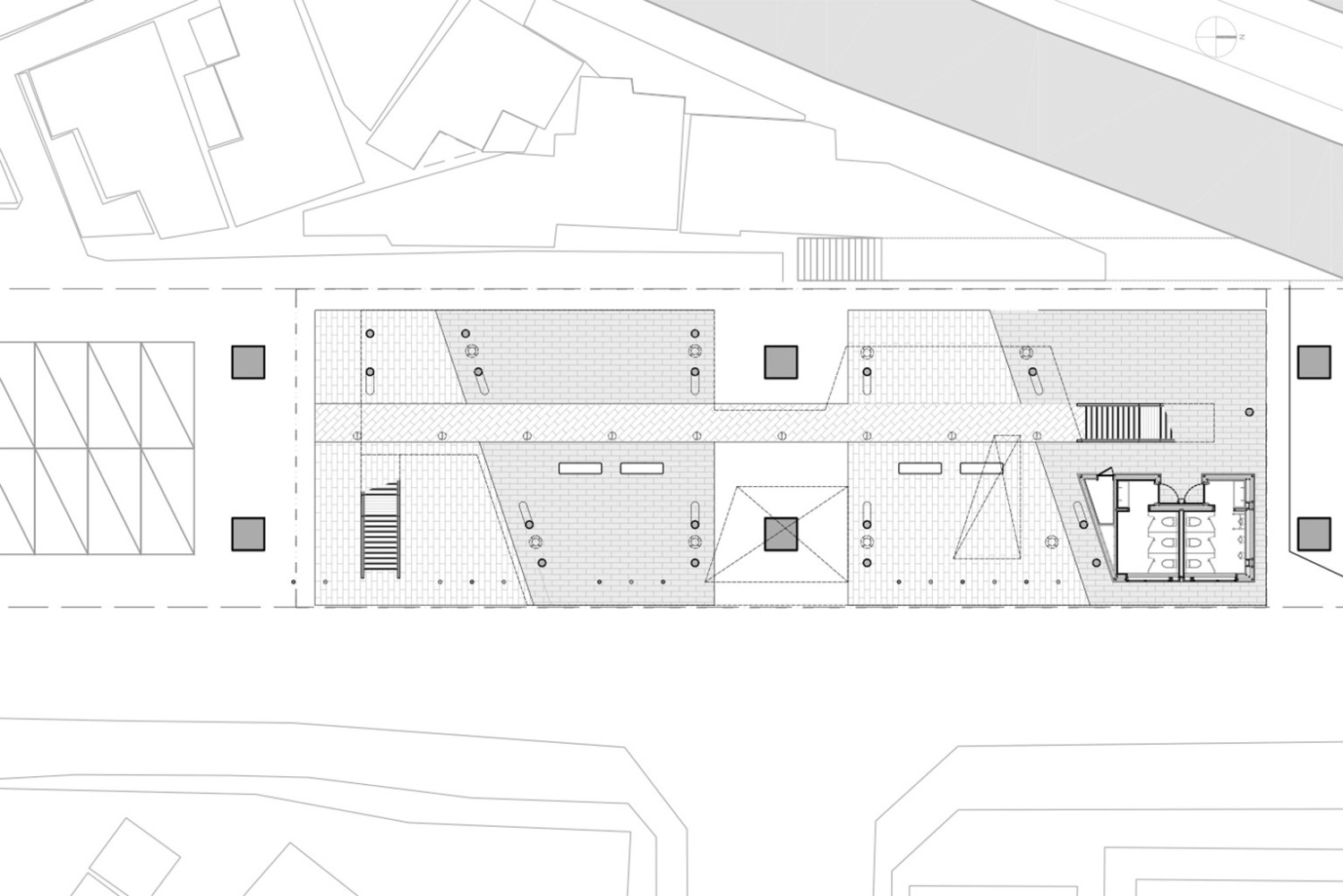

▼项目一层平面图 1st Gound Plan
▼项目二层平面图 2nd Gound Plan

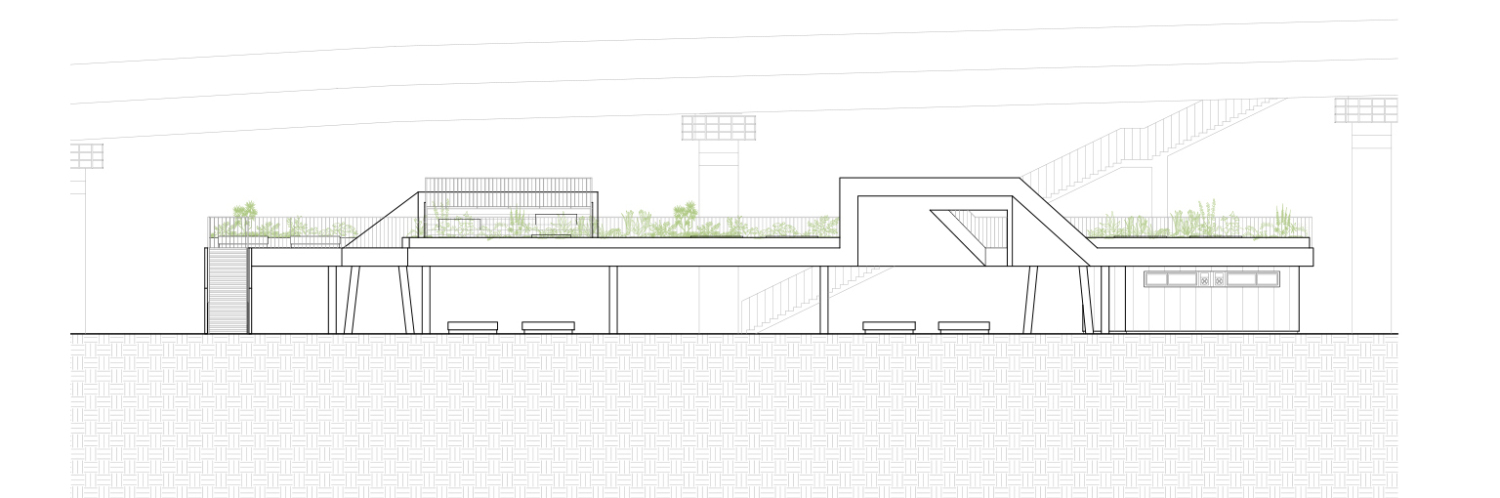

▼项目立面图 Elevation

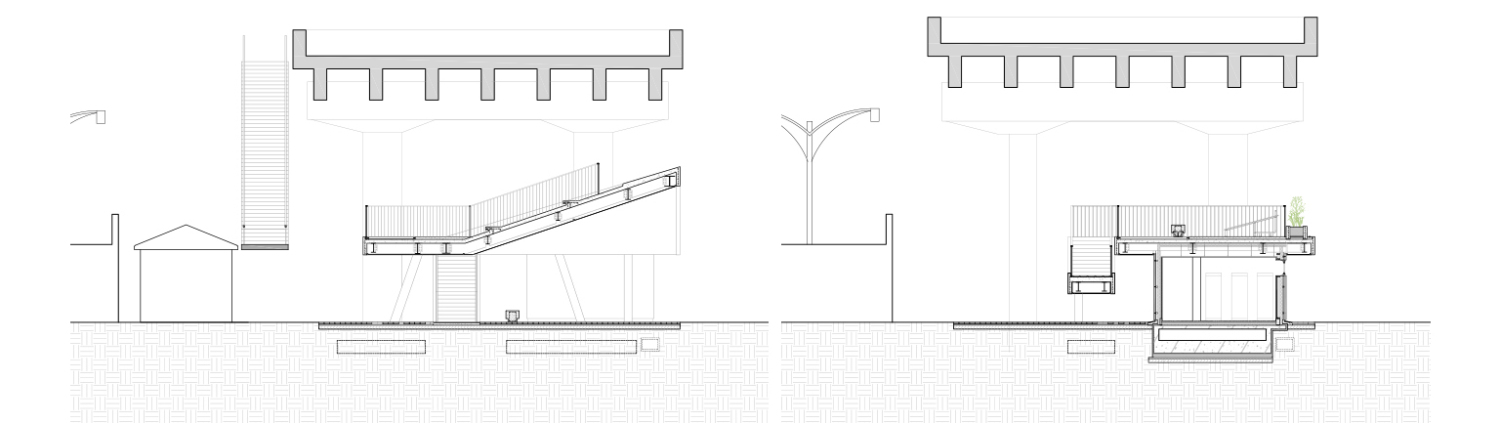

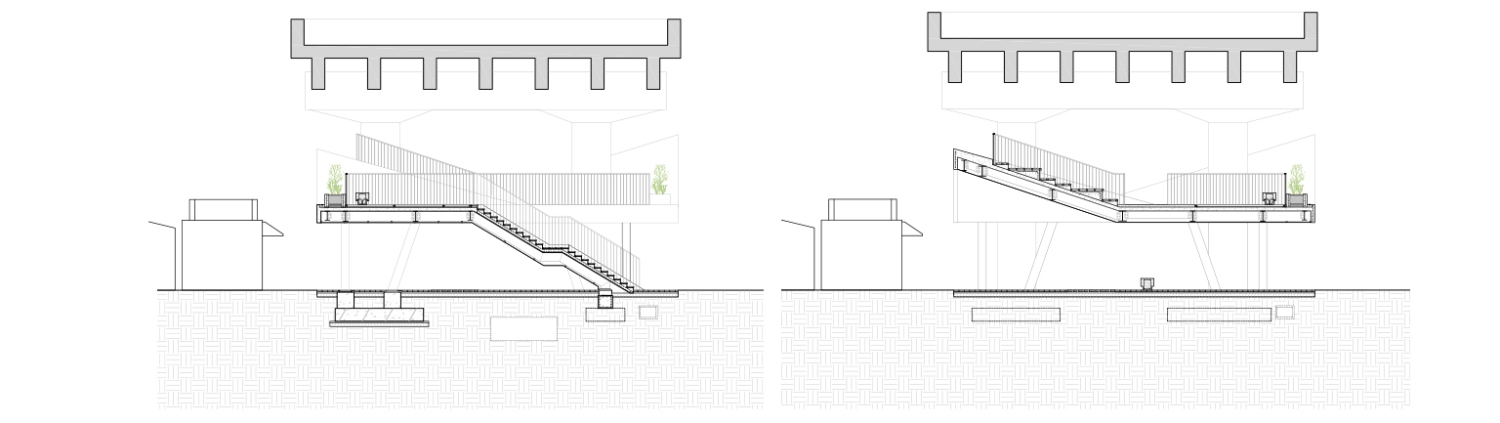

▼项目剖面图 Section
▼项目剖面图 Section
项目名称:Roof Square
设计单位:HG-Architecture
网址:https://hg-architecture.com
项目位置:韩国 首尔 东大门区 文门洞184-85
竣工年份:2020
建筑面积(平方米):425m²
其他参加者:Hyoung-gul Kook, Min-ho Lee, Bo-kyung Kim
图片来源:© Kyungsub Shin
Project name: Roof Square
Company name: HG-Architecture
Website: https://hg-architecture.com
Project location:I mun-dong 184-85, Dongdaemun-gu, Seoul, Republic of Korea
Completion Year: 2020
Building area (m²): 425m²
Other participants: Hyoung-gul Kook, Min-ho Lee, Bo-kyung Kim
Photo credits: © Kyungsub Shin
