公司: | MASS OPERATIONS | 类型: | 建筑 |
---|---|---|---|
地区: | 中国 | 标签: | 办公空间 |
横向 vs 纵向

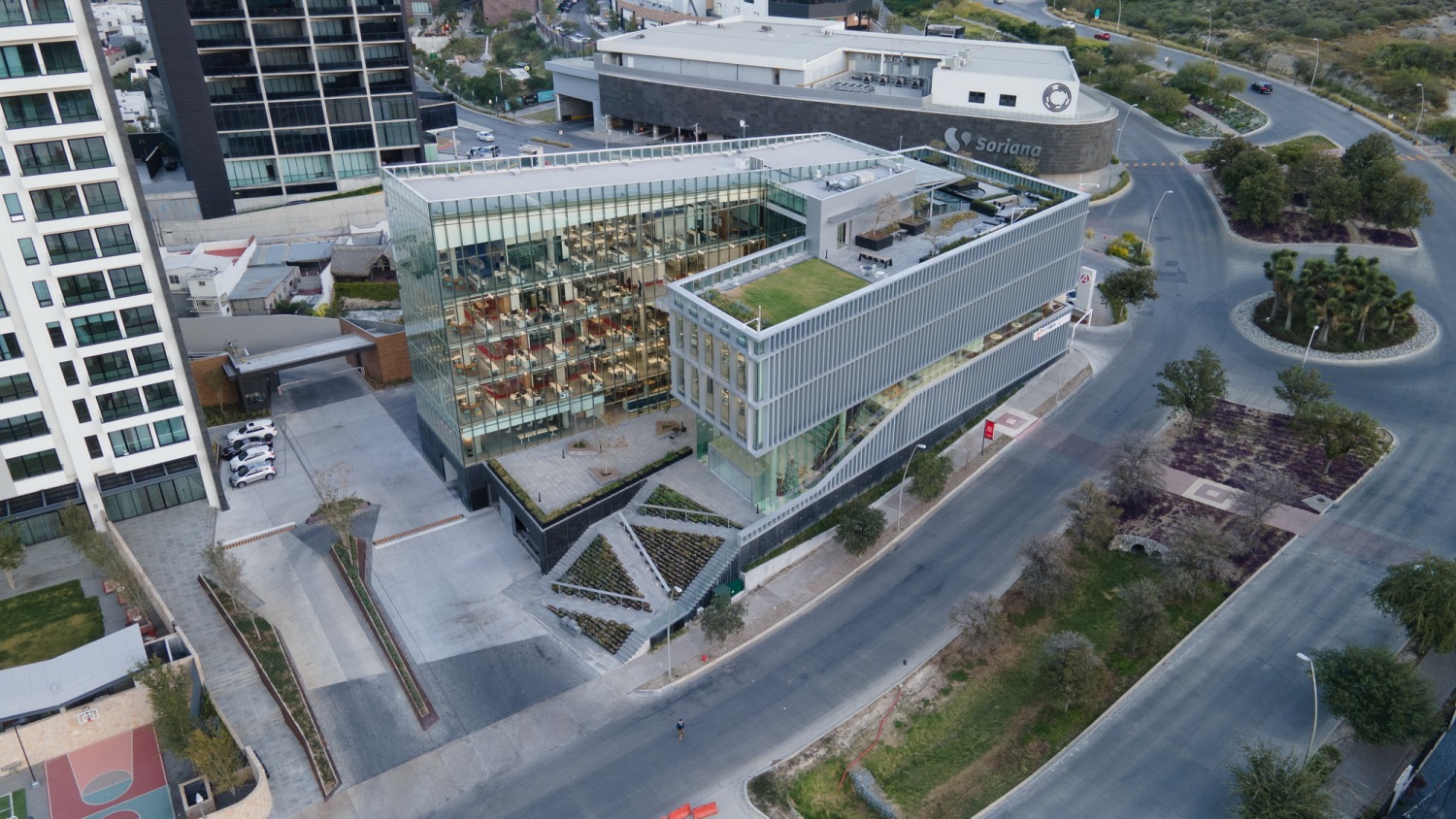

该项目首先要求为我们客户的新公司总部建造一座“大楼”。在分析了场地和功能后,明显得出在这里选择纵向解决方案将是一个错误的决定,会导致一个朝西的大立面向和一个不连贯的内部空间。通过对此进行阐述,我们成功说服客户选择了一个良好连接的水平开发项目,既能接收到北方的阳光,又能免受西面的影响。
HORIZONTAL VS VERTICAL –

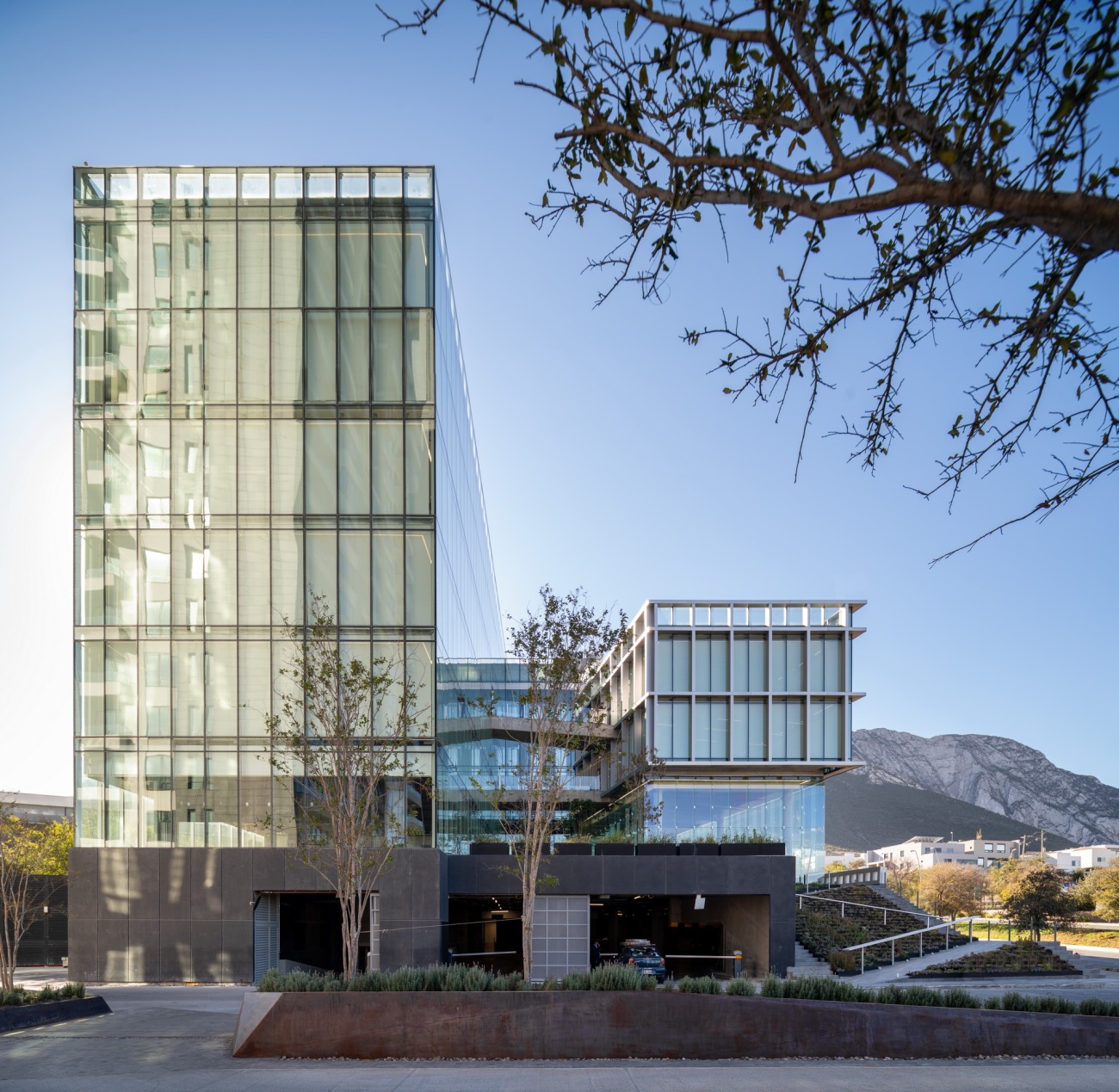

The project begins with the request for a "tower" for our client's new corporate headquarters. Upon analyzing the site and program, it became clear that a vertical solution here would be a mistake, resulting in a large facade facing the west with a disjointed interior. By illustrating this, we convinced our client to opt for a well-connected horizontal development that opens up to the light of the north and protects from the west.
从整体到具体

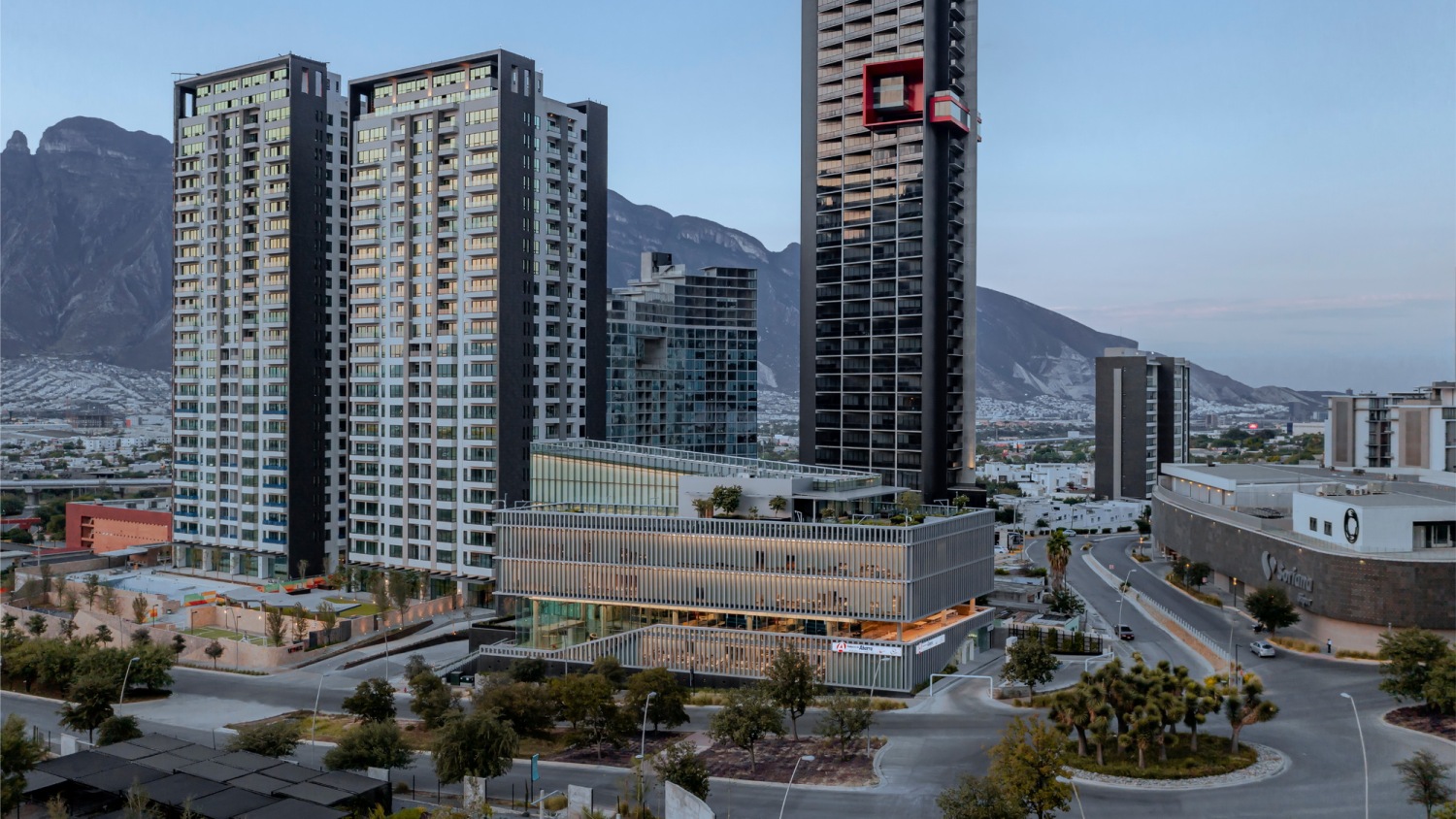

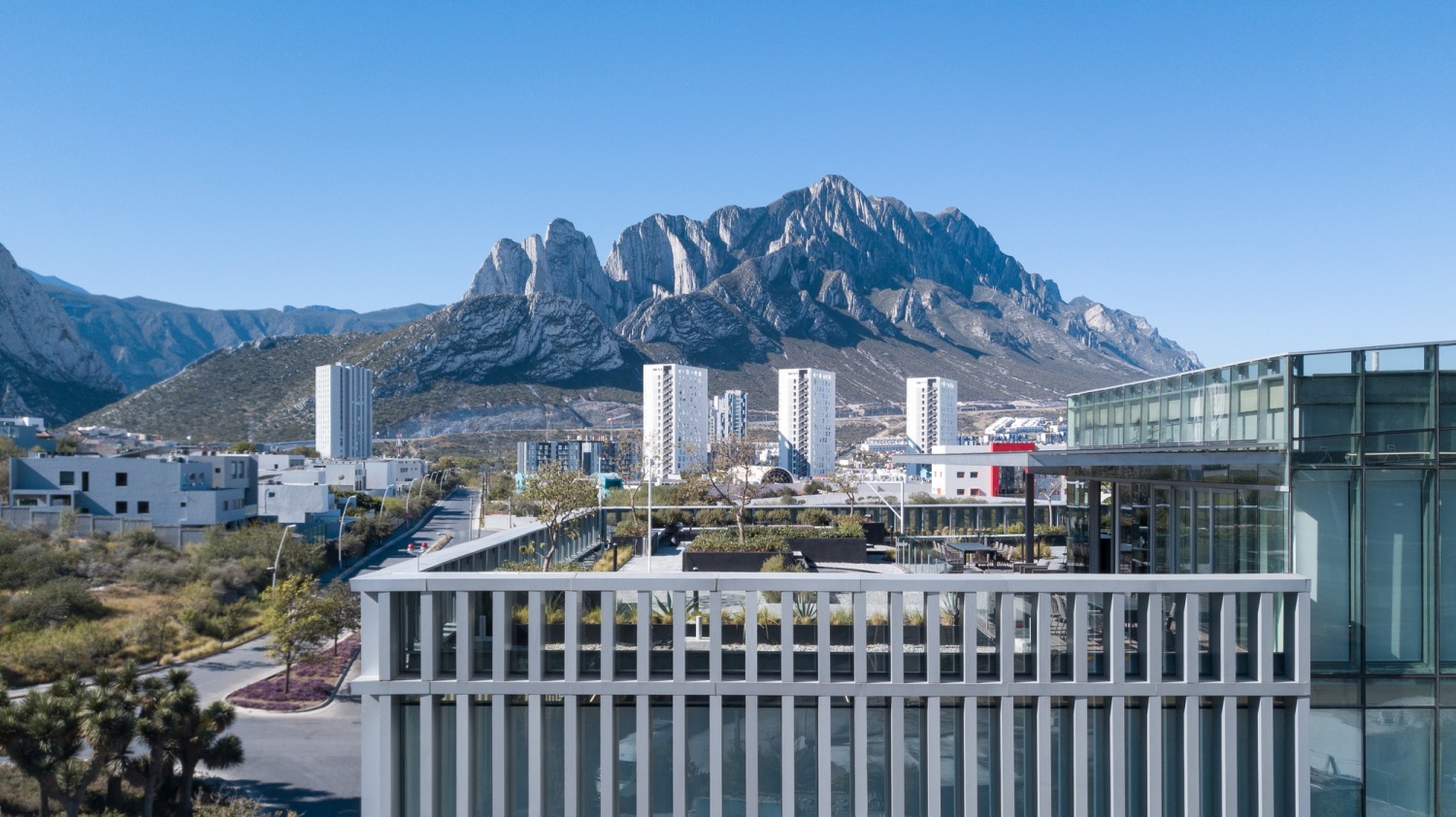

该项目是在两个层面上进行考虑的结果:整体外部规划和内部用户体验。在城市规划层面上,建筑对其场地周边环境、蒙特雷的阳光(令人难忍)以及对Huasteca山脉的优越景观所带来的挑战做出了响应。在特定的项目规划和用户层面上,该项目认识到仅有一个团队在该建筑物内共同工作,因此提出了通过桥梁、最小程度的层次变化和大型楼梯进行视觉和物理交流的方案,这些空间可以用于工作、会议和/或协作。
FROM THE GENERAL TO THE PARTICULAR:

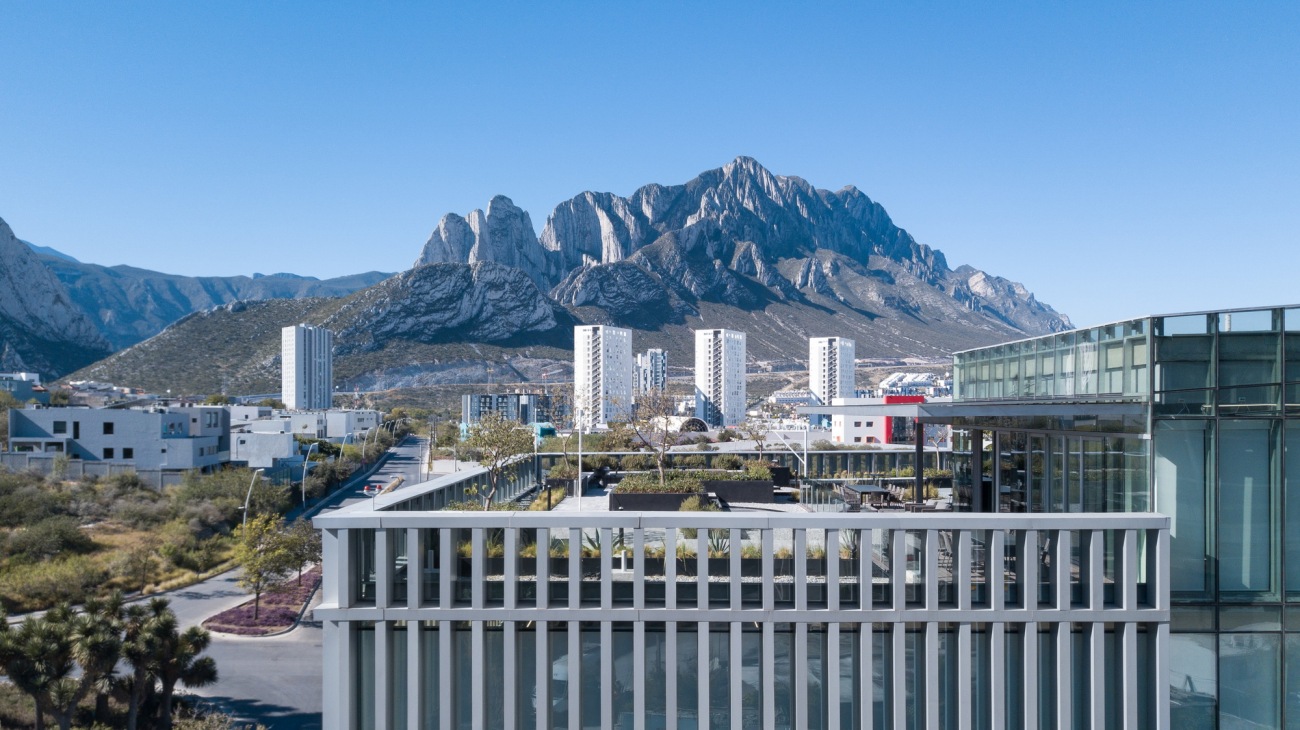

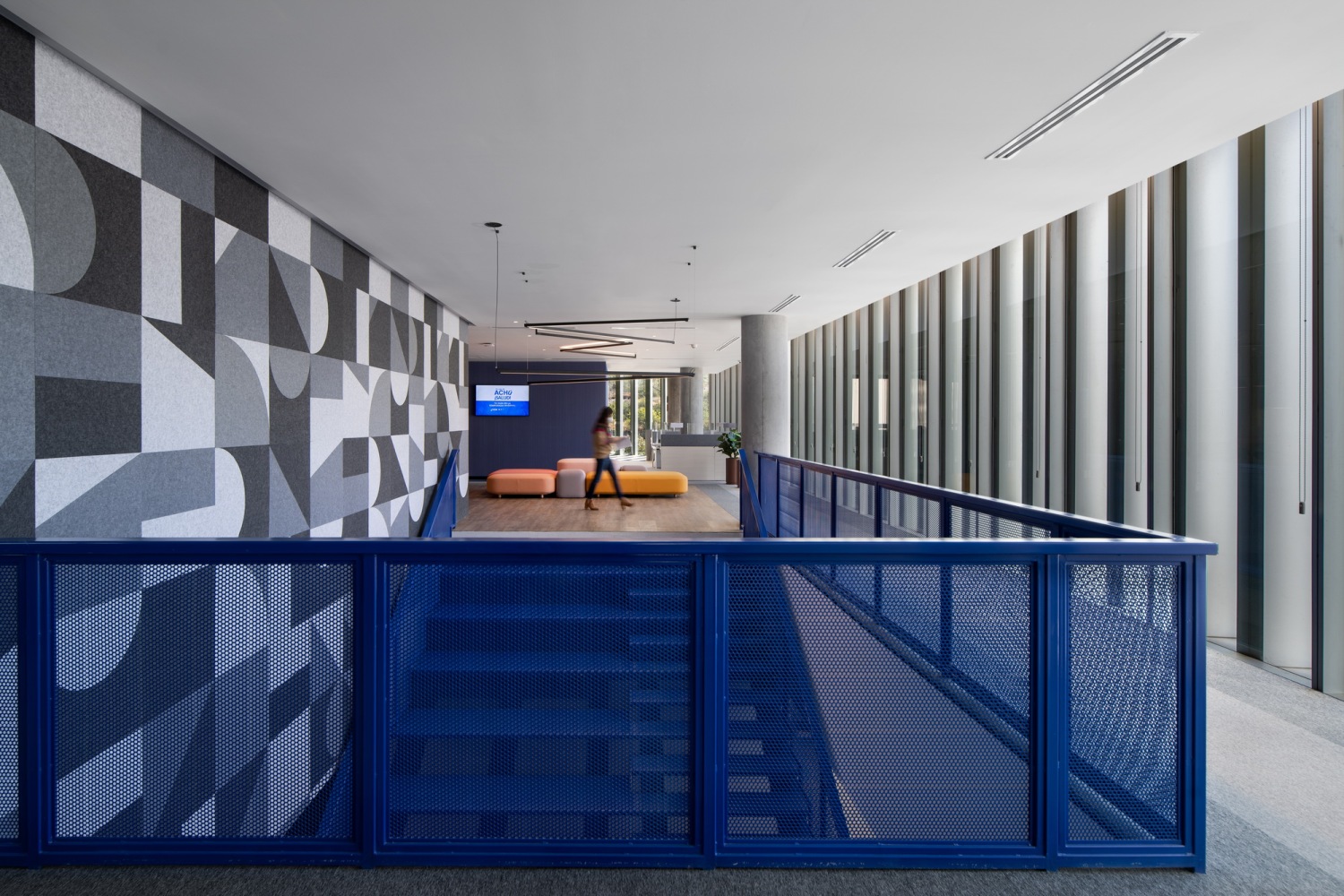

The project is the result of a series of considerations at two scales: Urban and Programmatic. From the City to the User. At an urban level, the building responds to the challenges presented by the delimitation of its site, the sunlight of Monterrey (unforgivable) and the privileged views of the Huasteca. At the level of the specific program and user, the project understands that a single team will be working together on the property, thus proposing spaces communicated both visually and physically through bridges, the minimum of level changes and large staircases that function as spaces of work, meeting and/or collaboration to articulate the required levels.
支持楼梯,反对电梯:

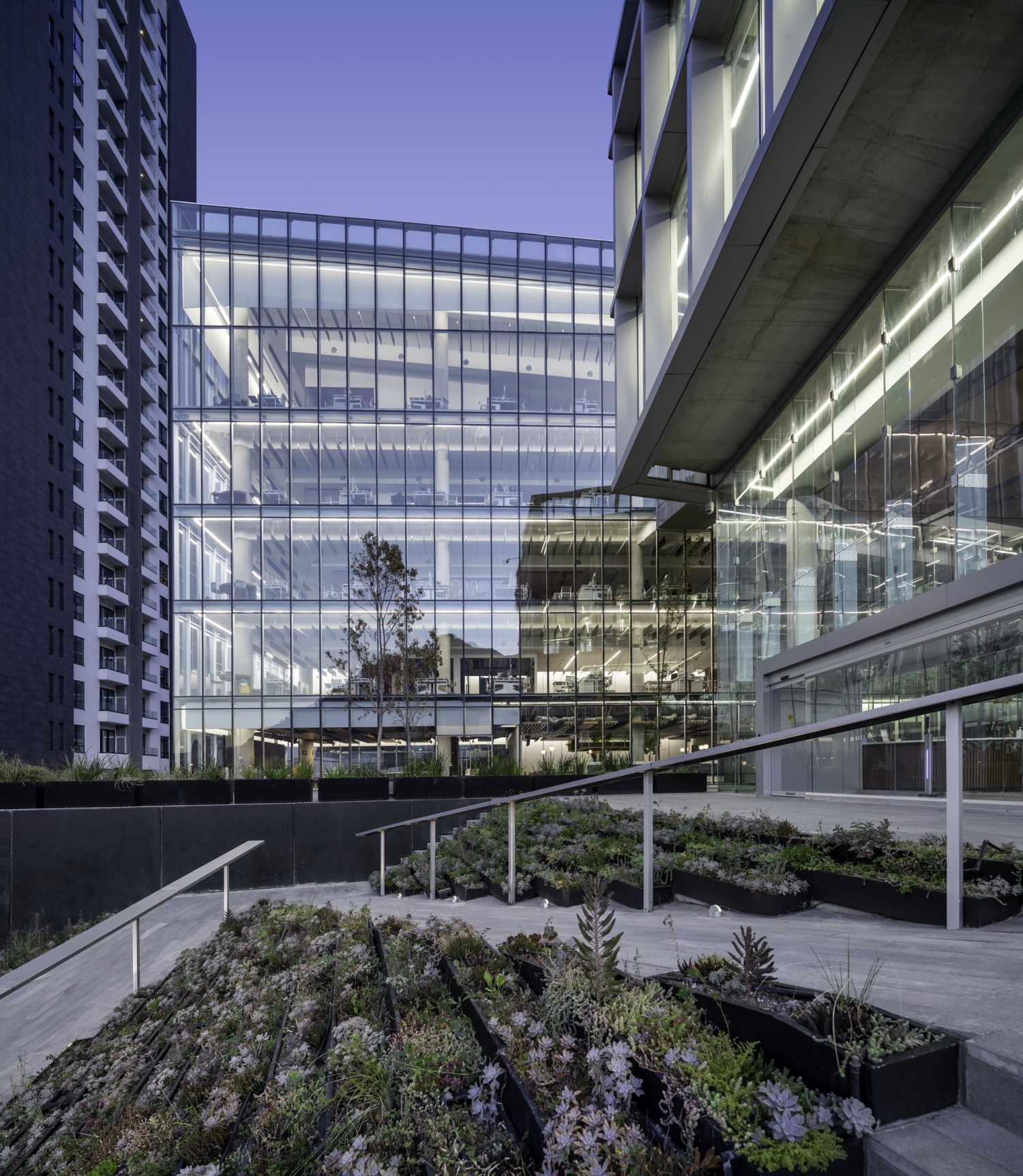

还有什么比每天等待电梯3次更低效的吗?在电梯里进行过怎样富有成果性的交流?在Farmacias del Ahorro公司总部,我们选择楼梯和坡道而不是电梯。这一策略始于建筑外部,人行道通过一个大楼梯和夹杂的坡道通往北面大型阳台。在内部,大厅由第二个楼梯呈现,这里充当会议和工作空间,通过夹杂的扶梯实现快速流通。通过这种方式,不同的垂直流通空间连接在一起,创造出用于协作和自发会议的空间,直至到达建筑屋顶的空中花园。
YES TO STAIRS, NO TO ELEVATORS:

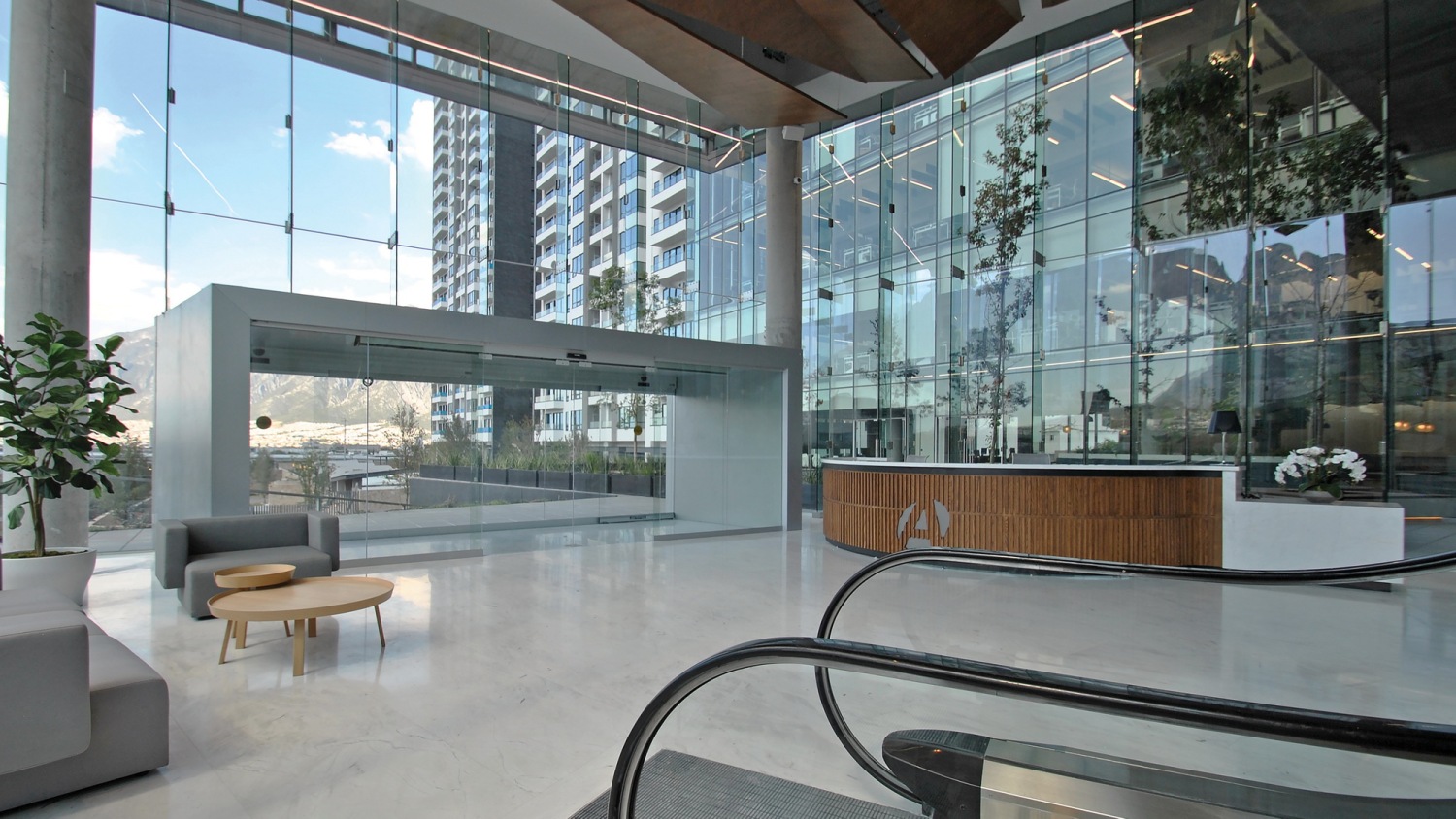

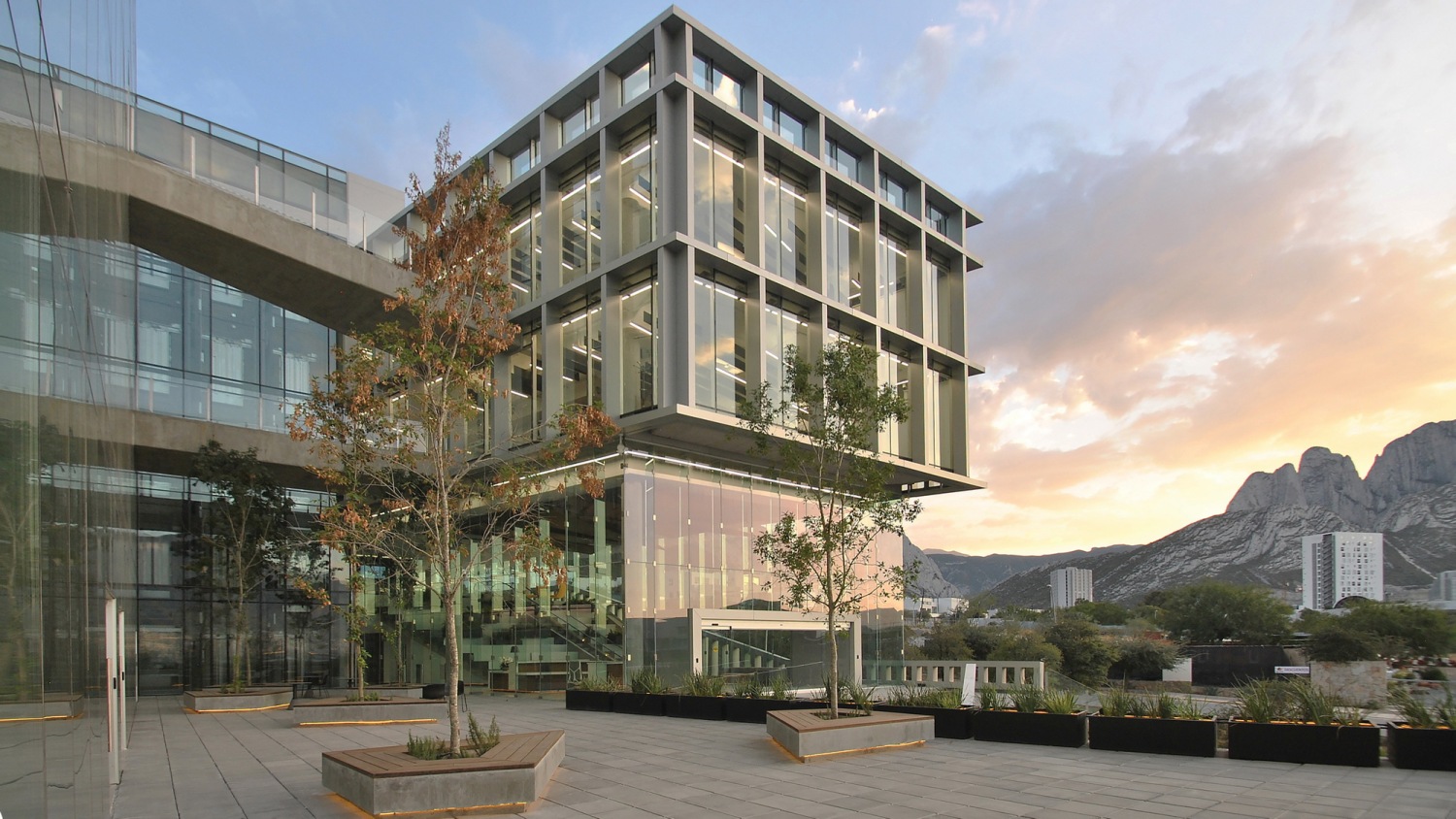

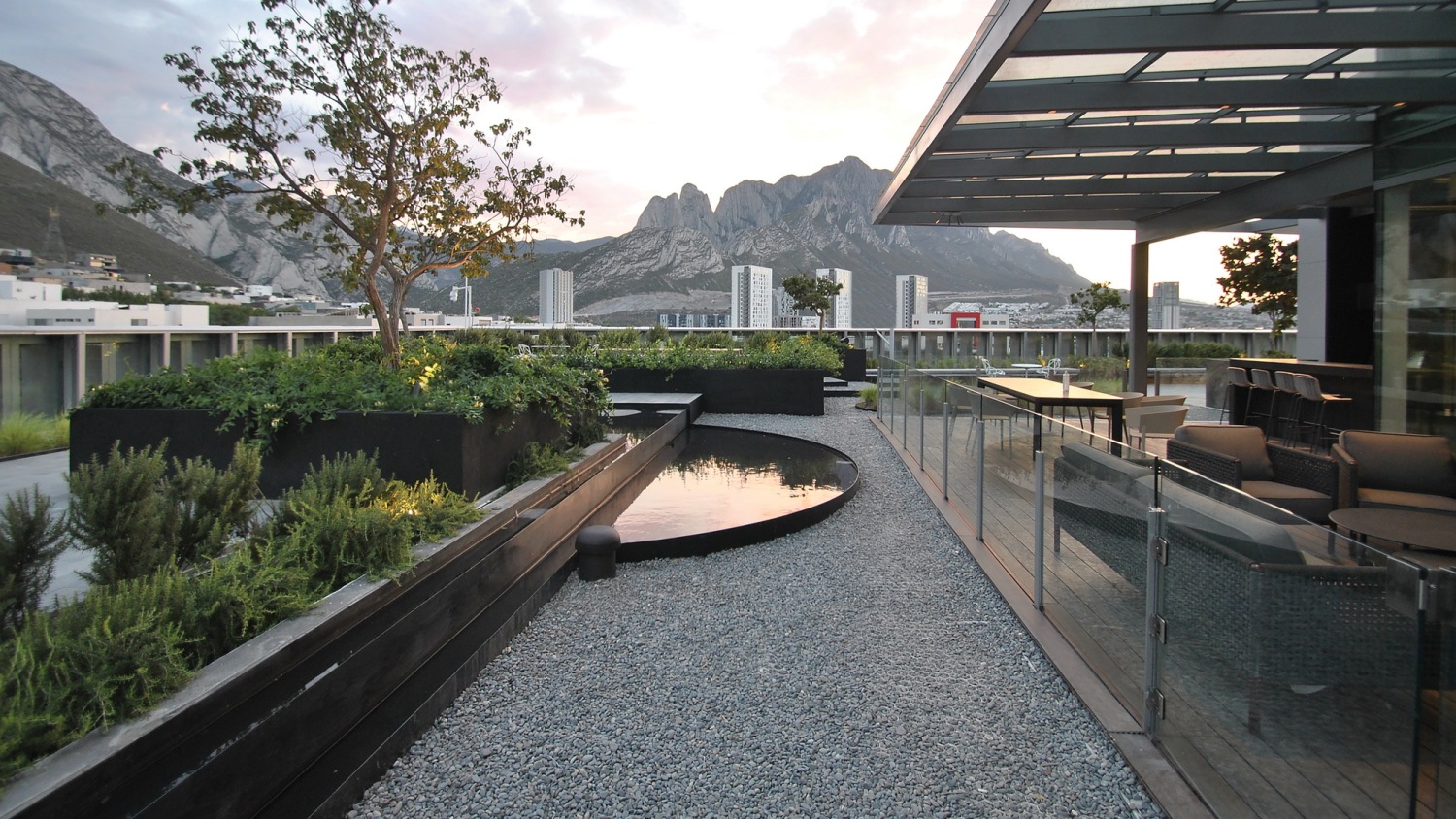

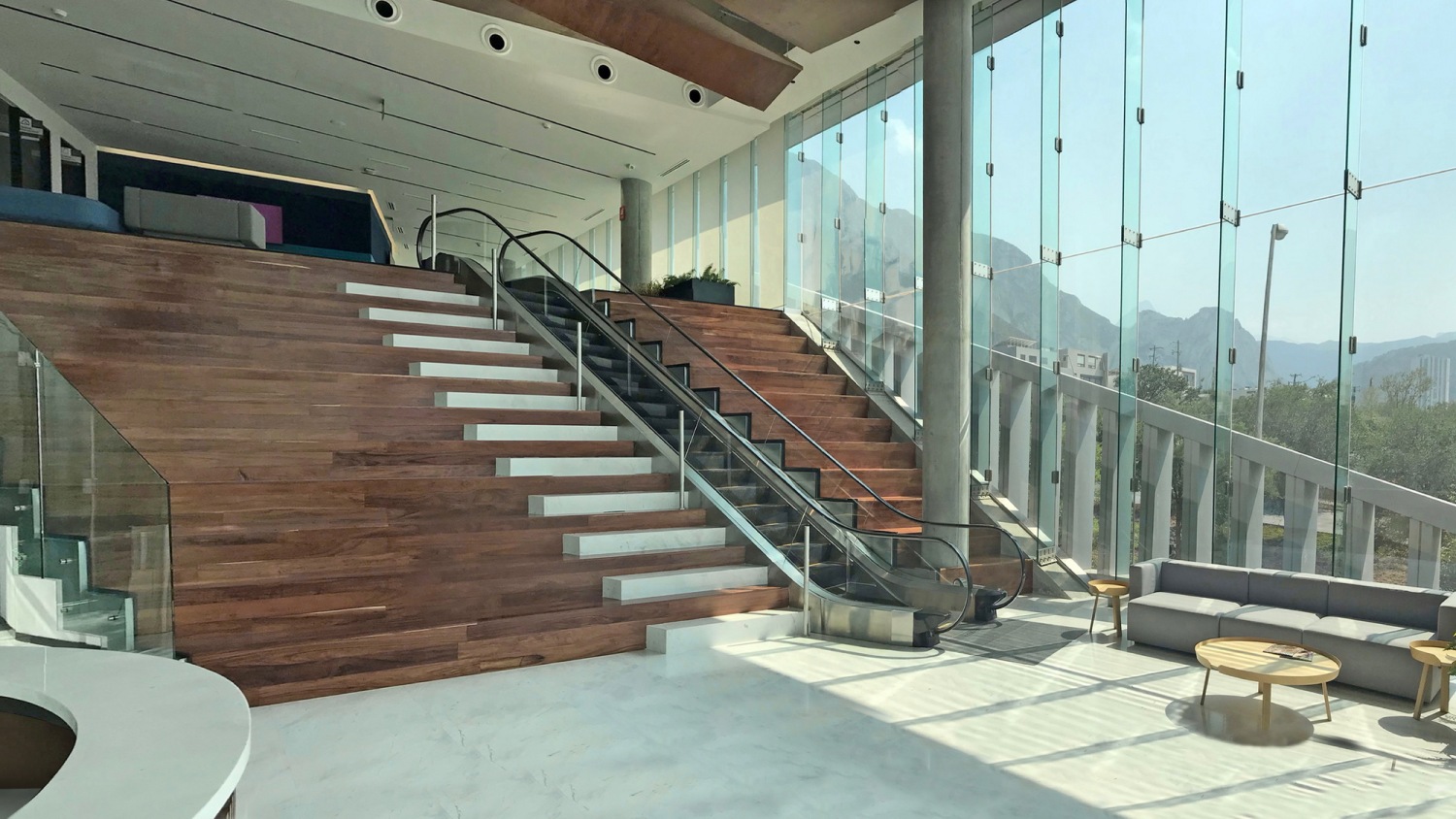

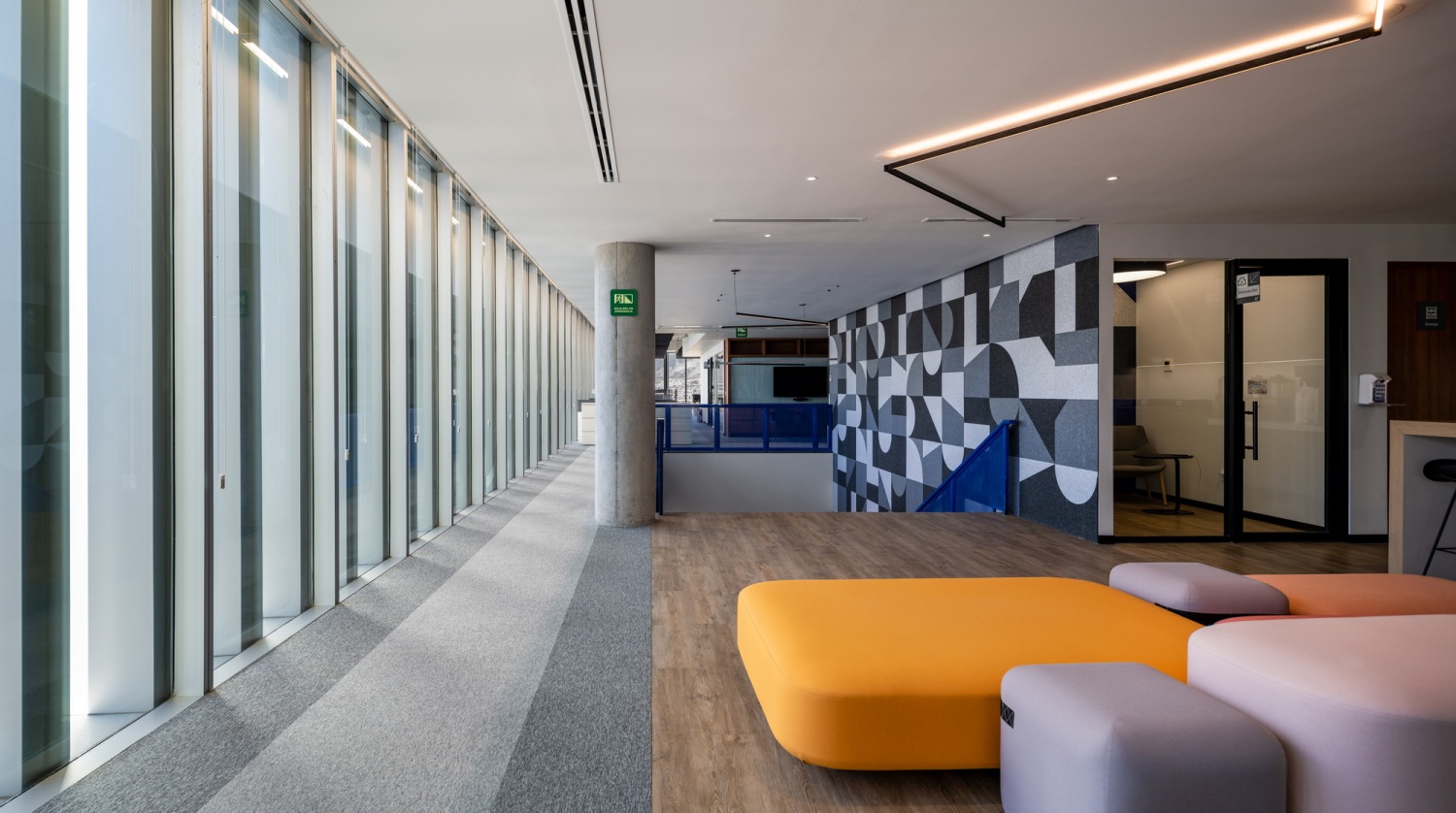

Is there anything more inefficient than waiting for an elevator 3 times a day? What fruitful conversation has come out of an elevator ride? At the Farmacias del Ahorro corporate office we opt for stairs and ramps over elevators. The strategy begins from the outside, where the sidewalk gives access to the northern plaza through a large staircase with a interspersed ramp. Inside, the hall is presented by a second staircase, this acts as a meeting and work space, which coexists with rapid circulation by having an interspersed escalator. In this way different spaces of vertical circulation are connected, creating spaces for collaboration and spontaneous meetings until reaching the roof of the project where a common garden is planted.
形式与功能:
建筑的形式基于对功能性的考虑,这些考虑因素可以归纳为以下一系列操作:
— 线性发展和低建筑高度

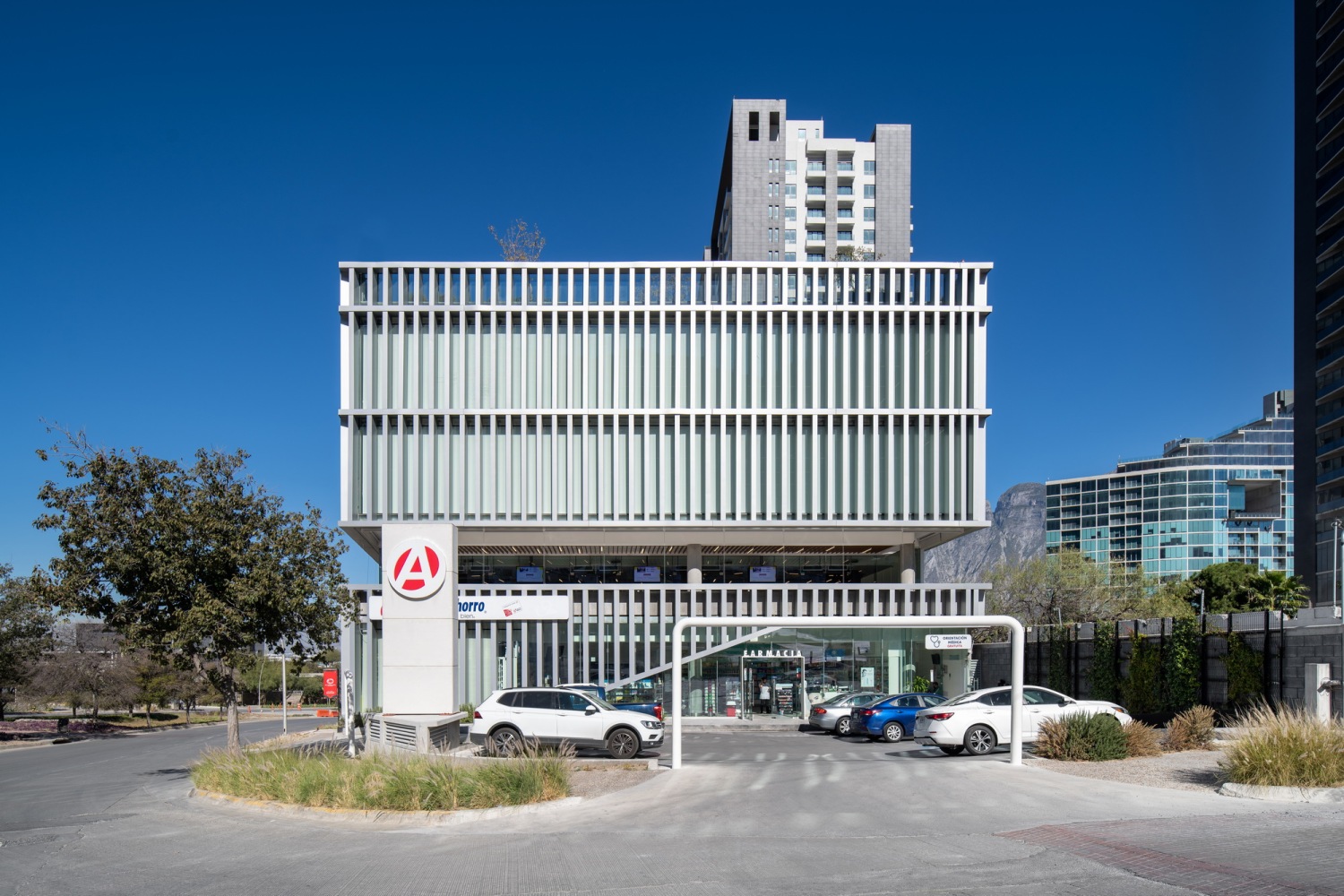

— 为西面和南面提供遮挡的建筑立面

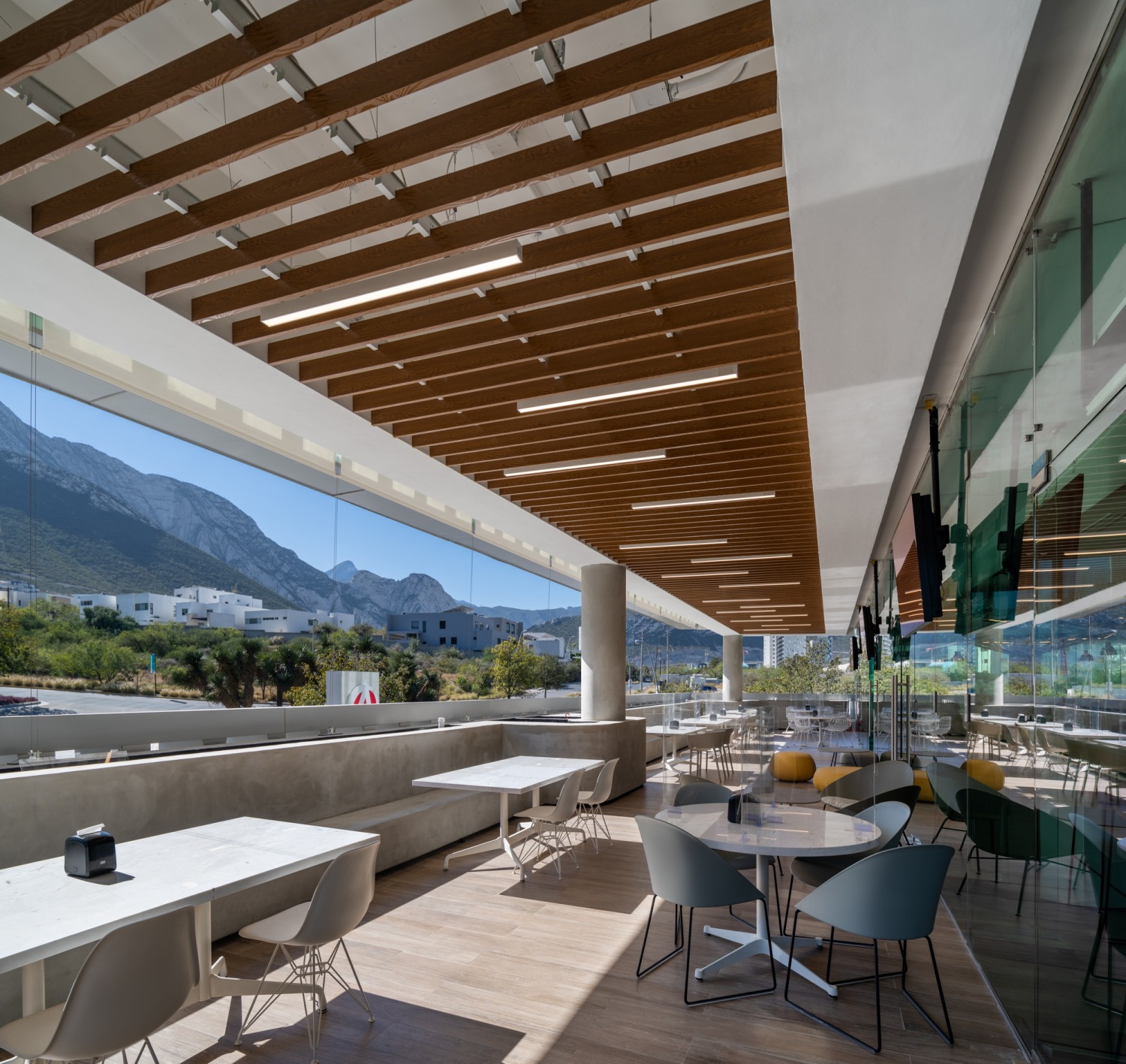

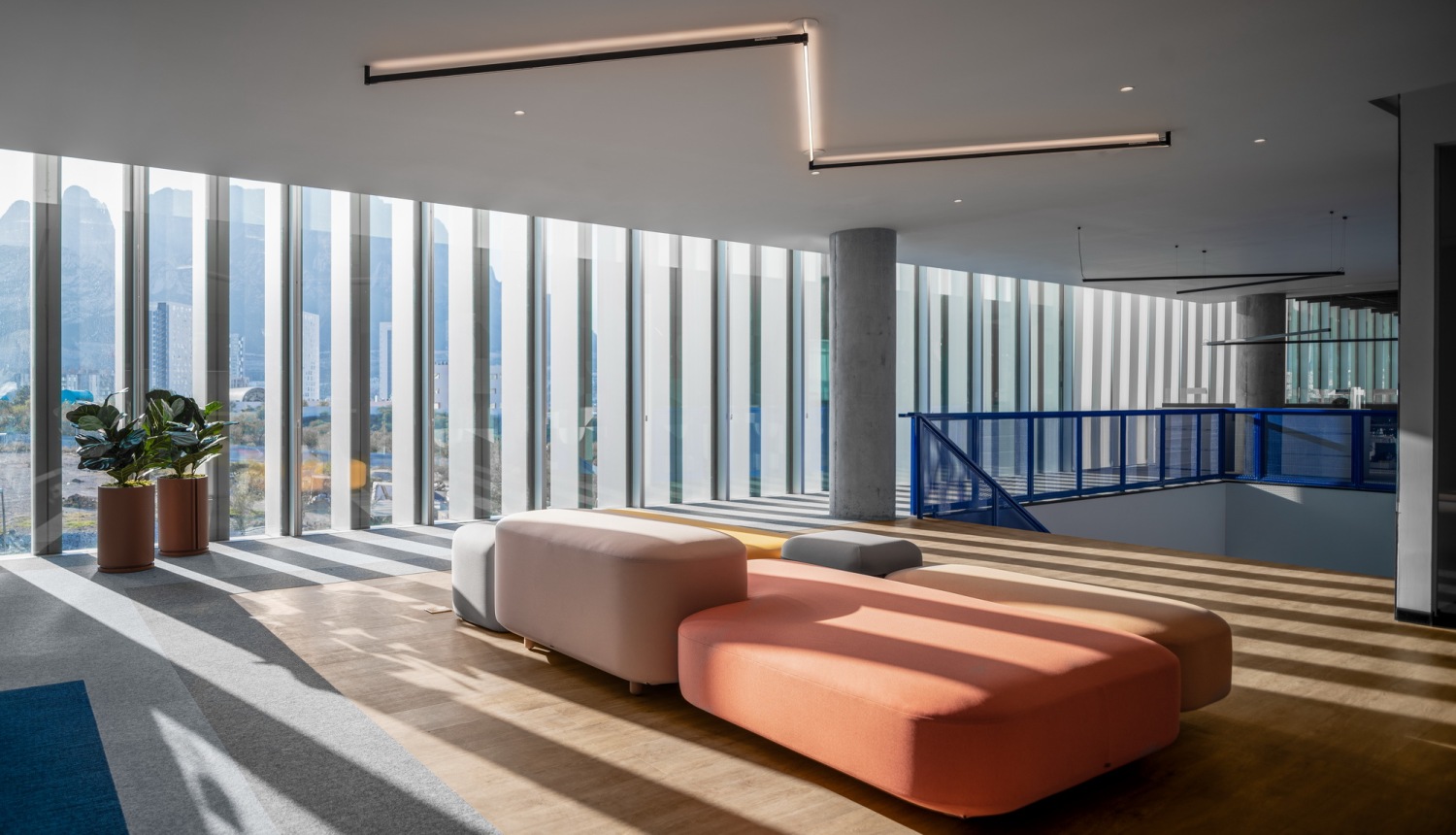

— 核心的中层大型阳台面朝向北面吸收阳光
— 通过楼梯、坡道和桥梁的联结和连接,创造出互动空间。
FORM AND FUNCTION:
The form of the project is the result of the previously established considerations which can be reduced to a series of operations:
— Linear development and low height

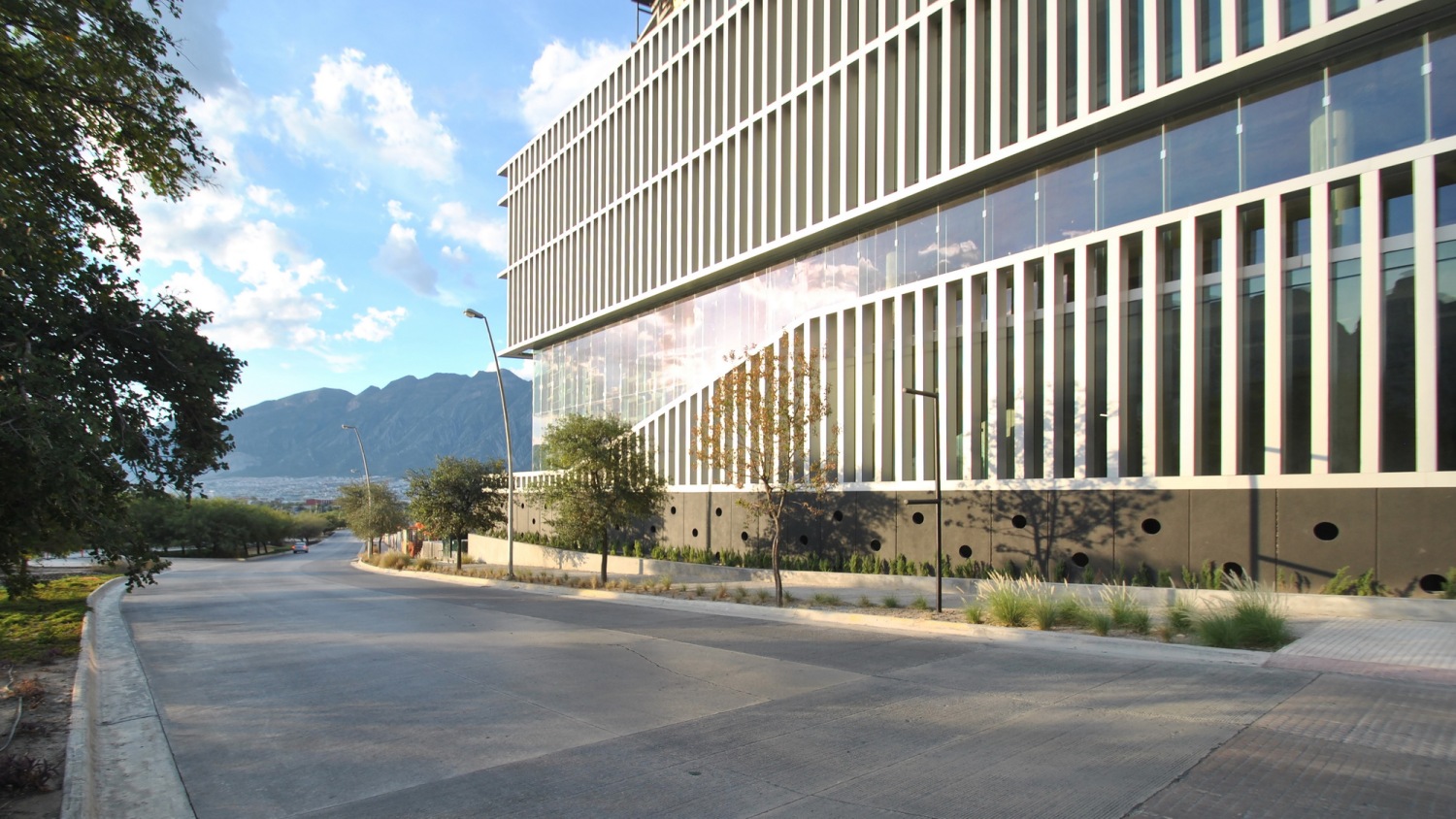

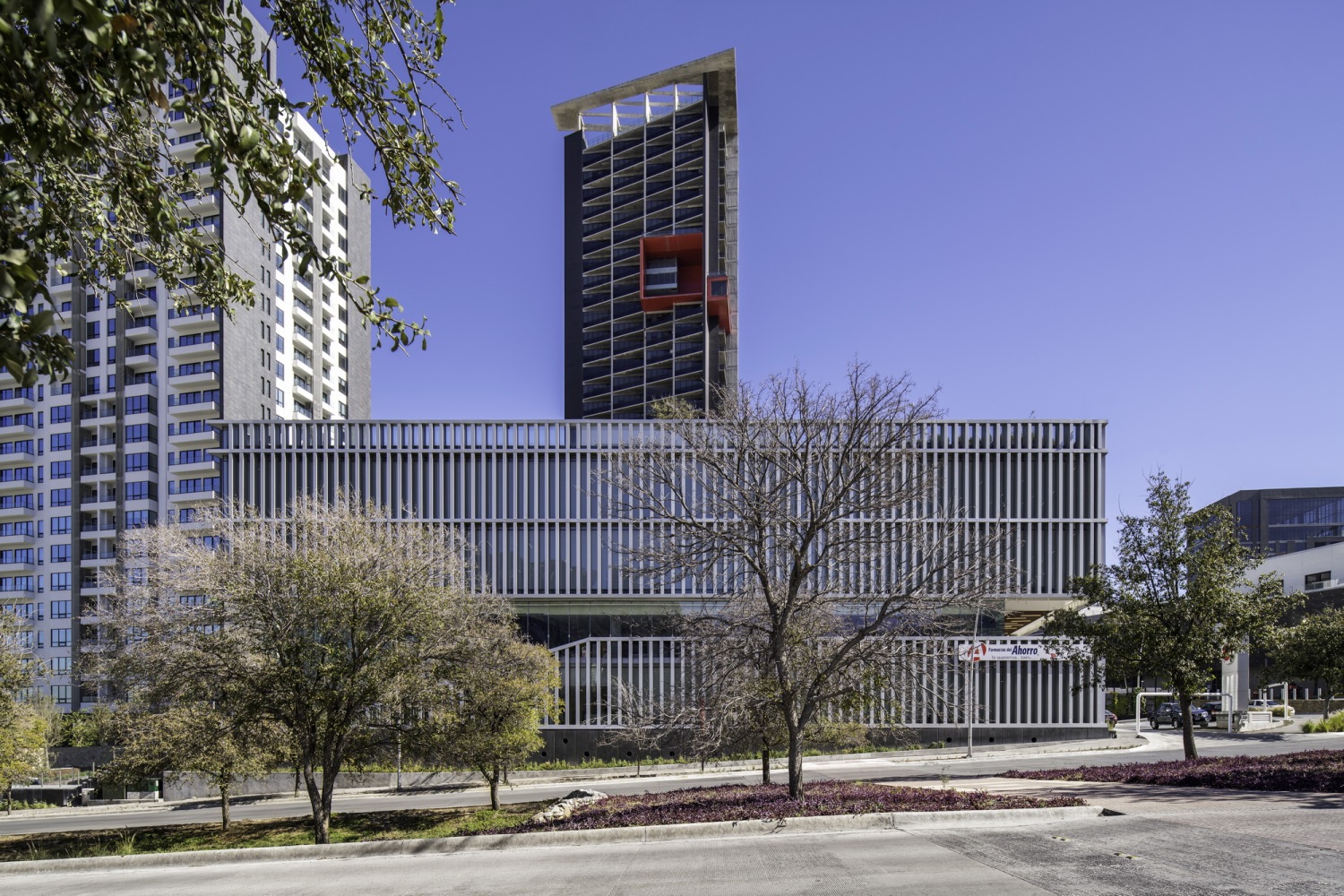

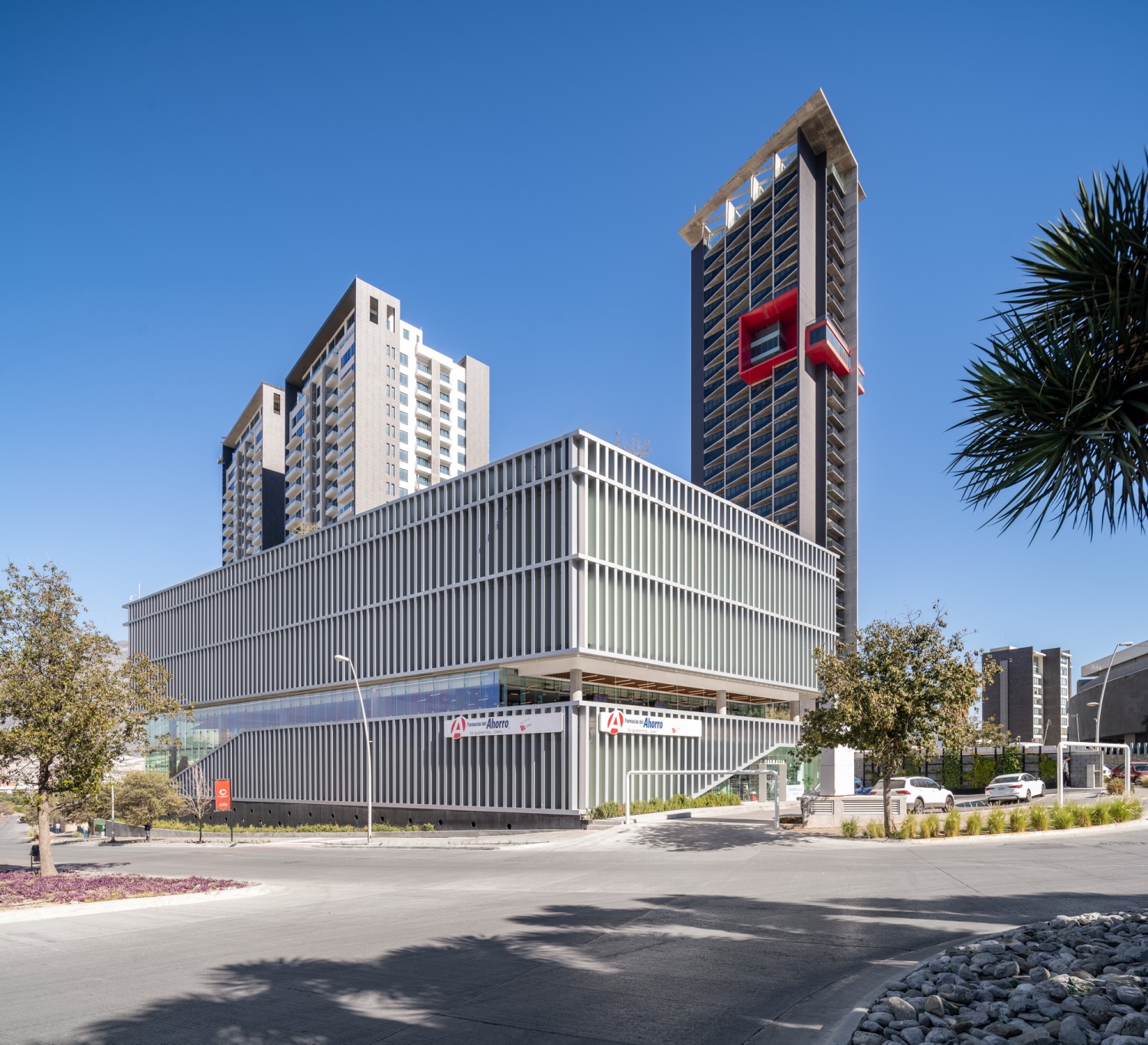

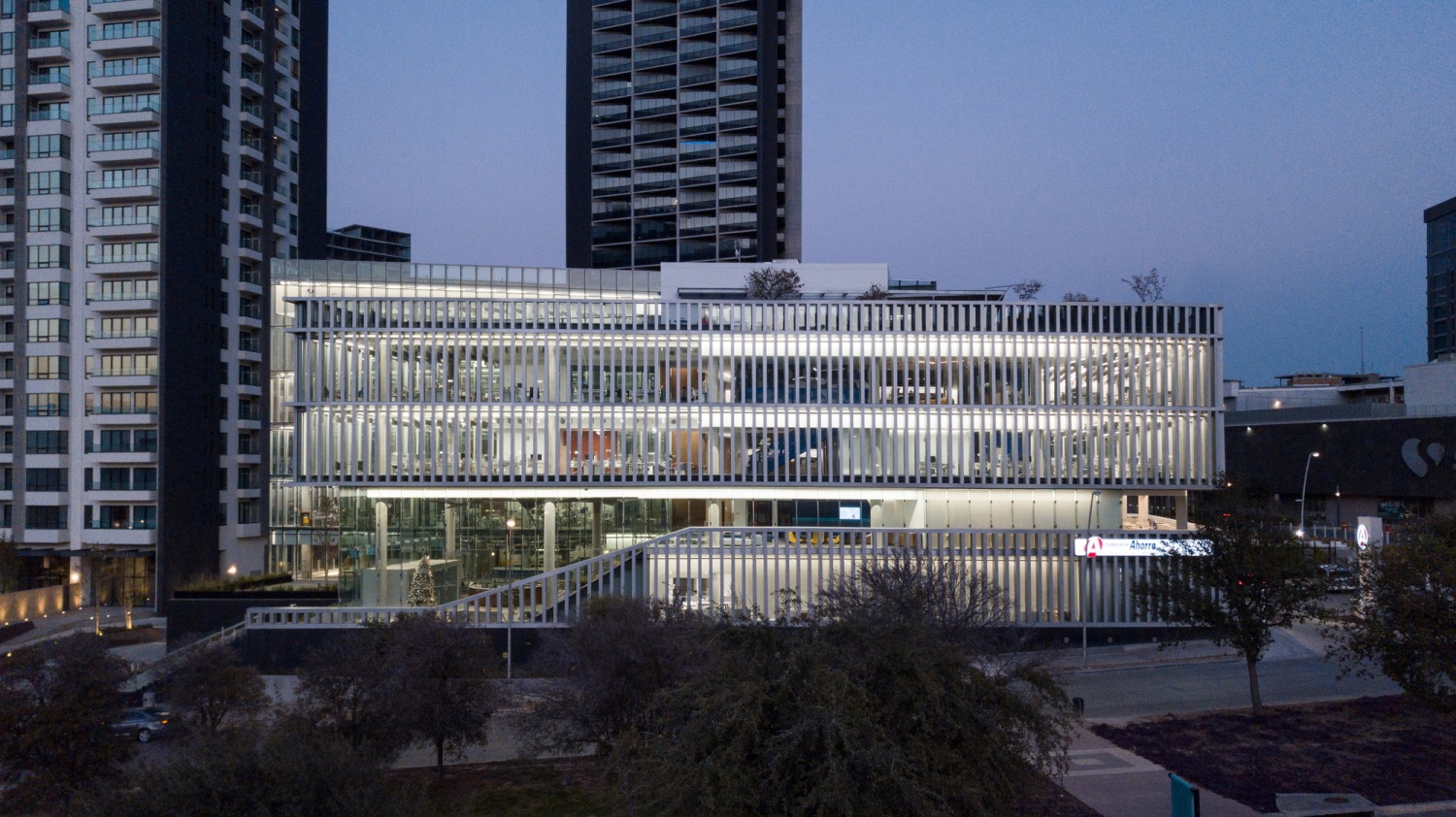

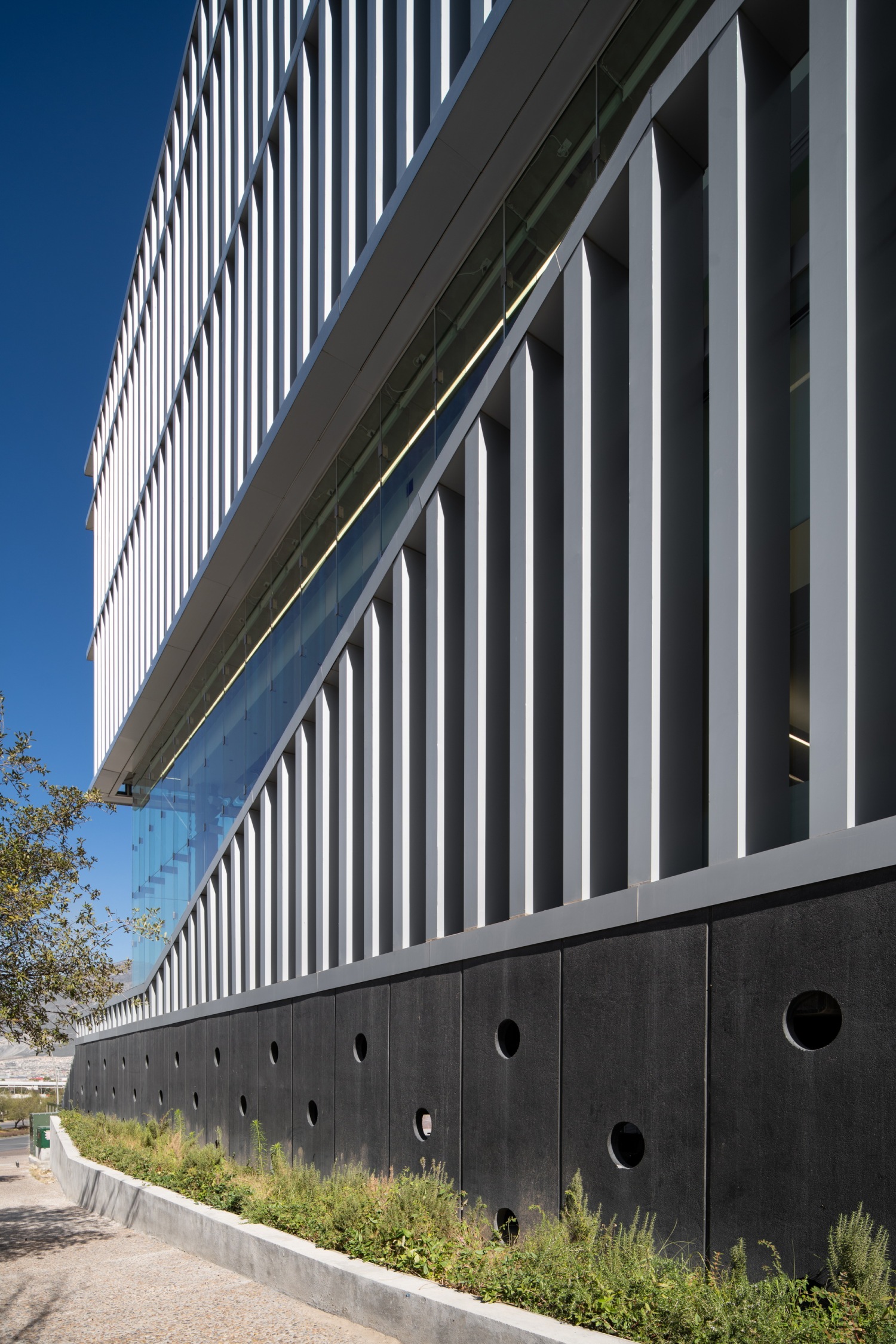

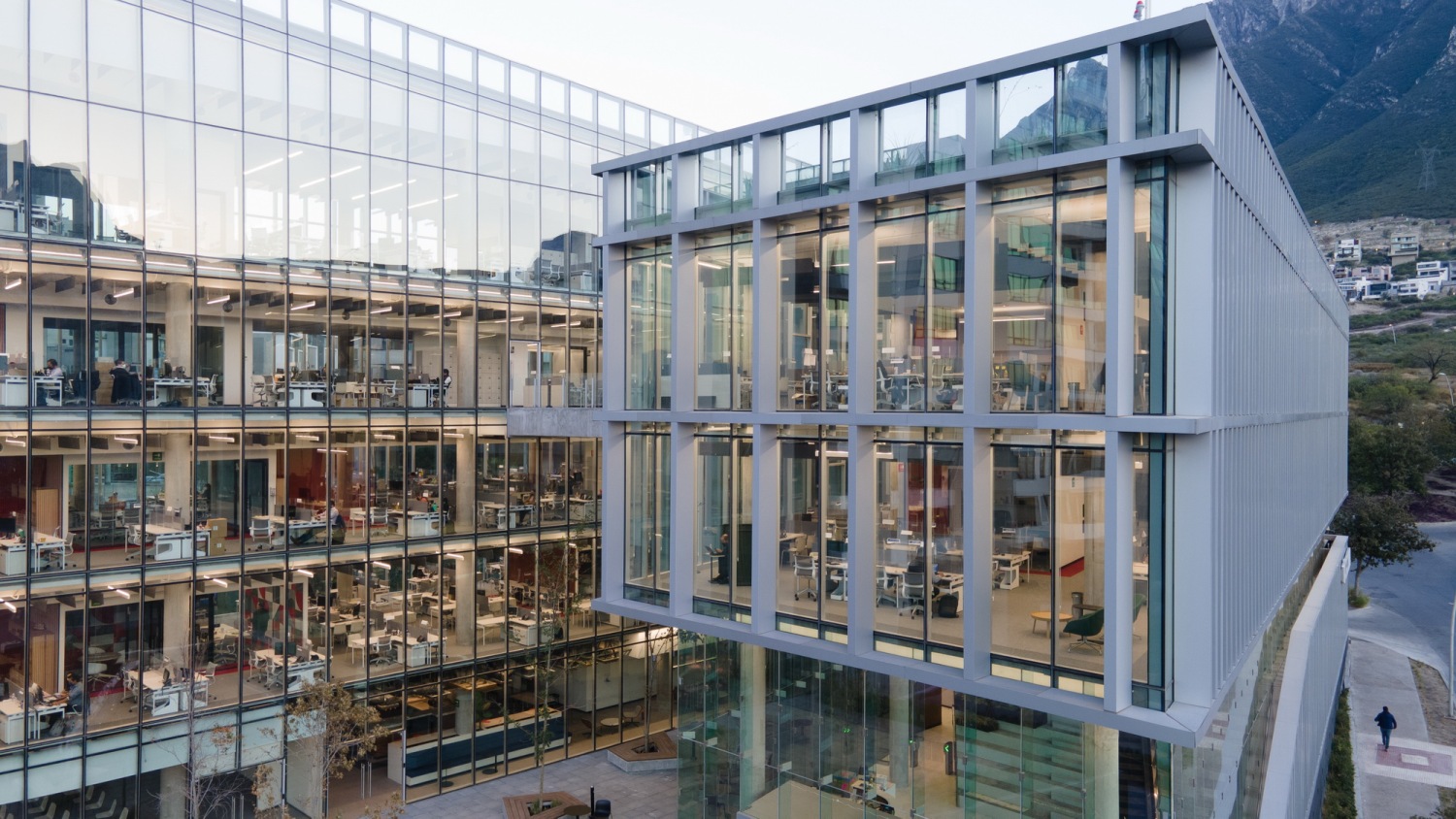

— Facade of parasols protecting west and south

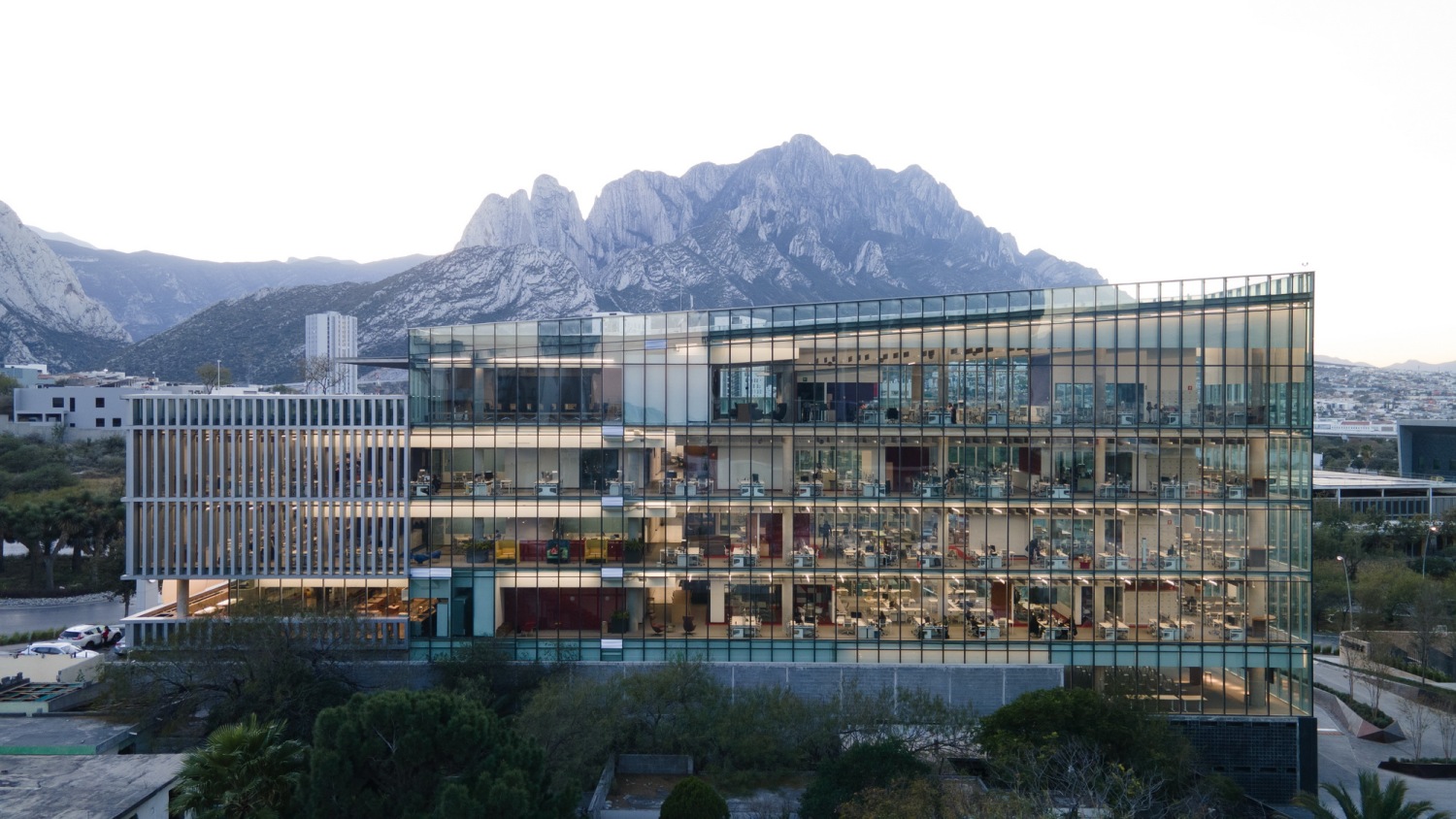

— Plant with a central core that branches and opens towards the northern light
— Articulation and connectivity through stairs, ramps and bridges creating spaces for interaction.

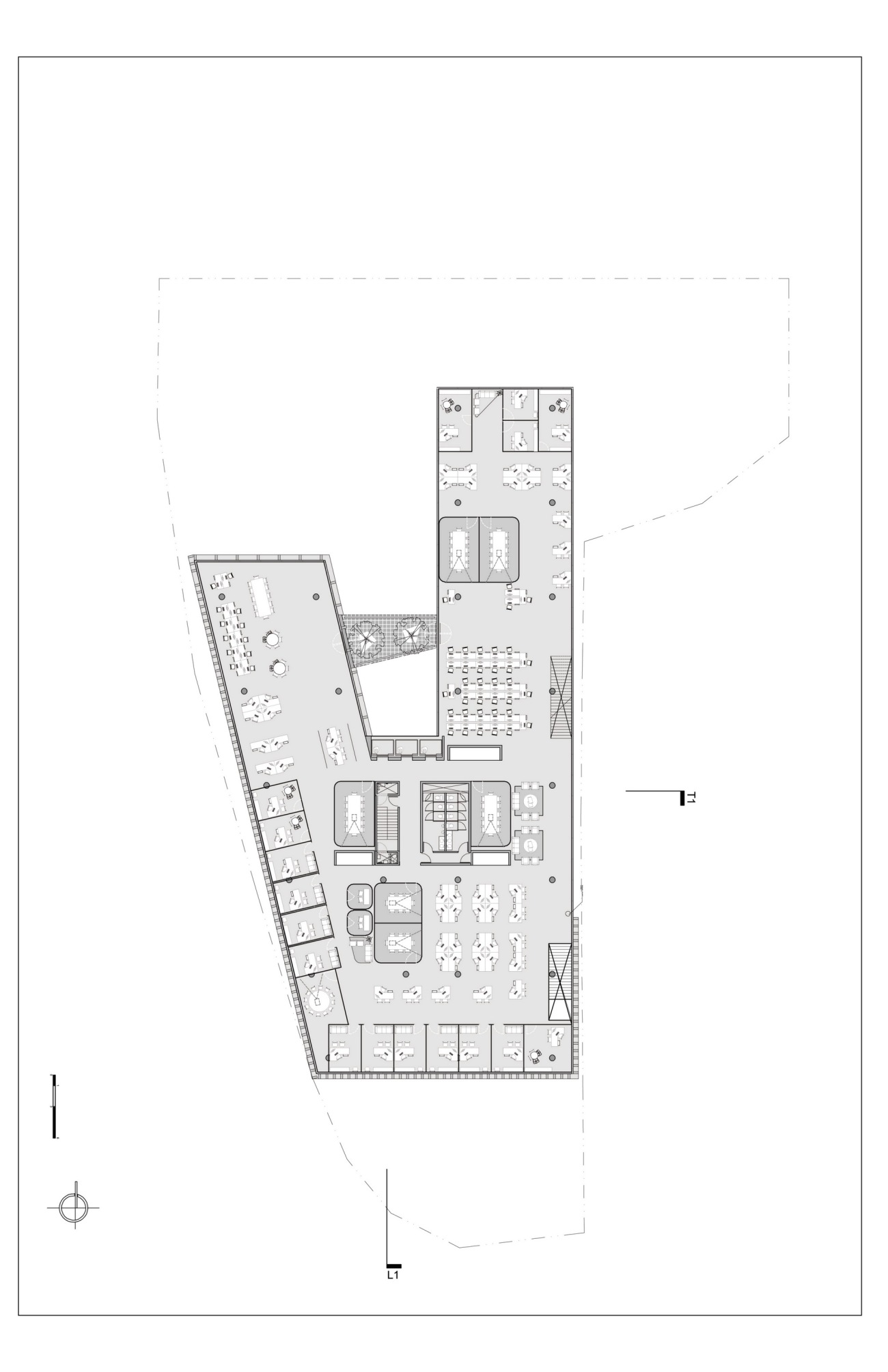

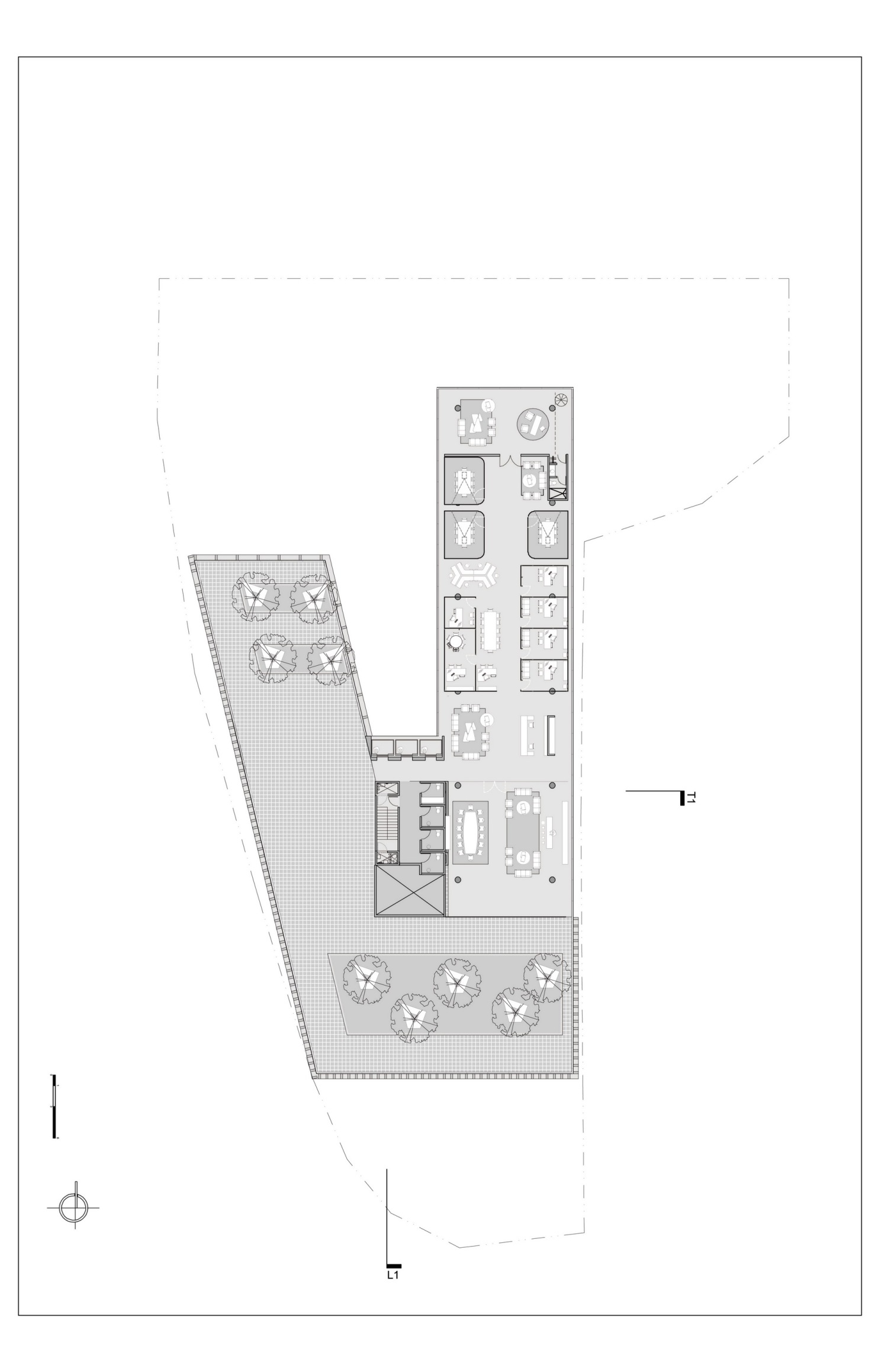

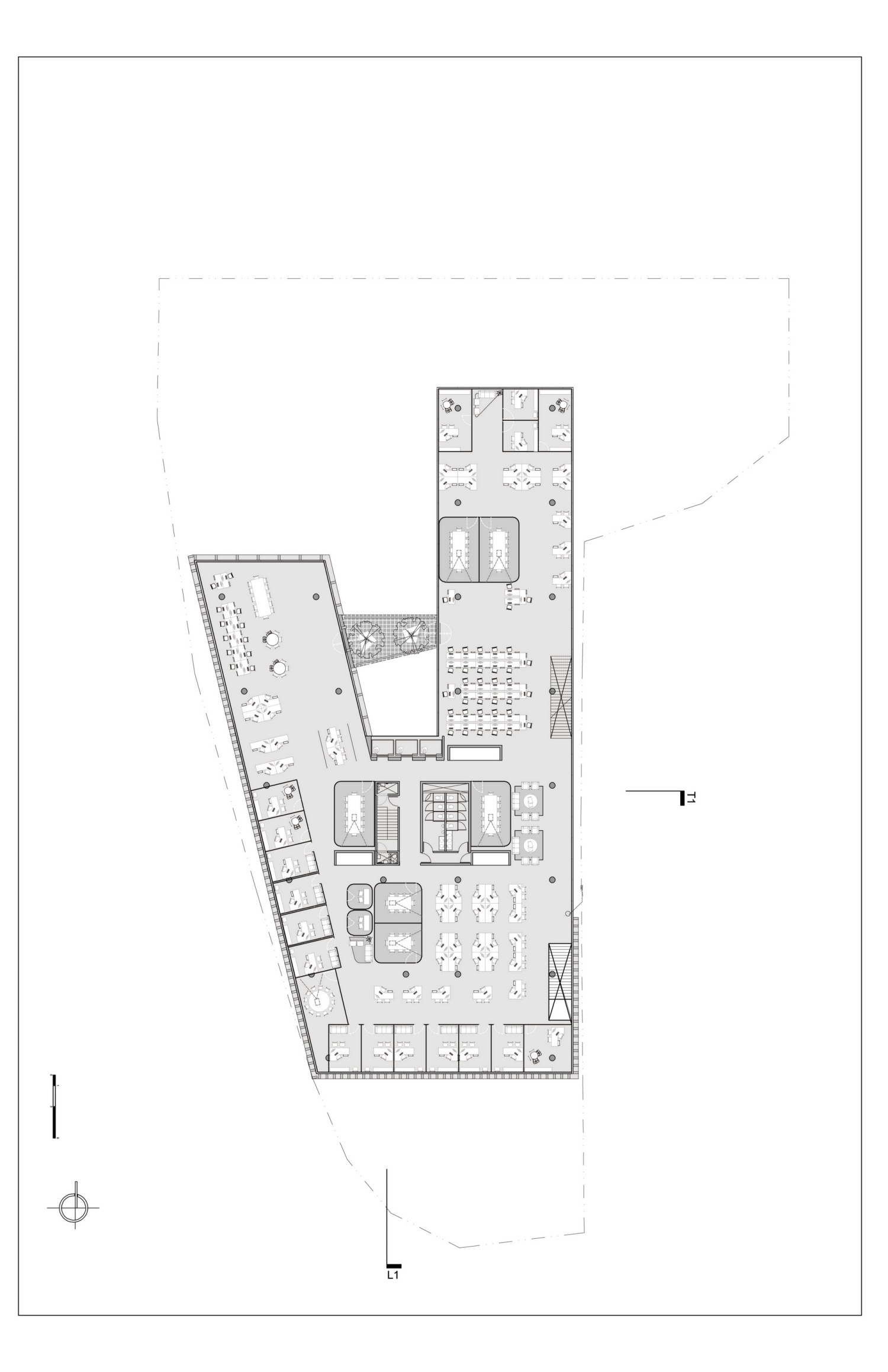

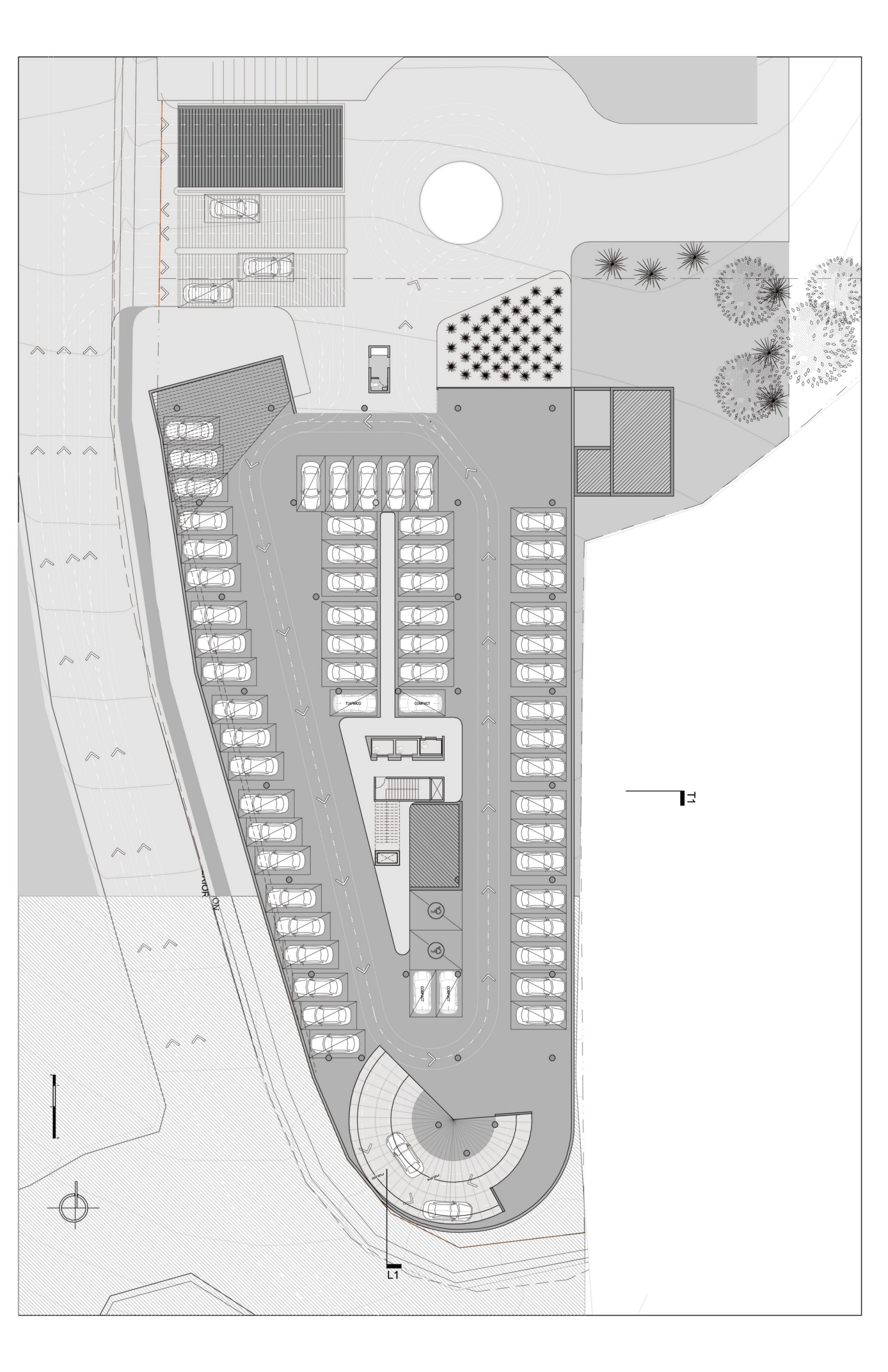

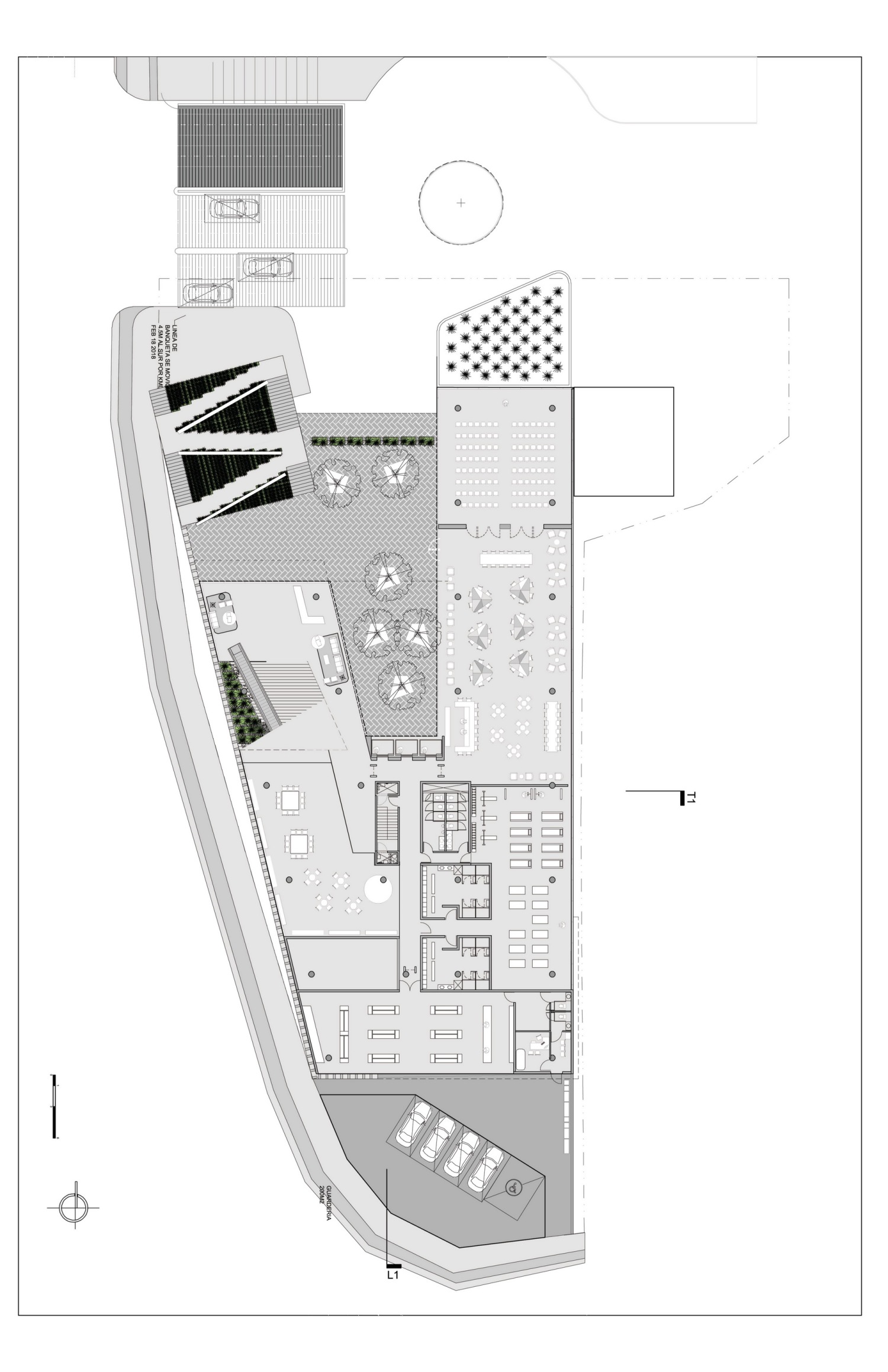

▽平面图

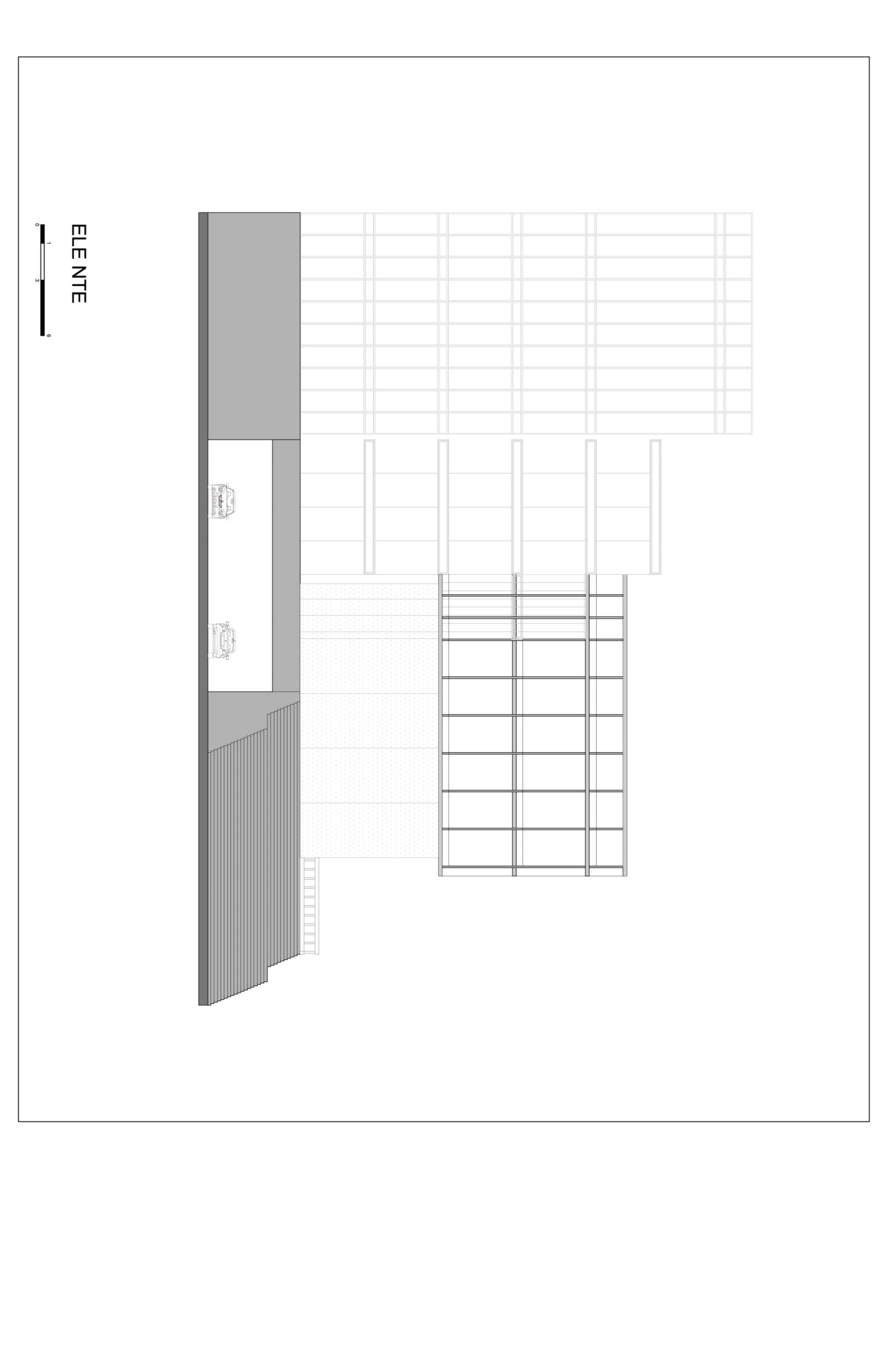

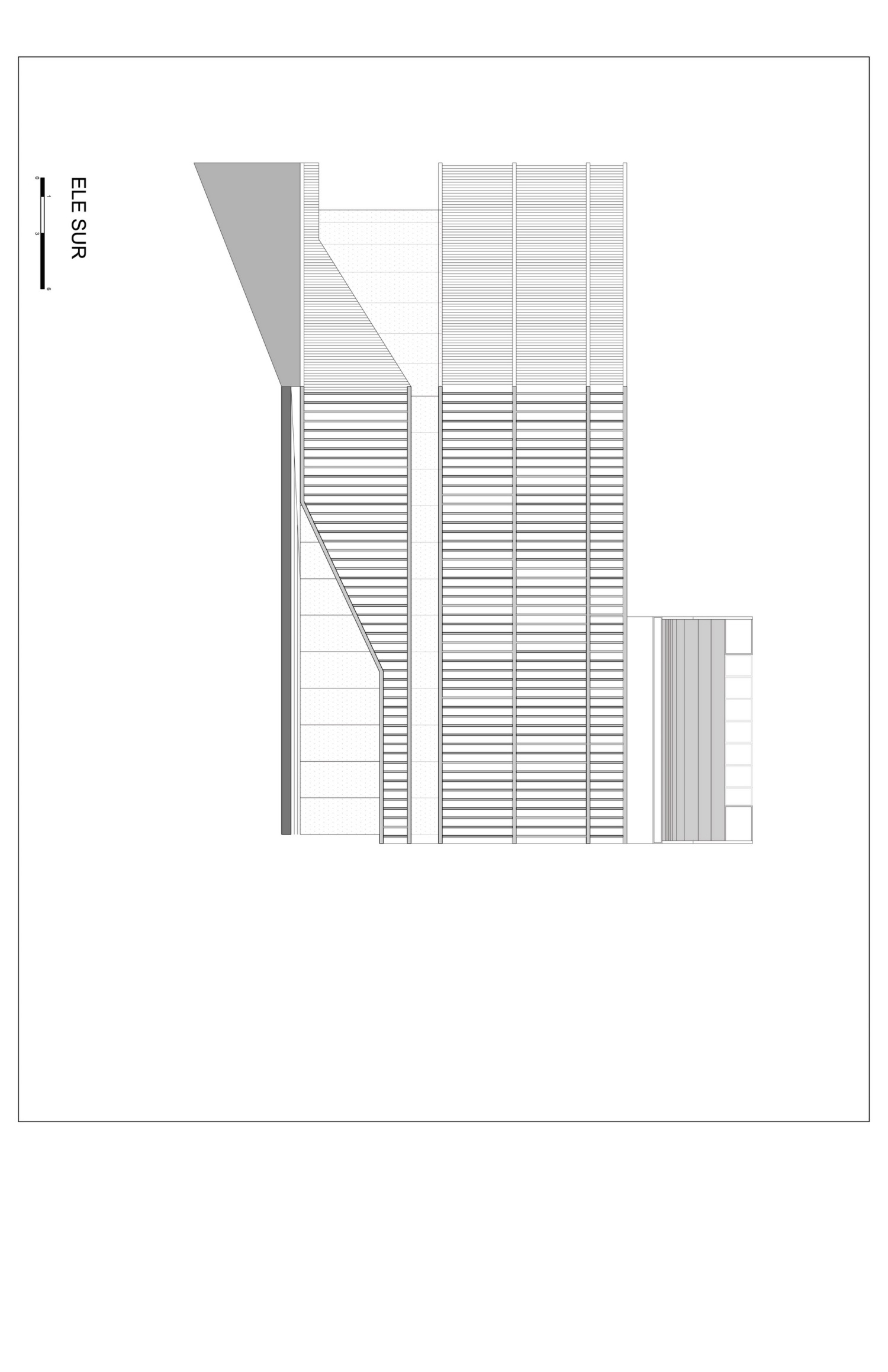

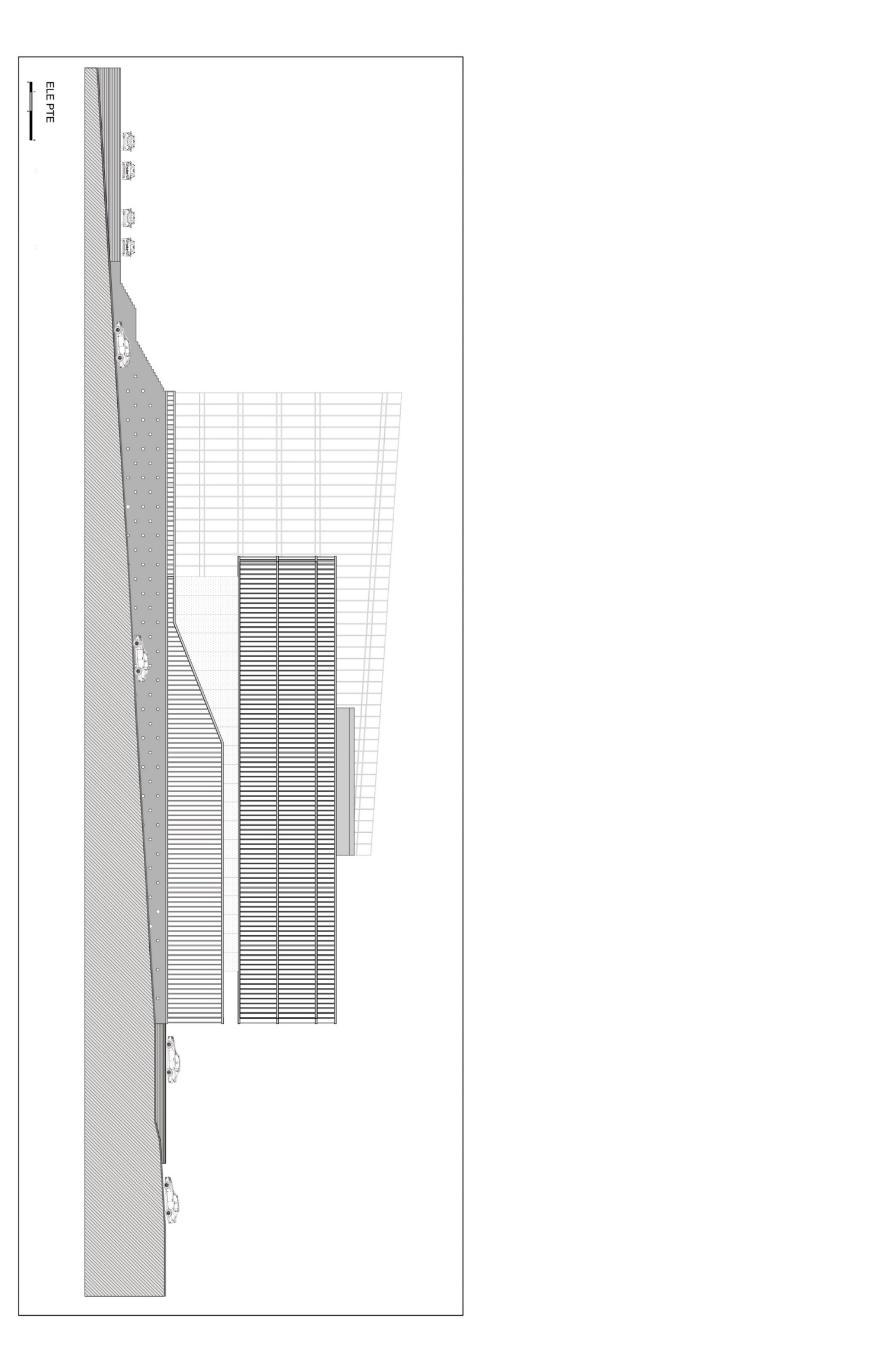

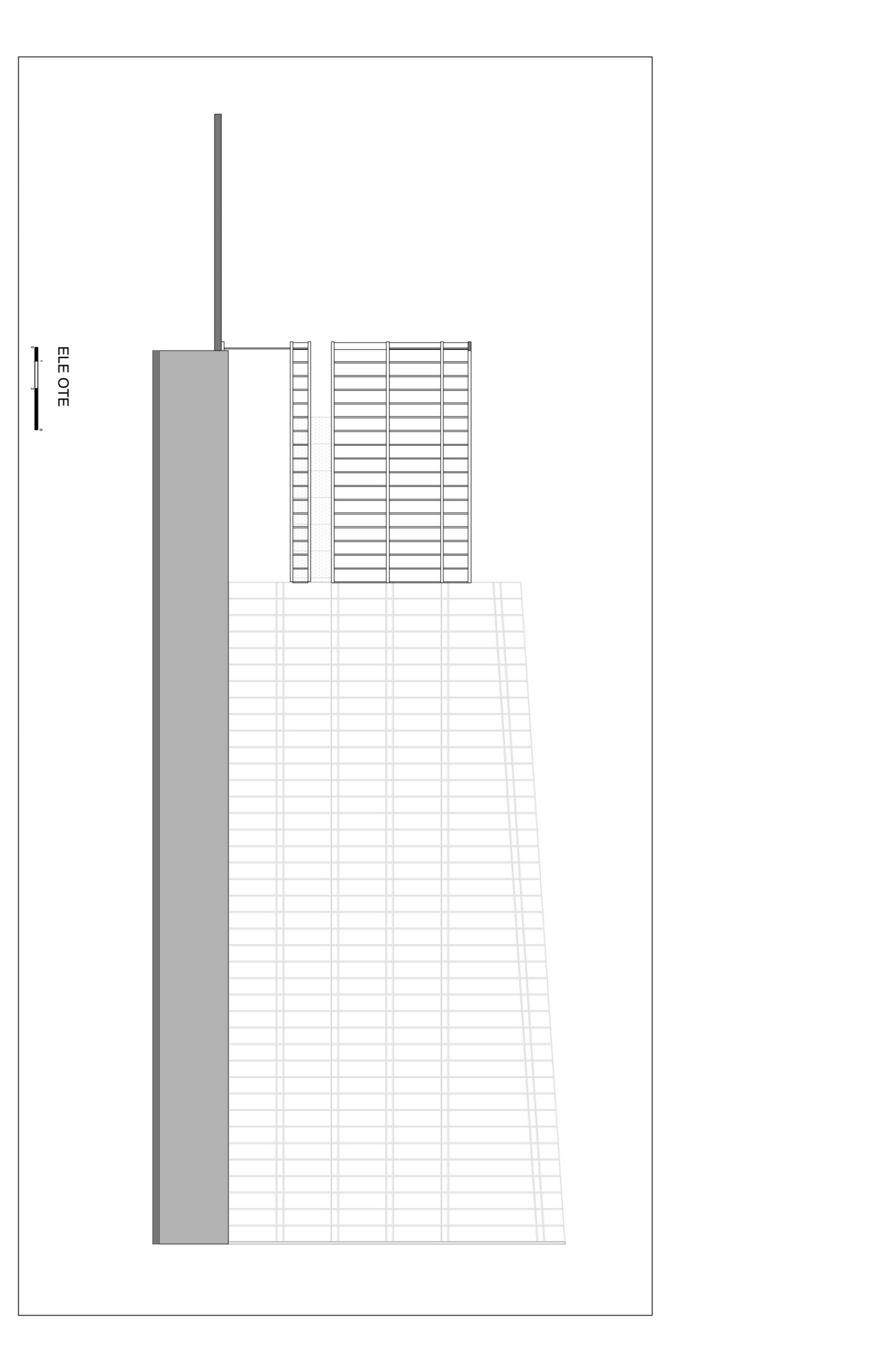

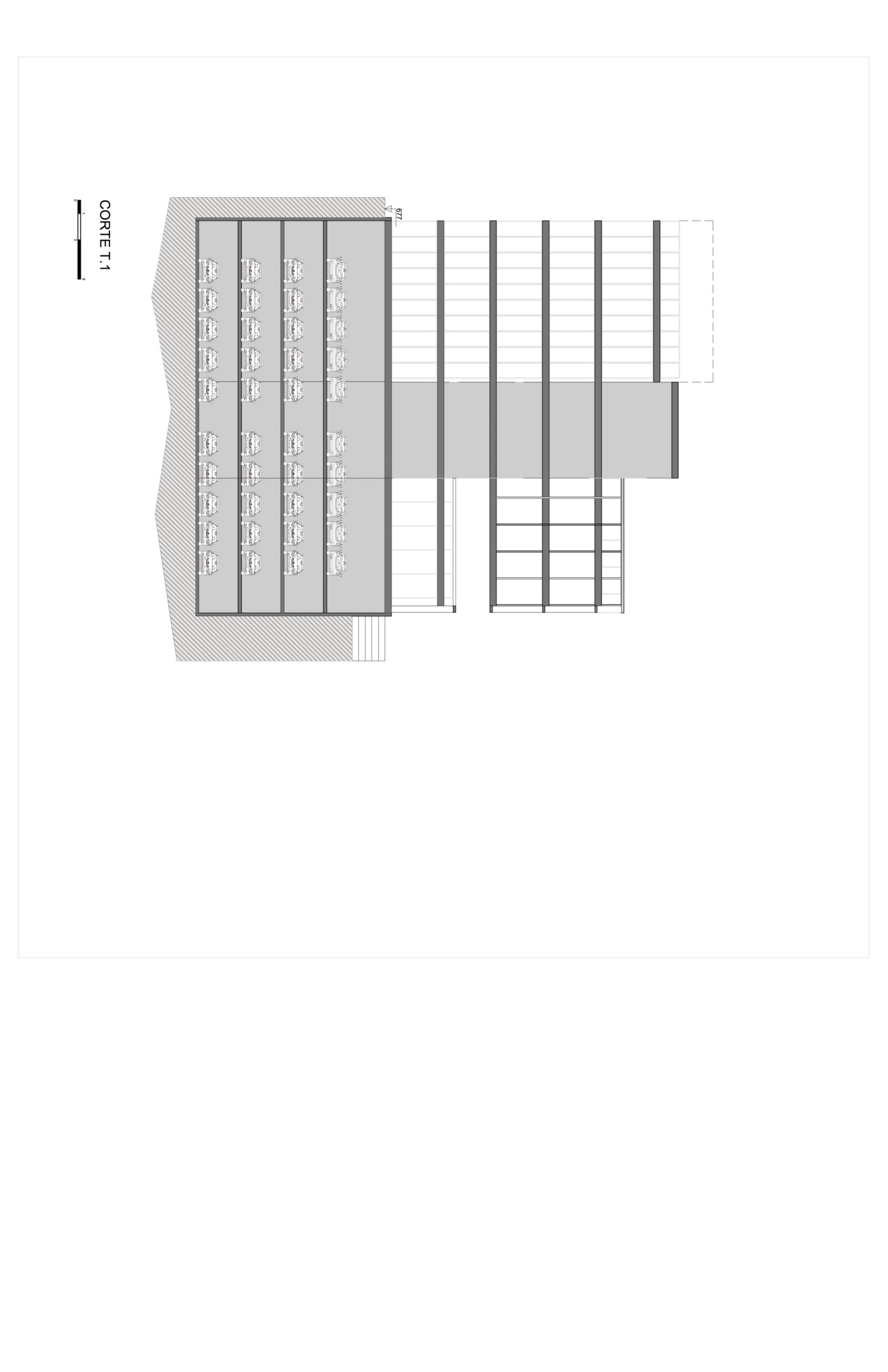

▽立面图
项目参与者:Viviano Villarreal-Buerón Fernando Flores Nelson Ontiveros Daniel Cruz
Landscape: Orcotec Adrian Casas
景观设计:Orcotec Adrian Casas
工程完成年份:2023年
地点(城市和地址):MTY
摄影:@CESAR ROSALES / DOVEDOPE
FA
©FRANCISCO ALVAREZ / THE RAWS
A.M
ADRIAN MACHUCA / PENTAPRISM
视频:https://vimeo.com/735258094/0cdb34801c
Viviano Villarreal-Buerón Fernando Flores Nelson Ontiveros Daniel Cruz
Landscape: Orcotec Adrian Casas
Landscape: Orcotec Adrian Casas
Year of completion of the work: 2023
Location (city and address): MTY
Photography: @CESAR ROSALES / DOVEDOPE
FA
©FRANCISCO ALVAREZ / THE RAWS
A.M
ADRIAN MACHUCA / PENTAPRISM
https://vimeo.com/735258094/0cdb34801c
