公司: | Studio Cadena | 类型: | 建筑 |
---|---|---|---|
地区: | 哥伦比亚 | 标签: | 商业空间 |

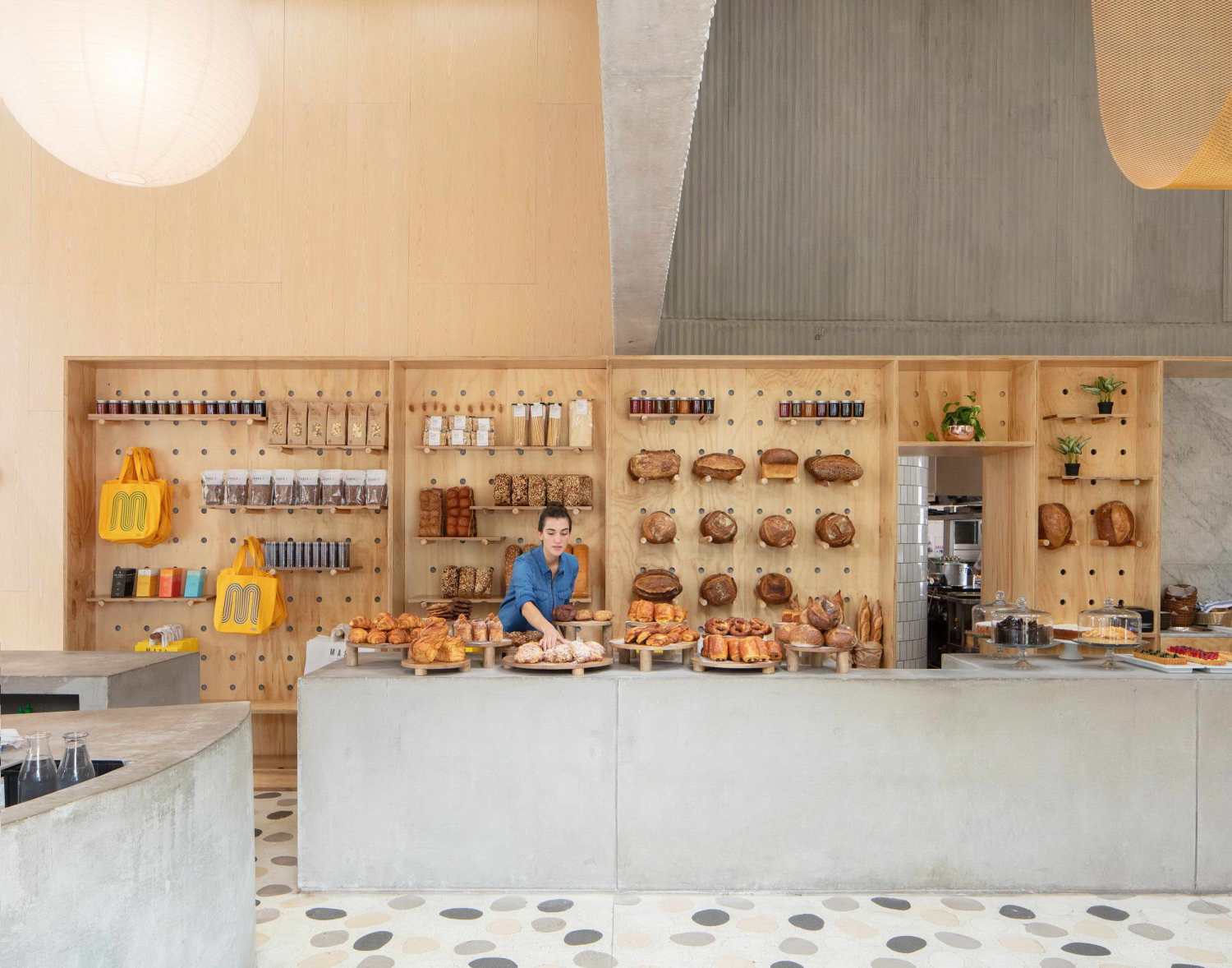

这座建筑由不同但又相互联系的体量组成,包含有一个咖啡馆、一个面包店和一个零售空间。 项目使用简单的形式和材料,以达到最大的效果,它衔接空间、质地和光线,提供具有独特个性的环境。
Organized as a grouping of distinct but interconnected volumes, this building houses a cafe, a bakery, and a retail space. Using simple forms and materials to maximum effect, it articulates spaces, textures, and light to deliver environments with unique character.

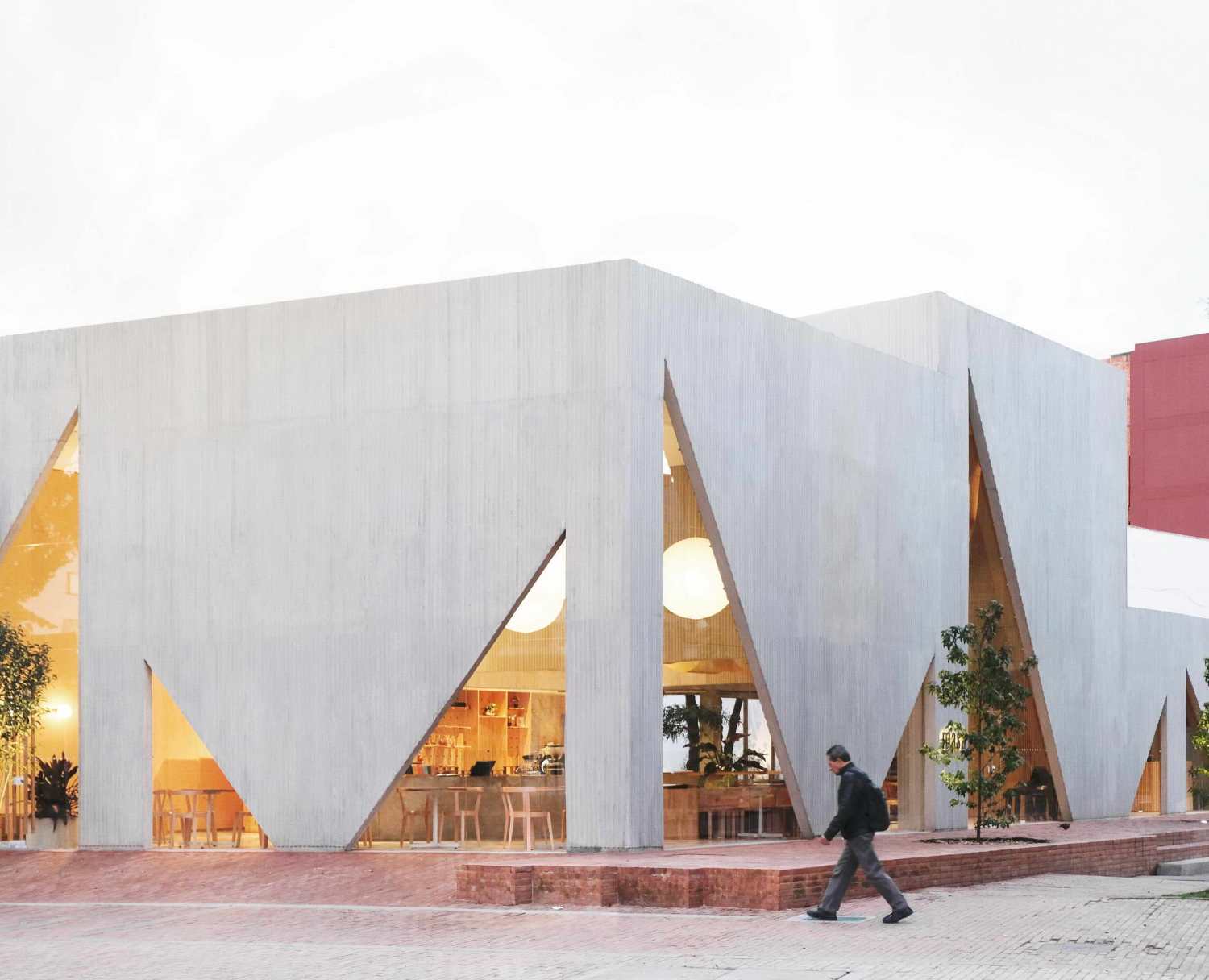

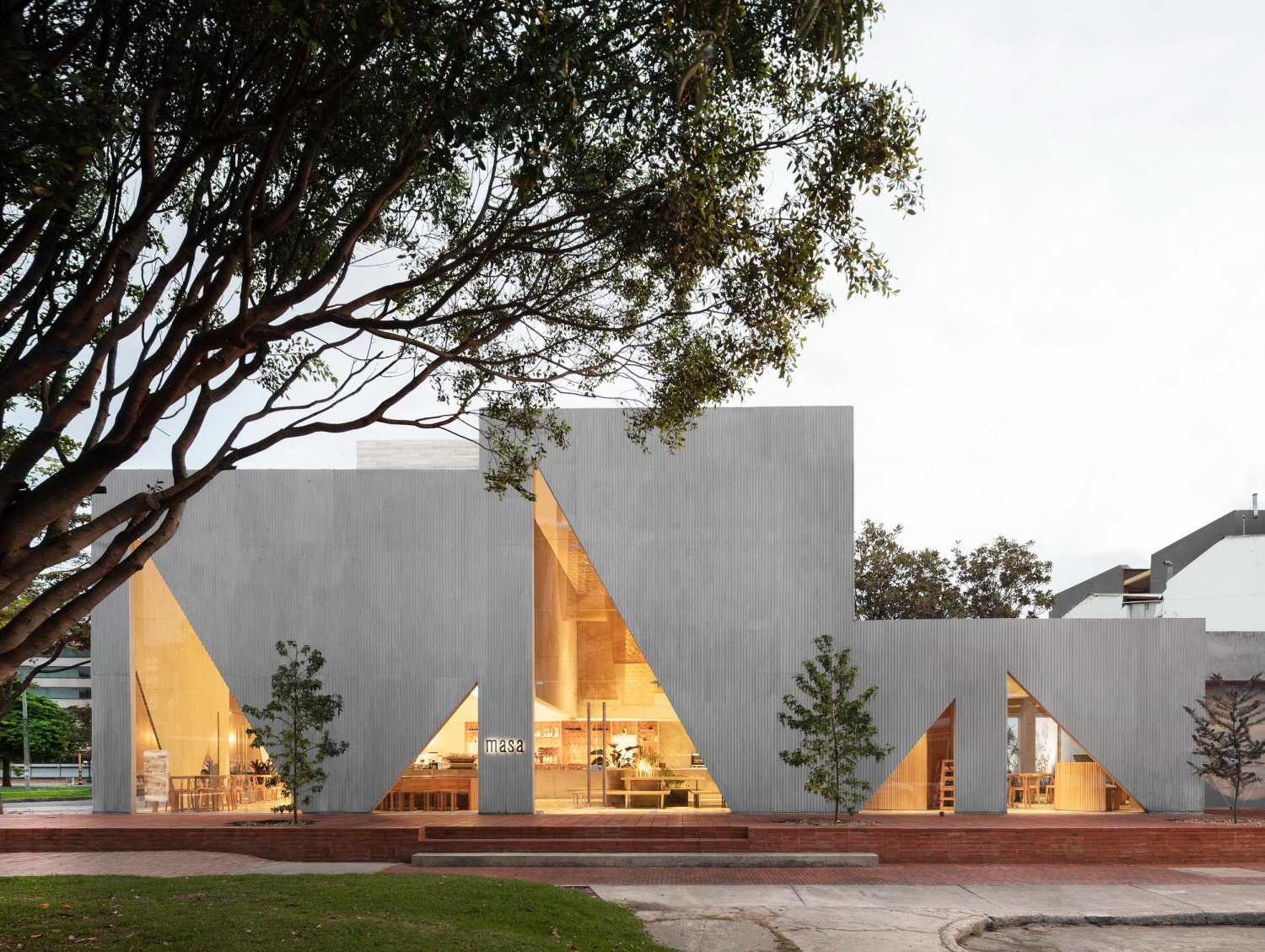

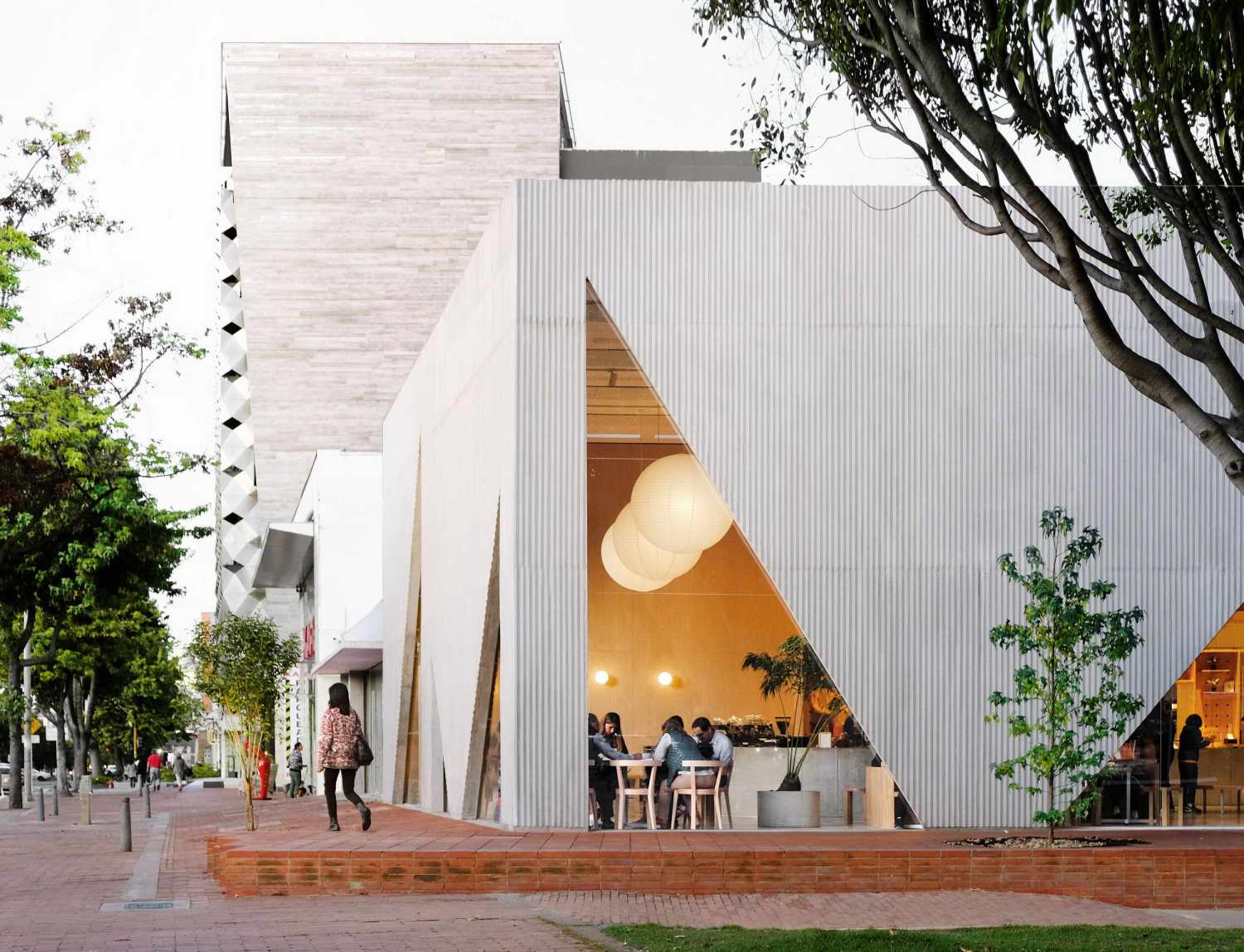

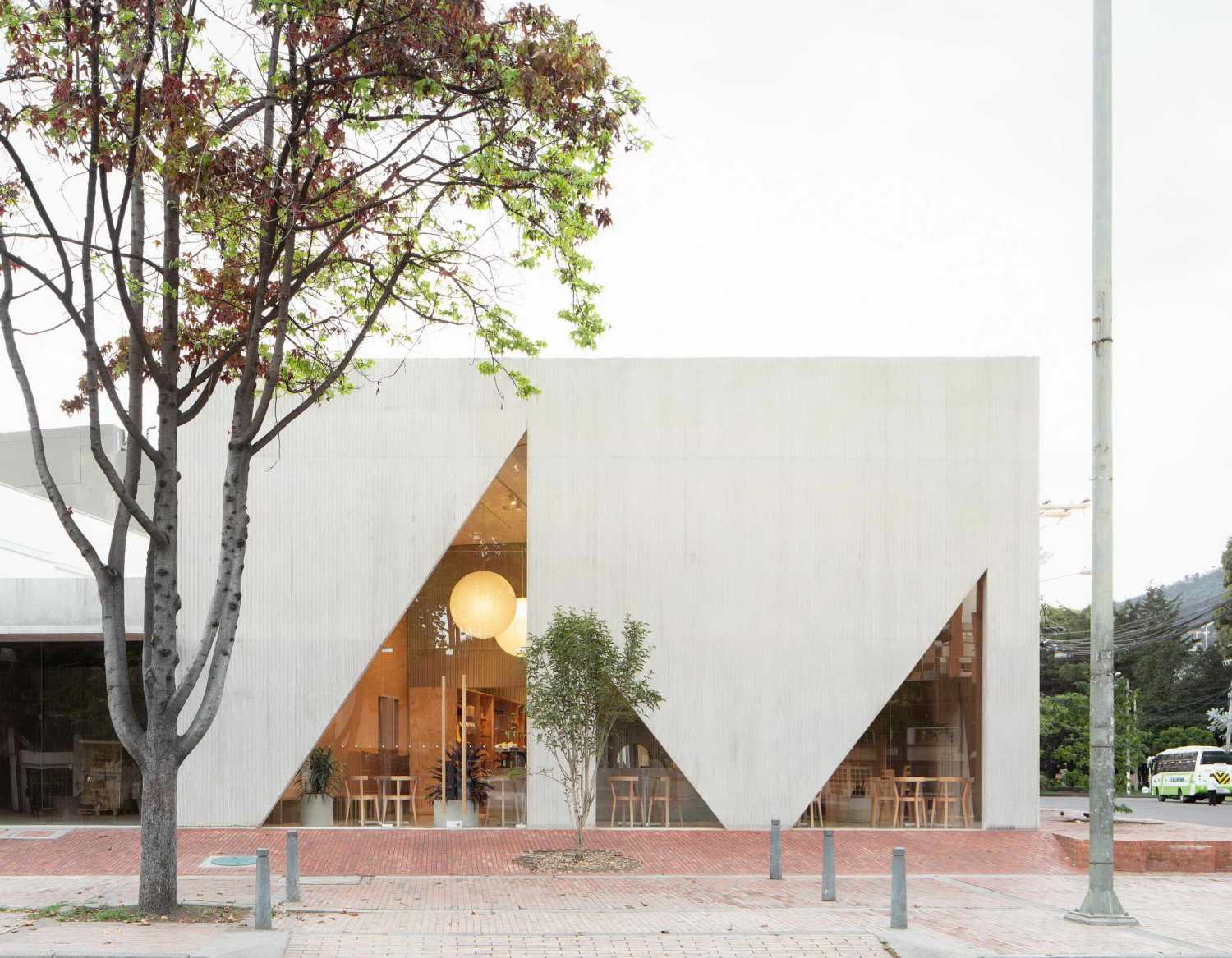

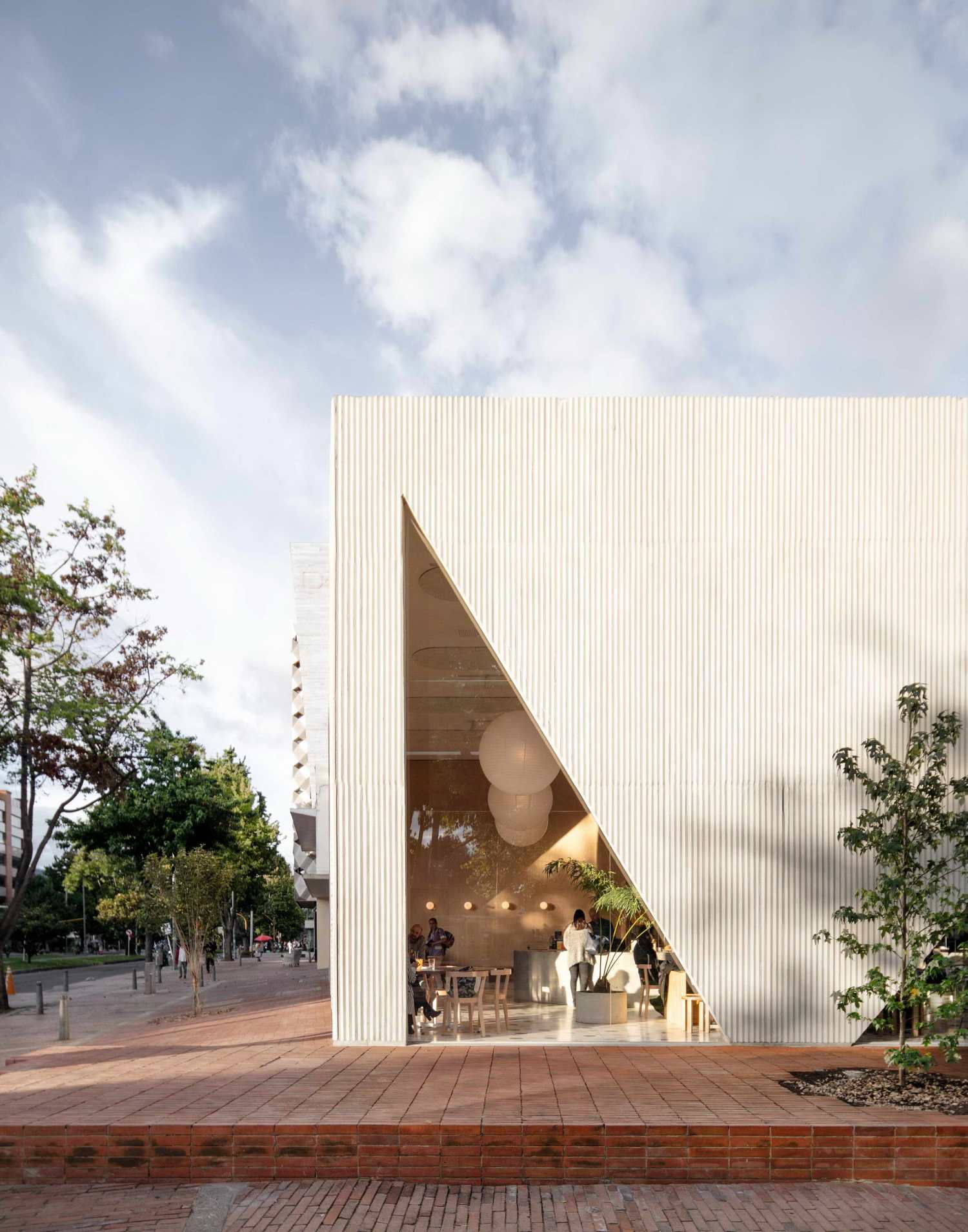

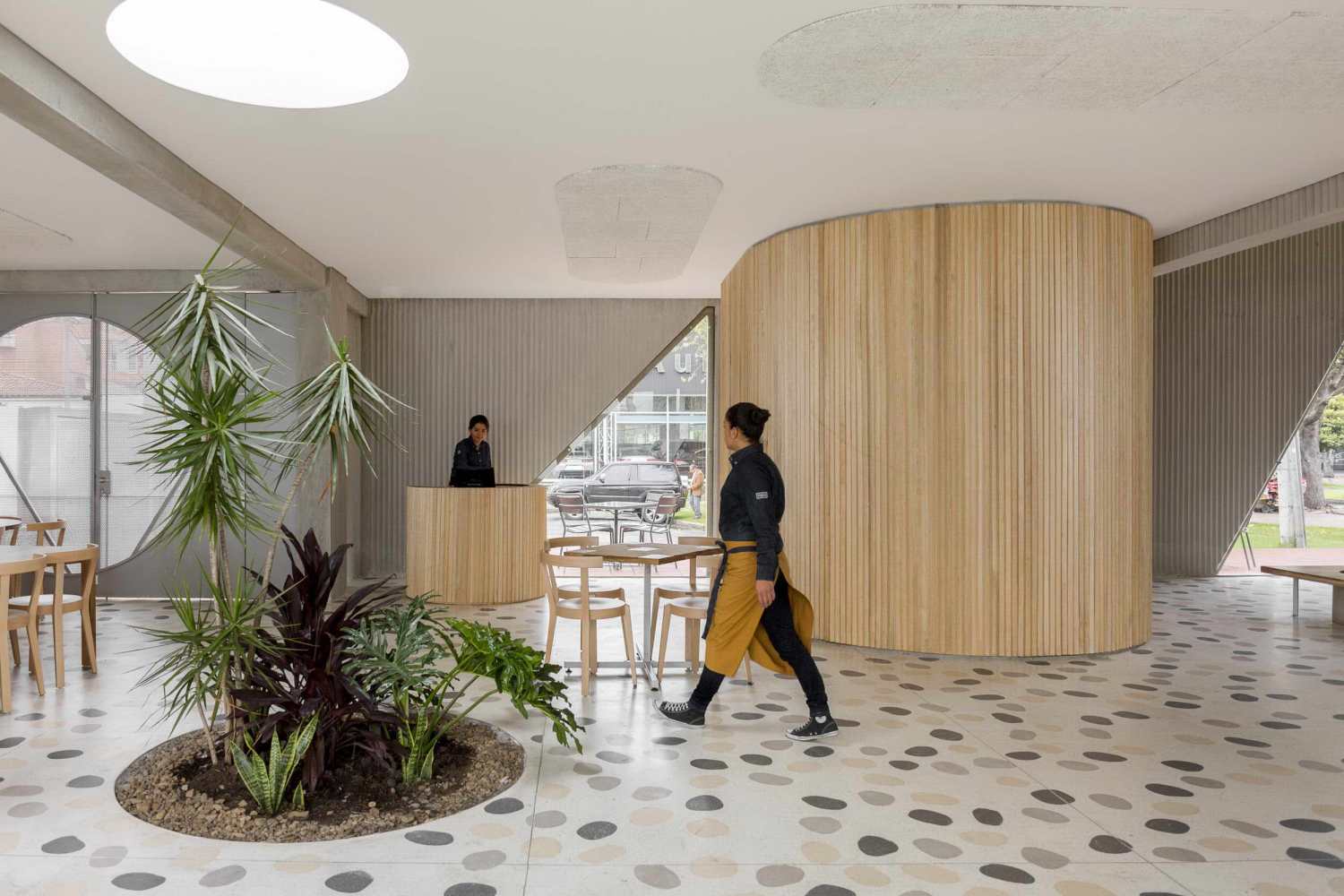

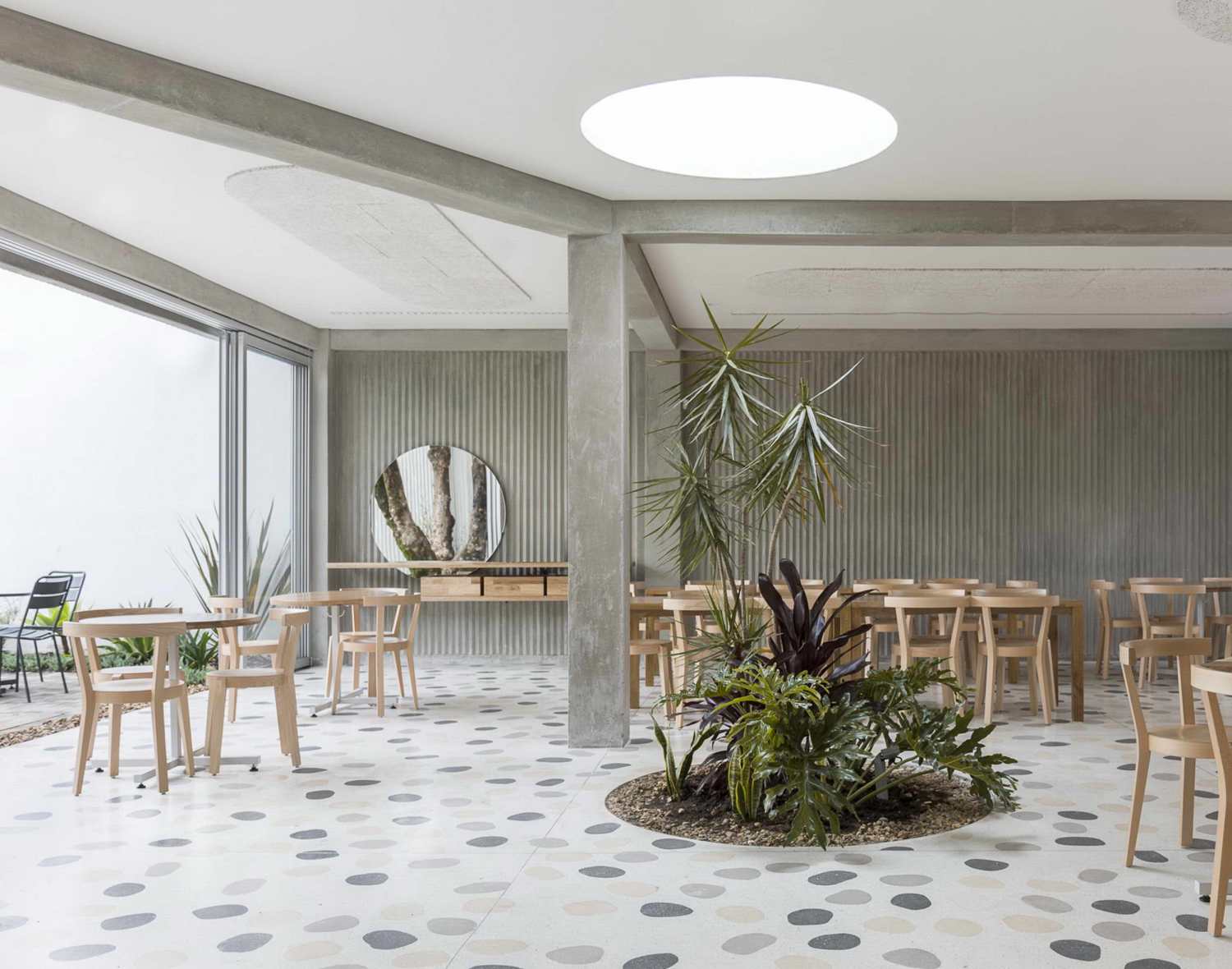

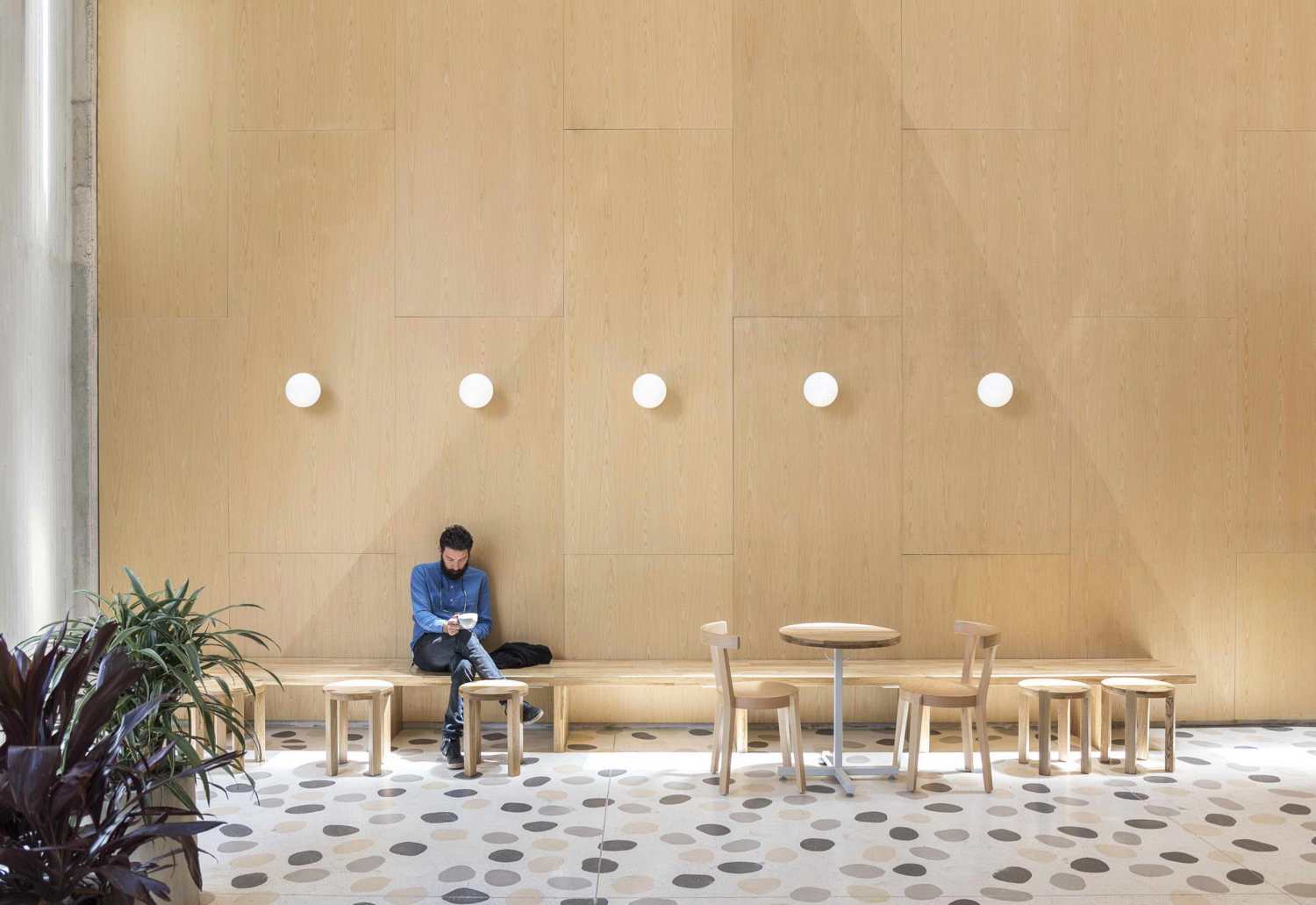

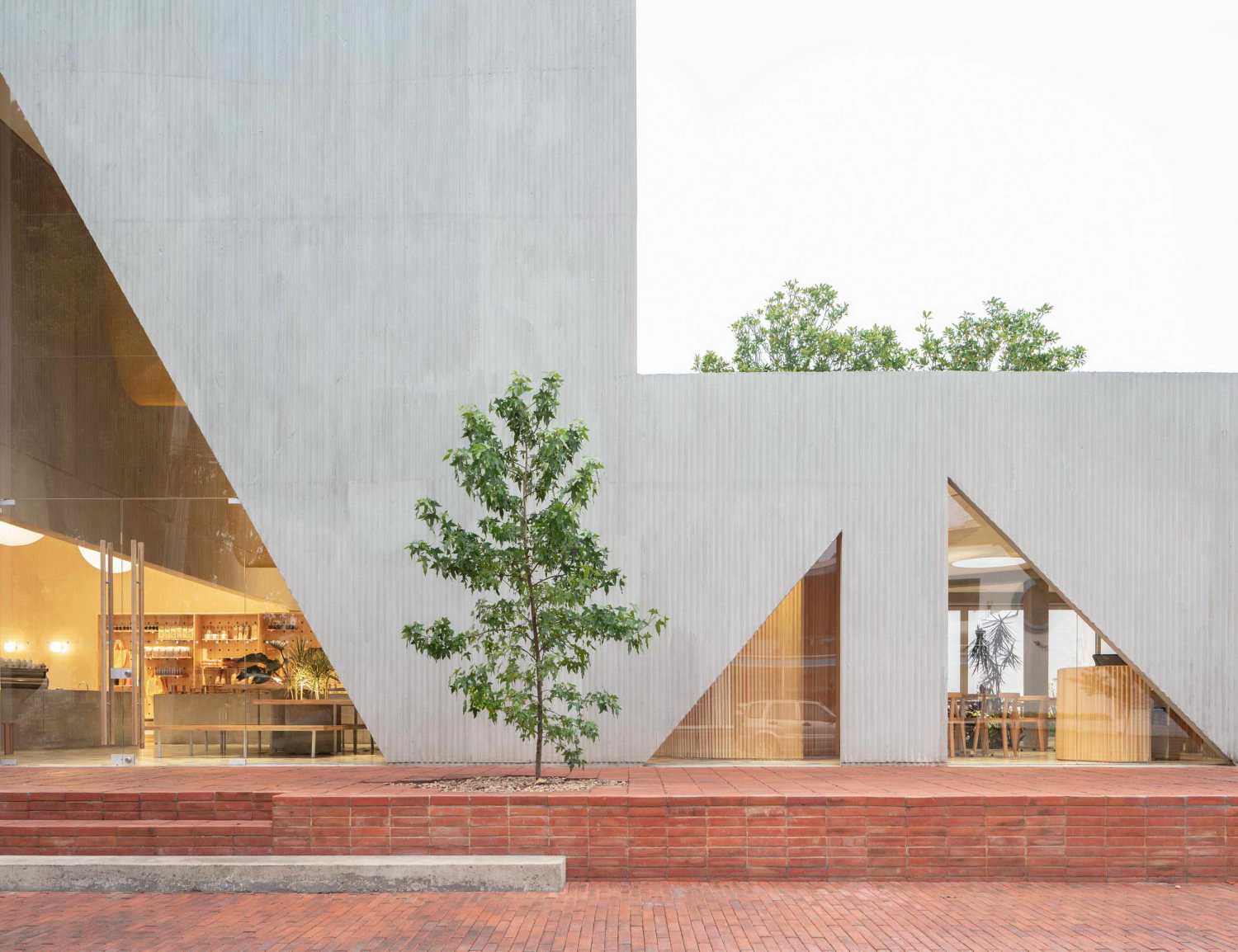

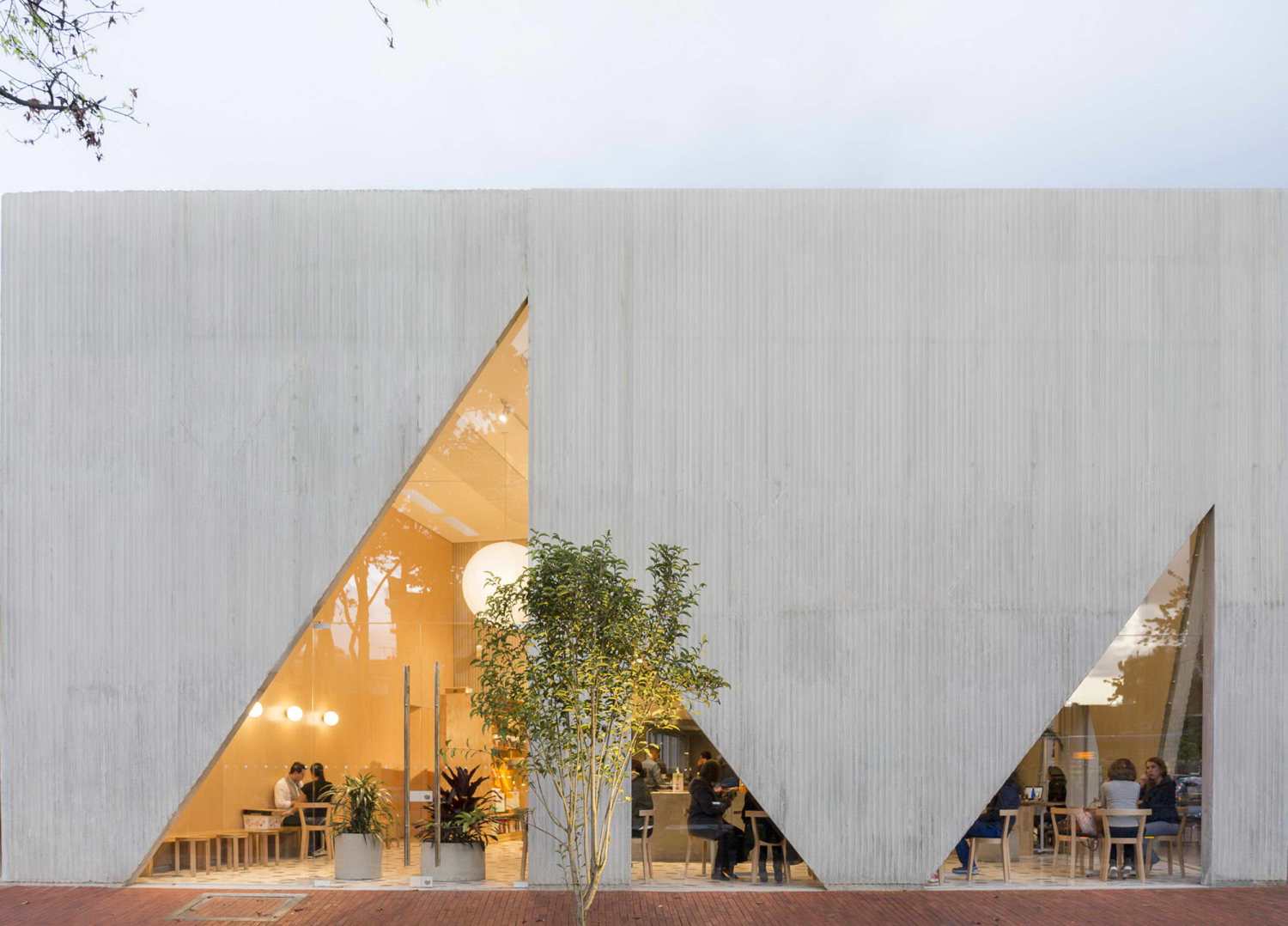

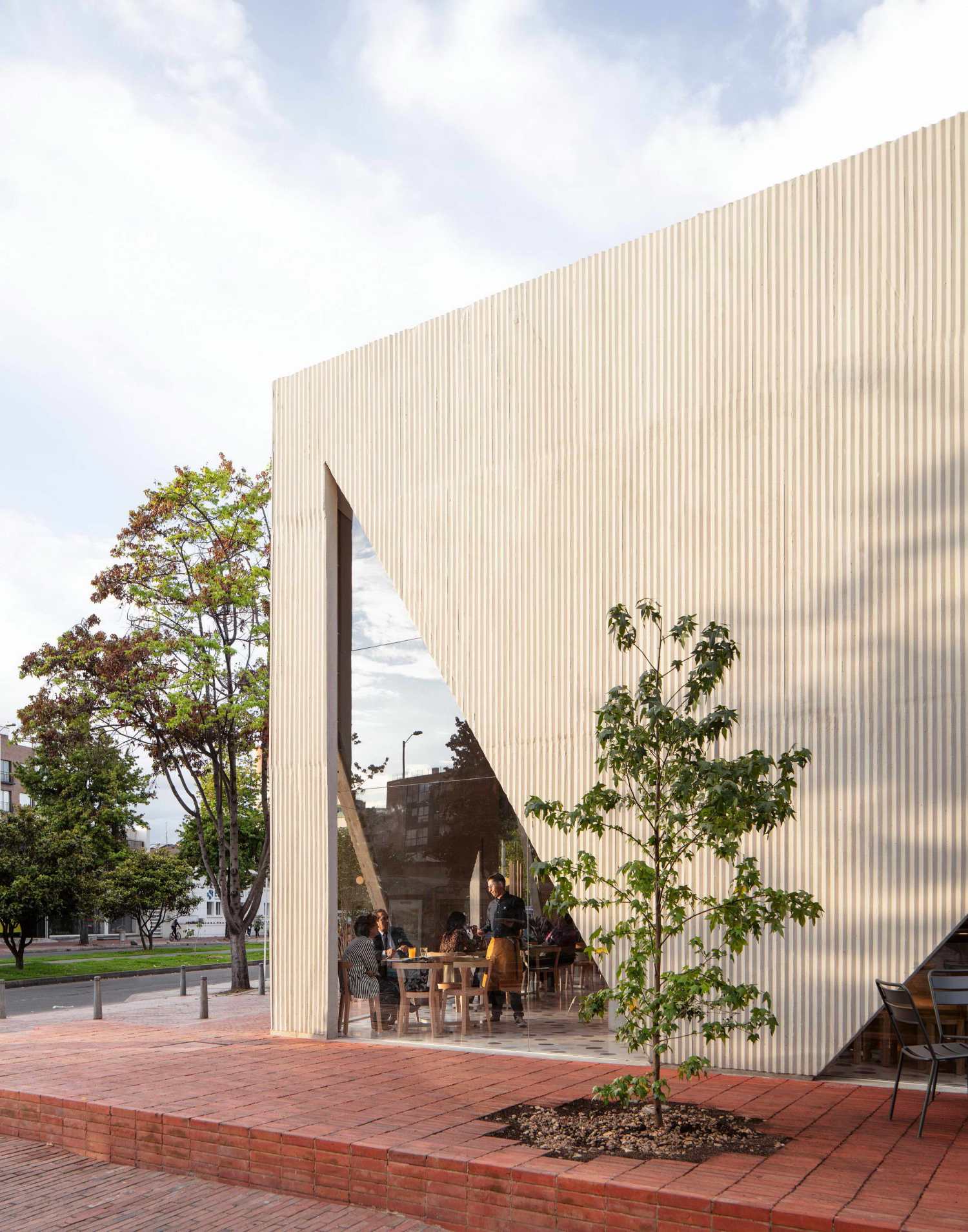

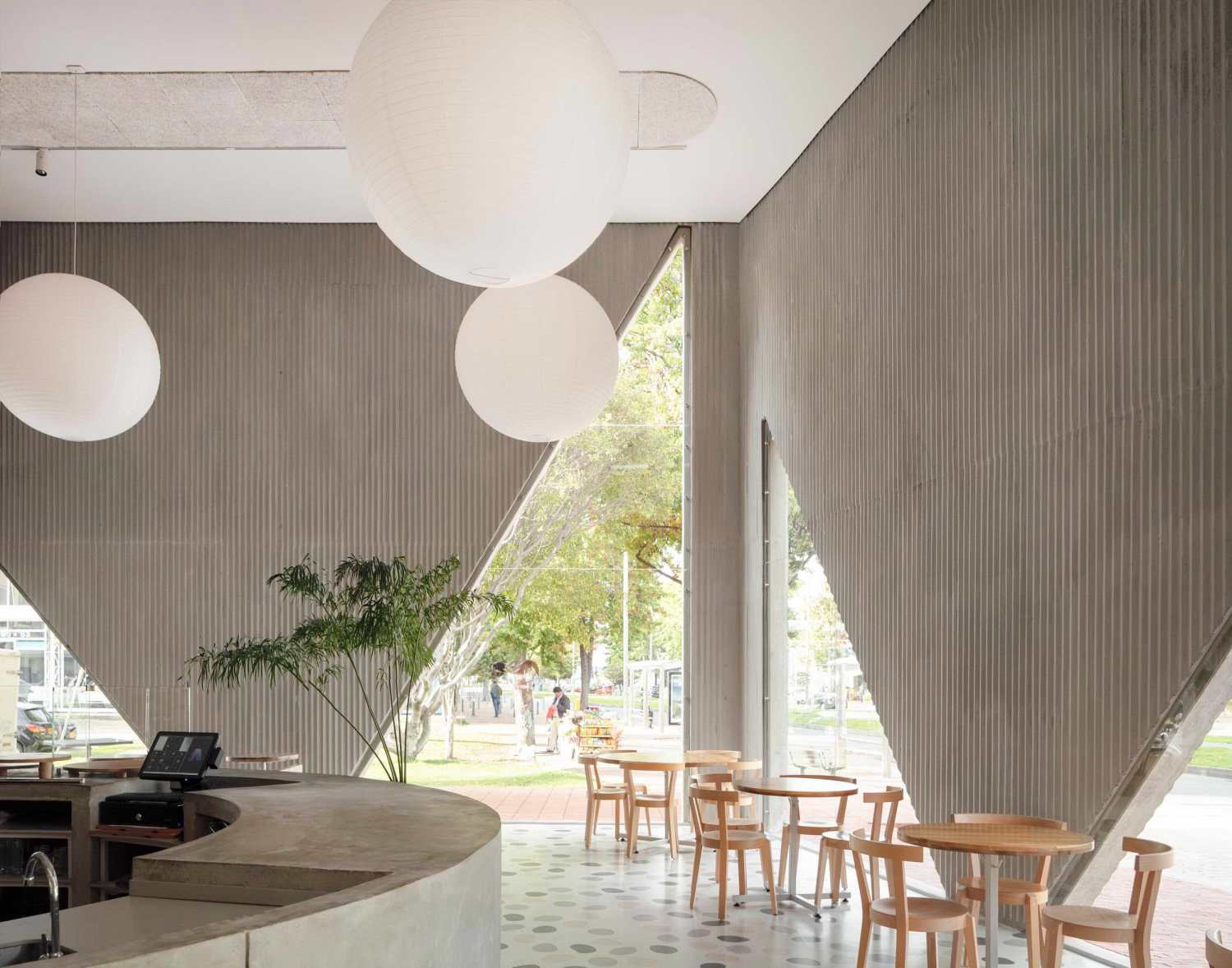

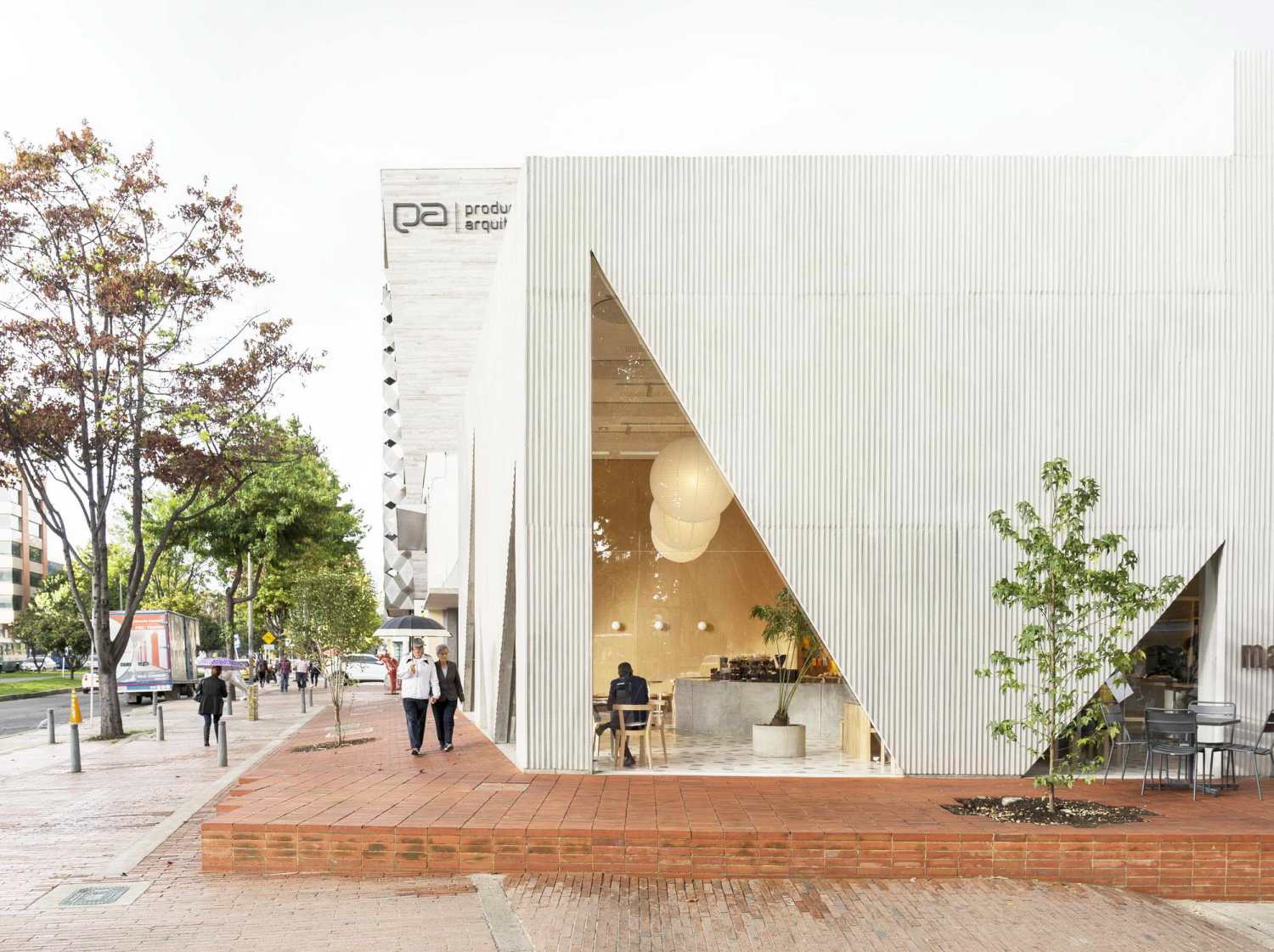

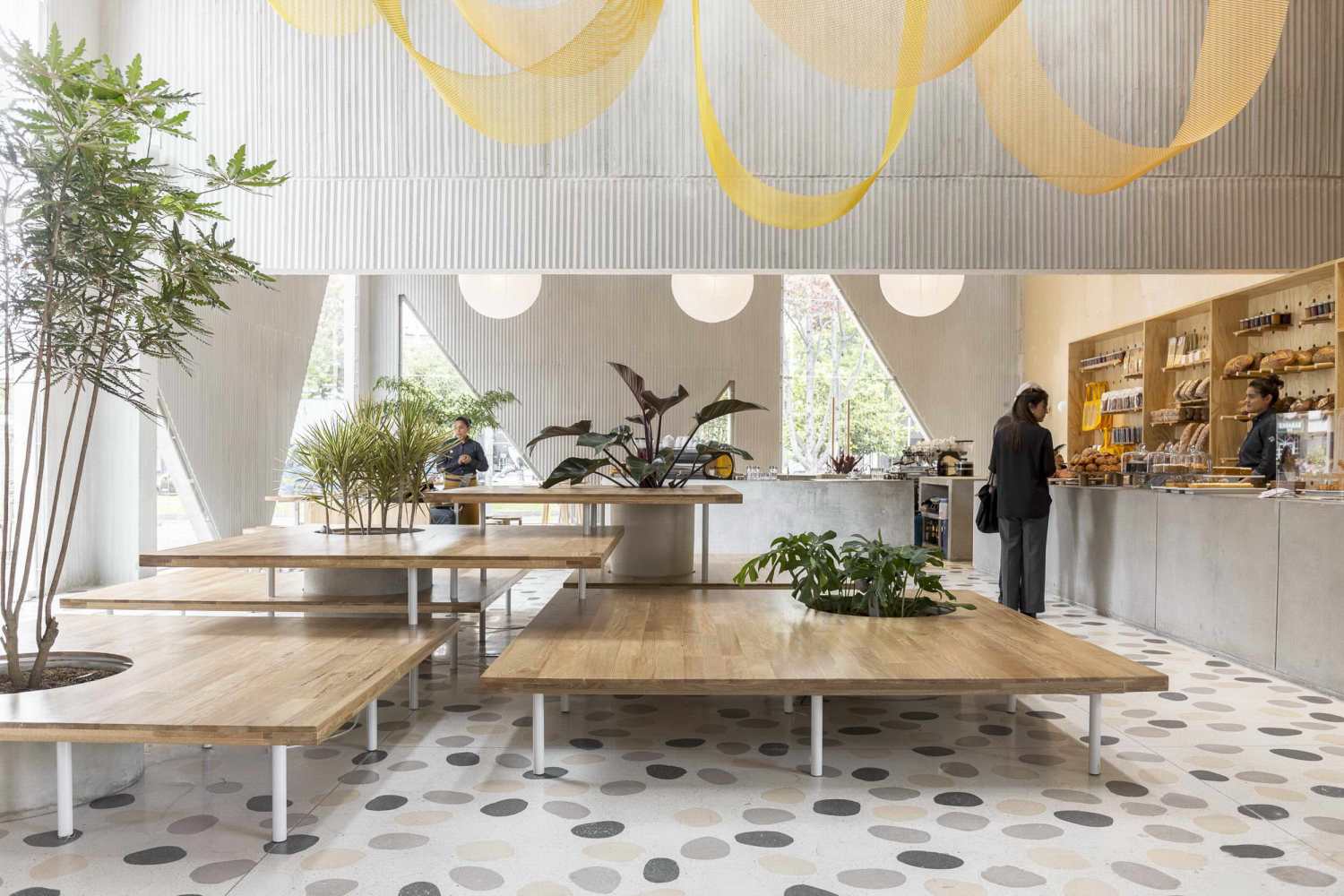

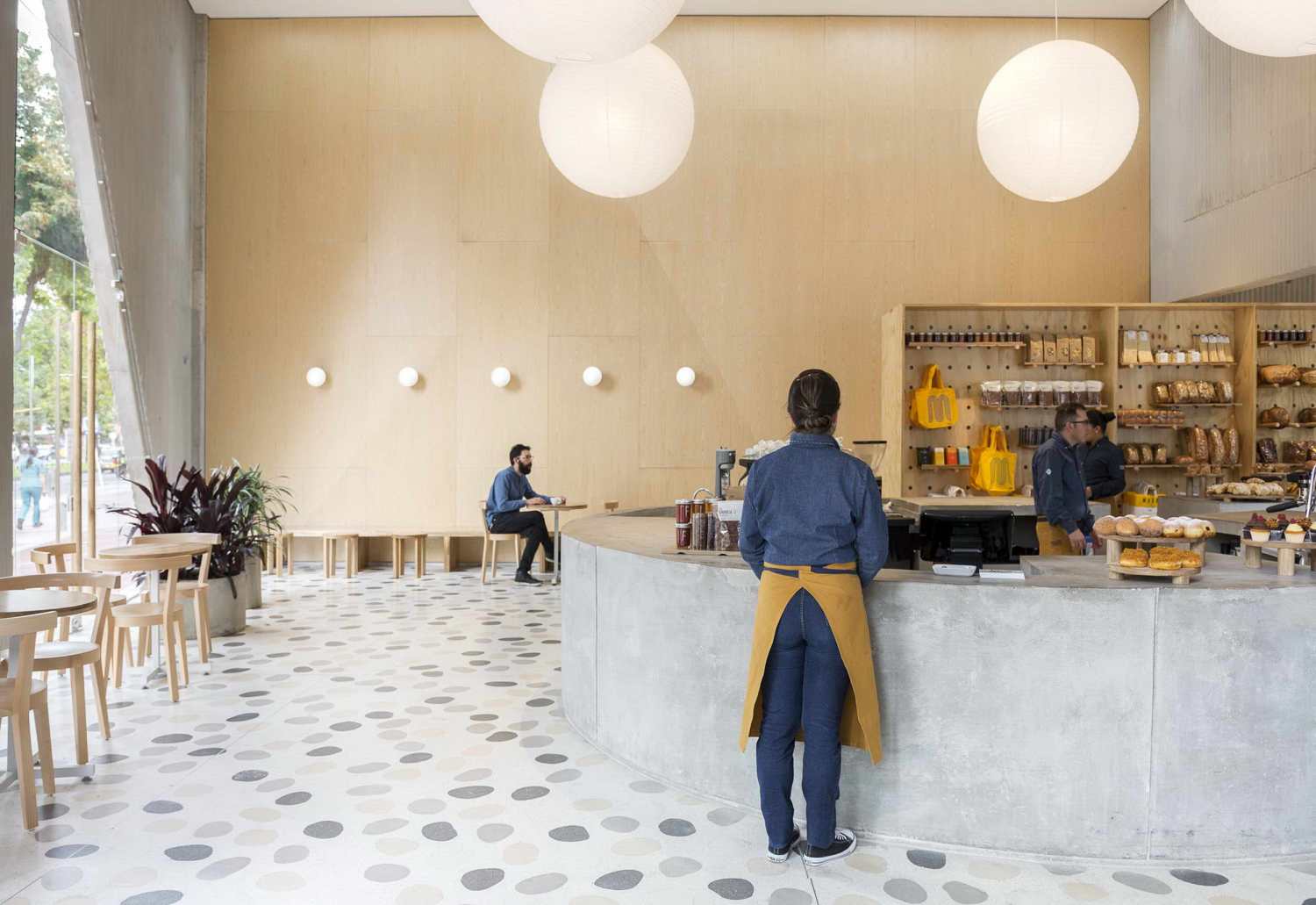

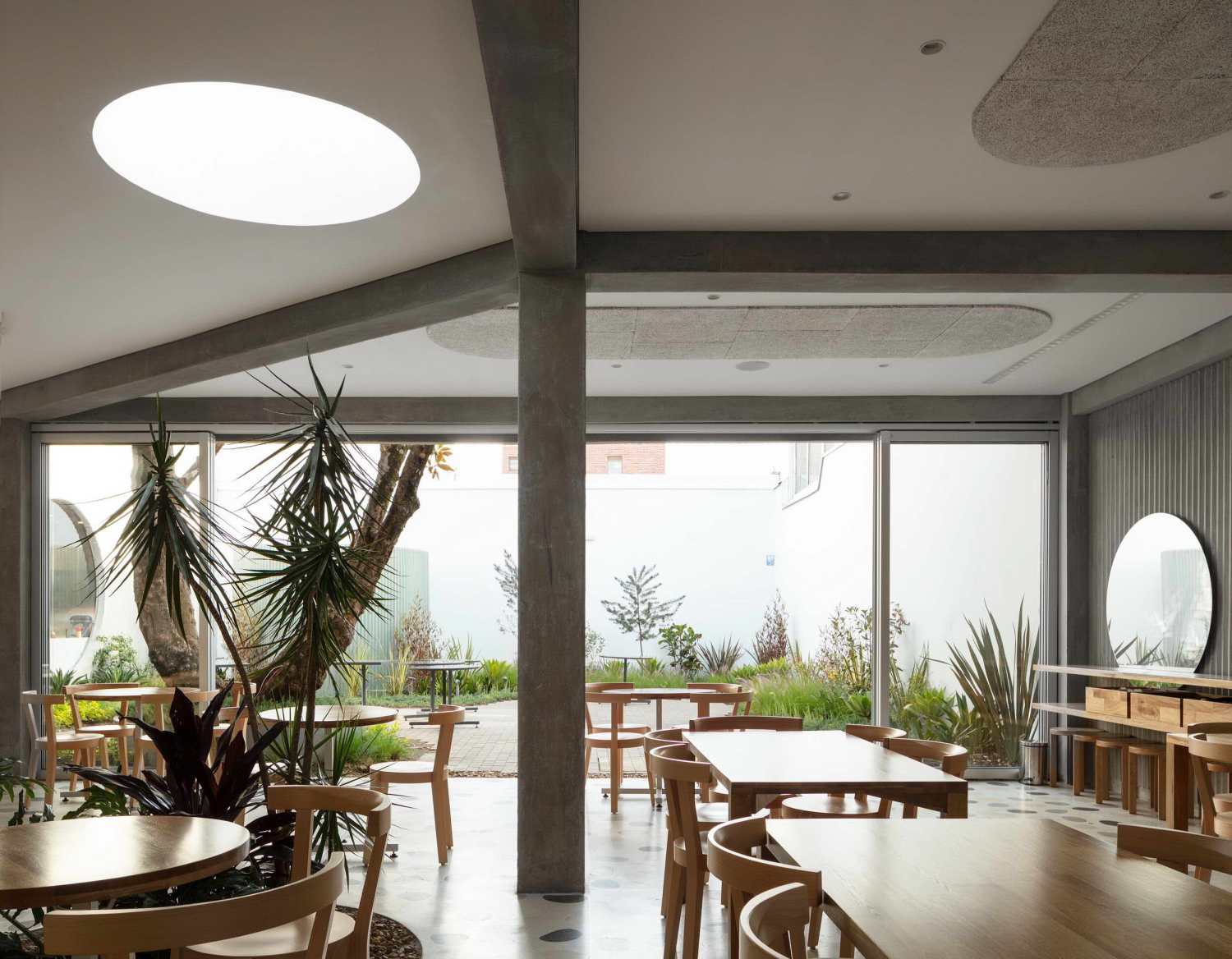

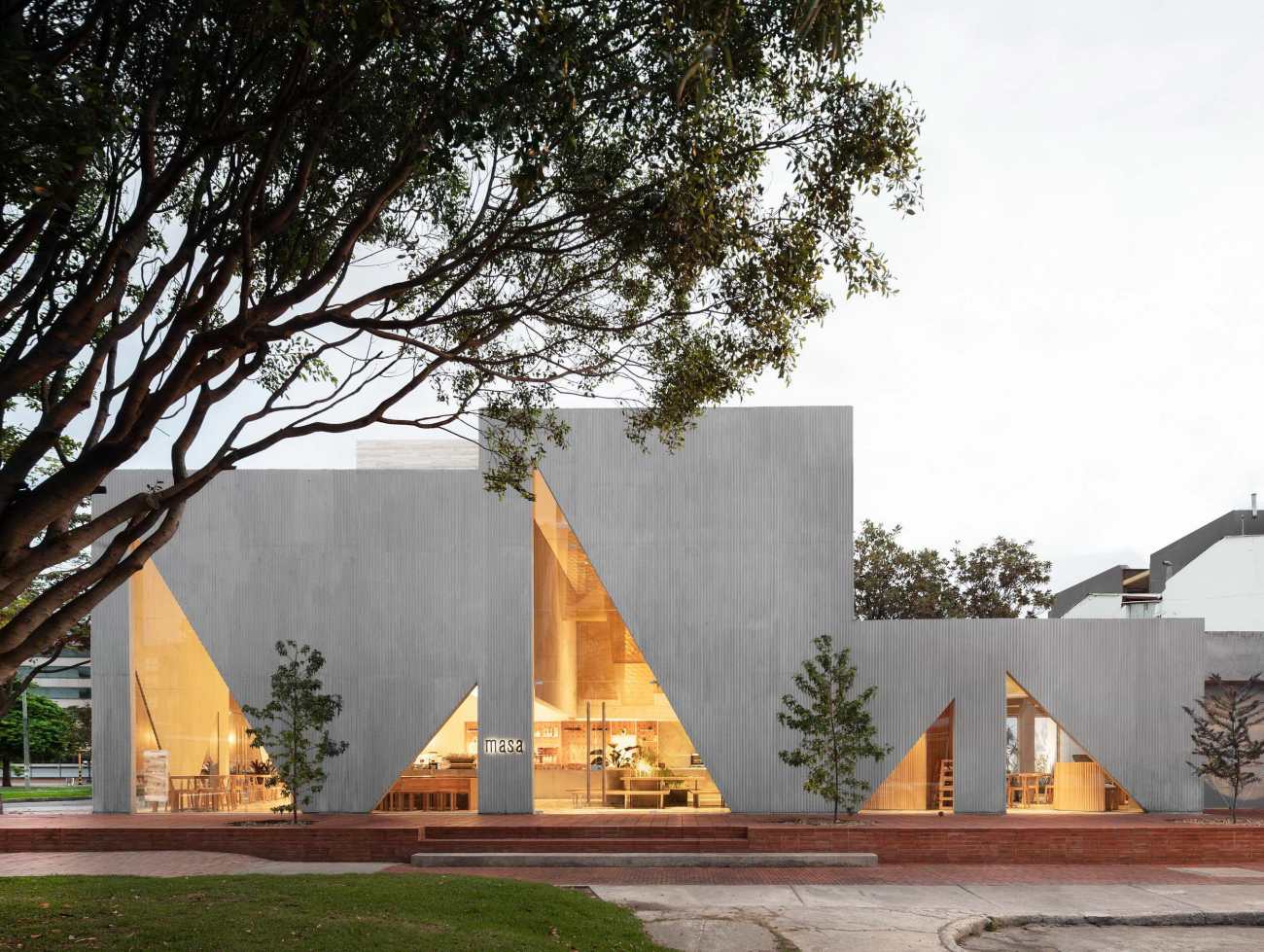

为了与周围波哥大住宅区的环境产生共鸣,该建筑的体量被分割成较小的部分。这种方法定义了更多私密的房间,但由于有一个连续的地面,你可以在开放的空间中自由移动。大的三角形窗户被切入建筑的纹理混凝土墙体中,在向街道开放的同时,也揭示了建筑内部的生活。 在室内,不同的天花板高度、照明和座位条件调节着空间,使每个区域都有自己的特色。
To resonate with its surrounding context in a residential neighborhood of Bogota, the building’s mass is fragmented into smaller parts. This approach defines more intimate rooms yet, with a continuous ground, allows you to move through them with the freedom of an open plan. Large triangular windows, cut into the building’s textured concrete walls, open the facade to the street while revealing the life within. Inside, different ceiling heights, lighting, and seating conditions modulate the space and lend each zone its particular character.

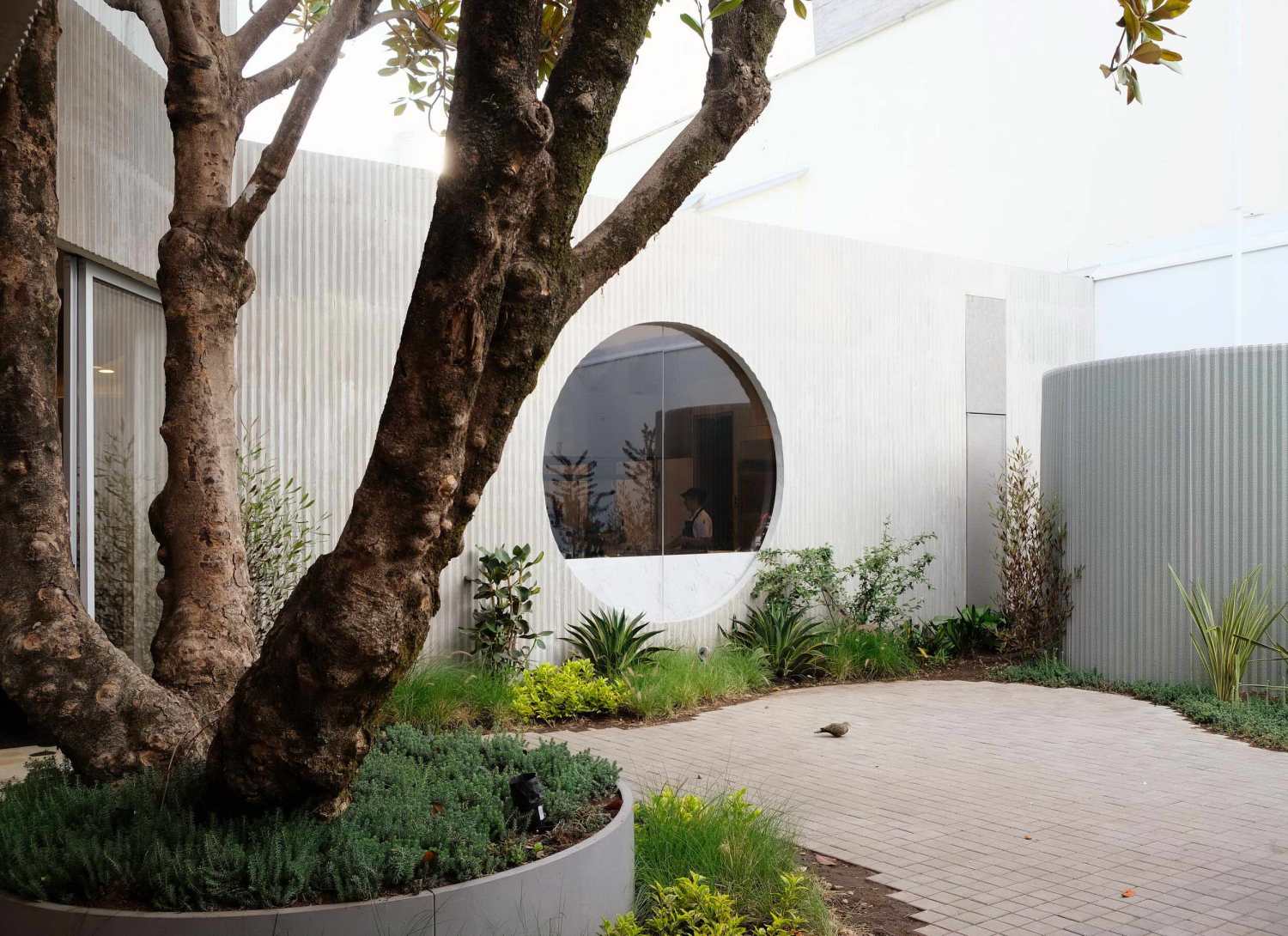

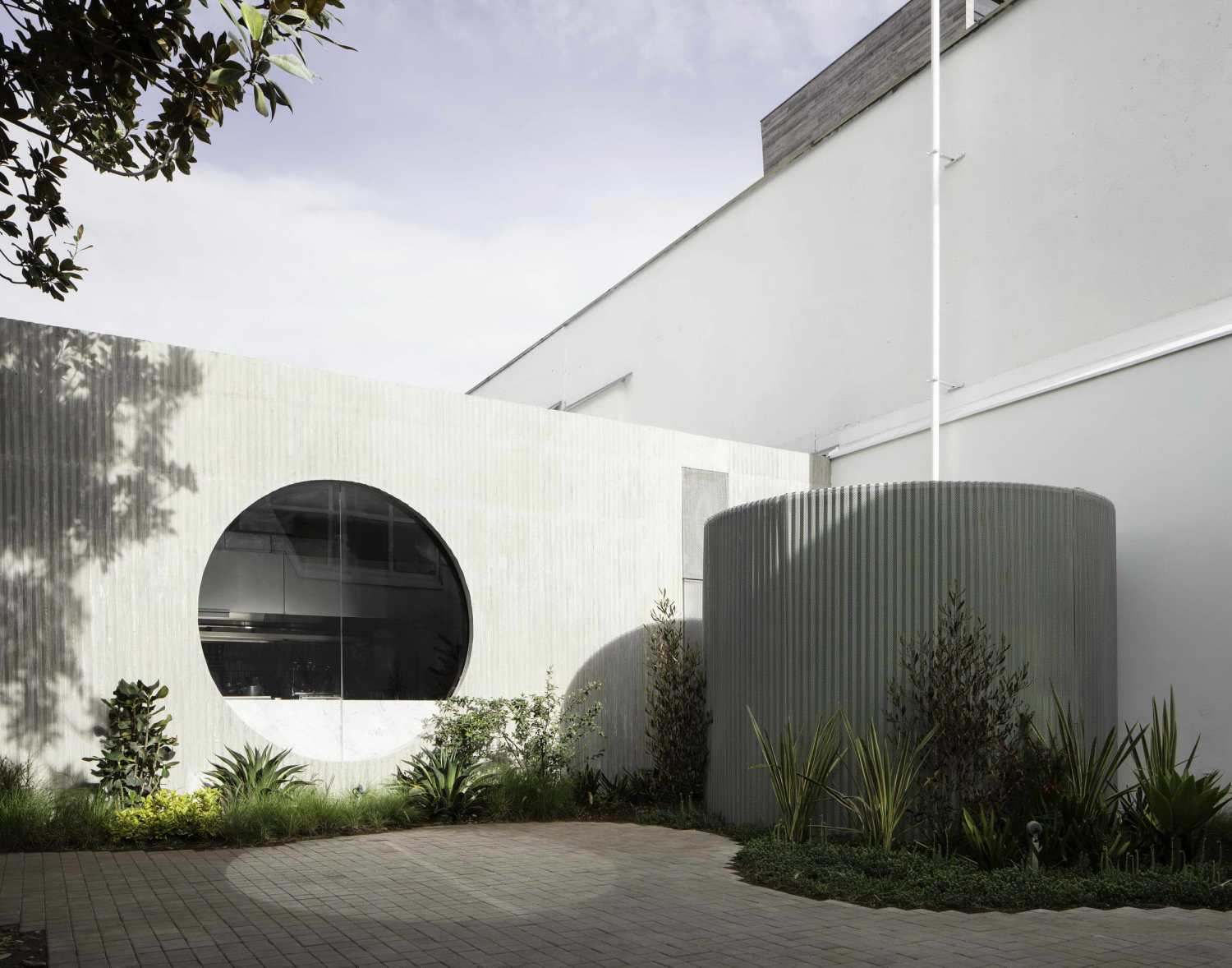

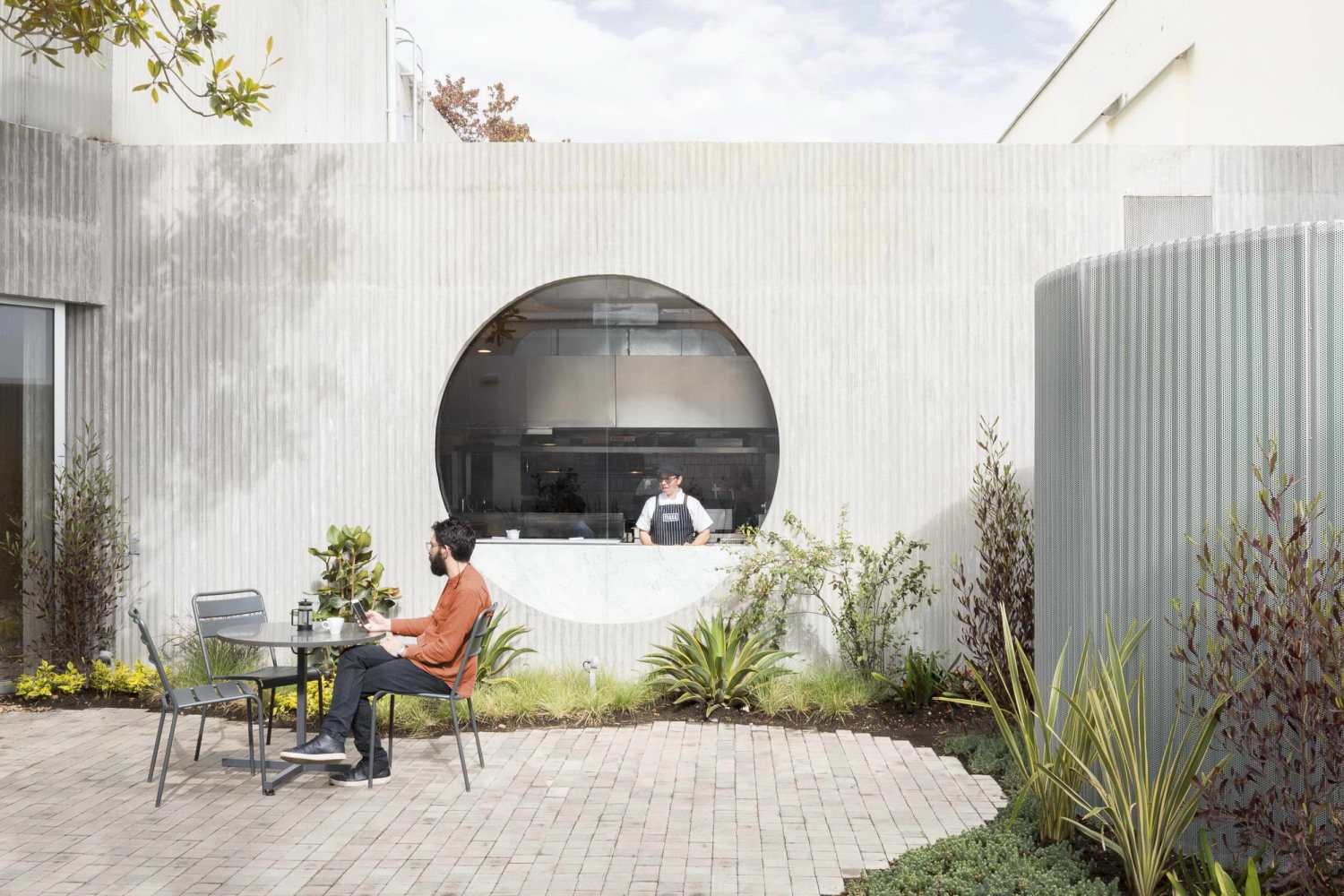

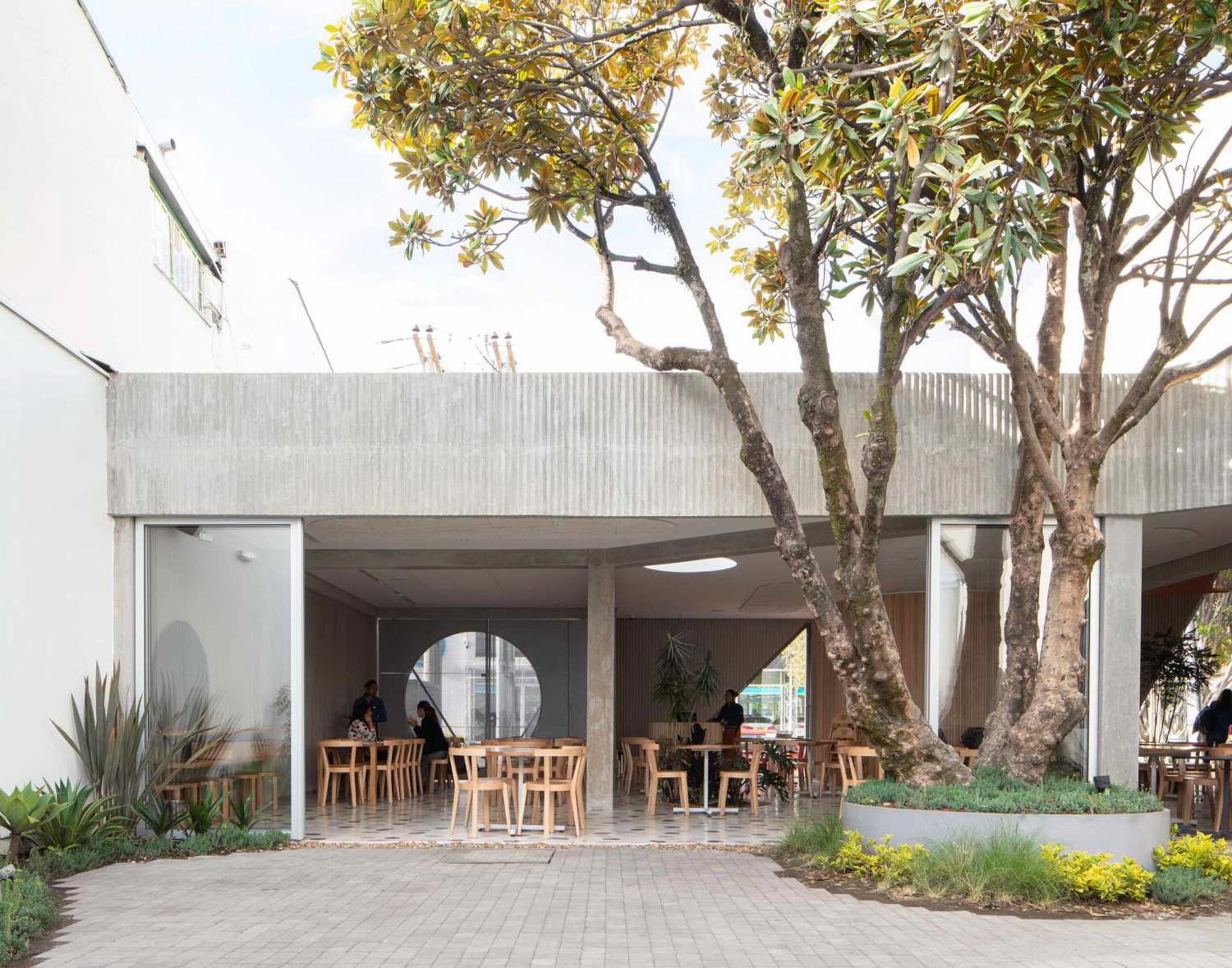

围绕着一棵现有的树,一个安静的室外天井提供了遮阳的座位,并将公众与后方的食品生产区连接起来。该建筑在城市中创造了一个舒适的空间,具有独特的个性,但仍然植根于周围的环境。
A quiet outdoor patio shaped around an existing tree provides shaded seating and connects the public to food production areas in the rear. The building creates a new place in the city with a unique character that is memorable at the urban scale yet remains rooted to its surrounding context, not by how it looks, but rather, how it works inside and out.
设计是全面的,包括所有的建筑、家具和内外景观。
The design was comprehensive and included all the architecture, furnishings and landscape inside and out.

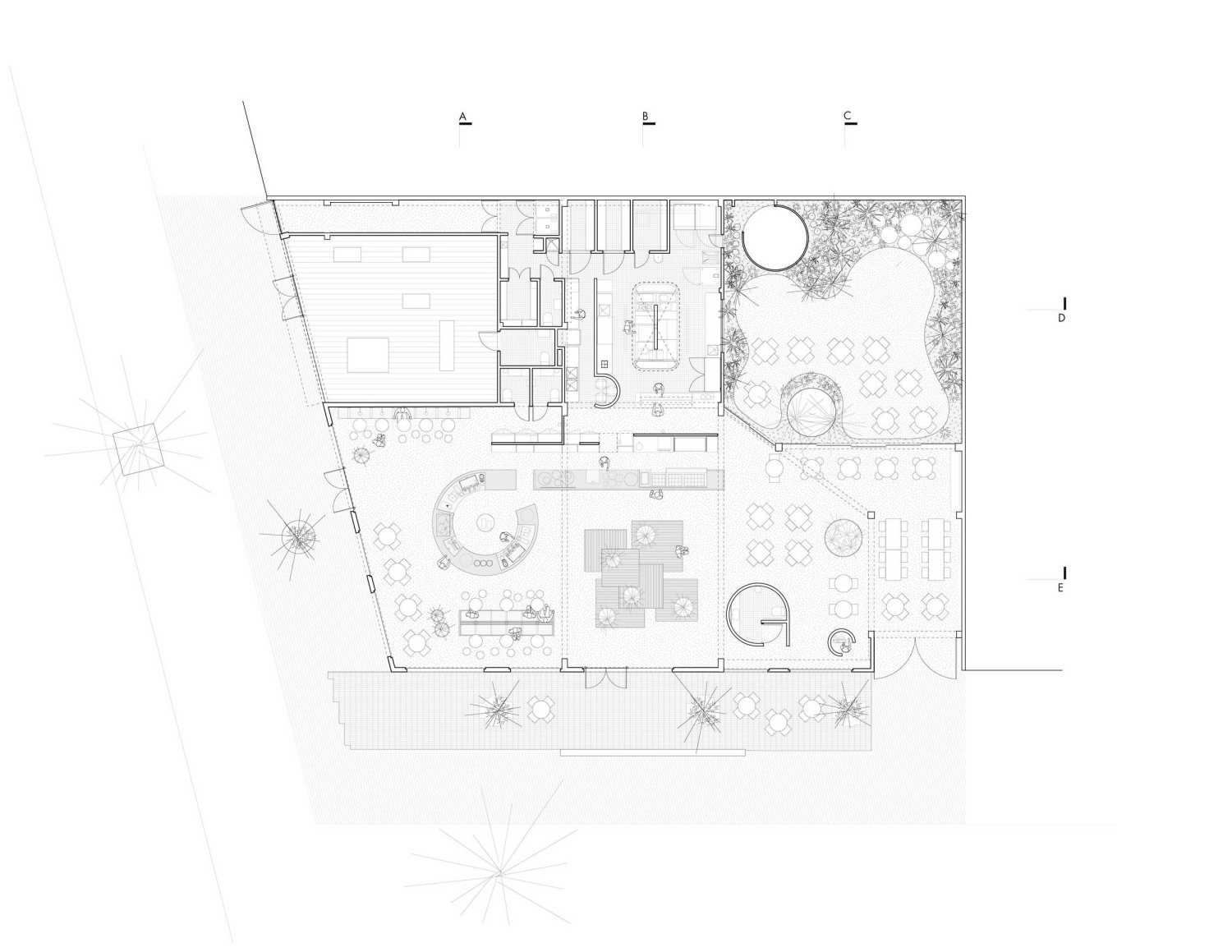

▽平面图 Plan

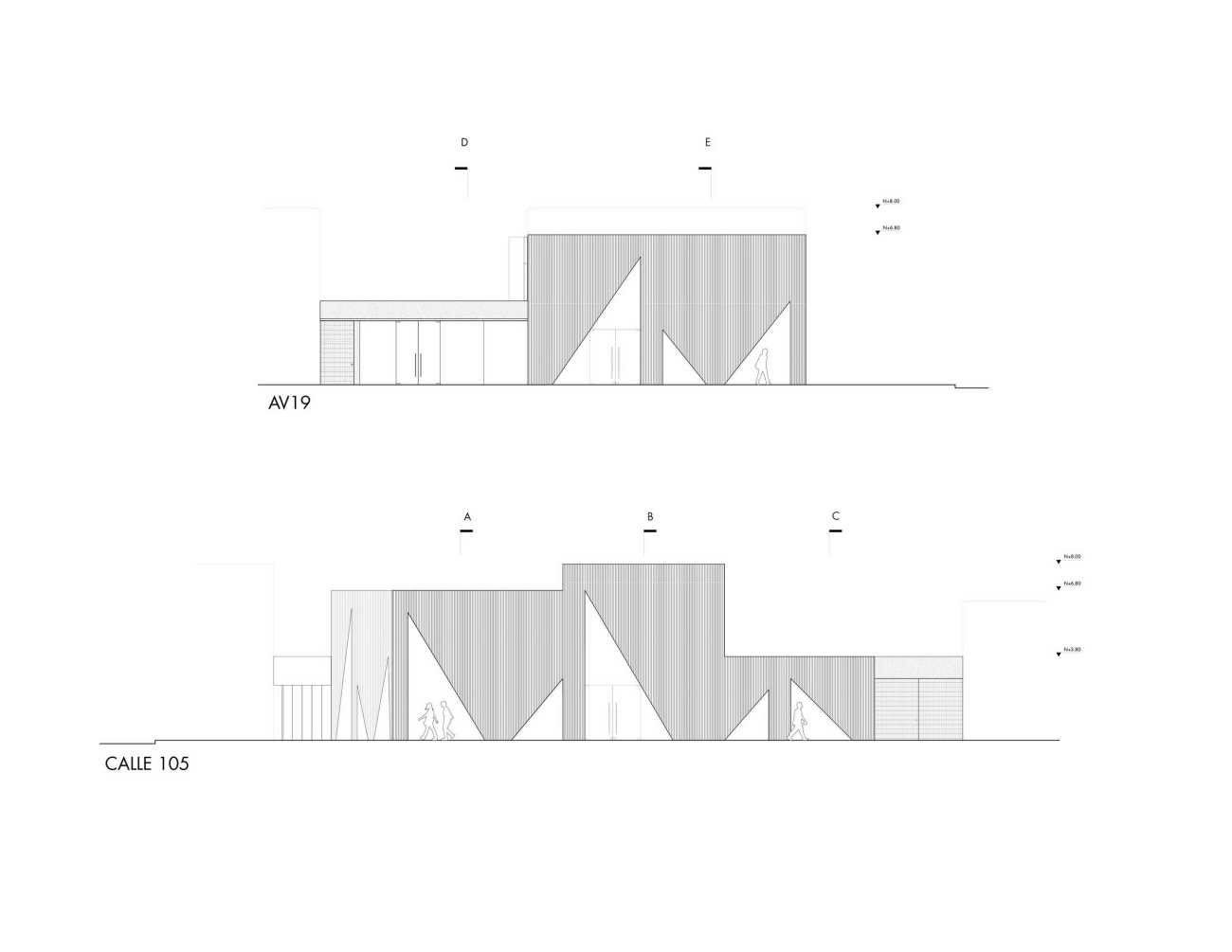

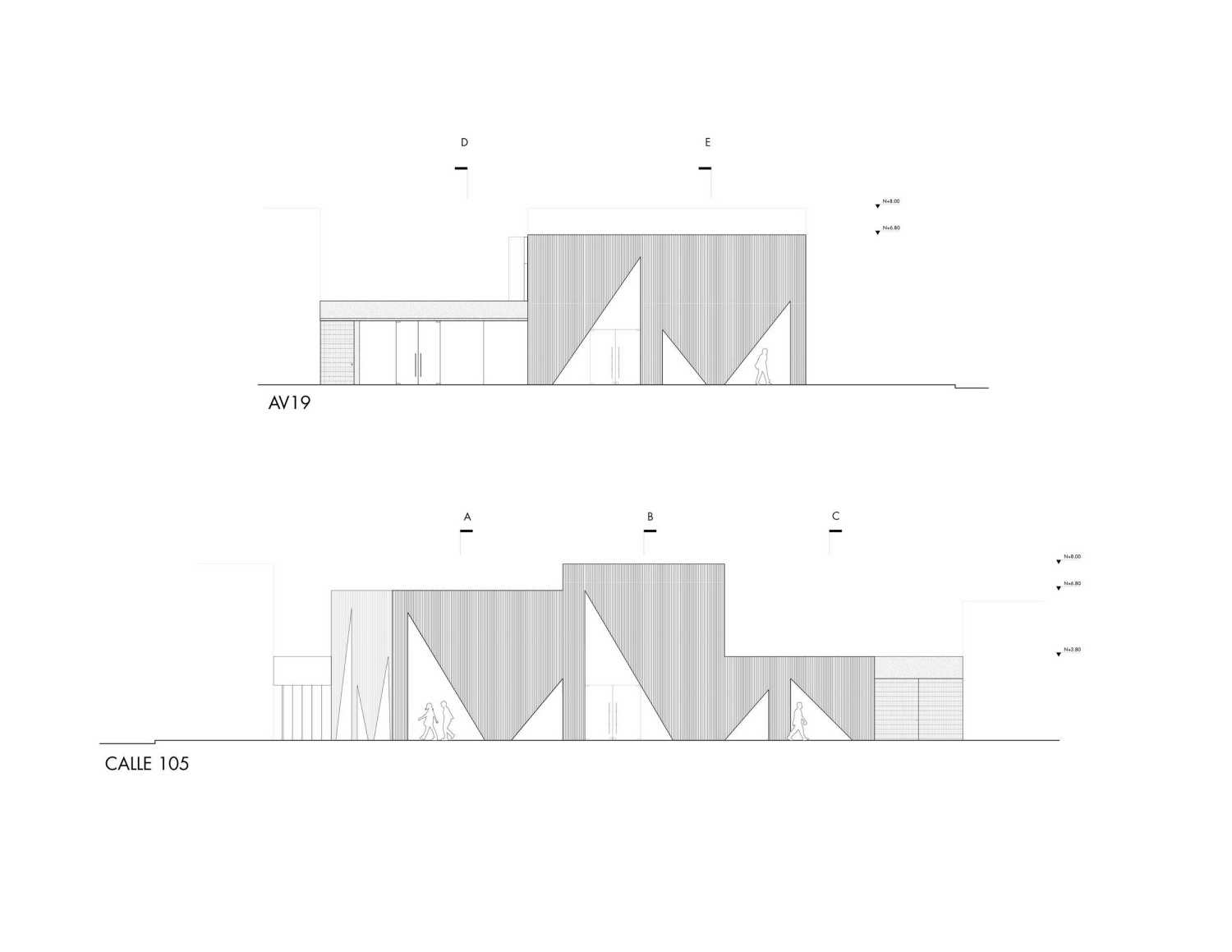

▽立面图 Elevation

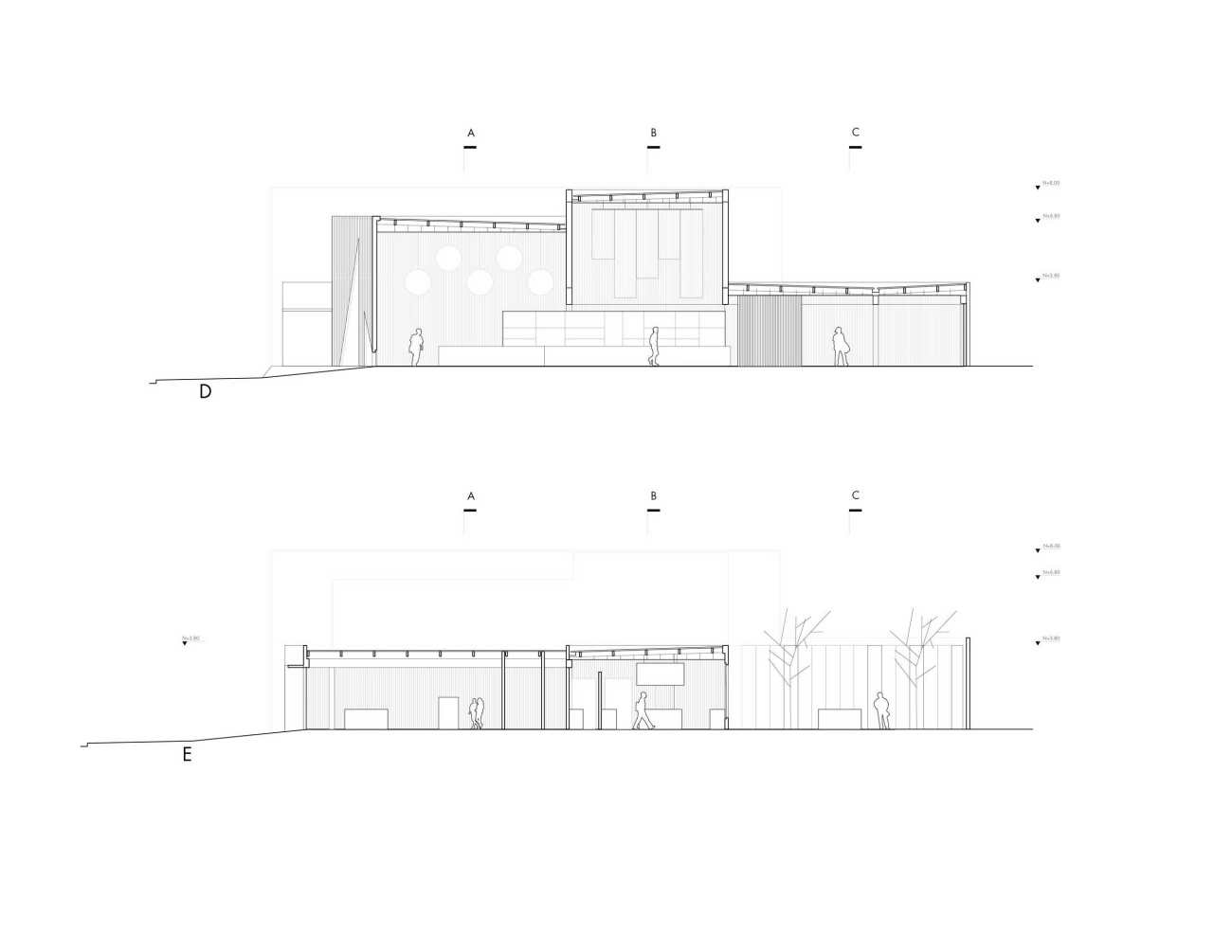

▽剖面图 Section
Project: MASA
Design Firm: Studio Cadena
Architect: Benjamin Cadena, Studio Cadena
Construction & Coordination: MRB S.A. and ODQ S.A.S.
Structural Engineer: Ingeniería y Proyectos de Infraestructura
Mechanical Engineer: ARQUITECTURA & BIOCLAMIATICA
Electrical Engineer: JGMC Ingeniería
Plumbing Engineer: BYC INGENIEROS HIDRAULICOS
Geotechnical Engineer: Alfonso Uribe S & Cia.
Lighting Consultant: ClaroOscuro Lighting Design
Acoustical Consultant: Ambientes Arquitecturales
AV Consultant: John Osorio
Millwork Fabrication: LETTO
Client: Masa
Location: Bogota, Colombia
Date: Complete Nov/2018
Use: Mix Use Retail
Area: 7,500sf
Photography: Naho Kubota, Ambiente Familiar, Benjamin Cadena
