公司: | Zooco Estudio | 类型: | 建筑 |
---|---|---|---|
地区: | 巴西 | 标签: | 酒店 |
项目火烈鸟酒店位于加那利群岛特内里费岛南部地区的一个酒店度假区,包含了不同的功能。在105500平方英尺的土地上,有一个不规则的地形,从东北到西南的斜坡,产生不同的平台和水平的开放空间,建筑和梯田。我们可以区分出五个建筑,包围了超过129000平方英尺,位于地块的周边,包围了中间的休闲区,如花园和游泳池。
The project embraces different proceedings in a hotel resort located in the southern area of Tenerife, in the Canary Islands. In a 105500 sq ft. lot with an irregular topography that holds a tough slope from the north-east to the south-west of the plot, there is an ensemble of irregular terraced buildings that tend to disseminate and settle in the slope generating different platforms and levels with open spaces, buildings and terraces. We can distinguish five constructions that enclose more than 129000 sq ft. located in the perimeter of the plot, enclosing in the middle the leisure areas as the gardens and the swimming pools.
度假村是在不同阶段建造的,由于多次翻修,该综合体混合了不同的收尾工作、家具和装饰元素,为公司产生了混乱的形象和未定义的风格。因此项目分不同阶段进行建设,采用不同规模的程序,从一开始项目就有一个明确的想法:清除前期存在的问题,恢复火烈鸟酒店失去的身份:优雅、健康和独特。
The resort has been built in different phases, as a consequence of this multiple renovations, the complex has a mixture of different finishing touches, furniture and decoration elements that used to generate a messy image and an undefined style for the company. The project has been built in different stages, with different scale procedures and ignoring at the beginning the real magnitude of the hole renovation, but with a clear idea from the very beginning: clearing up the pre-existence and recover the Flamingo’s Hotel lost identity: elegance, wellness and exclusivity.
为此,以白色为基调,用竹子、玄武岩、当地的矿物以及玻璃,结合配搭的色彩元素,强调 "火烈鸟"这一元素,这样就为未来的设计的介入奠定了基调。

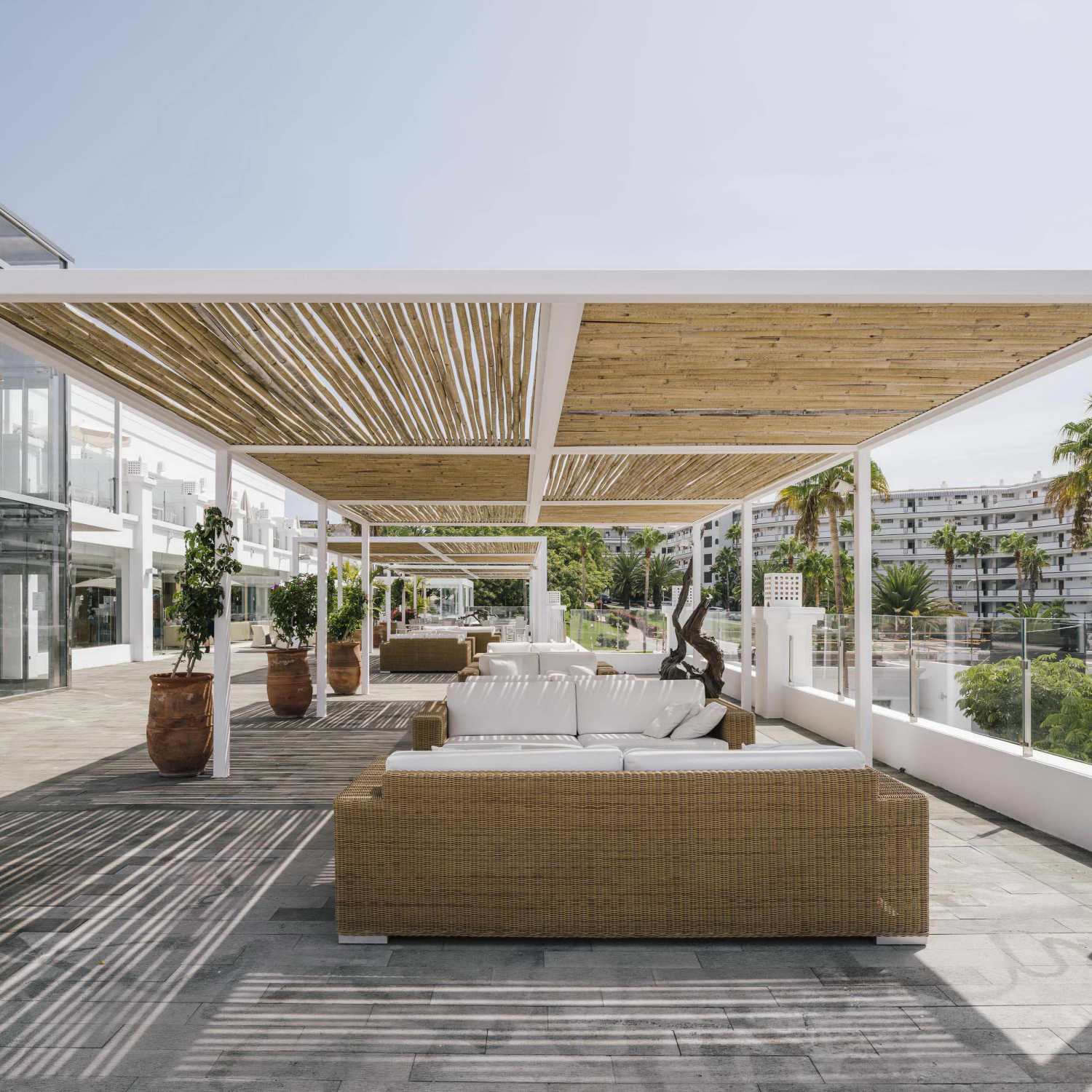

For this, the white color is used as a base, the bamboo, the basalt stone – vernacular mineral from the area- and the glass, combined with punctual colorful elements and emphasizing the “Flamingo”. This way a Master Plan is settled for future interventions.

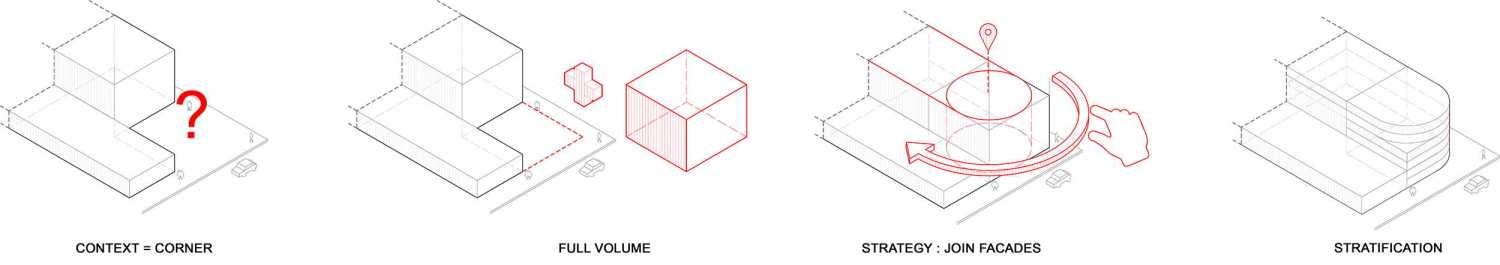

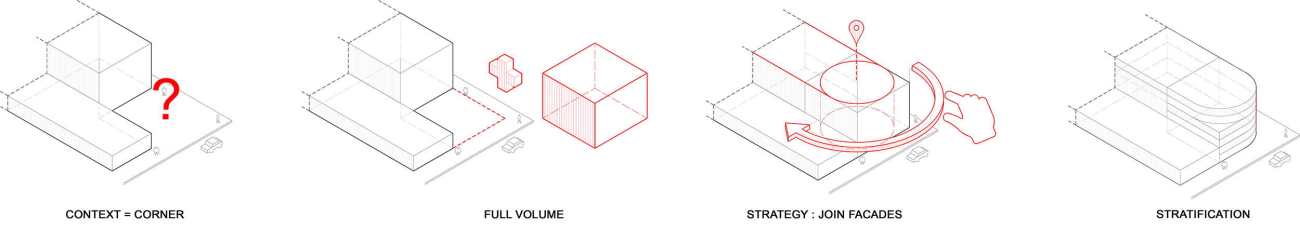

▽设计概念 Concept
主楼扩建

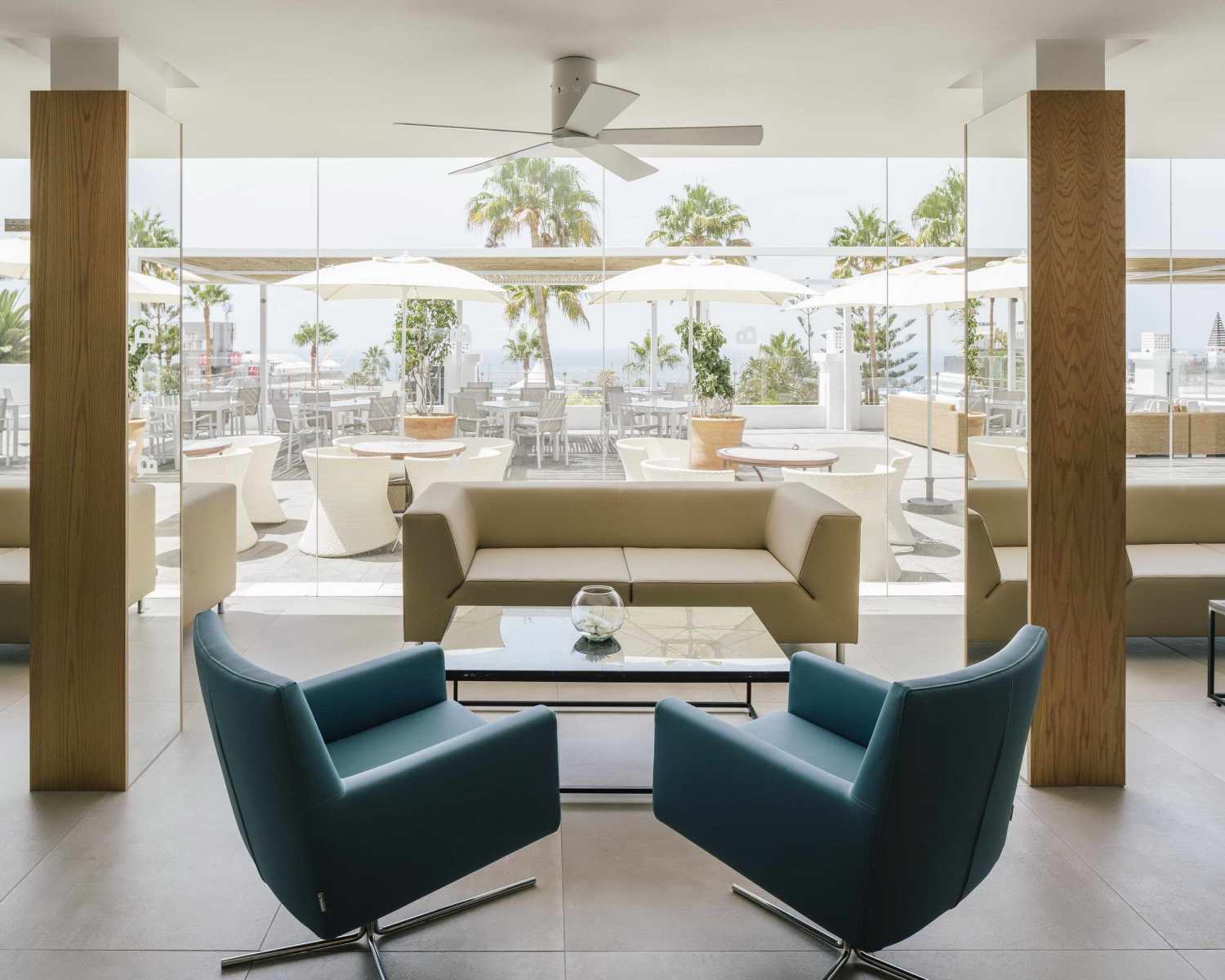

主楼也是入口建筑,它包含了不同的用途,如大厅、大堂、酒吧、餐厅、商业、公共区域和酒店房间;和整个建筑群的其他部分一样,它也经历了各种风格的融合,而现在在项目中,这些风格都被清理干净了。
Main building extension

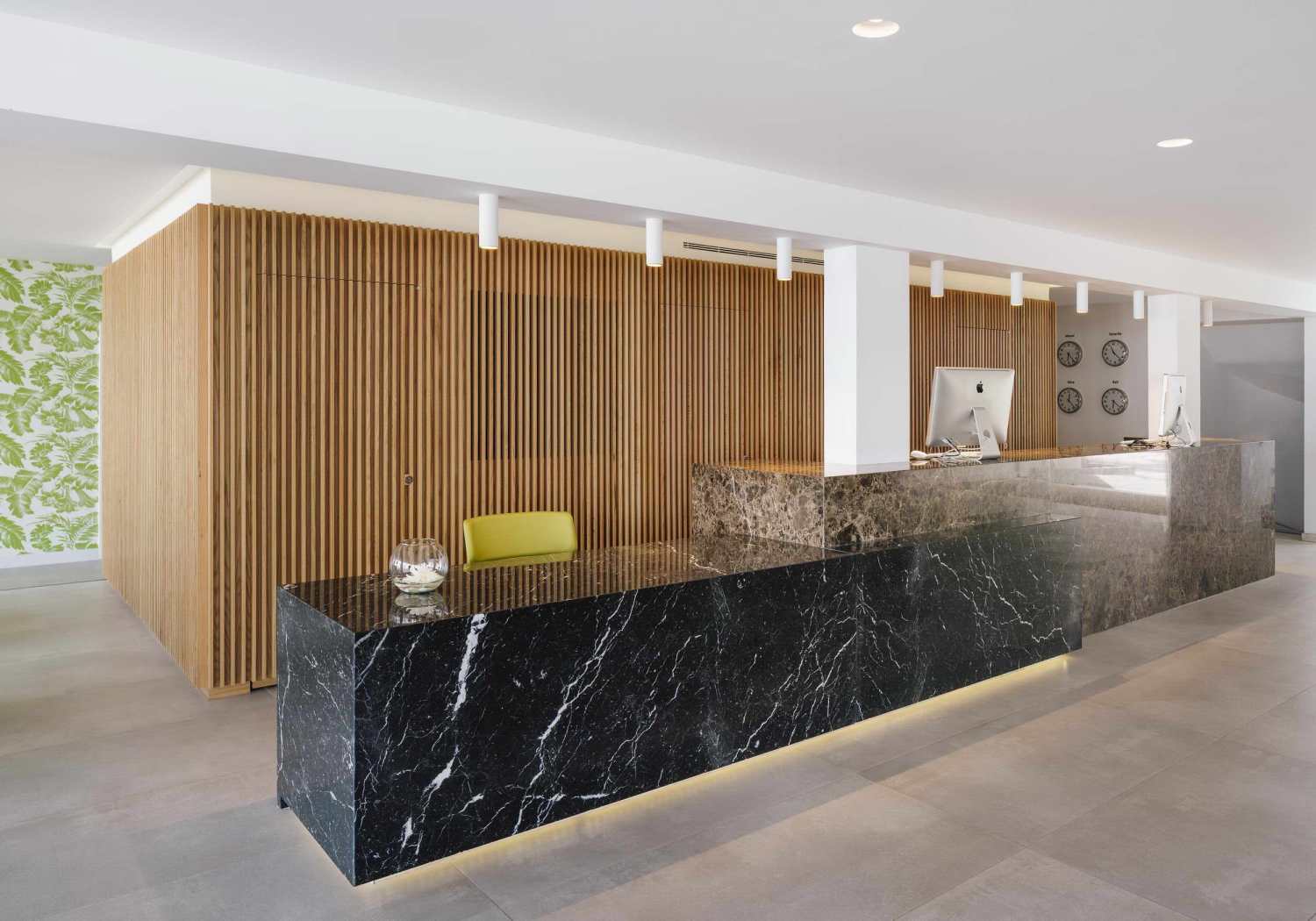

The main building is also the access building and it encloses different uses as the hall, the lobby, the bar, the restaurant, a commerce, public areas and hotel rooms; and as the rest of the complex it had suffered a mixed fusion of styles that now have been cleaned with this master plan.

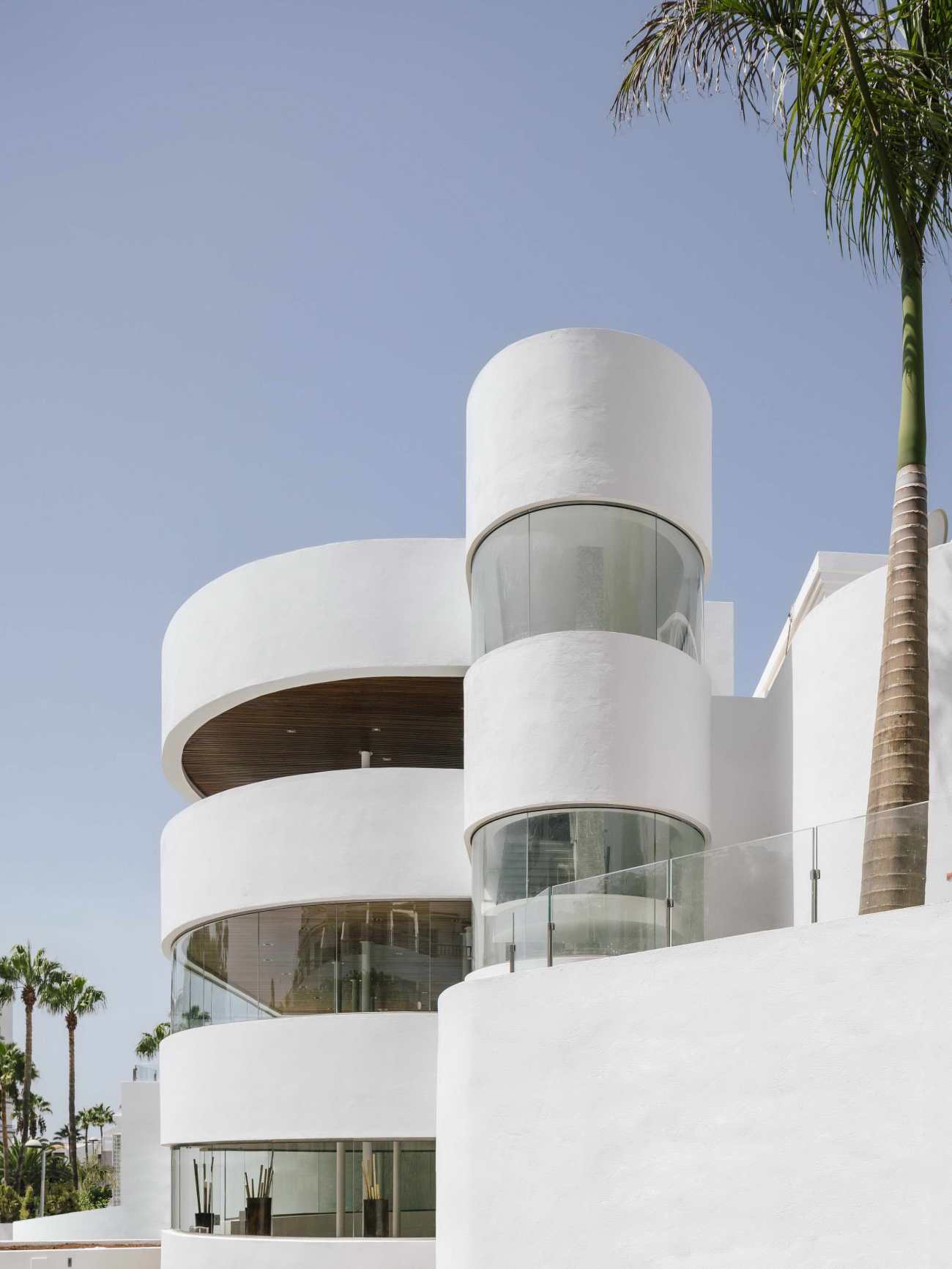

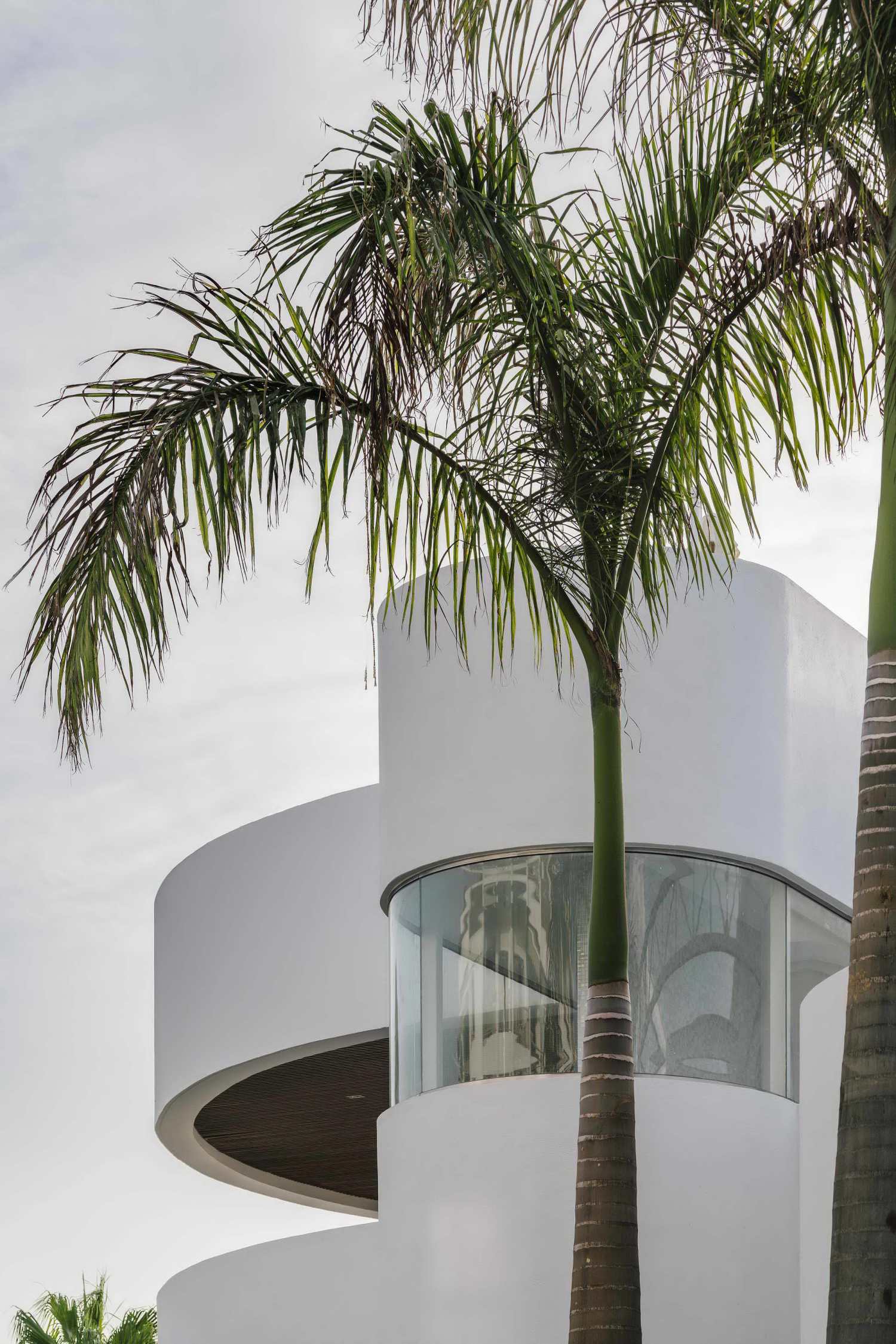

它的东面和南面具有有机的形状,而西面则更加规则和正交。我们在它的东-南-西角设计了一个延伸部分,这个延伸部分的目的是在有机和规则的立面之间产生一个过渡,同时在南面产生一堵墙。这个扩展部分遵循了现有建筑的性质,但清除了它的装饰,并产生了纯粹的水平线,创造了一种虚无的感觉。该结构从外立面平面后退,因此完整性和连续性得到保证。这种水平带不是一个简单的事,它们包含了这个主建筑的不同用途。半地下一层是商业,一层是餐厅,一层是有顶的阳光平台。

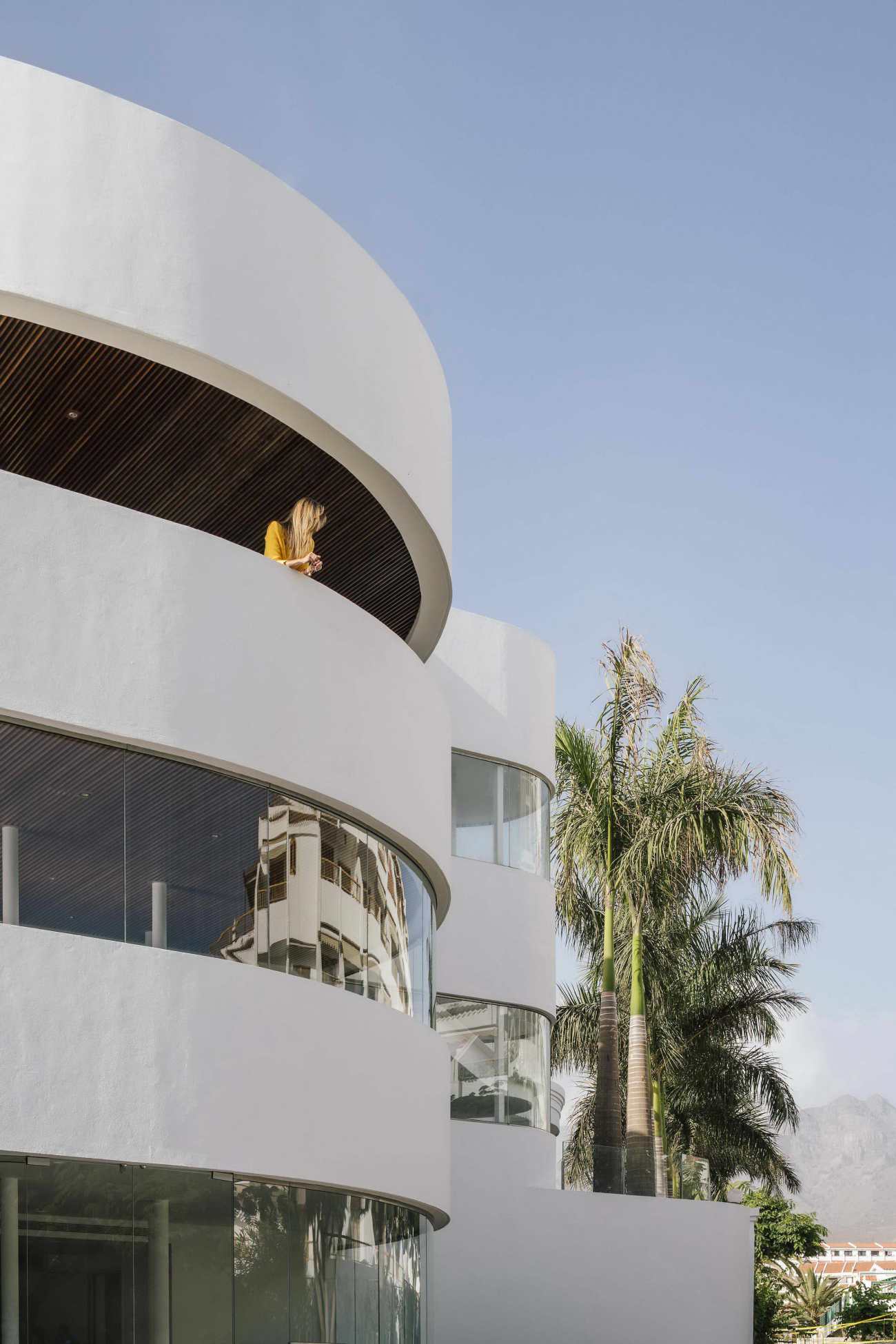

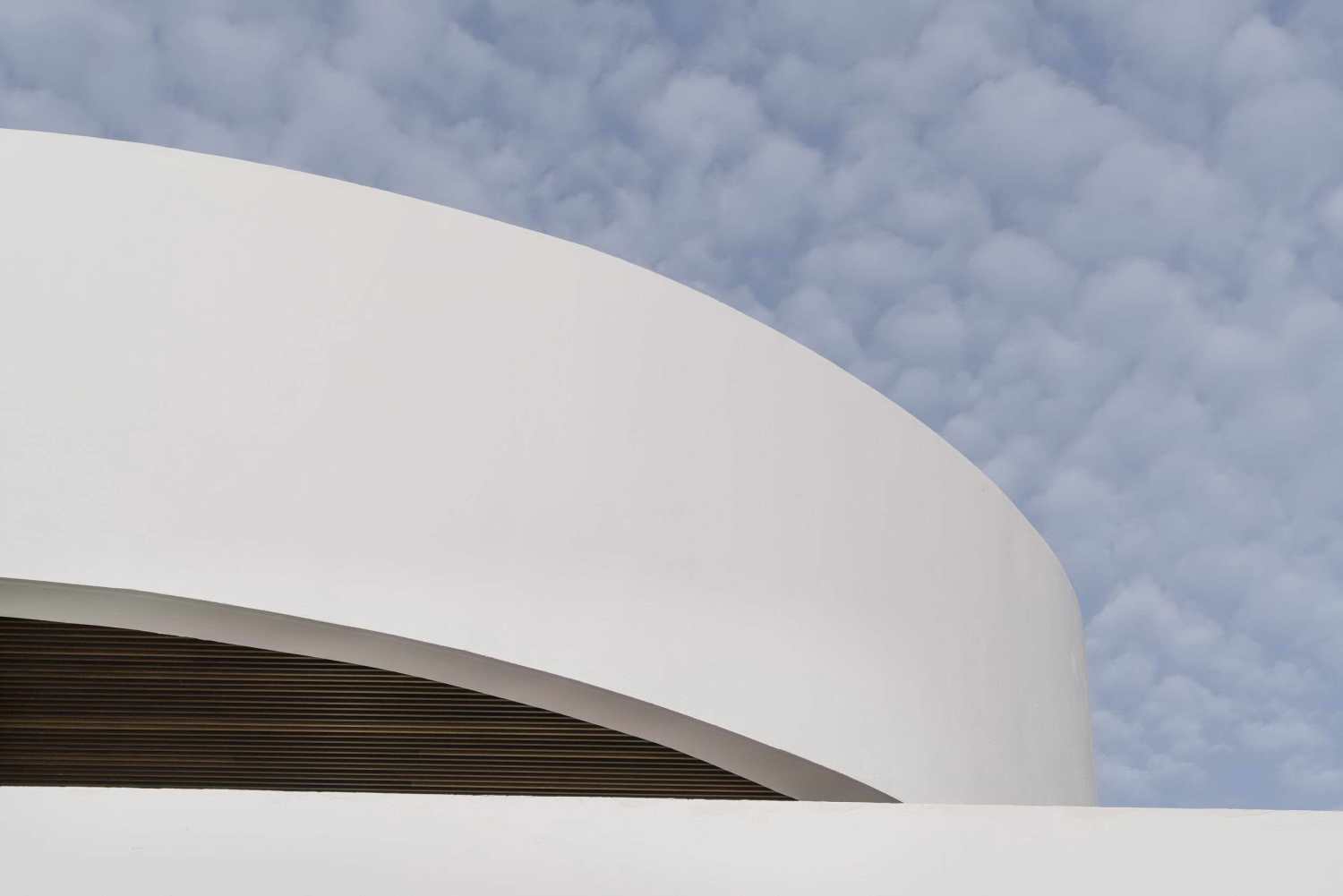

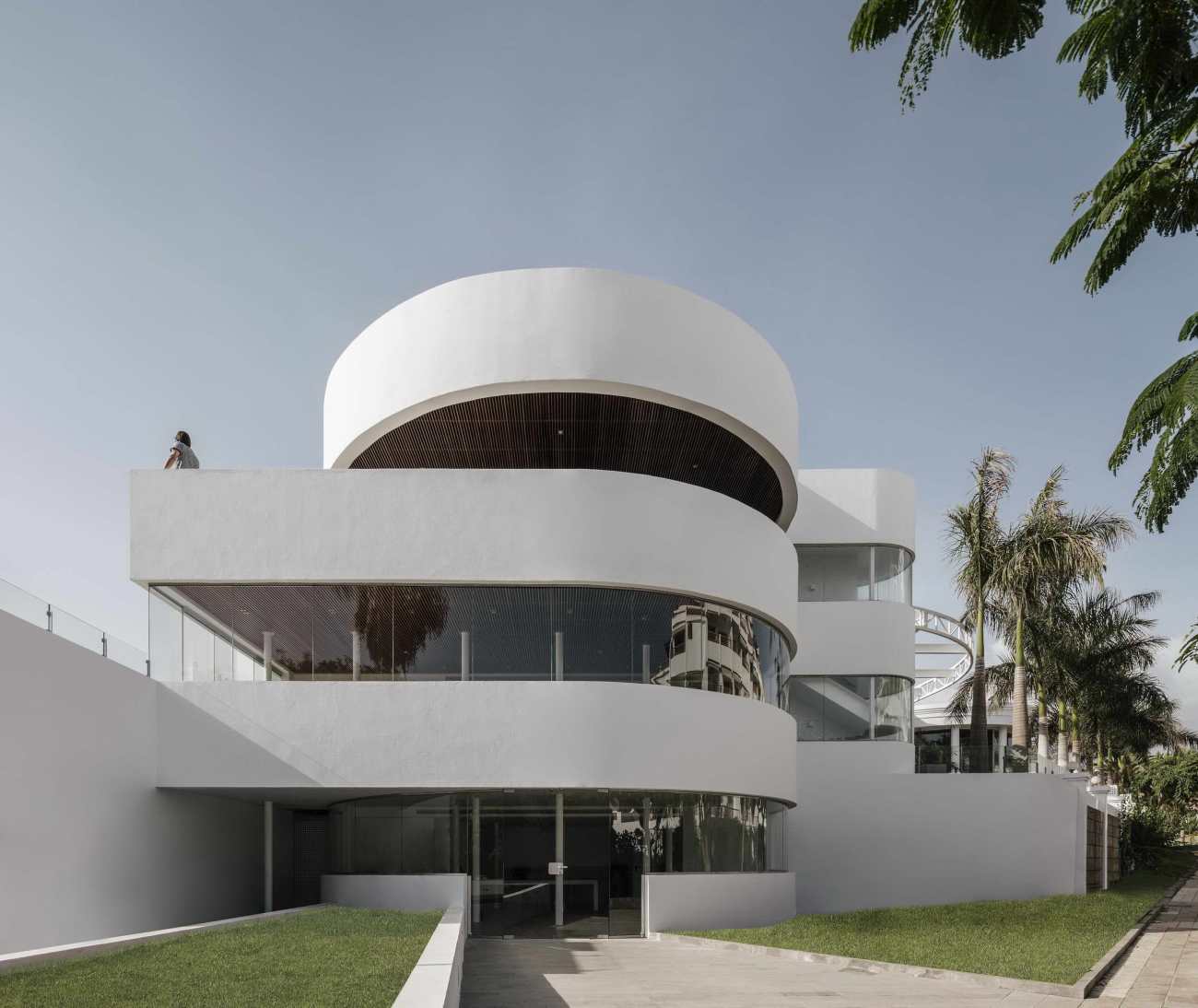

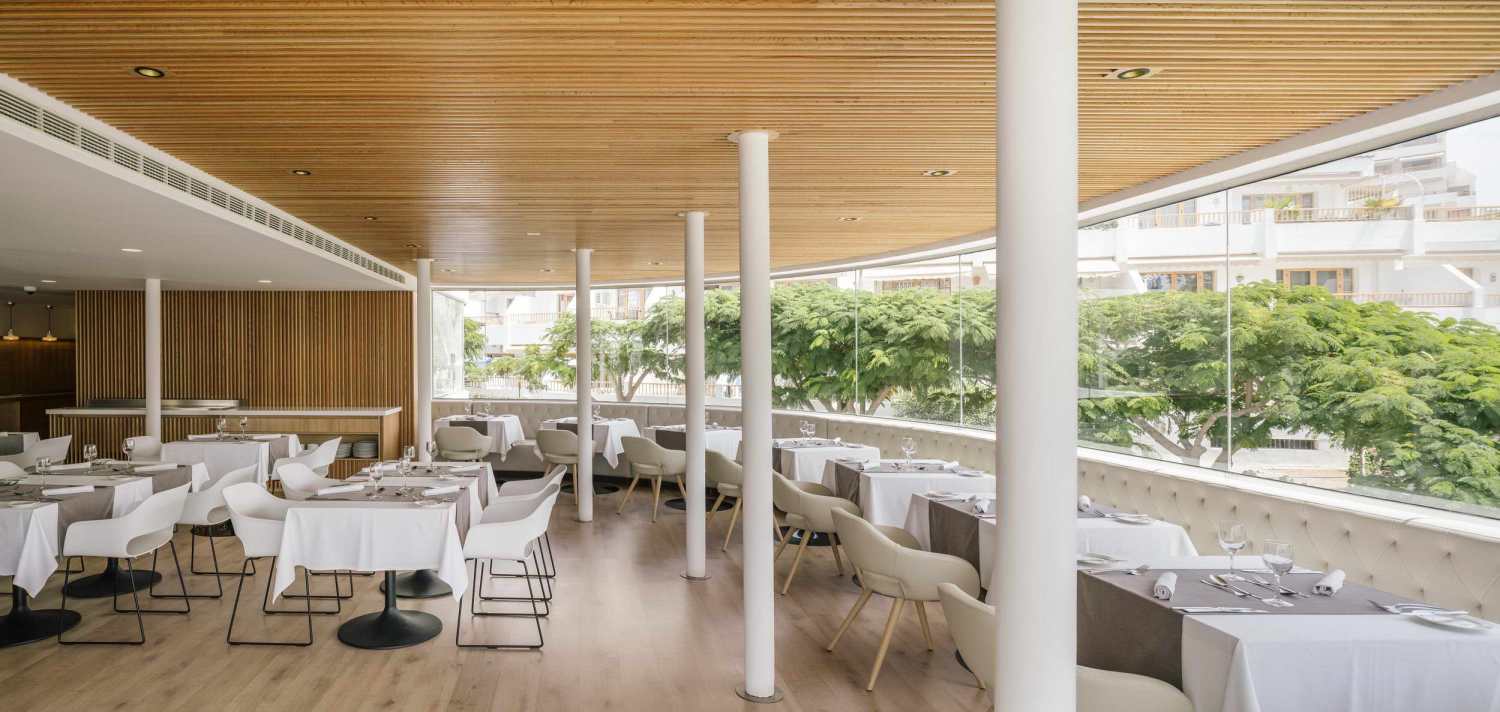

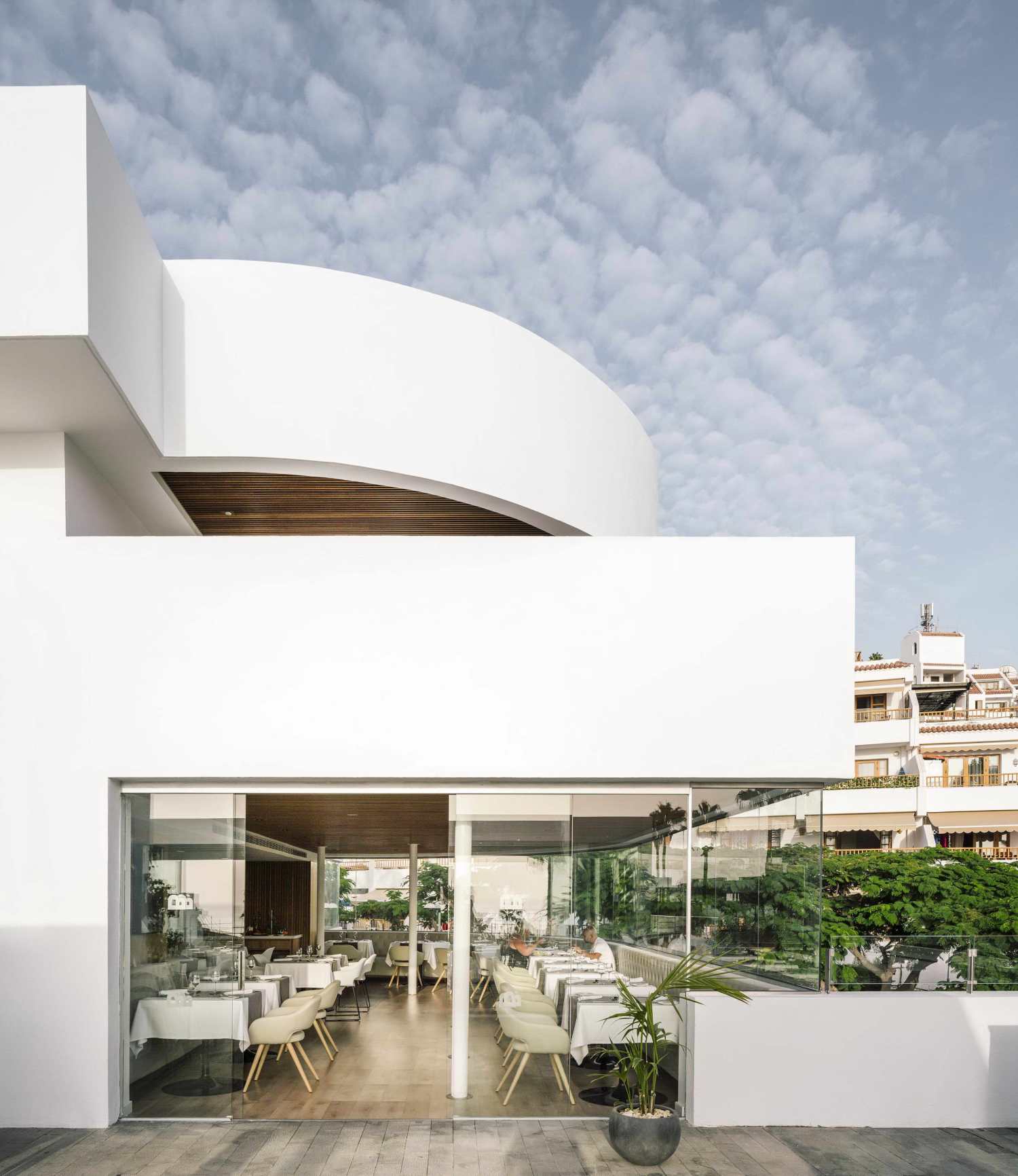

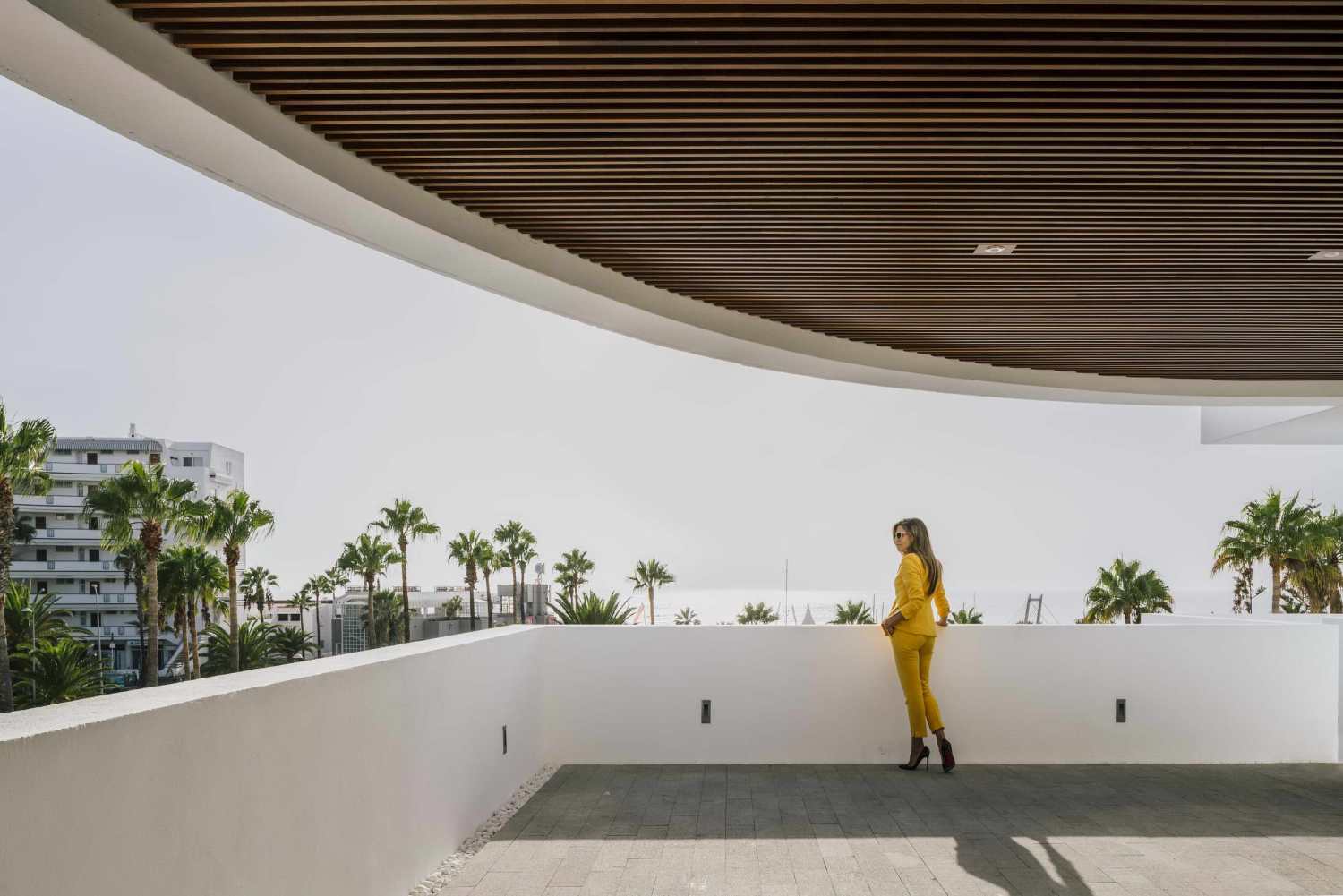

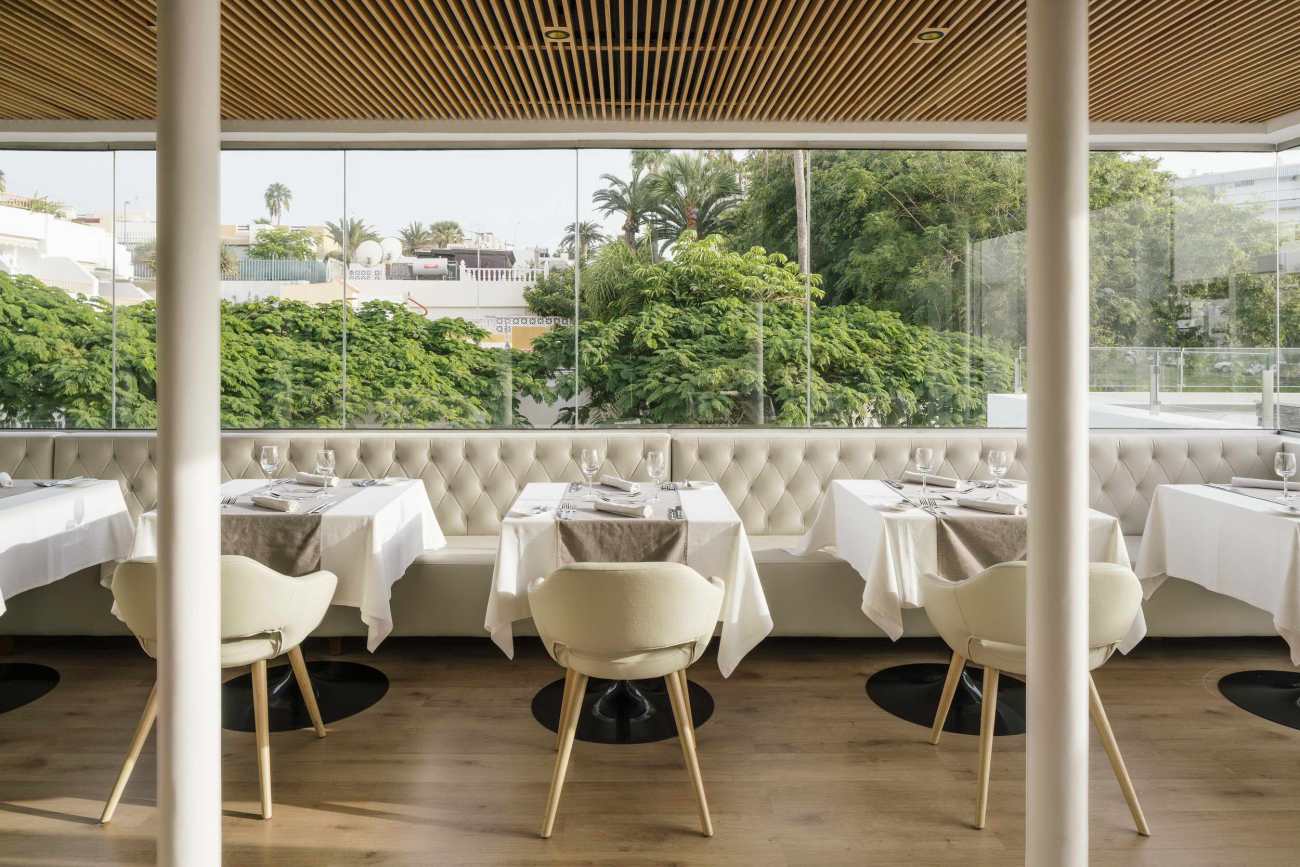

Its east and south facades have organic shapes while its west facade is more regular and orthogonal. We have designed an extension in its east-south-west corner, the aim of this extension is to generate a transition between the organic and the regular facade that at once generates a wall ending in the south facade. This extension follows the nature of the existing architecture but cleans its ornaments and generates pure horizontal lines creating a mass and void perception -materialized in mass and glass-. The structure is set back from the facade plan so the integrity and continuity are assured. This horizontal bands are not a simple anecdote, they embrace the different uses of this main building. There is a commerce in the semi-basement level, the restaurant is at the ground floor and there is a covered sun deck in the first floor.

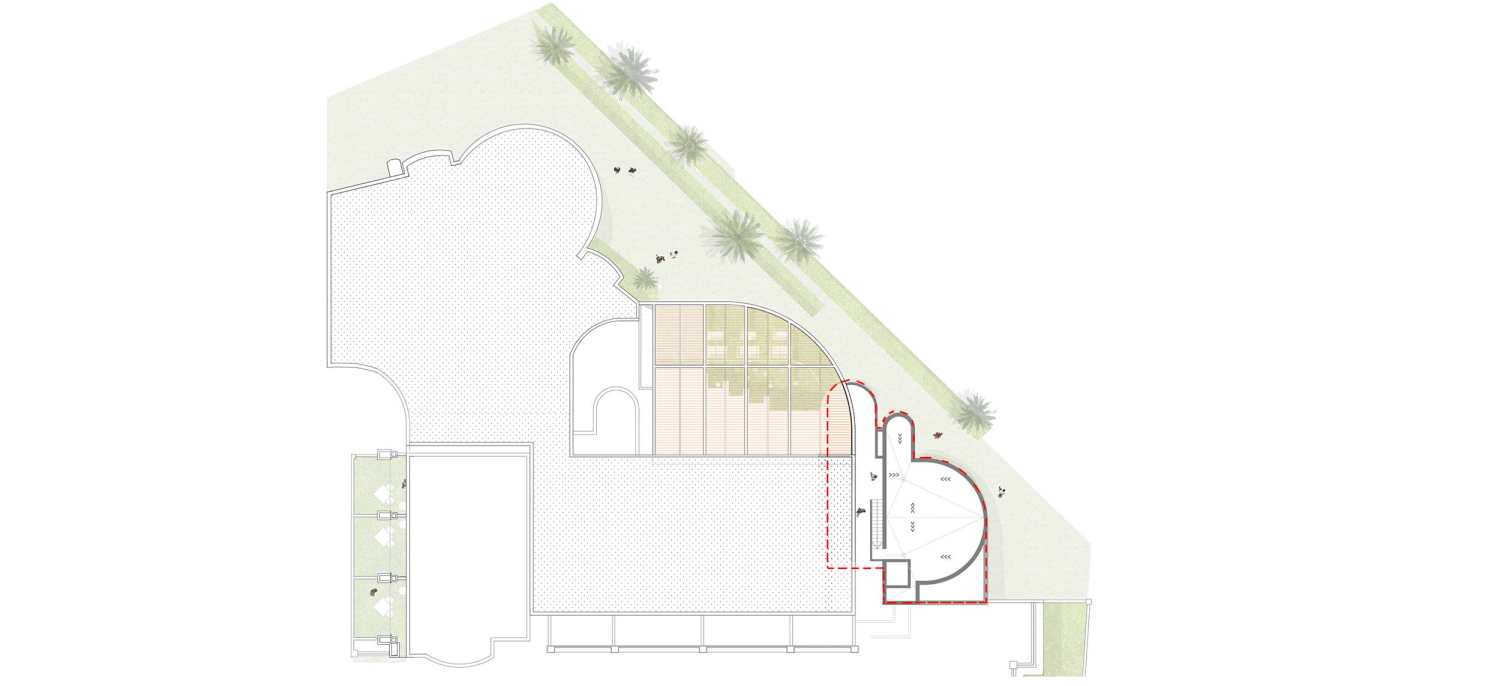

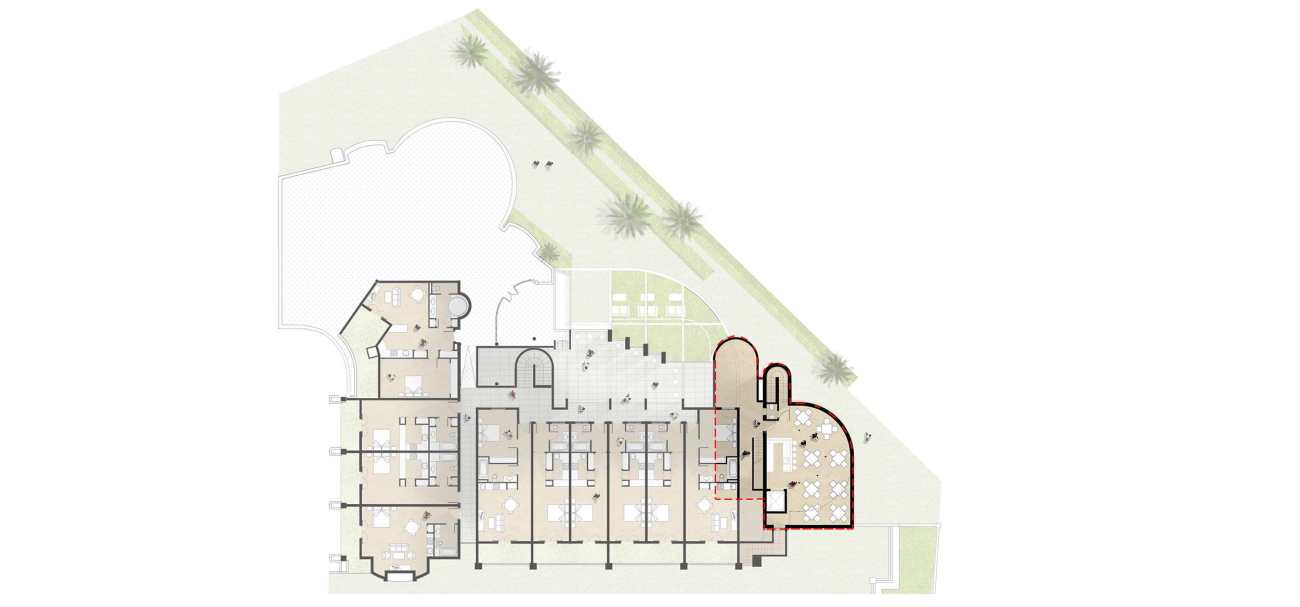

▽平面图 Plan
▽平面图 Plan
▽平面图 Plan

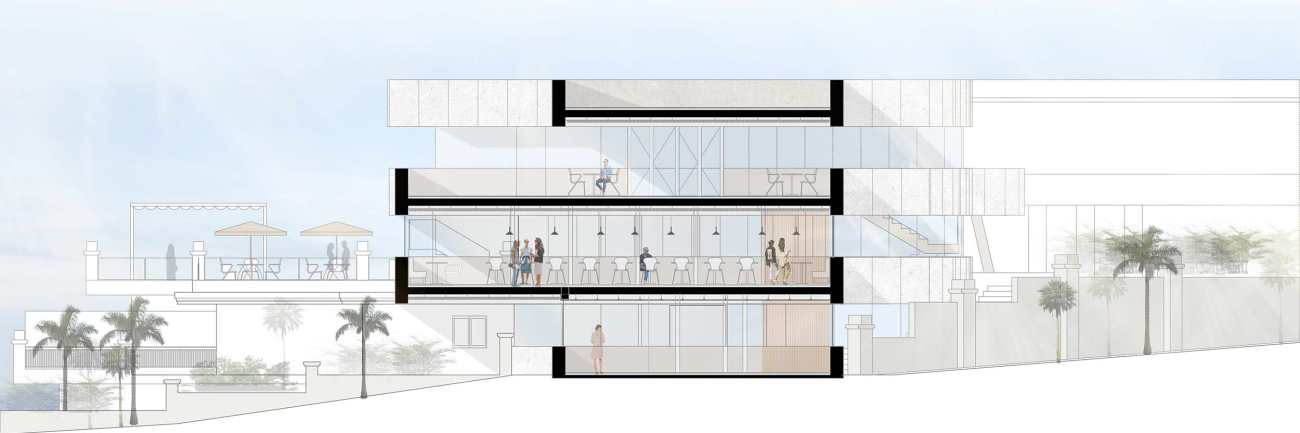

▽剖面图 Section
Proyect: FLAMINGO CLUB HOTEL
Design firm: Zooco Estudio
Year: 2018
Location: Tenerife, Santa Cruz de Tenerife, Spain
Project manager: Miguel Crespo Picot, Javier Guzmán Benito, Sixto Martín Martínez ZOOCO ESTUDIO (www.zooco.es)
Collaborators: Beatriz Cavia, Beatriz Villahoz.
Photographer: Imagen Subliminal
Website: www.imagensubliminal.com
