Dai An 公寓楼改造

公司：	H.2	类型：	建筑
地区：	越南	标签：	公寓

问题

1.如何最大的空间和使用面积

2.要易于建造，块状，坚固，但独特，对年轻人有吸引力

3.要充分利用绿地

Economic problem

1.Maximum space and usable area

2.Easy to construct, blocky, solid but unique, attractive to young people

3.Make the most of the green space

解决方案

利用轻质结构改变内部空间；重新分配用途：入口、楼梯；轻质结构有助于节省材料和施工人工成本。本工程改造为9个出租房（工作室房），布置如下：

一楼：车库、接待室和1间工作室。

二楼、三楼：每层楼有03间带独立卫生间的单间，空间宽敞。

阁楼：装修成02套vip公寓，有较大的面积和干洗区。

Solution

Using lightweight structures to change the internal space; redistribution of uses: entrances, stairs; and light structures help to save costs in terms of both materials and construction labor. The work was renovated into 9 rooms for rent (studio room), arranged as follows:

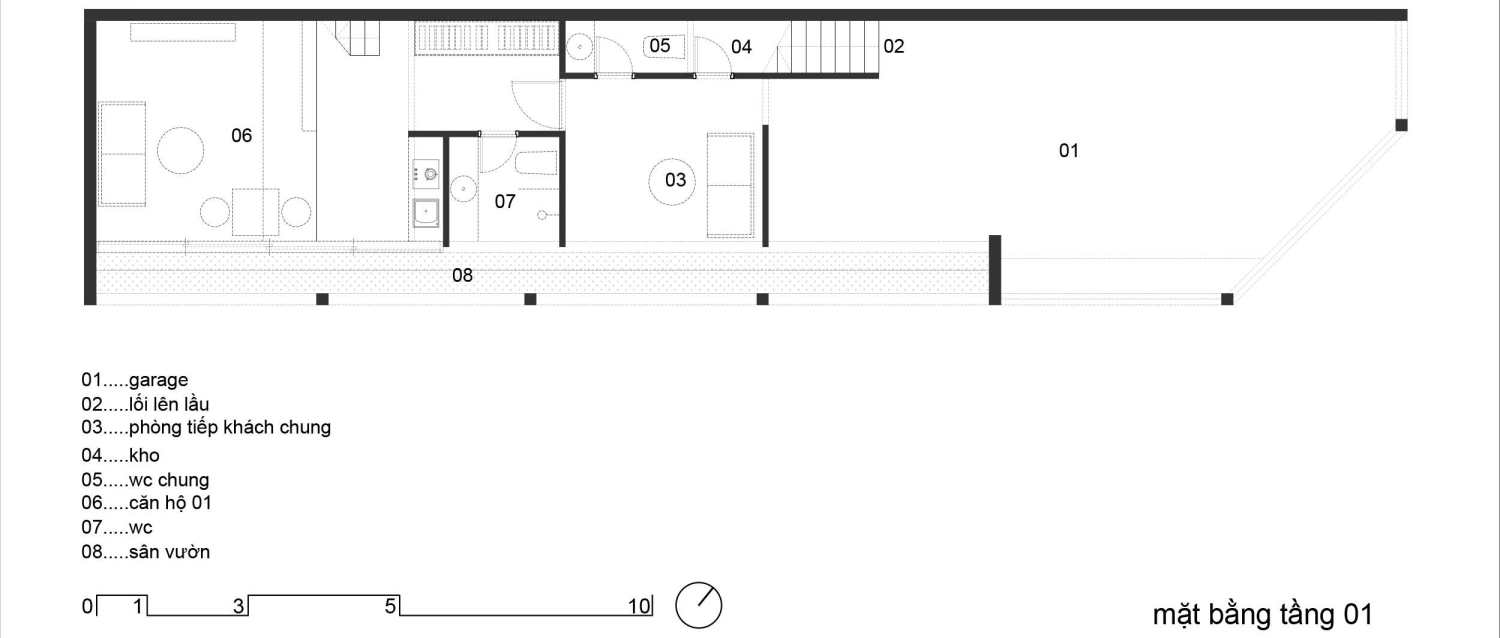

1st floor: garage, reception and 1 studio

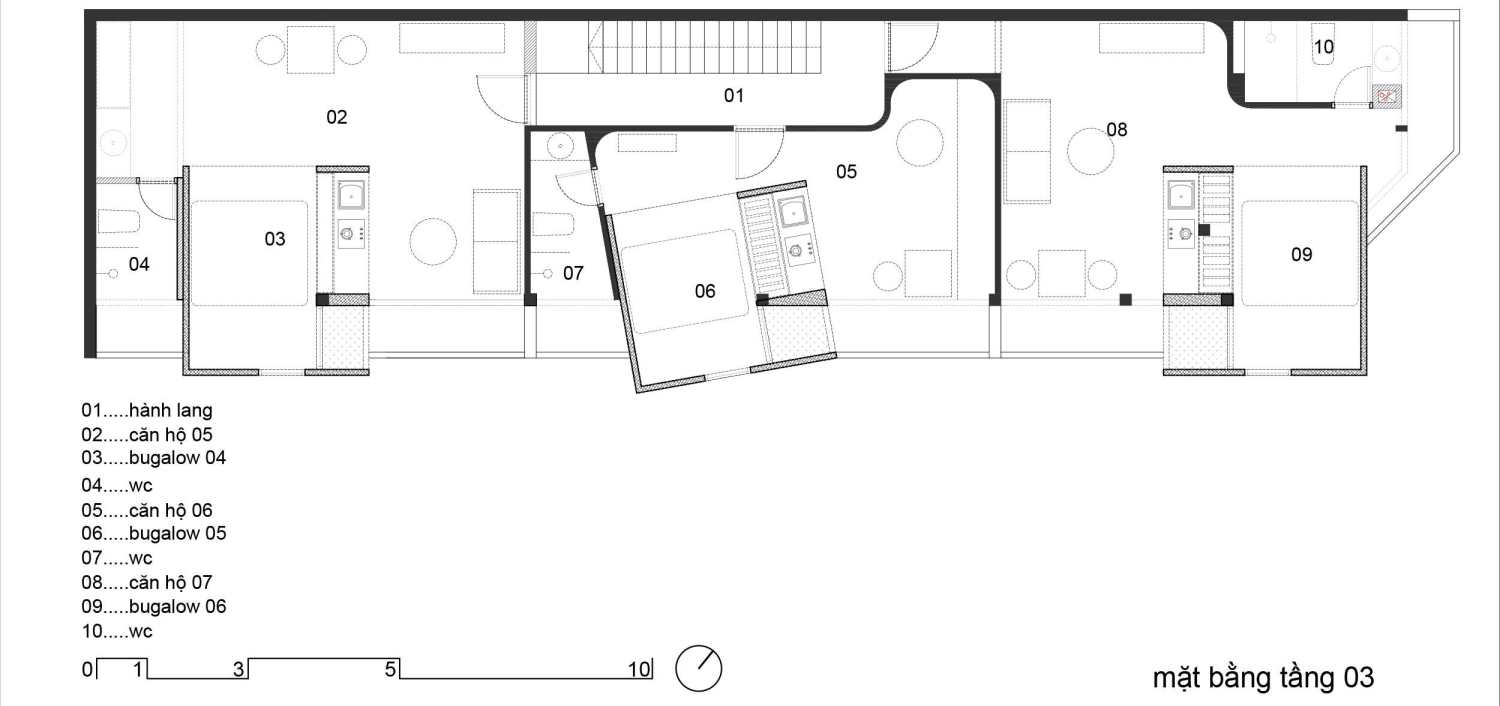

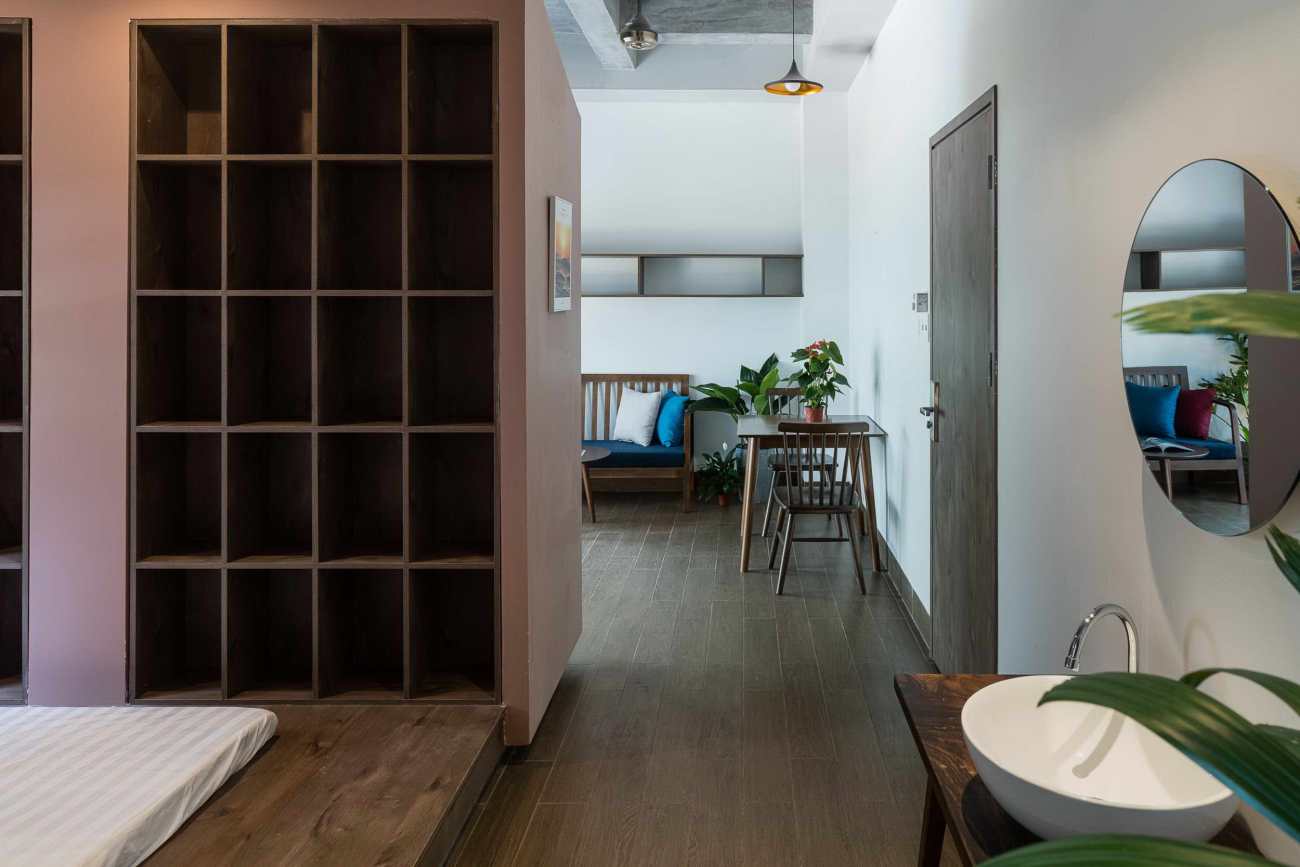

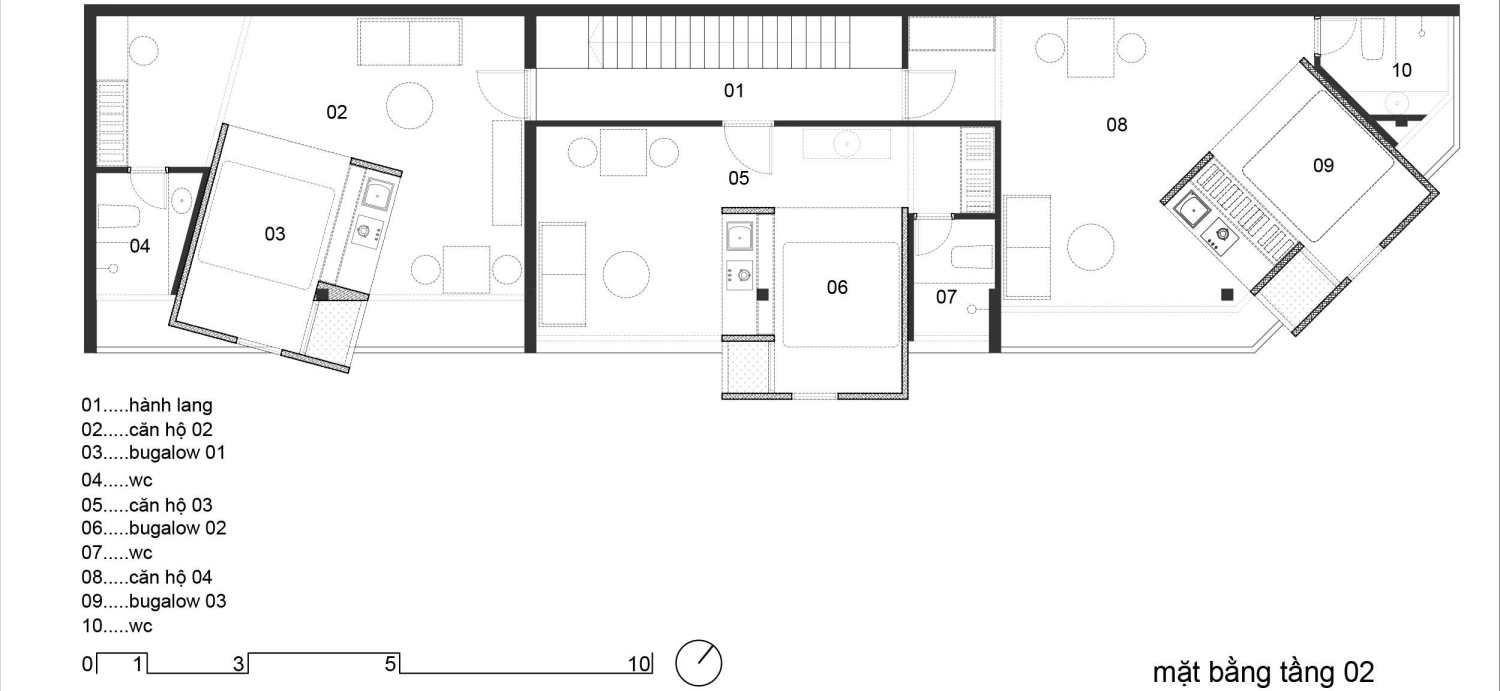

2nd floor, 3rd floor : Each floor has 03 studios with private toilet, wide open space

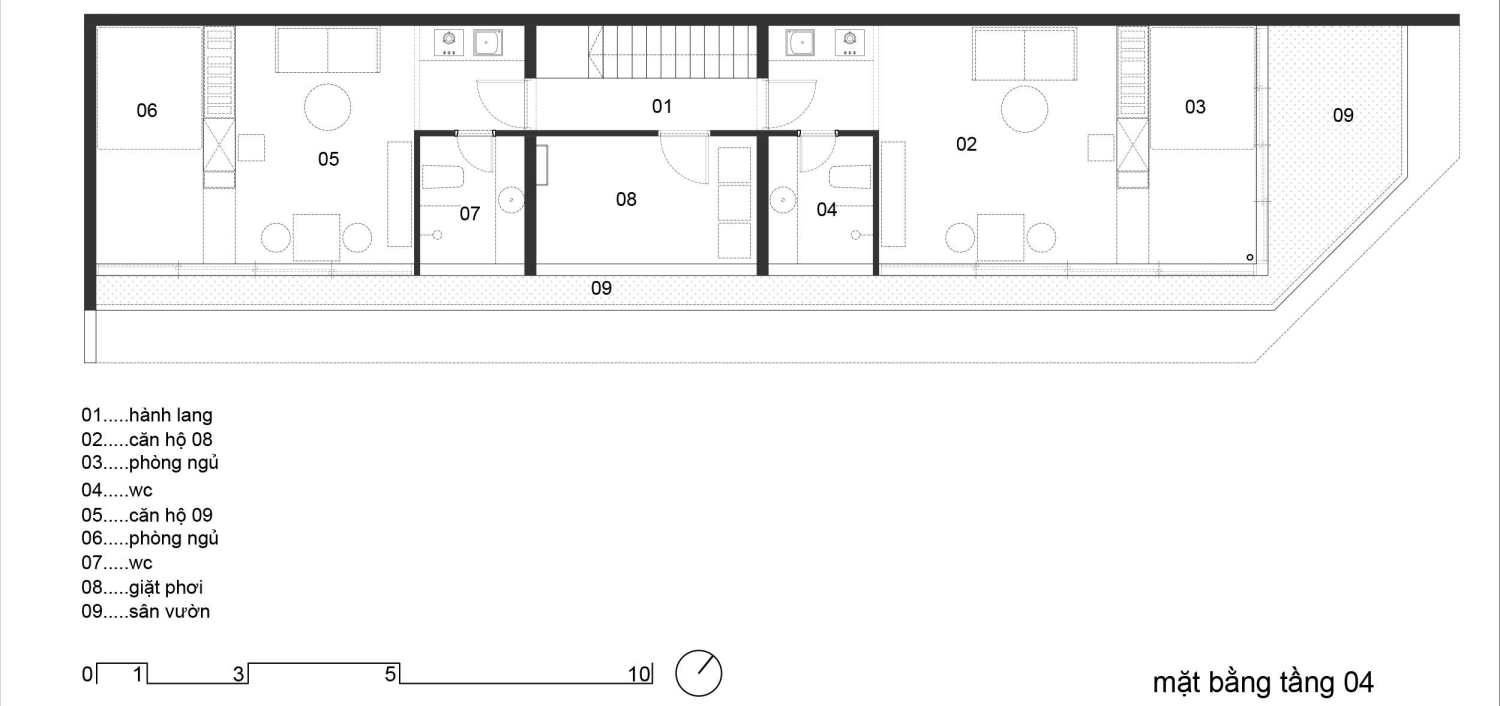

Garret floor: renovated into 02 vip apartments with a larger area and dry cleaning area

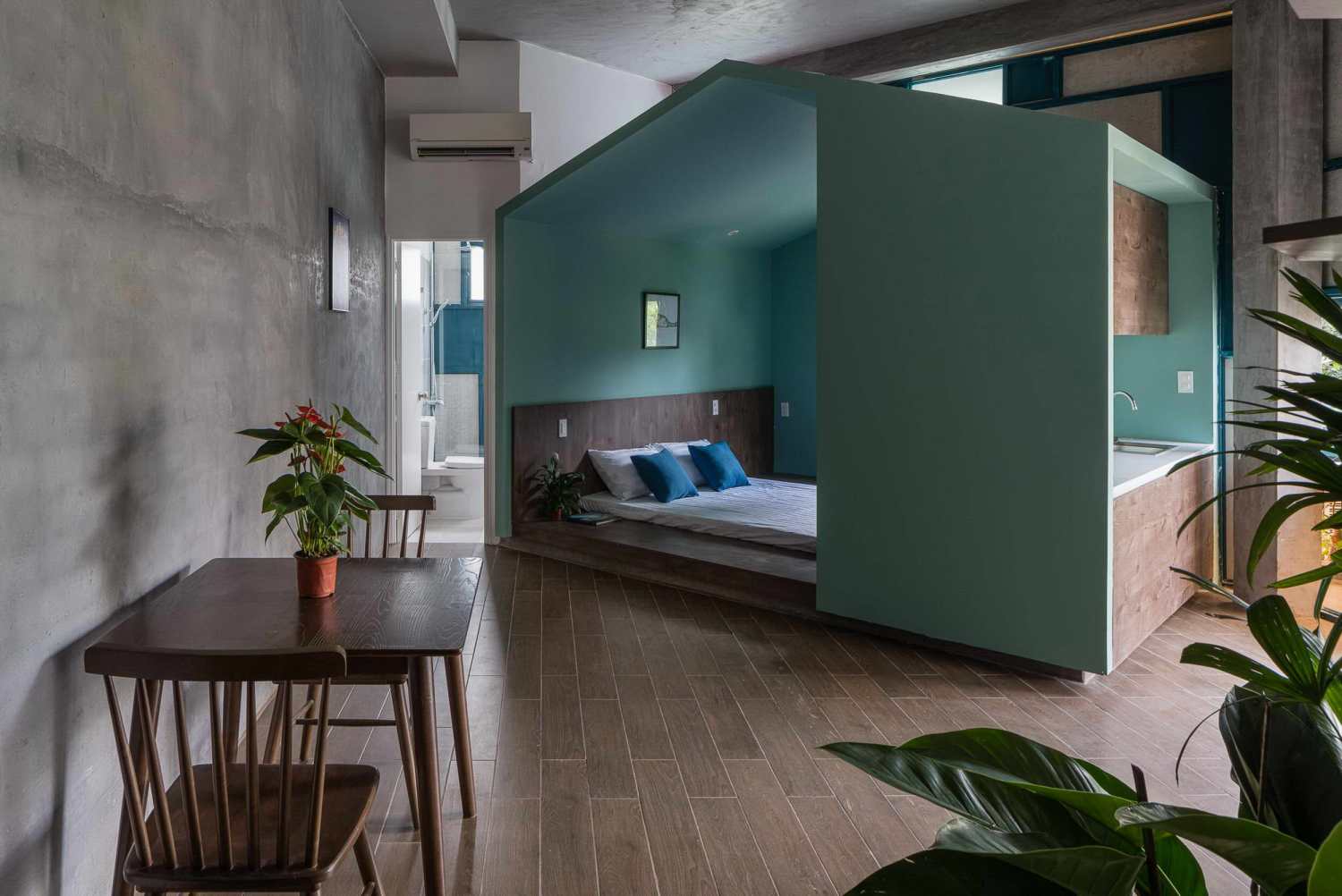

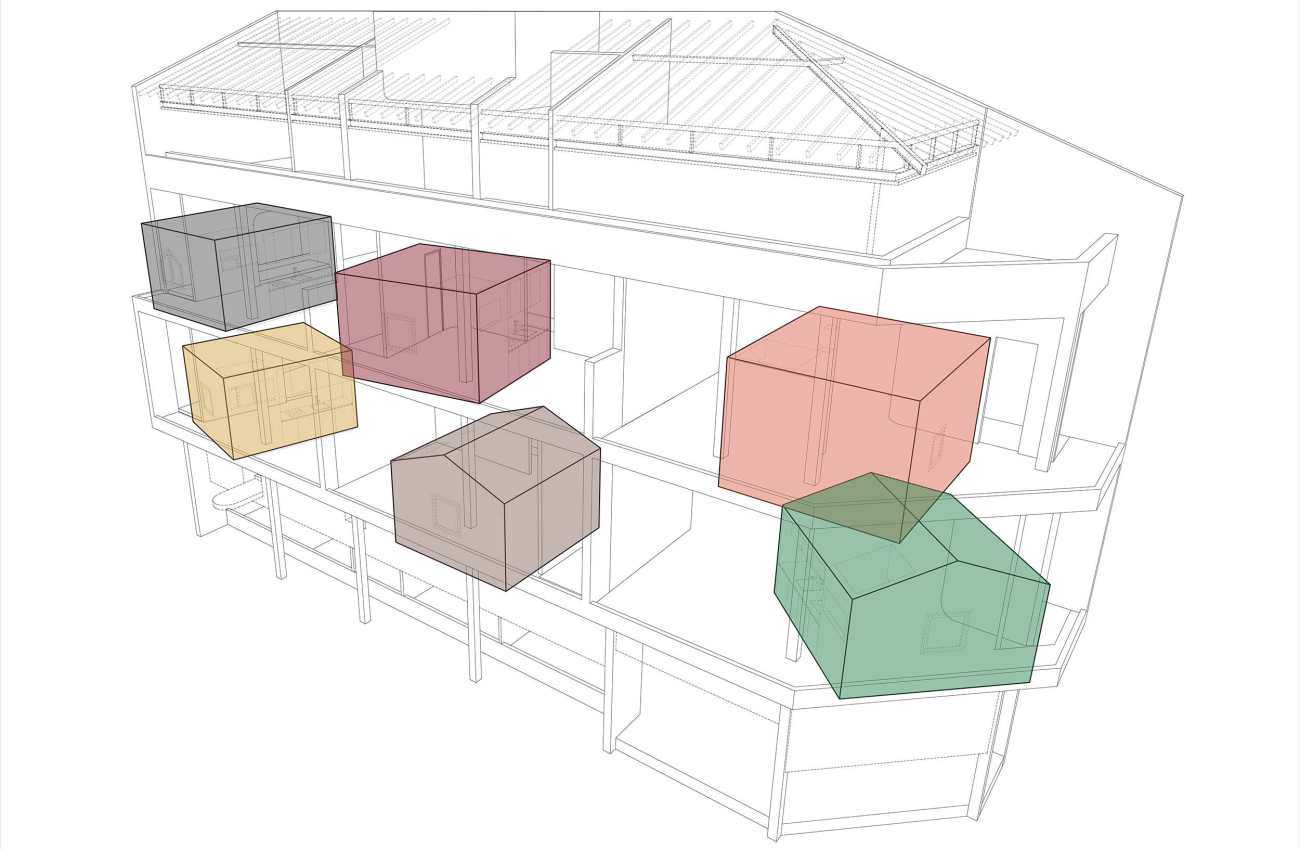

主要材料是铁架、水泥板、铁墙、玻璃，这些材料都为装修工程创造了灵活性和施工方便性。五颜六色的平房在不同的方向上旋转，形成强烈的动感，有利于遮盖老旧的水泥柱和房屋结构。2、3层有6个房间，每个房间有1个平房区块，它是将功能整齐的整合成一个集成区块：卧室、衣柜、厨房。

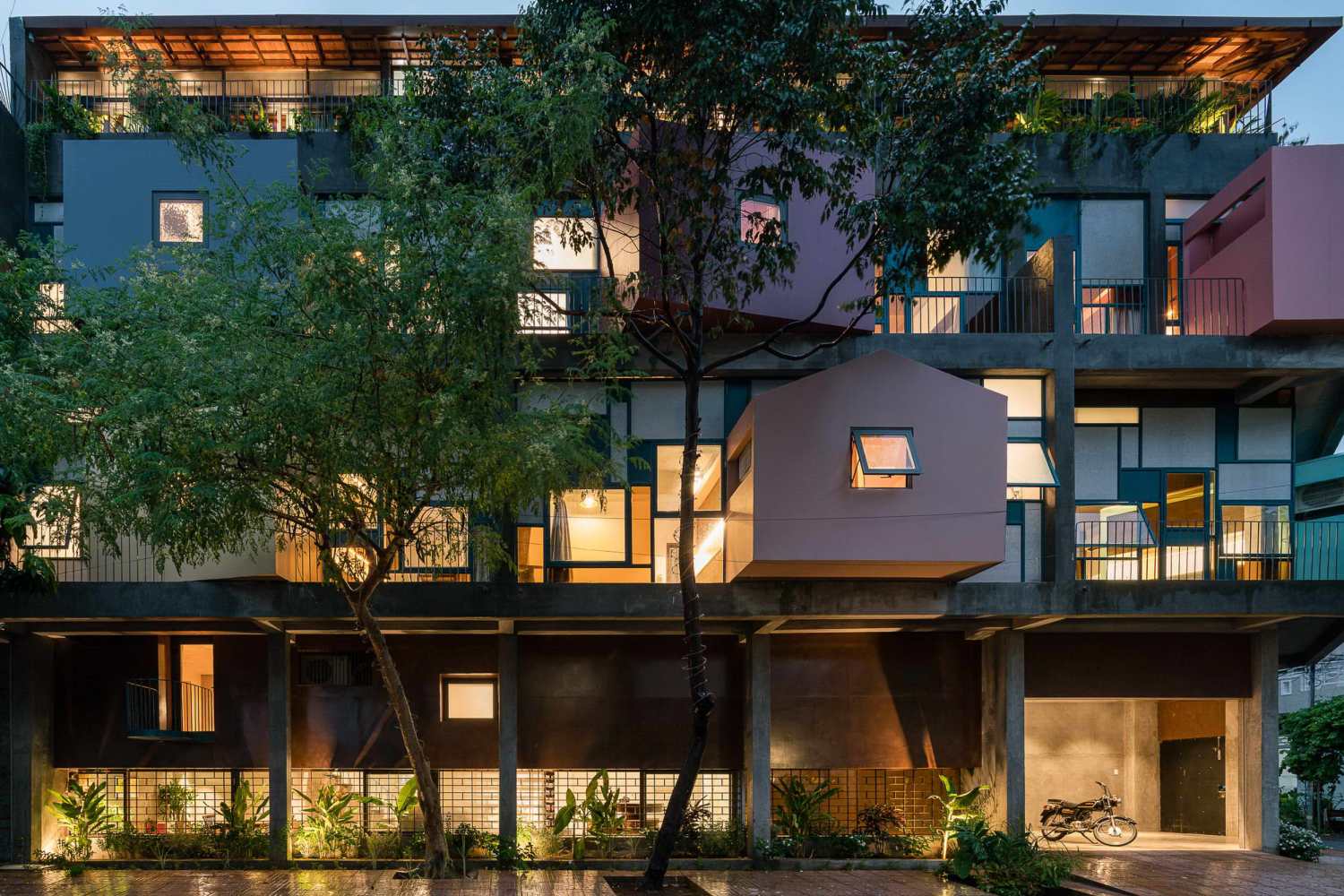

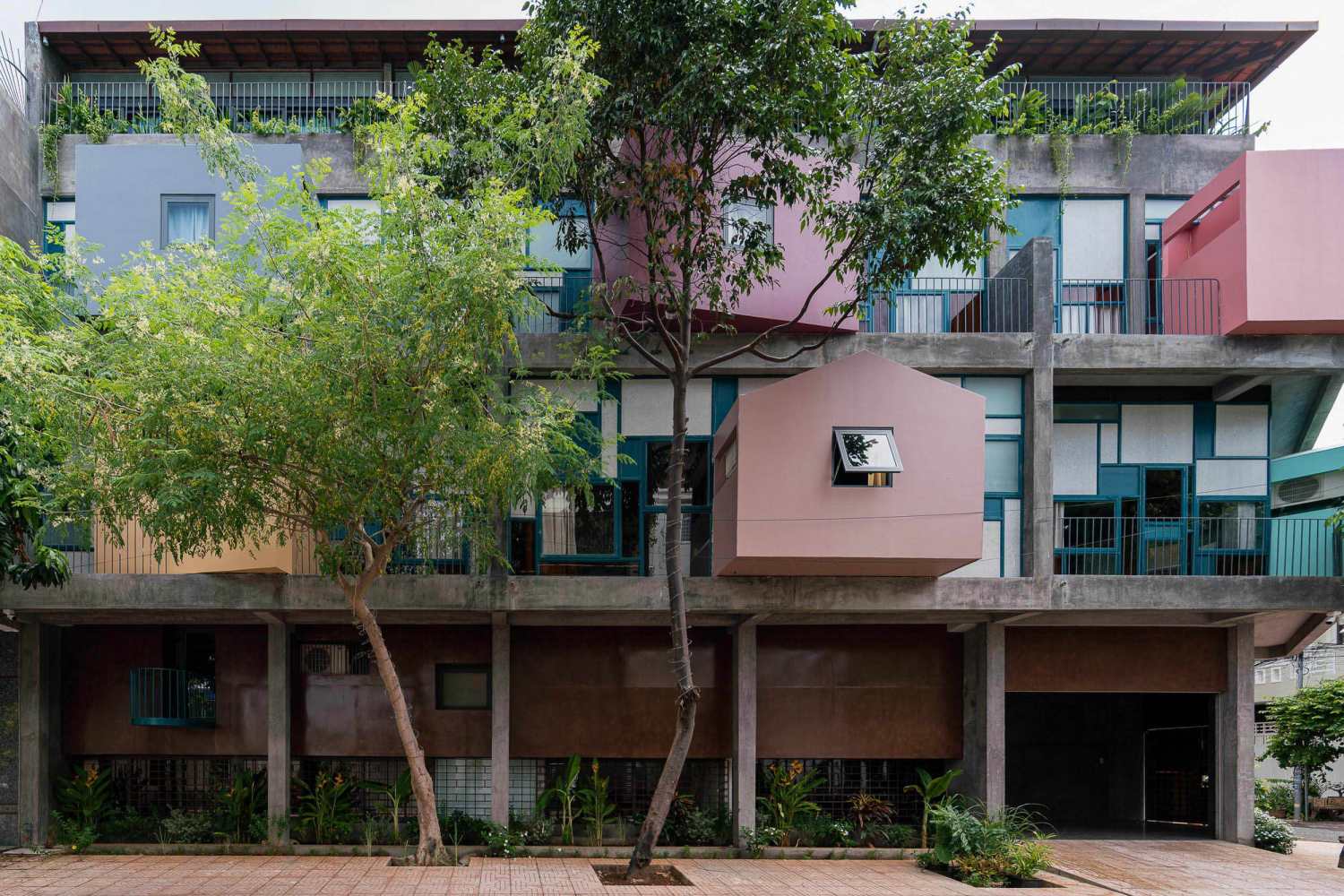

The main materials are iron frame, cemboard plate, iron wall, glass, all of which create flexibility and ease of construction for renovation works. The colorful bungalows rotate in different directions to create a strong movement, which contributes to covering the old concrete columns and structures of the house. The 2nd and 3rd floors have 6 rooms, each with 1 bungalow block, it is the neat integration of the functions into one integrated block: bedroom, wardrobe, kitchen.

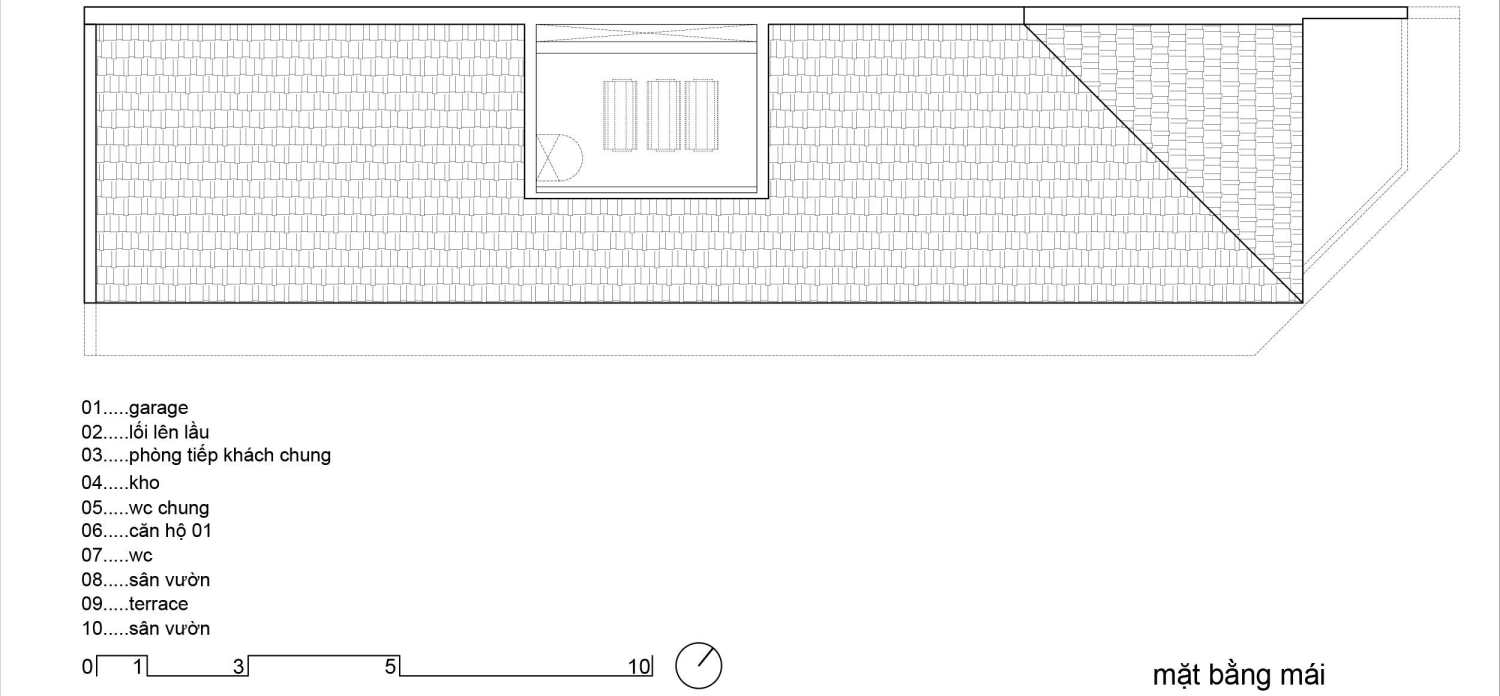

双朝向是户型的优势，所以房间开间都是2面阳台。如果说低层展现的是年轻的活力，那么2个车库的公寓则趋向于朴素和简约。车库的屋顶是传统的瓦片，展现出桁架的结构，打开后可以看到沿屋内的悬空花园，带来迷你阁楼的空间感。站在2间阁楼上，可以看到Vung Tau市的山景。

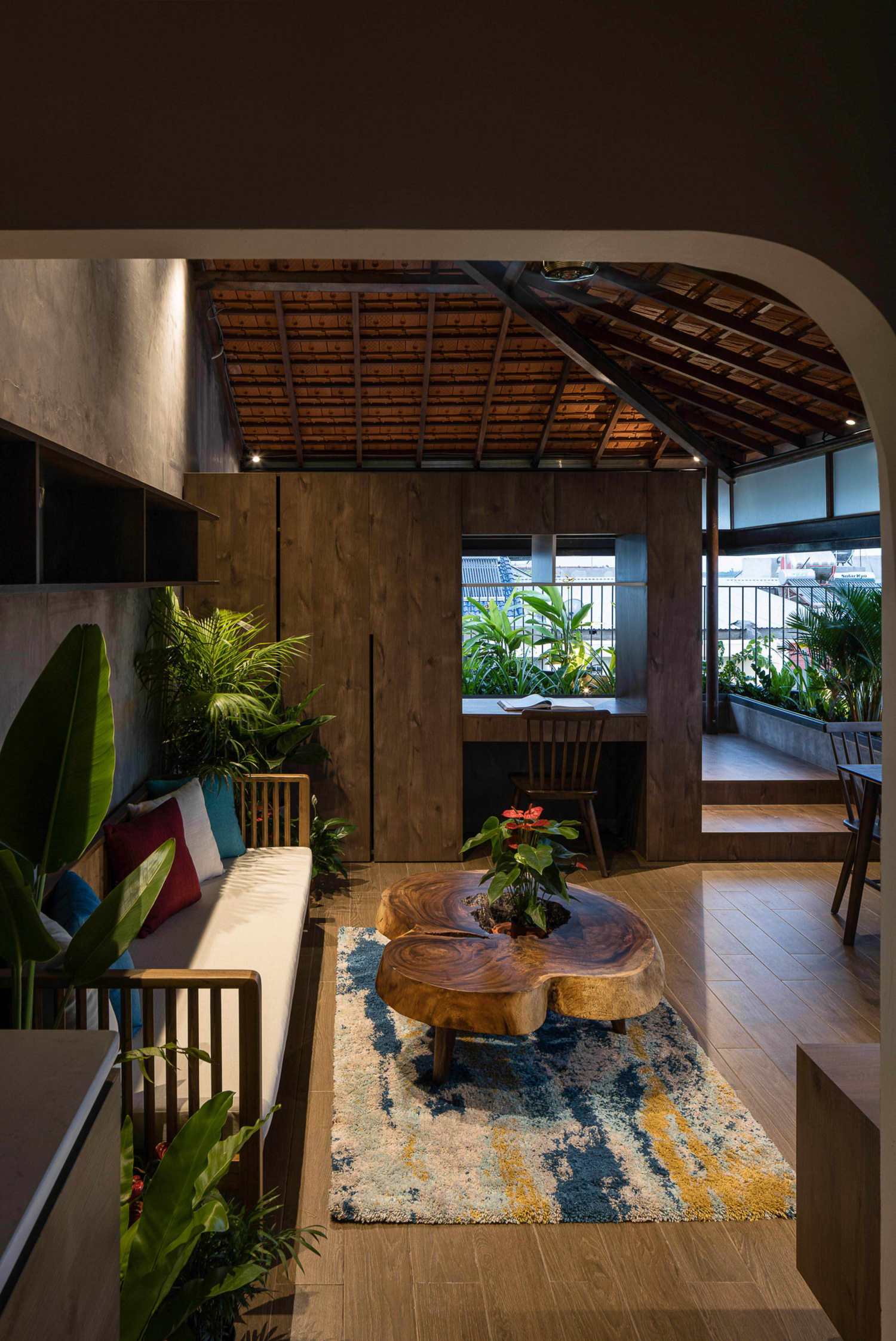

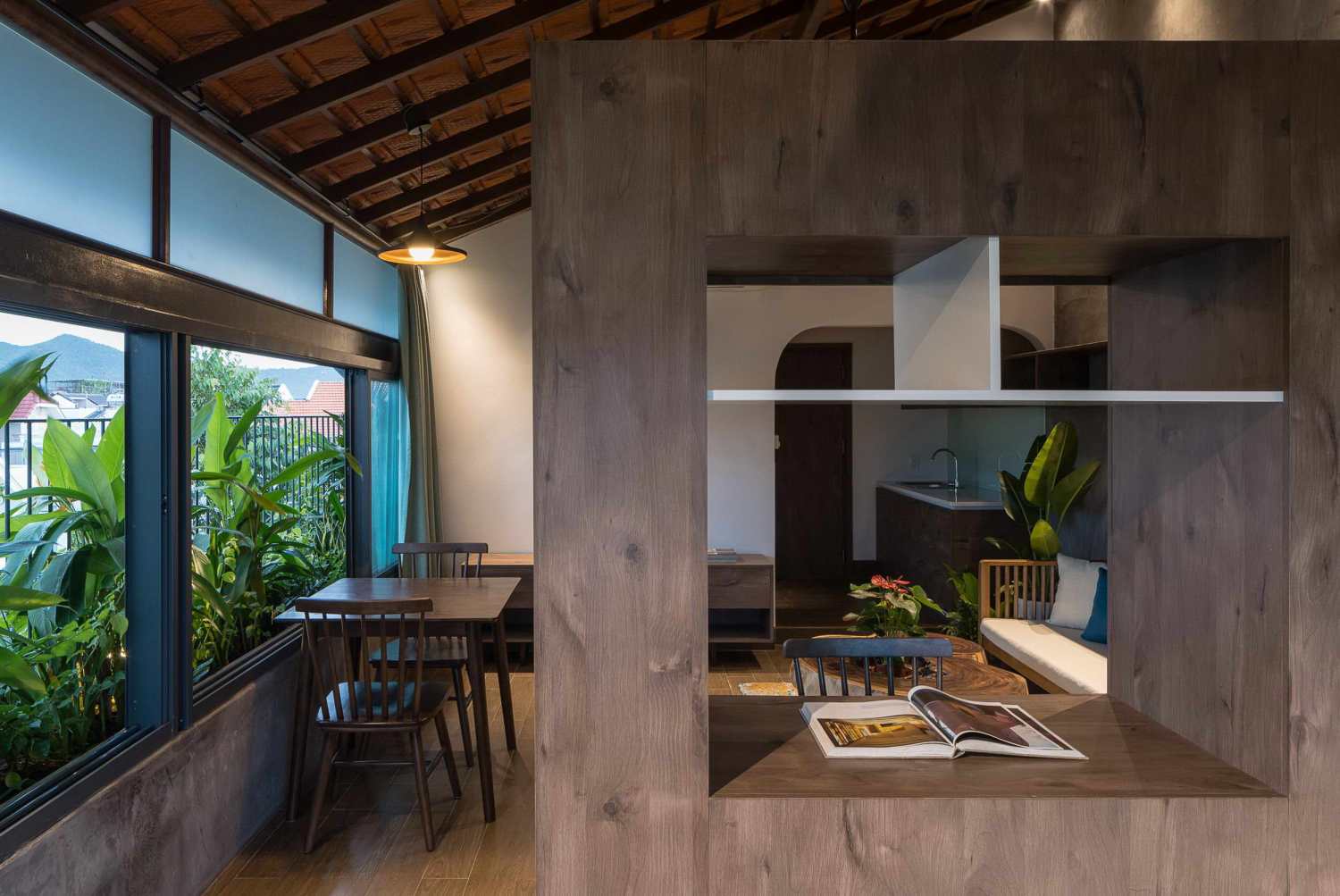

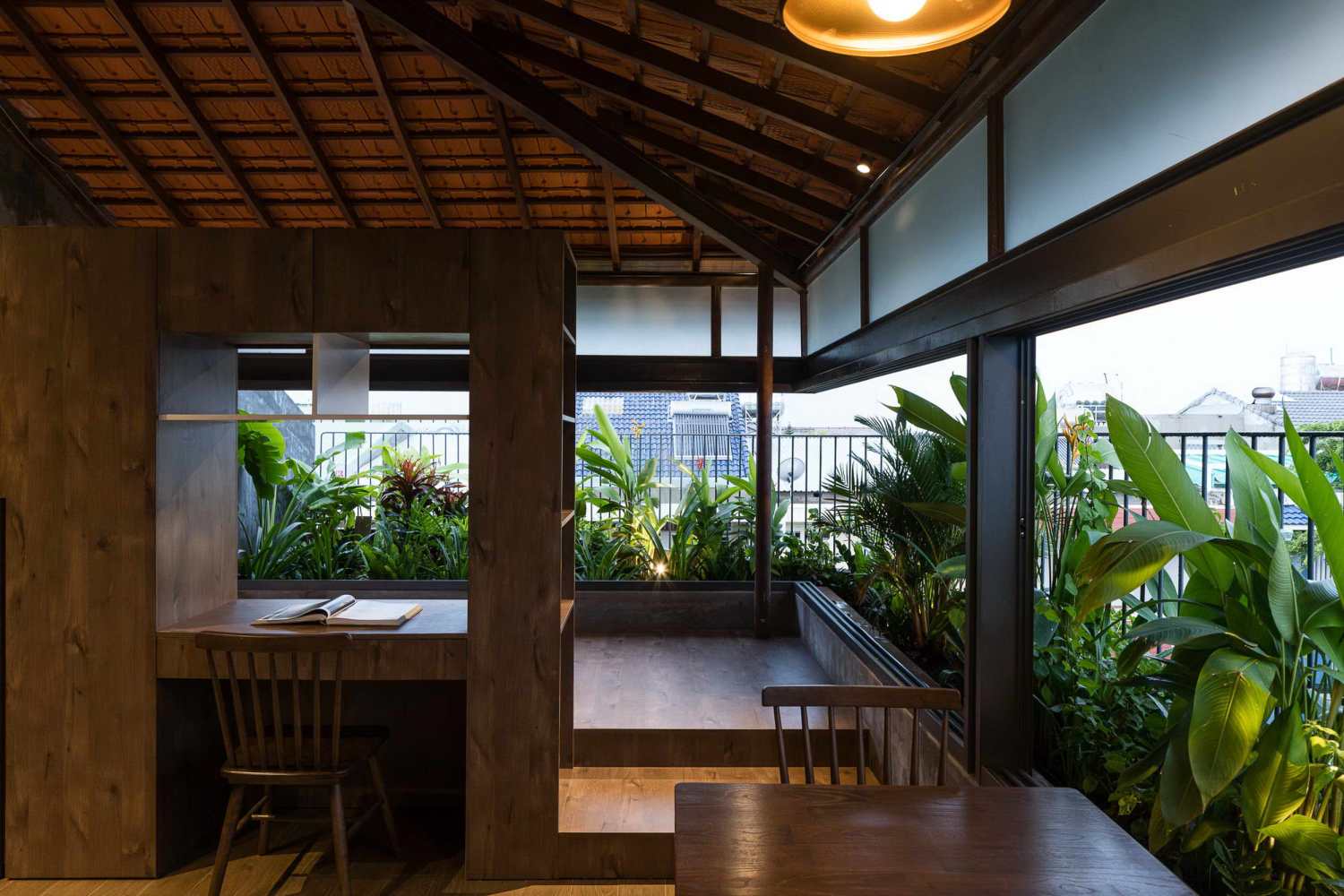

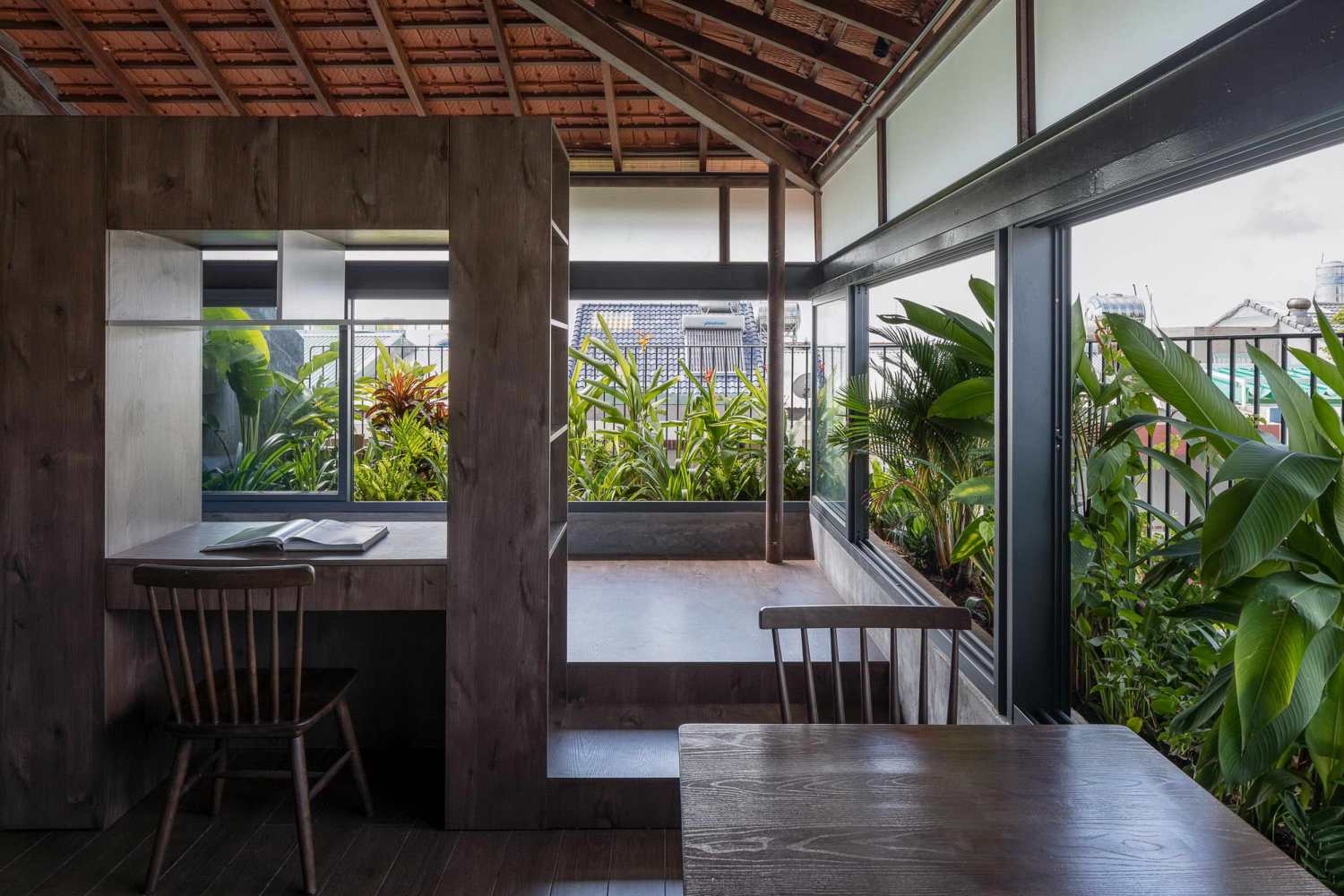

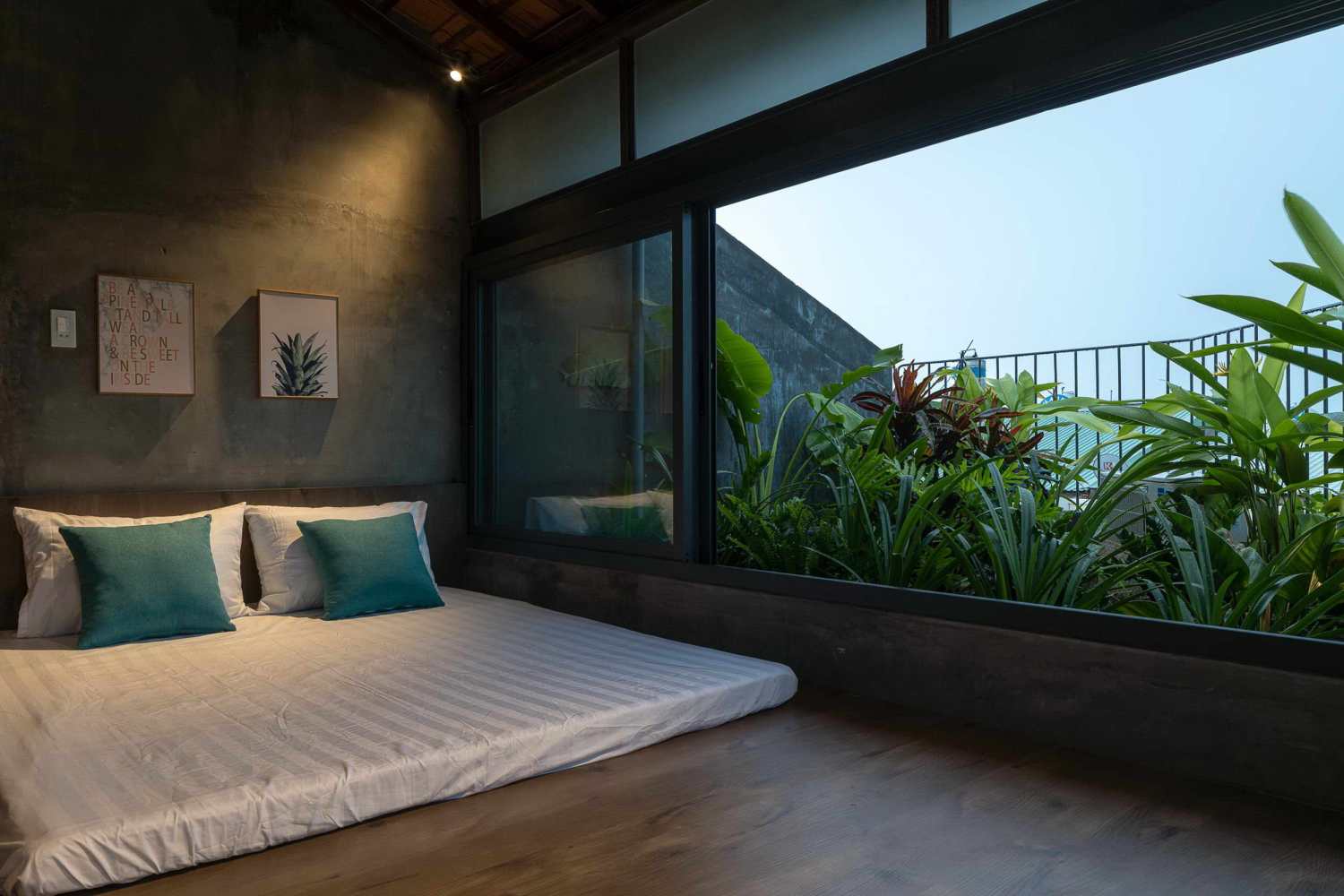

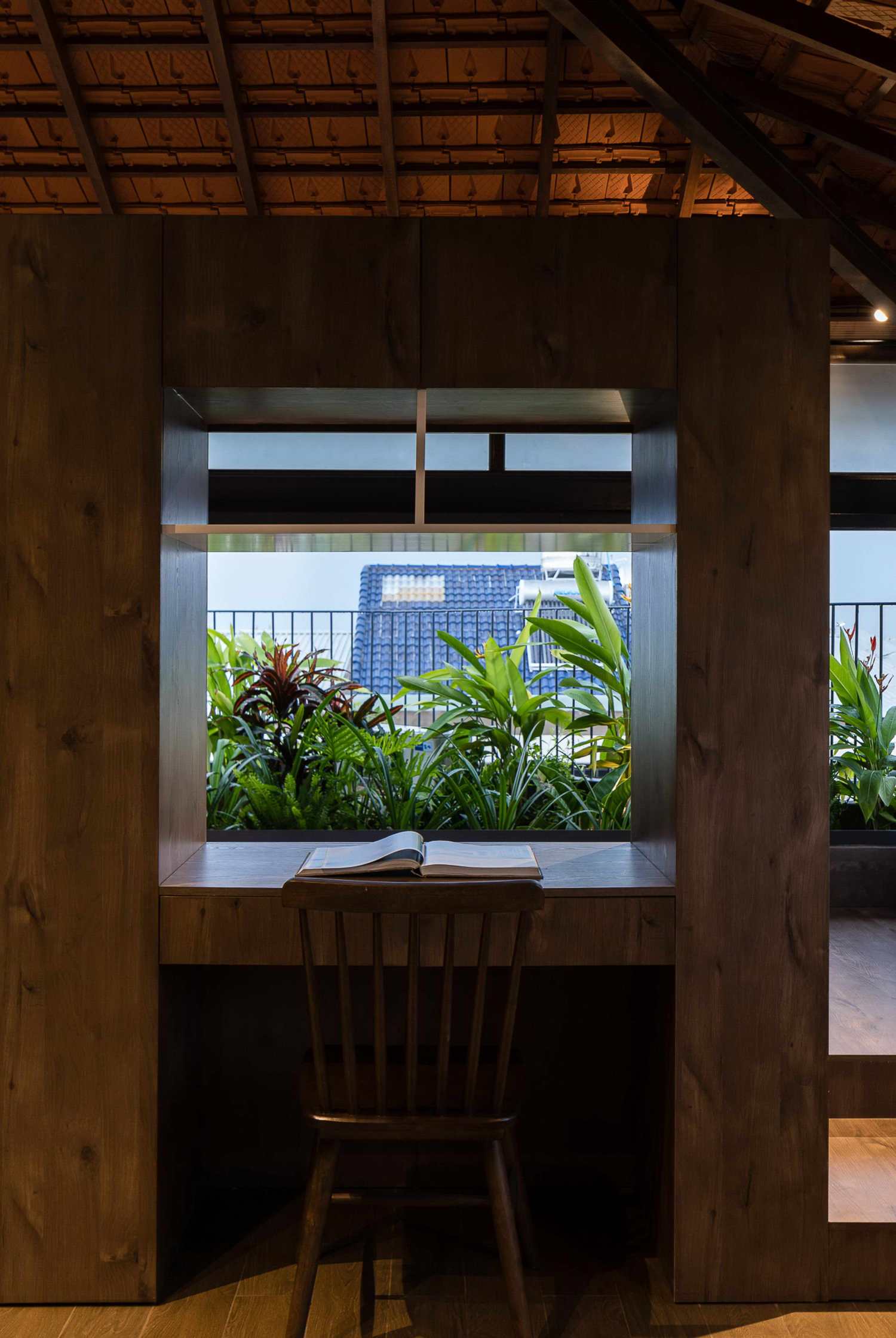

Two fronts are the advantage of the apartment, so the rooms open to the balcony with 2 fronts. If the lower floors show a youthful dynamism, the 2 garret apartments tend to be rustic and minimalistic. The garret has a traditional tiled roof showing off the structure for the truss, opening to the view of hanging gardens running along the house, bringing the sense of space of a mini penthouse. Standing on 2 garret rooms, you can see the mountain view of Vung Tau city.

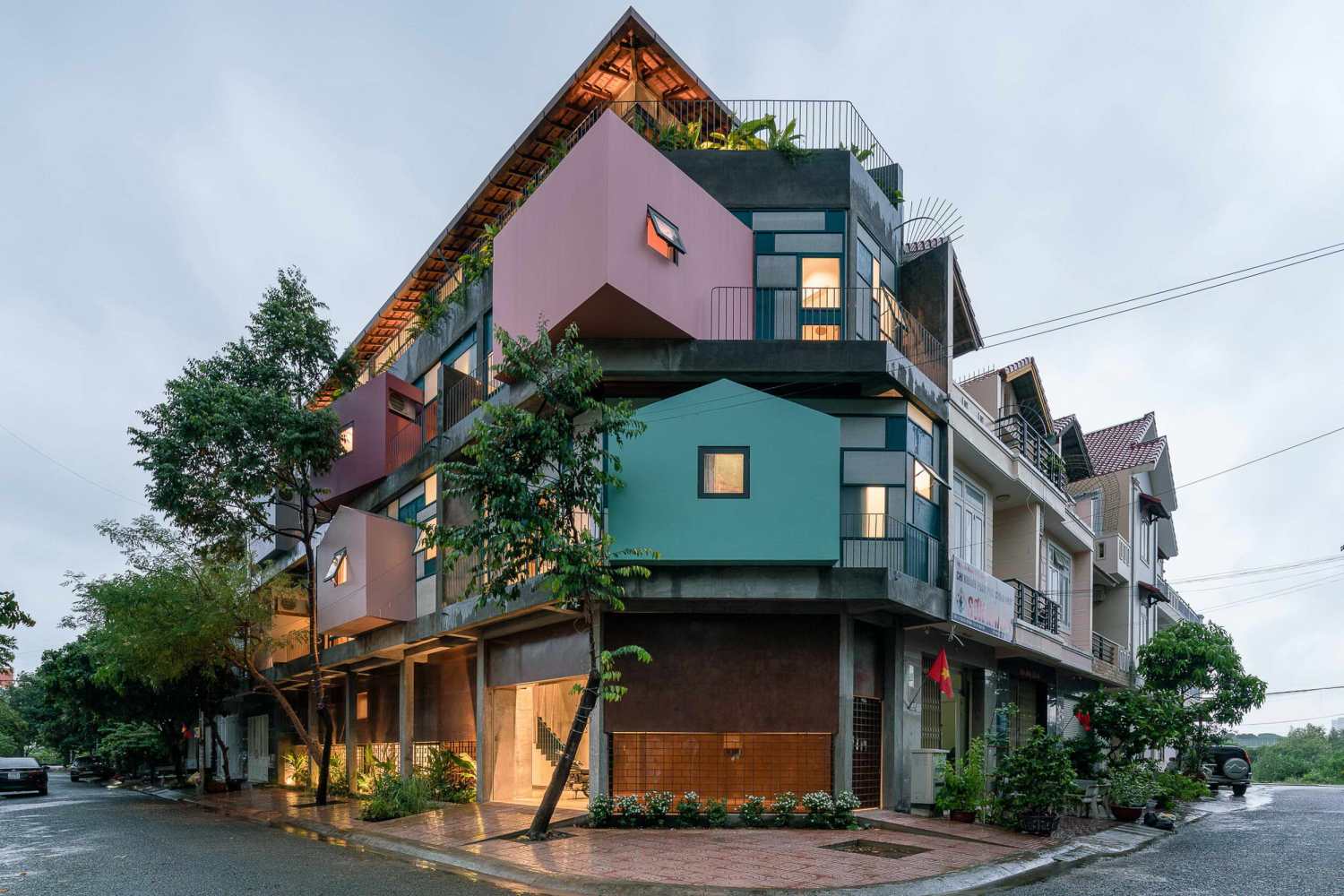

公寓以木质家具完成，带来温暖的感觉。墙面刷成灰色，外立面的基座用钢板材料凸显，并涂上铁锈色，营造出强烈的工业风，这些色调促成了上面移动的彩色平房的亮点。

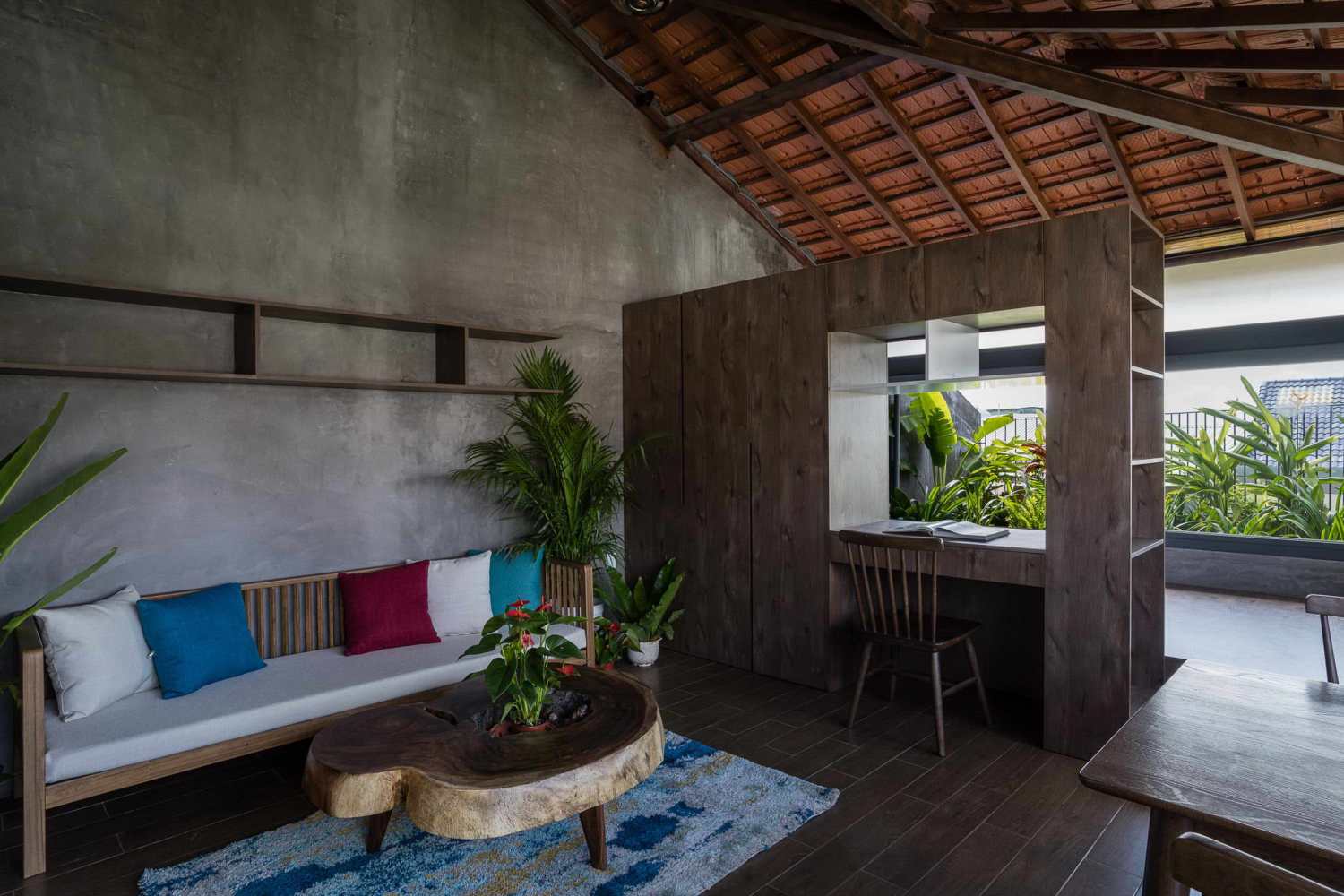

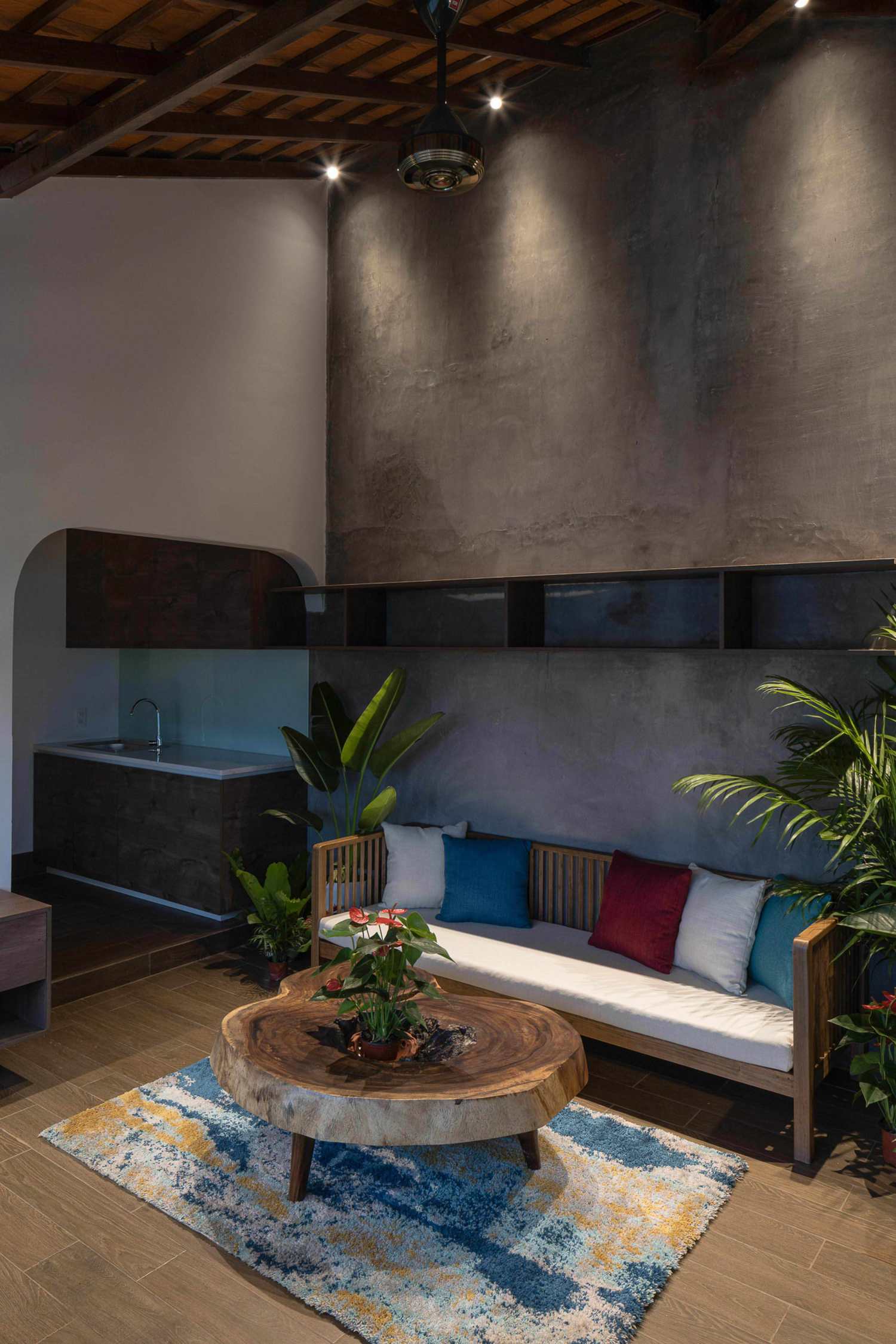

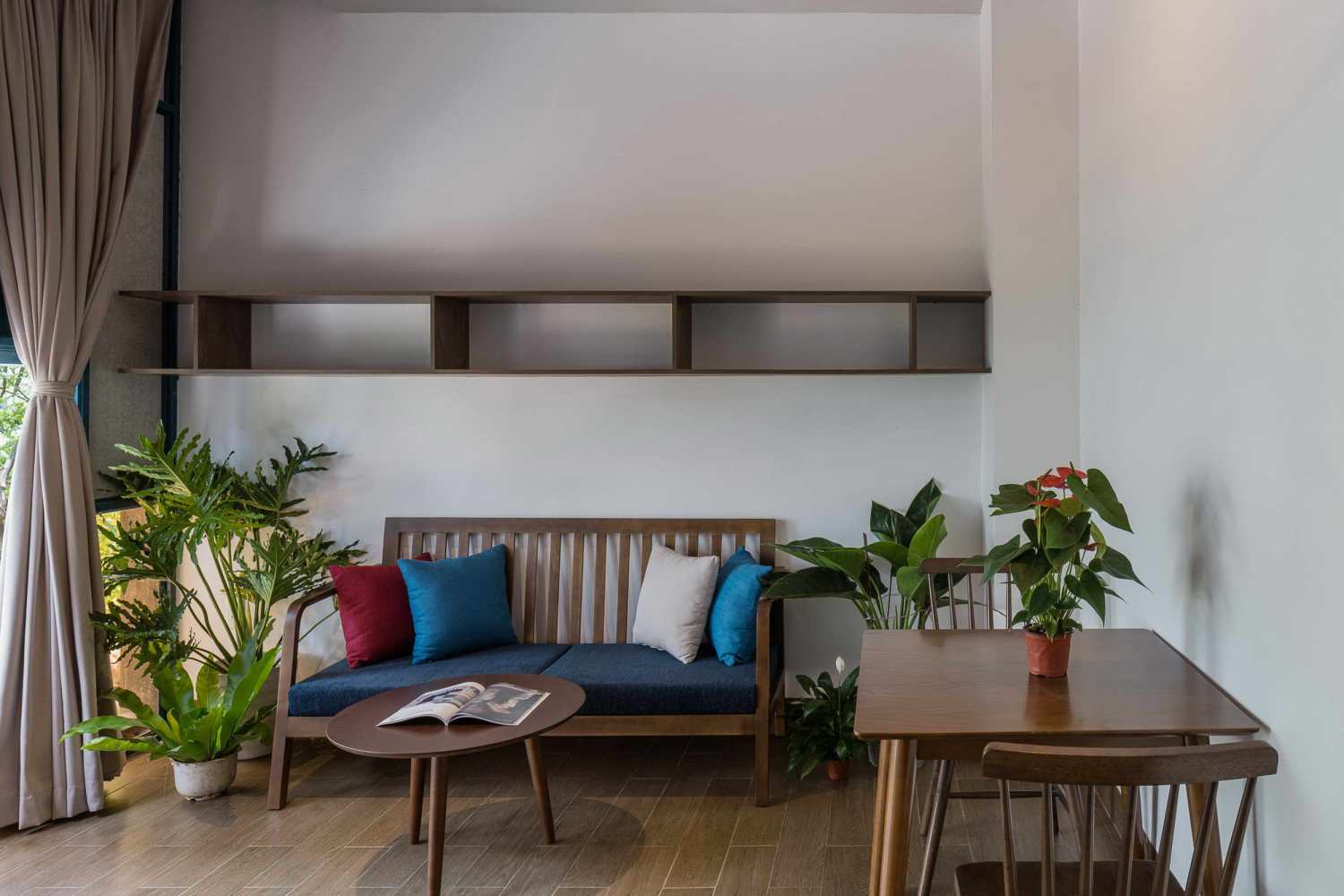

The apartment is completed by wooden furniture, bringing a warm feeling. The painted wall is gray, the base of the facade is accentuated with the steel plate material and is painted in rust to create a strong. These tones contribute to the highlight of the colorful bungalow moving above.
